Aputure VS-3 LCD monitor 7"
ZNAČAJKE:
- 7" 1024 x 600 HDMI, Component, Composite
- 400 Nit Brightness/800:1 Contrast Ratio
- 170/170° H/V Viewing Angle
- Peaking, Zebra, False Color, Histogram
- Image Zoom, Image Flip, Image Freeze
- Adjustable Safe Area Guides
- Center Marker & Under Scan
- Dual Power Inputs
- Built-In Battery Plate
- Ball Mount & Sun Hood Included

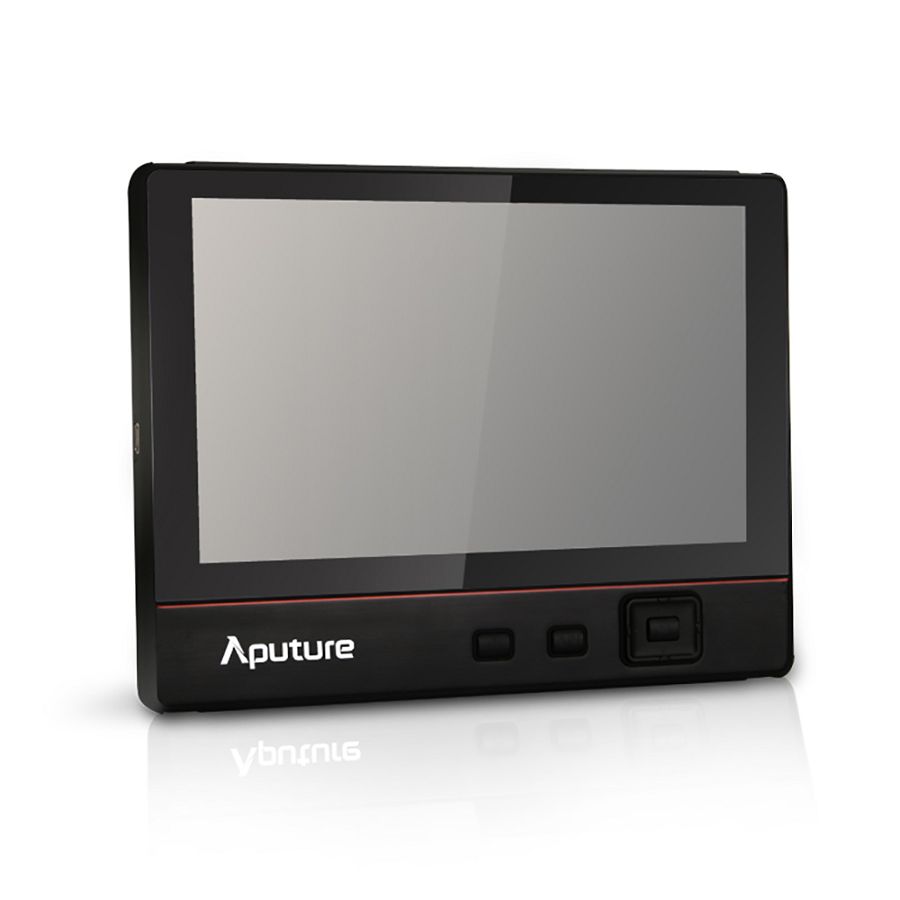

The Aputure VS-3 V-Screen 7" IPS Field Monitor with Peaking features a 7" LCD screen with a resolution of 1024 x 600 pixels, 800:1 contrast ratio, and 400 nit brightness for a crisp image. The VS-3 features 170° horizontal and vertical viewing angle, HDMI, SD/HD component, and composite inputs, and it scales to display signals up to 1920 x 1080. The monitor is a powerful tool for the camera operator as it features built-in tools including peaking, zebra, false color in addition to incorporating display functions including image zoom, freeze, and H/V flip.
The VS-3 features front panel mounted controls for power, input selection, and menu. You can display and adjust safe area guides as well a center marker, and the monitor's flexible power options allow you to choose from powering via the coax connector or optional Sony NP-F, NP-FM/QM type batteries. It incorporates a 1/4"-20 threaded mounting hole and includes a ball joint accessory shoe mount and a removable sun hood.

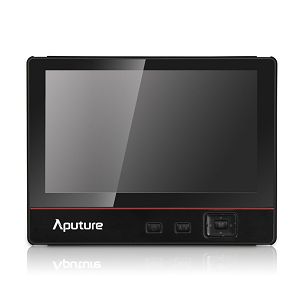

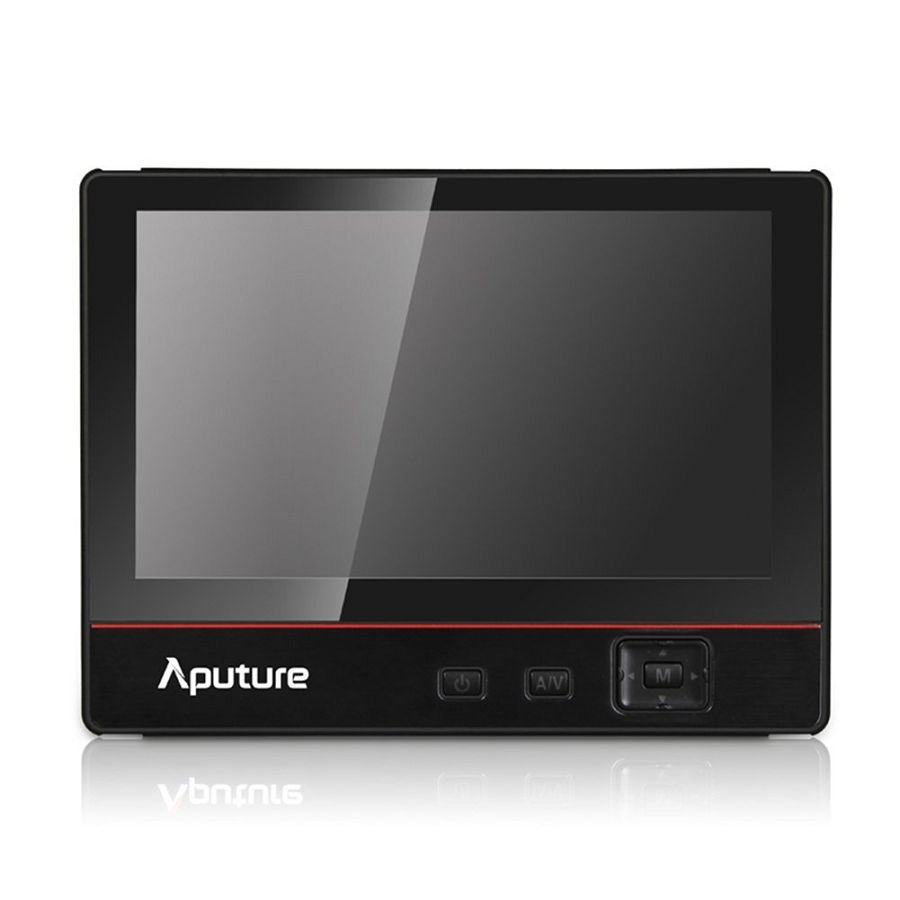

Front Panel Buttons
You can apply function shortcuts to the Up/Down/Left/Right buttons. Shortcuts include safe area, center marker, color bar, volume bar, histogram, peaking, zebra, false color, monochrome, freeze, camera mode, horizontal flip, vertical flip, zoom, dot-to-dot, and scan mode.
Image Evaluation Tools
Focus Peaking
Peaking highlights the sharpest (most in focus) areas of the image with a color outline. Both the peaking color (red, yellow, blue, white) and sensitivity (off, high, low, high light) can be adjusted in the monitor's menu system.
Zebra
A real-time exposure tool that indicates when subjects or parts of the frame are outside of the exposure threshold. The zebra pattern will appear on the parts of the image that have reached or exceeded the brightness level you set (70 or 100IRE) to warn provide a visual indication that the area is overexposed and in danger of clipping.
False Color
False Color provides under/over luminance warning by presenting the image as a series of color values representing exposure.
Histogram
Histogram provides a graphic depiction of how many pixels in your image are at each level between black and white. This provides you exposure information so you can objectively judge how much of your image is clipping, falling into the shadows, or being captured faithfully.

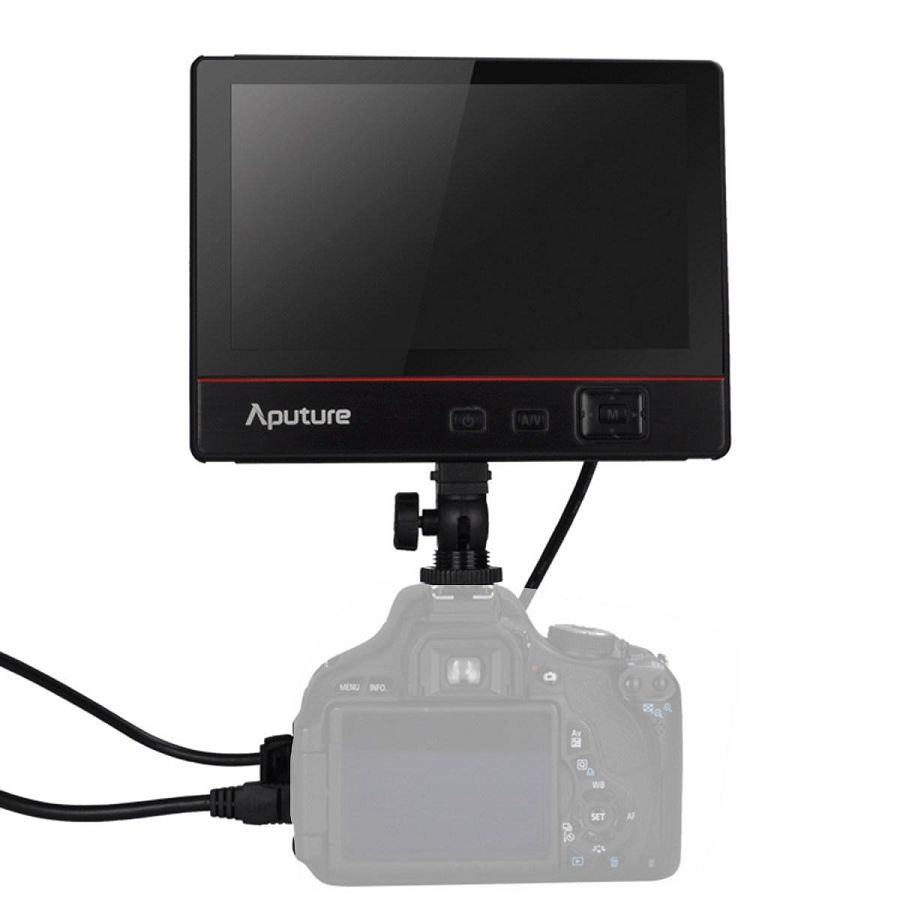

Mounting
Using the 1/4"-20 threaded mounting hole on the bottom of the monitor, you can mount the monitor to your camera's accessory shoe using the included ball joint mount.
Flexible Battery System
Compatible with Sony NP-F, NP-FM/QM type batteries. You can power the monitor and simultaneously charge an optional battery connected to the monitor.
Display Features
Monochrome
Off/Gray/R/G/B
Volume Bar
On/Off
Color Bar
On/Off
Camera Mode
On/Off
SPECIFIKACIJE:
LCD Size: 7"
Viewing Angle H/V: 170° / 170°
Resolution: Native: 1024 x 600; Supports: 1920 x 1080
Aspect Ratio: 16:9; 4:3; Full Screen
Brightness: 400 nit
Contrast: 800:1
Color Temperature: User; 6500K; 9300K

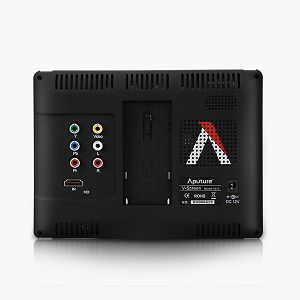

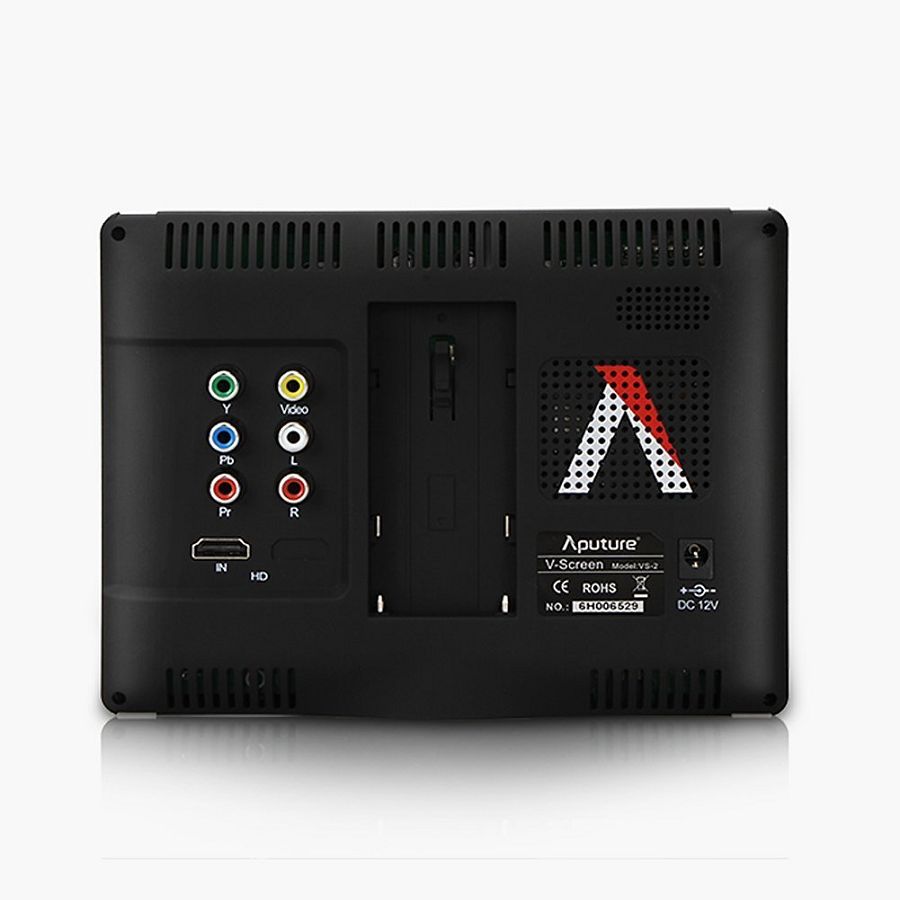

Input and Output Connectors
Video Input
HDMI: 1 x HDMI
YPbPr: 3 x BNC (1 x component input)
Composite: 1 x RCA jack
Video Output
HDMI: 1 x HDMI (loop-through)
Audio Input
2 x RCA jack (L/R pair)
Output
1 x Speaker
1 x 3.5mm jack
Mounting 1 x 1/4"-20 threaded mounting hole
Power Requirements: 7 to 12 VDC 900 mA
Power Consumption: ?11 W
Power Connectors:
Battery: Sony NP-F, NP-FM/QM
Coax: Pin positive
Temperature & Humidity
Operating
-4 to 140°F / -20 to 60°C
Storage
-22 to 158°F / -30 to 70°C
Humidity
30 to 80%
Dimensions (WxHxD): 7.2 x 5.4 x 0.9" / 182 x 138 x 23 mm
Weight: 13 oz / 368 g

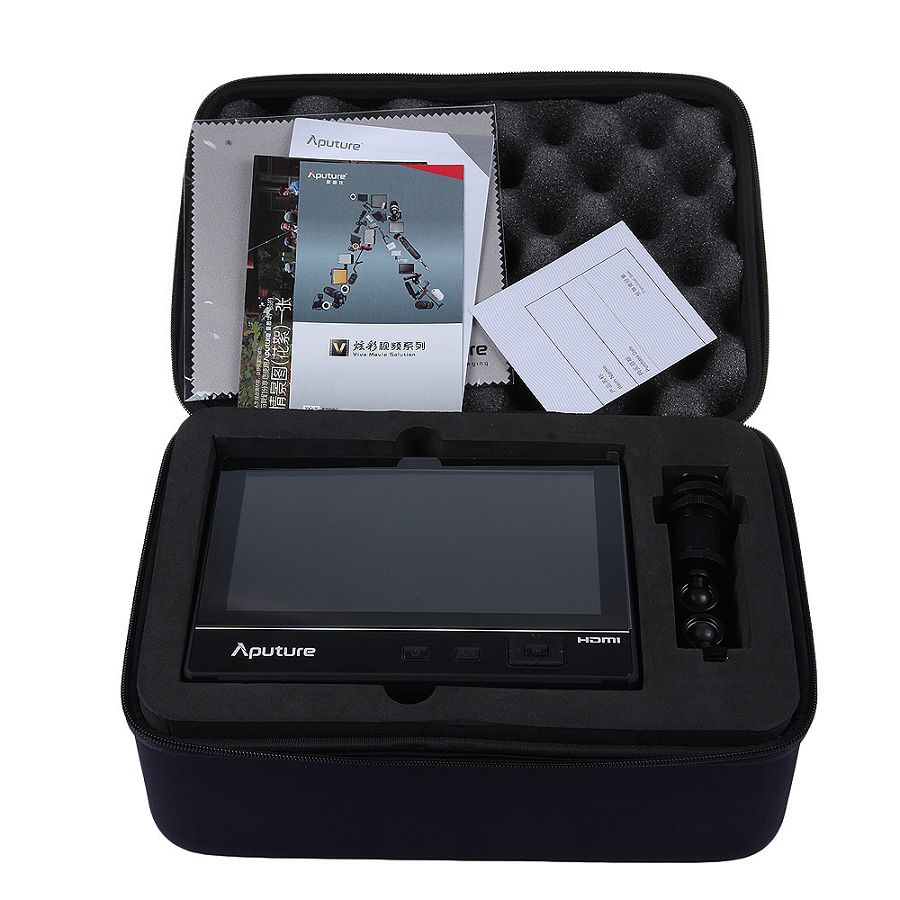

UKLJUČUJE:
- Aputure VS-3 V-Screen 7" IPS Field Monitor 1024 x 600 Native Resolution with Peaking, Dual Power Inputs, Sony L Series Type Battery Plate
- HDMI Cable
- Ball Joint Cold Shoe Mount
- Folding Sunshade
- Firmware Upgrade Cable
- Soft Cleaning Cloth
- Limited 1-Year Warranty
