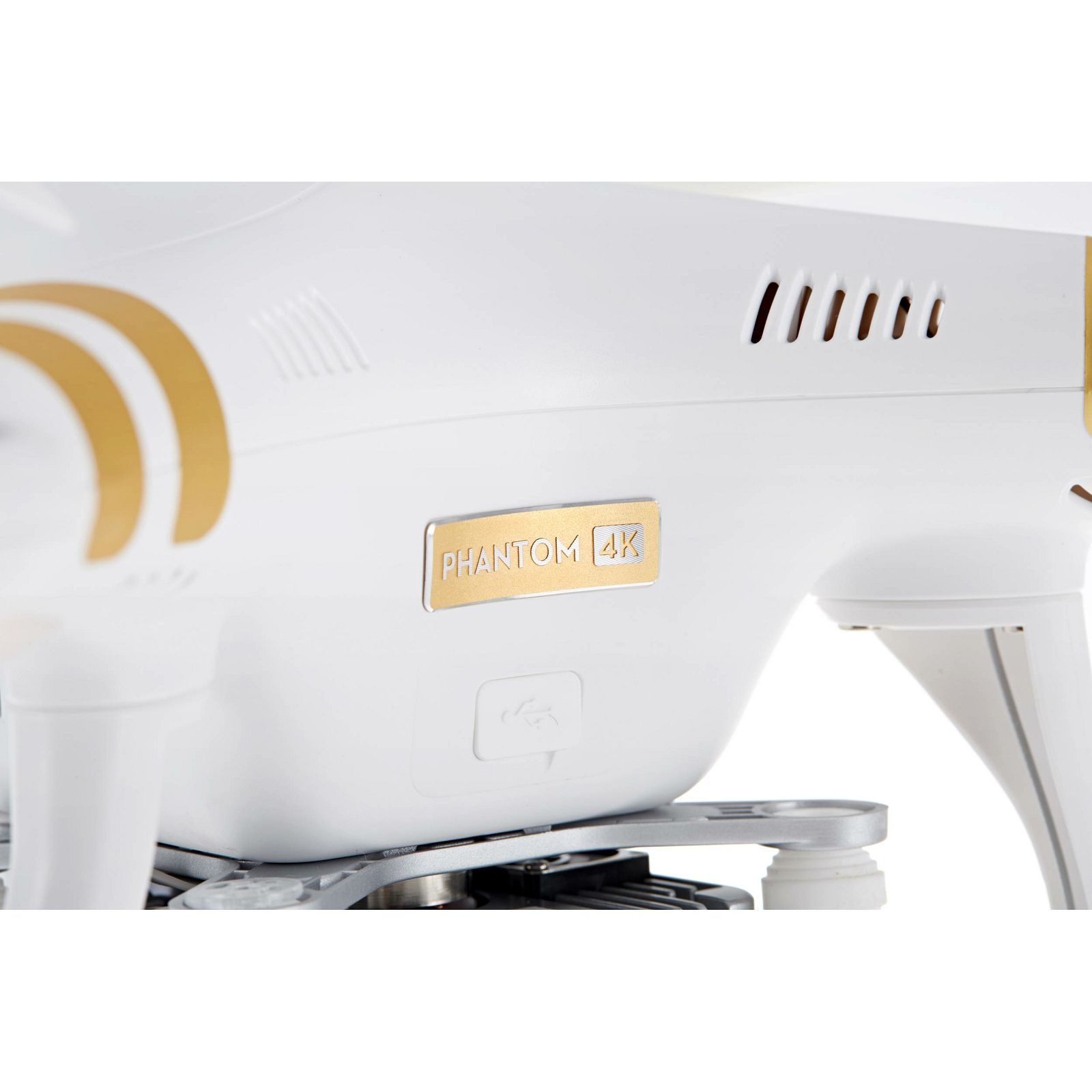

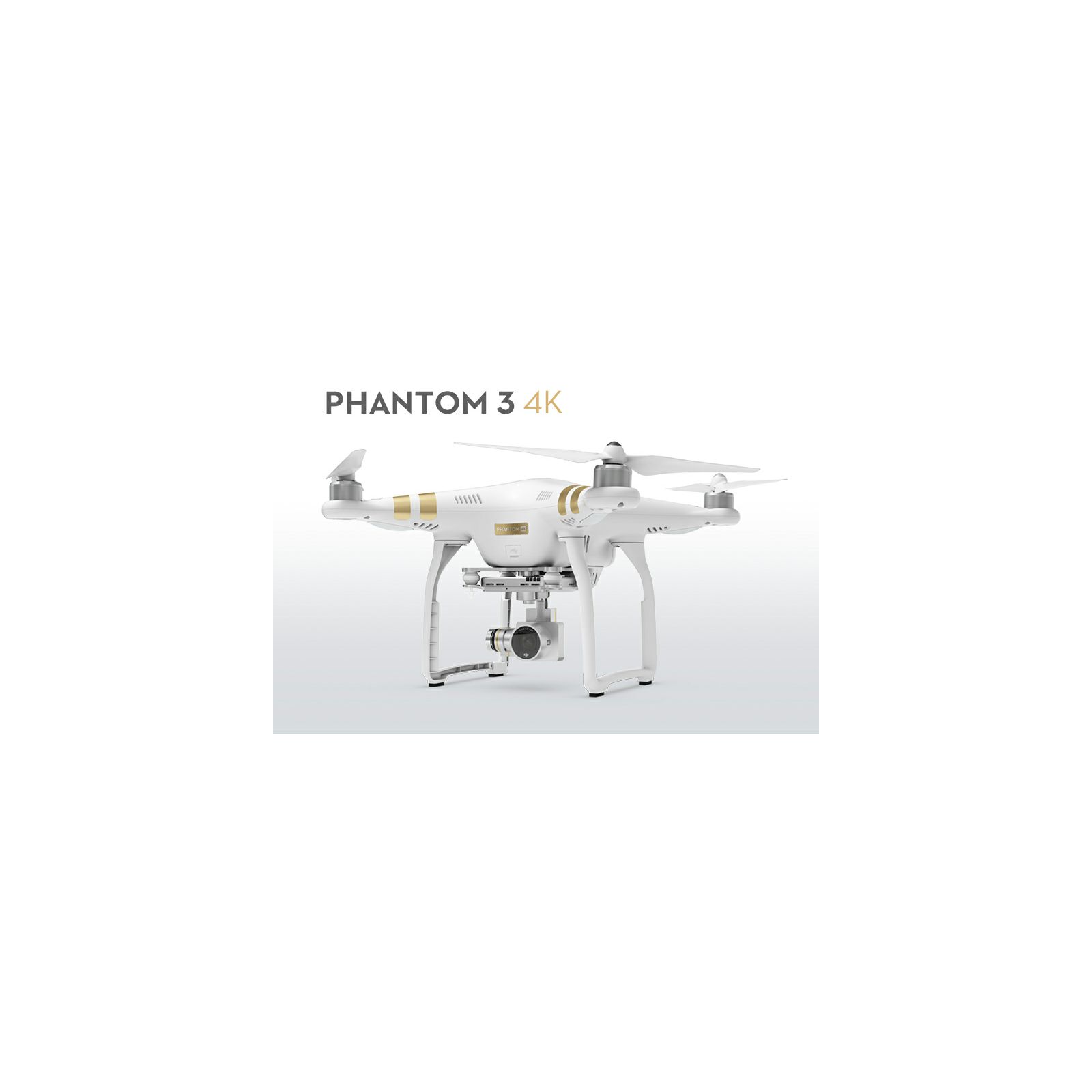

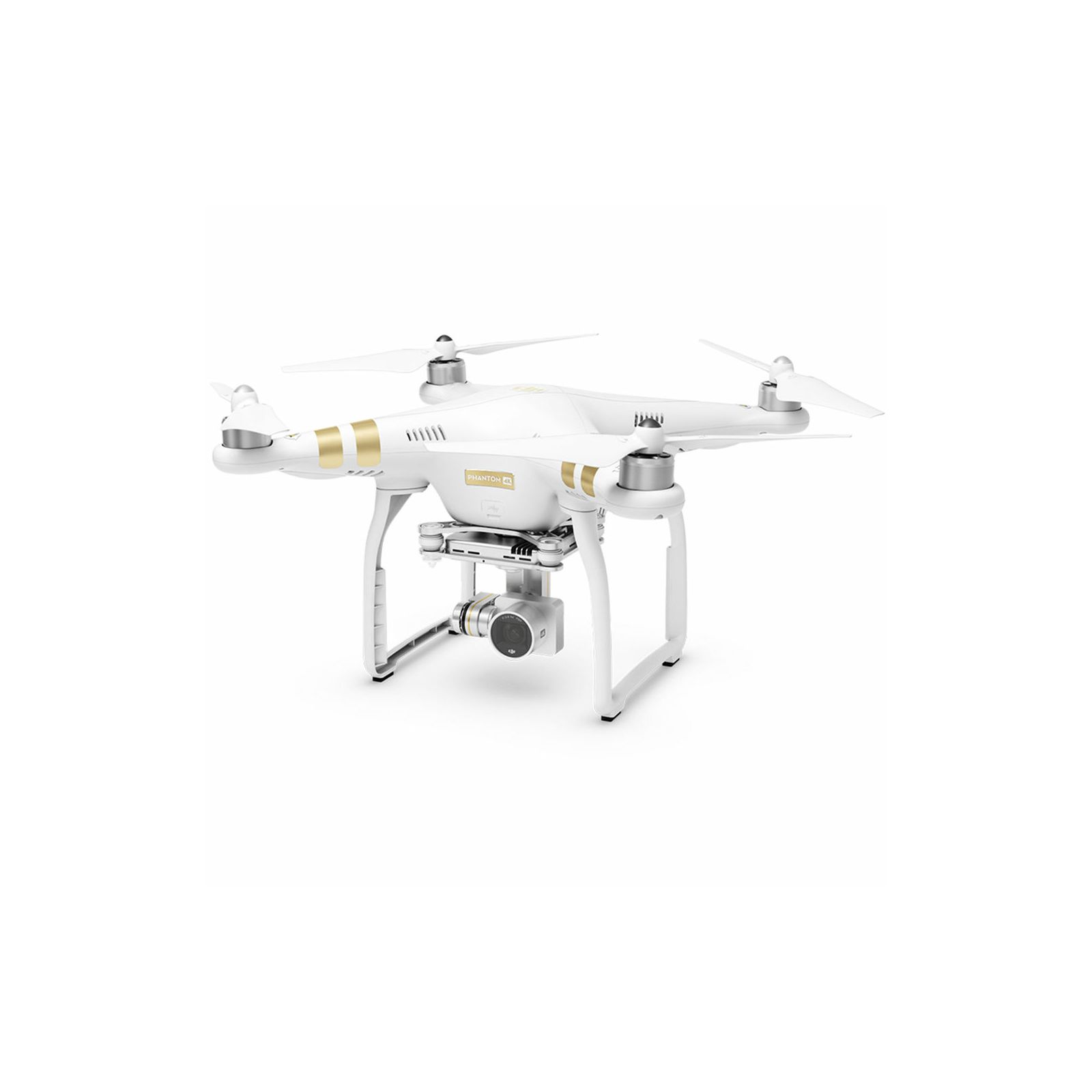

DJI Phantom 3 4K dron quadcopter + 4K kamera + 3D gimbal

PRODUCT HIGHLIGHTS

24 fps DCI 4K / 30 fps UHD 4K
Camera Takes 12MP Still Photos
Wi-Fi Extender with 3900' Range
DJI Go App for iOS / Android
Home and Course Lock Flight Modes
Follow Me / Waypoint Navigation
Point of Interest Orbit Mode

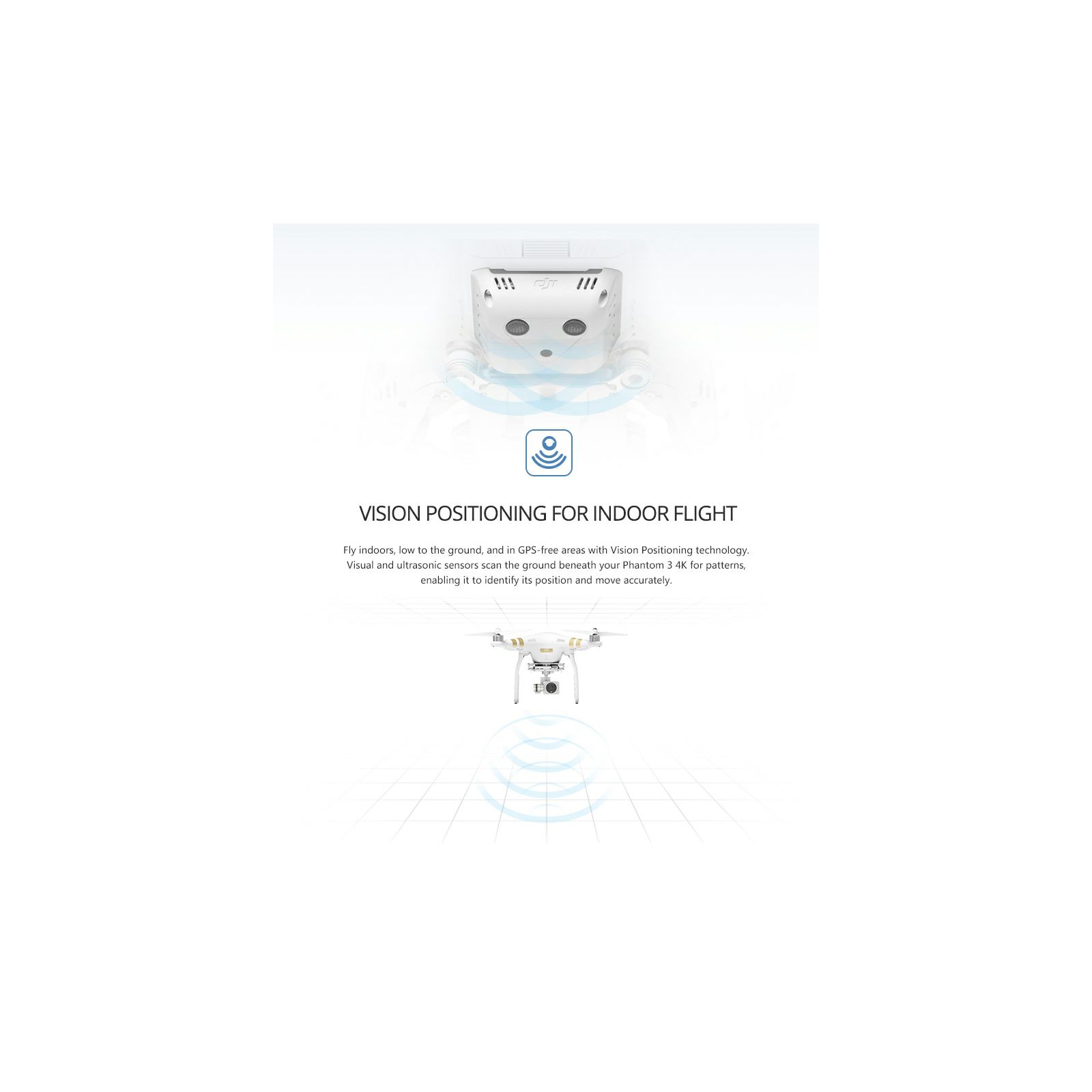

Vision Sensor for Indoor Flight
Up to 25 Minutes Flying Time
Mobile Device Holder Included



Built from the ground up for aerial filmmaking and photography, the Phantom 3 4K from DJI features an integrated 12MP camera attached to a 3-axis gimbal. Apart from 12MP JPEG or RAW photos, the camera can record cinema-spec DCI 4K (4096 x 2160) at 24 fps and UDH 4K (3840 x 2160) at 30 fps. With the included flight battery, the quadcopter can fly for up to 25 minutes, depending on conditions.

A 2.4 GHz Wi-Fi link with range extender allows you to use the venerable DJI Go app for live HD monitoring and camera control. Additionally, you can access intelligent flight control features tailored to needs of the filmmaker, including Follow Me, Course Lock, Home Lock, and waypoint navigation. The Wi-Fi extender as well as the included handheld controller (transmitter) feature a line-of-sight range of up to 3937'.

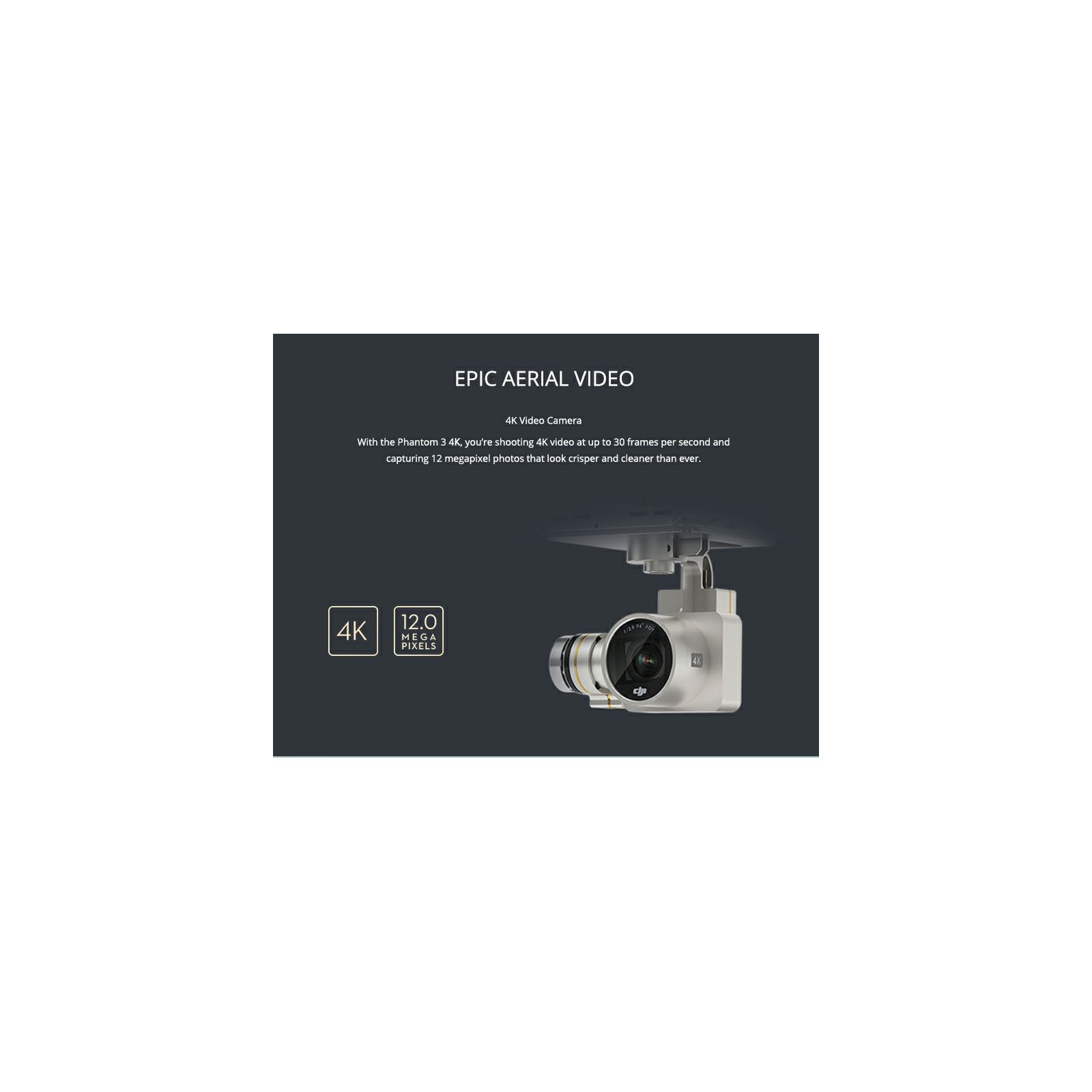

Integrated 4K Camera
Up to 4K Video and 12MP Stills
The included camera system features video recording at up to 4K30 (4096 x 2160) in H.264 and also takes JPEG and DNG RAW photos at 12MP. The camera mounts via a 3-axis gimbal that provides stabilization as well as a -90 to +30° controllable pitch (tilt) range. Media is recorded internally to a microSD card up to 64GB in size
Video Resolutions and Frame Rates
DCI 4K (4096 x 2160): 24, 25 fps
UHD 4K (3840 x 2160):24, 25, 30 fps
1080p (1920 x 1080): 24, 25, 30, 48, 50, 60 fps
720p (1280 x 720): 24, 25, 30, 48, 50, 60 fps
94° Wide Angle Lens
The camera features a 94° angle-of-view lens, which is a narrower angle than a fisheye for less distortion while still being wide enough to enable capturing establishing shots. The lens features an f/2.8 aperture and is comprised of 9 elements, including an aspherical element

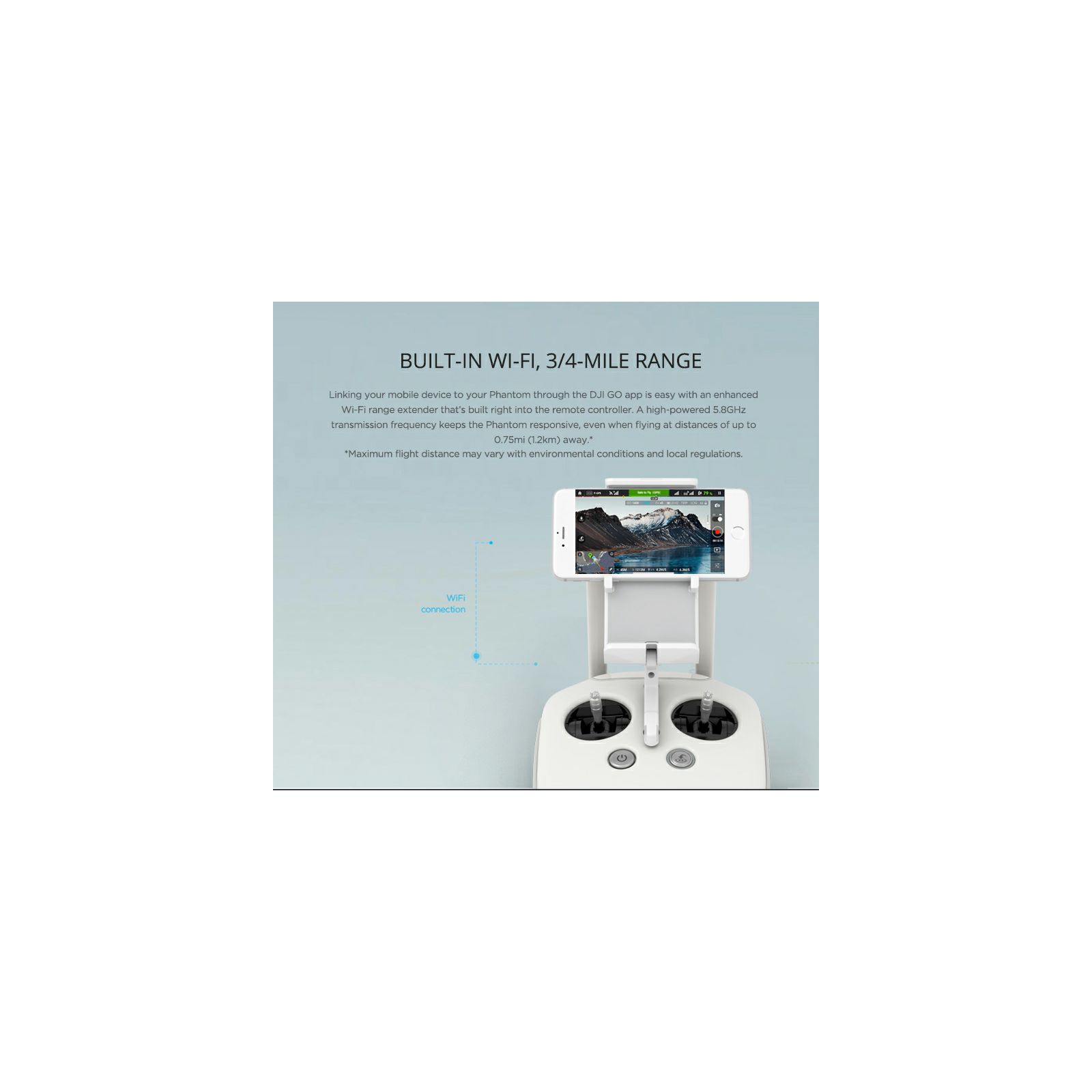

Wi-Fi Downlink
App-Based Monitoring and Control
A 2.4 GHz Wi-Fi extender built into the controller extends the Wi-Fi range up to 3900' line-of-sight. Via the link, you can use a mobile device to view a live, HD image from the camera, control video and photo recording, and access settings not available through the controller (transmitter). A mount is included to attach a smartphone or table to the controller
DJI Go App
Use the DJI Go app for iOS and Android to remotely operate the Phantom 3 4K camera and view a live, HD video feed
Flight Control Modes
Follow Me
Program your Phantom 3 4K to act as your own personal, flying film crew
Course Lock
By activating Course Lock, the controls will be set to be relative to your aircraft's current path. This mode allows you to fly in a set direction while tracking alongside moving objects or across scenes
Waypoints
With this autopilot mode, apply pushpins to a map to create "waypoints" that define the Phantom 3 4K's course Altitude, speed, and heading can all change at each waypoint
Home Lock
With this orientation mode, fix your controls to be relative to the Home Point. Easily pull back on the control stick to bring the aircraft back home, or push forward to fly farther away, no matter which way the "noise" is pointing
Point of Interest (POI)
Select a location or object to focus on, and the Phantom 3 4K will continuously circle it, no matter how you fly. This is similar to "orbit mode" found in other flight control systems
Additional Features

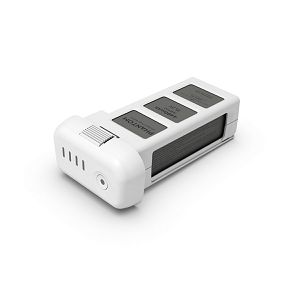

Intelligent Flight Battery
The flight battery slots into the "tail" of the Phantom 3 and features and on/off switch plus four LED charge indicators that are visible while flying – so you can keep track of remaining flight time without needing to consult the app. For recharging, balance and power regulation is handled internally within the battery itself. You simply plug it into a wall outlet with the supplied power cord and you are good to go

SPECIFIKACIJE:

Performance
Maximum Speed Horizontal: 52.5' ft/second 16 m/second (Attitude Mode, no wind)

Ascent: 16.4 ft/second / 5 m/second
Descent: 9.8 ft/second /3 m/second
Hover Accuracy Horizontal:±4.9' / 1.5 m
Flight Time Up to 25 minutes
Flight Ceiling Above Sea Level: 19685' / 6000 m
Above Ground Level (AGL): 524.9' / 160 m (software restricted)
Flight Control System
GPS Mode GPS
Vision Positioning
Vision Positioning < 26.2 ft/second / 8 m/second (6.6' / 2 m above ground level)
Altitude Range 19.7 to 118.1" / 50 to 300 cm
Operating Range 19.7 to 118.1" / 50 to 300 cm
Operating Environment Brightly lit ( > 15 lux) patterned surfaces
Transmitter
Model GL358wB
Frequency 5.725 to 5.825 GHz
Range 3937' / 1200 m (line-of-sight: 400' / 120m AGL)
Transmit Power 19 dBm
Working Current 300 mA at 7.4 V
Mobile Device Holder Device Compatibility: Tablets and smartphones
Battery Chemistry: Lithium polymer (LiPo)
Capacity: 2600 mAh
Configuration: 2S
Operating Temperature 32 to 104°F / 0 to 40°C
Wi-Fi
Frequency 2.402 to 2.472 GHz
Range 3937' / 1200 m (line-of-sight; 400' / 120m AGL)
Transmit Power 27 dBm
Camera
Sensor Make: Sony EXMOR
Size: 1/2.3"
Resolution: 12.76 MP (12.4 MP effective)
Lens Aperture: f/2.8
FOV: 94°
Focal Length: 20 mm (35 mm equivalent)
Elements: 9
Focus: 0 to ?
Photo Resolution Up to 12 MP (4000 x 3000)
ISO Range Video: 100 to 3200



Photo: 100 to 1600
Video Resolutions DCI 4K (4096 x 2160): 24, 25 fps
UHD 4K (3840 x 2160):24, 25, 30 fps
1080p (1920 x 1080): 24, 25, 30, 48, 50, 60 fps
720p (1280 x 720): 24, 25, 30, 48, 50, 60 fps
Photo Modes Single Shot

Burst Shooting: 3/5/7 shots
Auto Exposure Bracketing (AEB): 3/5 Bracketed Frames at 0.7 EV Bias
Time-lapse
Shutter Speed 8 to 1/8000 second
File Formats Video: MPEG-4 AVC/H.264 in MOV wrapper (up to 60 Mbps)
Photo: JPEG, DNG RAW
Recording Media Type: microSD/SDXC card up to 64 GB

Note: Class 10 or UHS-1 rating or faster required
Operating Temperature 32 to 90°F / 0 to 32°C

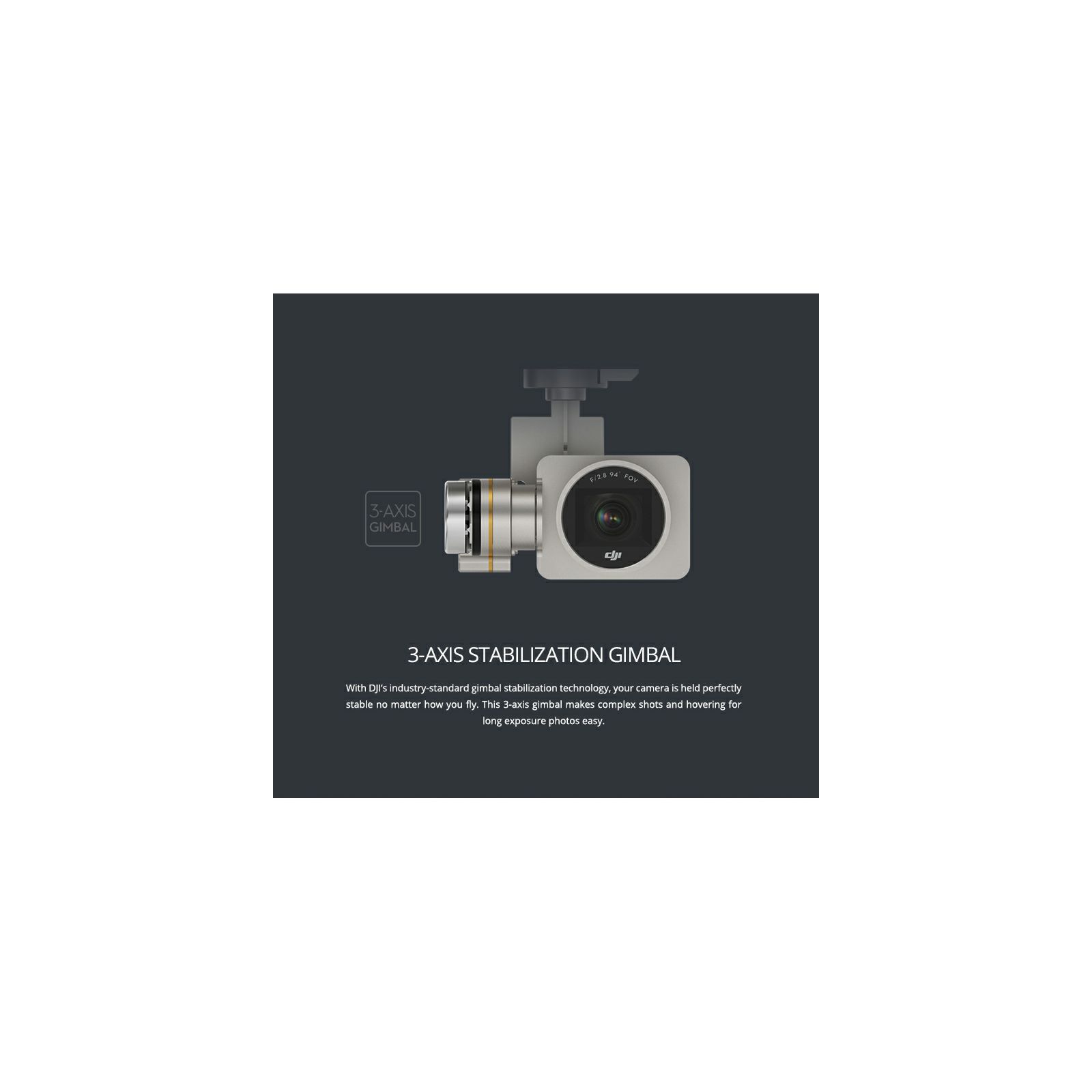

Gimbal
Number of Axes 3 (pitch, roll, yaw)
Control Range Pitch: -90 to +30°
Flight Battery
Model PH3-4480
Chemistry Lithium polymer (LiPo)
Capacity 4480 mAh
68 Wh
Configuration 4S
Voltage 15.2 V
Weight 12.9 oz / 365 g
Maximum Charging Power 100 W
Operating Temperature 14 to 104°F / -10 to 40°C
Weight 12.9 oz / 365 g
Charger Voltage: 17.4 V
Rated Power: 57 W
Mobile App
Name DJI Go
System Requirements Android or iOS mobile device (see DJI website for latest device compatibility list)
Recommended Devices iOS: iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Air, iPad Air Wi-Fi and Cellular, iPad mini 2, iPad mini 2 Wi-Fi and Cellular, iPad Air 2, iPad Air 2 Wi-Fi and Cellular, iPad mini 3, iPad mini 3 Wi-Fi and Cellular.

Note: This app is optimized for iPhone 5s, iPhone 6, and iPhone 6 Plus

Android: Samsung Galaxy Tab S T705C, Samsung S6, Samsung S5, Samsung Galaxy Note 4, Samsung Galaxy Note 3, Google Nexus 9, Google Nexus 7 II, Ascend Mate 7, Nubia Z7 mini, Sony Z3 Xperia, Mi Pad 3, Mi Pad
General
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions Diagonal Size: 23.2" / 590 mm
Weight With Battery and Propellers: 2.8 lb / 1280 g
Packaging Info
Package Weight 8.65 lb
Box Dimensions (LxWxH) 15.3 x 14.4 x 8.3"

FAQ

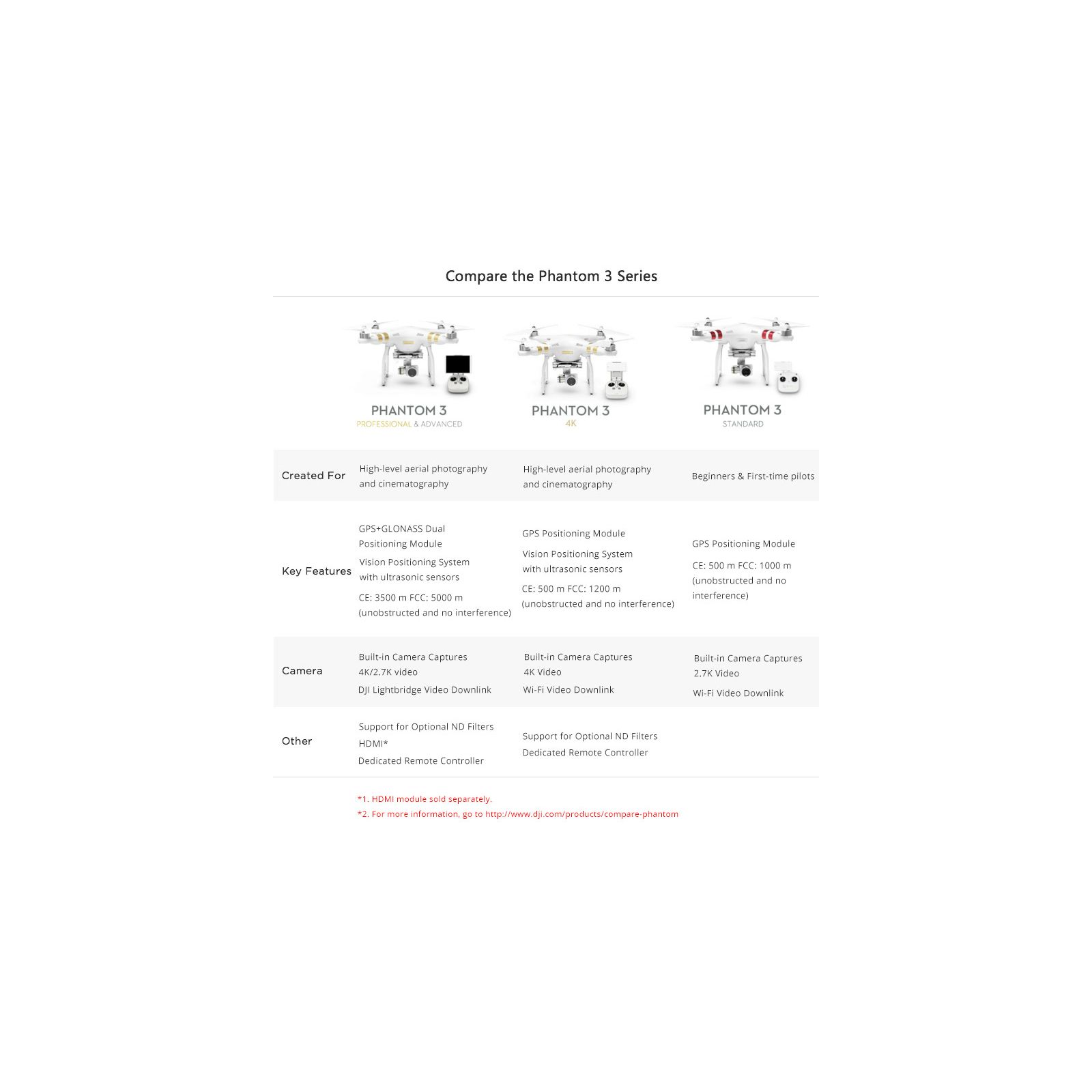

What are the main differences between the Phantom 3 4K and the Phantom 3 models?

The Phantom 3 4K is the only one of the Phantom range to feature a powerful camera capable of 4K video and Wi-Fi connectivity for the live video feed.

How do I reset the Wi-Fi video downlink?

Option 1: Turn on the remote controller then, while holding down the C1 and C2 buttons on the back of the remote controller, press the camera settings dial to reset.
Option 2: Flick the flight mode switch back and forth until the remote controller status indicator blinks red and green. This shows that the reset is in progress. Wi-Fi download reset is successful when the remote controller status indicator turns solid green.

How do I link the remote controller?

The Phantom 3 4K is linked to the remote controller by default. Re-linking is only necessary if the remote controller is replaced.
To link a new remote controller:
1) Turn on the remote controller and connect to your mobile device.
2) Launch the DJI GO app.
3) Turn on the Intelligent Battery.
4) Enter “Camera” and tap on the remote controller icon and then tap the “Linking RC” button. The remote controller is now ready to link. The Remote Controller Status Indicator will blink blue and the controller will beep.
5) Locate the linking button on the side of the aircraft and press it to link. The Remote Controller Status Indicator LED will display a solid green once the remote controller has been successfully linked to the aircraft.

How is CE or FCC compliance configured?

The remote controller is CE compliant by default and switching between CE and FCC is automatic based on aircraft location as determined by the DJI GO app. The CE compliant remote controller has an effective signal range of 0.31 miles (500 m) in open spaces. The FCC compliant remote controller has an effective signal range of 0.74 miles (1200 m) in open spaces. Be aware of your flying distance as the aircraft will enter Failsafe Return to Home if it flies beyond transmission range.

How long does it take to charge the remote controller?

About 1.5 hours. It can be used for 6 hours per charge.

What charger comes with the Phantom 3 4K?

57 W.

What is the flight time?

Flight times will vary depending on environmental conditions and flying style. In ideal environments, flight times of up to 25 minutes are achievable with a full battery.

How heavy is the Phantom 3 4K?

It weighs 1280g including the propellers and battery.

Can I change the camera to any of those of the Phantom 3 series?

No.

Are the camera specifications of the Phantom 3 4K and the Phantom 3 Professional the same?

Yes.

Can I change the UV/ND filters of the Phantom 3 4K with those of the Phantom 3 Professional/Advanced?

Yes.

Are the remote controller of the Phantom 3 4K the same as that of the Phantom 3 Professional/Advanced?

The remote controller of the Phantom 3 4K has the same function as that of the Phantom 3 Professional/Advanced, yet features Wi-Fi video downlink. The FCC compliant remote controller of the Phantom 3 4K has an effective signal range of 0.74 miles (1200 m) in open spaces.

Can the Phantom 3 4K use the HDMI module?

No.

Is the Mobile Device Holder the same as that of the Phantom 3 Professional/Advanced?

Yes. For the best experience we recommend using a smartphone instead of a tablet.

How do I update the aircraft and remote controller?

Through the DJI GO app. A prompt will appear whenever an update is required.

What SD card is provided and what are the ideal SD card requirements?

The Phantom 3 4K comes with a 16 GB Micro SD card and supports Micro SD cards with a capacity of up to 64 GB. UHS-1 or Class 10 Micro SD cards are recommended to minimize delay when reading or writing high resolution image files. Do not insert or remove the Micro SD card when the Phantom 3 4K is turned on.

Is the Phantom 3 4K Wi-Fi downlink the same as the Phantom 3 Standard?

The Phantom 3 4K has 480p30 video downlink and other specs are the same.

Is the Vision Positioning System on the Phantom 3 4K the same as on the Phantom 3 Professional/Advanced?

Yes.

How do I connect to the Wi-Fi video downlink?

1) Switch on the remote controller.
2) Turn on the aircraft.
3) On your mobile device, select “PHANTOM3_XXXXXX”“from your Wi-Fi network list, and enter the default password “12341234”.
4) Launch the DJI GO app and enter Camera View. A video signal from the aircraft’s camera indicates that the aircraft has established a connection to the Wi-Fi video downlink successfully.

What should I know about the remote controller?

1) Make sure it is sufficiently charged before each flight.
2) Lock the mobile device holder firmly in place to avoid slipping.
3) Unfolded the antenna and keep them perpendicular to the Phantom for optimal transmission quality. Do not point the antenna at the Phantom.
4) Repair or replace the remote controller if damaged. A damaged remote controller antenna will greatly decrease performance. If a remote controller is replaced, please see Question 3 of this FAQ: How do I link the remote controller?

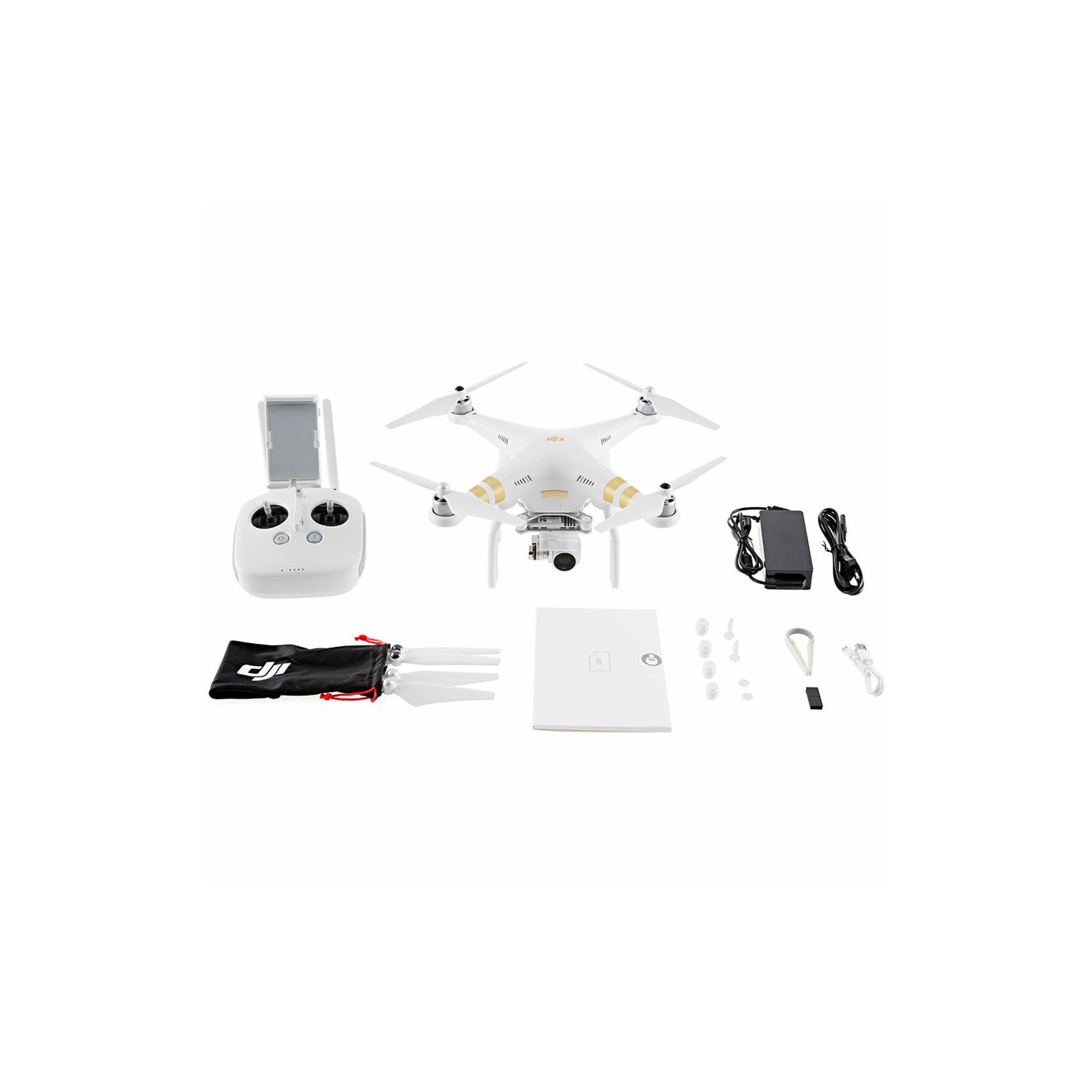

UKLJUČUJE:

DJI Phantom 3 4K
5.8 GHz Radio Controller (Transmitter)
Intelligent Flight Battery for Phantom 3
57W Battery Charger for Phantom 3
