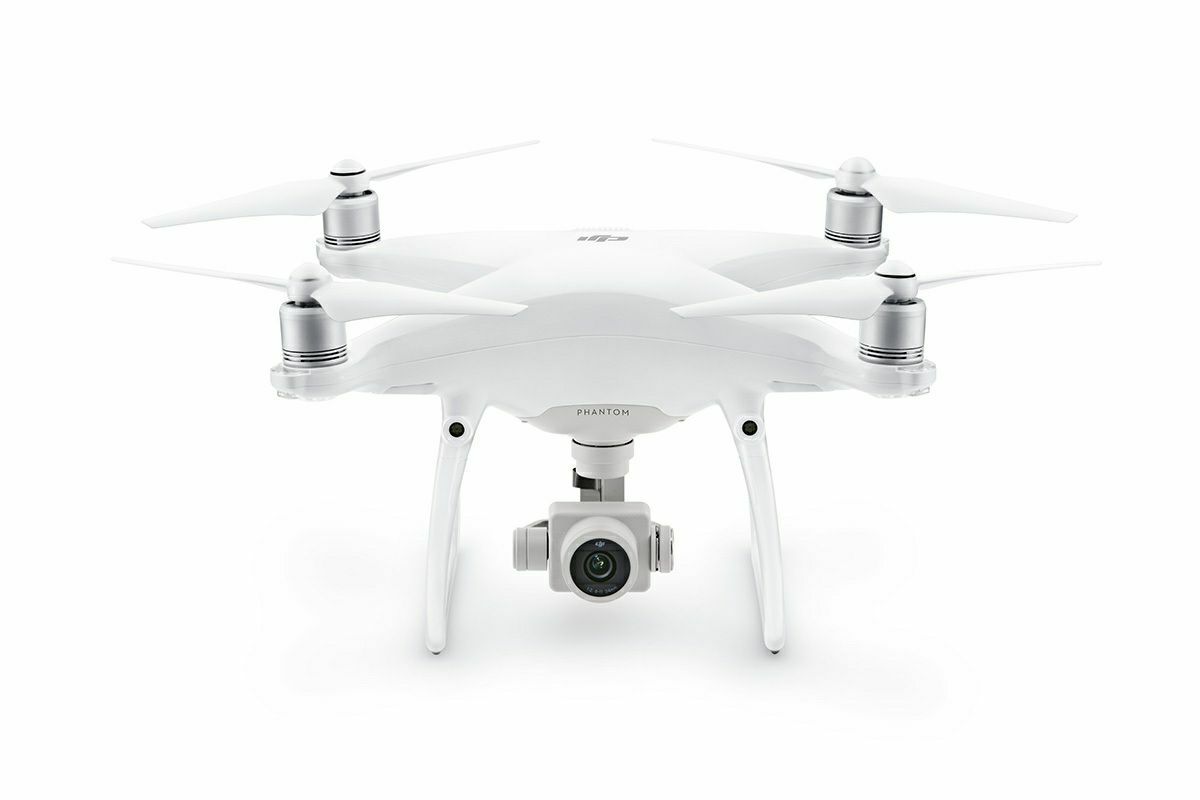

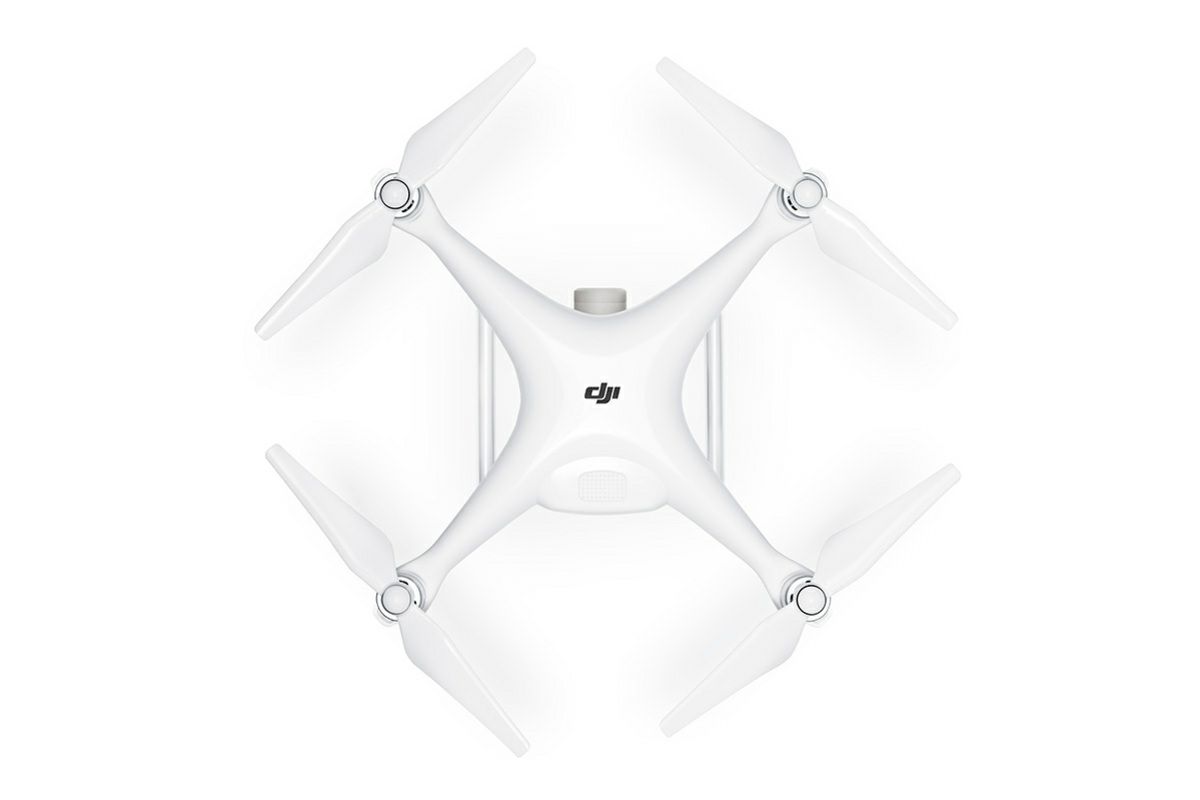

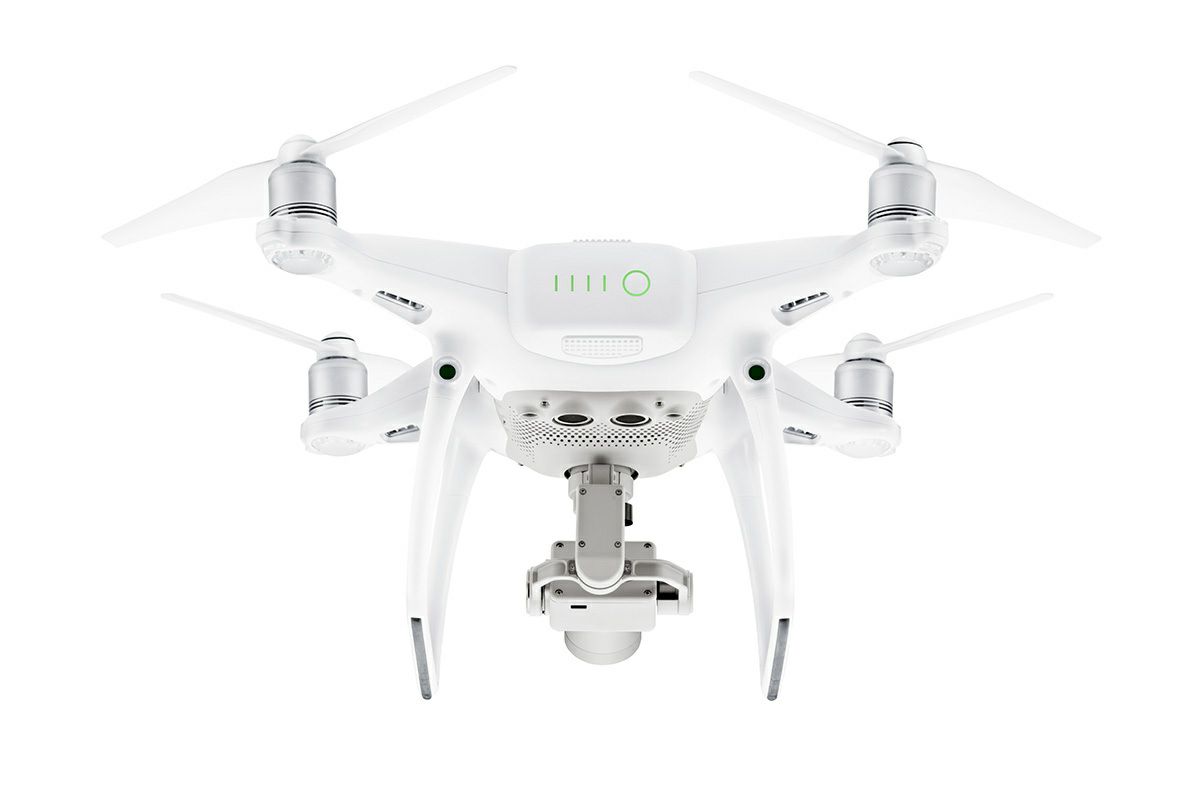

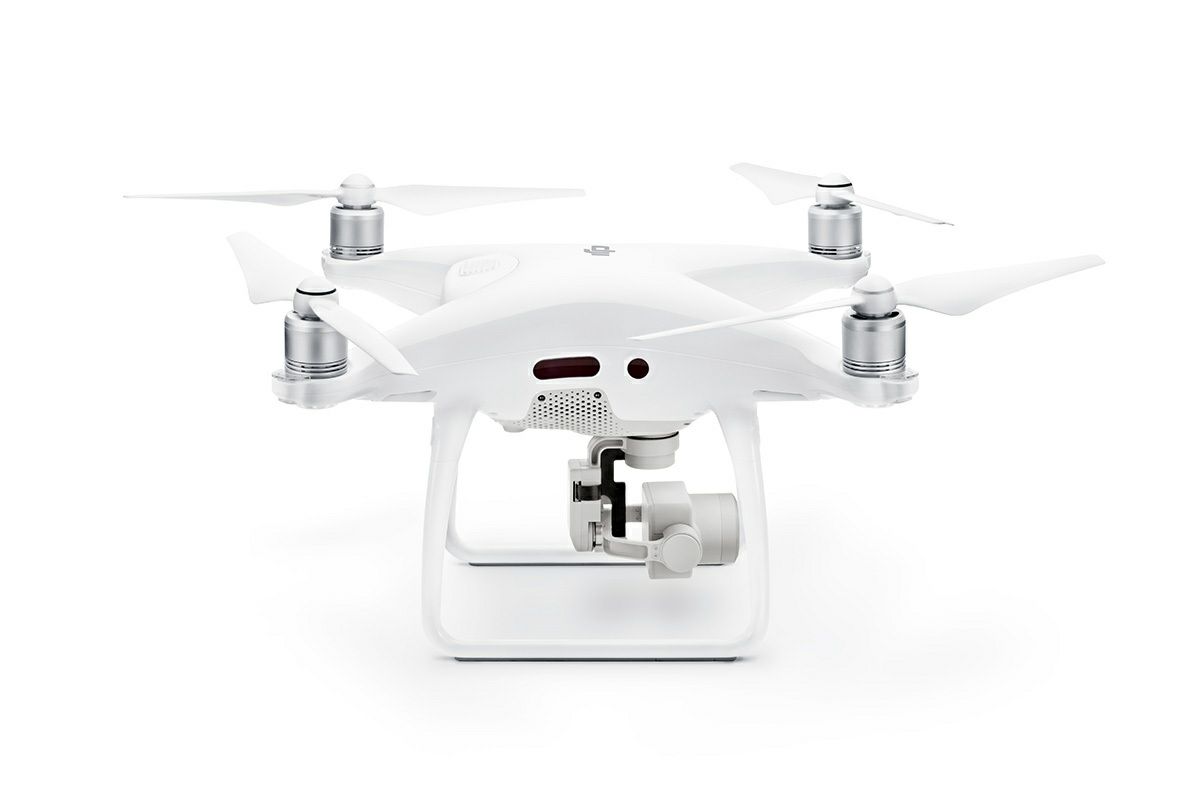

DJI Phantom 4 PRO dron quadcopter s 4K kamerom i gimbal stabilizatorom

ZNAČAJKE:

1" 20MP CMOS Sensor
Gimbal-Stabilized 4K60 / 20MP Imaging
FlightAutonomy with Redundant Sensors

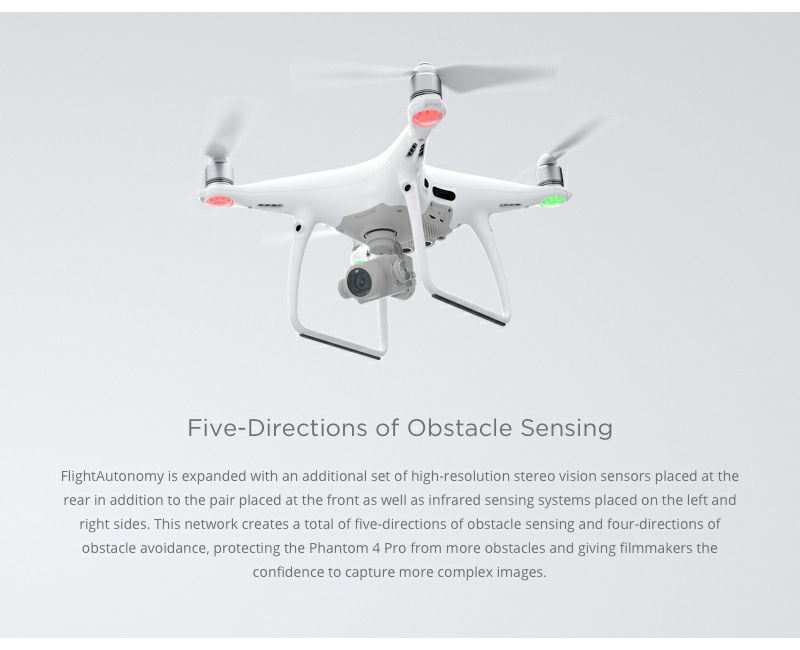

Four Directions of Obstacle Avoidance
Top Speed of 45 mph / 72 km/h in Sport Mode
Maximum Control Range of 4.3 Miles
Visual Tracking of Moving Subject
TapFly - Fly With a Tap of the Finger
Up to 30 Minutes Flying Time
Remote Controller Included

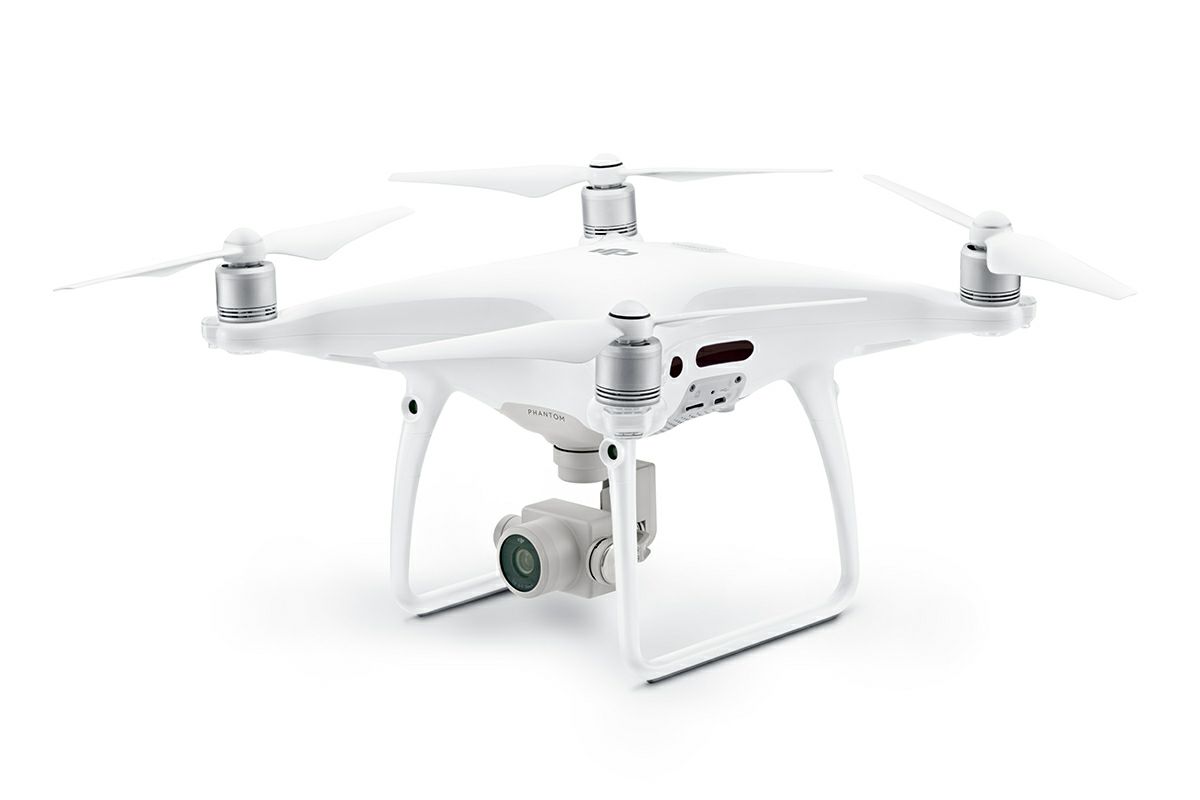

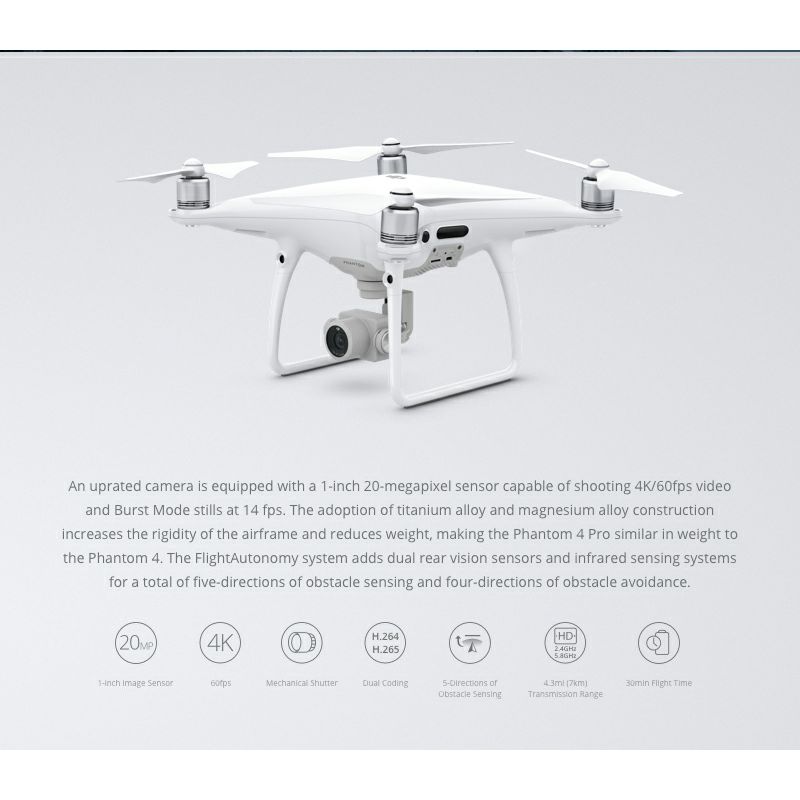

The Phantom 4 Pro from DJI boasts a 3-axis-stabilized gimbal camera with a 20MP, 1" CMOS sensor capable of shooting up to 4K/60fps video and well as photo bursts at up to 14 fps. The hull has been updated from the previous Phantom 4, now featuring magnesium alloy construction for increased rigidity and reduced weight. The FlightAutonomy system adds dual rear-vision sensors plus infrared sensing for a total of five directions of obstacle sensing and four directions of obstacle avoidance.

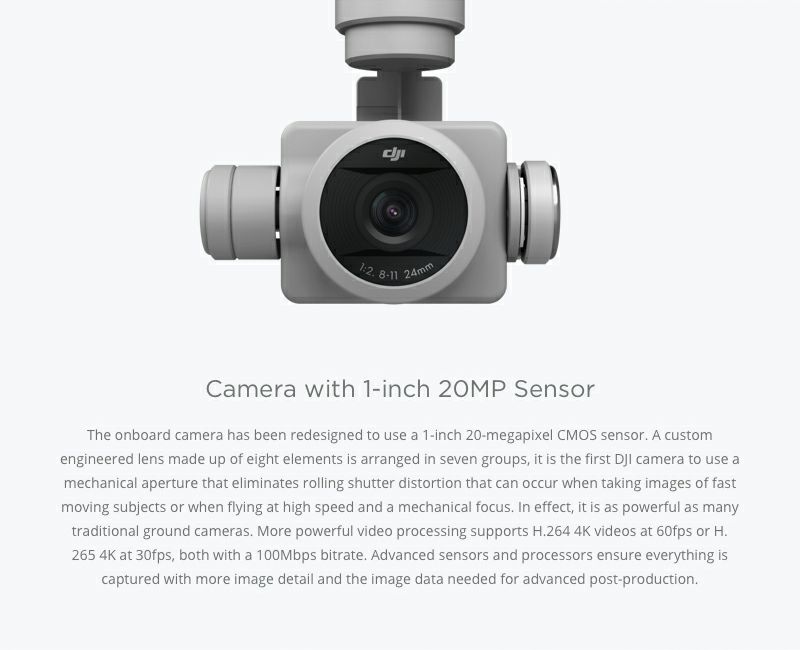

Gimbal Camera with 1" CMOS Sensor
The onboard camera features a first for the Phantom line: a 1-inch 20-megapixel CMOS sensor. A custom-engineered lens made up of eight elements is arranged in seven groups. The camera boasts a mechanical aperture that eliminates rolling shutter distortion that can occur when taking images of fast moving subjects or when flying at high speed and a mechanical focus.
1" CMOS Sensor
Sensor size is often more important to image quality than the number of pixels, because a larger sensor has dynamic range, better signal-to-noise ratio, and boosted low light performance. The 1" 20MP CMOS sensor in the Phantom 4 Pro is almost four times the size of the Phantom 4's 1/2.3" sensor. It uses larger pixels and has a maximum ISO of up to 12,800 as well as increased contrast.
H.264 and H.265 4K Video Recording
Powerful video processing supports H.264 4K videos at 60 fps or H.265 4K at 30 fps, both recorded in a 100 Mbps bitrate. Advanced sensors and processors ensure everything is captured with more image detail and the image data needed for manipulation in post-production.
Production-Optimized 4K
An enhanced video processing system allows video to be captured in cinema- and production- optimized DCI 4K (4096 x 2160) at 60 fps and a bitrate of 100 Mbps. The Phantom 4 Pro also supports the H.265 video codec at 30 fps in 4K resolution. For a given bitrate, H.265 doubles the amount of image processing as H.264, resulting in significantly enhanced image quality from a more efficient compression. Record in the high dynamic range D-log mode to make the most of this image data for color grading.
High Resolution Lens
The Phantom 4 Pro camera has an aerial-optimized f/2.8 wide-angle lens with a 24 mm equivalent focal length. It features eight elements — two aspherical — arranged in seven groups that fit into a smaller, more compact frame. Its images are consistently detailed with low distortion and low dispersion, ensuring that photos and videos are sharp and vivid.
Mechanical Shutter
Capturing objects moving at high speed has always been a challenge for flying cameras using an electronic shutter. This is why the Phantom 4 Pro is the first DJI Phantom to use a mechanical shutter and a large-aperture prime lens. A maximum mechanical shutter speed of 1/2000-second eliminates motion blur and "jello effect" caused by shooting a fast moving object with a rolling electronic shutter. The electronic shutter has also been improved with a max shutter speed of 1/8000-second, and a there is Burst Mode shoot capable of shooting 14 fps at 20 megapixels to catch the perfect moment.

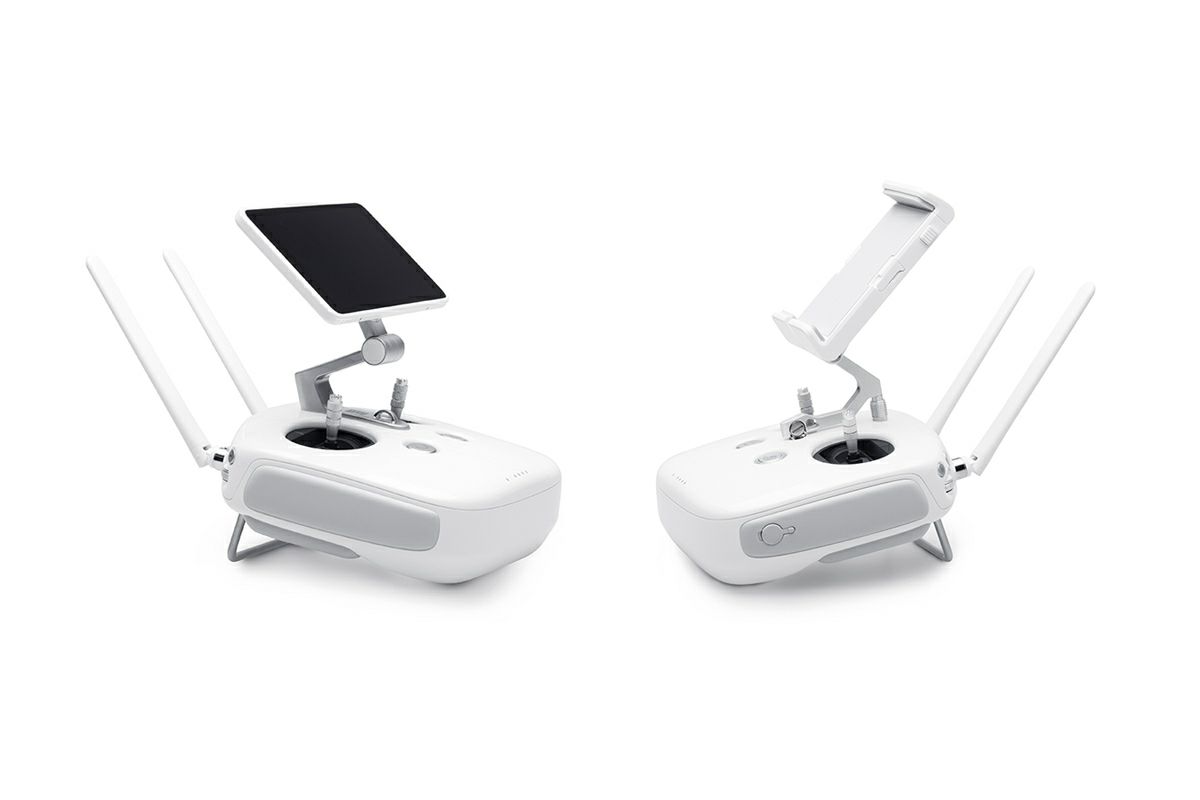

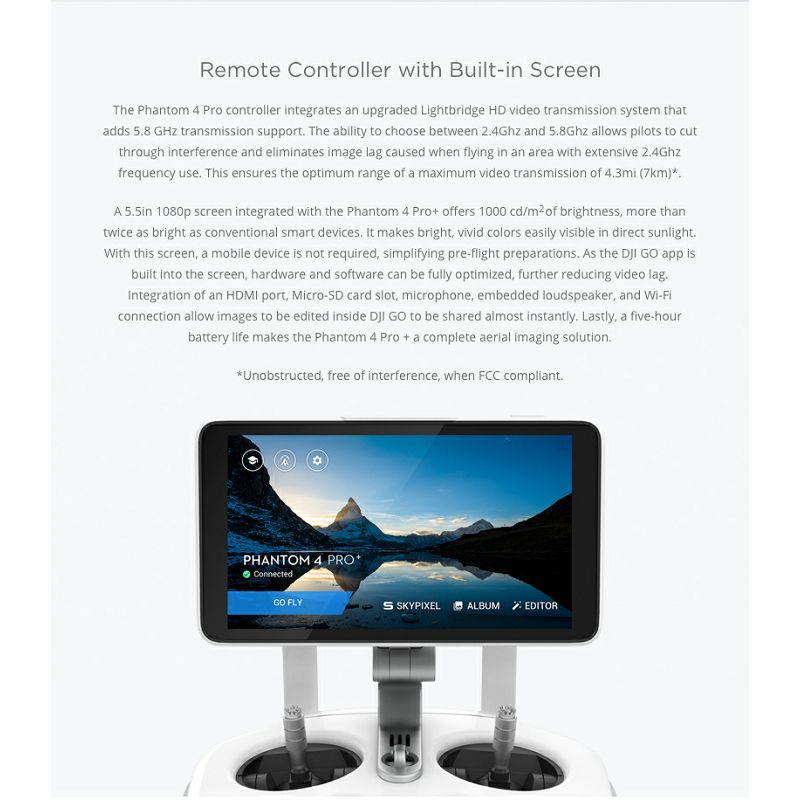

Remote Controller with Lightbridge HD Video Link
The Phantom 4 Remote Controller Included controller integrates an upgraded Lightbridge HD video transmission system that adds 5.8 GHz transmission support. The ability to choose between 2.4 GHz and 5.8 GHz allows pilots to cut through interference and eliminates image lag caused when flying in an area with extensive 2.4 GHz frequency use. Normally, Wi-Fi video transmission systems use a 2.4 GHz frequency to work with a controller using a 5.8 GHz frequency, as this prevents interference that can occur when both use the same frequency.
Lightbridge HD Video Link
The Lightbridge HD video transmission system used in the Phantom 4 Pro uses TDM (Time Division Multiplexing) to transmit signals, allowing it to send controller signals and receive video transmission signals at the same frequency. As the 2.4 GHz frequency band is often affected by Wi-Fi, 4G cell towers, and other types of interference in urban areas, a 5.8 GHz band will increase transmission reliability. When switched on, the Phantom 4 evaluates local signal levels, automatically choosing the transmission frequency with the lowest level of interference. This enables a maximum video transmission range of 4.3 miles.
Intelligent Flight Modes

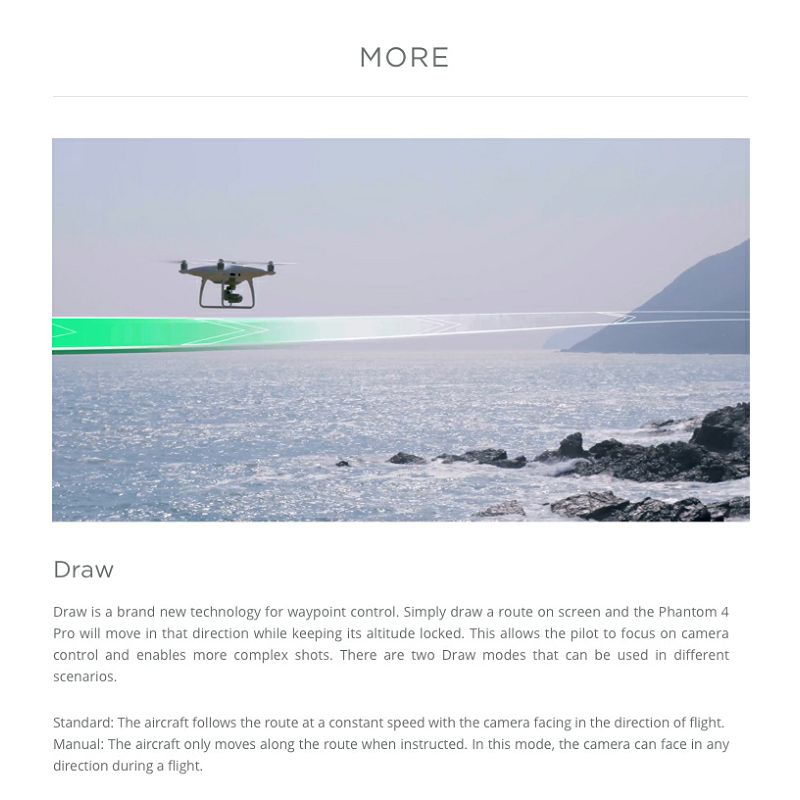

Draw
With Draw, simply draw a route on screen and the Phantom 4 Pro will move in that direction while keeping its altitude locked. This allows the pilot to focus on camera control and enables more complex shots. There are two Draw modes that can be used in different scenarios:

Standard: The aircraft follows the route at a constant speed with the camera facing in the direction of flight.
Free: The aircraft only moves along the route when instructed. In this mode, the camera can face in any direction during a flight.

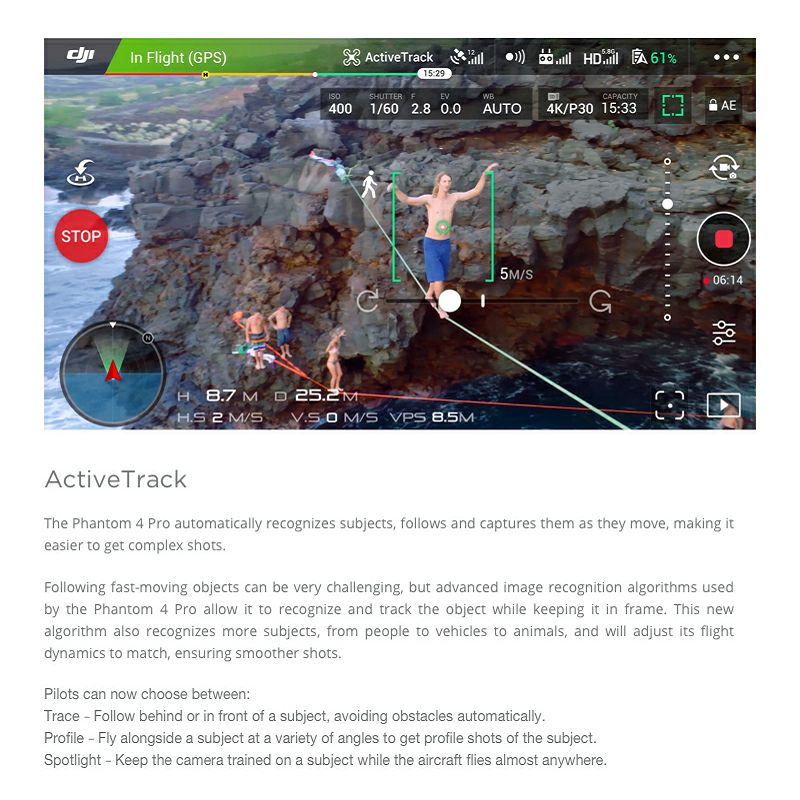

ActiveTrack
Following fast-moving objects can be very challenging, but advanced, image-recognition algorithms used by the Phantom 4 Pro allow it to recognize and track an object while keeping it in frame. This algorithm also recognizes a range of subjects, from people to vehicles to animals, and will adjust its flight dynamics to match, ensuring smoother shots. Pilots can now choose between:

Trace: Follow behind or in front of a subject, avoiding obstacles automatically.
Profile: Fly alongside a subject at a variety of angles to get profile shots of the subject.
Spotlight: Keep the camera trained on a subject while the aircraft flies almost anywhere.
TapFly
Fly in any direction visible on-screen with a simple tap. Tap anywhere on-screen to smoothly adjust the direction of flight while automatically avoiding obstacles and tap the screen again or use control sticks to change direction. An AR route function shows the aircraft's real-time flight direction for reference as its route is adjusted. As it can be difficult to control altitude, course, speed and camera pitch simultaneously using joysticks, TapFly Free allows a pilot to set the direction of flight, allowing them to turn the Phantom 4 Pro or tilt the gimbal as required without changing the direction of flight. In total, there are now three TapFly modes:

TapFly Forward: Tap to fly in the selected direction
TapFly Backward: Tap to fly in the opposite direction of the tap, i.e. tap in the bottom right corner of the screen to fly backward towards the top left.
TapFly Free: Lock the forward direction of the Phantom without locking the camera direction allowing it to turn as it flies.

Note: Obstacle Avoidance is not available with TapFly Free.

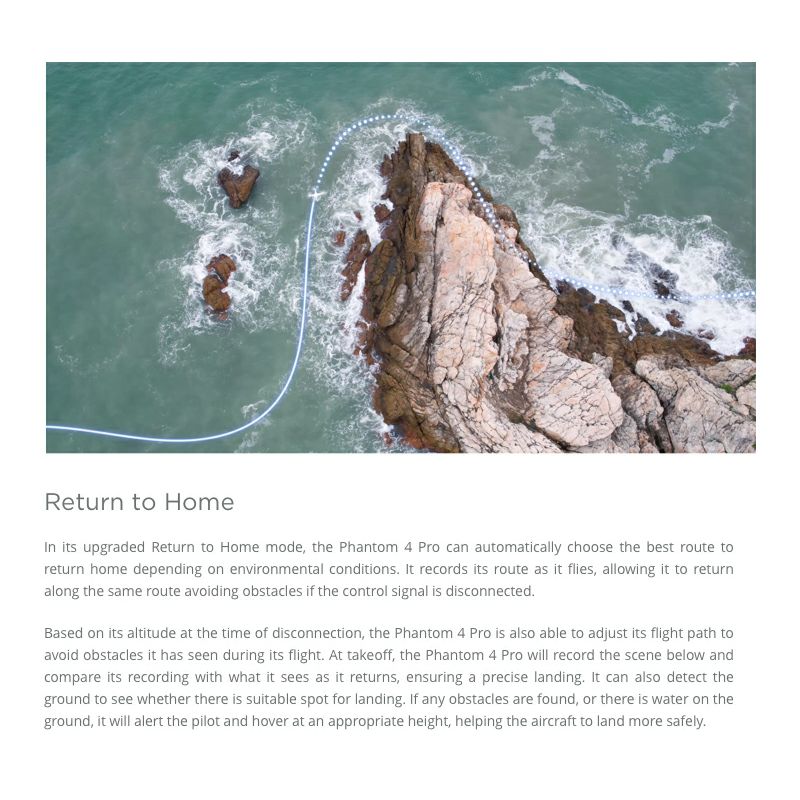

Return to Home
In its Return to Home mode, the Phantom 4 Pro can automatically choose the best route to return home depending on environmental conditions. It records its route as it flies, allowing it to return along the same route avoiding obstacles if the control signal is disconnected.

Based on its altitude at the time of disconnection, the Phantom 4 Pro is also able to adjust its flight path to avoid obstacles it has seen during its flight. At takeoff, the Phantom 4 Pro will record the scene below and compare its recording with what it sees as it returns, for more precise landing. It can also detect the ground to see whether there is suitable spot for landing. If any obstacles are found, or there is water on the ground, it will alert the pilot and hover at an appropriate height, helping the aircraft to land more safely.
Gesture Mode
With Gesture Mode, selfies can be captured using a few gestures without the remote controller. Computer vision technology allows the Phantom 4 Pro to take instructions through gestures. The subject simply lifts their arms when facing the camera and the aircraft will recognize this movement by locking on and placing the subject in the center of the frame. When ready for a photo, the subject holds their arms out to signal the aircraft. A three second countdown will begin, making time to strike a pose, allowing moments to be captured without the remote control.
Flight Control System
Flight Modes
Different productions require different flight characteristics, and the Phantom 4 Pro offers three modes for flight: P, A and S. Switching between them allows pilots to get the control they need, whether they seek smoothness, simplicity, intelligent navigation, or speed. In Position Mode (P), TapFly, ActiveTrack, obstacle sensing and positioning features are available. Sport Mode (S) adds extra agility and higher speed, reaching 45 mph . Attitude Mode (A) switches off satellite stabilization and holds the Phantom 4 Pro's altitude. It is ideal for experienced pilots looking to capture smoother footage. Tripod Mode, which limits speed to 4 mph provides precision control for fine framing and indoor flying. Both the infrared sensing system and vision sensors are enabled in these modes for a safer flight experience.
Sensor Redundancy
The Phantom 4 Pro features dual compass modules and dual IMU units, making it more reliable when compared to many hexacopters and octocopers. Compasses and IMUs are important sensors to ensure a stable flight and the Phantom 4 Pro constantly compares the data it receives through both pairs. This data is run through various algorithms to check accuracy, and any inaccurate data is simply discarded without affecting flight, keeping flight steady and reliable.
Intelligent Battery System
Professional aerial imaging benefits from longer flight times. The Phantom 4 Pro features a maximum flight time of 30 minutes, providing more time in the air to capture the perfect shot. The DJI GO app shows battery lifetime and calculates remaining flight times according to distance traveled and more. It will give alerts when it reaches a minimum safe amount required for a safe journey back to the takeoff point. An advanced battery management system is also in place to prevent overcharging and over draining. When placed in longer term storage, batteries will discharge power to maintain good health.



SPECIFIKACIJE:

Performance
Maximum Horizontal Speed S-Mode: 45 mph (72 km/h)
A-Mode: 36 mph (58 km/h)
P-Mode: 31 mph (50 km/h)
Maximum Ascent Speed S-Mode: 19.7 ft/s (6 m/s)
P-Mode: 16.4 ft/s (5 m/s)
Maximum Descent Speed S-Mode: 13.1 ft/s (4 m/s)
P-Mode: 9.8 ft/s (3 m/s)
Hovering Accuracy Vertical:
Vision Positioning: ±0.3' / 0.1 m
GPS Positioning: ±1.6' / 0.5 m
Horizontal:
Vision Positioning: ±1' / 0.3 m
GPS Positioning: ±4.9' / 1.5 m
Maximum Tilt Angle S-Mode: 42°
A-Mode: 35°
P-Mode: 25°
Flight Time Up to 30 minutes
Flight Control System
GNSS GPS
GLONASS
Vision Positioning
Velocity Range Up to 31 mph (50 km/h) at 6.6' (2 m) above ground level
Altitude Range 0 to 33' / 0 to 10 m above ground level
Operating Range 0 to 33' / 0 to 10 m above ground level
Obstacle Sensory Range 2 to 98' / 0.7 to 30 m
Field of view (FOV) Horizontal: ±60°
Vertical: ±54°
Detection Frequency 10 Hz
Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)
TOF Sensing System
Obstacle Sensory Range 0.6 to 23' / 0.2 to 7 m
Field of View Horizontal: ±35°
Vertical: ±10°
Detection Frequency 10 Hz
Operating Environment Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.)
Transmitter (Remote Controller)
Frequency 2.400 to 2.483 GHz
5.725 to 5.850 GHz
Communication Distance 4.3 miles / 7 km
Operating Current 2.4 GHz: 23 dBm
5.8 GHz: 30 dBm
Power Consumption 1.2 A at 7.4 V
Battery Type: Built-in
Chemistry: Lithium-ion polymer (LiPo)
Capacity: 6000 mAh
Configuration: 2S
Mobile Device Holder Compatiblity: Tablets and smartphones
Operating Temperature 32 to 104°F / 0 to 40°C
Camera
Sensor 1" CMOS
Effective Pixels 20 million
Lens FOV (Field of View): 84°
Focal Length: 8.8 mm / 24 mm (35 mm format equivalent)
Aperture: f/2.8 - f/11
Focus Distance (Auto Focus): 3.3' (1 m) to ?
Photo Resolution Still Photo Mode:
3:2 Aspect Ratio: 5472 x 3648
4:3 Aspect Ratio: 4864 x 3648
16:9 Aspect Ratio: 5472 x 3078
Video Resolution 16:9 Aspect Ratio:
5248 × 2952
3840 × 2160 at 24/25/30p
2720 × 1530 at 24/25/30p
1920 × 1080 at 24/25/30p
1280 × 720 at 24/25/30p
3840 × 2160 at 48/50p
2720 × 1530 at 48/50p
1920 × 1080 at 48/50/60p
1280 × 720 at 48/50/60p

17:9 Aspect Ratio:
4896 × 2592
4096 × 2160 at 24/25/30/48/50p
ISO Range Video: 100 to 3200 (Auto); 100 to 6400 (Manual)
Photo: 100 to 3200 (Auto); 100 to 12800 (Manual)
Shutter Speed Mechanical:8 to 1/2000 second
Electronic Shutter:8 to 1/8000 second
Photo Modes Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval: 2/3/5/7/10/15/30/60 second
Video Formats H.265:
DCI 4K (4096 x 2160): 24/25/30p at 100 Mbps
UHD 4K (3840 x 2160): 24/25/30p at 100 Mbps
2.7K (2720 x 1530): 24/25/30p at 65 Mbps
2.7K (2720 x 1530): 48/50/60p at 80 Mbps
Full HD (1920 x 1080): 24/25/30p at 50 Mbps
Full HD (1920 x 1080): 48/50/60p at 65 Mbps
720p (1280 x 720): 48/50/60p at 35 Mbps

H.264:
DCI 4K (4096 x 2160): 24/25/30/48/50/60p at 100 Mbps
UHD 4K (3840 x 2160): 24/25/30/48/50/60p at 100 Mbps
2.7K (2720 x 1530): 24/25/30p at 80 Mbps
2.7K (2720 x 1530): 48/50/60p at 100 Mbps
Full HD (1920 x 1080): 24/25/30p at 60 Mbps
Full HD (1920 x 1080): 48/50/60/120p at 80 Mbps
720p (1280 x 720): 24/25/30p at 30 Mbps
720p (1280 x 720): 48/50/60/120p at 45 Mbps
Photo Formats JPEG
DNG (raw)
JPEG and raw
Recording Media Type: microSDHC/SDXC card up to 128 GB Format: FAT32 / exFAT
Supported File Systems: FAT32 (up to 32 GB); exFAT (over 32 GB)

Note: Write speed of 15 MB/s and Class 10 / UHS-1 or faster card required
Operating Temperature 32 to 104°F / 0 to 40°C
Gimbal
Number of Axes 3 (pitch, roll, yaw)
Control Range Pitch: -90° to +30°
Angular Speed Pitch: 90°/second
Control Accuracy ±0.03°
Flight Battery
Chemistry Lithium-ion (LiPo)
Capacity 5870 mAh / 89.2 Wh
Configuration 4 S
Voltage 15.2 V
Weight 1 lb / 468 g
Charger Voltage:17.4 V
Rated Power:100 W
Charging Temperature Range 14 to 104°F / -10 to 40°C
Maximum Charging Power 100 W
General
Operating Temperature 32 to 104°F / 0 to 40°C
Diagonal Size 13.8" / 350 mm (without propellers)
Weight 3.1 lb / 1.4 kg (with propellers and battery)

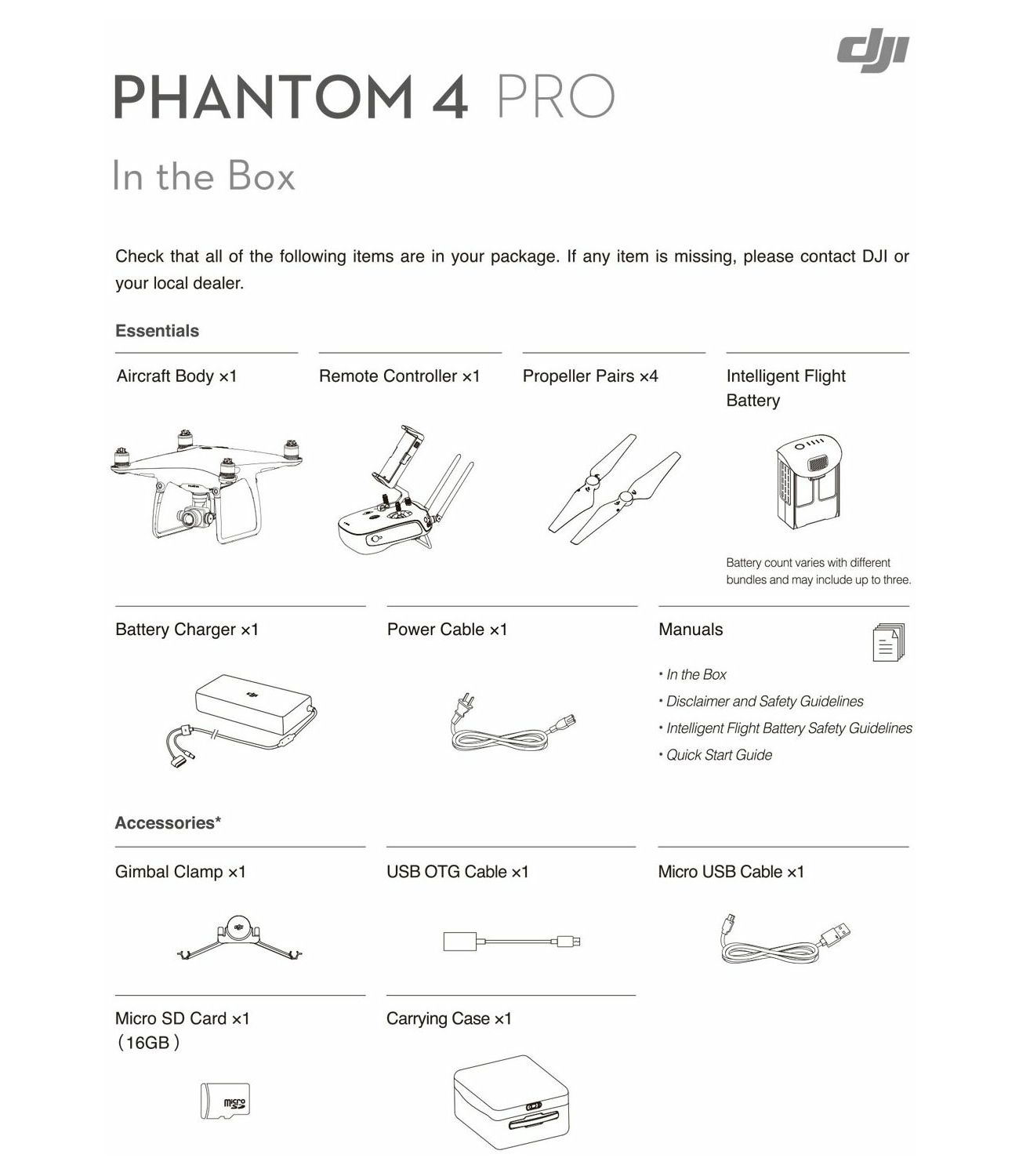

UKLJUČUJE:

DJI Phantom 4 Pro Quadcopter
Remote Control for Phantom 4 Pro
4 x Propeller Pairs
Flight Batter
Battery Charger
AC Cable for Battery Charger
Gimbal Clamp
USB OTG Cable
Micro-USB Cable
16GB microSD Card
Carrying Case
