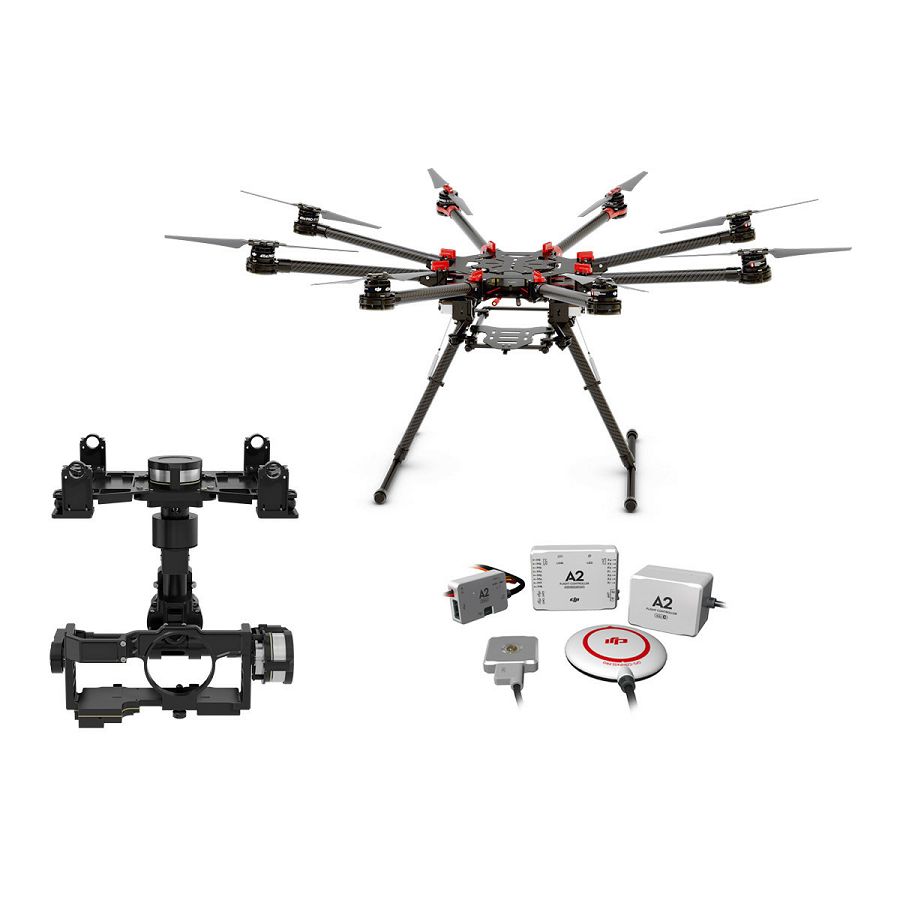

DJI Spreading Wings S1000+ & A2 & Z15 Zenmuse A7 Gimbal Combo Professional Aircraft multi-rotor Octocopter dron A2 Flight Controller Sony a7S / a7R Gyroscope

Zenmuse Z15-A7 Gimbal for Sony a7S / a7R
Gimbal Provides 360° Camera Rotation

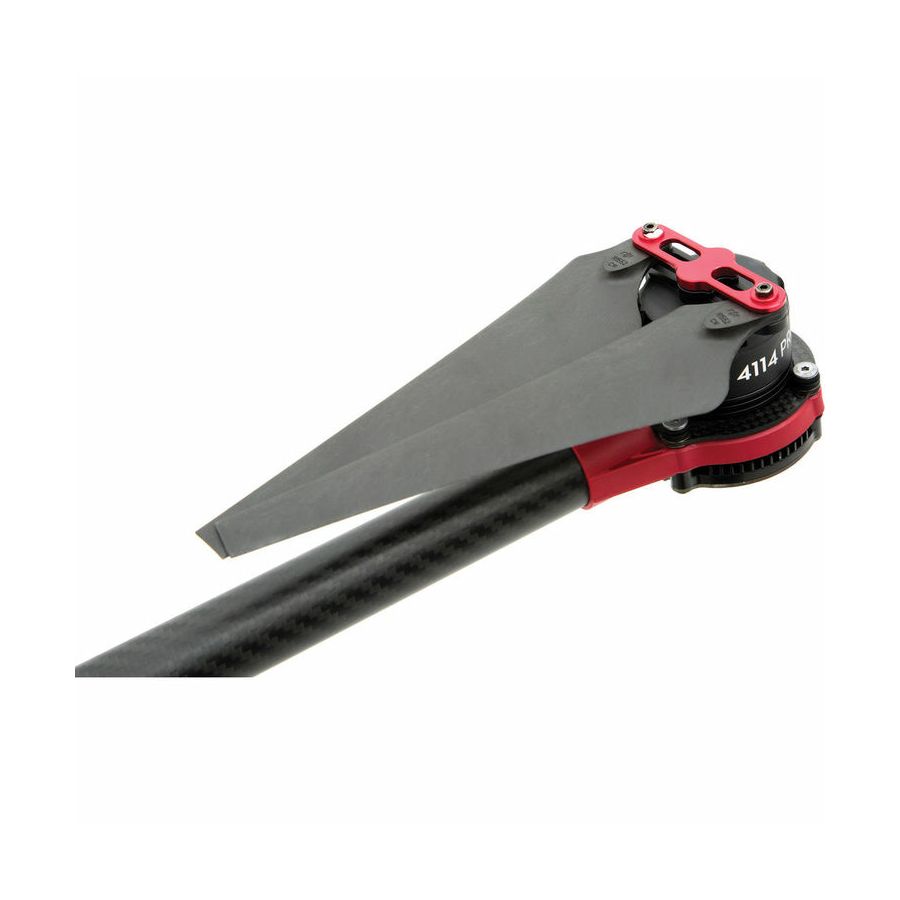

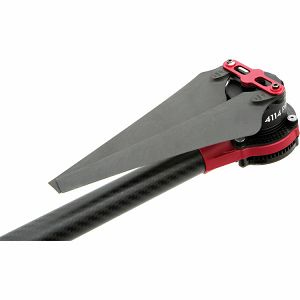

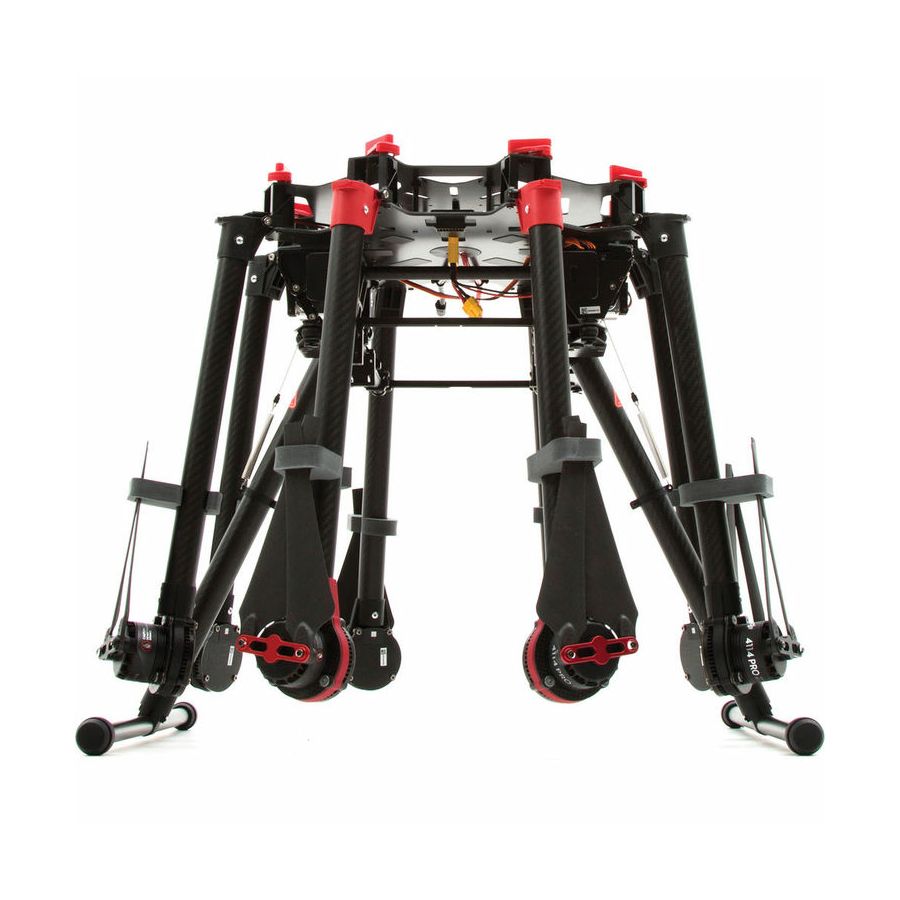

Collapsible Frame and Folding Props
Up to 24 Pound Total Take-Off Weight
Low Gimbal Mounting with Dampening

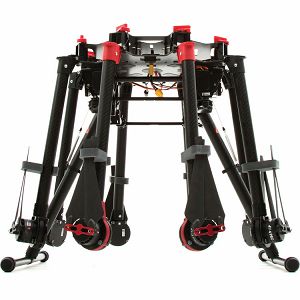

Retractable Landing Gear
DJI A2 Flight Control System
Supports Futaba FASST / DJI DESST Radios
Up 15 Minutes Flying at 15,000mAh
Compatible with iPad Ground Station



Supporting a total takeoff weight of 24 pounds, the Spreading Wings 1000+ with Zenmuse Z15-A7C Gimbal is a hexcopter from DJI that allows you to capture aerial video using a separately available Sony a7S or a7R mirrorless camera with the Sony FE 35 mm f/2.8 ZA lens. It features carbon fiber frame arms to cut down on weight, which fold down for storage and transport. The included Z15-A7 gimbal helps keep the camera stabilized and isolated from vibration, and allows you to pan, tilt, and even cant the camera for more dynamic shots. Used with a 6S 15,000mAh battery, available separately, the S1000+ can fly for up to 18 minutes fully laden.

This version of the S1000+ features the DJI A2 flight control system, a collection of hardware which acts as the hexcopter's brains. It takes data from the GPS, gyros, barometer, and other sensors while applying any pilot inputs to help ensure stable flying and smooth video. The A2 can be configured for different flying styles and pilot skill levels, with features like Intelligent Orientation Control (IOC), Point of Interest (POI), one motor fail protection, and a Return-to-Home fail safe in the event contact is lost with the transmitter.

The S1000+ is not a ready-to-fly (RTF) aircraft. It does require some assembly and a transmitter (hand-held radio controller) and batteries are not included. Transmitters the A2 supports include ma wide range PCM or 2.4 GHz models that have at least 7 channels. For power, it uses LiPo flight batteries in 6S configuration, with a 10,000 to 15,000 mAh capacity, and requires a discharge rate of at least 15C.

Specifikacije

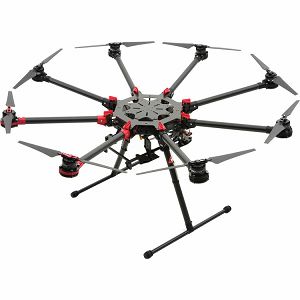

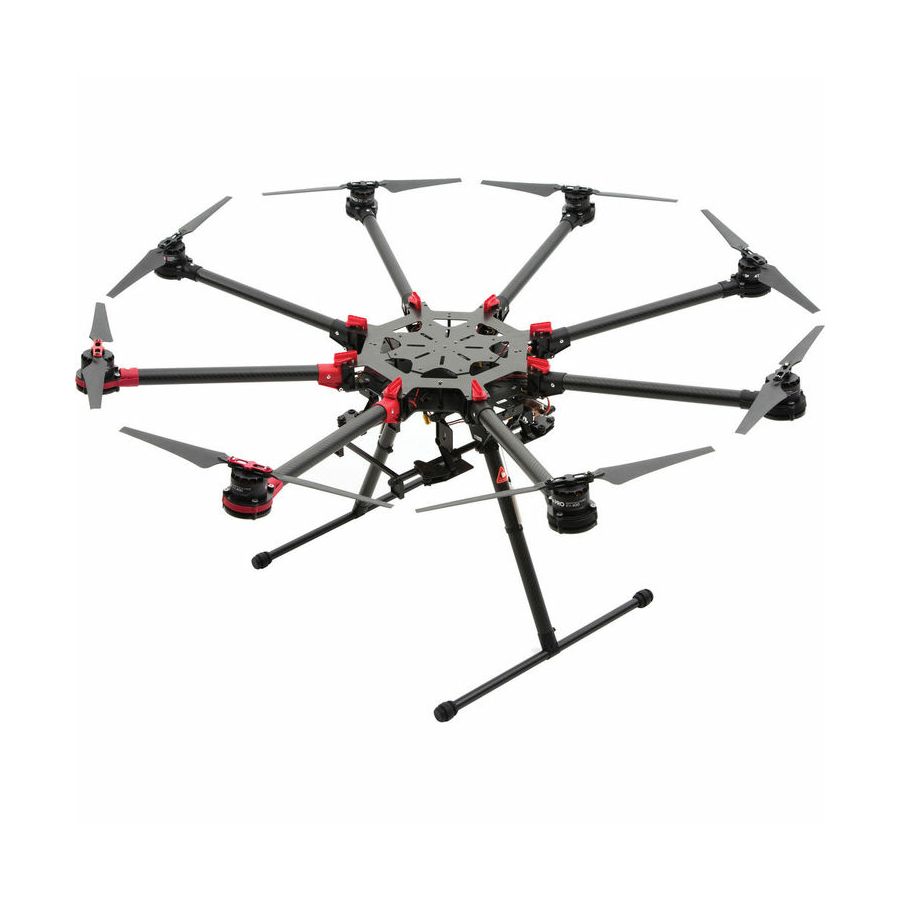

DJI Spreading Wings S1000+ Professional Octocopter
Performance
Takeoff Weight 13.2 lb / 6 kg to 24.2 lb / 11 kg
Motor
Stator Size 1.6 x 0.6" / 41 x 14 mm
Motor Velocity Constant KV: 400 rpm/V
Maximum Power 500 W
Weight With Cooling Fan: 5.6 oz / 158 g
Electronic Speed Control (ESC)
Working Current 40 A
Working Voltage 6S LiPo
Signal Frequency 30 to 450 Hz
Drive PWM Frequency 8 kHz
Weight 1.2 oz / 35 g
Propellers
Size 15 x 5" / 38.1 x 12.7 cm
Weight 0.5 oz / 13 g
Frame
Diagonal Wheelbase 41.1" / 1045 mm
Frame Arm Length 15.2" / 386 mm

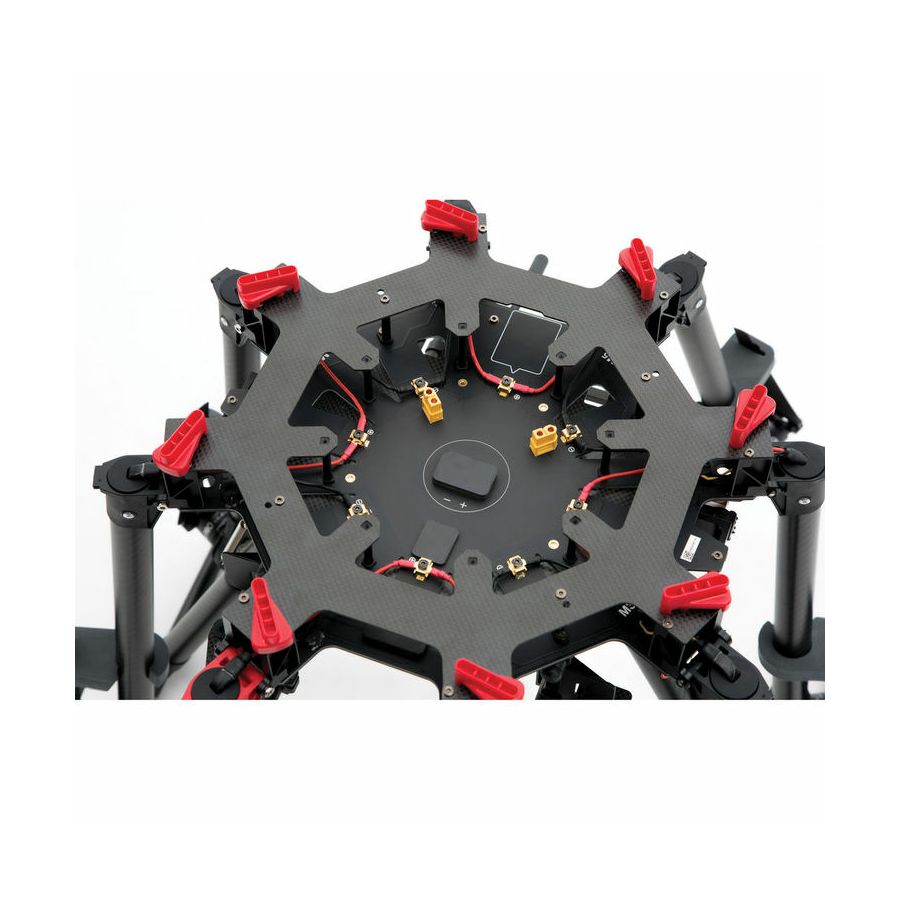

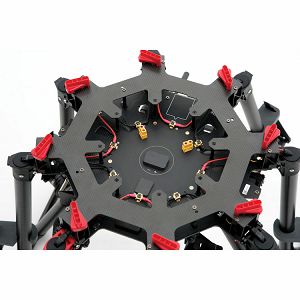

Center Frame Diameter 13.3" / 337 mm
Center Frame Weight With Landing Gear Mounting Base, Servos: 3.3 lb / 1.5 kg
Landing Gear Size 18.1 x 20.1 x 12" / 460 x 511 x 305 mm
Flight Control System
Compatibility A2 or WooKong-M
Gain Value Settings For A2 Flight Controller
Basic: Roll 120%, Pitch 120%, Yaw 120%
Attitude: Roll 170%, Pitch 170%, Vertical 120%
For WooKong-M Flight Controller
Basic: Roll 130%, Pitch 130%, Yaw 120%
Attitude: Roll 180%, Pitch 180%, Vertical 120%
General
Power Requirements Lithium-Polymer (LiPo):
Power Consumption Maximum: 4000 W
Hovering: 1500 W at 20.9 lb / 9.5 kg takeoff weight
Operating Temperature 14 to 104°F / -10 to 40°C
Weight 9.7 lb / 4.4 kg

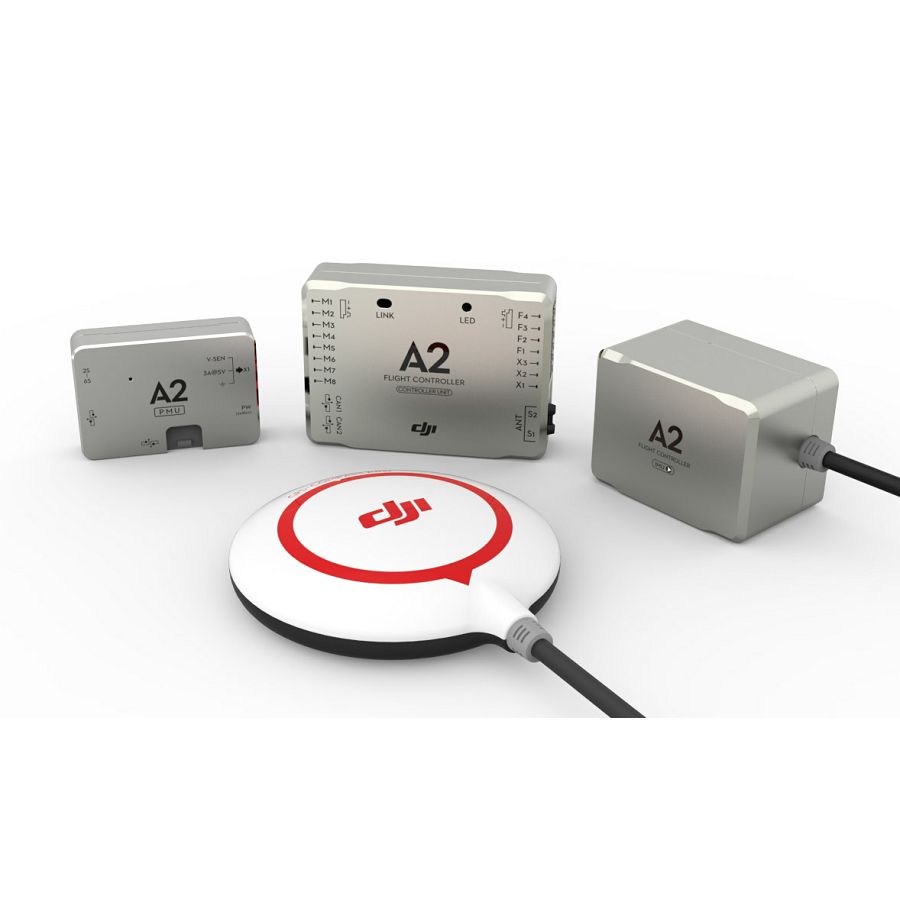

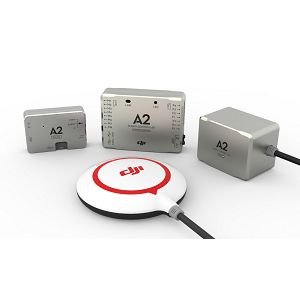

DJI A2 Flight Control System for Multi-Rotor Aircraft
Supported ESC Output 400 Hz refresh frequency
Supported Transmitters With Built-in Receiver: Futaba FASST series and DJI DESST series
Supported External Receivers Futaba S-Bus, S-Bus2, DSM2
Other DJI Products Supported Z15, H3-2D, iOSD, 2.4G Bluetooth Data Link, and S800 EVO
Hovering Accuracy (GPS Mode) Vertical: ±1.6' / 0.5 m
Horizontal: ±4.9' / 1.5 m
Maximum Wind Resistance < 26.2 fps (8 m/s) / 17.9 mph (28.8 km/h)
Maximum Yaw Angular Velocity 150 deg/s
Maximum Tilt Angle 35°
Ascent/Descent ±19.7 fps / 6 m/s
Power Requirements Maximum: 5 W
Typical: 0.3 A at 12.5 V
System Requirements Assistant Software: Windows 8, 7, or XP SP3 -- 32 or 64-bit
Operating Temperature 23 to 140°F / -5 to 60°C
Dimensions Flight Controller: 2.1 x 1.5 x 0.6" / 54 x 39 x 14.9 mm
IMU: 1.6 x 1.2 x 1" / 41.3 x 30.5 x 26.3 mm
GPS-Compass Pro: 2.4" (diameter) x 0.6" / 62 mm (diameter) x 14.3 mm
LED-BTU-I: 1.2 x 1.2 x 0.3" / 30 x 30 x 7.9 mm
PMU: 39.5mm x 27.6mm x 9.8mm
Weight Overall: 7.9 oz / 224 g

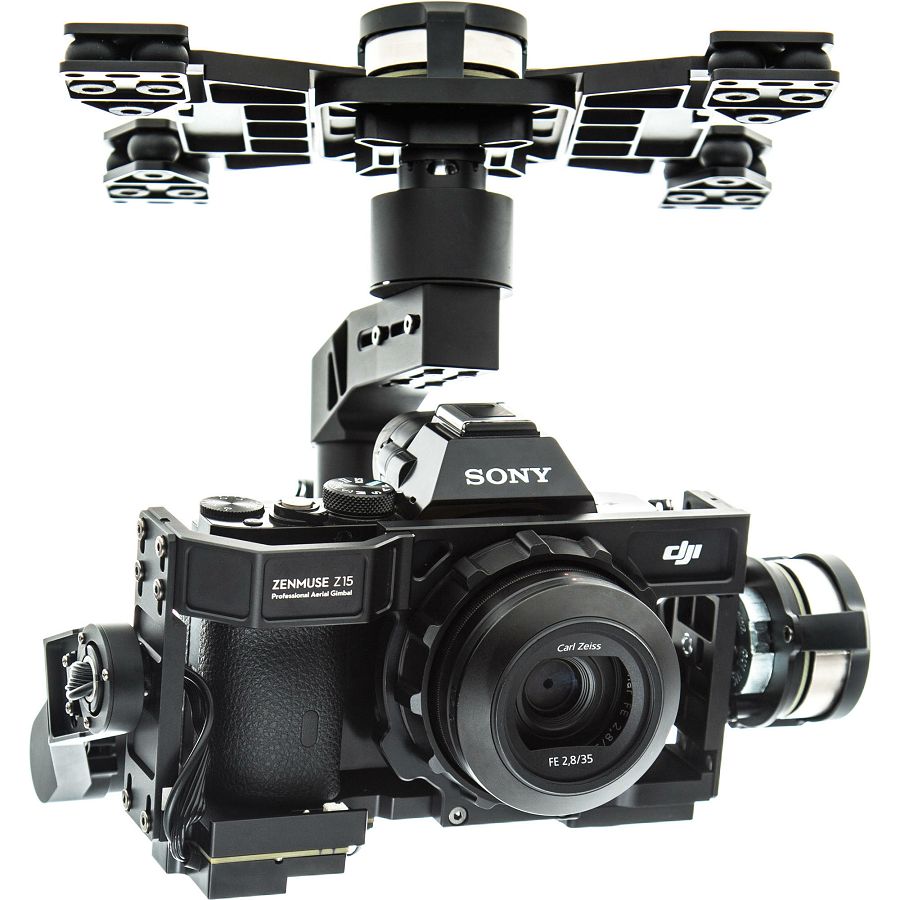

DJI Zenmuse Z15-A7 3-Axis Gimbal for Sony a7S / a7R
Peripheral
Supported Camera Sony a7S / a7R
Supported Lens Sony FE 35mm f/2.8 ZA
Control Requirements At least 4 spare receiver channels
S-Bus/PPM receiver supported
Software Requirements For Assistant Software: Windows 8, 7, XP SP3 -- 32 or 64-bit
Electrical Characteristics
Working Current Static Current: 200 mA at 25 V
Dynamic Current: 400 mA at 25 V
Locked-Rotor Current: 4 A at 25 V
GCU BEC Output 10 A at 12 V
Transmit Power GCU Wireless Video Transmission: 1 A at 12 V
Performance
Load Weight (Reference Value) 1.4 lb / (622 g) with Sony a7S, FE 35mm f/2.8 ZA lens, battery, lens hood, and SD Card
1.3 lb (580 g) with Sony a7SR, FE 35 mm f2.8 ZA lens, battery, lens hood, and SD Card
Controlled Angle Accuracy ±0.01°
Maximum Controlled Rotation Speed Pan Axis: ±130°/s
Tilt Axis: ±130°/s
Roll Axis ±30°/s
Controlled Rotation Range Pan Axis Control: ±360° continuous rotation
Tilt Axis Control: +50°:/-140°
Roll Axis Control: ±40°
General
Power Requirements GCU: 4S to 12 S LiPo (6S if using S800, S1000+)
Operating Temperature 14 to 122°F (-10 to 50°C)
Dimensions Gimbal: 8.7 x 8.7 x 7.5" (220 x 220 x 190 mm)
Camera Frame Dimensions: 5.6 x 3" (142 x 76 mm)
GCU: 2.5 x 1.4 x 0.8" (64.2 x 34.1 x 19.5 mm)
Weight Gimbal: 2.9 lb (1.3 kg)
GCU: 2.2 oz (63 g)







KOMPLET SADRŽI:

Spreading Wings S1000+ Professional Octocopter

A2 Flight Control System for Multi-Rotor Aircraft
LED-BTU-I LED Bluetooth Indicator for A2 Flight Control System
MC for A2 Flight Control System
PMU for A2 Flight Control System
GPS Bracket for A2 Flight Control System
IMU Module for A2 Flight Control System
GPS-PRO Module for A2 Flight Control System

Zenmuse Z15-A7 3-Axis Gimbal for Sony a7S / a7R
Gimbal Control Unit (GCU)
Lens Retaining Ring
Lens Retaining Ring Shim
4 x Mounting Bracket
Camera Mount Screw
Lens Retaining Ring Screw
Gimbal Video Power Cable
Micro - USB Cable
CAN-Bus Cable
Spare Package
