DJI Spreading Wings S1000+ & WKM & Z15 Zenmuse GH4 Gimbal Combo Professional Aircraft multi-rotor Octocopter dron WooKong-M Flight Control System Panasonic GH3/GH4 Gyroscope

Z15 3-Axis Gimbal for Panasonic GH3/GH4

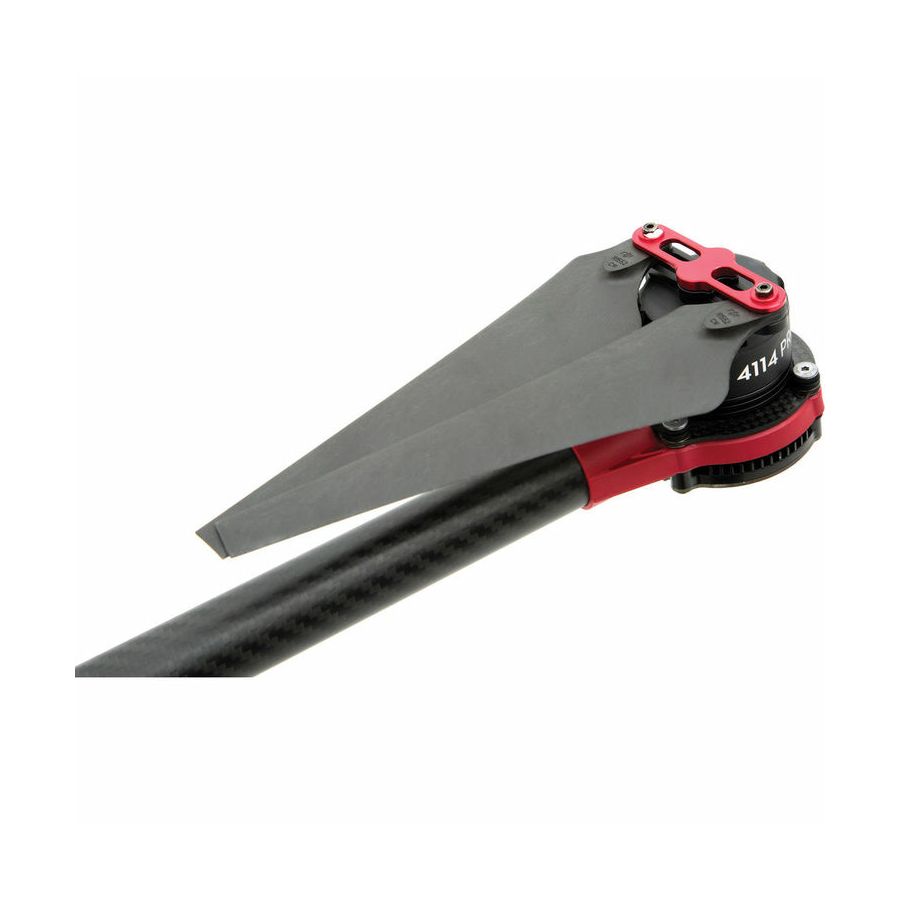

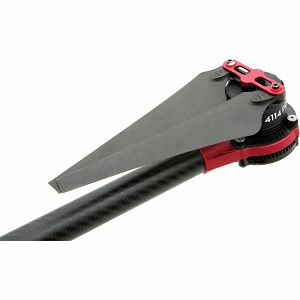

Collapsible Frame and Folding Props
DJI WooKong-M Flight Control System
HDMI Output for Lightbridge System
Up to 24 Pound Take-Off Weight
Up 15 Minutes Flying at 15,000mAh
Low Gimbal Mounting with Dampening

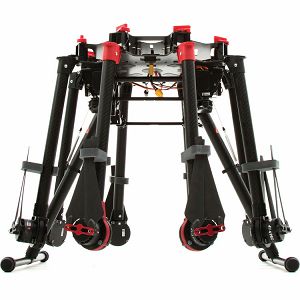

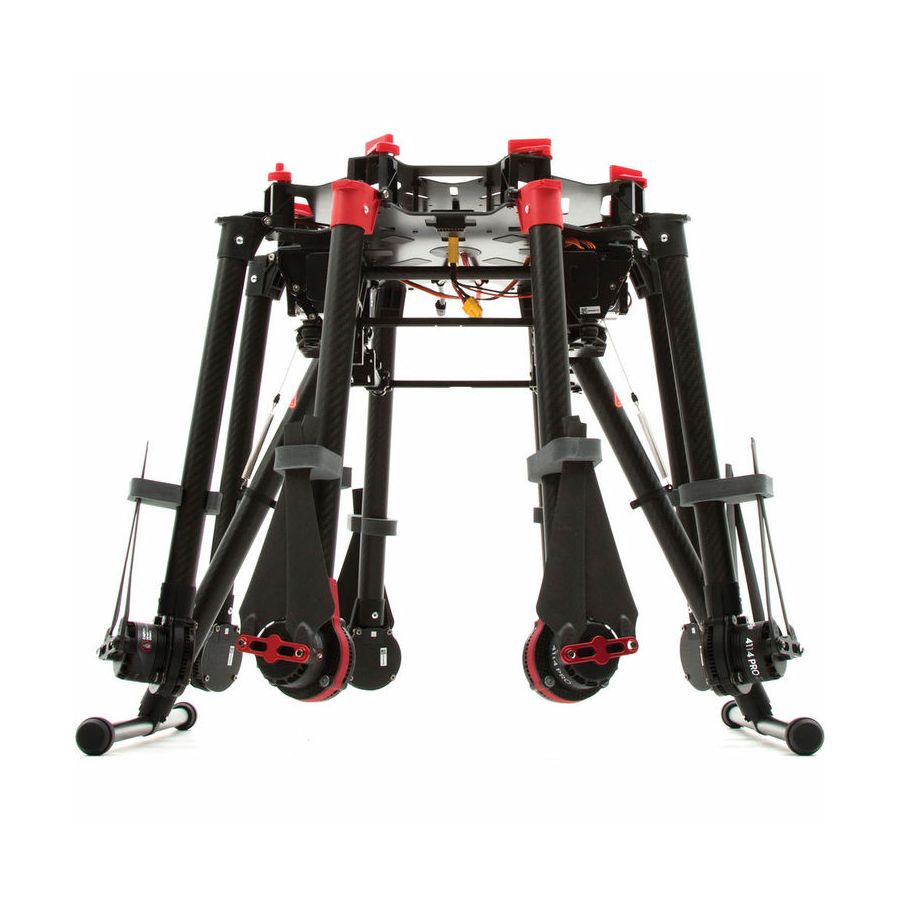

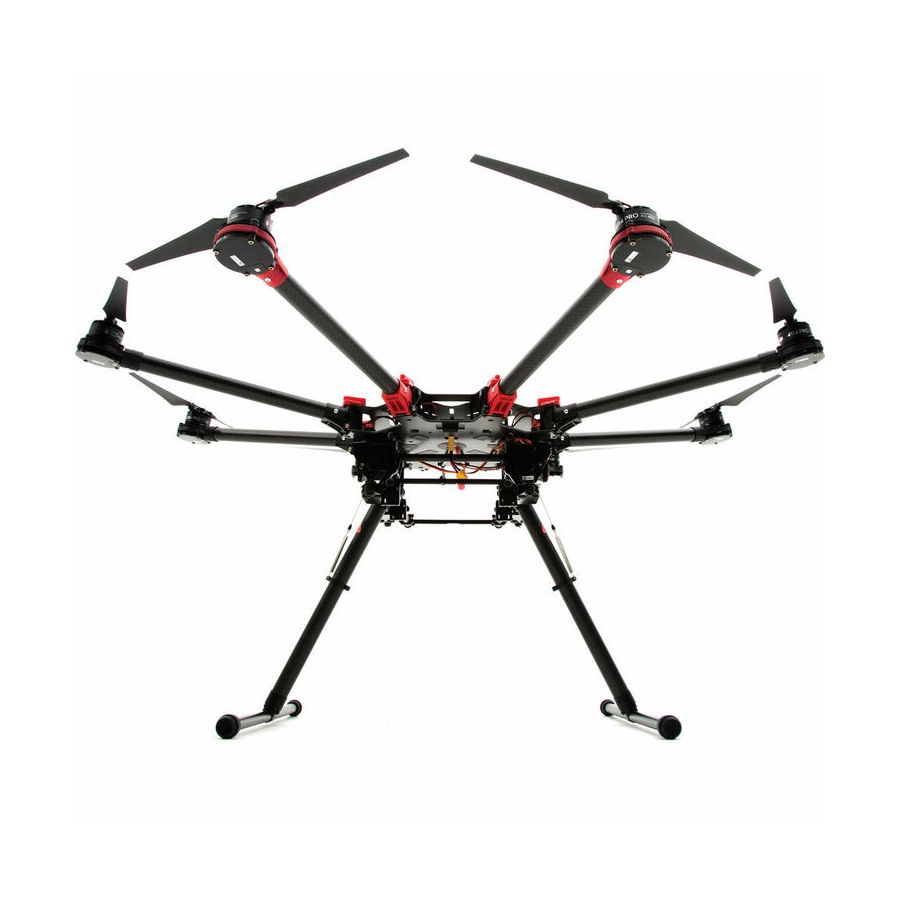

Retractable Landing Gear
Simpler Flight Controller Installation
Supports PCM or 2.4 GHz Transmitters

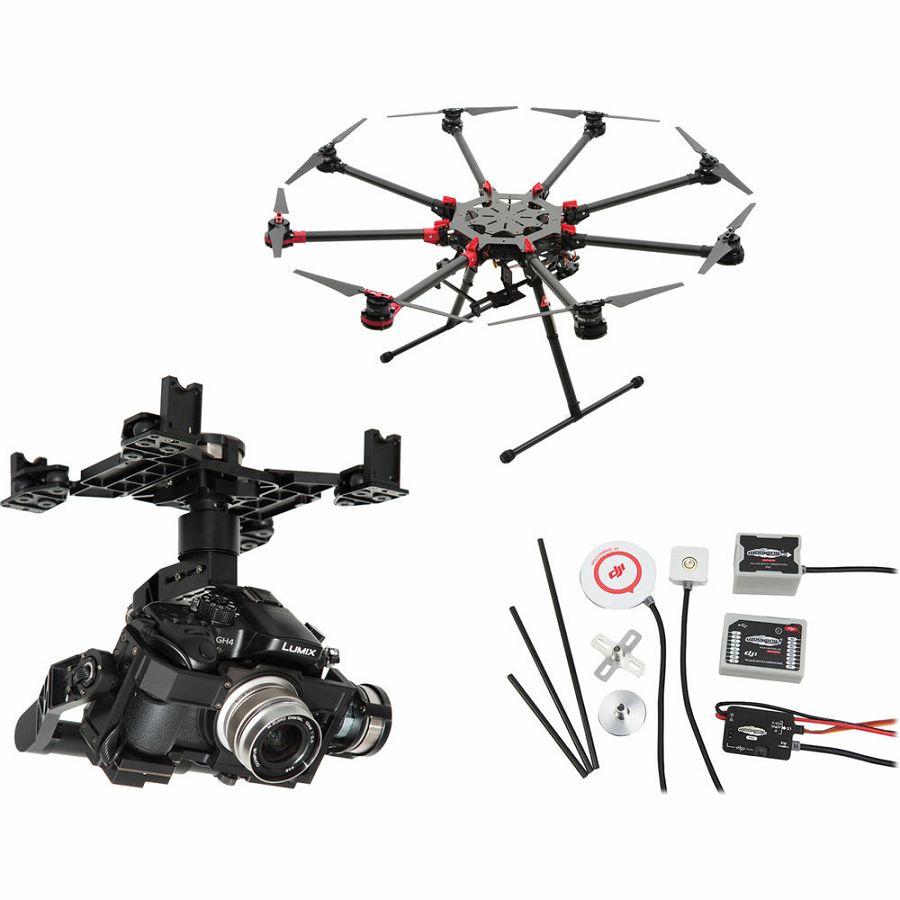

The Spreading Wings S1000+ with Z15-GH4 (HD) Gimbal and WooKong-M is a bundle from DJI that features the S1000+ Octocopter and the Zenmuse Z15-GH4 (HD) 3-axis gimbal that is specifically configured for the Panasonic GH3 and GH4. The bundle also features the WooKong-M flight control system which supports PCM or 2.4 GHz transmitters.

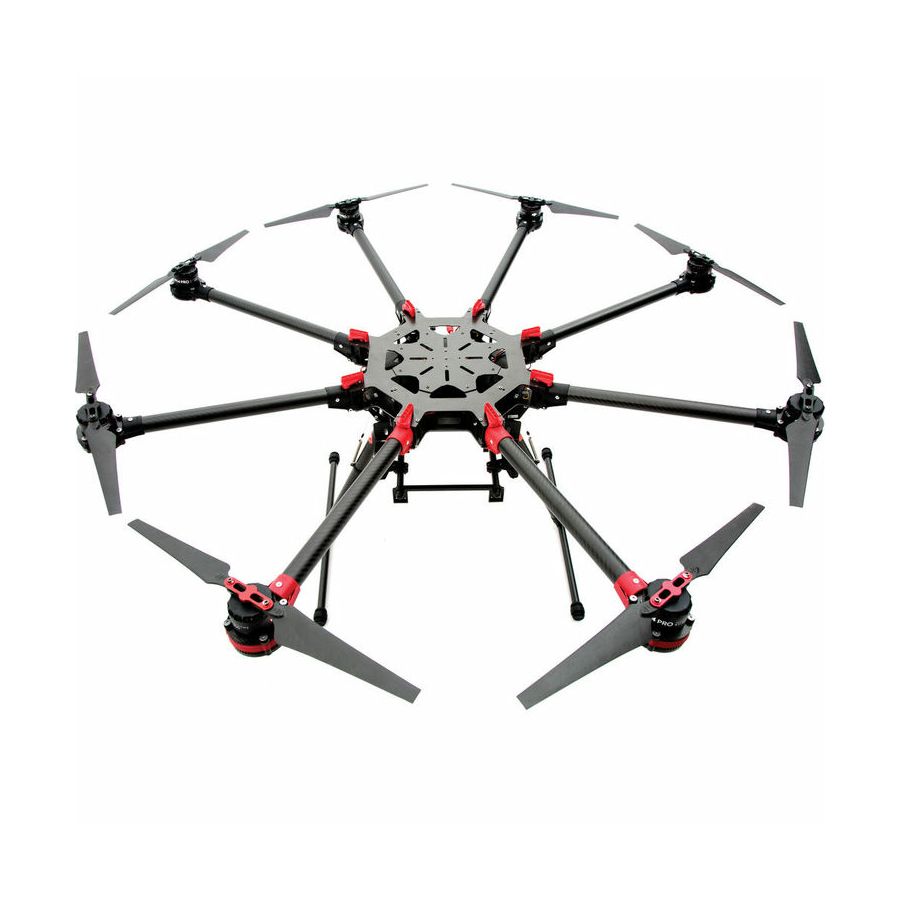

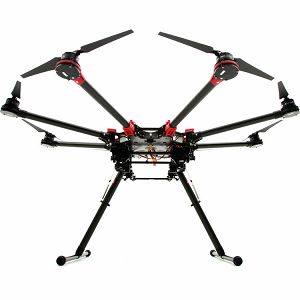

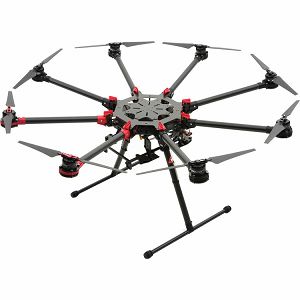

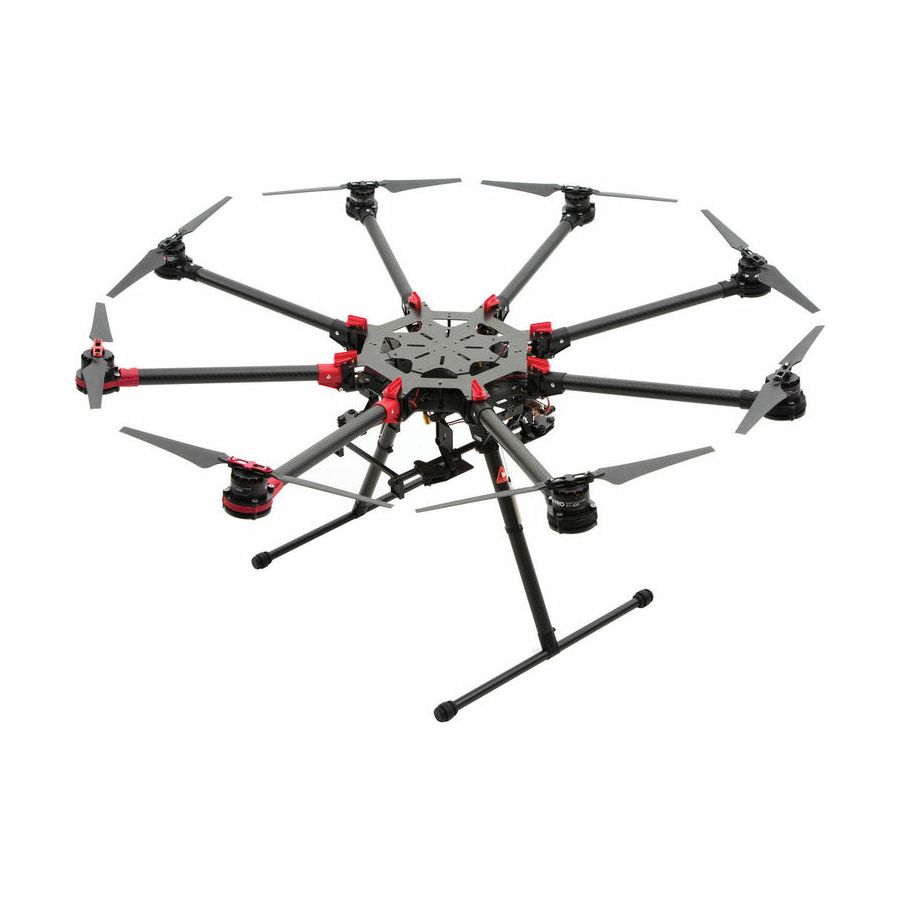

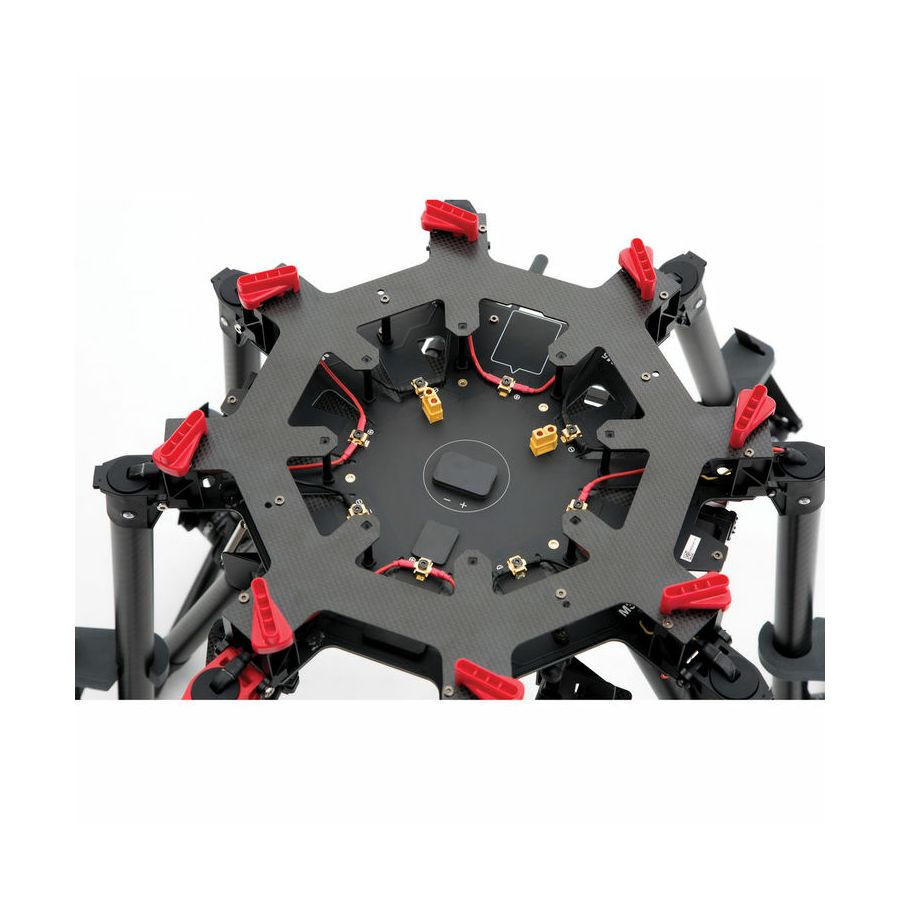

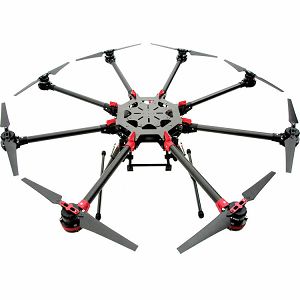

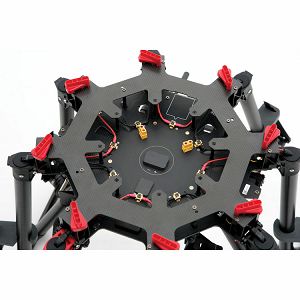

Featuring a removable upper center board for easier installation of flight electronics as well as a redesigned power distribution system, the Spreading Wings S1000+ Professional Octocopter continues the legacy of the original S1000. The S1000+ is a collapsible, eight-propeller RC helicopter designed to carry a DSLR or similar-sized camera. With a 24-pound maximum takeoff weight, it is intended to serve as a camera platform, allowing professional videographers and photographers to add dynamic aerial shots to their productions. It is designed to work with either the A2 or WooKong-M flight control systems, which are available separately.

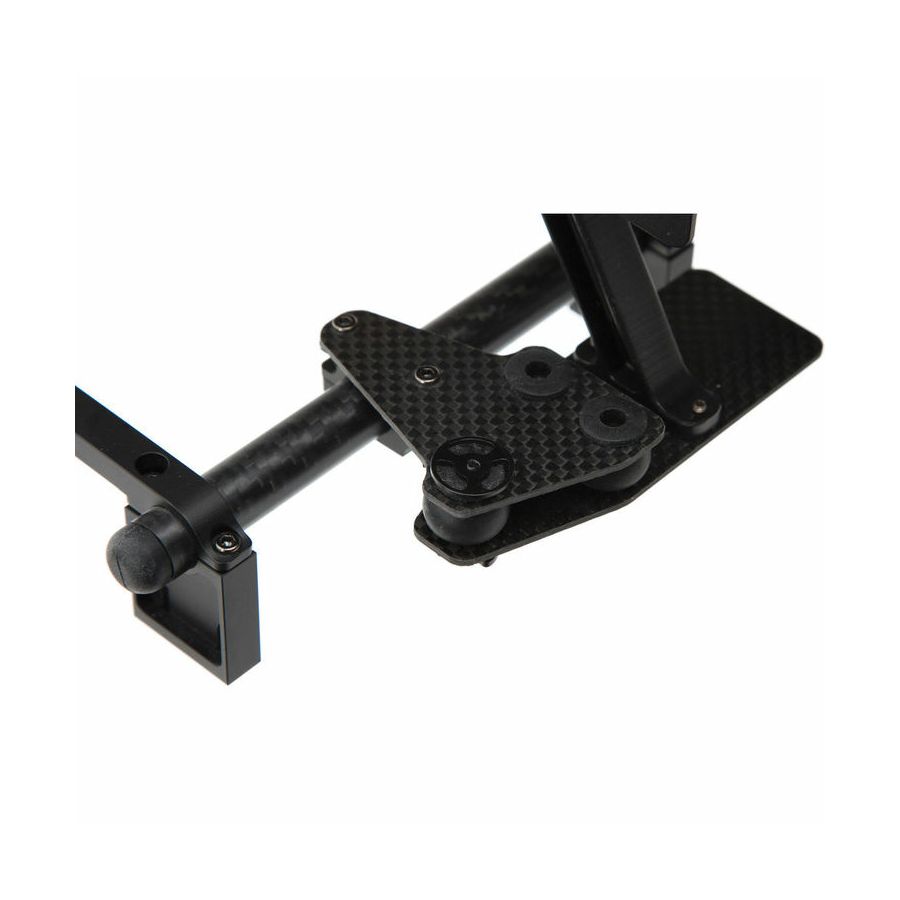

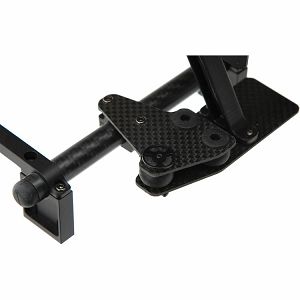

For stabilizing and moving a camera in flight, this bundle features the Zenmuse Z15-GH4 (HD) 3-axis gimbal. The airframe features a dampened gimbal mounting bracket with a low mounting position. Additionally, the landing gear can be raised, allowing an unobstructed 360-degrees of visibility. At the moment the gimbal is calibrated for used with the Oympus M.Zuiko Digital ED 12mm f.2.0 lens, however support for additional lenses may be added in the future. The HD version of the gimbal provides an HDMI output for use with the separately available Lightbridge system, plus there is a composite video out for 5.8 GHz analog video transmitters.

The S1000 is designed to power 6S lithium-polymer batteries (available separately). It will support capacities between 10,000 and 20,000mAh, and requires a discharge rate of at least 15C. With a 15,000mAh battery and a take-off weight of 21 pounds, it is estimated to fly approximately 15 minutes.

Note: Assembly is required and a flight control system is not included.

SPECIFIKACIJA:

DJI Spreading Wings S1000+ Professional Octocopter
Performance
Takeoff Weight 13.2 lb / 6 kg to 24.2 lb / 11 kg
Motor
Stator Size 1.6 x 0.6" / 41 x 14 mm
Motor Velocity Constant KV: 400 rpm/V
Maximum Power 500 W
Weight With Cooling Fan: 5.6 oz / 158 g
Electronic Speed Control (ESC)
Working Current 40 A
Working Voltage 6S LiPo
Signal Frequency 30 to 450 Hz
Drive PWM Frequency 8 kHz
Weight 1.2 oz / 35 g
Propellers
Size 15 x 5" / 38.1 x 12.7 cm
Weight 0.5 oz / 13 g
Frame
Diagonal Wheelbase 41.1" / 1045 mm
Frame Arm Length 15.2" / 386 mm
Center Frame Diameter 13.3" / 337 mm
Center Frame Weight With Landing Gear Mounting Base, Servos: 3.3 lb / 1.5 kg
Landing Gear Size 18.1 x 20.1 x 12" / 460 x 511 x 305 mm
Flight Control System
Compatibility A2 or WooKong-M
Gain Value Settings For A2 Flight Controller
Basic: Roll 120%, Pitch 120%, Yaw 120%
Attitude: Roll 170%, Pitch 170%, Vertical 120%
For WooKong-M Flight Controller
Basic: Roll 130%, Pitch 130%, Yaw 120%
Attitude: Roll 180%, Pitch 180%, Vertical 120%
General
Power Requirements Lithium-Polymer (LiPo):
Power Consumption Maximum: 4000 W
Hovering: 1500 W at 20.9 lb / 9.5 kg takeoff weight
Operating Temperature 14 to 104°F / -10 to 40°C
Weight 9.7 lb / 4.4 kg

DJI WooKong-M Flight Control System for Multi-Rotor UAVs
Model DJI WooKong-M
Supported ESC Output 400 Hz refresh frequency
Supported Transmitters PCM or 2.4 GHz with minimum 7 channels and Failsafe function available on all channels
Hovering Accuracy (GPS Mode) Vertical: ±19.7" / 0.5 m
Horizontal: ±78.7" / 2 m
Maximum Wind Resistance < 8 m/s (17.9 mph / 28.8 km/h)
Maximum Yaw Angular Velocity 150 deg/s
Maximum Tilt Angle 35°
Ascent/Descent ±6m/s
System Requirements Assistant Software: Windows 8, 7, or XP SP3
Power Requirements Battery: 2S to 6S LiPo
Power Consumption Maximum: 5W
0.9 A at 5V, 0.7 A at 5.8 V, 0.5 A at 7.4 V, 0.4 A at 8 V
Operating Temperature 23 to 140°F / -5 to 60°C
Note: You have to keep the IMU warm if you want to use it under 23°F (-5°F)
Dimensions Flight Controller: 2 x 1.5 x 0.6" / 51.2 x 38 x 15.3 mm
IMU: 1.6 x 1.2 x 1.1" / 41.4 x 31.1 x 27.8 mm
GPS and Compass: 2" / 50 mm (diameter) x 0.4" / 9 mm
Weight Overall: 4.2 oz / 118 g

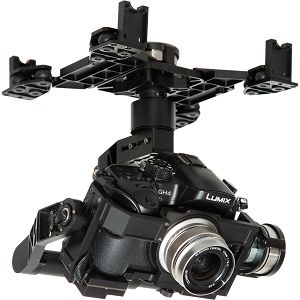

DJI Zenmuse Z15-GH4 HD 3-Axis Gimbal for Panasonic GH3/GH4
Supported Camera Panasonic GH4/GH3
Supported Lens Olympus M.ZUIKO DIGITAL ED 12mm f/2.0 Lens
Warning! Using other lenses may damage the servo motors
Control Requirements At least four spare receiver channels (or use dedicated transmitter for two person operation)
Software Requirements For Assistant Software: Windows 8, 7, XP SP3 -- 32 or 64-bit
Working Current Static Current: 200 mA at 25 V
Dynamic Current: 400 mA at 25 V
Locked-Rotor Current: 4 A at 25 V
GCU BEC Output 10 A at 12 V
Transmit Power GCU Wireless Video Transmission: 1 A at 12 V
Controlled Angle Accuracy ±0.05°
Maximum Controlled Rotation Speed Pan Axis: ±130°/s
Tilt Axis: ±130°/s
Roll Axis ±30°/s
Controlled Rotation Range Pan Axis Control: ±360°
Tilt Axis Control: +50° / -140°
Roll Axis Control: ±40°
Power Requirements GCU: 4S to 12 S lithium polymer (6S recommended for S800 EVO and S1000)
Operating Temperature 14 to 122°F / -10 to 50°C
Dimensions GCU: 2.5 x 1.4 x 0.8" / 64.2 x 34.1 x 19.5 mm
Weight Gimbal: 2.7 lb / 1.2 kg
GCU: 2.2 oz / 63 g







KOMPLET SADRŽI:

Spreading Wings S1000+ Professional Octocopter

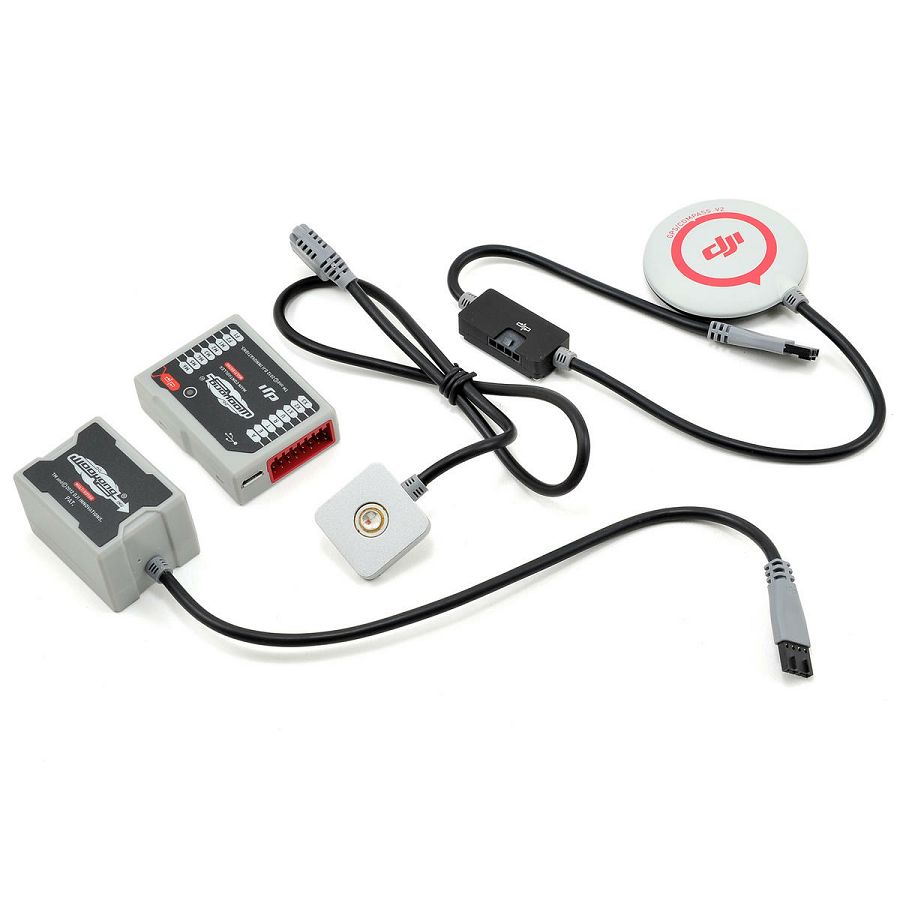

WooKong-M Flight Control System for Multi-Rotor UAVs
MC for WooKong-M Flight Control System
GPS/Compass Module for WooKong-M Flight Control System
PMU for WooKong-M Flight Control System
IMU for WooKong-M Flight Control System
LED Indicator for WooKong-M Flight Control System
GPS Bracket for WooKong-M Flight Control System

Zenmuse Z15-GH4 HD 3-Axis Gimbal for Panasonic GH3/GH4
Gimbal Control Unit
Lens Retaining Ring
4 x Mounting Bracket
Mounting Board for Receive
Cable Clamp
2 x Camera Mount Screw
Lens Retaining Ring Screw
Screw Package
2 x 10-Pin to 9-Pin Cable
7-Pin Cable
2 x 8-Pin to 6-Pin Cable
Camera Shutter Control Cable
Servo Cable Package
AV Video Power Cable
iOSD Mark II Cable
Micro-USB Cable
CAN-Bus Cable
HDMI Cable Camera
Spare Package
