DJI Spreading Wings S900 + WKM + Z15 Zenmuse BMPCC ( Blackmagic Pocket Cinema Camera) Gimbal Combo dron Professional Aircraft multi-rotor Hexacopter WooKong-M Flight Control System Gyroscope

Zenmuse Z15 Gimbal for Pocket Camera
Gimbal Provides 360° Camera Rotation

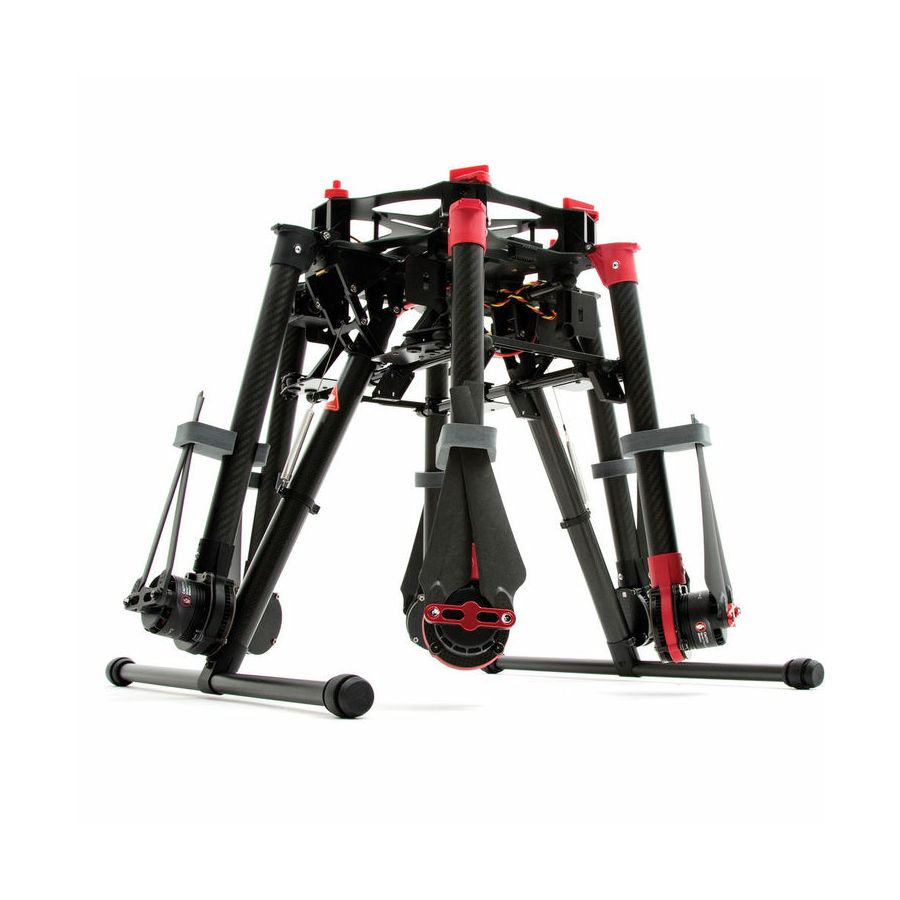

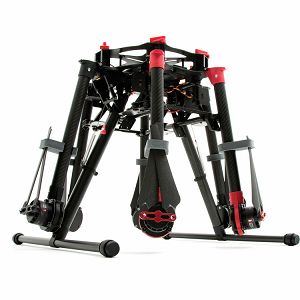

Collapsible Frame and Folding Props
Up to 18 Pound Total Take-Off Weight
Low Gimbal Mounting with Dampening
Retractable Landing Gear
DJI WooKong-M Flight Control System
Supports PCM or 2.4 GHz Transmitters
Compatible with iPad Ground Station
Up 18 Minutes Flying at 12,000mAh

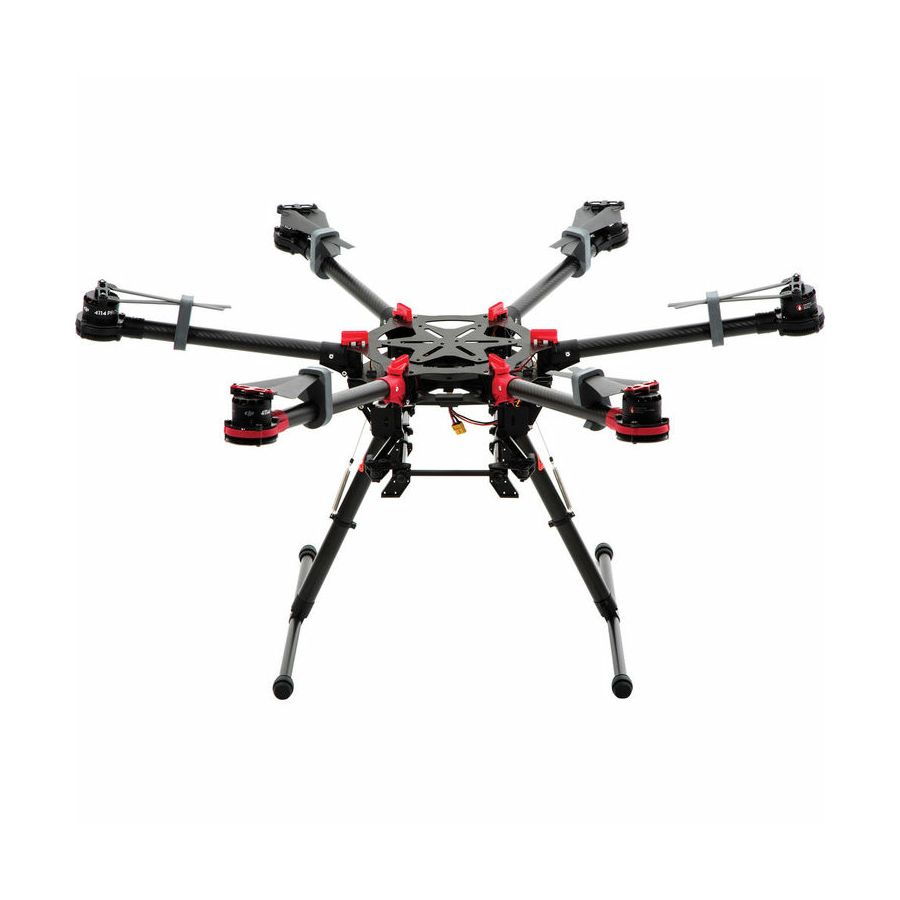

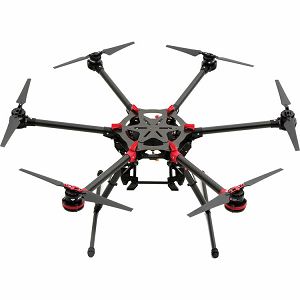

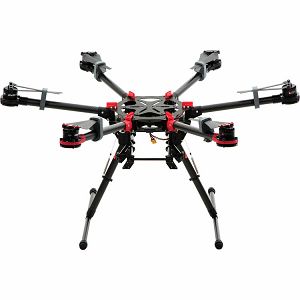

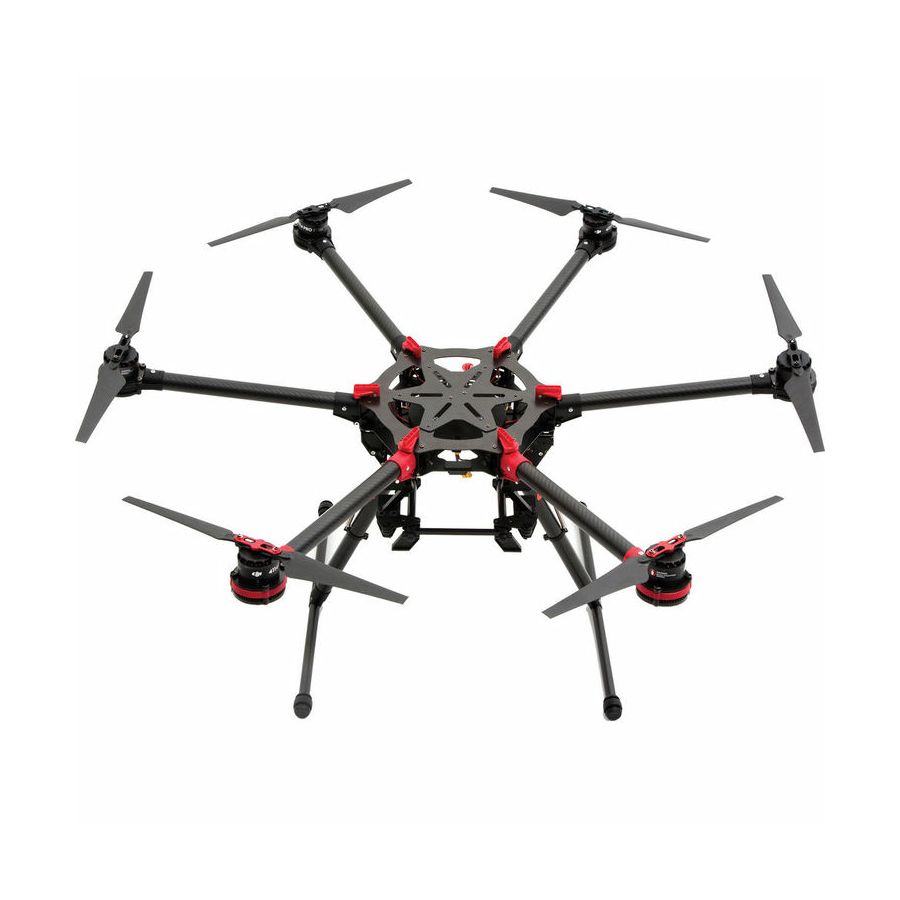

Supporting a total takeoff weight of 18 pounds, the Spreading Wings S900 with Zenmuse Z15-BMPC Gimbal is a hexcopter from DJI that allows you to capture aerial video using a separately available Blackmagic Pocket Camera camera. It features carbon fiber frame arms to cut down on weight, which fold down for storage and transport. The included Z15-BMPC gimbal helps keep the camera stabilized and isolated from vibration, and allows you to pan, tilt, and even cant the camera for more dynamic shots. Used with a 6S 12000mAh battery, available separately, the S900 can fly for up to 18 minutes fully laden.

This version of the S900 features the DJI WooKong-M flight control system, a collection of hardware which acts as the hexcopter's brains. It takes data from the GPS, gyros, barometer, and other sensors while applying any pilot inputs to help ensure stable flying and smooth video. The WooKong-M can be configure for different flying styles and pilot skill levels, with features like Intelligent Orientation Control (IOC), Point of Interest (POI), one motor fail protection, and a Return-to-Home fail safe in the event contact is lost with the transmitter. Thanks to CAN-bus peripheral ports, it can integrate other accessories, such as the iPad Ground Control Station (GCS).

The S900 is not a ready-to-fly (RTF) aircraft. It does require some assembly and a transmitter (hand-held radio controller) and batteries are not included. Transmitters the WooKong supports include ma wide range PCM or 2.4 GHz models that have at least 7 channels. For power, it uses LiPo flight batteries in 6S configuration, with a 10,000 to 15,000 mAh capacity, and requires a discharge rate of at least 15C.

SPECIFIKACIJA:

DJI Spreading Wings S900 Hexacopter
Frame
Diagonal Wheelbase 35.4" / 900 mm
Frame Arm Length 14.1 / 358 mm
Frame Arm Weight Including Motor, ESC, and Propellers: 11.1 oz / 316 g
Center Frame Diameter 10.7" / 272 mm
Center Frame Weight With Landing Gear Mounting Base and Servos: 2.6 lb / 1.2 kg
Landing Gear Dimensions 18.1 x 17.7 x 14.2 / 460 x 450 x 360 mm
Motor
Stator Size 1.6 x 0.6" / 41 x 14 mm
Motor Velocity Constant KV: 400 rpm/V
Maximum Power Consumption 500 W
Weight With Cooling Fan: 5.6 oz / 158 g
Electronic Speed Control (ESC)
Working Current 40 A
Working Voltage 6S LiPo
Signal Frequency 30 to 450 Hz
Drive PWM Frequency 8 kHz
Weight With Cooling Fan: 1.2 oz / 35 g
Propeller
Type Folding
Material Plastic
Size 15 x 5.2" / 381 x 132 mm
Weight 0.5 oz / 13 g
Flight Parameters
Supported Flight Control Systems DJI A2 and WooKong-M
Take-Off Weight 10.4 to 18.1 lb / 4.7 to 8.2 Kg
Total Weight 7.3 lb / 3.3 Kg
Battery Requirements LiPo: 6S, 10000 to 15000 mAh, 15C (minimum)
Maximum Power Consumption 3000 W
Hover Power Consumption 1000 W at 15 lb / 6.8 Kg takeoff weight
Hover Time 18 minutes at 12000 mAh and 15 lb / 6.8 Kg takeoff weight
Operating Temperature 14 to 104°F/ -10 to 40°C

DJI WooKong-M Flight Control System for Multi-Rotor UAVs
Model DJI WooKong-M
Supported ESC Output 400 Hz refresh frequency
Supported Transmitters PCM or 2.4 GHz with minimum 7 channels and Failsafe function available on all channels
Hovering Accuracy (GPS Mode) Vertical: ±19.7" / 0.5 m
Horizontal: ±78.7" / 2 m
Maximum Wind Resistance < 8 m/s (17.9 mph / 28.8 km/h)
Maximum Yaw Angular Velocity 150 deg/s
Maximum Tilt Angle 35°
Ascent/Descent ±6m/s
System Requirements Assistant Software: Windows 8, 7, or XP SP3
Power Requirements Battery: 2S to 6S LiPo
Power Consumption Maximum: 5W
0.9 A at 5V, 0.7 A at 5.8 V, 0.5 A at 7.4 V, 0.4 A at 8 V
Operating Temperature 23 to 140°F / -5 to 60°C
Note: You have to keep the IMU warm if you want to use it under 23°F (-5°F)
Dimensions Flight Controller: 2 x 1.5 x 0.6" / 51.2 x 38 x 15.3 mm
IMU: 1.6 x 1.2 x 1.1" / 41.4 x 31.1 x 27.8 mm
GPS and Compass: 2" / 50 mm (diameter) x 0.4" / 9 mm
Weight Overall: 4.2 oz / 118 g

DJI Zenmuse Z15-N7 3-Axis Gimbal for Sony NEX-7
Peripheral
Supported Camera Sony NEX-7
Supported Lens Sony SEL16F28 16mm f/2.8
Control Requirements At least 4 spare receiver channels
S-Bus/PPM receiver supported
Software Requirements For Assistant Software: Windows 8, 7, XP SP3 -- 32 or 64-bit
Electrical Characteristics
Working Current Static Current: 200 mA at 25 V
Dynamic Current: 400 mA at 25 V
Locked-Rotor Current: 4 A at 25 V
GCU BEC Output 10 A at 12 V
Transmit Power GCU Wireless Video Transmission: 1 A at 12 V
Performance
Load Weight (Reference Value) Not specified by manufacturer
Controlled Angle Accuracy ±0.01°
Maximum Controlled Rotation Speed Pan Axis: ±130°/s
Tilt Axis: ±130°/s
Roll Axis ±30°/s
Controlled Rotation Range Pan Axis Control: ±360° continuous rotation
Tilt Axis Control: ±360° continuous rotation
Roll Axis Control: ±40° (±360° mechanical continuous rotation)
General
Power Requirements GCU: 4S to 12 S LiPo (6S if using S800, S1000+)
Operating Temperature 14 to 122°F (-10 to 50°C)
Dimensions Gimbal: 8.7 x 8.7 x 7.5" (220 x 220 x 190 mm)
Camera Frame Dimensions: 5.6 x 3" (142 x 76 mm)
GCU: 2.5 x 1.4 x 0.8" (64.2 x 34.1 x 19.5 mm)
Weight Gimbal: 2.9 lb (1.3 kg)
GCU: 2.2 oz (63 g)

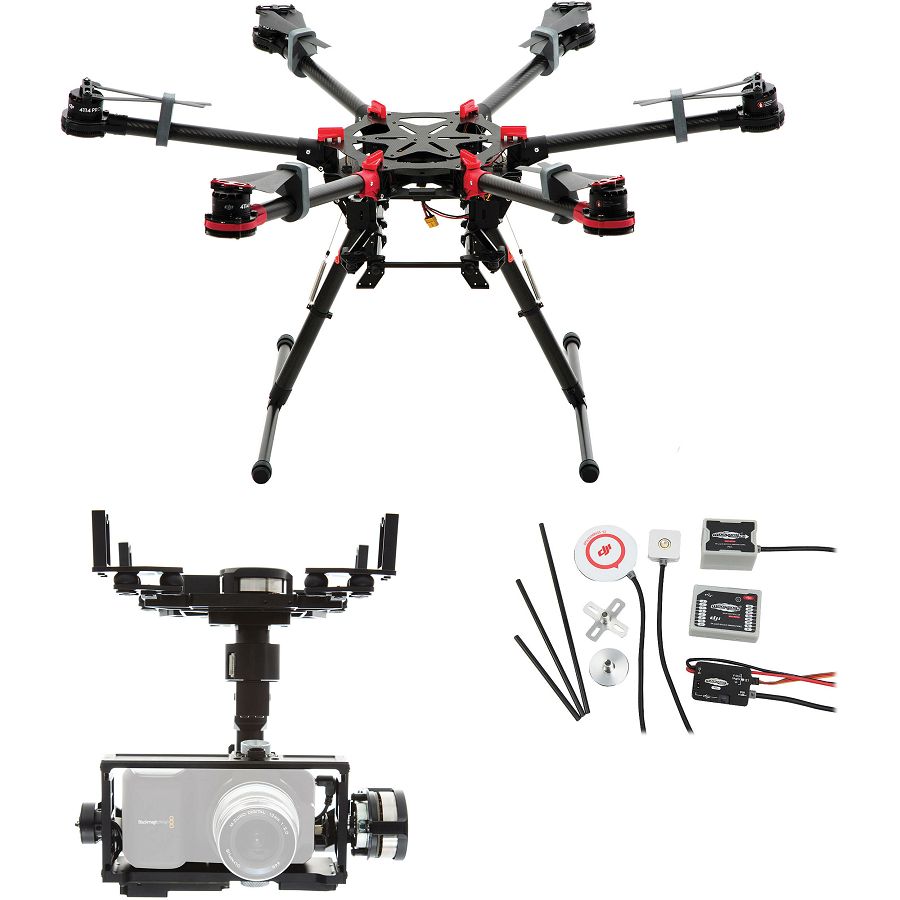

Kit Uključuje:

Spreading Wings S900 Hexacopter
Center Frame
6 x Frame Arms
2 x Landing Skid Tubes
2 x Landing Gear legs
GPS Collapsible Mount
2 x Springs
Connector Set
3-pin Servo Cable
Screw Package
2 x Spare CW Propellers
2 x Spare CCW Propellers
4 x Magic Tape
6 x Red Knobs
50 x Soft Vibration Absorbing Gaskets

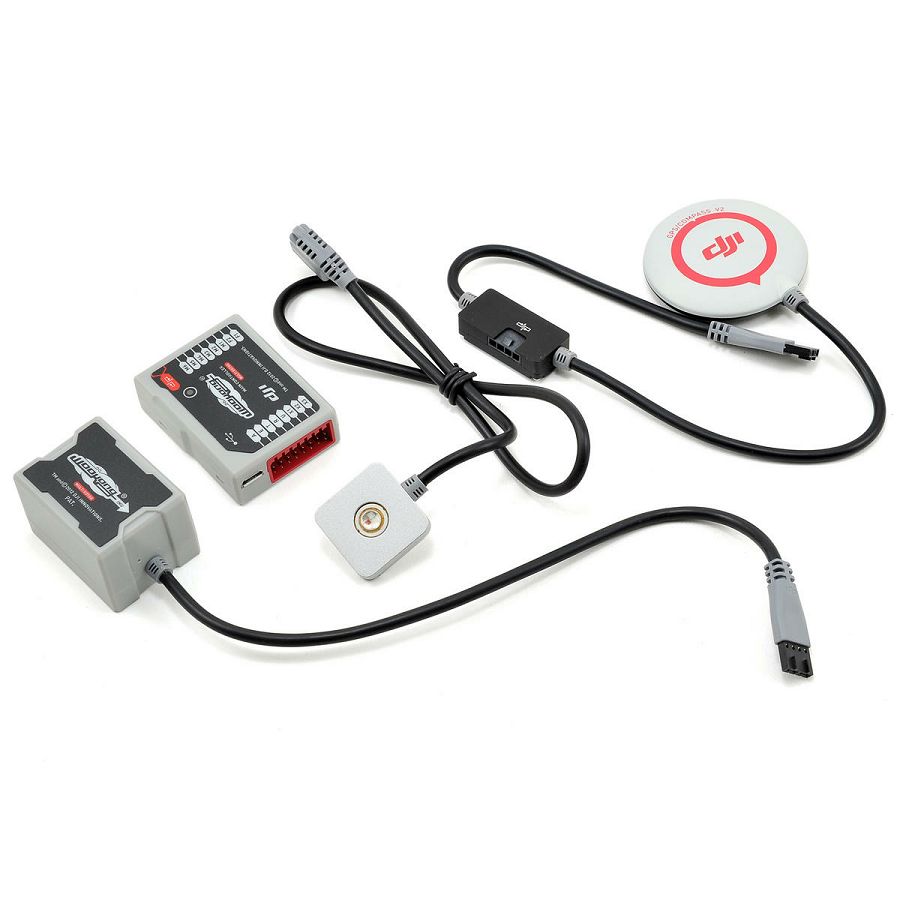

WooKong-M Flight Control System for Multi-Rotor UAVs
MC for WooKong-M Flight Control System
GPS/Compass Module for WooKong-M Flight Control System
PMU for WooKong-M Flight Control System
IMU for WooKong-M Flight Control System
LED Indicator for WooKong-M Flight Control System
GPS Bracket for WooKong-M Flight Control System

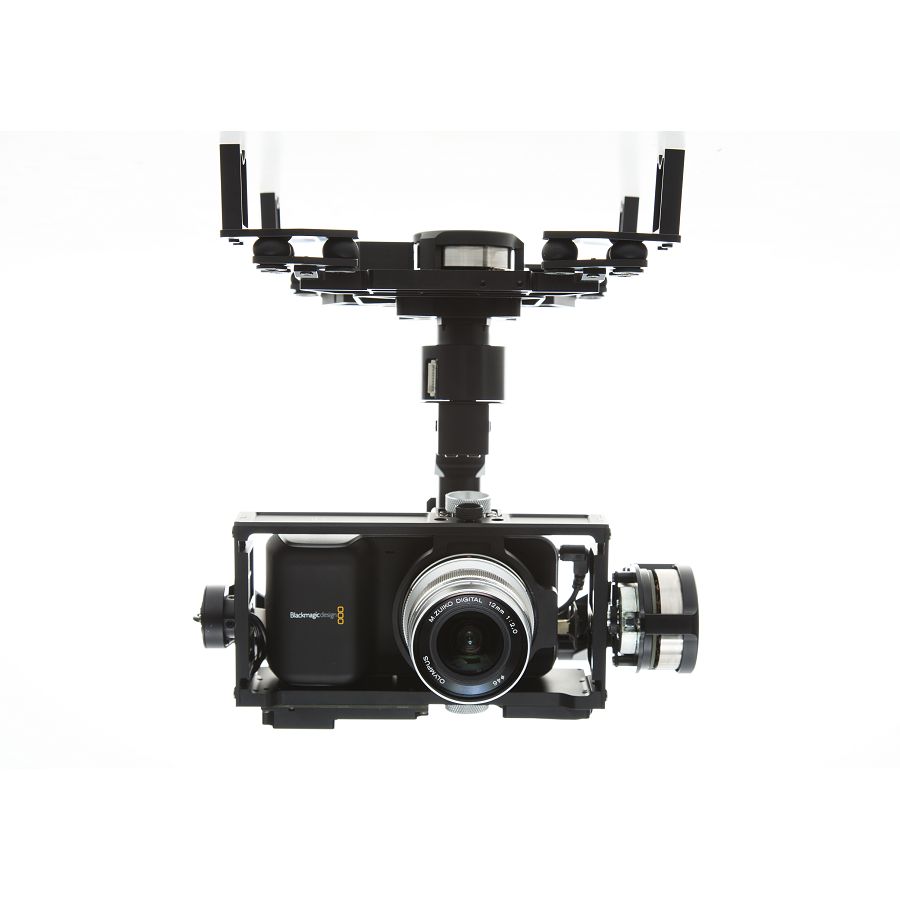

Zenmuse Z15-BMPCC 3-Axis Gimbal for Blackmagic Pocket Cinema Camera
Gimbal Control Unit (GCU)
Lens Retaining Ring
4 x Mounting Bracket
Mounting Board for Receiver
Cable Clamp
2 x Camera Mount Screw
Lens Retaining Screw
Screw Package
2 x 9-Pin Cable
Camera Record Cable
Servo Cable Package
AV Video Power Cable
iOSD Mark II Cable
CAN-Bus Cable
Spares Pack
