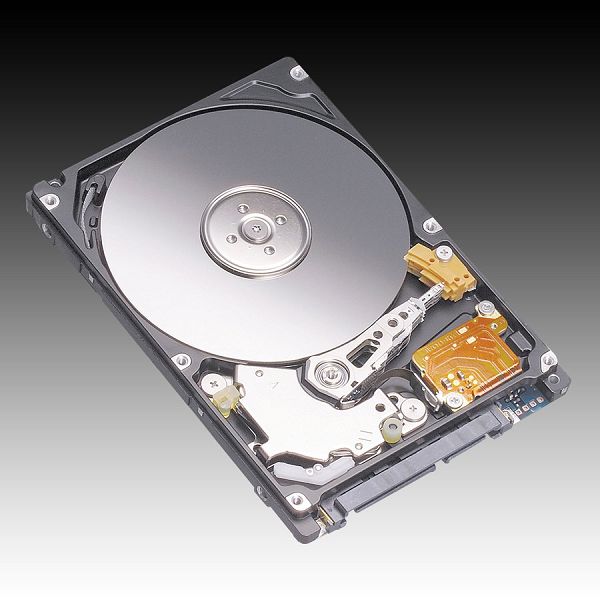

Fujitsu raises the bar with the introduction of its next generation 2.5-inch SATA hard disk drives with up to 160per platter using PMR technology. Since notebook and consumer electronics manufacturers are requiring increasingly higher capacity SATA hard disk drives in a slim package for their products, the new Fujitsu PMR models are entering the market at an optimal time to take advantage of this demand.
Engineered to deliver high capacity in a small form factor, the mobile series retains the outstanding level of quality and reliability for which Fujitsu is renowned. The 5,400 RPM mobile HDDs achieve up to 320GB capacity, among the highest in the industry with this spindle speed. Featuring up to 320GB of storage space in a 9.5mm package, low power consumption, low acoustic noise and heat emissions, these 2.5-inch SATA hard disk drives are an excellent choice for today’s ultra-fast, high-capacity notebook computers and consumer electronics applications.
With the delivery of its next generation, perpendicular recording SATA hard disk drives, Fujitsu continues to demonstrate its strong commitment to technology leadership.
Device Location: Internal
Hard Drive Type: Portable
Form Factor: 2.5" x 1/8H
Storage Capacity: 200 GB
Supports Data Channel: Serial ATA-150
Installed Cache Memory Storage Capacity: 8 MB
Sector Capacity: 512 B
Rotational Speed: 5400 rpm
Average Rotational Delay: 5.56 ms
Average Seek Time: 12 ms
Track-to-Track Seek Time: 1.5 ms
Maximum Seek Time: 22 ms
Internal Data Bit Rate: 894 Mbps
External Data Bit Rate: 300 MB/sec
Recoverable Errors: 1 per 10^7
Non-Recoverable Errors: 1 per 10^14
Mean Time Between Failures: 300000 hr
Start / Stop Cycles: 600000
Hard Drive Features: Perpendicular recording
Compliant Storage Standards: S.M.A.R.T.
SATA Interface Connector Type: SATA 7-pin
SATA Interface Quantity: 1
Maximum Operating Ambient Temperature: 55 °C
Minimum Operating Ambient Temperature: 5 °C
Maximum Operating Humidity: 90 %
Minimum Operating Humidity: 8 %
Maximum Non-Operating Ambient Temperature: 65 °C
Minimum Non-Operating Ambient Temperature: -40 °C
Maximum Non-Operating Humidity: 90 %
Minimum Non-Operating Humidity: 8 %
Maximum Input Voltage: 5.25 V
Minimum Input Voltage: 4.75 V
Maximum Power Consumption: 2 W
Minimum Power Consumption: 0.13 W
Shock Tolerance Operating: 300G @ 2ms
Shock Tolerance Storage: 900G @ 1ms
Vibration Tolerance Operating: 1.0G @ 5-500Hz
Vibration Tolerance Storage: 5G @ 5-500Hz
Max. Altitude Operating: 3000 m
Typical Operating Noise Level: 28 dB
Depth: 100 mm
Height: 9.5 mm
Width: 70 mm
Package Type: Bulk
Warranty Products returnable: Yes
Warranty Term (month): 36 month
Warranty validation Criteria: Serial Number
Pack Depth (mm): 100 mm
Pack Width (mm): 70 mm
Pack Height (mm): 9.5 mm
Pack Weight Brutto (kg): 0.101 kg
Pieces in pack: 1
Box Depth (mm): 510 mm
Box Width (mm): 190 mm
Box Height (mm): 350 mm
Box Weight Brutto (kg): 6.08 kg
Packs in Box: 50
