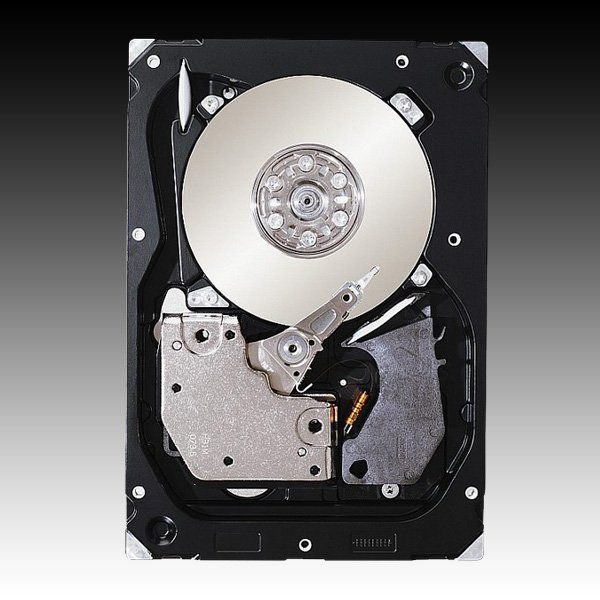

The sixth-generation Seagate Cheetah 15K.6 has the highest sequential and transactional performance of any 3.5-inch drive in the enterprise market and delivers a 61 percent improvement in watts/GB at idle over the prior generation.
Device Location: Internal
Form Factor: 3.5"
Storage Capacity: 146 GB
Supports Data Channel: SAS
Swap Capability: Hot
Installed Cache Memory Storage Capacity: 16 MB
Cylinders Quantity: 2
Heads Quantity: 3
Rotational Speed: 15000 rpm
Average Rotational Delay: 2 ms
Average Seek Time: 3.4 ms
Track-to-Track Seek Time: 0.2 ms
Internal Data Bit Rate: 2225 Mbps
External Data Bit Rate: 300 MB/sec
Non-Recoverable Errors: 1 per 10^16
Hard Drive Features: Perpendicular recording Seagate PowerTrim
Compliant Storage Standards: S.M.A.R.T.
SAS Interface Quantity: 1
Platform Compability: PC
Maximum Operating Ambient Temperature: 55 °C
Minimum Operating Ambient Temperature: 5 °C
Maximum Operating Humidity: 95 %
Minimum Operating Humidity: 5 %
Maximum Non-Operating Ambient Temperature: 70 °C
Minimum Non-Operating Ambient Temperature: -40 °C
Maximum Non-Operating Humidity: 95 %
Minimum Non-Operating Humidity: 5 %
Maximum Power Consumption: 15 W
Minimum Power Consumption: 9.7 W
Shock Tolerance Operating: 60G @ 2ms
Shock Tolerance Storage: 250G @ 2ms
Vibration Tolerance Operating: 1G @ <400Hz
Vibration Tolerance Storage: 2G @ <400Hz
Typical Operating Noise Level: 36 dB
Depth: 146.99 mm
Height: 26.11 mm
Width: 101.85 mm
Nominal Weight: 0.674 kg
Warranty Products returnable: Yes
Warranty Term (month): 60 month
Warranty validation Criteria: Serial Number
Pack Weight Brutto (kg): 0.76 kg
Pieces in pack: 1
Box Depth (mm): 493 mm
Box Width (mm): 294 mm
Box Height (mm): 203 mm
Box Weight Brutto (kg): 14.71 kg
Packs in Box: 20
