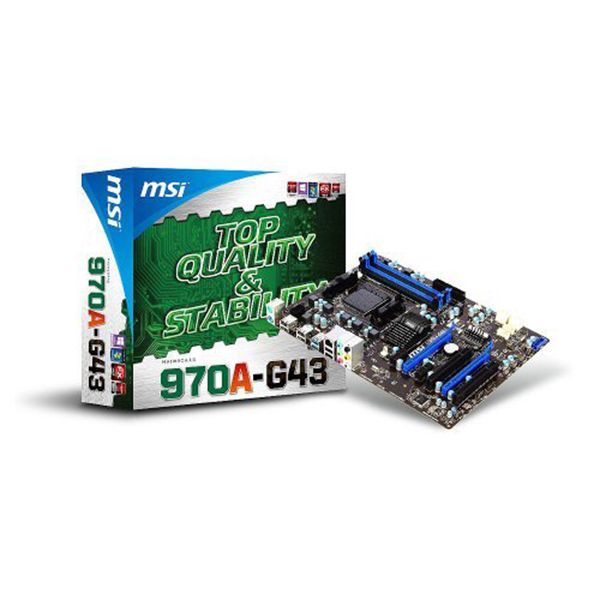

Model: 970A-G43
Podržani procesori: AMD® FX, Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 i
Sempron CPU u AM3 / AM3+ paketu
Chipset: AMD® 970+SB950
Memorija: DDR3 1066/1333/1600/1866/2133*(*OC)
Dual channel
4 DIMM utora
32 GB max.
Utori za proširenje: 2 x PCI Express 2.0 x16
PCI_E2 podržano do PCIe x16 speed
PCI_E4 podržano do PCIe x4 speed
2 PCI Express 2.0 x1
2 PCI, podržava 3.3V/ 5V PCI bus vezu
I/O konektori: 1 x ATX 24-pin power
1 x ATX 8-pin 12V CPU power
CPU x 1 / System x 2 FAN
1 x Front panel audio
1 x Front panel
1 x Chassis intrusion prekidač
3 x USB 2.0
1 x USB 3.0
1 x Serial
1 x Clear CMOS jumper
6 x SATA 6Gb/s
1 x TPM module
Konektori na stražnjem panelu:
1 x PS/2 tipkovnica
1 x PS/2 miš
6 x USB 2.0
2 x USB 3.0 (blue)
1 x LAN jack
1 x 6 in 1 audio jack
Audio: Integrirani HD audio codecby Realtek® ALC887
Flexible 8-channel audio sa jack sensing
Usuglašeno sa Azalia 1.0 Spec
LAN: Realtek PCI-E GbLAN controller 8111E
Integrirani Fast Ethernet MAC and PHY in single chip
Podržava 10Mb/s, 100Mb/s and 1000Mb/s
Suglasno sa PCI-Express Bus specification v1.0a
Dimenzije: ATX Form Factor 30.5cm(L) x 22.5cm(W)
Napomena: Više detalja o proizvodu možete naći ovdje.
