Canon CN-E 18-80mm T4.4 Cinema Zoom Cine Lens filmski objektiv (1714C003AA)

ZNAČAJKE:

Covers Super 35 & APS-C Formats
EF Mount
T4.4 Constant Maximum Aperture
9-Blade Iris
Parfocal with Minimized Focus Breathing
Compatible with Servo Lens Controllers
Optional Control Grip
Image Stabilization & Auto Focus Support
180° Rotation for Focus
Lightweight at only 2.65 lb

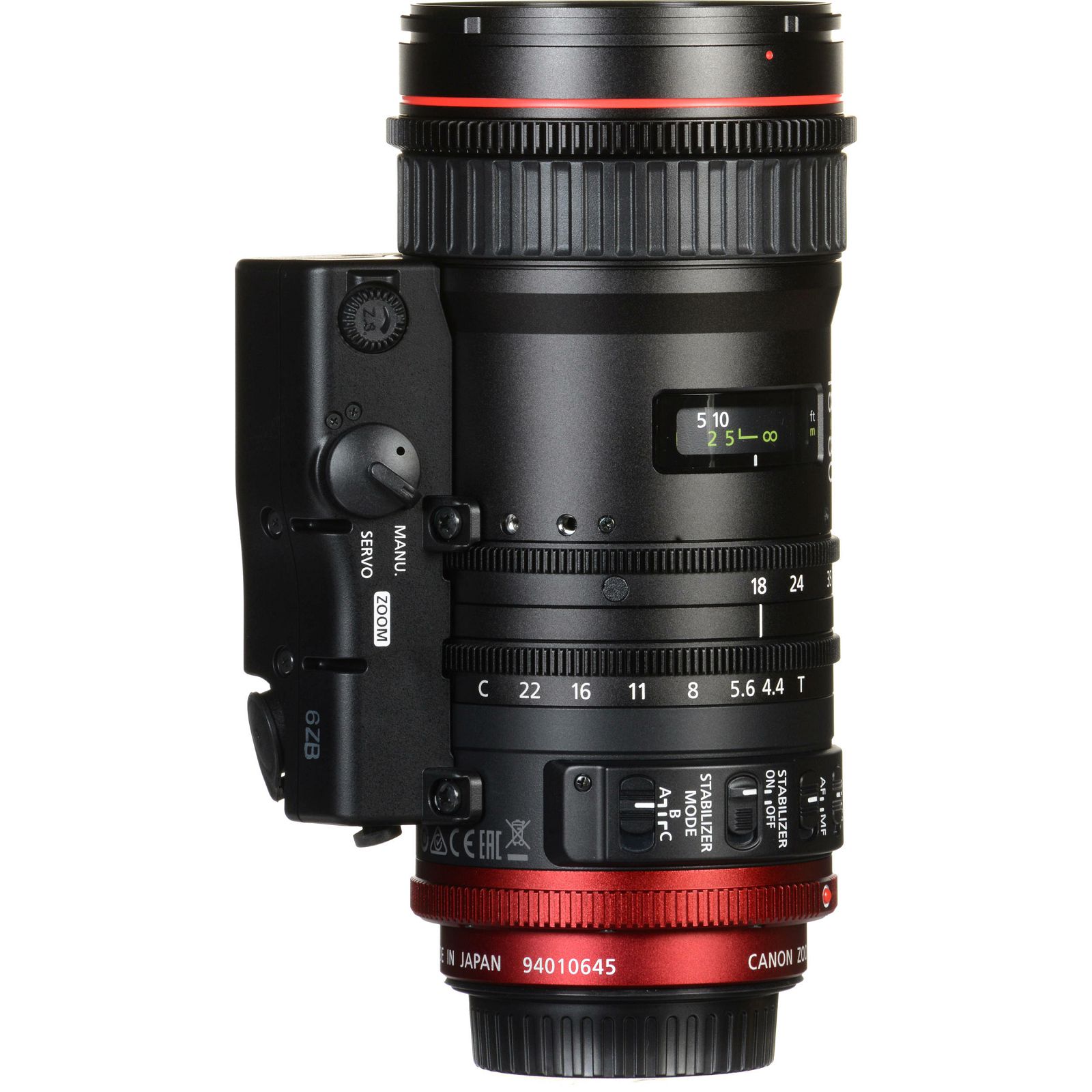

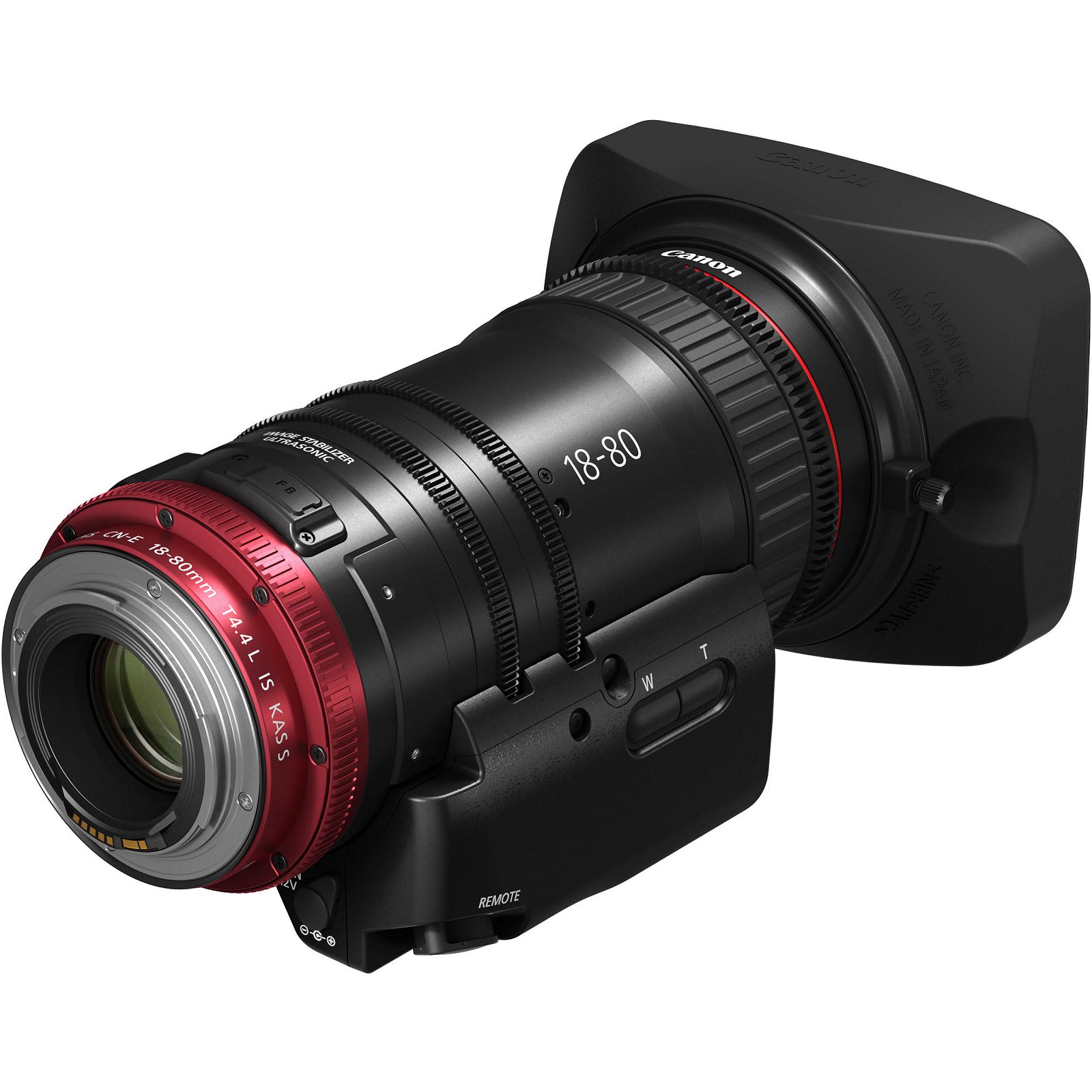

The Canon CN-E 18-80mm T4.4 COMPACT-SERVO Lens combines the functionality of Canon's EF lenses with the features and performance of their CN-E lineup. Designed for use with EF-mount cameras featuring Super 35 or APS-C sized sensors, the lens covers an incredibly useful 18 to 80mm focal range while maintaining a constant T-stop of T4.4 (f/4) throughout. Measuring 7.2" long and weighing only 2.65 lb, the lens presents itself as a compact, lightweight option suitable for a variety of productions, from narrative work to run-and-gun documentaries. Notably, the lens is Canon's first cine-style option to incorporate image stabilization and auto focus functionality when paired with Cinema EOS cameras.

Further enhancing the versatility of this lens, Canon has equipped it with a servo drive unit compatible with industry-standard lens controllers, including Canon's broadcast ZSD-300D and FPD-400D, for full zoom, focus, and iris control. Alternatively, you can outfit the lens with the optional ZSG-C10 Control Grip for ENG-style lens control and operation. Power is provided to the grip from compatible cameras via the EF mount. For non-servo zoom control, the lens features cine-standard 0.8 mod gears, as well as a rubberized grip on the focus ring enabling comfortable manual operation.


Lens Design
Covers Super 35 / APS-C formats
18 to 80mm focal range (4.4x zoom ratio)
Constant T4.4 (f/4) aperture
Parfocal design to maintain focus during zoom
Minimized focus breathing
Cine-standard 0.8 MOD focus gear ring
0.5 MOD iris and zoom gear rings
Focus ring rotates 180°
Matching color characteristics to existing CN-E lenses
9-blade iris
Iris closing
Compact and lightweight design
Servo Control
Servo Control Capability for all zoom, focus and iris
Power provided via camera mount (from compatible cameras)
Compatible with broadcast-style servo lens controllers, such as Canon ZSD-300D and FPD-400D
Optional ZSG-C10 Grip for ENG-style control and shoulder mount applications
Functionality with Cinema EOS Cameras
Auto focus function (Continuous AF, One-Shot AF, Focus Guide)
Image Stabilization
Remote control of zoom, focus and iris via camera
REC start/stop from ZSG-C10 Grip
Peripheral illumination correction
Chromatic aberration correction
Lens metadata record
T-stop/F-stop number display select

SPECIFIKACIJE:

Canon 18-80mm Specs
Focal Length 18 - 80mm
Lens Mount Canon EF
Format Super 35/APS-C
Image Circle 31.4 mm
Maximum T-Stop T4.4
Maximum F-Stop f/4
Minimum T-Stop Not Specified by Manufacturer
Diagonal Angle of View Super 35: 80.5 - 21.1°
Minimum Focus Distance from Image Plane 1.6' / 0.5 m
Elements/Groups Not Specified by Manufacturer
Iris Blades 9
Front Diameter 84 mm
Filter Thread 77 mm
Focus Scales Not Specified by Manufacturer
Zoom Ratio 4.4x
Electronic Communication Not Specified by Manufacturer
Tripod Mounting Thread Not Specified by Manufacturer
Dimensions (W x H) 3.7 x 4.2" / 94 x 106.7 mm
Length 7.2" / 18.23 cm
Weight 2.65 lb / 1.2 kg

UKLJUČUJE:

Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
