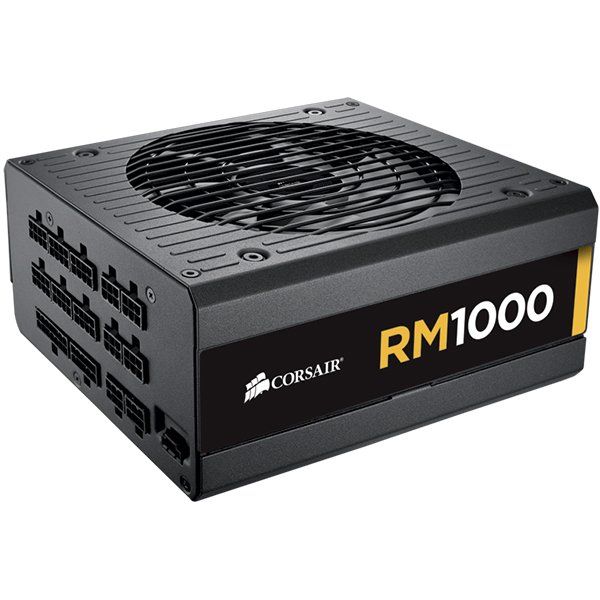

Power Device Type: Power Supply
Power Device Location: Internal
Input Voltage: AC 100-240 V
Input Frequency: 47/63 Hz
Rated Input Current: 6.5 A
Rated Current: 13 A
Input Power Connectors Quantity: 1
Maximum Output Power: 1000 W
Circuit Protection: Over Voltage Undervoltage Over Temperature Over Current Short Curcuit Protection Over Power
Power Adapter and Power Supply Features: Active PFC
Efficiency: 92%
Certifications: 80PLUS Gold, FCC, ICES, CE, C TUV US, RCM, TUV, CB, CCC, BSMI, GOST, ROHS, WEEE, ROHS, KC, TUV-S
+3.3V: 25 A
+5V: 25 A
+12V: 83.3 A (1000 W)
+5VSB: 3 A
-12V: 0.8 A
+3.3V / +5V: (150 W)
20+4-pin Main Connector: 1
4/8-pin +12V Power Connector: 1
4-pin Peripheral Power Connector: 11
4-pin Floppy Drive Connector: 2
5-pin S-ATA Connector: 12
6/8-pin PCI Express Connector: 8
Maximum Fans Supported Quantity: 1
Fans Installed Quantity: 1
Fan Diameter: 140 mm
Maximum Operating Ambient Temperature: 50 °C
Minimum Operating Ambient Temperature: 0 °C
Mean Time Between Failures: 100000 hr
Countries: European Union (EU)
External Color: Black
Package Type: Retail
Depth (mm): 150 mm
Height (mm): 86 mm
Width (mm): 180 mm
Warranty Products returnable: Yes
Warranty Term (month): 60 month(s)
Warranty validation Criteria: Serial Number
Box Weight Brutto (kg): 24 kg
Pack Weight Brutto (kg): 4 kg
Pack Weight Netto (kg): 4 kg
Packs in Box: 2
Pieces in pack: 1
EAN Code: 843591035545
