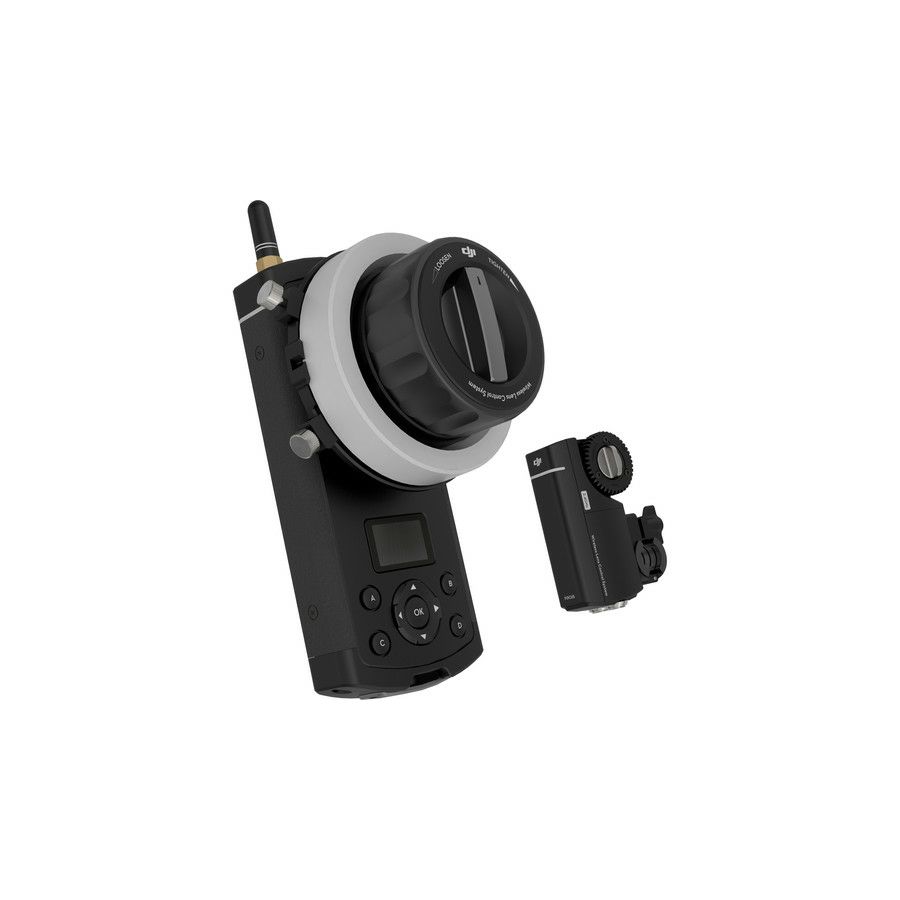

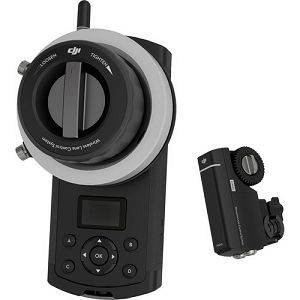

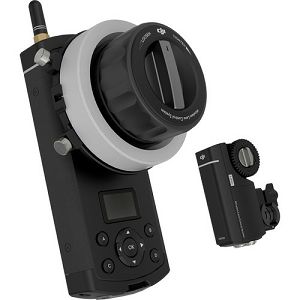

DJI Focus (With a remote controller) Wireless Follow Focus System

Control Angle Accuracy:±0.002°
Brushless Motor and Receiver in One Unit
Up to 330' Line-of-Sight Range
Adjustable Endpoints
Works with Ronin and Ronin-M
Works with Zenmuse X5 or X5R Cameras
Fits Standard 15mm and 19mm Rods
Built-In Rosette Mount

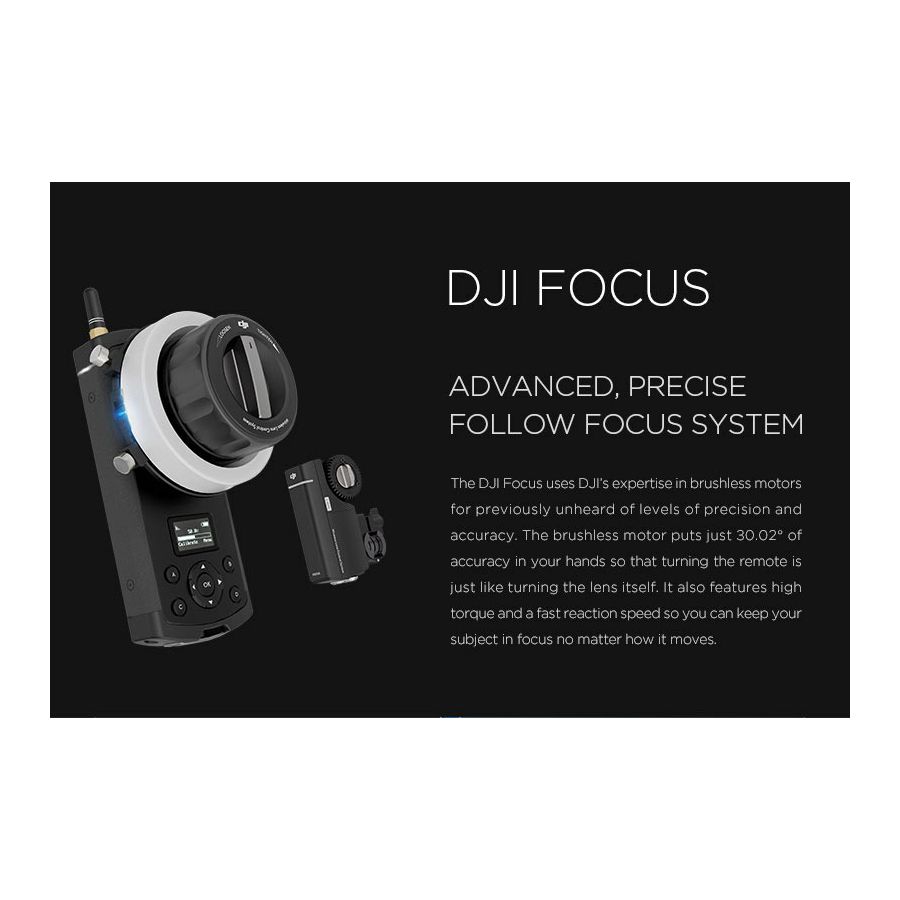

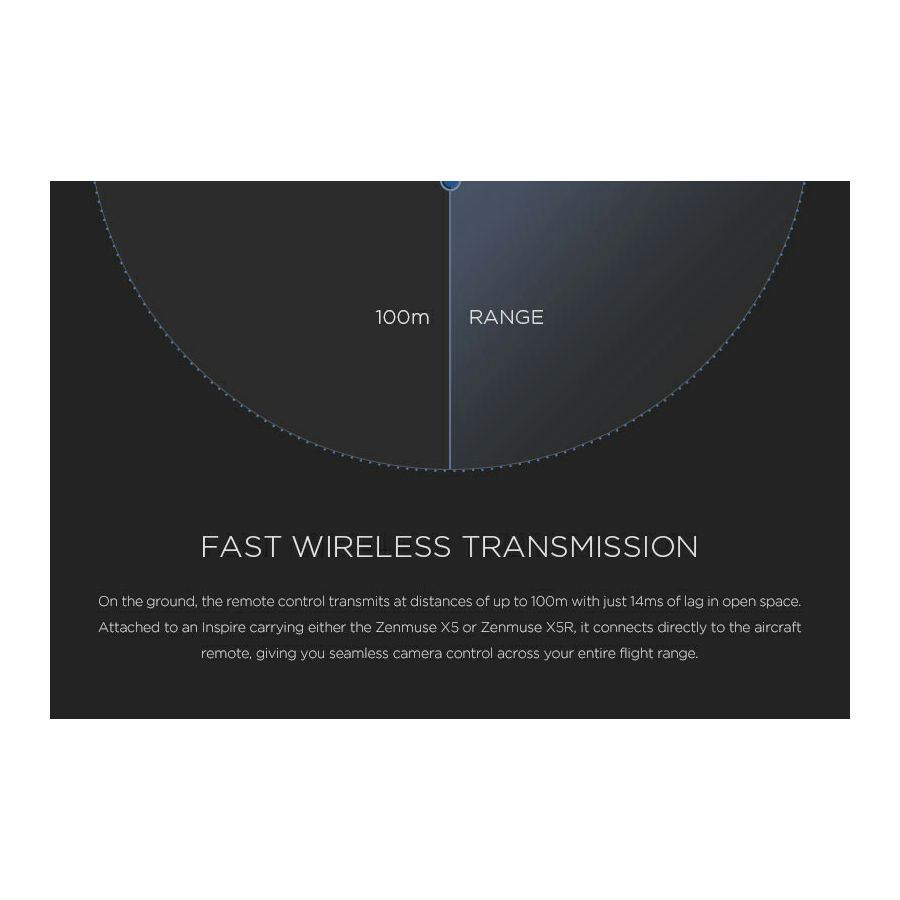

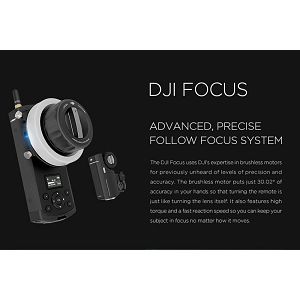

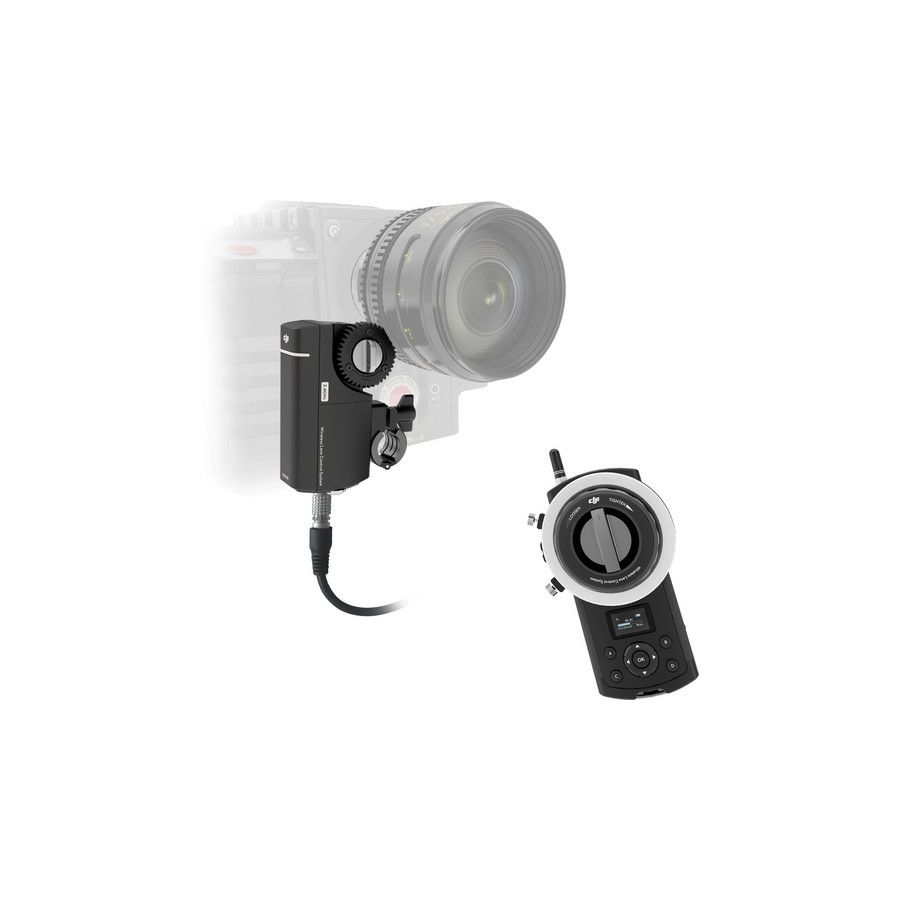

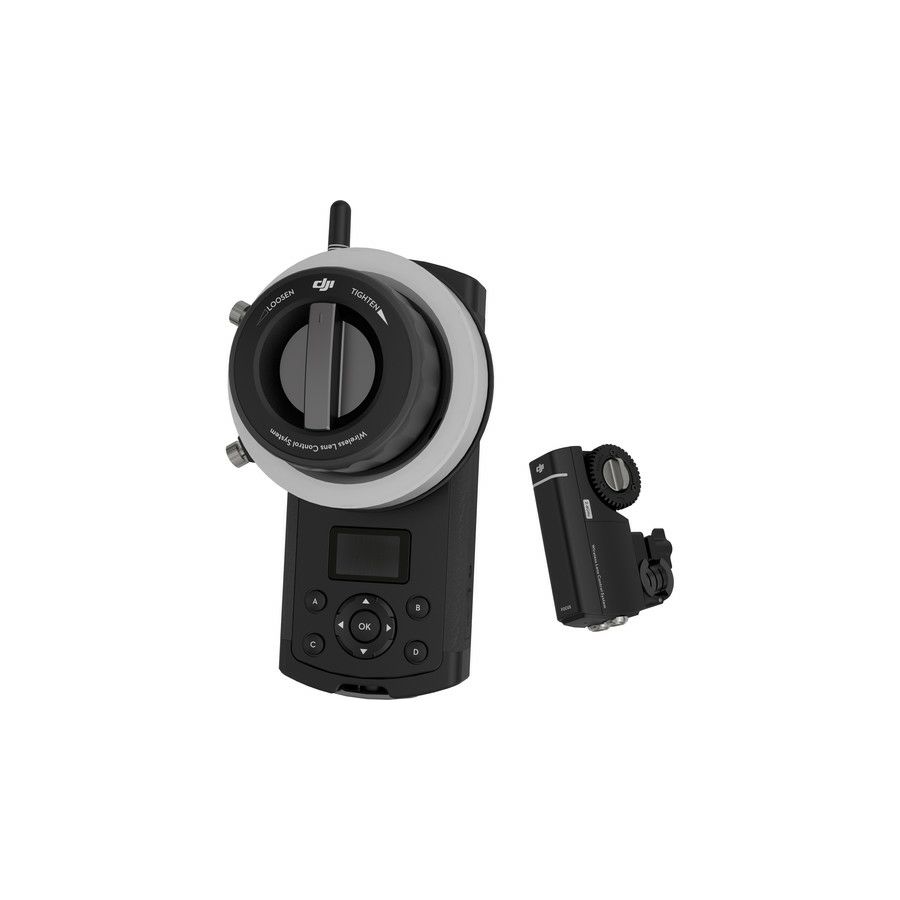

DJI's Focus is a wireless follow focus that integrates natively with the Zenmuse Z5 series of camera/gimbals systems and can be mounted on rigs equipped with 15mm or 19mm rods - including the Ronin and Ronin-M gimbals. The Focus features a handheld remote controller (transmitter) with a focus knob to give to the feel of a traditional mechanical follow focus. The wireless system sports a range of up to 330' line-of-sight with a delay of only 14ms.

Control accuracy of ±0.002°

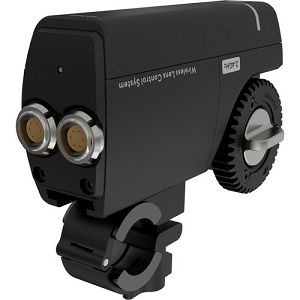

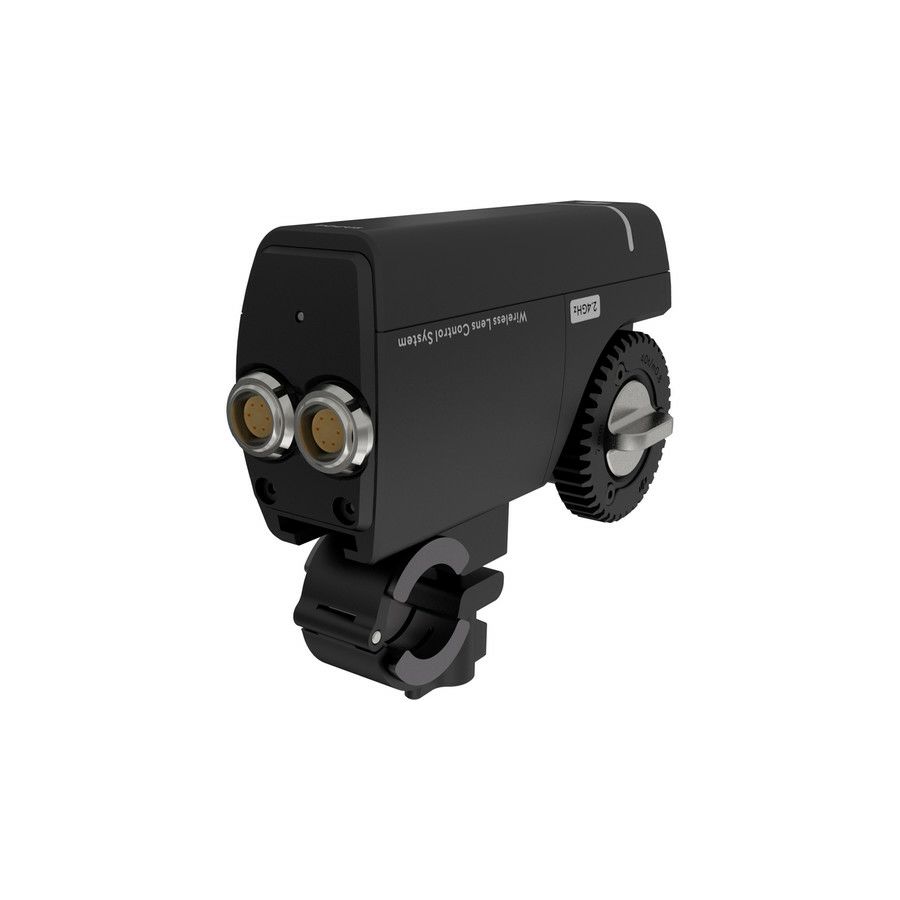

Self-contained drive unit combines brushless motor and receiver in a single module - simplifying installation and requiring only a single power source

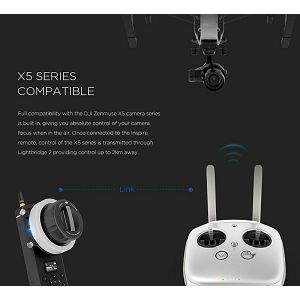

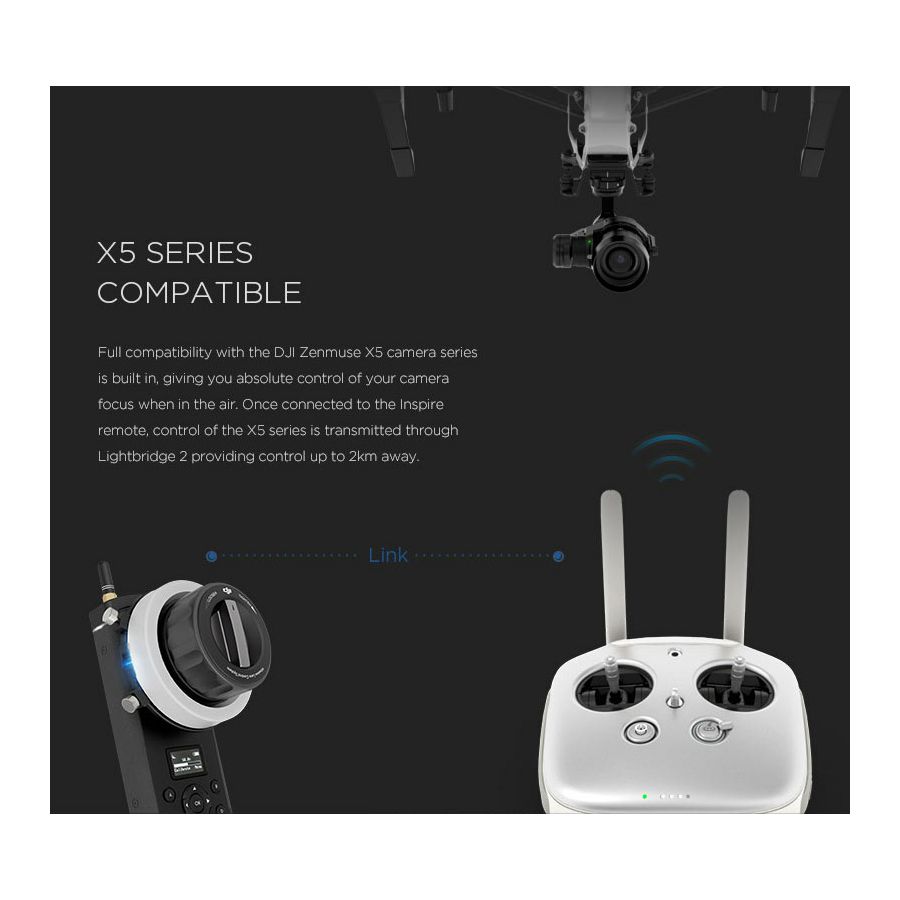

Use with Inspire 1 Quadcopter carrying Zenmuse X5 or X5R camera

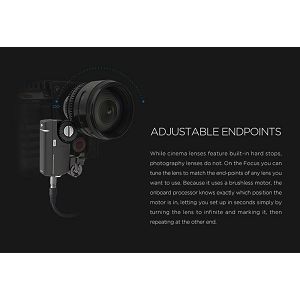

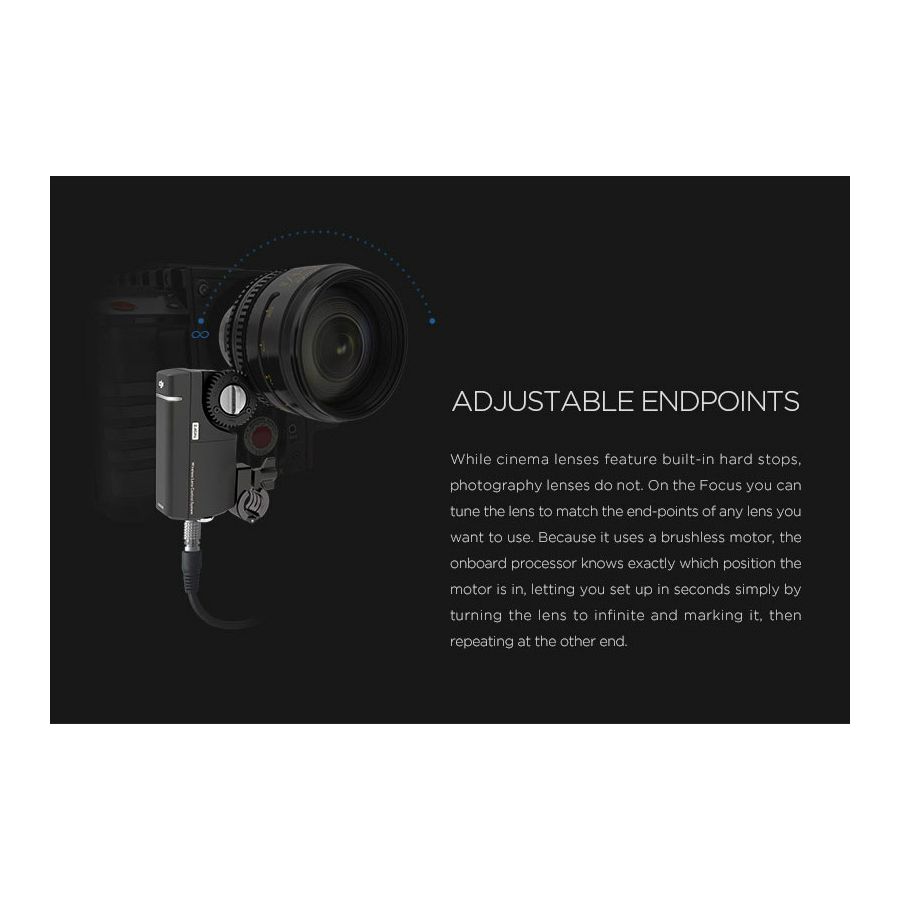

Adjustable endpoints - ideal for lenses, such as photo lenses, that lack "hard" stops

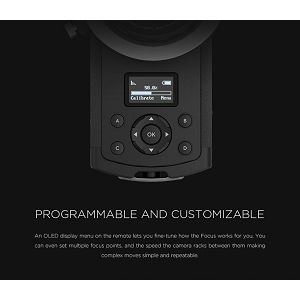

Programmable focus points and other parameters adjustable through controller menu

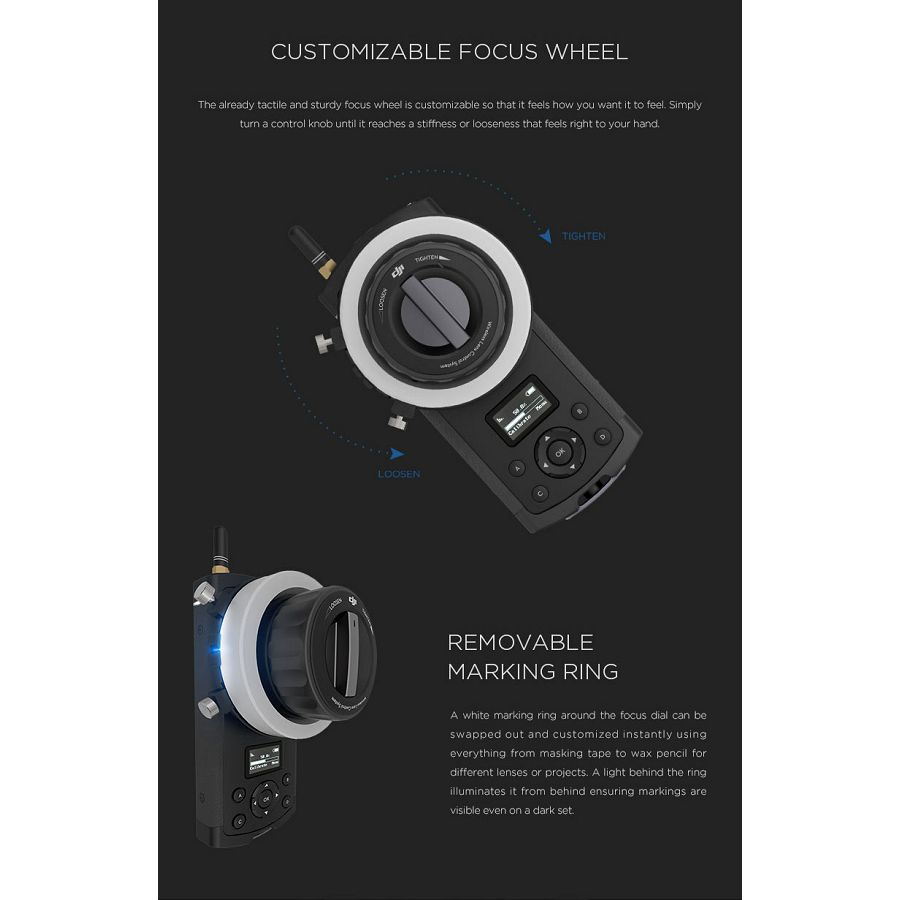

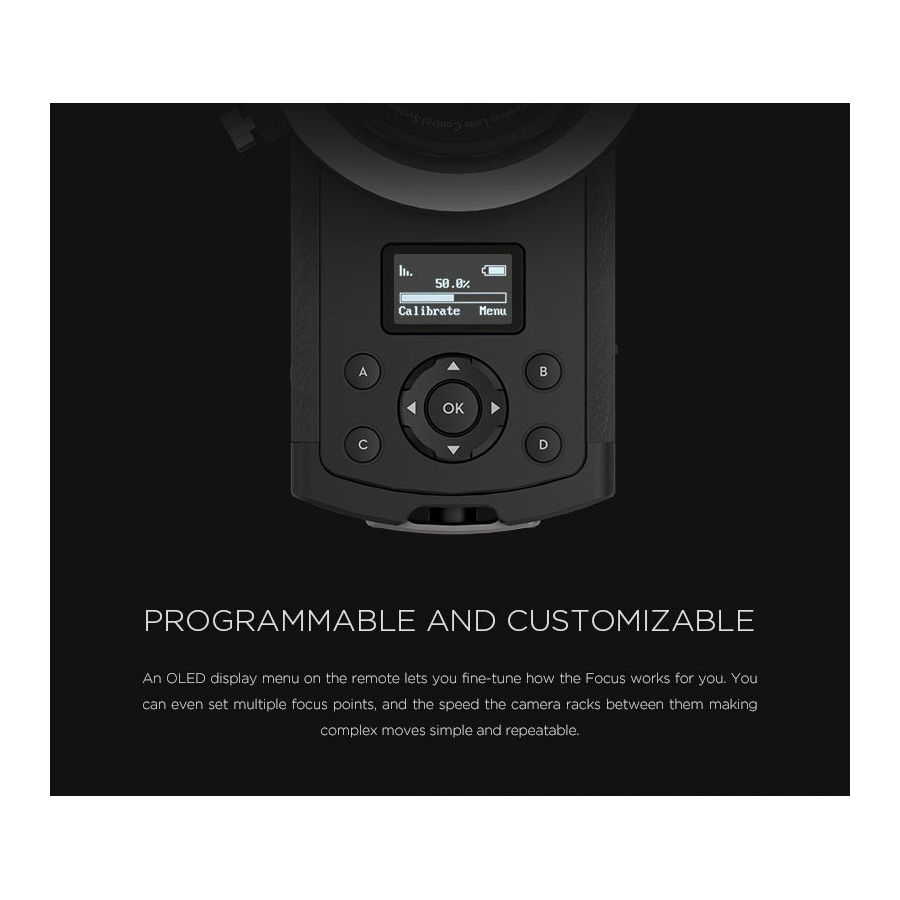

OLED display on controller for menu access and status display

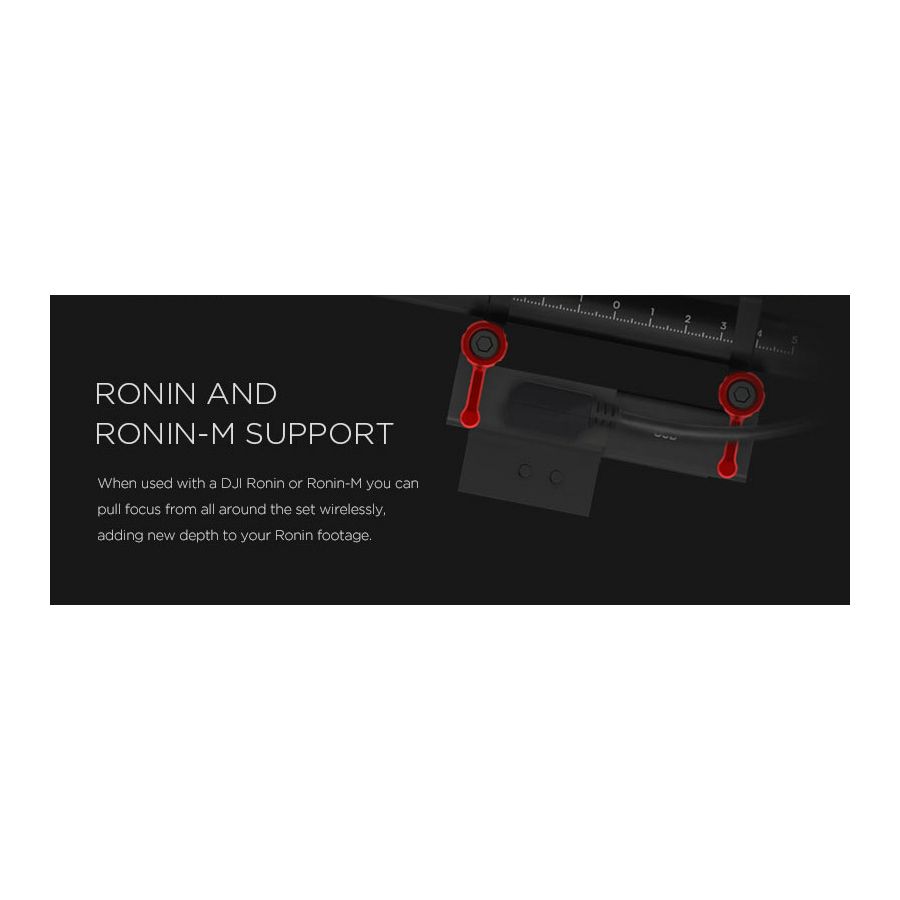

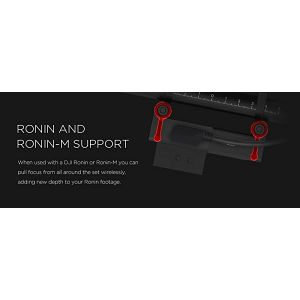

Compatible with DJI's Ronin and Ronin-M gimbals
Works with third-party gimbals or rigs that have 15mm or 19mm rod support

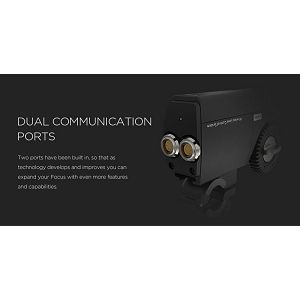

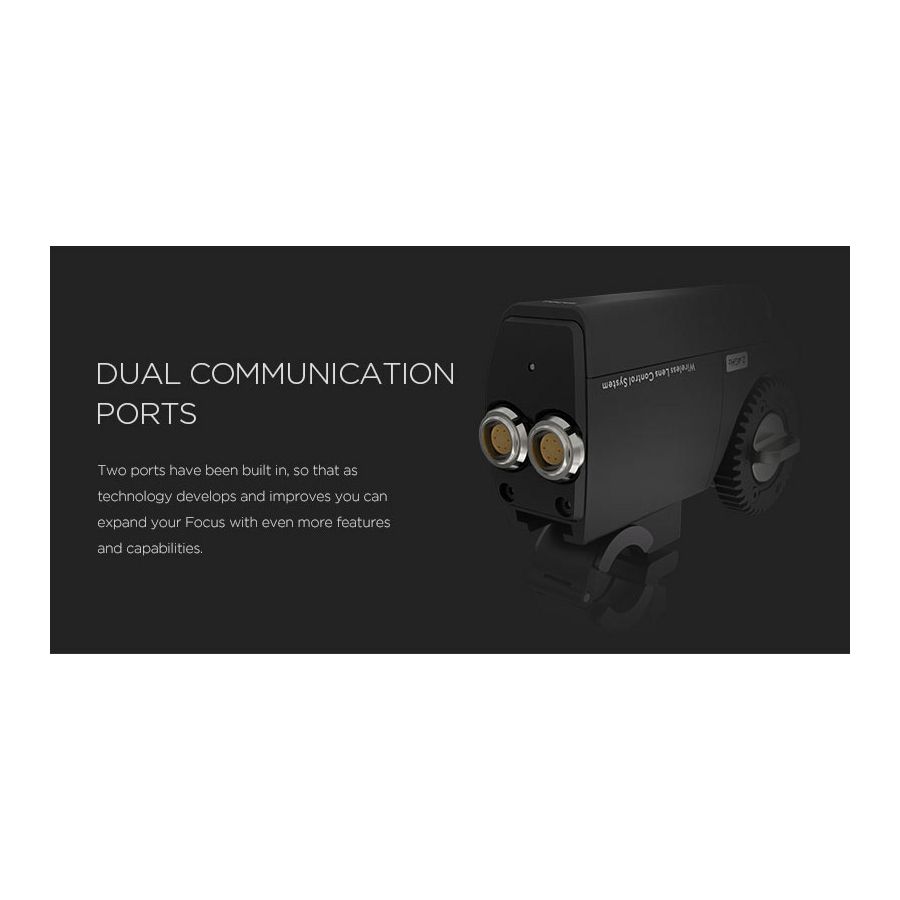

Dual communication ports for future upgrades

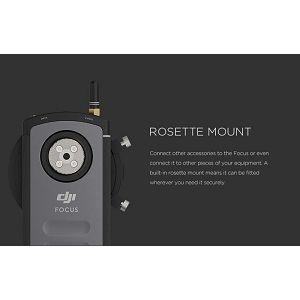

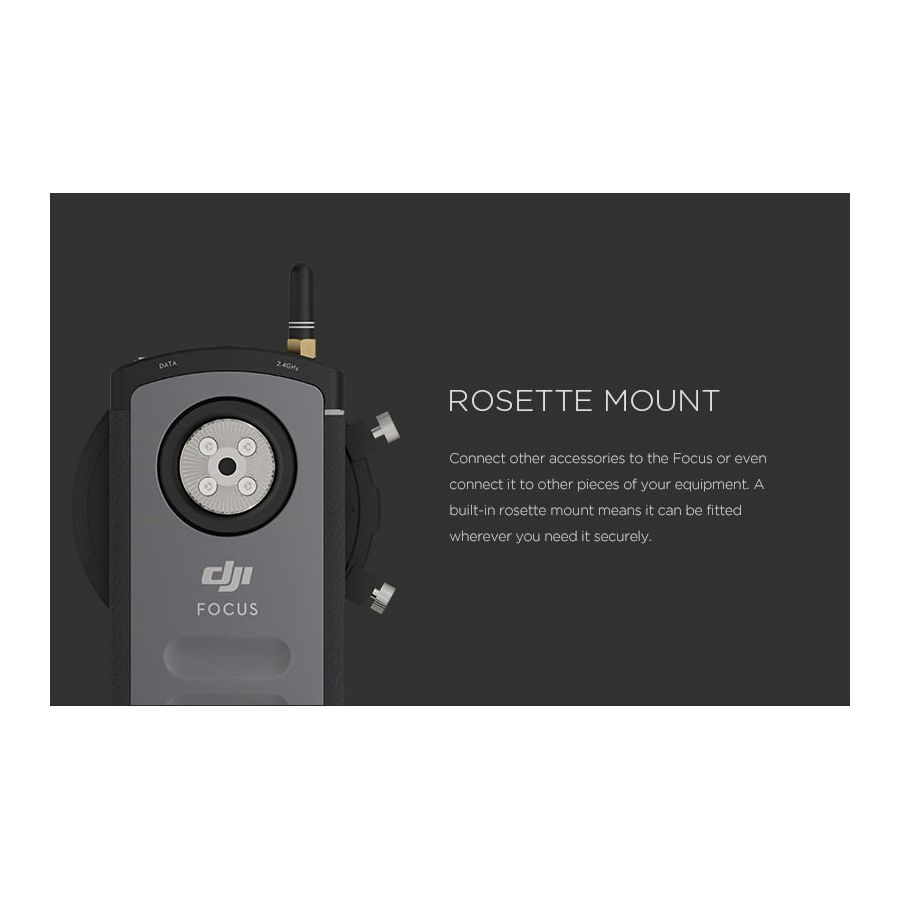

Built-in rosette for greater mounting flexibility

SPECIFIKACIJE:

Motor
Maximum Speed 192 rpm
Maximum Torque 0.26 Lb-In / 0.35 Nm
Mounting 19 mm or 15 mm rods
Gear Module: 0.8
Teeth: 40
Noise <25 dB (at 96 rpm)
Power Consumption Static Current: 80 mA (at 12 V)
Stall Current: 2.5 A (at 12 V)
Power Requirements 9 to 16 VDC
Dimensions 3.5 x 2 x 1" / 90 x 50 x 26 mm
Weight 6 oz / 170 g

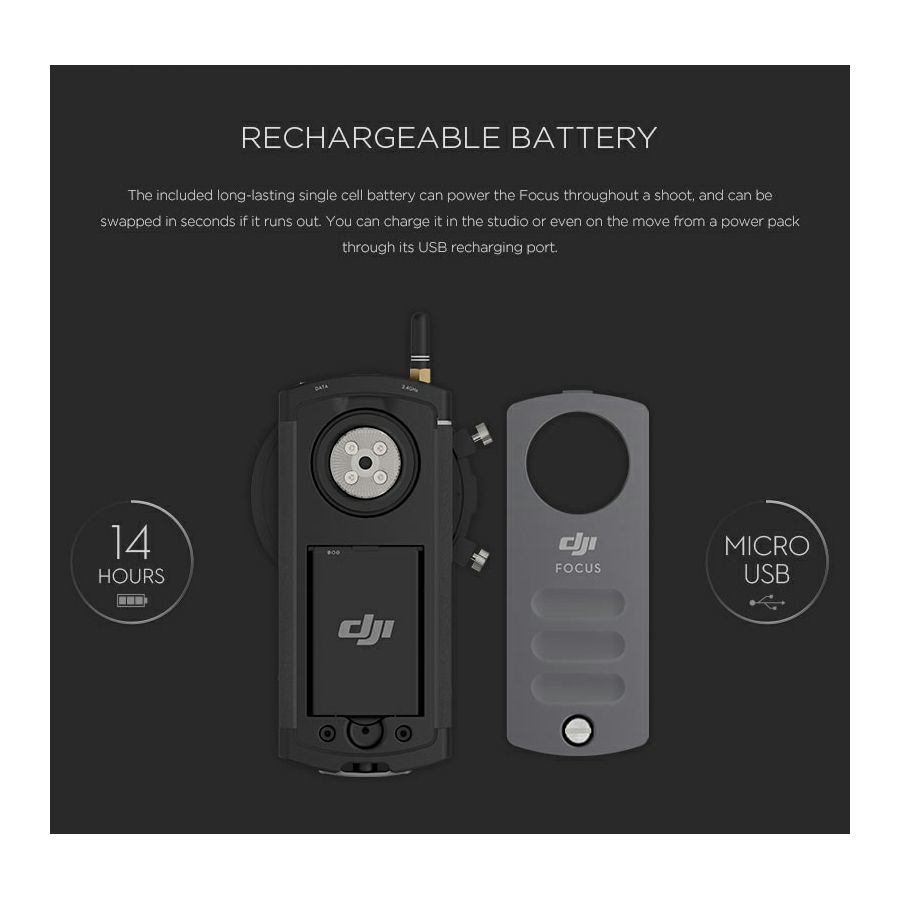

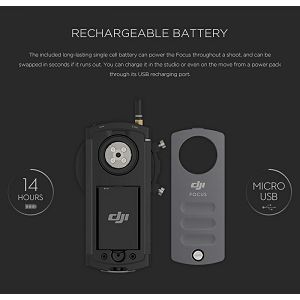

Controller
Battery Model: FB01-554461
Chemistry: Lithium-polymer (LiPo)
Capacity: 1700 mAh / 6.29 Wh
Voltage: 3.7 V
Dimensions 6 x 3.4 x 3.5" / 153 x 86 x 90 mm
Weight 1.6 lb / 745 g
Radio System
Frequency 2.415 to 2.473 GHz
Range 328.1' / 100 m
Transmit Power 14 dBm
General
Operating Temperature -4 to 131°F / -20 to 55°C
