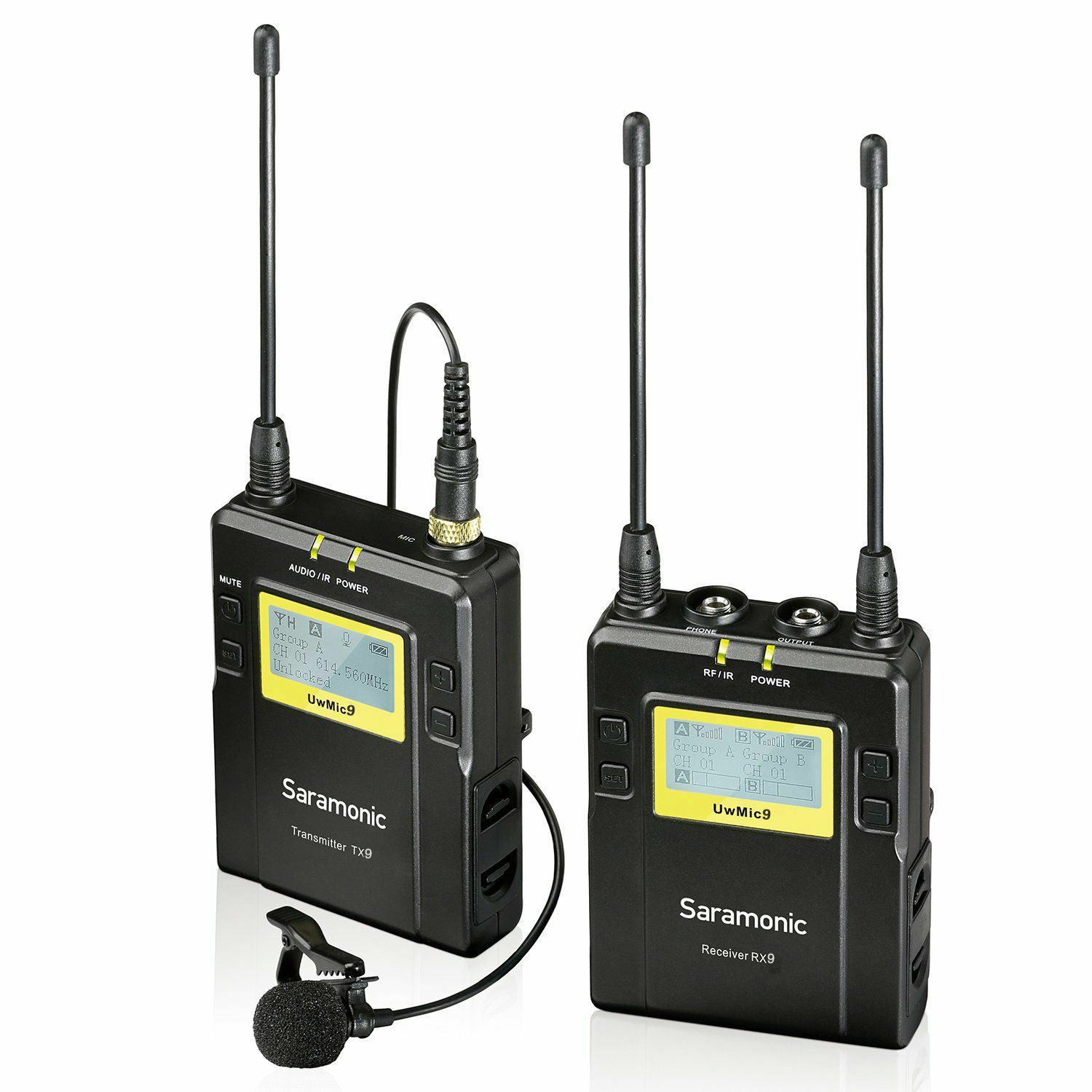

Saramonic UwMic9 (TX9 + RX9) UHF Wireless Lavalier Microphone Kit (1x transmitter TX9 + 1x receiver RX9 + 1x lavalier) UwMic9-KIT-TX9-RX9

ZNAČAJKE:

The Saramonic UwMic9 UHF wireless microphone system is intended for portable wireless operation and can be used in several environments for applications such as DSLR video, field recording, broadcast TV, electronic news gathering (ENG), on-the-spot interviews, and more.

Stereo / Mono output

• 96 channels

• Up to 100 meters distance

• Reliable, broadcast-quality audio

• Easy-to-read LCD displays

SPECIFIKACIJE:

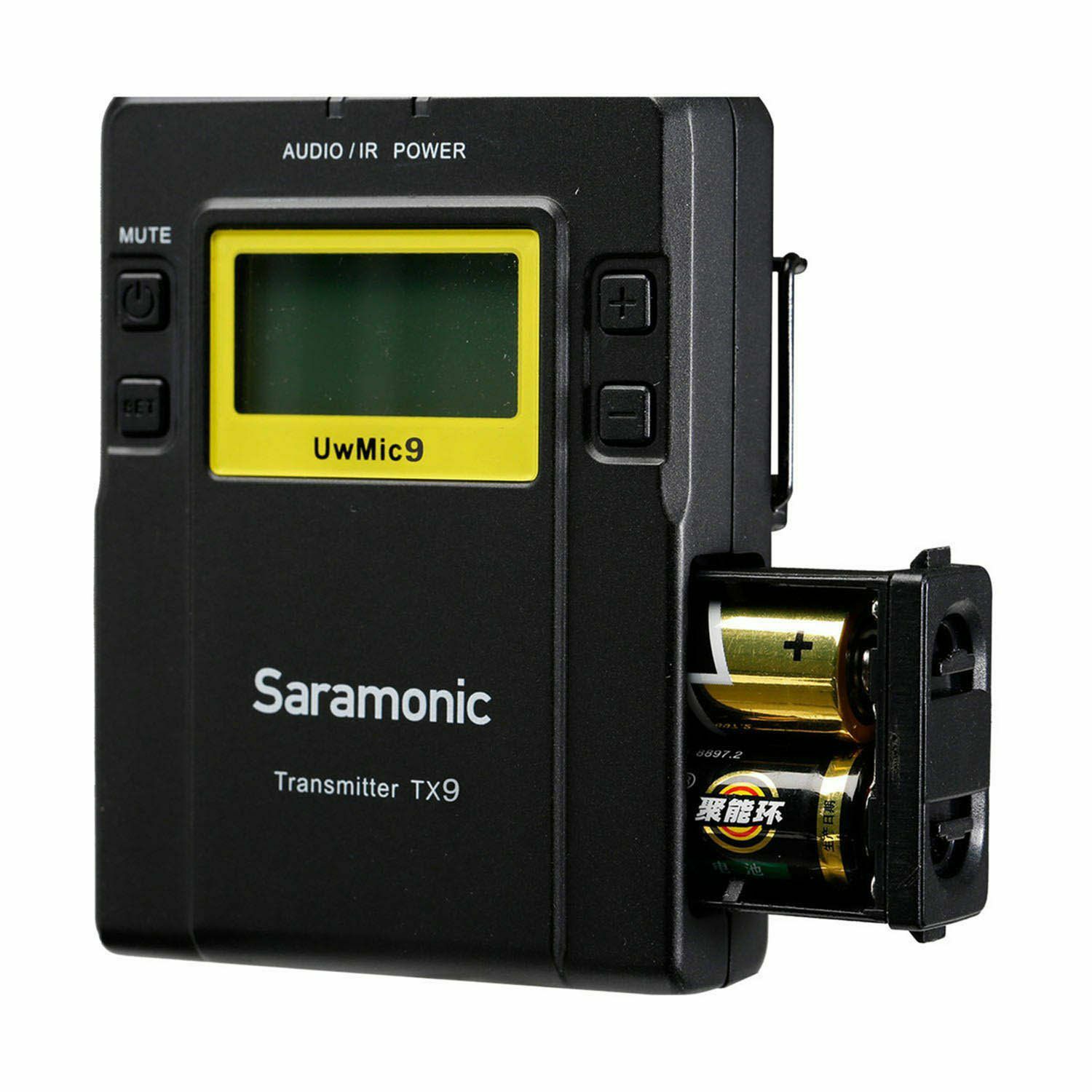

Transmitter TX9

· Channel number 96

· Channel group A or B

· Oscillator type PLL synthesizer

· Carrier frequencies 514 MHz – 596 Mhz

· Reference deviation A5 kHz (60 dBV, 1 kHz input)

· Signal to noise ratio 70 dB or more

· Spur suppression -60 dB

· Voice delay 12 ms

· Antenna 1/4 wire antenna

· Audio input connector: 3.5mm mini jack

· Reference audio input level 60 dBV (MIC input, 0 dB attenuation)

· RF output level 30mW/20mW/10mW selectable

· Distortion 0.5% or less

· Weight Approx. 211.4g (excluding batteries)

· Battery Two AA size batteries

· Dimensions 170.9 A~ 63.5 A~ 30.0 mm

· Operating temperature 0 C to 50 C

· Storage temperature 20C to +55 C



Receiver RX9

· Channel number 96

· Channel group A and B

· Oscillator type PLL synthesizer

· Audio output connector 3.5 mm mini jack

· Antenna 1/4 wire antenna

· Audio output level 60 dBV

· Headphone output level 30mW (16 )

· Receive frequencies 614 MHz – 696 MHz

· Receive sensitivity -95 dBm

· Signal to noise ratio 70 dB or more

· Voice delay 12 ms

· Reference deviation 5 kHz (60 dBV, 1 kHz input)

· Frequency response 40 Hz to 18 kHz (+/-3dB)

· Distortion 0.5% or less

· Spur suppression -60 dB

· Weight Approx. 218.7g (excluding batteries)

· Battery Two AA size batteries

· Dimensions 170.9 ~ 63.5 A~ 30.0 mm

· Operating temperature 0 C to 50 C

· Storage temperature 20 C to +55 C

UKLJUČUJE:

RX9
· Portable receiver: RX9

· Shoe mount adapter

· Belt clip

· XLR-BMP audio output cable

· 3.5mm plug-bmp audio cable

TX9
· Body-pack transmitter: 9

· Omni-directional lavalier microphone

· Microphone holder clip

· Wind screen

· Belt clip
