Sony Alpha FX30 Body Cinema Line Camera

ZNAČAJKE:

26.1MP APS-C BSI CMOS Sensor
UHD 4K up to 120p
Compact Form Designed for Cage-Free Use
10-Bit 4:2:2 XAVC S-I,16-Bit Raw Output
S-Cinetone/S-Log3/HLG, 14+ Stops DR
Phase Detection AF/Face Tracking/Eye AF
Standard ISO 100-32000 | Dual Base ISO
Dual CFexpress Type A/SDXC Card Slots
User LUTs & Timecode Sync Support

Your Ticket to Cinema Mastery

Leveraging the power of a newly developed APS-C sensor, the Sony FX30 provides everyday content creators and aspiring filmmakers with a powerful, yet accessible cinema camera with which to push their cinematic journey to new heights. It blends an imaging pipeline designed for cinematic capture with a comprehensive feature set and intuitive operation to create a complete system for all levels of filmmaking.

Cinematic Expression

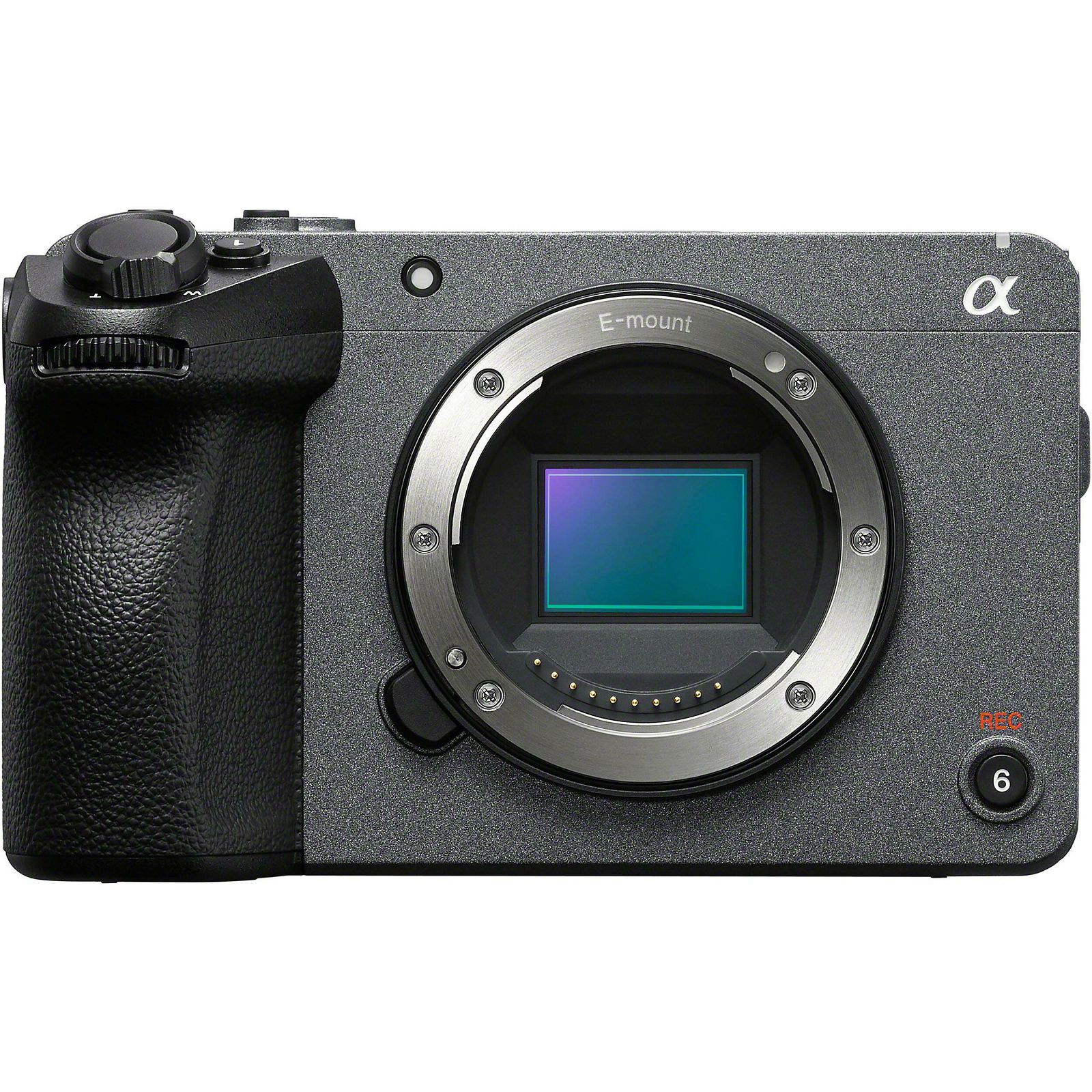

26MP APS-C/Super35 Exmor R BSI CMOS Sensor
The FX30's advanced imaging system is on par with other options in Sony's Cinema Line—capturing detailed 10-bit UHD 4K imagery at up to 120 fps—giving it specs fitting a true cinema camera. The newly developed 26MP APS-C Exmor R CMOS sensor and BIONZ XR processor are able to create high-quality 4K images with the Super35 (16:9) area. This system is capable of capturing 14+ stops of dynamic range and benefits from Dual Base ISO architecture to improve low-light performance.

Advanced Capture Options

High-sensitivity recording up to ISO 32000 and Dual Base ISO (800/2500).
When using S-Log3, the FX30 can capture 14+ stops of dynamic range.
Record in 10-bit 4:2:2 using advanced XAVC HS and XAVC S-I formats.
Full pixel readout from the 6K sensor creates high-quality UHD 4K video at up to 60 fps.
High-speed shooting is possible in 4K at up to 120 fps with a 1.6x crop and in Full HD at up to 240 fps.

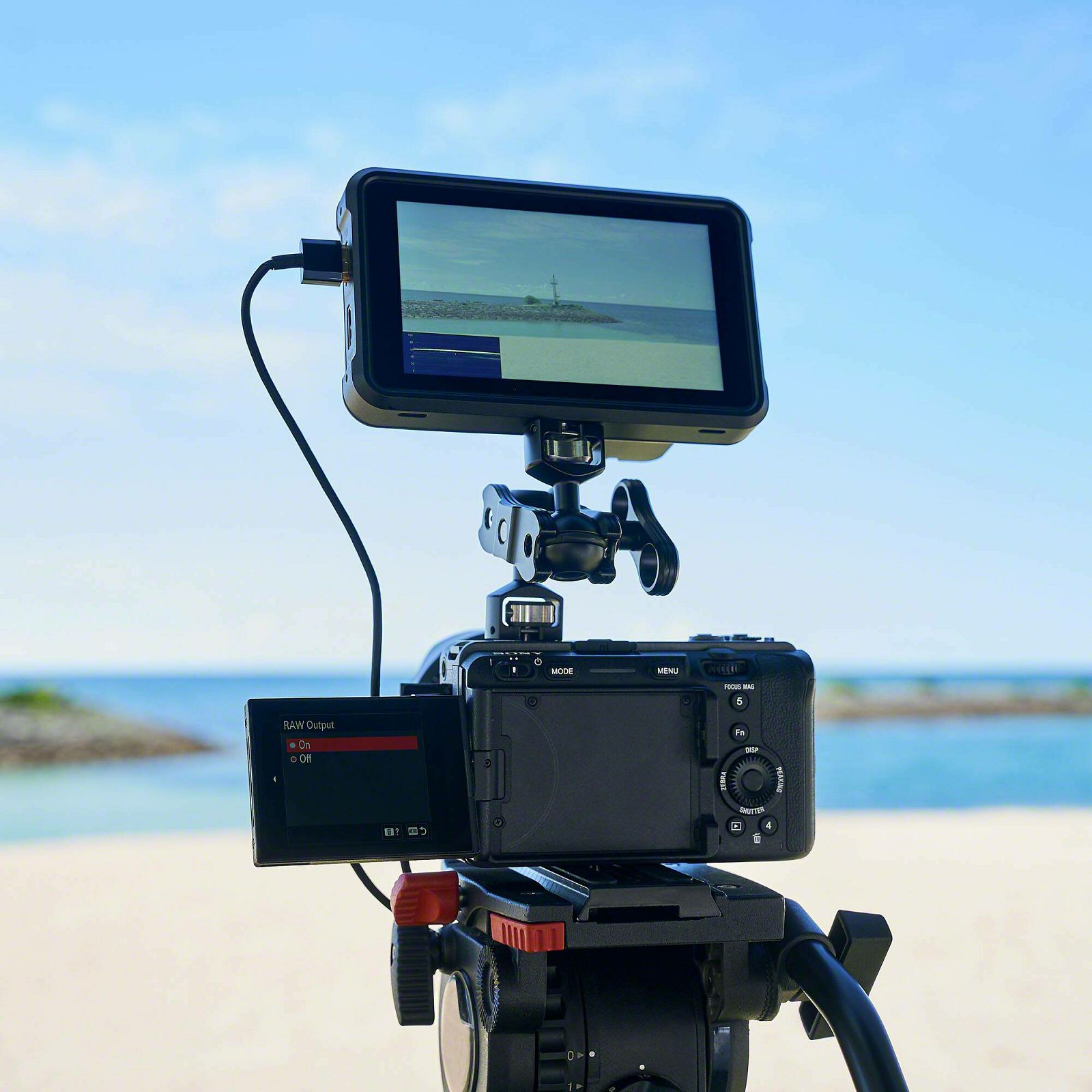

The HDMI output supports 16-bit raw video to select, separately available recorders.

Professional Picture Control

Filmmakers will be able to capture images that are immediately ready to publish for projects with fast turnarounds or opt for maximum quality and flexibility in post thanks to a wide array of picture control options:

S-Cinetone uses the same color science as Sony's advanced cinema cameras, including the VENICE line, with natural mid-tones, soft colors, and smooth highlight roll-off.
Picture Profiles, such as S-Log3 and HLG, will capture images with expanded dynamic range and flexibility for editors.
Creative Looks can be baked into the recorded footage to create a specific mood during recording and minimize the need for editing.
Up to 16 user-created LUTs and three presets can be set for accurately monitoring footage or previewing a specific look during shooting. These can be applied to the camera's monitor or EVF as well as the HDMI output.


Operation for All Levels

Professional features will help ensure beginners to professionals can make the most of the FX30. This includes three log shooting modes:

Flexible ISO uses standard ISO settings for simple operation and the greatest flexibility.

Cine EI ensures maximum dynamic range capture by recording at a manually selected base ISO setting and applying adjustments to metadata for monitoring and post-production.
Cine EI quick will automatically switch between the two base ISO settings for easier operation and great quality.

Intuitive Operation and Controls

5-Axis In-Body Image Stabilization

Sony has equipped the FX30 with a 5-axis in-body image stabilization system that will help create smooth imagery even when working handheld. An Active Mode is available that blends optical systems with digital optimizations to capture ultra-smooth footage. The FX30 can also record gyro movement when the optical stabilizers are turned off, which can be used in post to create a stable shot.

Fast Hybrid AF

Enjoy high-speed and highly accurate autofocus performance in every mode, including 4K up to 120 fps, using an advanced Fast Hybrid AF system that uses 495 points spread across 90% of the image sensor.

Real-time Eye AF and Real-time Tracking will track the eyes of humans and animals.
AF Assist function will automatically switch to manual focus with a turn of the lens' focus ring.
Focus Map makes it easier to visualize the region of focus in your scene

Comprehensive Feature Set
Plenty of Sony's cinema features have found their way into the FX30:

Breathing compensation works with select lenses in 4K up to 60p in camera or up to 120p using Catalyst software after recording.
Timecode sync input with optional VMC-BNCM1 Timecode Adapter Cable
Tally lights for an easy indication that the camera is recording.

Media Options

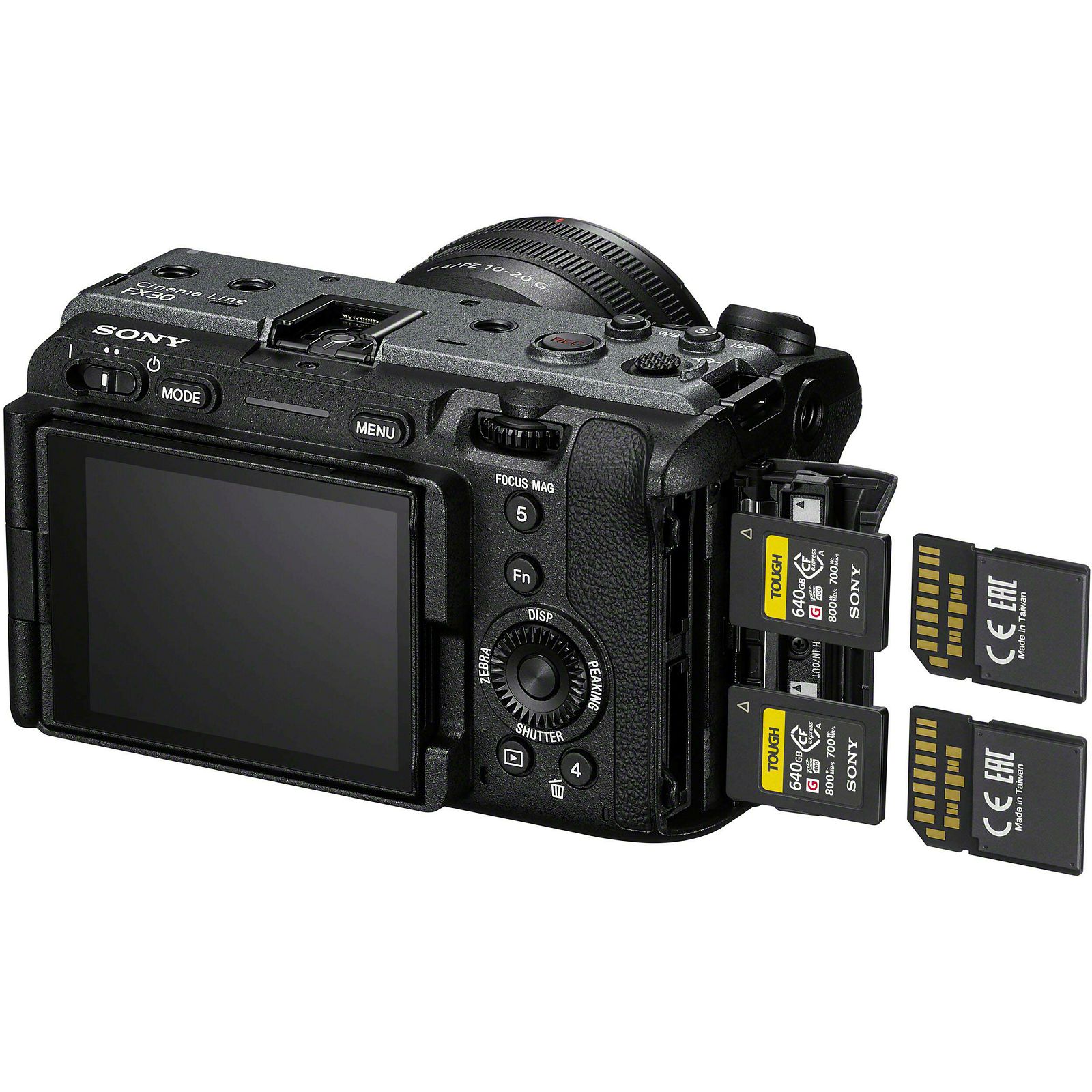

For recording high-bitrate footage at high frame rates the FX30 uses an advanced, versatile set of media slots. The camera features dual CFexpress Type A/SD card slots, allowing users to select between different media types for different situations. CFexpress Type A has ultra-fast speeds that can be used for the FX30's most advanced recording functions while SD cards are often more common and still have great speed and high capacities.
Catalyst Browse and Prepare Integration
The FX30 records a comprehensive array of metadata that can be read and used for advanced post-production work using Sony's Catalyst Browse and Prepare software.

Metadata recorded includes:

Embedded LUT and Exposure Index (EI) data.
Gyro and lens stabilization metadata to further reduce camera shake.
Breathing compensation can be manually controlled and adjusted.
Camera rotation metadata will ensure the footage is displayed as intended.
Shot marks can be added to clips during or after recording for reference

Ergonomic Form for Solo Operation

Lightweight and compact, the FX30 (in a design that matches the FX3) offers users the ability to shoot without needing a cage. Users can also enjoy smooth handheld footage thanks to a 5-axis in-body image stabilization system.

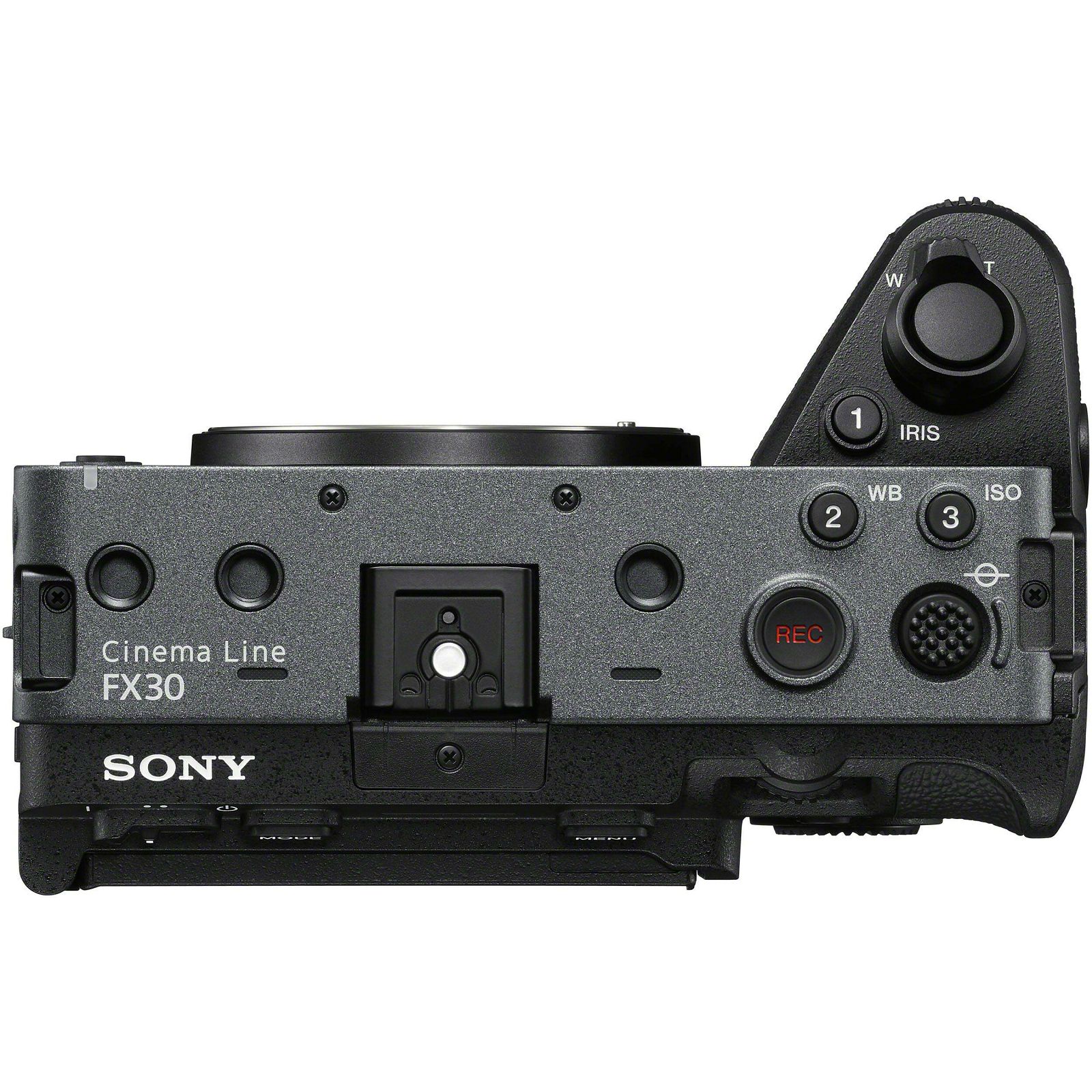

The body features multiple threaded mounting points that are ideal for accessories and a Multi Interface Shoe that supports advanced accessories. Additionally, an integrated fan ensures reliable performance during extended takes.

Lightweight body weighs just 1.2 lb.
Dedicated zoom rocker.
Fully customizable button layout.
Five 1/4"-20 threaded mounting points for accessories.
Multi Interface Shoe supports advanced accessories.

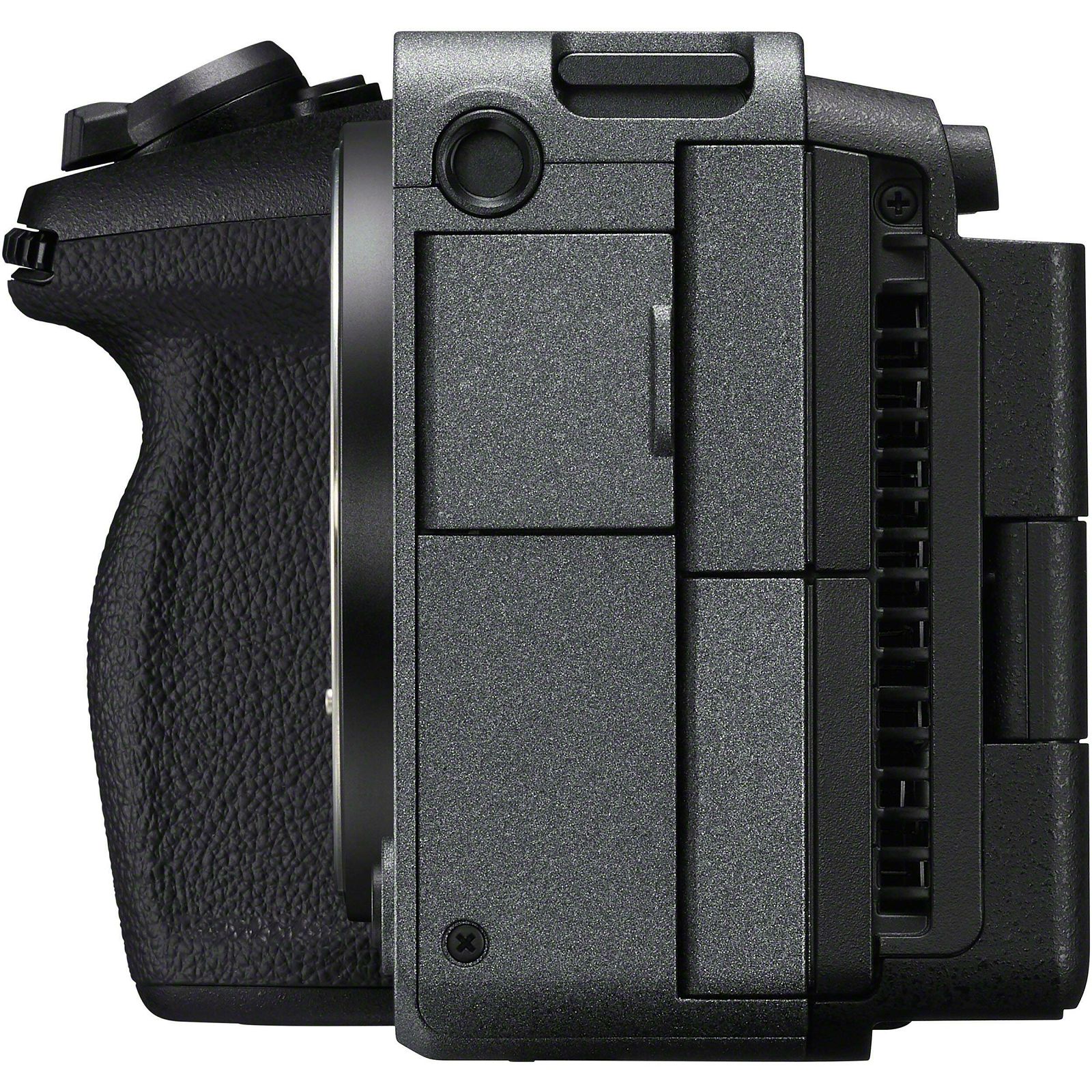

Active cooling fan permits uninterrupted shooting during extended takes.
Sporting a matching design to the FX3, the FX30 can use many of the same accessories, such as cages, without any modifications required.

Updated Menu System

The FX30 benefits from a tweaked control menu that makes it more intuitive to operate:

The main menu provides a quick view of all your most important video settings, including Picture Profile, recording format, white balance, aperture, ISO, and more.
The shooting screen relocates the information on settings and status icons to the edges of the screen so that the image remains clear.

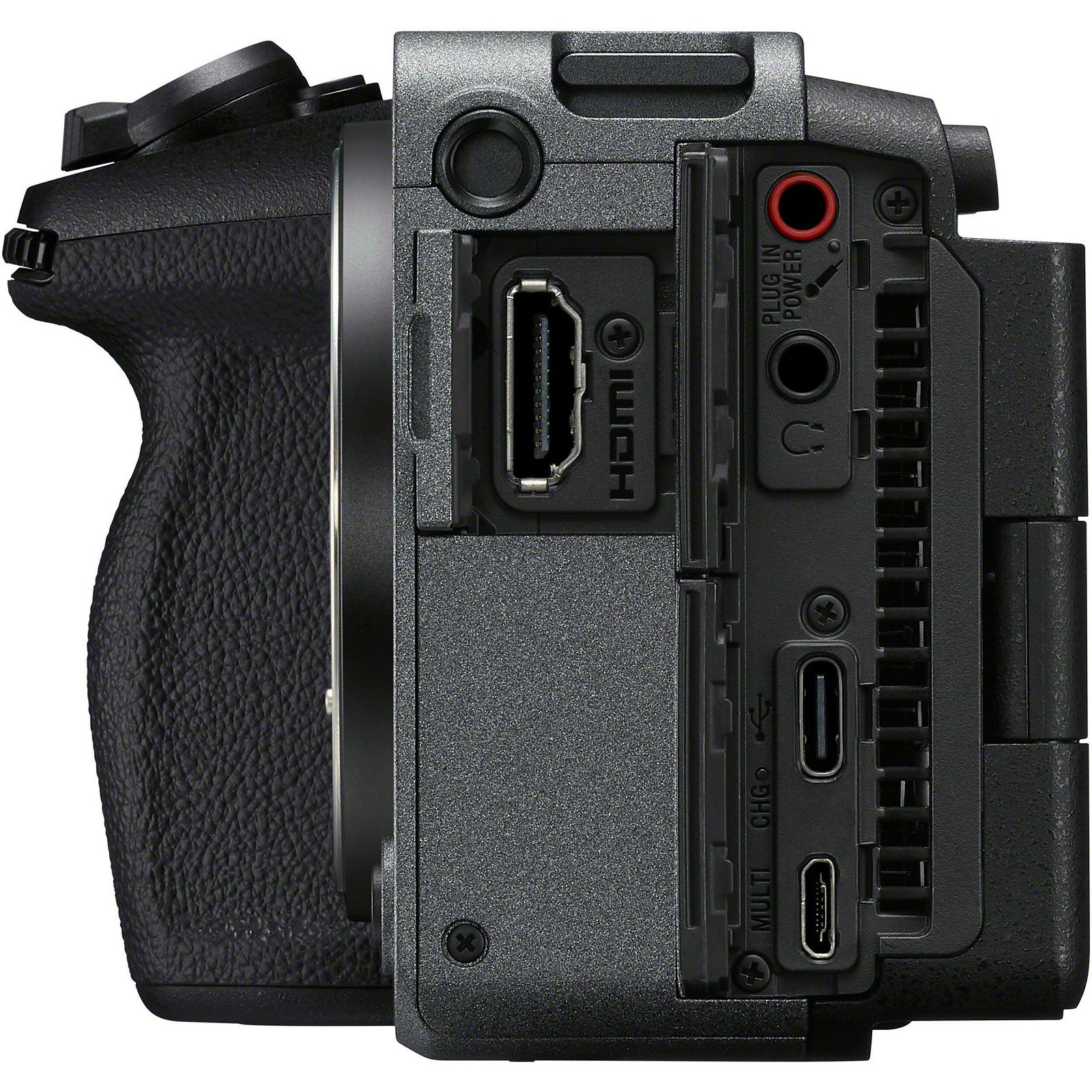

A Plethora of Connectivity Options

The FX30 is equipped with a wide array of connections to ensure maximum customization and flexibility on set:

Full-size HDMI output features clean output up to 4K 60p as well as 16-bit raw video.
Audio is supported on the body with a 3.5mm headphone output and a 3.5mm microphone input.
USB-C connection can be used for high-speed data transfer or for powering the camera.
Multi-Terminal (Micro-USB) supports various accessories, such as remotes, for expanded functionality.
Timecode sync is available through the use of the separately available VMC-BNCM1 Timecode Adapter Cable.
Multi Interface Shoe supports advanced accessories, including the optional XLR Handle Unit.

SPECIFIKACIJE:

Lens Mount
Sony E
Sensor Resolution
Actual: 27 Megapixel
Effective: 26 Megapixel (6192 x 4128)
Image Sensor
23.3 x 15.5 mm (APS-C) CMOS
Image Stabilization
Sensor-Shift, 5-Axis
ISO Sensitivity Range
100 to 32,000 (Extended: 50 to 102,400)
Internal Recording Modes
XAVC HS 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps
XAVC S-I 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 1/2/4/8/15/23.98/25/29.97/50/59.94/100/120 fps
1920 x 1080p from 1 to 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps
XAVC S
UHD 4K (3840 x 2160) up to 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps
1920 x 1080p up to 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps
XAVC Proxy
1920 x 1080
1280 x 720
External Recording Modes
4:2:2 10-Bit via HDMI
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps
ProResRAW 16-Bit via HDMI
4672 x 2628 at 23.98/25/29.97/50/59.94 fps
Media/Memory Card Slot
Dual Slot: CFexpress Type A / SD
Video I/O
1x HDMI 2.0 Output
Mobile App Compatible
Yes: Android & iOS
App Name: Imaging Edge Mobile
Functionality: Adjust Settings, Remote Control
Battery Type
Sony Z-Series
Imaging
Lens Mount
Sony E
Lens Communication
Yes, with Autofocus Support
Sensor Resolution
Actual: 27 Megapixel
Effective: 26 Megapixel (6192 x 4128)
Image Sensor
23.3 x 15.5 mm (APS-C) CMOS
Image Stabilization
Sensor-Shift, 5-Axis
Built-In ND Filter
No
Internal Filter Holder
No
Capture Type
Stills & Video
Exposure Control
Shutter Type
Electronic Rolling Shutter
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/8000 to 30 Seconds in Photo Mode
1/8000 to 1/4 Second in Video Mode
ISO Sensitivity Range
100 to 32,000 (Extended: 50 to 102,400)
Advertised Dynamic Range
14 Stops
White Balance
2500 to 9900K
Presets: Auto, Cloudy, Color Temperature, Daylight, Fluorescent, Incandescent, Shade, Underwater
Video Capture
Internal Recording Modes
XAVC HS 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps
XAVC S-I 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 1/2/4/8/15/23.98/25/29.97/50/59.94/100/120 fps
1920 x 1080p from 1 to 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps
XAVC S
UHD 4K (3840 x 2160) up to 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps
1920 x 1080p up to 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps
XAVC Proxy
1920 x 1080
1280 x 720
External Recording Modes
4:2:2 10-Bit via HDMI
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps
ProResRAW 16-Bit via HDMI
4672 x 2628 at 23.98/25/29.97/50/59.94 fps
Fast-/Slow-Motion Support
Yes
Gamma Curve
HDR-HLG, S Cinetone, Sony S-Log 3
Built-In Microphone Type
Stereo
Audio Recording
2-Channel 24-Bit LPCM Audio
4-Channel 24-Bit LPCM Audio
IP Streaming
No
Still Image Capture
Image Sizes
3:2
26 MP (6192 x 4128)
Aspect Ratio
3:2, 16:9
Image File Format
HEIF, JPEG, Raw
Bit Depth
14-Bit
Interface
Media/Memory Card Slot
Dual Slot: CFexpress Type A / SD
Video I/O
1x HDMI 2.0 Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body
1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body
Power I/O
1x USB-C Input
Other I/O
1x Sony Multi/Micro-USB (Timecode)
1x USB-C (USB 3.2 / 3.1 Gen 2)
Wireless
2.4 / 5 GHz Wi-Fi 5 (802.11ac) Control
Bluetooth 5.0
Mobile App Compatible
Yes: Android & iOS
App Name: Imaging Edge Mobile
Functionality: Adjust Settings, Remote Control
Global Positioning (GPS, GLONASS, etc.)
No

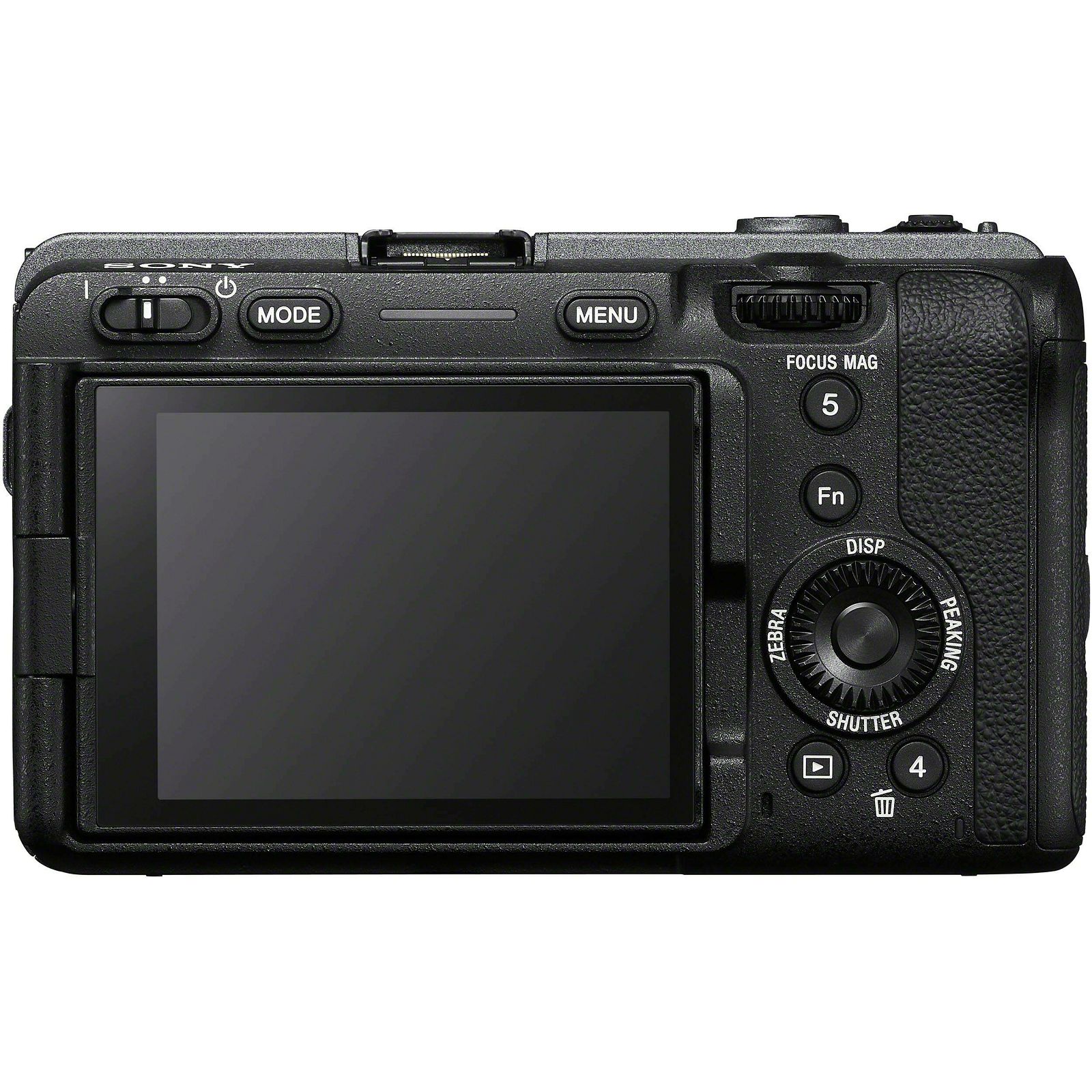

Monitor
Display Type

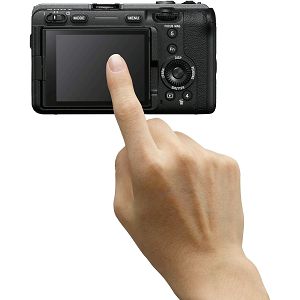

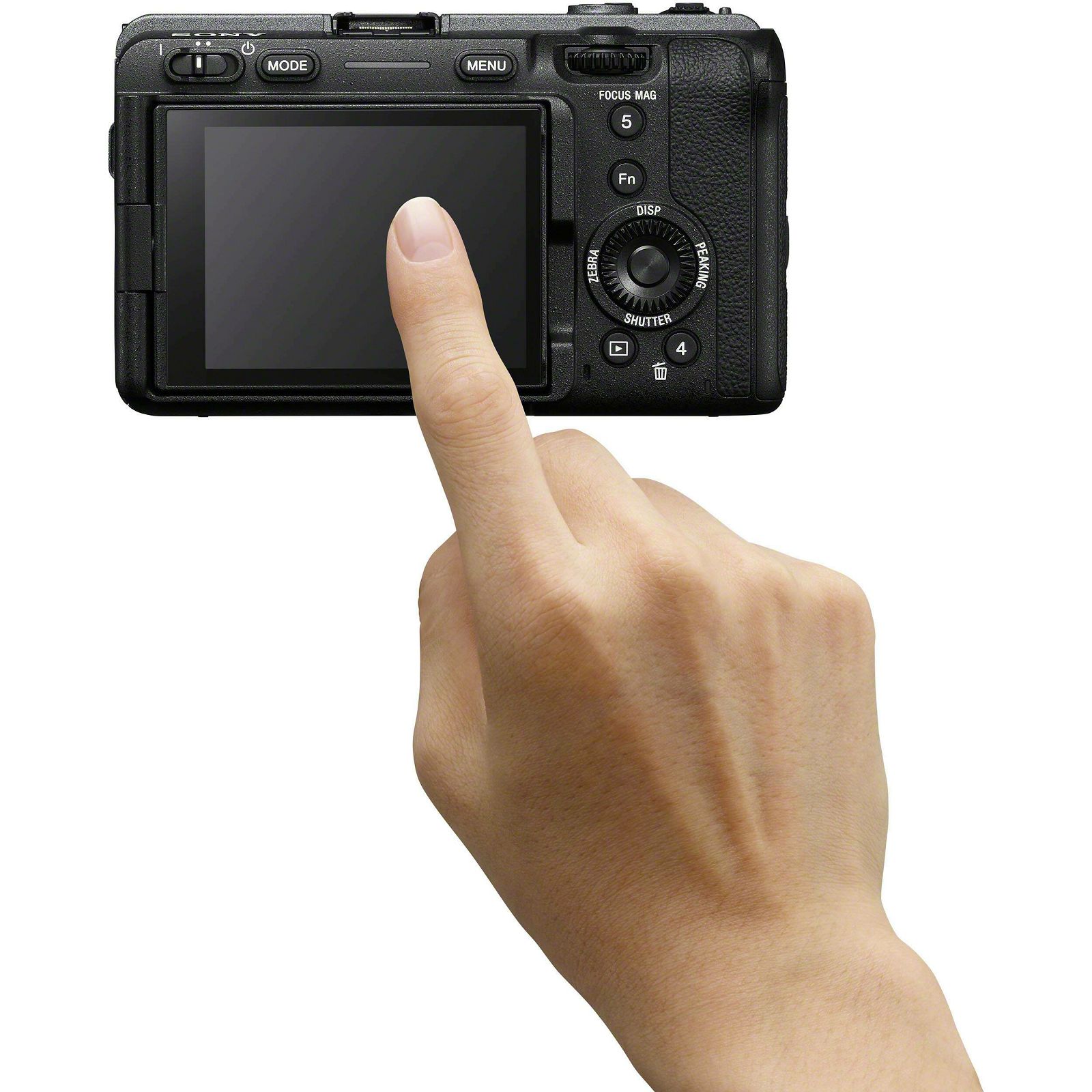

Articulating Touchscreen LCD
Display Size
3"
Resolution
2,360,000 Dot
Focus
Focus Type
Auto and Manual Focus
Focus Mode
Automatic, Continuous-Servo AF, Direct Manual Focus, Manual Focus, Single-Servo AF, Touch AF & Shutter
Autofocus Points
Video
Phase Detection: 495
Autofocus Sensitivity
-3 to +20 EV
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
General
Battery Type
Sony Z-Series
Shoe Mount
1x Intelligent Hot Shoe

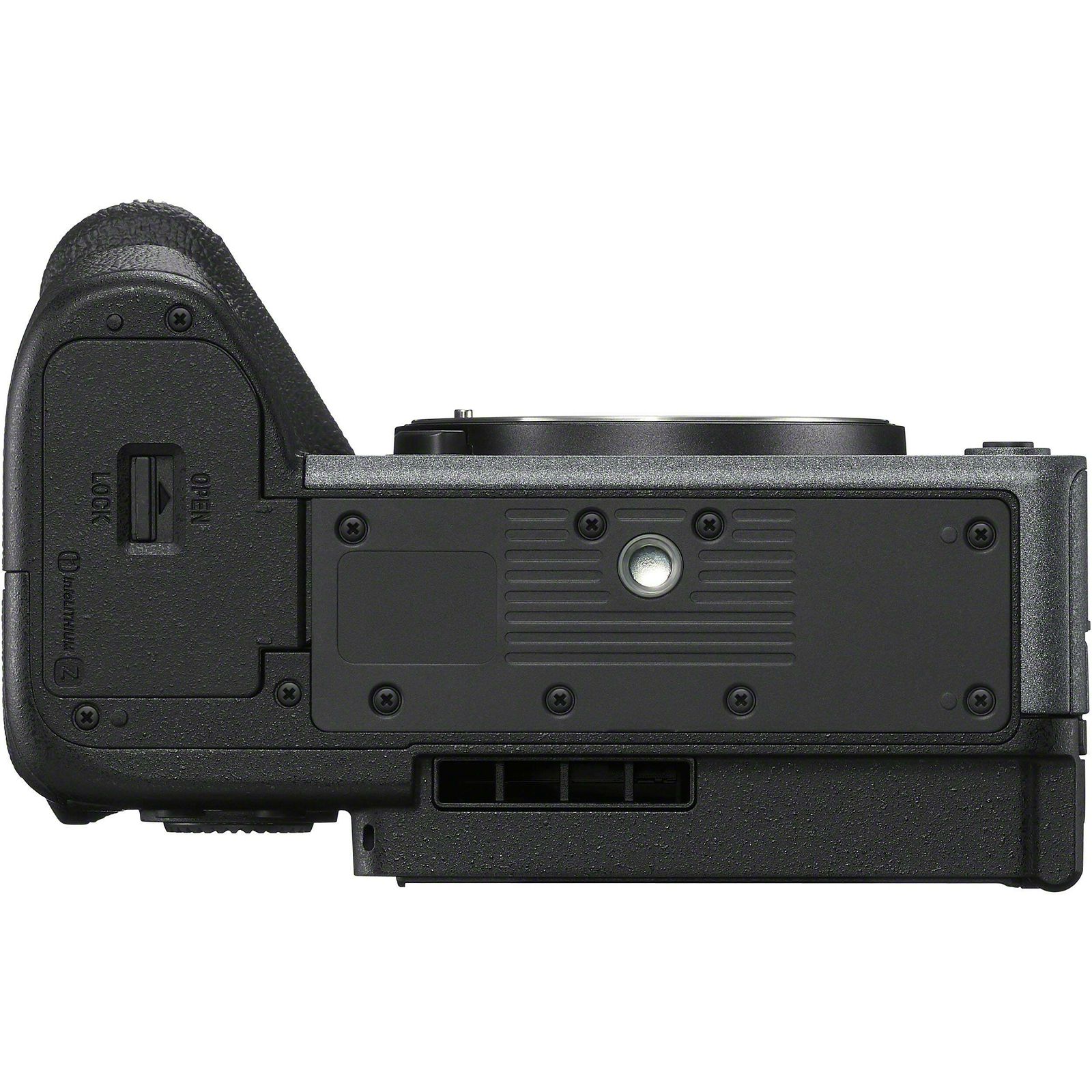

Tripod Mounting Thread
1x 1/4"-20 Female (Bottom)
Accessory Mounting Thread
5x 1/4"-20
Material of Construction
Magnesium Alloy
Dimensions (W x H x D)
5.1 x 3.1 x 3.3" / 129.7 x 77.8 x 84.5 mm
Weight
1.2 lb / 562 g (Body Only)

UKLJUČUJE:

Sony FX30 Digital Cinema Camera
Sony NP-FZ100 Rechargeable Lithium-Ion Battery (2280mAh)
Sony ALC-B1EM Body Cap for E-Mount Cameras
Sony Multi Interface Shoe Cap
USB-A to USB-C Cable (USB 3.2)
