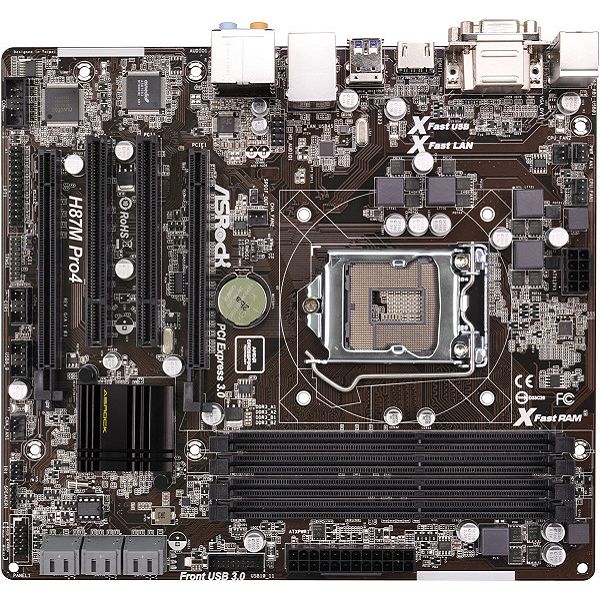

Model: ASRock H87M-PRO4
Podržani procesori: Podržava 4th generaciju Intel Core i7 / i5 / i3
Xeon® / Pentium® / Celeron® procesora u LGA1150 paketu
Chipset: Intel® H87
Memorija: Dual Channel DDR3
4 x DDR3 DIMM
Podržava DDR3 1600/1333/1066 non-ECC, un-buffered memorije
Max. 32GB
Utori za proširenje: 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)
1 x PCI Express 2.0 x16 slot (PCIE2: x4 mode)
2 x PCI slots
Podržava AMD Quad CrossFireX™ i CrossFireX™
I/O konektori: 1 x IR header
1 x Print Port header
1 x COM Port header
1 x Chassis Intrusion header
1 x TPM header
2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
1 x Power Fan connector (3-pin)
1 x 24 pin ATX power connector
1 x 8 pin 12V power connector
1 x Front panel audio connector
1 x SPDIF Out connector
2 x USB 2.0 headers (support 4 USB 2.0 ports)
1 x USB 3.0 header (supports 2 USB 3.0 ports)
Stražnja strana:
1 x PS/2 miš/tipkovnica Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x USB 2.0 Ports
4 x USB 3.0 Ports
1 x RJ-45 LAN Port sa LED (ACT/LINK LED i SPEED LED)
HD Audio Jack: stražnji zvučnici / centralni / bas /
linijski ulaz / prednji zvučnici / mikrofon
Grafika: Integrirana
Audio: 7.1 CH HD Audio sa Content zaštitom (Realtek ALC892 Audio Codec)
Premium Blu-ray audio podrška
LAN: Gigabit LAN 10/100/1000 Mb/s
Dimenzije: Micro ATX Form Factor
Ostalo: Podrška za Windows 8 / 7
Napomena: Više detalja o proizvodu možete naći ovdje.
