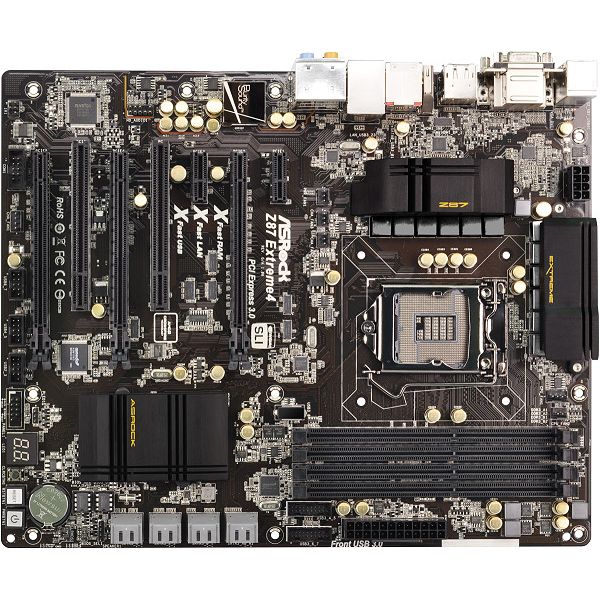

Model: ASRock Z87-EXTREME4
Podržani procesori: Podržava 4th generaciju Intel Core i7 / i5 / i3
Xeon® / Pentium® / Celeron® procesora u LGA1150 paketu
Chipset: Intel® Z87
Memorija: Dual Channel DDR3
4 x DDR3 DIMM
Podržava DDR3 2933+(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)
1600/1333/1066 non-ECC, un-buffered memorije
Max. 32GB
Utori za proširenje: 3 x PCI Express 3.0 x16 slots (PCIE2/PCIE4/PCIE5: single at x16 (PCIE2);
dual at x8 (PCIE2) / x8 (PCIE4);
triple at x8 (PCIE2) / x4 ) (PCIE4) / x4 (PCIE5)
2 x PCI Express 2.0 x1 slots
2 x PCI slots
Podržava AMD Quad CrossFireX™, 3-Way CrossFireX™ i CrossFireX™
Podržava NVIDIA® Quad SLI™ i SLI™
I/O konektori: 1 x IR header
1 x COM Port header
1 x Power LED header
2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
1 x Power Fan connector (3-pin)
1 x 24 pin ATX power connector
1 x 8 pin 12V power connector
1 x Front panel audio connector
3 x USB 2.0 headers (podržava 6 USB 2.0 ports)
1 x Vertical Type A USB 3.0
2 x USB 3.0 headers (podržava 4 USB 3.0 ports) (ASMedia Hub)
1 x Dr. Debug with LED
1 x Power Switch sa LED
1 x Reset Switch sa LED
1 x Clear CMOS Switch
Stražnja strana:
1 x PS/2 miš/tipkovnica Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI-Out Port
1 x HDMI-In Port
1 x DisplayPort
1 x Optical SPDIF Out Port
1 x eSATA Connector
2 x USB 2.0 Ports
4 x USB 3.0 Ports
1 x RJ-45 LAN Port sa LED (ACT/LINK LED i SPEED LED)
HD Audio Jack: stražnji zvučnici / centralni / bas /
linijski ulaz / prednji zvučnici / mikrofon
Grafika: Integrirana
Audio: 7.1 CH HD Audio sa Content zaštitom (Realtek ALC1150 Audio Codec)
Premium Blu-ray audio podrška
LAN: Gigabit LAN 10/100/1000 Mb/s
Dimenzije: ATX Form Factor
Ostalo: Podrška za Windows 8 / 7
Napomena: Više detalja o proizvodu možete naći ovdje.
