Azden FMX-DSLR Portable Audio Mixer with Pre Amp for Digital SLR Camera

ZNAČAJKE:

Two-Channel Mixer
For Digital SLR Camera
Two XLR Inputs
Accepts 1/8" (3.5mm) Inputs
Automatic Gain Control
Return Feature
Mounts to Camera or Tripod

Azden's FMX-DSLR Portable Audio Mixer for Digital SLR Camera is a two-channel mixer designed specifically for use with a DSLR camera. It features twin XLR inputs so that you can utilize professional microphones with your camera by using the camera's mini-jack output. The mixer has automatic gain control, a return feature and can be mounted directly to the camera or to a tripod for placement flexibility.
Two-Channel Mixer
This stereo mixer is designed specifically for those who want to use pro-quality microphones with a digital SLR camera. The XLR inputs are compatible with a wide range of audio recording devices like shotguns, wireless mics and more
Automatic Gain Control
The mixer has an automatic gain control circuit, so when it's turned on it creates a constant signal to go to the camera. This is always engaged to reduce noise in the signal
Return Feature
This lets you take the signal from the headphone out on your camera and send it into the mixer so you can listen to the camera's sound as opposed to the mixer sound. That way you can hear what's on the tape as opposed to what's coming out of the mixer
Mounting

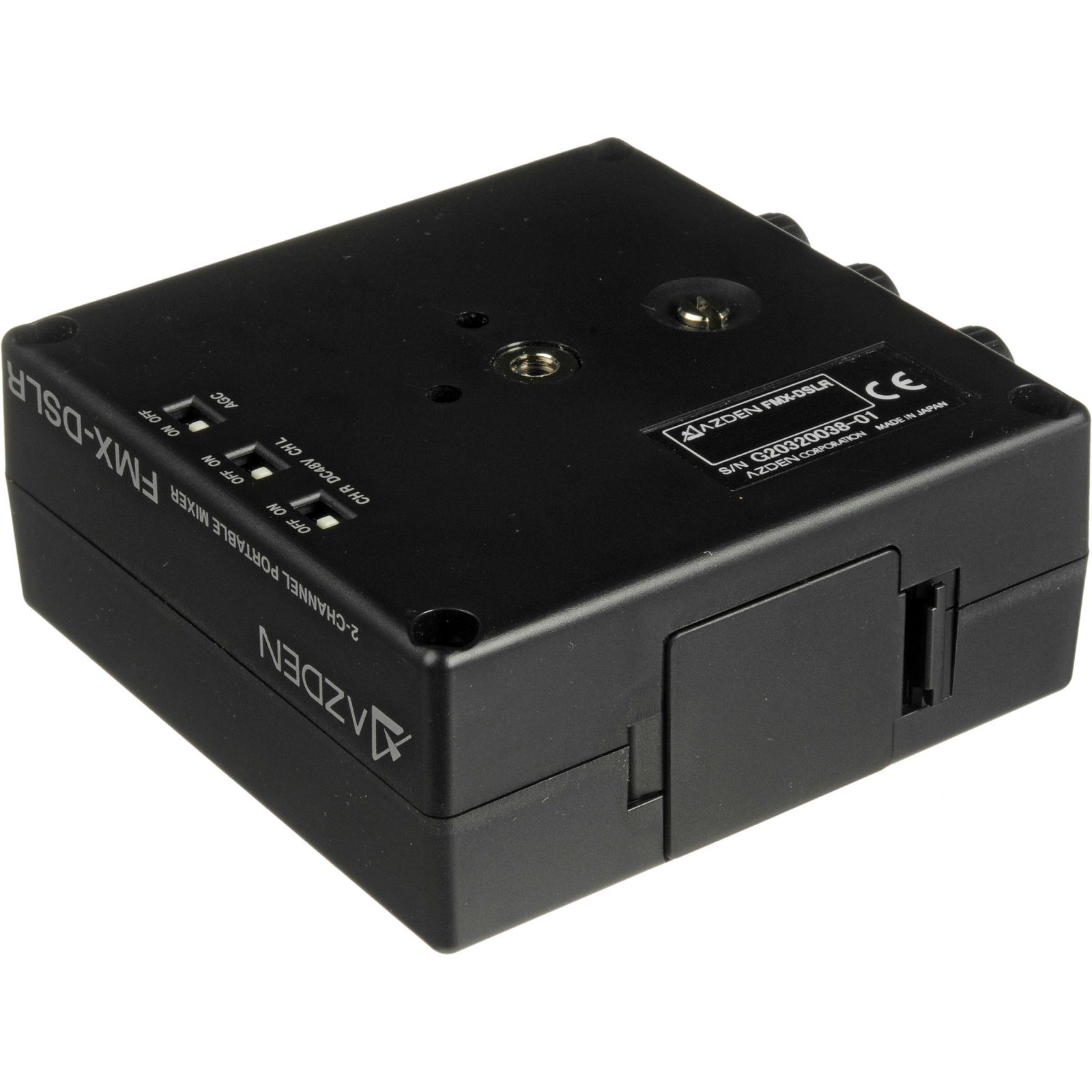

The mixer has a mount that allows you to mount it directly to the bottom of your camera. It also has a tripod mount on the bottom for flexibility in placement

SPECIFIKACIJE:


Frequency Response Main and unbalanced output: 20-20,000 Hz (+0/-1 dB)
Monitor output: 50-20,000 Hz (-1 dB)
Noise Level Left and right channel: -110 dB
Total Harmonic Distortion (THD) < 0.01% @ 1 kHz
Inputs Line/Aux Low setting: Max Input Level +22 dBu Max Gain -22 dB
Line/Aux Hi setting: Max Input Level +6 dBu Max Gain -6 dB
MIC1/MIC2 Low setting: Max Input Level 0 dBu Max Gain 0 dB
MIC1/MIC2 Hi setting: Max Input Level -16 dBu Max Gain +16 dB
Output 1/8" (3.5 mm) stereo: -3.5 dBu (32 ? load)
Maximum Output Level Unbalanced output (1/8" / 3.5 mm) +0 dBu (2 k?)
Batteries & Runtime 4 x AA alkaline
15 hours with phantom power off
Current Drain 40 mA nominal (phantom power off)
80 mA maximum (phantom power on)
Dimensions (HxWxD) 1.75 x 4.2 x 4.2" (44 x 105 x 105 mm)
Weight 16.6 oz (470 g) without batteries
Packaging Info
Package Weight 1.35 lb
Box Dimensions (LxWxH) 10.2 x 6.7 x 3.6"

UKLJUČUJE:

Azden FMX-DSLR Portable Audio Mixer for Digital SLR Camera
