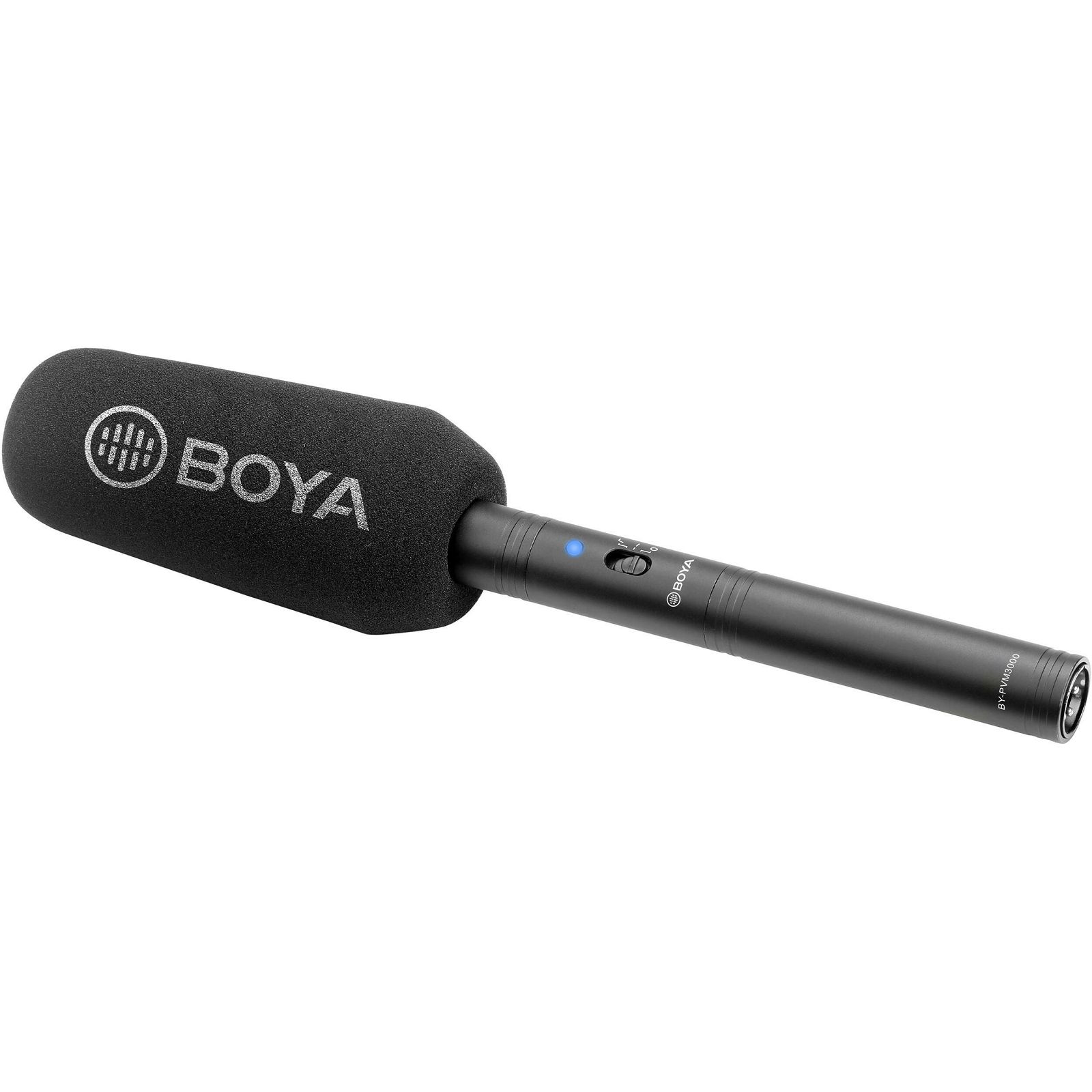

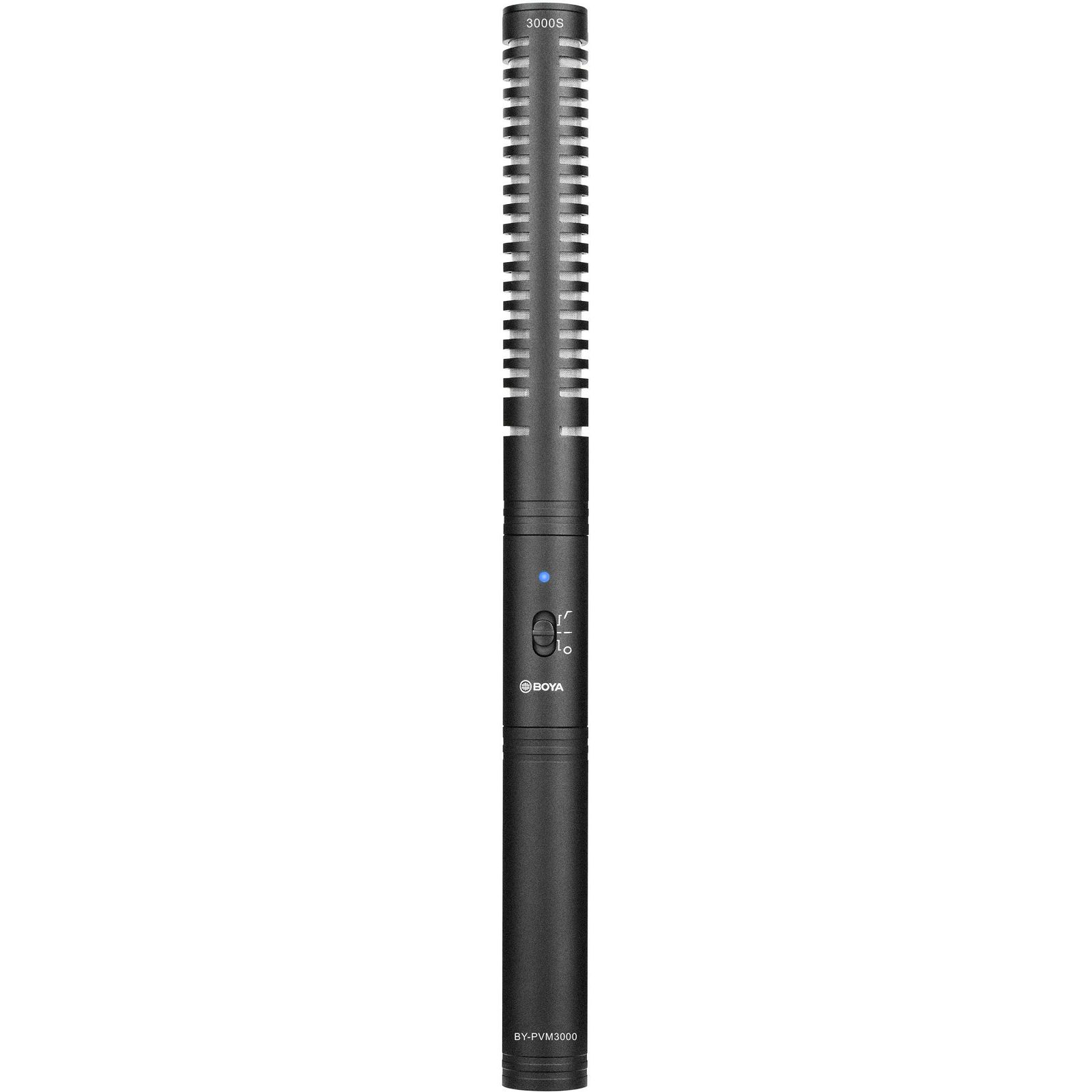

Boya BY-PVM3000S Shotgun Small mikrofon

ZNAČAJKE:

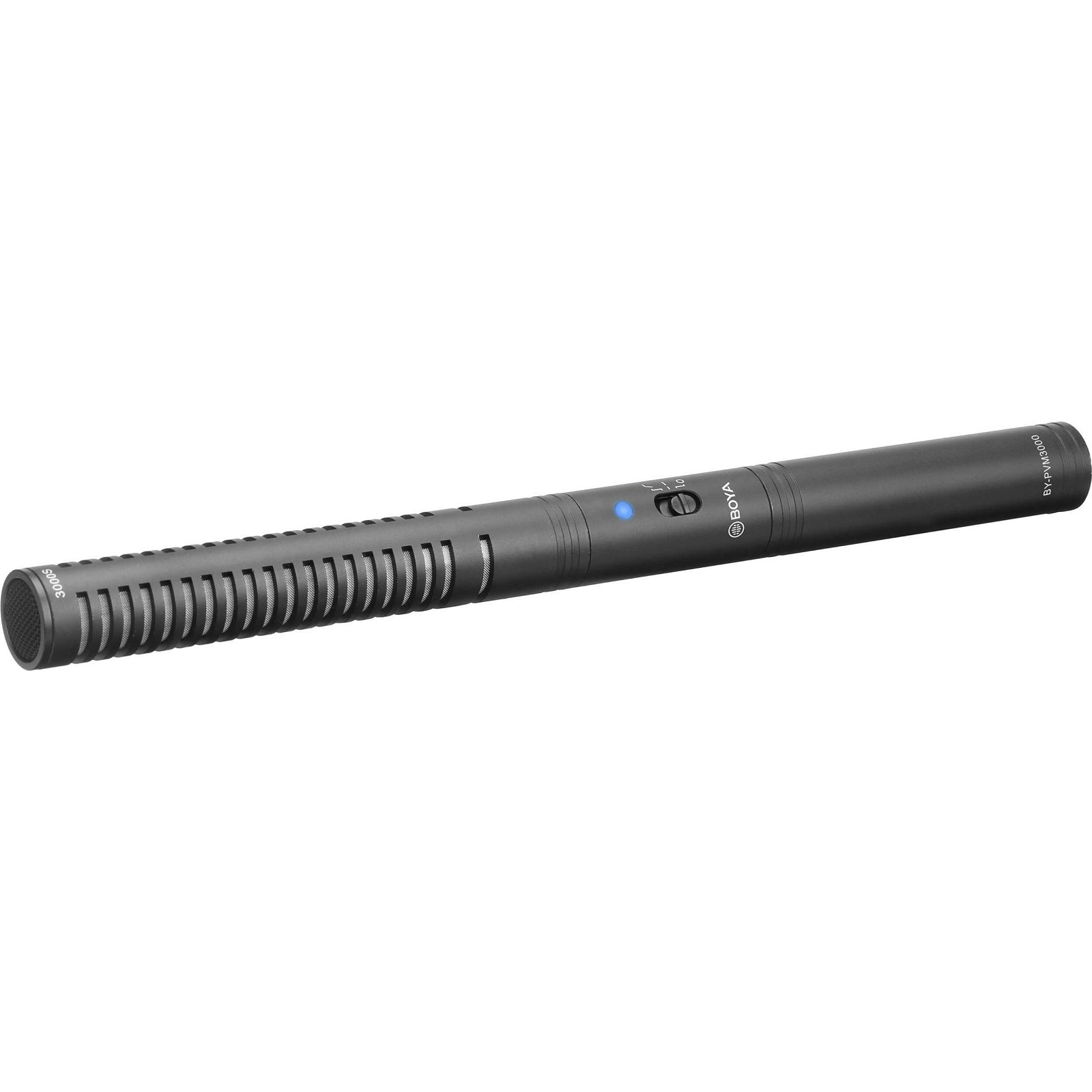

The BOYA BY-PVM3000S is a short shotgun microphone featuring a modular design that supports other optional interchangeable capsules to maximize versatility and cost-effectiveness for a range of video production and sound design applications. The short capsule on the BY-PVM3000S offers a wide 70° pickup angle, allowing it to capture more ambience and a greater number of subjects compared to the BY-PVM3000M (medium) and BY-PVM3000L (long) shotgun mics.

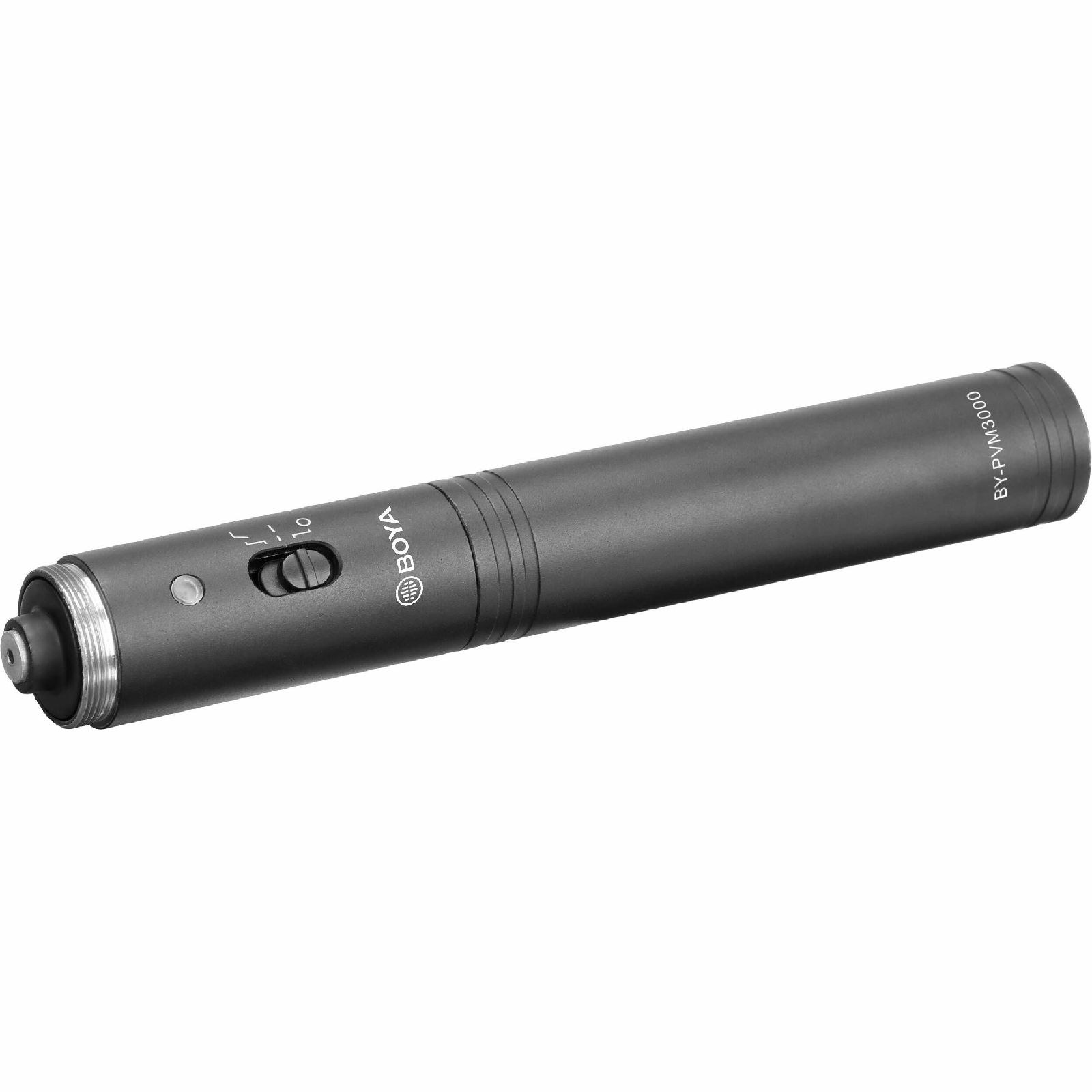

The base of the microphone incorporates an integrated preamplifier, low-noise circuitry, a balanced XLR output, and dual powering methods—24/48 VDC phantom power or a single AA battery (available separately), making it suitable for use with HDSLRs, camcorders, and dedicated audio recorders.

With a frequency response of 40 Hz to 20 kHz and a switchable 150 Hz low-cut filter, the BY-PVM3000S can deliver full-range audio reproduction while controlling low-frequency issues such as rumble. The included furry windshield and foam windscreen provide effective reduction of wind noise for indoor and outdoor recording.
Wide 70° pickup angle for increased ambience in close-range recording—ideal for camera mounting, indoor shoots, indie films, TV and documentary production, and scenes with multiple subjects

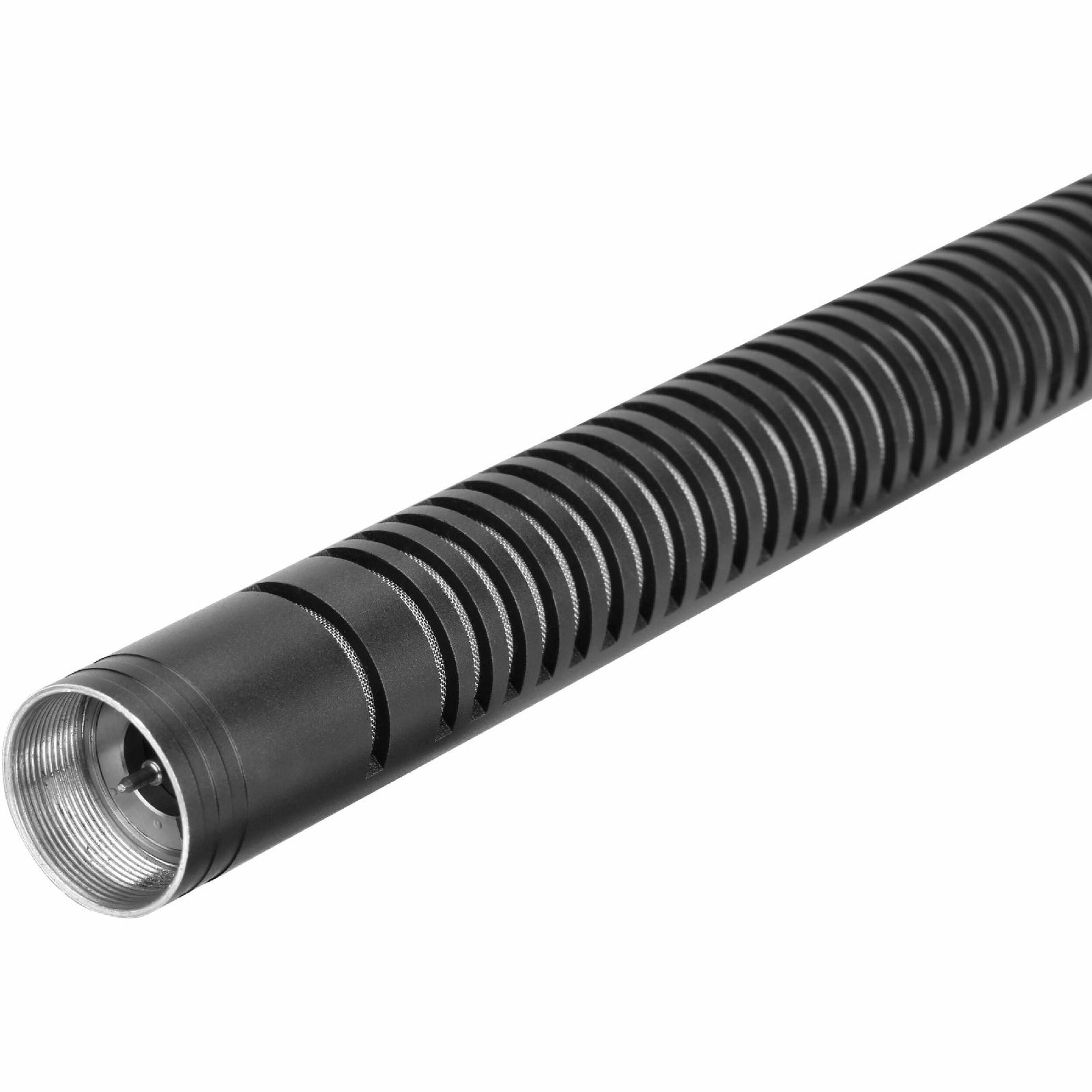

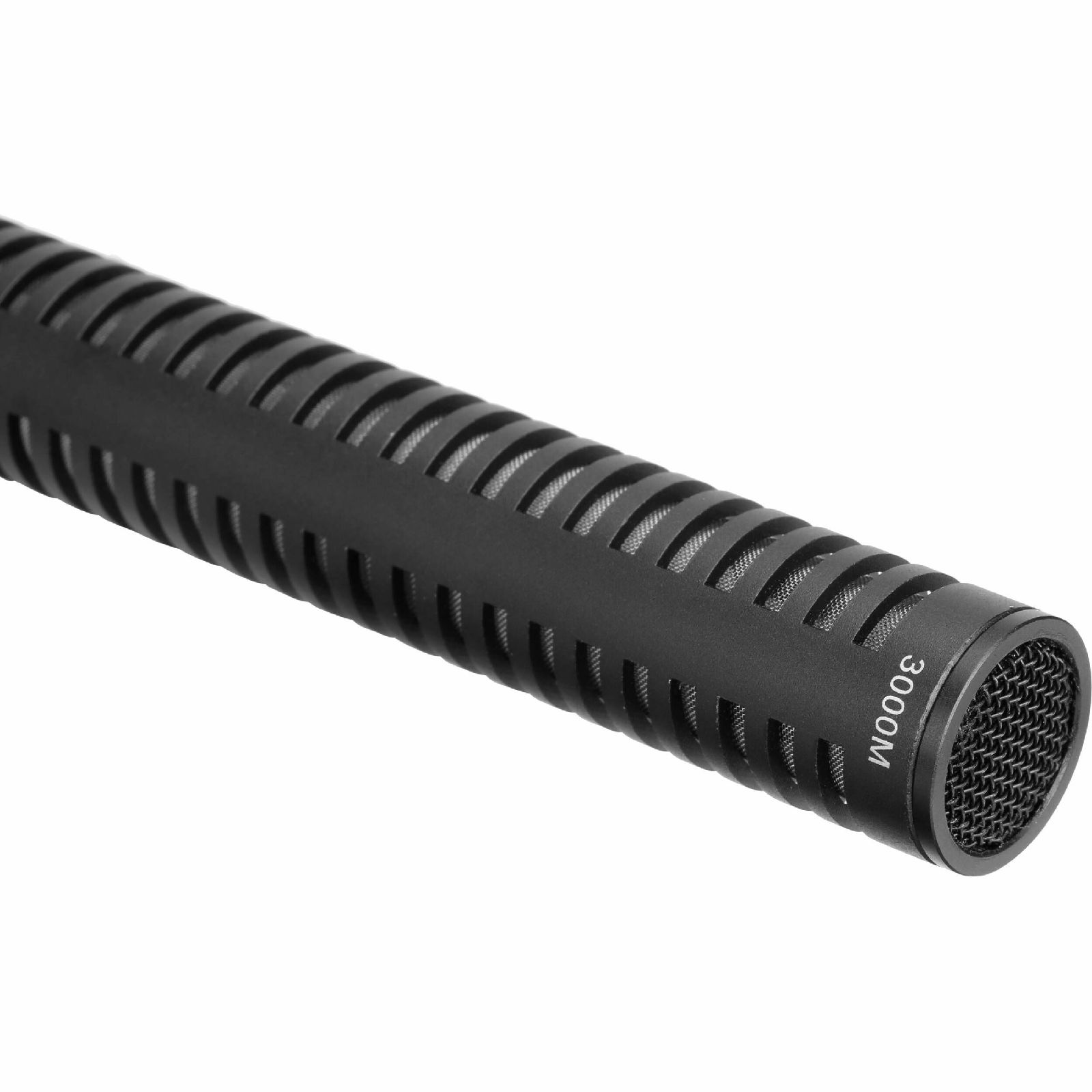

Modular design supports interchangeable capsules (medium and long capsules not included) for versatility in various recording environments
Supercardioid polar pattern offers enhanced off-axis rejection
40 Hz to 20 kHz frequency response
Integrated preamplifier with low self-noise circuitry
Switchable 150 Hz low-cut filter for reducing rumble from HVAC systems and traffic
Lightweight aluminum construction

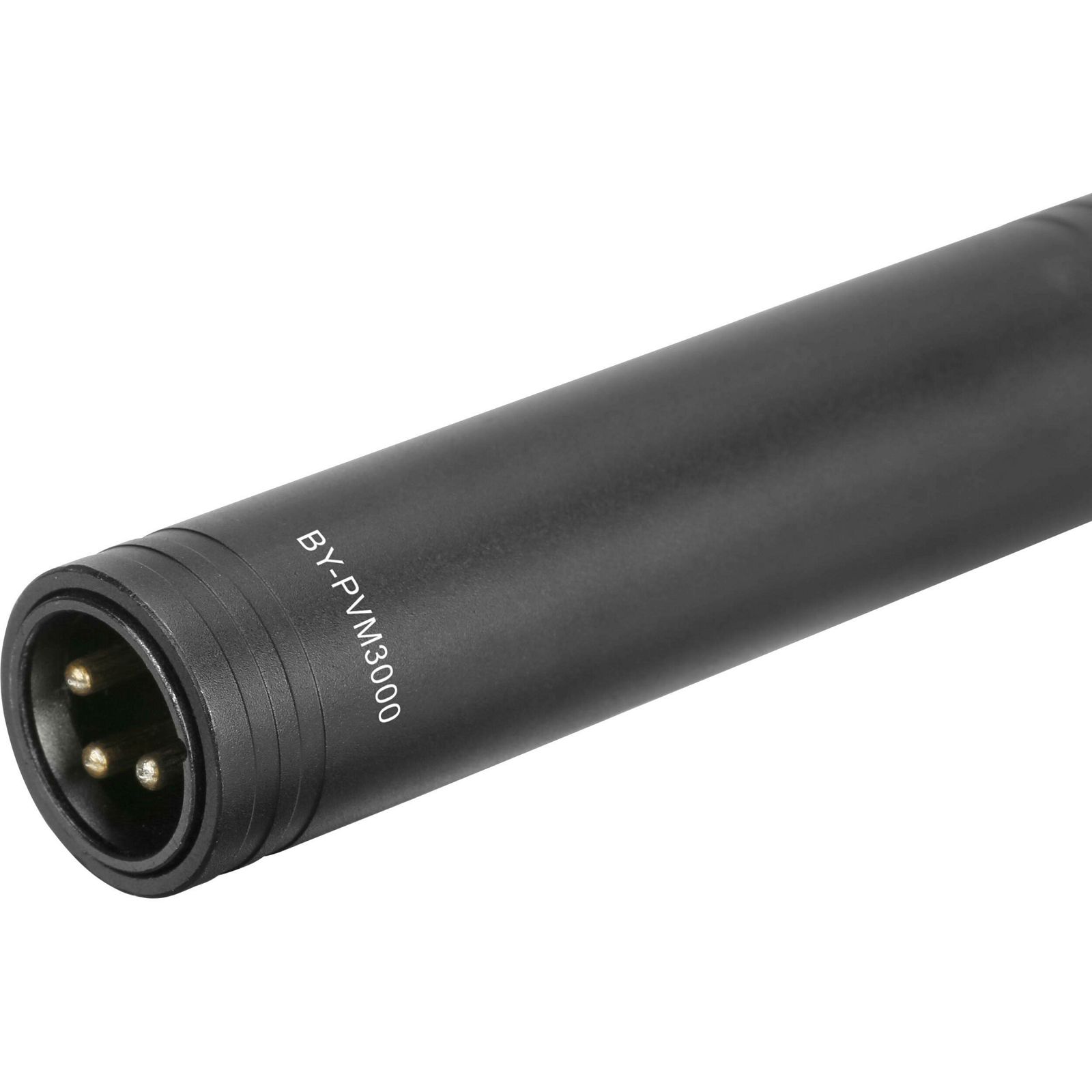

Balanced XLR 3-pin output

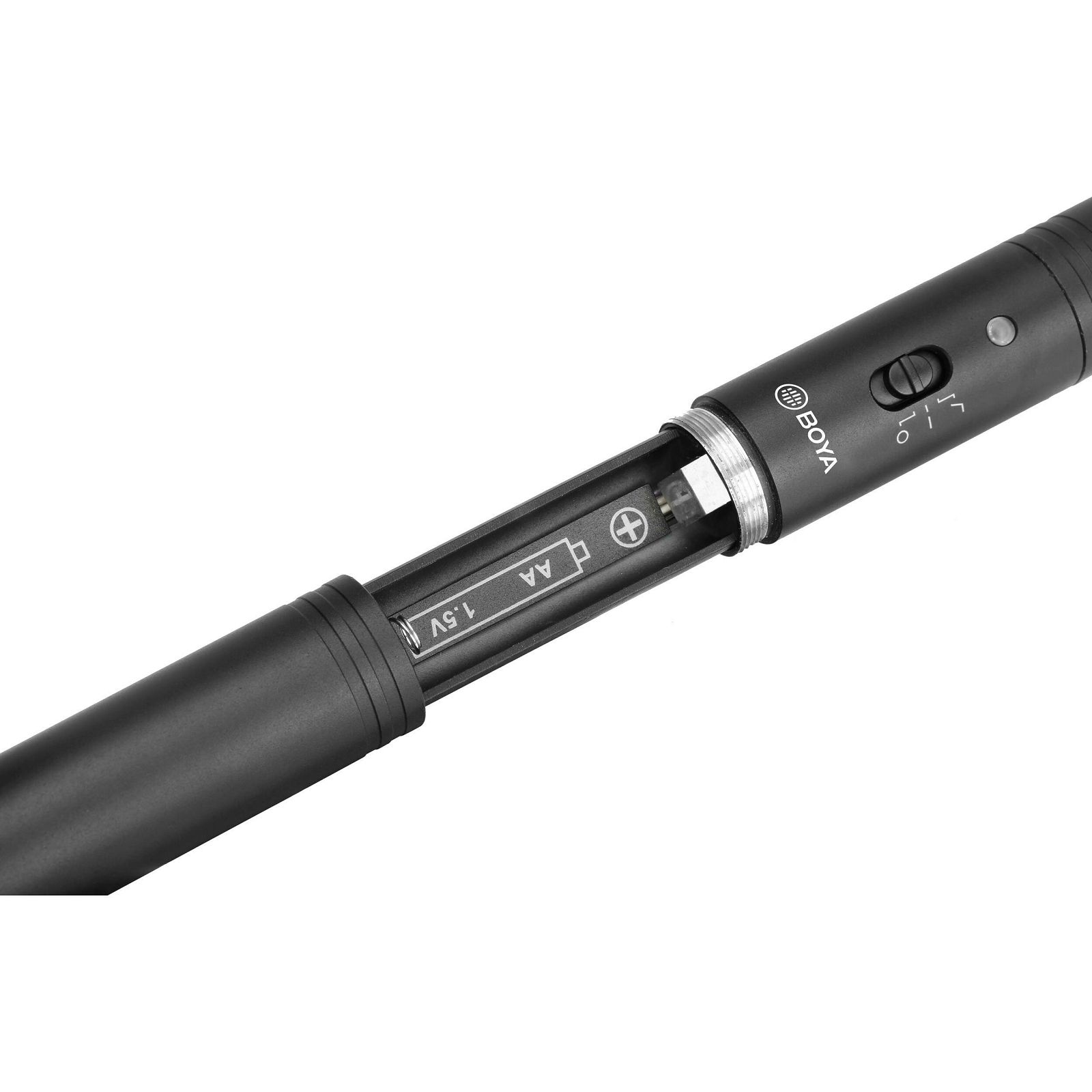

Operates on 24/48 VDC phantom power or a single AA battery (available separately)

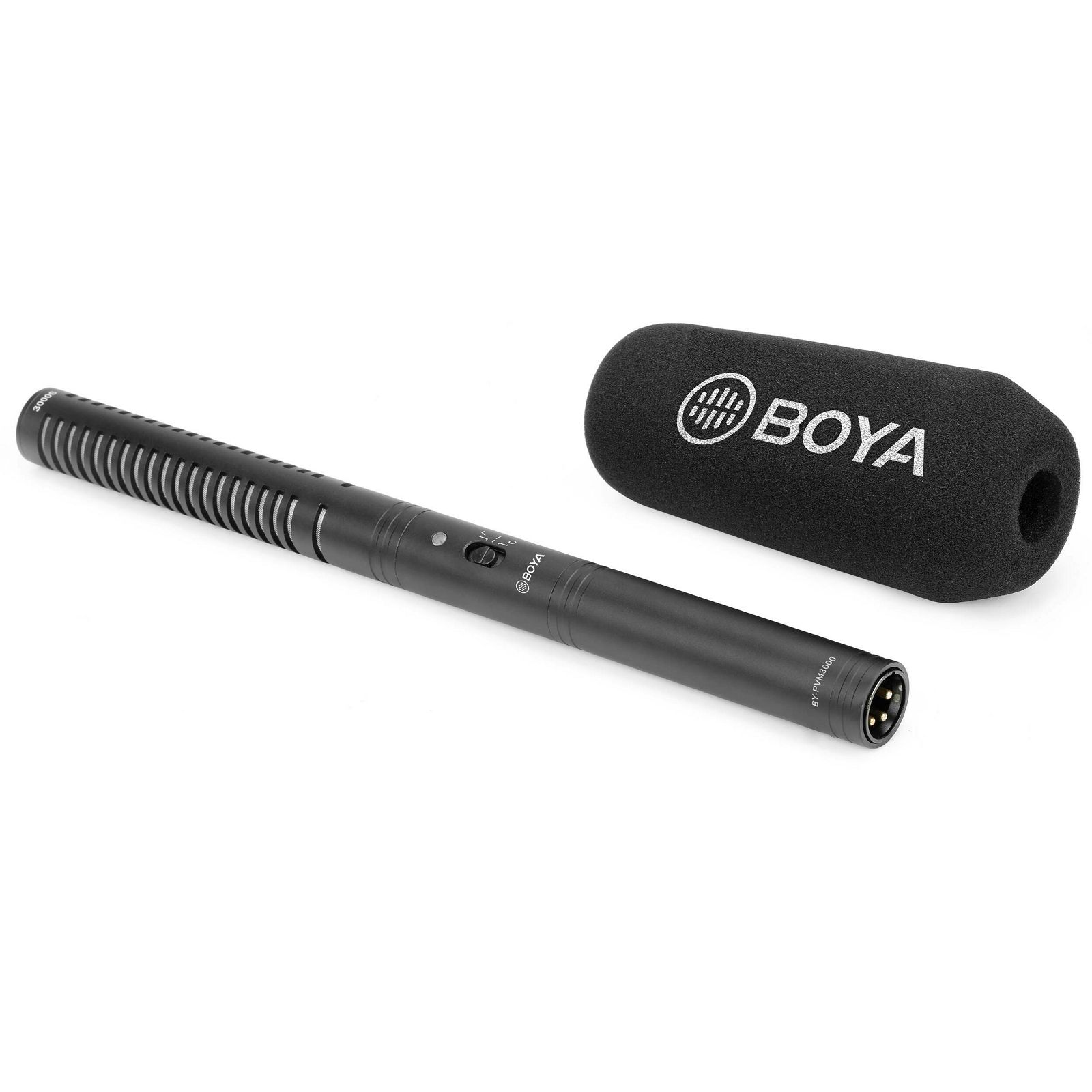

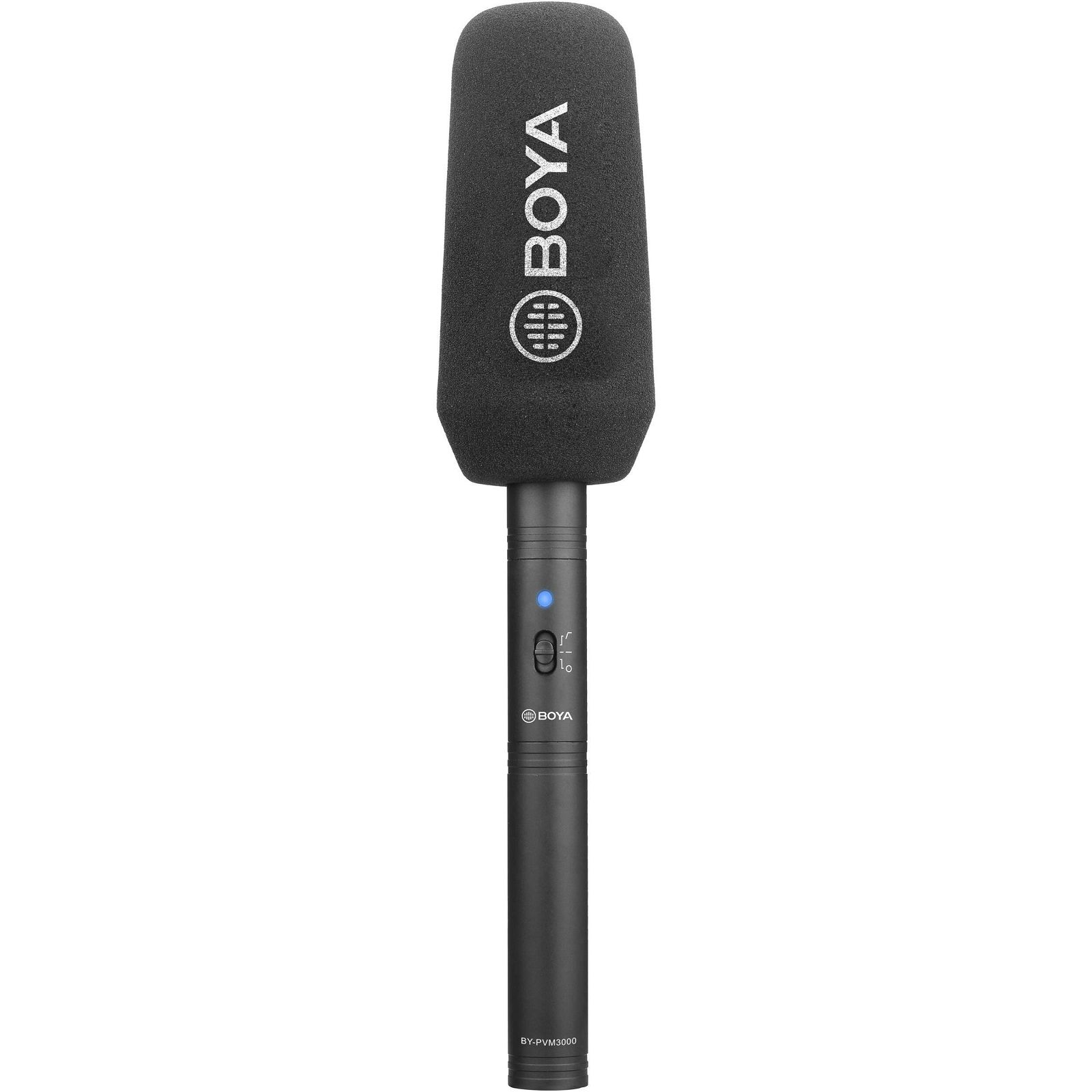

Supplied with a foam windscreen to reduce light wind noise for indoor shoots and a furry windshield to control stronger wind noise in outdoor shoots
Includes a shockmount to reduce vibration and handling noise

SPECIFIKACIJE:

Microphone
Form Factor Stand/Boom Mount
Sound Field Mono
Operating Principle Pressure Gradient
Capsule 1 x Electret Condenser
Polar Pattern Supercardioid
Orientation End Address
Circuitry Solid-State
Pad None
High-Pass Filter 150 Hz
Tone Adjustment None
Indicators 1 x Blue Single LED (Power)
On-Board Controls High-Pass Filter, On/Off
Windscreen Foam, Windsock/Windjammer (Included)
Performance
Frequency Range 40 Hz to 20 kHz
Off-Axis Rejection 8 dB at 60°
20 dB at 120°
>20 dB at 180°
Impedance 50 Ohms
Sensitivity -32 dB
Signal-to-Noise Ratio 80 dB
Connectivity
Output Connectors (Analog) 1 x XLR 3-Pin Male
Headphone Connector None
Power
Operating Voltage 48 V (Phantom Power)
24 V (Phantom Power)
1.5 V (Battery Power)
Battery Type 1 x AA
Physical
Color Gray
Mounting Shockmount (Included)
Construction Material Aluminum
Dimensions L: 5.35" / L: 13.6 cm (Capsule)
Weight 5.75 oz / 163 g

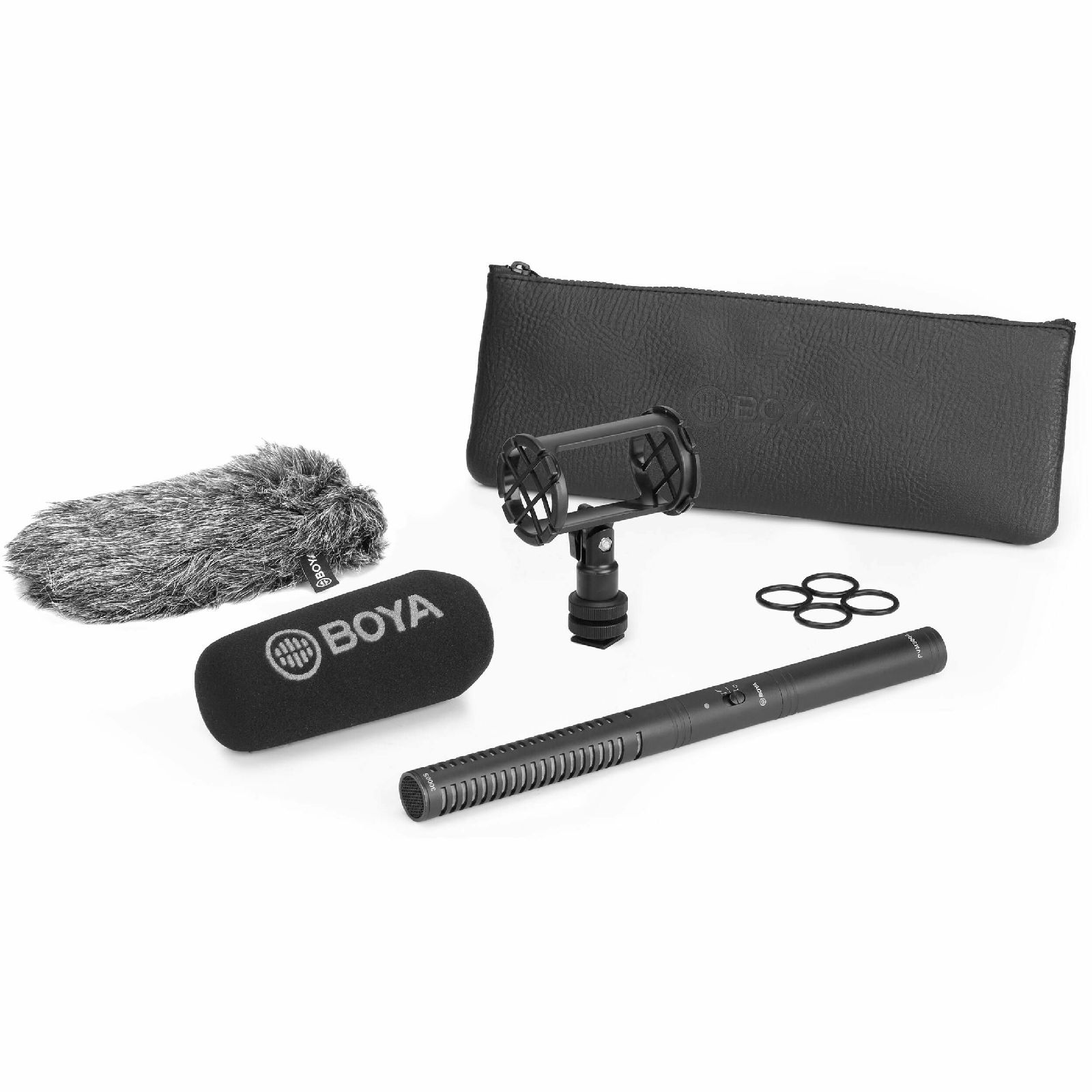

UKLJUČUJE:

BOYA BY-PVM3000S Modular Short Shotgun Microphone
Shockmount
Furry Windshield
Foam Windscreen
4 x Spare Rubber Bands
Storage Pouch
