Boya UHF Dual Lavalier Microphone Wireless BY-WM8 Pro-K2 bežični mikrofon

ZNAČAJKE:

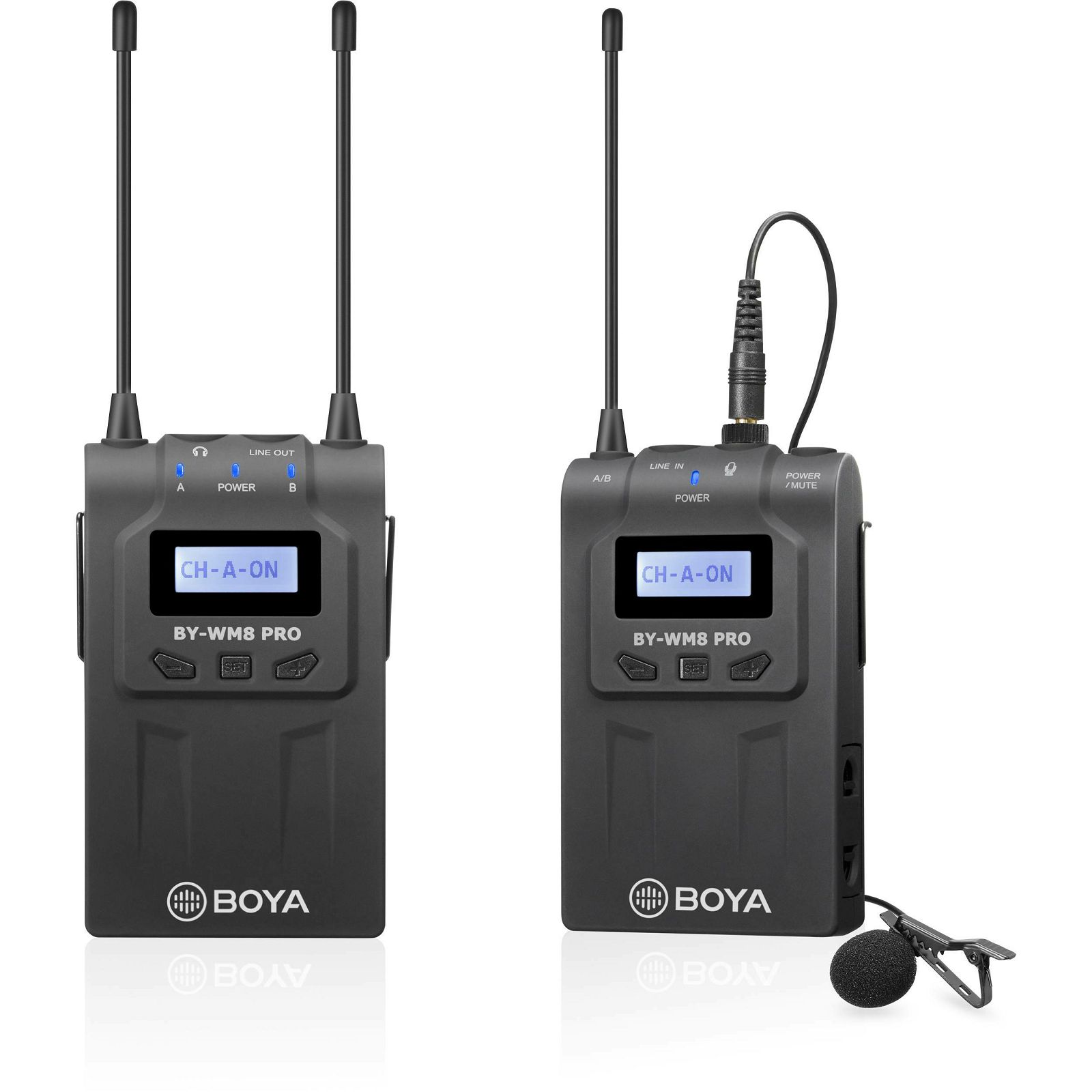

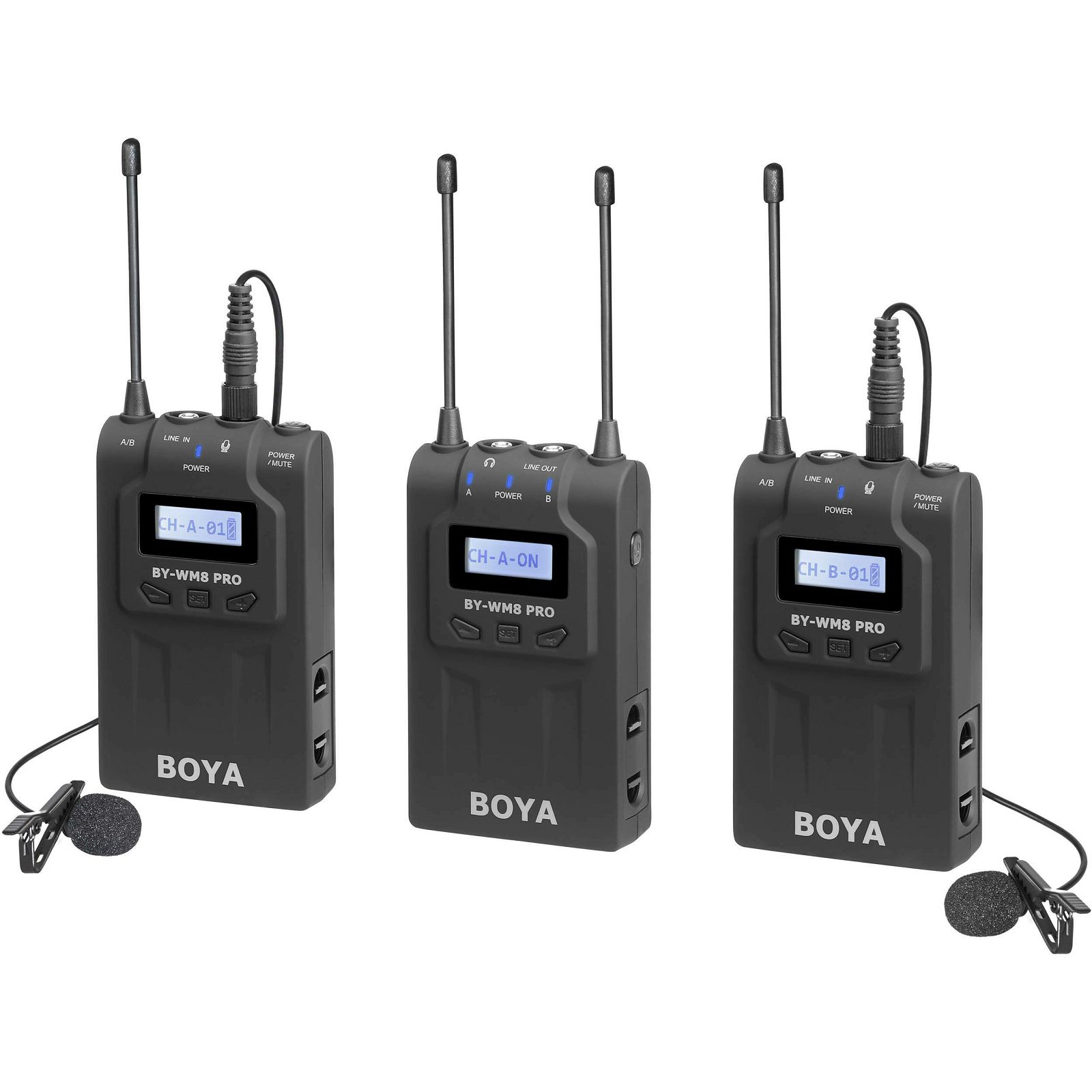

The BY-WM8 Pro-K2 UHF Dual-Channel Wireless Lavalier System from BOYA includes a UHF dual-channel wireless receiver, two wireless bodypack transmitters, two omnidirectional lavalier microphones, two microphone clips and foam windscreens, a shoemount adapter, single 1/8" to XLR output cable, single 1/8" to 1/8" output cable, and carrying case. This wireless system can be used to capture audio with two subjects simultaneously for interview, electronic news gathering (ENG), electronic field production (EFP), film, business, and educational applications.

Featuring an easy-to-read LCD display, wide switching RF bandwidth, PLL-synthesized tuning and digital companding circuitry, the BY-WM8 Pro-K2 system is equipped with 48 selectable UHF channels and offers broadcast-quality sound. Other features include: selectable stereo and mono modes, mute function, LCD-locked function, receiver headphone output for monitoring, and 300' operation range.

Furthermore, the system is powered by AA batteries (sold separately), which offer up to 6 hours of continuous operation. The BY-WM8 Pro-K2 UHF Dual-Channel Wireless Lavalier System is built with easy and flexible wireless synchronization between transmitter and receiver via infrared, so you will always find a clear channel to transmit on. The user-friendly LCD menu screen is quick and easy to navigate, which makes it suitable for quick, clear, and easy operation.

Digital companding
Up to 48 selectable channels
Dual-channel receiver
Up to 32 MHz of transmission bandwidth
Easy and flexible wireless synchronization between transmitter and receiver via infrared
User-friendly menu operation
Muting function
Locked plugs avoid accidental disconnection
Transmission range up to 300'

KARAKTERISTIKE:

System
Oscillator Type: PLL Synthesized Control Oscillator
Carrier Frequency Range: 576.4 to 599.9 MHz (Transmitter: A)
568.6 to 592.1 MHz (Transmitter: B)
Channels 48
Frequency Response: 40 Hz to 18 kHz (±3 dB)
Operation Range: 300' / 100 m (without Obstacle)
Operating Temperature: 14 to 122°F / -10 to 50°C
Storage Temperature: 14 to 131°F / -10 to 55°C
Transmitter
RF Output Power: ? 10 mW
Antenna: 1/4 Wire Antenna
Spurious Emission: 250 nW or Less
Audio Input Connectors: 1/8" / 3.5 mm Mic Input
1/8" / 3.5 mm Line-Level Input
Reference Input Level: -60 dBV (Mic Input, 0 dB Attenuation)
Reference Deviation: ±5 kHz (-60 dBV, 1 kHz Input)
Input Frequency Range: 20 Hz to 20 kHz
Distortion 0.5% or Less
Power Supply: 2 x AA Size Batteries
Operation Time: Aprox 6 Hours
Dimensions (H x W x L): 8.2 x 2.6 x 1.1" / 20.8 x 6.7 x 2.9 cm
Weight: 2.8 oz / 80.0 g (without Batteries)
Receiver
Antenna: 1/4 Wire Antenna
Audio Output Connectors: 1/8" / 3.5 mm Line Out
1/8" / 3.5 mm Headphones Out
Signal to Noise Ratio: 70 dB or More
Distortion 0.5% or Less
Headphone Output Level: 30 mW (16 Ohms)
Audio
Output Level: -60 dBV
Power Supply: 2 x AA Size Batteries
Operation Time: About 4 Hours
Dimensions (H x W x L): 8.2 x 2.6 x 1.1" / 20.8 x 6.7 x 2.9 cm
Weight: 3.2 oz / 90.0 g (without Batteries)
Lavalier Microphone Specs
Transducer: Back Electret Condenser
Polar Pattern: Omnidirectional
Frequency Range: 35 Hz to 18 kHz
Signal / Noise: 74 dB SPL
Sensitivity : -30 dB ±3 dB / 0 dB=1 V/Pa, 1 kHz
Connector: 1/8" / 3.5 mm Locking Mini Plug
Cable Length: 4.0' / 1.2 m
Dimensions: Not Specified by Manufacturer
Weight: Not Specified by Manufacturer
Packaging Info
Package Weight: 2.1 lb
Box Dimensions (LxWxH): 11.15 x 10.45 x 2.25"

UKLJUČUJE:

BOYA BY-WM8 Pro-K2 UHF Dual-Channel Wireless Lavalier System (576.4 to 599.9 MHz, 568.6 to 592 MHz)
Dual-Channel Wireless Receiver
2 x Wireless Bodypack Transmitters
2 x Omnidirectional Lavalier Microphones
2 x Foam Windscreens
2 x Microphone Clips
Shoemount
3.5mm to XLR Output Cable
3.5mm to 3.5mm Output Cable
Carrying Case
