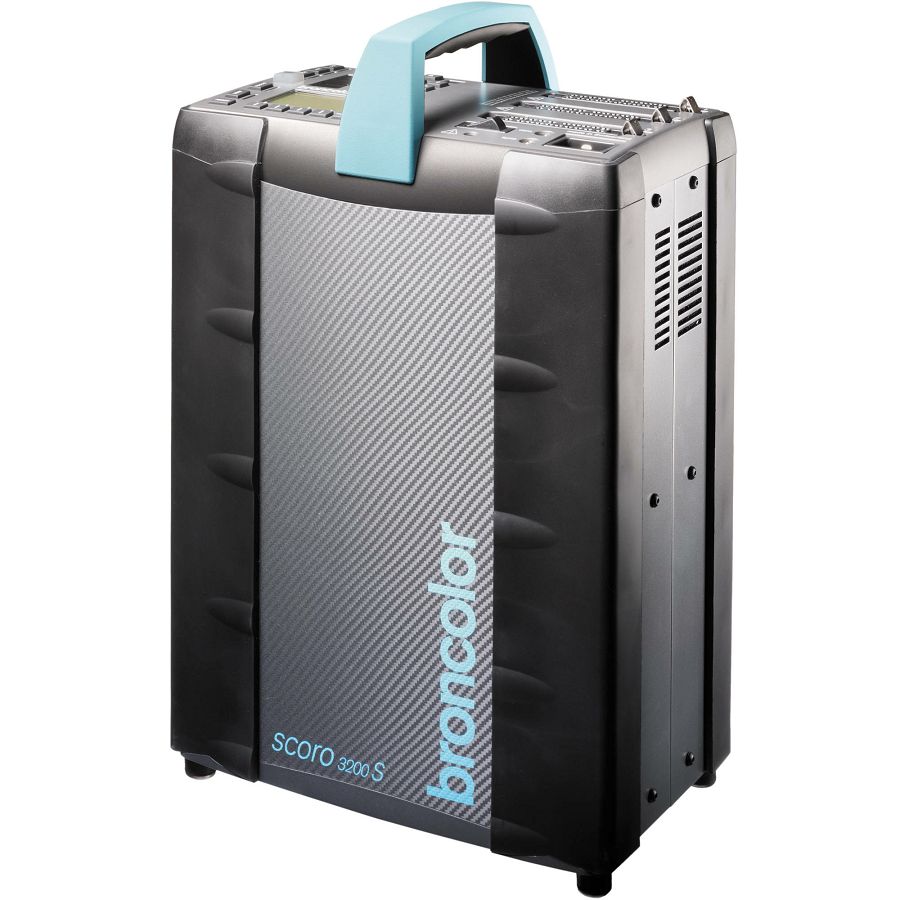

Broncolor Scoro 3200 S RFS Power Packs

Max.3200 J,Min.3 J Flash Energy
Up to 50 Flashes per second
Triggering Delay
Fan Cooling
f-stop: 90 2/10
Flash duration up to 1/12?000 s (t 0.5), 1/8000 s (t 0.1)
Charging time: 0.02 - 1.3 s, speed mode 0.03 - 1.2 s (230 V)
Control range over 10 f-stops in 1/10 or 1/1 f-stop intervals
Automatic stabilization of the colour temperature ECTC (Enhanced Colour Temperature Control) over the whole control range and up to 6 f-stops in asymmetrical mode
3 lamp outlets, the power output of each of the 3 lamp outlets can be adjusted ndependently
Individual choice of the colour temperature shift



Works with all voltages from 100 - 240 V
Power pack with 3 lamp outlets, controlled over 3 individual channels (like 3 power packs in one)
Individual (asymmetrical) output distribution
Maximum control range: over 10 f-stop intervals or over full 11 f-stop levels in whole or 1/10 f-stop intervals
Very high repetitive precision
Internal discharge when the power is reduced
Photocell, infrared and RFS receiver for flash triggering (all can be switched off separately)
Front panel with modern, dimmable, LCD menu system, with illuminated silicone keyboard resistant to scratches and LED displays
Selectable flash duration
Modelling light with 8 different proportionality levels, adjustable to all broncolor power packs and monolights. By default, integrated radio receiver. Visual and audible flash monitoring by dim function of the modelling light during charging as well as different buzzers
Bright large ready display and buzzer (can be switched off). Can be switched to fast charging mode
Fan cooling for long flash sequences and thermal protection
8 memory functions (the entered data are retained should the unit be switched off or in case of a power cut). Robust aluminium housing, side walls with hard rubber components
Automatic adaptation to the respective mains voltage
Additional functions:
Choice of flash duration
Triggering delay
Backup additional functions
Sequences (serial flashes)
Individual choice of the colour temperature shift
Intervals
Alternating with up to 4 power packs
Individual choice of charging times (on low mains supply or motor generator)
Individual choice of different flash release modes
Assignment of different digital workstations (RFS channels) and unit addresses
Adjustment of the output display to other power packs with differing outputs
Dimmable visual ready display
Assignment of different ready signal tones and volumes
8 memory locations
Flash sequences up to 50 flashes
Sensitivity of the photocell can be reduced
10 languages are available
Dimmer
Daily and total flash counter
Scope of delivery:
Power pack, mains cable, operating instructions, dust cover
Specifications:
Flash energy: 3200 J:
F-stop at distance of 2 m (6 1 ft.) 100 ISO, reflector P70: 90 2/10
Flash duration t 0.1 on max. energy: 1/132 s, 1/85 - 1/8000 s, 1/240 - 1/12000 s
Variation range of flash duration t 0.1: Flash duration and energy automatically regulated for optimum colour temperature. Minimum flash duration can be preselected
Variation range of flash duration t 0.5: Flash duration and energy automatically regulated for optimum colour temperature. Minimum flash duration can be preselected
Charging time (min. - max. energy): 230 V: 0.02 - 1.3 s; 120 V: 0.02 - 2.0 s; 100 V: 0.02 - 2.2 s; Can be switched to slow charging mode
Flash energy speed mode: 2400 J:
F-stop at distance of 2 m (6 1 ft.) 100 ISO, reflector P70 speed mode: 64 9/10
Flash duration t 0.1 on max. energy: 1/285 s, 1/85 - 1/8000 s
Variation range of flash duration t 0.1: Flash duration and energy automatically regulated for optimum colour temperature. Minimum flash duration can be preselected
Charging time speed mode (min. - max. energy): 230 V: 0.02 - 0.8 s; 120 V: 0.02 - 1.2 s; 100 V: 0.02 - 1.4 s
Ready display: Visual and audible(can be switched off), signals when 100 % of selected energy is reached
Lamp outlets: 3 main connectors with flash cut-off and ECTC
Power output distribution: Symmetrical and individually asymmetrical
Controls: Illuminated silicone keyboard, resistant to dust and scratches. Wireless remote control of all functions with RFS
Control range: over 10 f-stops in 1/10 or whole f-stop intervals. Displayed simultaneously in f-stops and joules, joules switchable to percentage
Colour temperature: ECTC technology (Enhanced Colour Temperature Control) for consistent but also deliberately modified colour temperature
Modelling light: Halogen max. 3 x 650 W at 200 - 240 V, Halogen max. 3 x 300 W at 100 - 120 V. Proportional to flash energy and "full" and "low" settings. Proportionality adjustable to other broncolor power packs and monolights
Additional functions: Sequence, delay, interval, t 0.1, colour temperature, alternation, stroboscopic, memory, etc.
Flash release: Manual release button, photocell (can be switched off), infrared and RFS receiver (can be switched off), sync cable, IRX2.
No. of sync sockets: 1
Computer connection for remote: control: 1
Stabilized flash voltage: +/- 0.3 %
Power requirements: 230 V: 16.0 A; 120 V: 15.0 A; 100 V: 15.0 A
Dimensions without handle: 288 x 190 x 400 mm / 11.3 x 7.5 x 15.7 inch
Dimensions incl. handle: 288 x 190 x 453 mm / 11.3 x 7.5 x 17.8 inch.
Weight: 12.5 kg / 27.5 lbs
Standards: EN 60065/A1, EN 55014, EN 300 220-1/-3, EN 50371, EN 60950, EN 301 489-1/-3, EEC-standards: 2006/95, 2004/108, 99/5, 96, 95
Special features:
Automatic, Enhanced Colour Temperature Control, ECTC
Extremely large control range over 10 f-stop intervals or 11 f-stop levels in whole or 1/10 f-stop levels
Alternating flash release to reduce the time of the flash series when up to 4 power packs are in use (ping-pong release)
Very fast stroboscopic sequences (also useful as, so to speak, continuous light for precise assessment of shadow edges etc.
Via menu in 10 languages
Inter active menu with useful help texts
Compatibility:
All the broncolor lamps are electrically compatible with the Scoro A power packs
The most popular lamps such as the Pulso and Unilite range, as well as the Ringflash (C & P) can be utilized without restrictions with the Scoro A power packs
Especially for small lamps, there are thermal restrictions which must be taken into consideration when using with Scoro A power packs (see corresponding max. J/min. infos)
Application:
The extremely short flash duration and recharging time on reduced flash energy, as well as the low temperature increase (even with a short flash duration), make the Scoro power pack ideal for fashion shoots and long flash sequences
