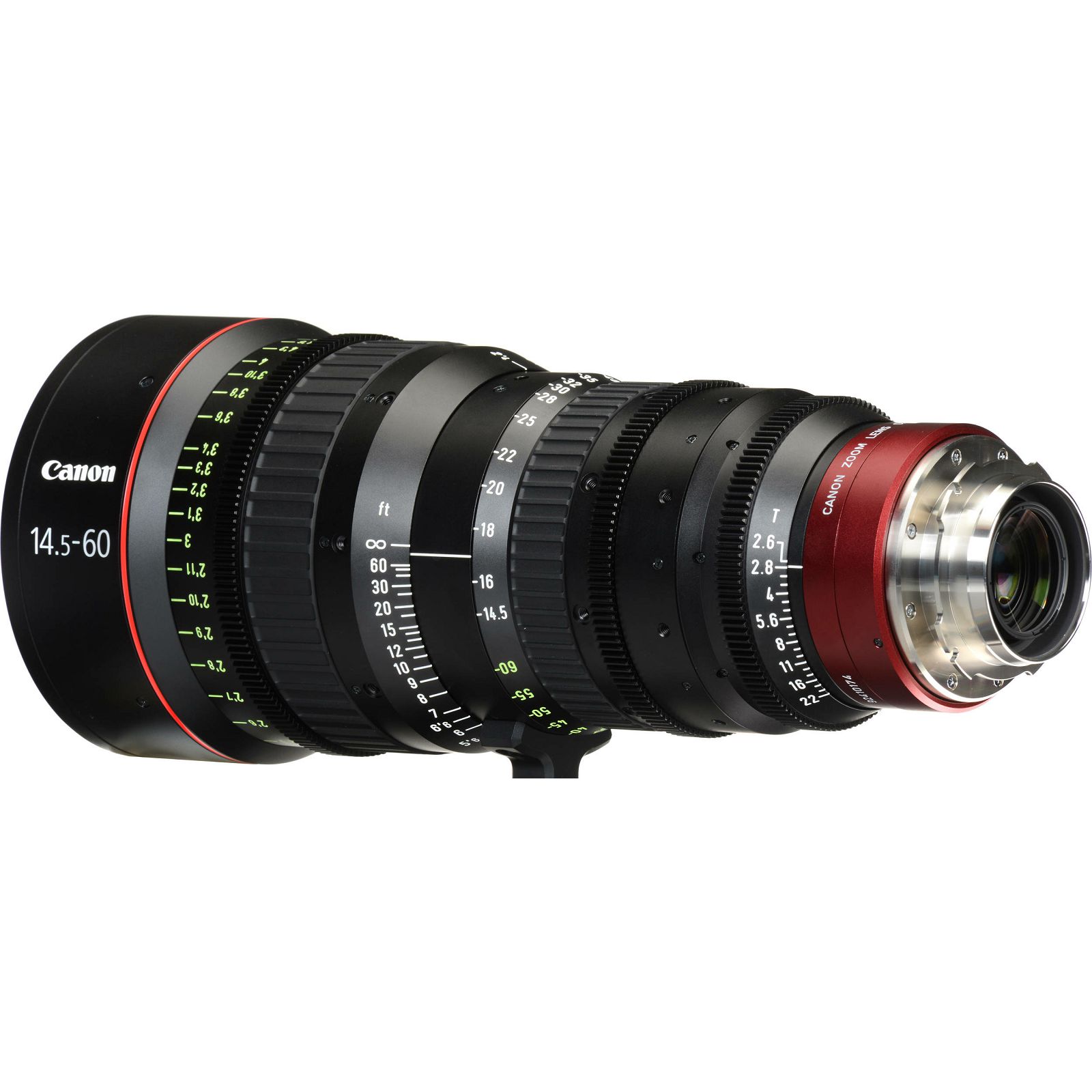

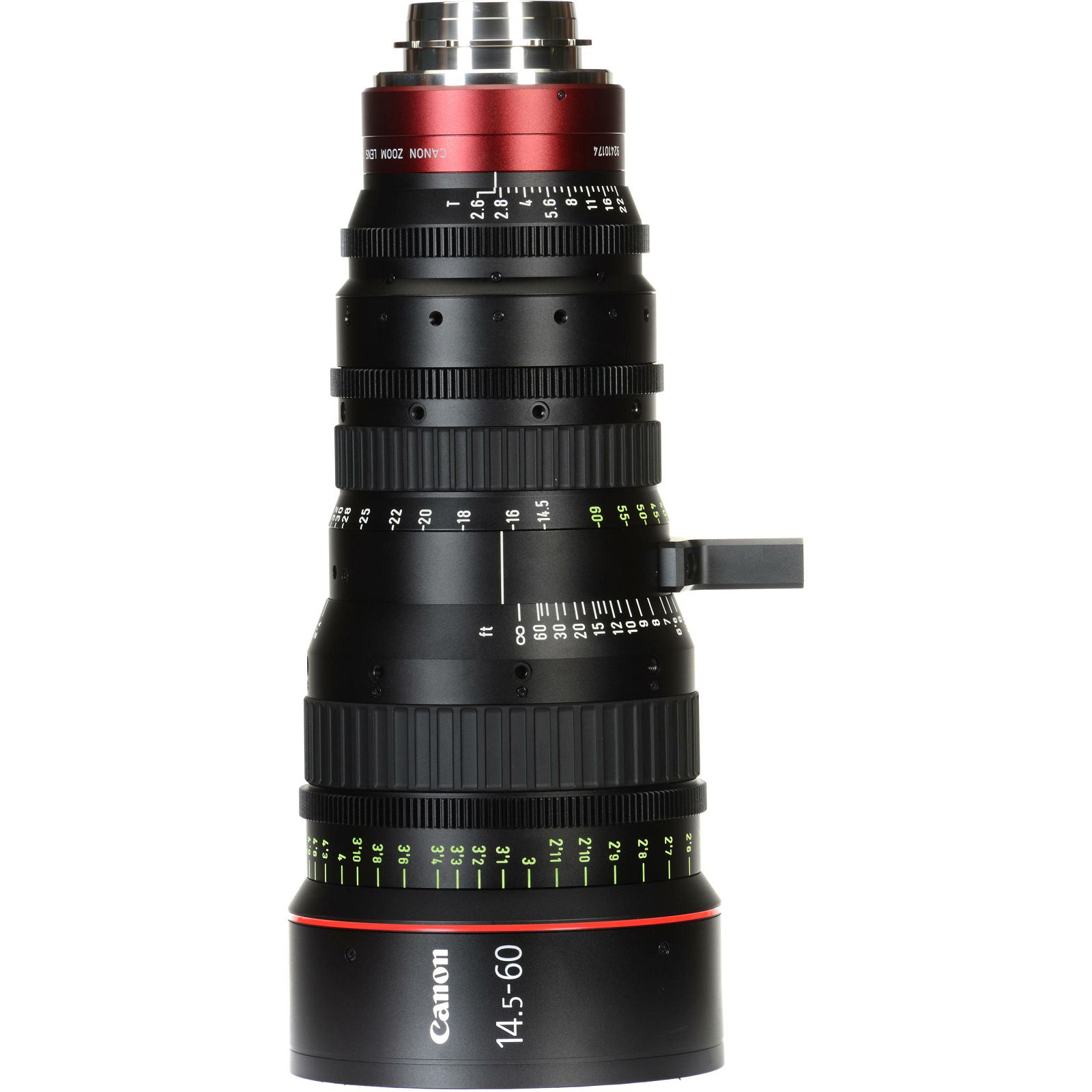

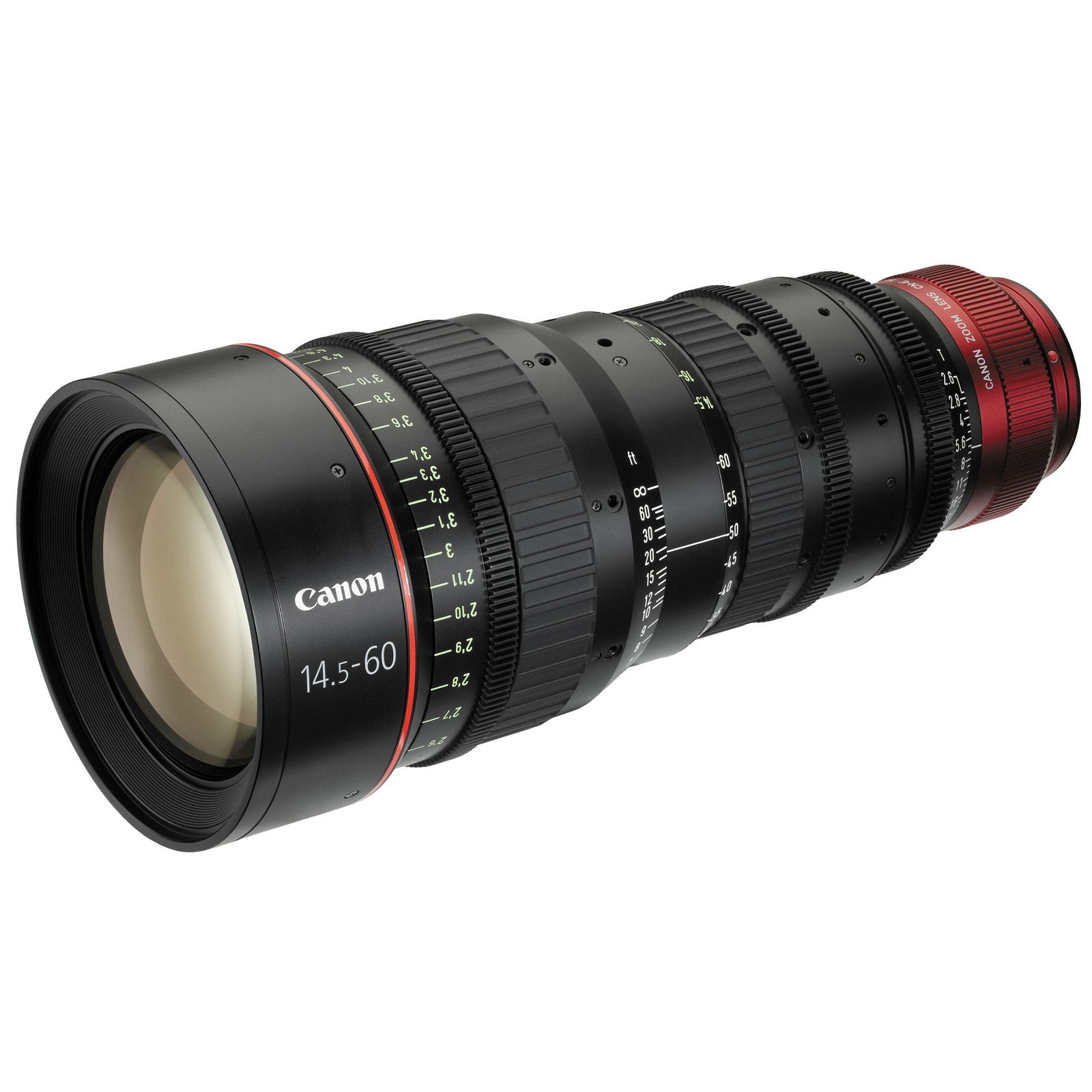

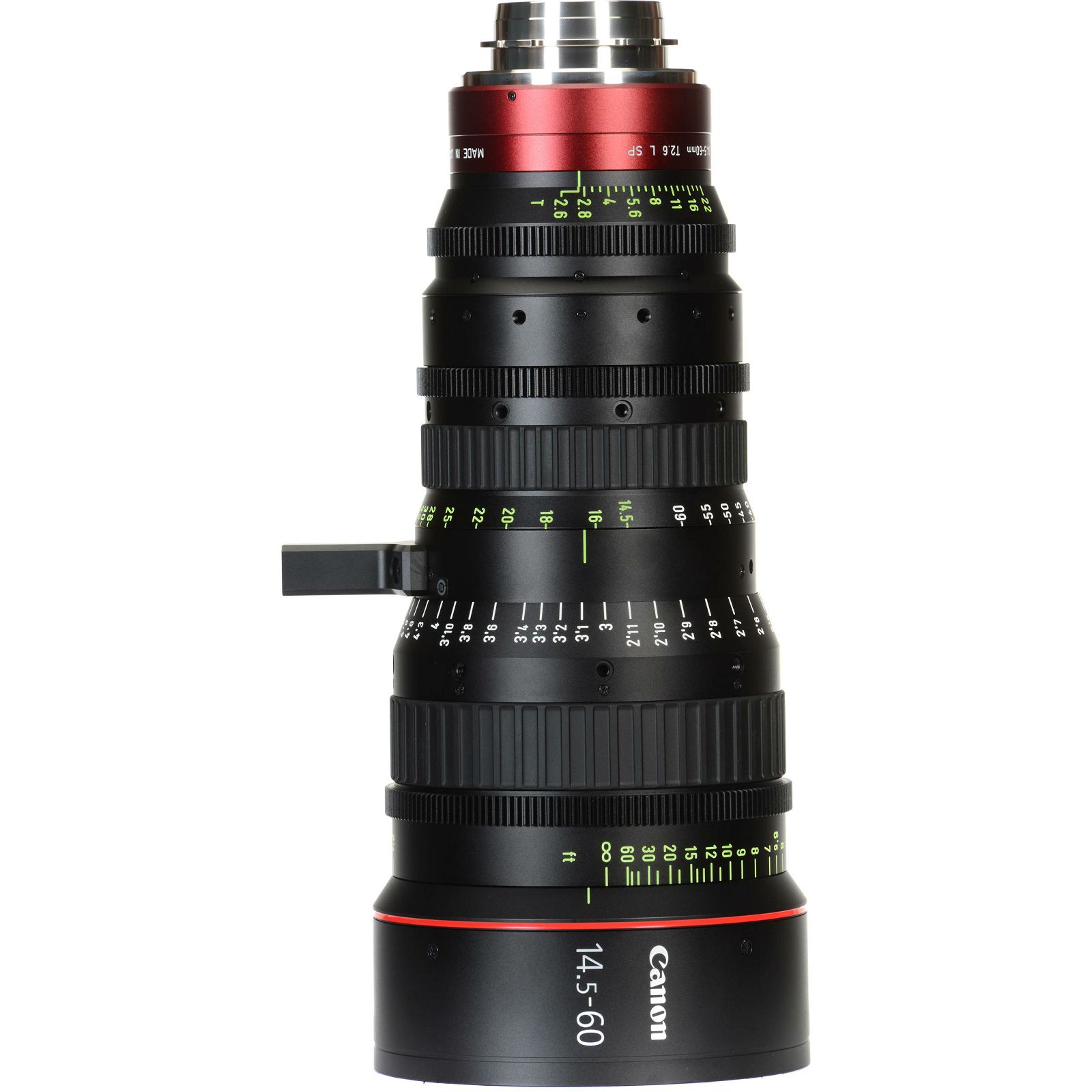

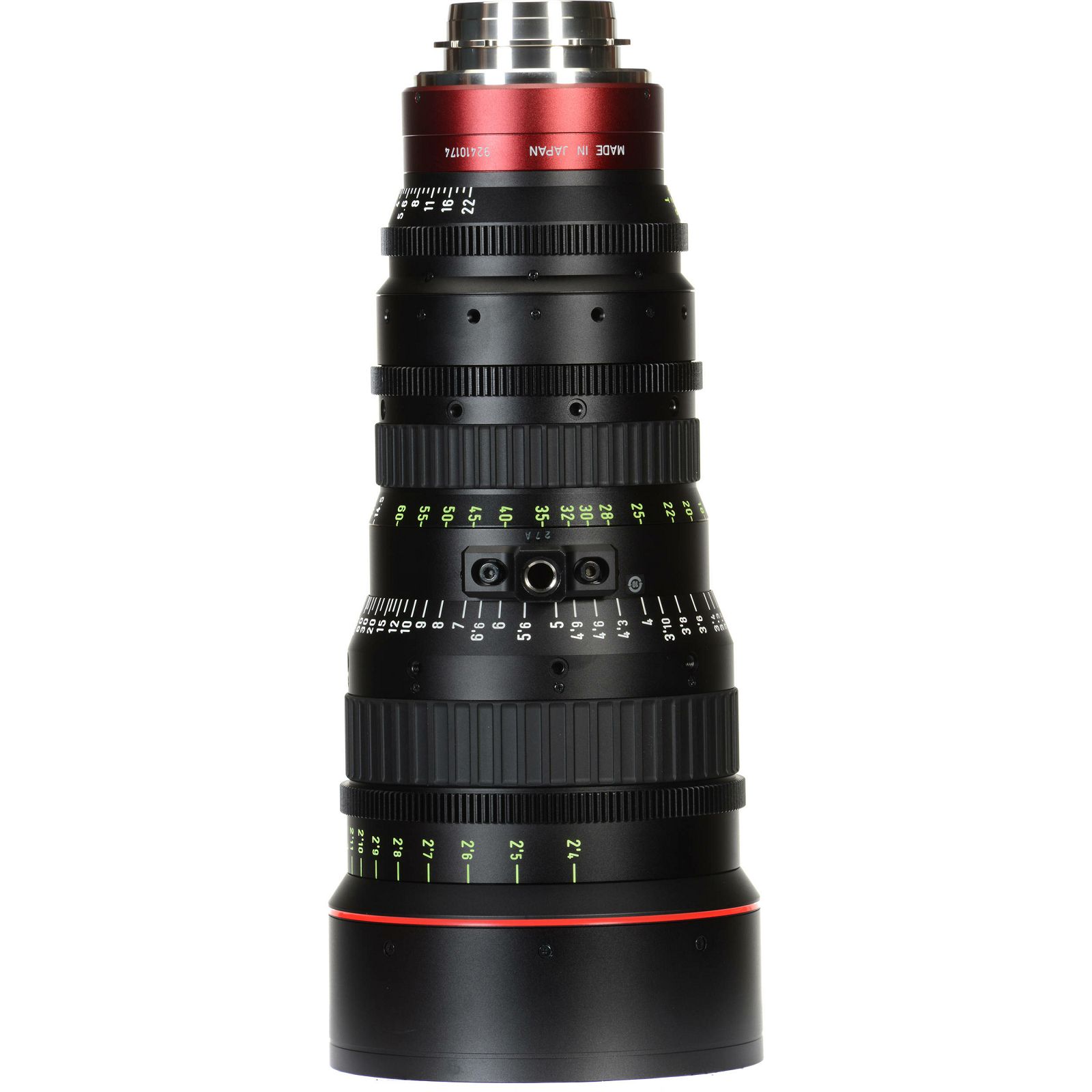

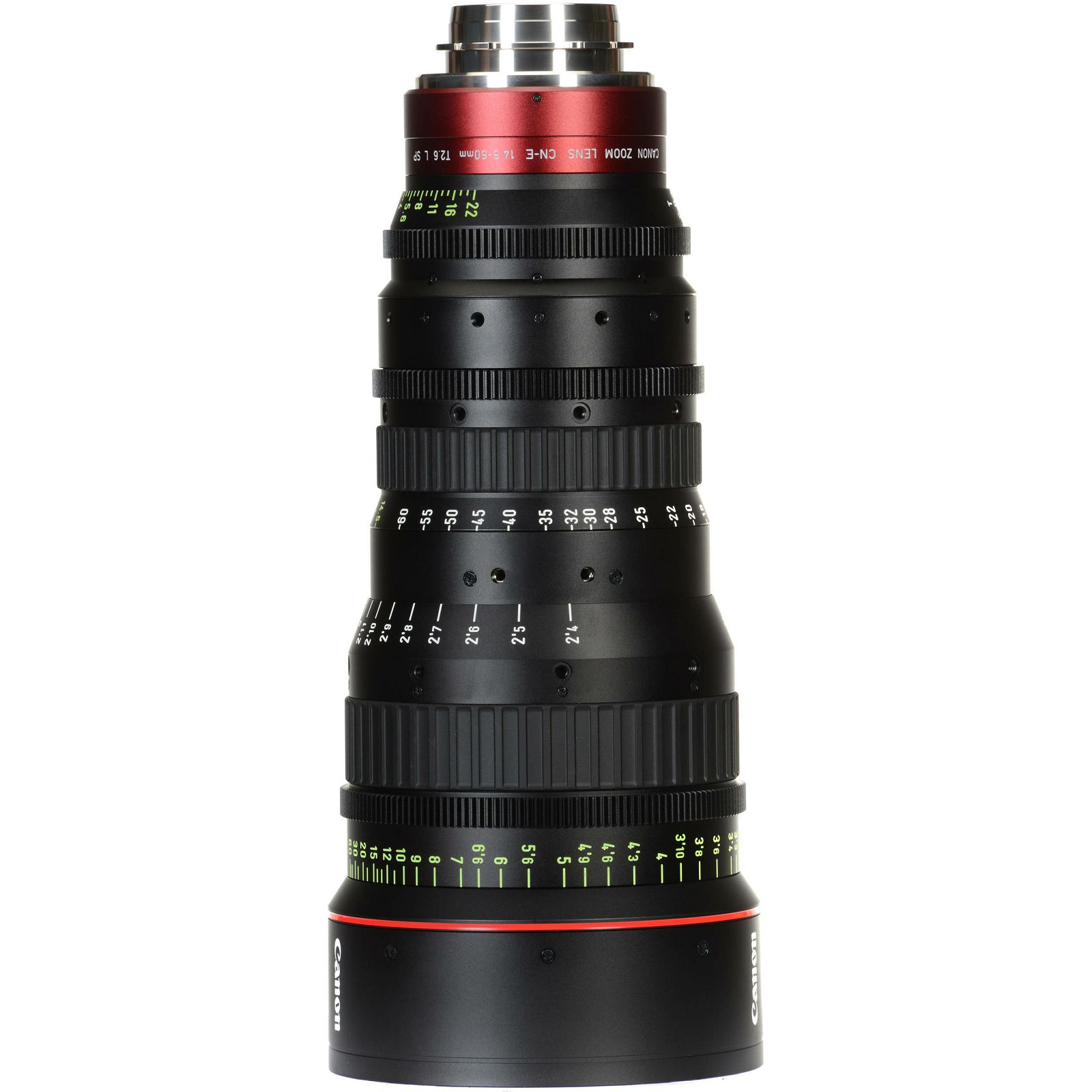

Canon CN-E 14.5-60mm T2.6 L SP Cinema Zoom Cine Lens filmski objektiv PL Mount (6141B003AC)

ZNAČAJKE:

Covers APS-C & Super 35 Sensor Sizes
Suitable for 4K Image Capture
11-Blade Iris for Smooth Bokeh
Geared Inner Focusing Reduces Breathing
Easy-to-Read Engraved Markings
160° Rotation for Zoom
300° Rotation for Focus
Weighs 9.9 lb

The Canon CN-E 14.5-60mm T2.6 L SP Cinema Zoom Lens with PL Mount is designed expressly for digital cinematography with cameras that have an APS-C or Super 35-equivalent sensor and a PL mount, including Canon's EOS C300 PL. Featuring advanced optical technology designed by Canon, the lens is suitable for any capturing any size HD image up to and including 4K resolution.

With a focal length range of 14.5-60mm, the 4.1x cinema zoom lens is designed to cover the wider end of the focal lengths typically required by cinematic productions, and its wide-angle length of 14.5mm puts it among the best in its class. (The other zoom lens in the line, the CN-E 30-300mm T2.95-3.7 L SP, covers the telephoto end.) Maximum aperture is a very fast T2.6 through the entire range, and the 11-blade iris enables a smooth bokeh for out-of-focus areas of the frame.

The lens was designed with working professionals in mind, with easy-to-read focus, zoom, and iris markings engraved into angled surfaces on both sides of the lens, so you can read the setting from either side of a camera – or from behind it. Depending on the production's needs, focus markings can be switched from standard to metric. The lens facilitates manual operation that's subtle, smooth, precise, and repeatable. Control rings are designed to provide and maintain the proper amount of resistance so you can operate with a consistent torque. The focus rotation angle is about 300°; for zoom, it's approximately 160°.

The CN-E 14.5-60mm T2.6 L SP lens complements the other lens in the line in more ways than just focal length range: Their shared 136mm front diameter, gear positions, and rotation angle make them almost "hot-swappable" when they're used with a shared matte box or follow focus.

Internal Focus Design
The internal geared focus design of the lens minimizes focus-induced changes, known as "breathing"
Cinematic Blurring
An 11-blade aperture diaphragm results in soft, cinematic blurring of out-of-focus areas
Special Glass & Construction
Designed to counteract barrel expansion and contraction, the special glass and the construction of the lens suppress temperature-induced marking discrepancies and flange-back changes
Broad Focal Length Range
The 14.5-60mm focal length range of the lens covers a great portion of the range most commonly used in cinema shooting
Large Aspherical Lenses
Fluorite and aspherical lens elements reduce distortion and give high optical performance
Anti-Reflective Coating
The anti-reflective coating of the lens helps reduce ghosting or flaring
Switchable Unit for Focus Marking
The outer piece of the marked focus rings can be switched from metric to non-metric labeling
Marked on Both Sides
Markings are visible from either side of the lens
Better Marking Visibility
Focus, zoom, and iris markings are printed on angled surfaces, making them easier to read from behind the camera
Unified Front Lens Diameter, Gear Position
A single front lens diameter and uniform gear positions across the line of lenses eliminate the need to move or adjust accessories when switching between lenses
Flange-Back Adjustment Mechanism
A covered flange-back mechanism is included for more accurate back-focus
Supports Standard Accessories
The lens can be used with standard accessories such as follow focus gears, marking disks, and matte boxes
Ergonomic & Efficient
Control rings offer the right amount of resistance and consistent operating torque
Light & Compact
Smaller and lighter than similar movie lenses of the same range, making them more comfortable to work with, hour after hour

SPECIFIKACIJE:

Focal Length 14.5 - 60mm
Lens Mount ARRI PL
Format Super 35/APS-C
Image Circle Not Specified by Manufacturer
Maximum T-Stop T2.6
Minimum T-Stop Not Specified by Manufacturer
Diagonal Angle of View Super 35: 94.1 - 25.7°
Minimum Focus Distance from Image Plane 28" / 70 cm
Elements/Groups Not Specified by Manufacturer
Iris Blades 11
Front Diameter 136 mm
Filter Thread Not Specified by Manufacturer
Focus Scales Not Specified by Manufacturer
Zoom Ratio 4.1x
Electronic Communication Not Specified by Manufacturer
Tripod Mounting Thread Not Specified by Manufacturer
Dimensions (W x H) 5.35 x 6.42" / 135.9 x 163.1 mm
Length 12.52" / 318 mm
Weight 9.9 lb / 4.5 kg
Packaging Info
Package Weight 16.05 lb
Box Dimensions (LxWxH) 23.3 x 14.3 x 14.2"

UKLJUČUJE:

Canon CN-E 14.5-60mm T2.6 L SP Cinema Zoom Lens with PL Mount
