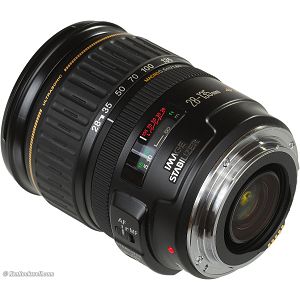

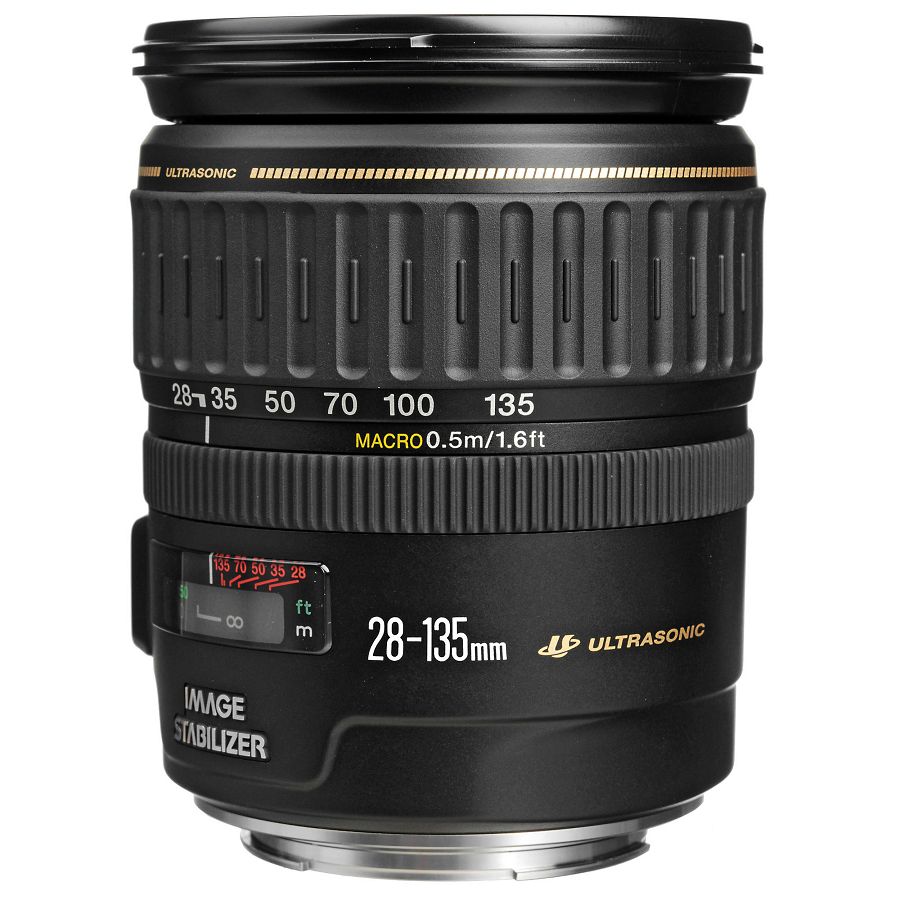

Canon EF 28-135mm 1:3,5-5,6 IS USM

The EF 28-135mm f/3.5-5.6 IS USM Lens from Canon is a compact and lightweight zoom lens that offers superior optical performance plus a built-in Image Stabilizer. The IS system reduces blurred photographs caused by camera shake and allows for handheld photography in comparatively dim light without a flash or tripod. At the wide-angle end of the zoom range, the equivalent shutter speed gain is approximately 1.5 stops while at the telephoto end, it is approximately 2 stops.

In addition, the lens has an Ultrasonic Autofocus Motor (USM) for faster and quieter AF operation, and the pulse control diaphragm (EMD) ensures precise aperture control. manual focus override is supported for precise manual control even in AF mode. The minimum focus distance throughout the zoom range is 20".

The Optical Image Stabilization (IS) system is composed of a pair of gyro sensors to detect vertical and horizontal motion and a microprocessor that compensates for this motion by shifting special lens elements in parallel with the perceived movement. The IS system reduces blur in images shot in dim light and at long focal lengths.
The internal focusing mechanism allows the front of the lens to remain stationary and to easily accommodate specialty filters, such as polarizing filters.
An Ultrasonic Autofocus Motor (USM) provides fast, smooth and quiet autofocus action which is particularly important when shooting video with this lens.

Ring-type USM adjustment system for swift, silent autofocusing and full-time manual focus
Close focusing distance of 20 inches; 75- to 18-degree diagonal angle of view

Aperture Control Design Aperture controlled by camera
Color Black
Compatible Lens Hood Part Number EW-78BII
Compatible Mountings Canon EF
Focus Type Ring-type ultrasonic
Image Stabilization Built in gyro sensors
Included Components 72mm Lens Cap Rear Lens Cap Canon USA Warranty
Item Dimensions 3.07 x 3.07 x 3.82 inches
Item Display Weight 0.54 Kilograms
Item Weight 1.19 pounds

Maximum Aperture Range F3.5 - F5.6
Maximum Focal Length 135 mm
Maximum Format Size 35mm FF
Minimum Aperture f/36
Minimum Focal Length 28 mm
Model Year 2009
Number of Diaphragm Blades 6
Number of Elements 16
Number of Groups 12
Optical Zoom 4.8x
Photo Filter Thread Size 72 mm

Performance
Focal Length 28 - 135mm
Comparable APS-C 1.6x Focal Length: 44.8 - 216 mm
Aperture Maximum: f/3.5 - 5.6
Minimum: f/22 - 36
Camera Mount Type Canon EF
Format Compatibility 35mm Film / Full-Frame Digital Sensor
Canon (APS-C)
Angle of View 75° - 18°
Tilt/Shift None
Minimum Focus Distance 19.69" (50 cm)
Magnification 0.19x
Maximum Reproduction Ratio 1:5
Elements/Groups 16/12
Diaphragm Blades 6
Features
Image Stabilization Yes
Autofocus Yes
Tripod Collar No
Environmental
Physical
Filter Thread Front:72 mm
Dimensions (DxL) Approx. 3.09 x 3.81" (78.4 x 96.8 mm)
Weight 1.19 lb (540 g)
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 6.4 x 4.5 x 4.5"
