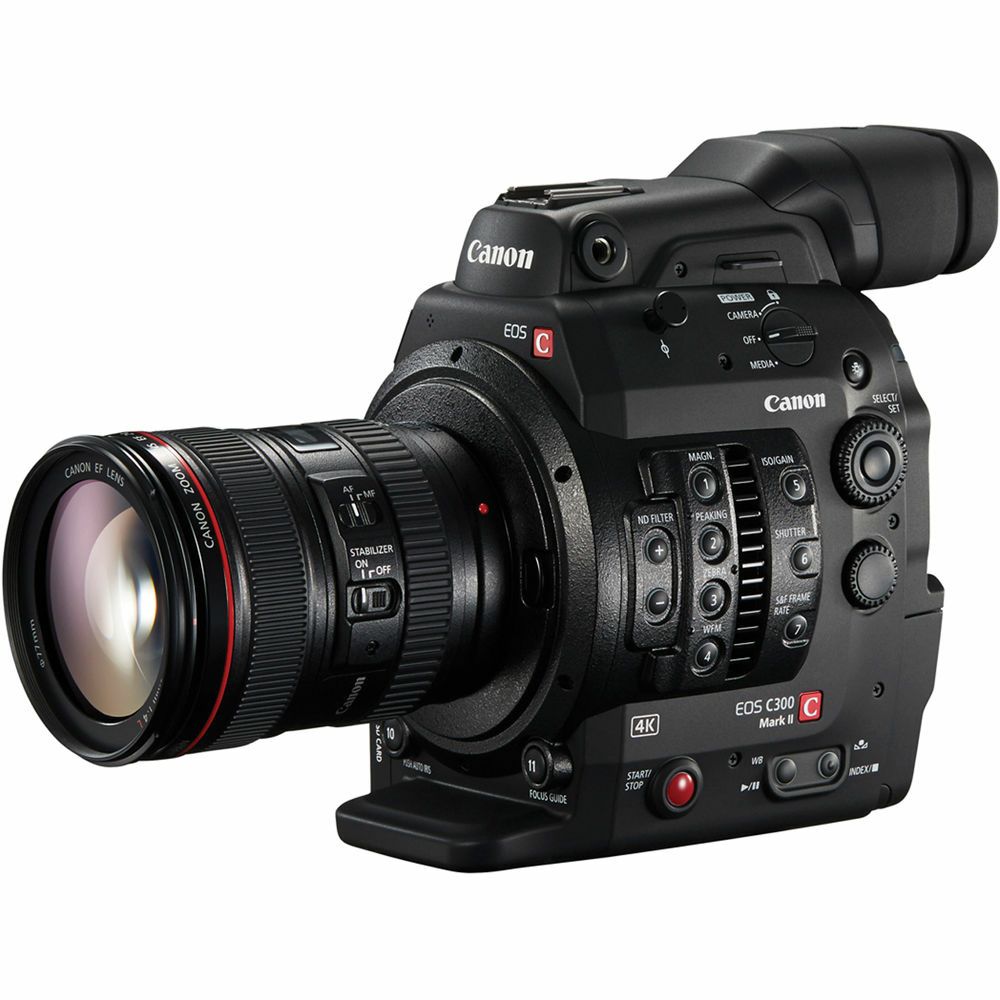

Canon EOS C300 II 4K 35mm Cinema Camera camcorder with Dual Pixel CMOS AF EF mount digitalna videokamera (AD0635C003AA)

ZNAČAJKE:

Super 35mm CMOS Sensor
4K,1920x1080 60/50i, 23.98/25p True 24p
Canon XF AVC H.264 Codec
EF Lens Mount
Dual Pixel CMOS AF Technology
Rotating 4" LCD Monitor
2 x 3G-SDI Output, 2x XLR Inputs
2 x CFast Card Slots
Timecode I/O, Genlock In & Sync Out
Canon Log 3 Gamma

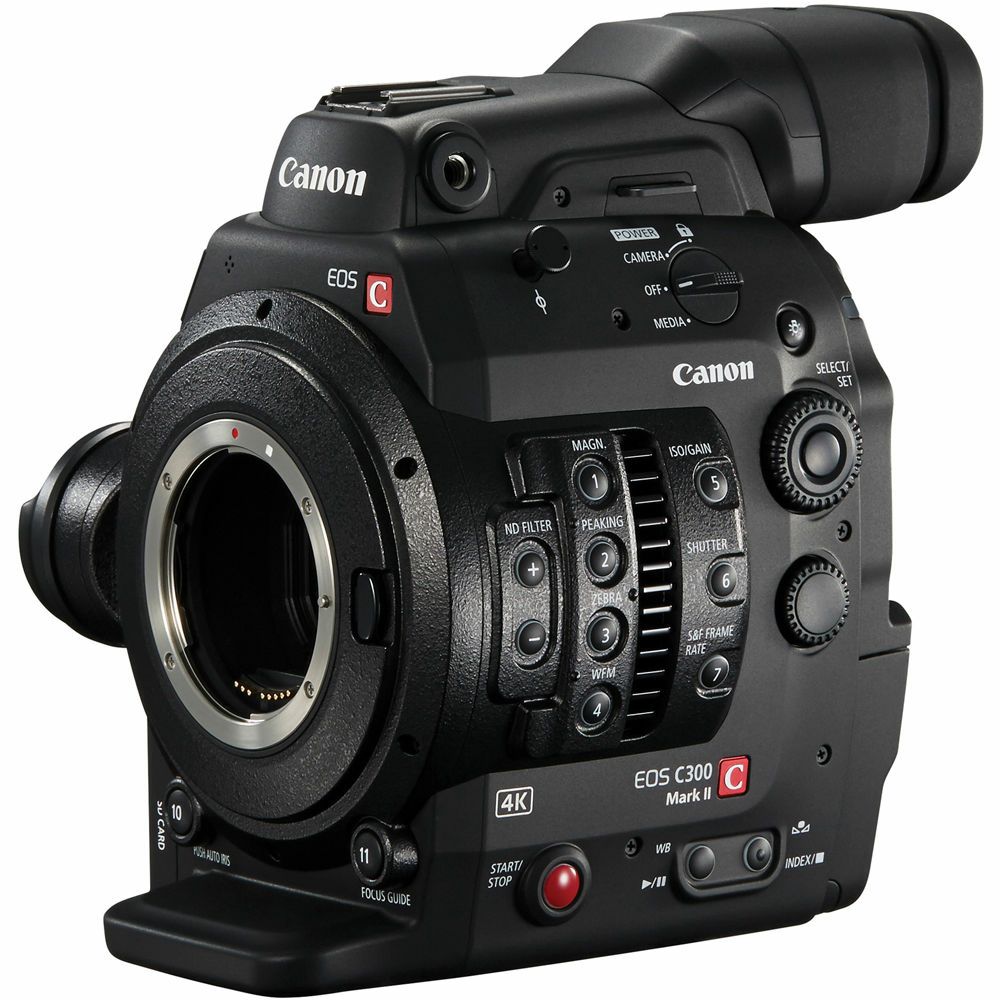

The EF-mount Cinema EOS C300 Mark II Camcorder Body with Dual Pixel CMOS AF features a Super 35mm CMOS. This provides faster and more accurate autofocusing to assist users when operating with small crews. Canon's Log 3 Gamma supports 14 stops of dynamic range.

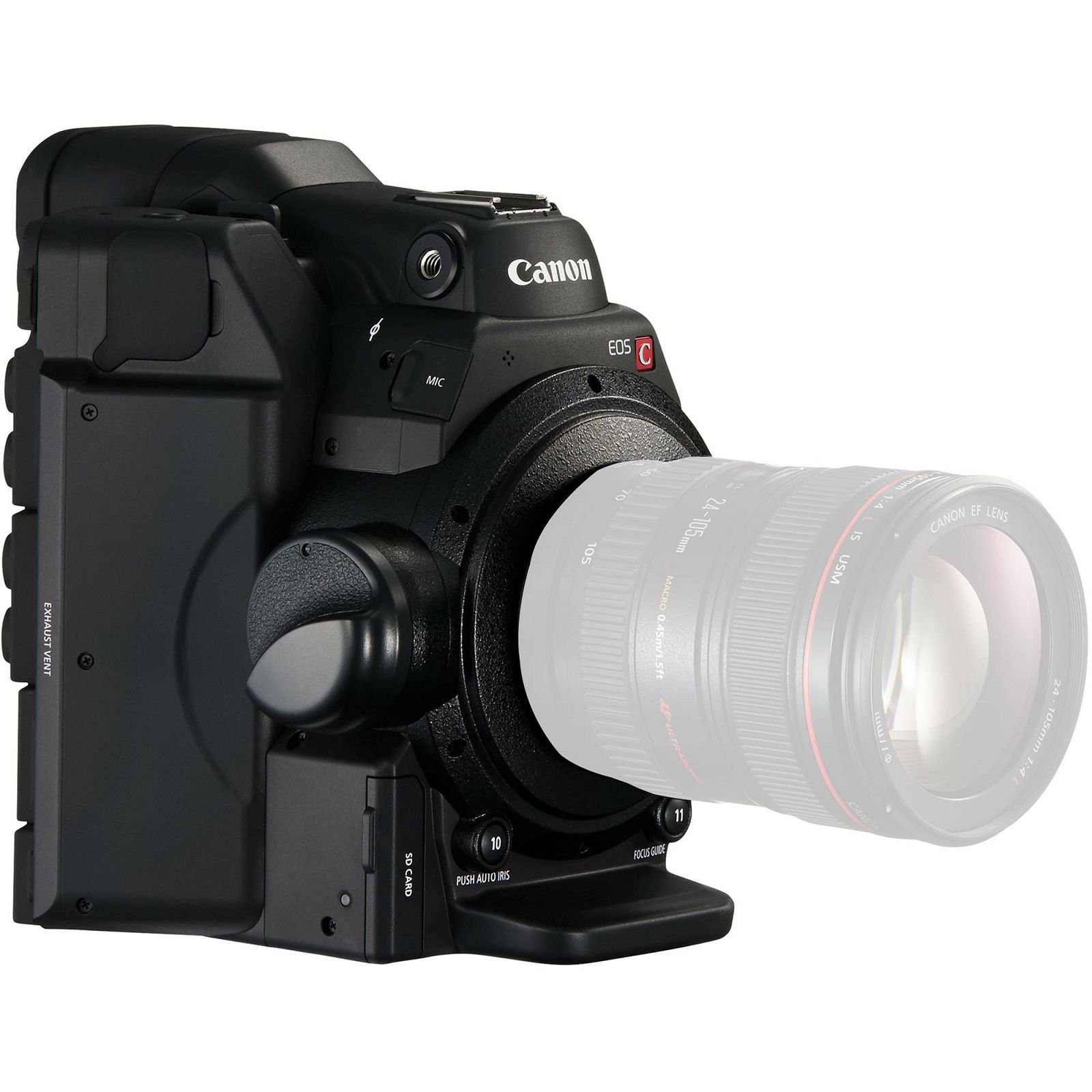

The EF lens mount on the EOS C300 offers compatibility not only with Canon's existing broad range of DSLR lenses but also with their line of EF-mount CN-E cinema prime and zoom lenses. The Super 35mm sensor is paired with the Canon DIGIC DV 5 image processor, which uses an innovative method of breaking out red, green, and blue data to enable color performance on a level that would otherwise require three separate chips. The camera records up to Full HD resolution video to CFast 1 cards using the XF-AVC codec, and H.264 format in MXF wrapper. For more flexibility to adjust your image during postproduction, the camera also offers Canon's Log gamma mode, which results in excellent tonal reproduction in the highlight and lowlight regions of an image, and an expanded dynamic range.

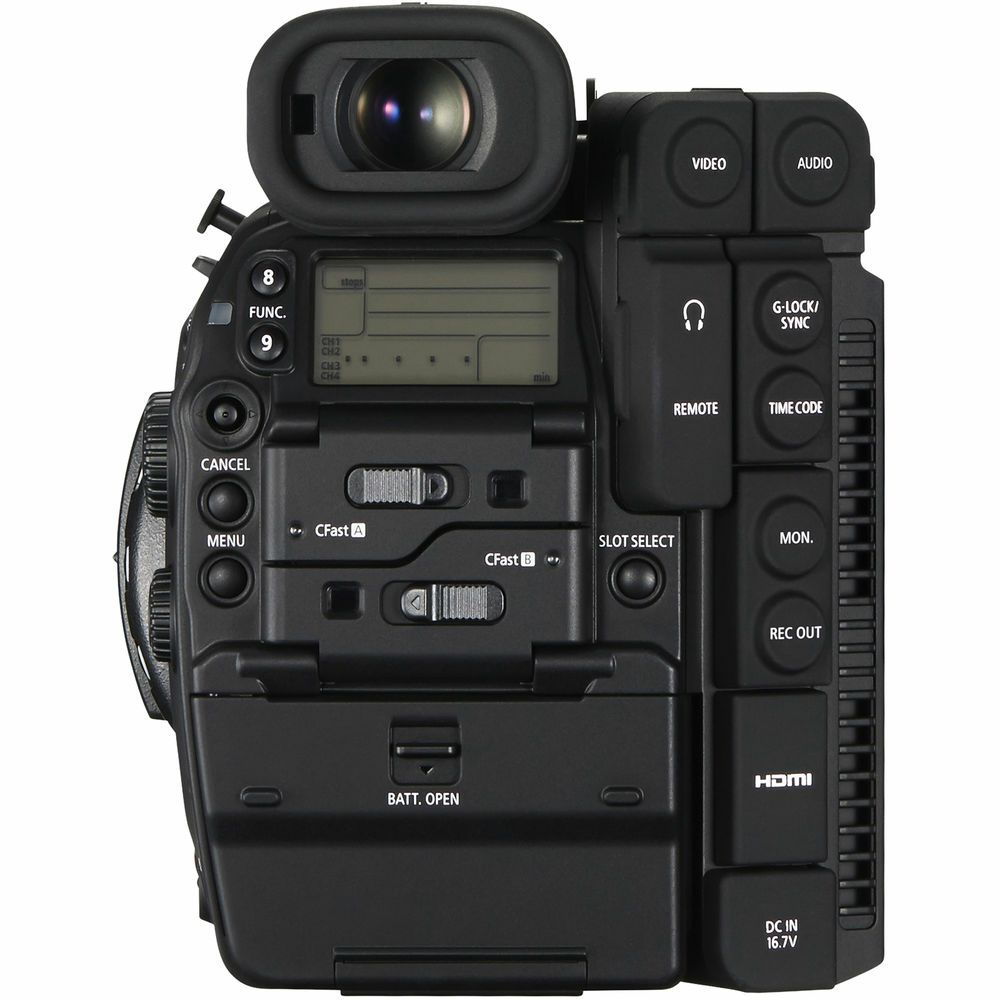

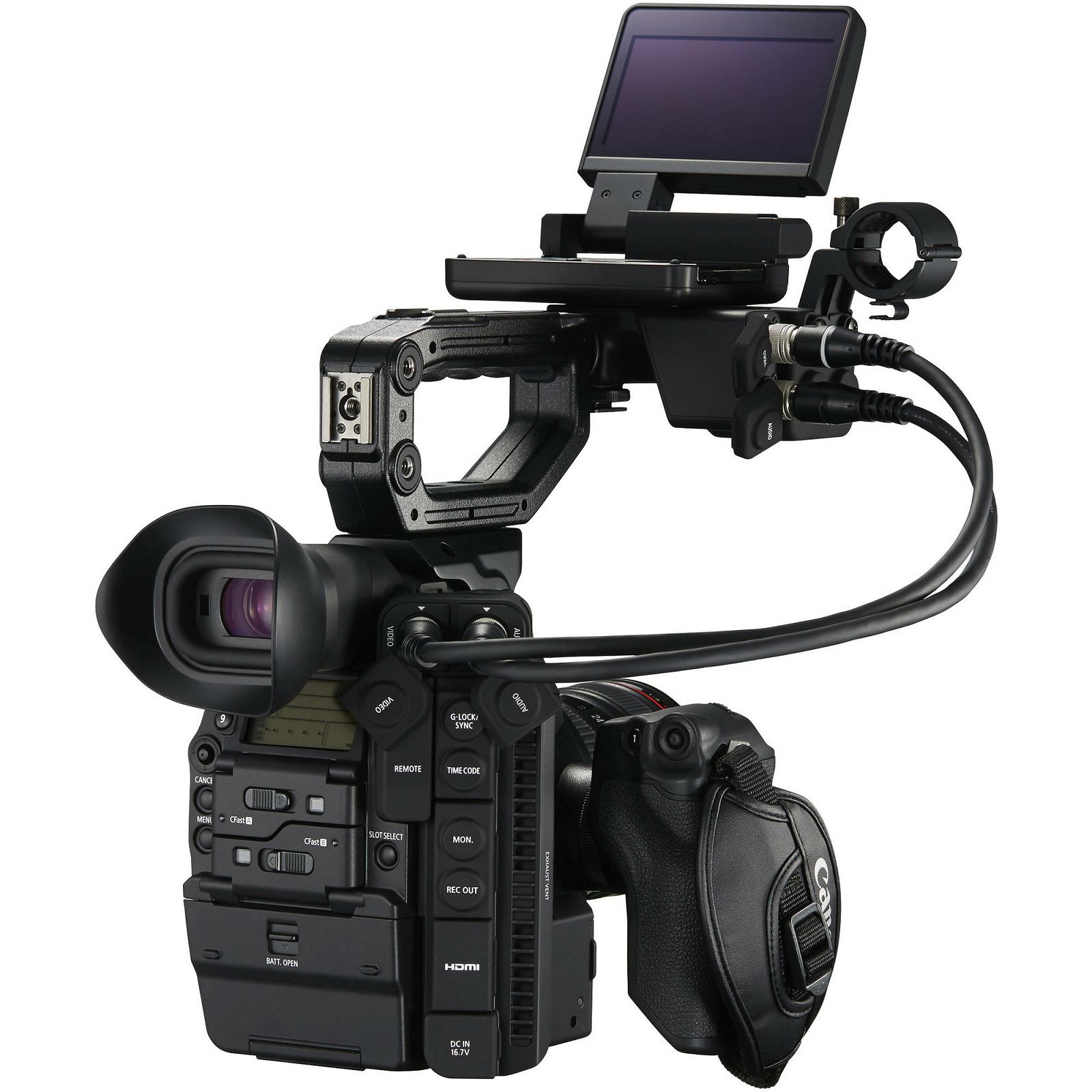

In terms of connections, the camcorder features two 3G-SDI outputs, timecode I/O, and genlock input BNCs. The body has a modular design that can either be stripped down completely or be built up using the included handle, 4" rotating LCD unit with full controls, grip, and thumb rest.
Firmware v.1.0.4.1.00
Firmware v.1.0.4.1.00 adds the following features:
Canon Log 3 achieves a dynamic range of 1600% with 14 stops of dynamic range, and can be ideal for middle end users that have a limited budget for post-production, and need quick turnaround.
A reduction in the dark noise level when shooting in Canon Log 2 mode. Streaking and black sun spots have been reduced in all modes by changing the CMOS sensor control.
ACES 1.0 Output via SDI/HDMI
Magnify Function During REC
Additional lens functionality is now available with the Cine -Servo 50 to 1000mm, Cine-Servo 17 to 120mm, Compact-Servo 18 to 80mm, and Dual Pixel Focus Guide has been added to the EF mount Canon Cinema prime lenses. Please note that you may need to also upgrade the firmware in your lens to access this functionality.
Dual Pixel CMOS AF Technology
It provides continuous AF (Autofocus) function for all autofocus lenses, using Dual Pixel CMOS AF technology. A new AF Lock setting also lets you change the image framing while holding the desired focus. This feature is ideal for users who regularly shoot with smaller crews, who shoot moving subjects, or who want smoother, more natural-looking autofocus.

Dual Pixel CMOS AF technology features a CMOS sensor that consists of an array of pixels that each feature two separate photodiodes. By continuously comparing their outputs during AF mode, phase-difference autofocus helps ensure non-blurred images and smooth focus transitions even when the talent and/or camera are moving. The new feature places a high priority on maintaining sharp focus while providing a natural, smooth autofocus movement with select Canon EF lenses - including newer-generation STM lenses - which offer even smoother and quieter operation.
Main Features

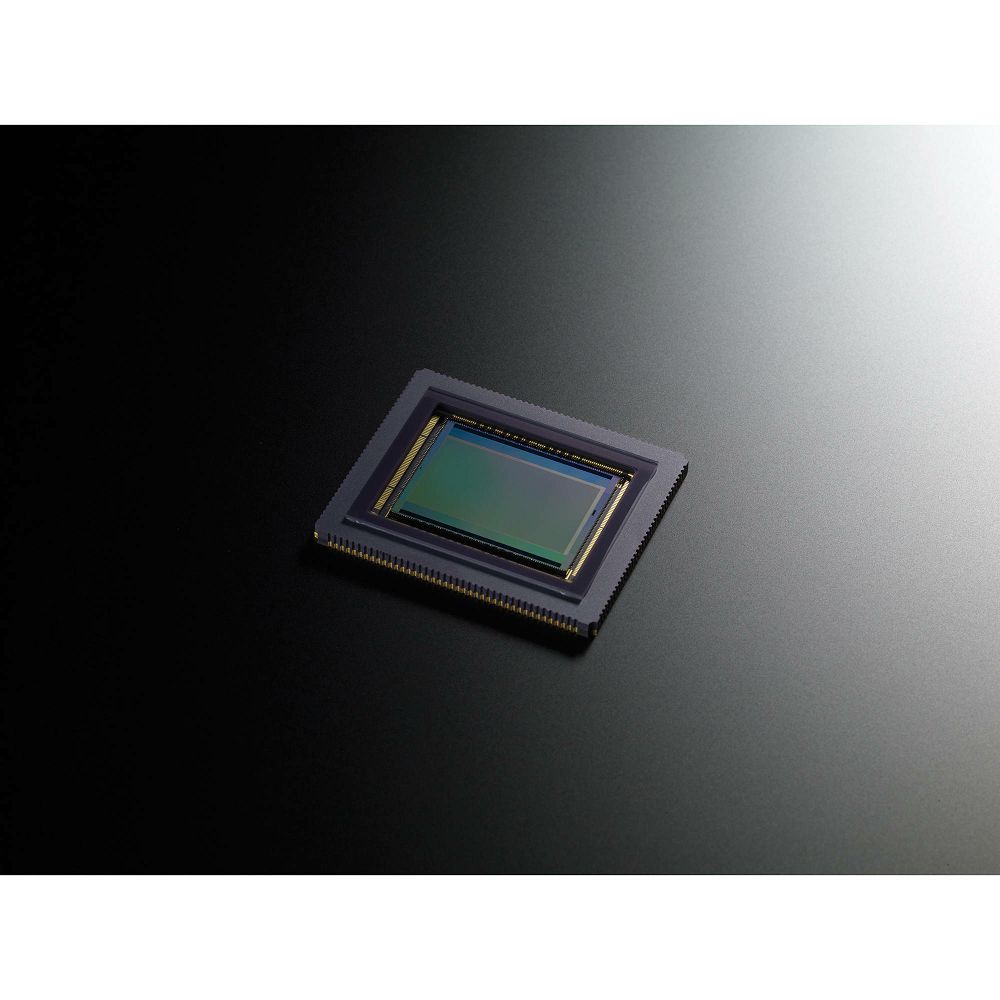

Canon Super 35mm CMOS Sensor

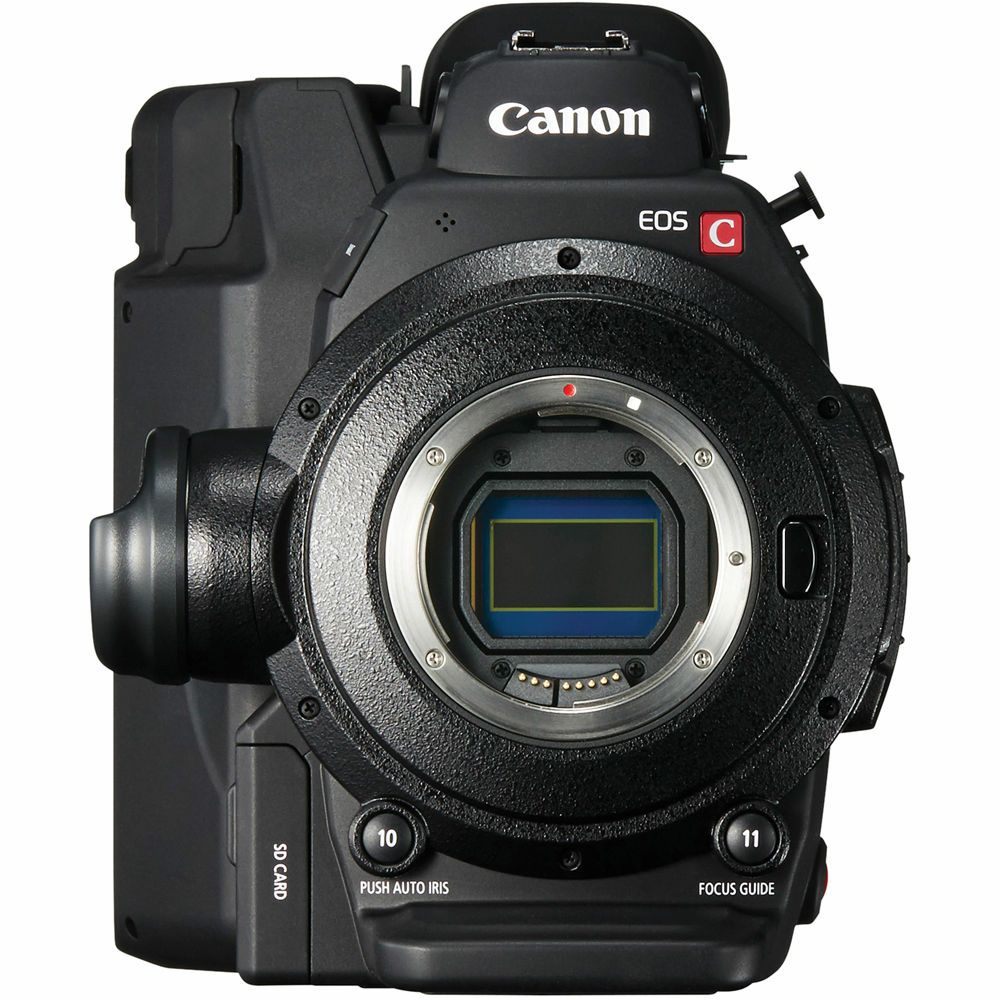

Modeled on the Super 35mm 3-perf motion picture film standard, the Canon CMOS sensor has an active image size of 24.4 x 13.5mm. It features 4096 x 2160 resolution to deliver Cine 4K images, as well as supporting Ultra HD (3840 x 2160), and Full HD (1920 x 1080)
Canon Log Gamma
Canon Log Gamma 2/ACES/REC.2020 support
Dual Canon DIGIC DV 5 Image Processor
The camera features Dual DIGIC DV 5 processors to handle the internal data processing.
XF AVC Codec
To create digital files robust enough for major postproduction, the EOS C300 delivers the highest image quality with its XF AVC Codec - an H.264 format wrapped in the widely-supported MXF wrapper
Designed with Filmmakers in Mind

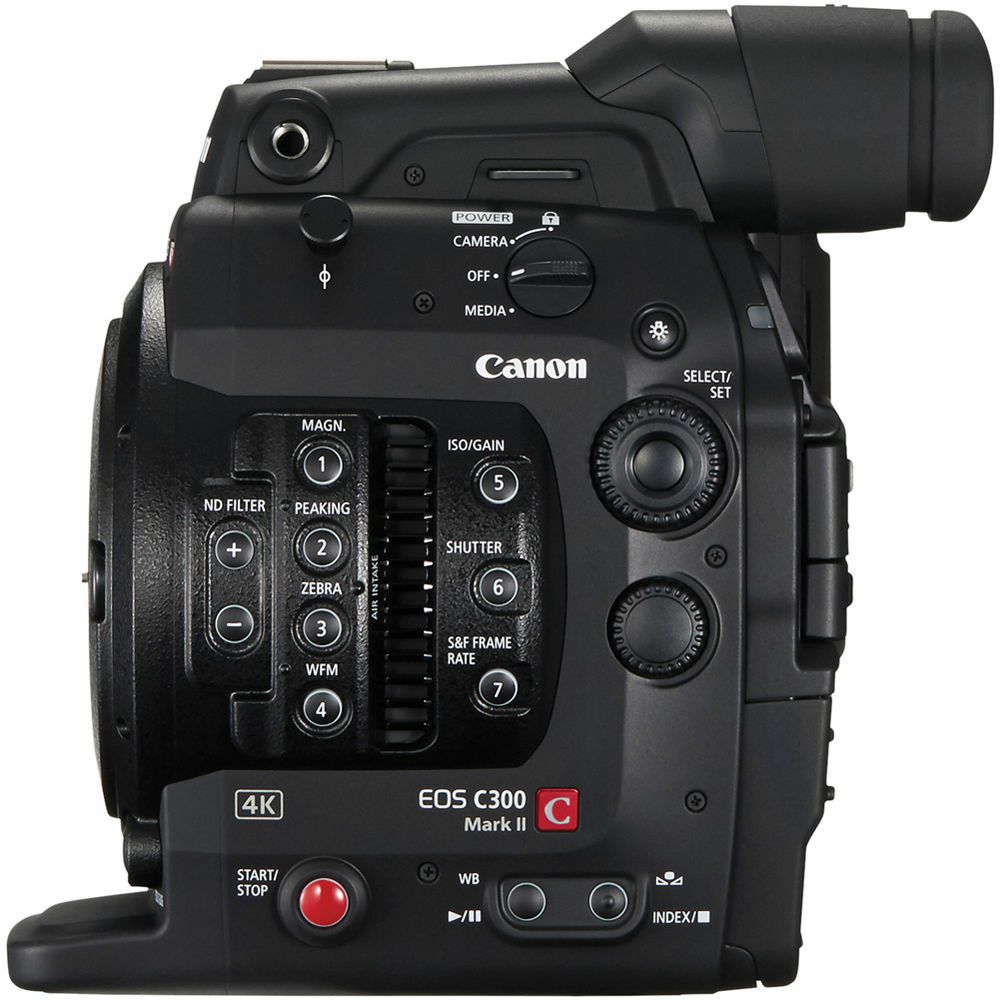

A logical layout of buttons and dials make operation simple. A lock switch turns off all controls except the recording button and function buttons. Small ridges between the buttons help prevent activating functions by mistake. A backlit display panel is great for low-light viewing. A tally lamp is clearly visible from the side or behind the camera.
Compact & Modular Design

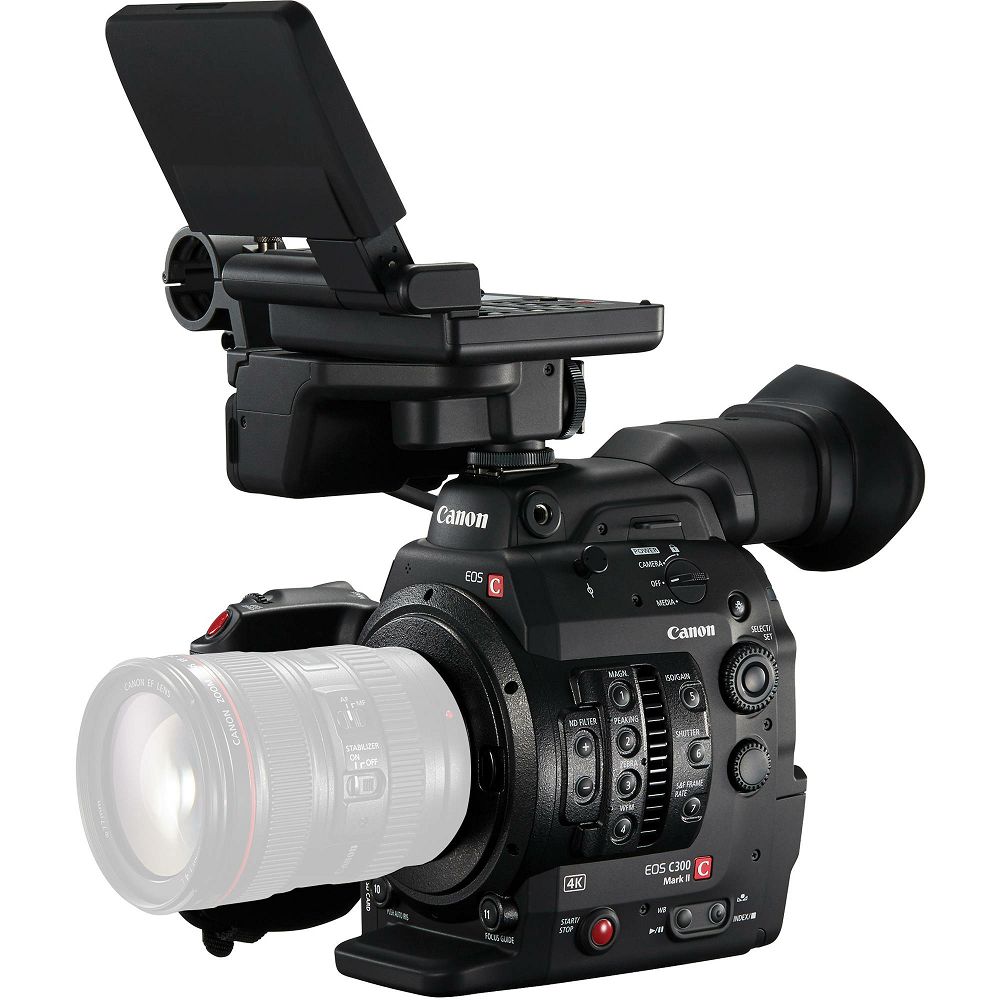

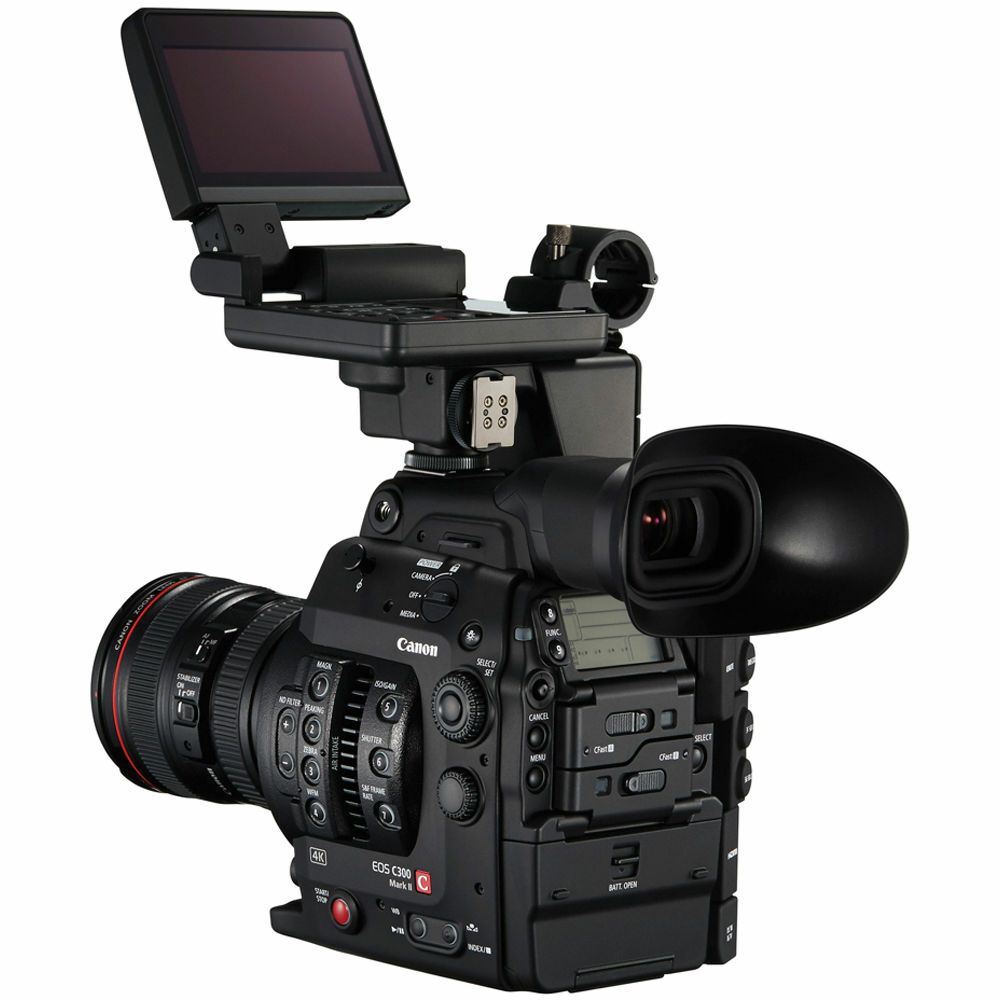

The EOS C300 body is compact and easily handheld at just over 3 lb. There is a bright 1.55 Megapixel electronic viewfinder, and the camera comes bundled with a removable combination 4", 1.23 Megapixel monitor and control panel. The camera also has a removable handgrip with a control dial and function buttons for handheld shooting in DSLR style, or remove it and use the supplied thumb rest for completely stripped-down shooting. The EOS C300 has a manually operated built-in neutral density (ND) glass filter offering 1/4, 1/16, and 1/64th steps of filtering. Handheld or using a tripod, on location or in the studio, even on 3-D rigs, the EOS C300 fits shooting situations that are challenging for larger cameras.
Rugged, Durable & Quiet
The EOS C300's dust-proof and splash-proof design includes sealing gaskets around the edges of all access covers, dials fitted with o-rings on the axis of rotation, and button key-tops sealed with rubber. The EOS C300 also features a built-in silent cooling system with a heat-dissipating duct in the center of the body, a graphite sheet that conducts sensor heat towards the heat sink, three ventilation holes, and a cooling fan that pulls hot air out through an exhaust opening. All air is directed through a discrete pathway that keeps dust particles away from sensitive components. Your camera runs cool, quiet, and clean.
Ultra-High-Resolution EVF
The EOS C300 features a 0.46", 1.17 Megapixel color EVF and 100% field of view coverage for comfortable viewing and accurate judgment of composition, focus, and color. The angle of the viewfinder is adjustable for additional user comfort. EVF adjustments include brightness, contrast, color, and backlight (Normal or Bright).
Rich Audio Controls
When mounted to the EOS C300 Mark II camera, the included control unit provides two XLR audio inputs with +48V phantom power. A 3.5mm microphone terminal is also built in to the camera. Audio is recorded uncompressed in 16-bit PCM format at 48 kHz for high fidelity sound. Both XLR inputs, as well as the mic terminal have the option for automatic, as well as full manual gain control (-Infinity to +18dB). Additionally, a 3.5mm headphone terminal with 16 volume settings offers accurate audio monitoring.
CFast Memory Card Recording
The camera records to CFast 1 cards through two slots.
High-Speed, Slow-Motion, Time-Lapse & Stop-Motion
Beyond the advantages of file-based recording, the camera offers a number of creative possibilities in post-production including Slow & Fast motion.
Connectivity
To connect to external monitors, switchers, VTRs, and NLE systems with SDI inputs, the EOS C300 features industry-standard HD-SDI output, genlock, and timecode terminals, plus audio terminals with linear PCM recording. Timecode and genlock enable synchronized multiple camera capture, perfect for multiple-camera shots, 3D acquisition, and more. The HD-SDI sync terminal can be switched to output to HD Sync, HD Y, Black Burst, and Composite.
Full Manual Control & Focusing Aids
The camera has a Waveform Monitor (WFM) function that shows the overall brightness of a scene, with RGB Parade Display to view red, green, and blue brightness or Spot Display to isolate the luminance distribution of a chosen area. The Vectorscope (VS) display shows real-time hue and saturation levels. For sharp focus, the EOS C300 camera has two peaking modes and a magnified focus assist function. An Edge Monitor Focus Assist provides both a waveform representing the overall degree of focus and a red waveform that represents focus in three specific areas displayed on the camera's 4" LCD monitor. To maintain proper highlight exposure, it offers a zebra bar feature as well.

SPECIFIKACIJE:

Image Sensor
Type CMOS
Sensor Size Super 35
24.6 x 13.8mm effective size / 6.4 x 6.4µm pixel pitch
Effective Pixels Approx. 8.85 Mp (4096 x 2160)
Approx. 8.29 MP (3840 x 2160
Total Pixels Approx. 9.84 Mp (4206 x 2340)
Scanning System Progressive
Filter RGB primary color filter (Bayer array)
Processor 2 x DIGIC DV 5
Lens System
Lens Mount EF
Built-In ND Filters Standard: 2, 4, 6 Stops
Expanded: 2, 4, 6, 8, 10 Stops
Exposure and Metering
Exposure Modes Manual
Gain Normal: -2 dB to 44 dB
Expanded: -6 to 54 dB
ISO Range Standard: 160 to 25,600
Expanded: 100 to 102,400
Shutter Modes Off, Speed, Angle, Slow Shutter, Clear Scan
Shutter Speed 59.94i/59.94p: 1/60 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/4, 1/8, 1/15, 1/30; CS: 59.94 - 250.70 Hz
29.97p: 1/30 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/4, 1/8, 1/15; CS: 29.97 - 250.70 Hz
23.98p/24p: 1/24 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/3, 1/6, 1/12; CS: 23.97 - 250.70 Hz
50i/50p: 1/50 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/3, 1/6, 1/12 1/25; CS: 50.00 - 250.70 Hz
25p: 1/25 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/3, 1/6, 1/12; CS: 25.00 - 250.70 Hz
Shutter Angle 59.94i/59.94p: 360, 240, 216, 180, 120, 90, 60, 45, 30, 22.5, 15, 11.25
29.97p: 360, 240, 216, 180, 120, 108, 90, 60, 45, 30, 22.5, 15, 11.25
23.98p/24p: 360, 345.6, 288, 240, 180, 172.8, 144, 120, 90, 86.4, 72, 60, 45, 30, 22.5, 15, 11.25
50i/50p: 360, 300, 240, 180, 150, 120, 90, 60, 45, 30, 22.50, 15, 11.25
25p: 360, 300, 240, 180, 150, 120, 90, 75, 60, 45, 30, 22.50, 15, 11.25
Focus Control
Focus Modes Manual
Auto
Autofocus System Dual Pixel CMOS
Video
Signal System NTSC/PAL
Compression XF AVC - H.264 in MXF wrapper
Bit Rates Intra: 410 / 225 / 210 / 110 Mbps
LongGOP: 50 Mbps
LongGOP (Proxy): 35 or 24 Mbps (for proxy recording on SD cards)
Color Space 4:2:2 (YCC) 10-bit
4:4:4 (RGB) 12- or 10-bit*

*Only available with 2048 x 1080 or 1920 x 1080 at 29.97p, 23.98p, 25.00p, and 24.00p
System Frequency Selection 59.94 Hz,br> 50 Hz
24 Hz
Video Format XF AVC
Video compression Formats: MPEG-4 AVC/H.264
CFast Card
Intraframe Recording Resolution : 4096x2160/3840x2160, 2048x1080, 1920x1080
Signal Configuration : Y CC422/RG84 44 (10/12-bit)(Only with 2048x1080 or 1920x1080; 29.97p, 23.98p, 25p and 24p)
LongGOP Resolution: 2048 x 1080/1920 x 1080
Signal: YCC422 10-bit

SD Card
LongGOP Recording Only (Proxy)Resolution : 2048 x 1080 / 1920 x 1080
Signal: YCC420 8-bit

Photo: JPEGResolution : 2048 x 1080, 1920 x 1080
Recording Media CFast Card: 2 x slots
SD Card: 1 x slot
Frame Rate 59.94 Hz Mode
59.94i/p, 29.97p, 23.98p

50 Hz Mode
50i/p, 25p

24 Hz Mode
24p
Audio
Audio Recording Linear PCM; 2-channel; 16/24-bit; 48 kHz 4-ch
Built-In Microphone None
Audio Inputs 2 x XLR (auto and manual level settings), switchable between mic/line
1 x 3.5mm microphone jack
Channel Selection 2-channel recording
XLR Mic Trimming -12, -6, 0, or +12 dB
Limiter Available
Recording Levels -? to +18 dB
Phantom Power +48V
Headphone Output Level 16 settings; volume is muted at lowest setting
Tone 1 KHz tone available; -12, -18, or -20 dB
Monitor
Type Rotating color LCD
4" (10.16 cm) diagonal
1,230,000 dots
Aspect Ratio 16:9
Viewfinder
Type 0.46" (1.32 cm) diagonal, color
1,170,000 dots
Angle Adjustment Up and down 60°
Features
White Balance Manual
2 Custom (2000 to 15,000K)
Daylight (5400K)
Tungsten (3200K)
Exposure & Focus Aids Peaking (2 types), Zebra Pattern, Magnify, Edge Monitor Focus Assist, Black and White Mode

Note: Zebra can be output via the SDI or HDMI jack (HD only)
Playback Index Displays: Index Display, Normal, "OK Mark" Index, "Check Mark" Index, "Shot Mark" Index, Expand Index, Photo Index
Clip Playback: Forward Search (5x, 15x, 60x), Reverse Search (5x, 15x, 60x), Forward Frame Advance, Reverse Frame Advance, Record Review, Clip Jump (Forward and Backward), Skip Playback
Playback Functions: Inter-Media Copy (Single Clip, All Clips, Last Clip); Clip Delete (Single Clip, All Clips, Last Clip)
Still Image Playback: Index, Single Playback, Erasure, Protect
Color Bars Color bars compliant with SMPTE, EBU, or ARIB standards can be selected
Inputs/Outputs
SDI 3G-SDI: 2x BNC (output)
HDMI Output 1 x Type A
Genlock BNC (input only)
Adjustment Range: -1023 to +1023
Time Code I/O 1 x BNC
Drop Frame (DF) and Non-Drop Frame (NDF)
Time Code Modes: Regen, Record Run, Free Run, and External Source

Note: Drop Frame works with NTSC modes only and is not available in 24p
Audio Input Terminals 2 x Balanced 3-pin XLR (Mic Level, Mic Level with phantom power and Line Level) 1 x 3.5mm microphone jack
Headphone Connector 3.5mm stereo mini-jack
Remote 2.5mm LANC-compatible terminal
Wi-Fi WFT terminal for compatible Wi-Fi accessory
General
Power Supply 14.4 VDC (battery pack), 16.7 VDC (DC input)
Dimensions (W x H x D) Approx. 5.9 x 7.2 x 7.2" / 149 x 183 x 183 mm (without grip)
7.5 x 7.2 x 7.4" / 19.1 x 18.3 x 18.8 cm (with grip)
Weight Not specified by manufacturer
Packaging Info
Package Weight 18.6 lb
Box Dimensions (LxWxH) 18.3 x 14.0 x 13.9"

UKLJUČUJE:

Canon Cinema EOS C300 Mark II Camcorder Body with Dual Pixel CMOS AF (EF Lens Mount)
Monitor Unit
Handle Unit
Handle Bracket
Expansion Unit Attachment
BP-A30 Battery Pack For EOS C300 Mark II
Battery Charger for EOS C300 Mark II Camcorder Batteries
CA-A10 Compact Power Adapter for EOS C300 Mark II Camcorder
Shoulder Strap
Eye Cup
Viewfinder Cap
Thumb Rest
TB-1 Tripod Adapter Base
Measure Hook
2 x Cables for Monitor Unit
10 x Cap Head Socket Screws
Allen Key
