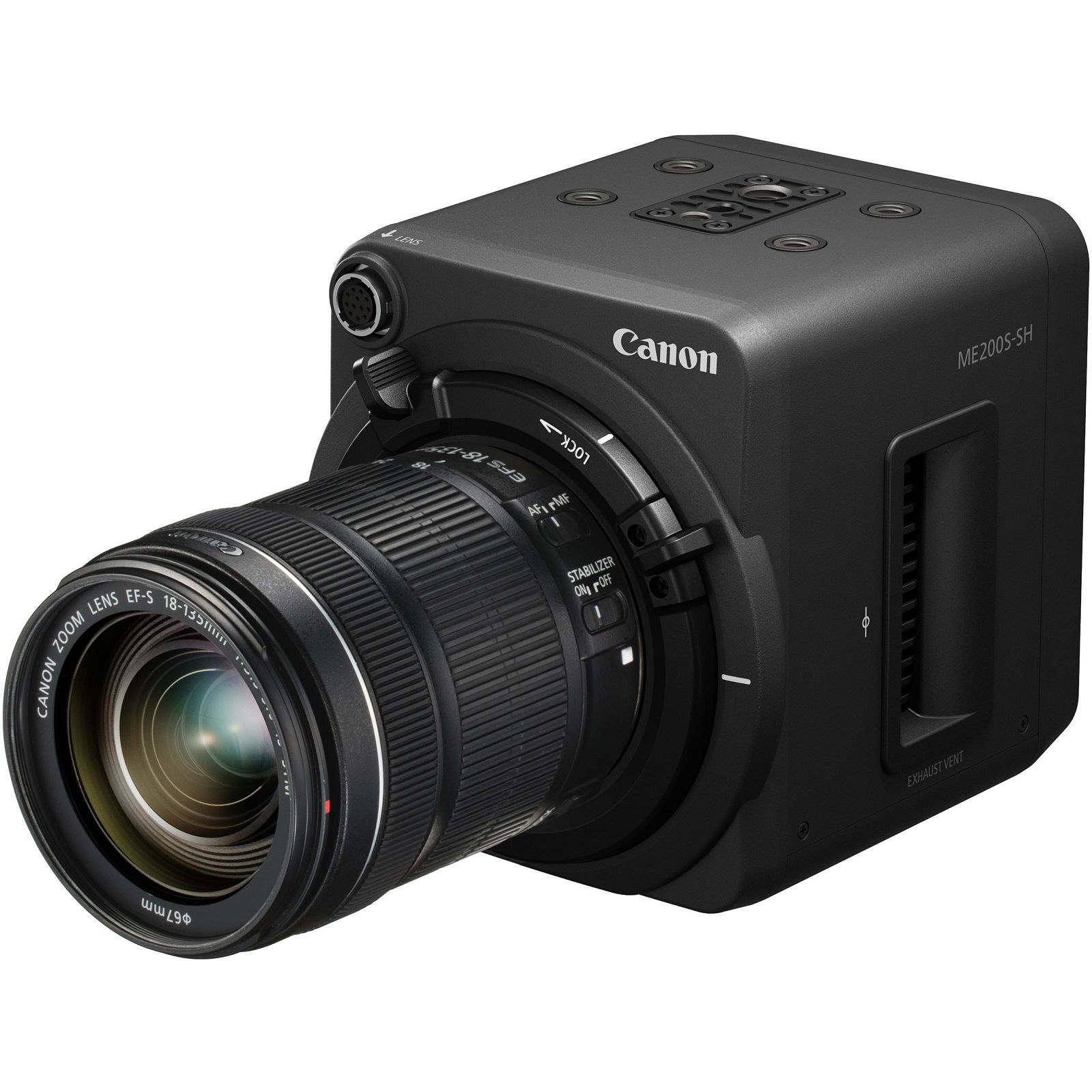

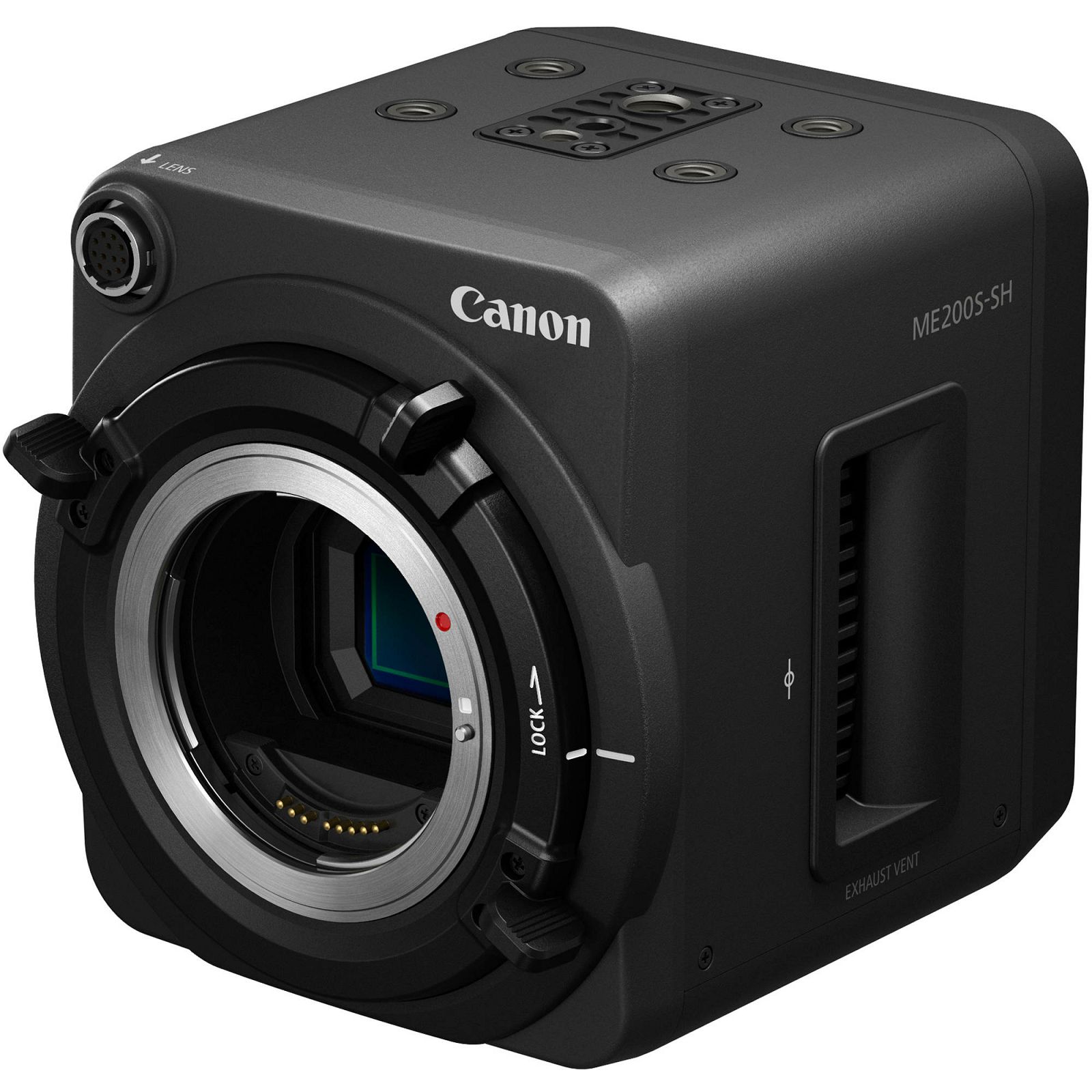

Canon ME200S-SH Super 35mm Multi-Purpose Camera
ZNAČAJKE:
Super 35mm CMOS Sensor
Canon Cinema Lock EF Lens Mount
12-Stop Dynamic Range
ISO Up to 204,800
1920 x 1080 / 1280 x 720, Up to 60 FPS
Dual Pixel AF
Motorized ND and IR Cut Filters
2x, 4x, 8x Digital Teleconverter
HD/3G-SDI & HDMI Connectors
RS-422 Remote Control Terminal
Vrlo kvalitetan Full HD izlaz
Izvrsne karakteristike pri slabom osvjetljenju
Napredno automatsko izoštravanje i kontrole slike
Jednostavno udaljeno postavljanje i montaža
Fleksibilna konfiguracija
Ova kompaktna, lagana i iznimno prilagodljiva videokamera sa Super35mm senzorom i Dual Pixel CMOS automatskim izoštravanjem omogućava snimanje sjajnih Full HD snimki brzinama do 50P/59,94P uz nevjerojatan dinamički raspon od 12 koraka, do maks. ISO ekvivalenta od 204.800.
OVERVIEW
The Canon ME200S-SH Multi-Purpose Camera features a locking EF mount and captures video at up to 1920 x 1080p 60 (59.94p), while supporting both NTSC and PAL broadcast frame rates. The camera incorporates a Super 35mm-sized sensor with 12 stops of dynamic range and an ISO of up to 204,800. It supports EOS Standard, Wide DR, Canon Log, and allows you to set up to six custom picture settings to protect highlight and shadow detail.

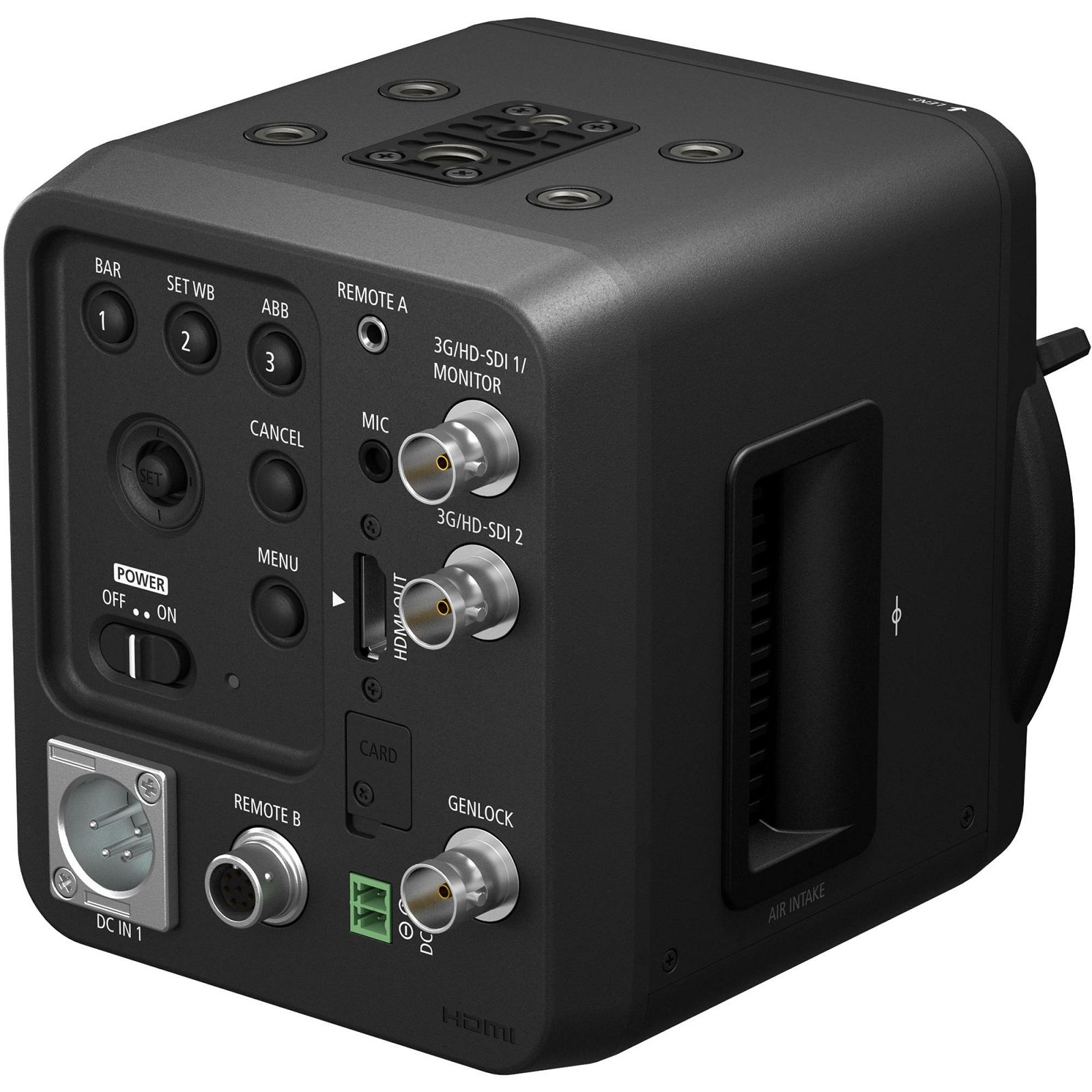

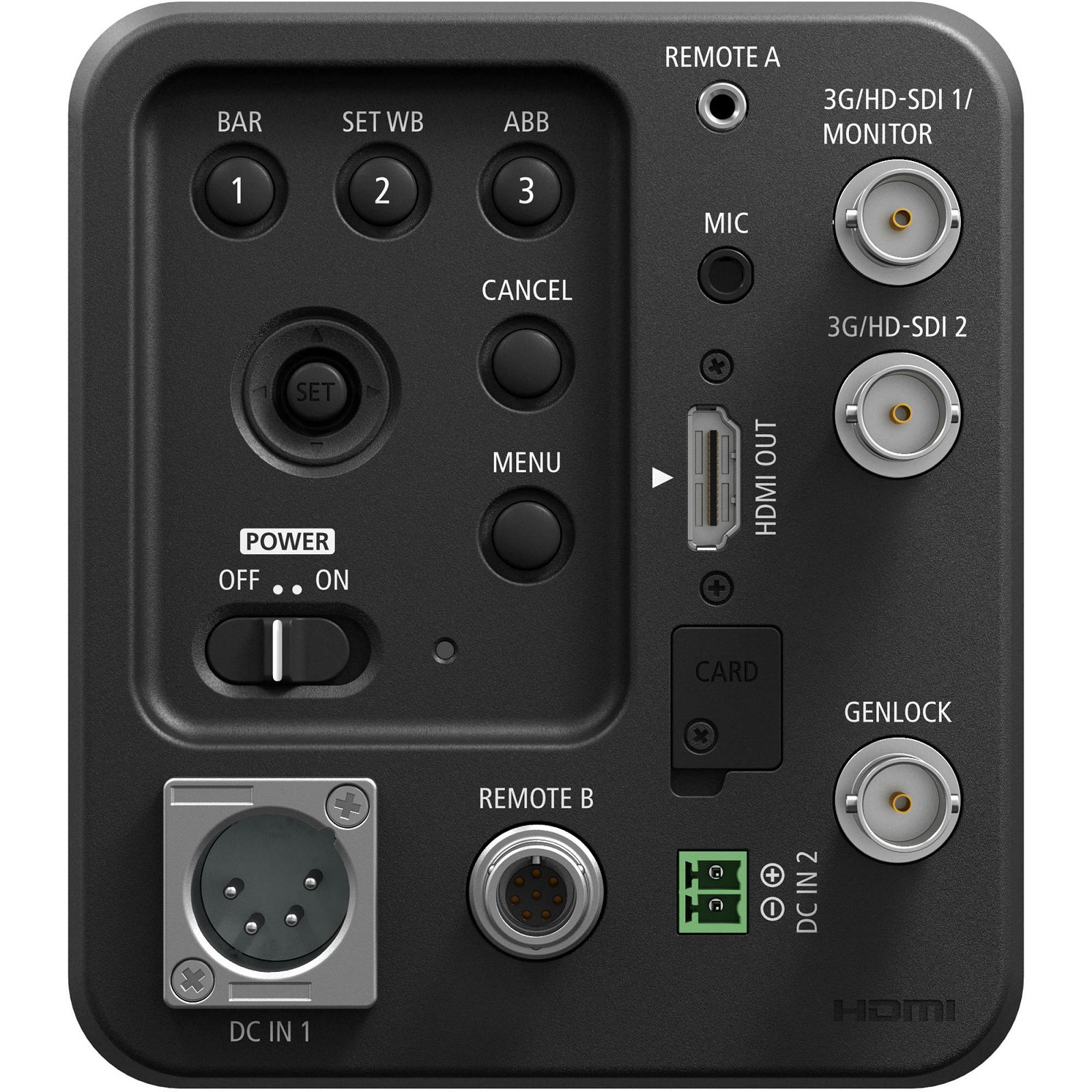

The camera body is small in size, perfect for getting the shot from a hard-to-reach space. It features a digital teleconverter that can be set to provide 2x, 4x, or 8x zoom effect. With two HD/3G-SDI outputs and a single HDMI output, the camera incorporates a genlock-in for integrating this camera into a multi-camera shoot, as well as 2.5mm stereo mini jack and a RS-422 port for control. You can power the camera using 12 VDC by either the 2-pin Phoenix connector or the built-in 4-pin XLR connector.
This small-box-sized camera is versatile and can fit into smaller spaces. You can use optional accessories to configure the camera for a variety of applications.
This is an HD camera body capable of capturing 1920 x 1080 footage at 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P.
Professional connectivity includes the HD/3G-SDI connectors and genlock input, allowing the camera to be easily integrated into a multi-camera workflow. The OSD is available on both the HDMI and the first SDI output.
The camera features a built-in filter stack including a clear filter, an ND 1/8, and an ND 1/64, as well as an IR cut filter, this allows you to choose to use the IR cut filter much as you would choose from the built-in ND filters.
The camera features built-in One-Shot AF, and Push Auto Iris. The One-Shot AF assists in focusing adjustment with a dedicated button. Focus status can be confirmed on an external monitor. Push Auto Iris automatically adjusts the aperture of the lens to quickly and easily maintain proper exposure, even in situations where lighting changes frequently.

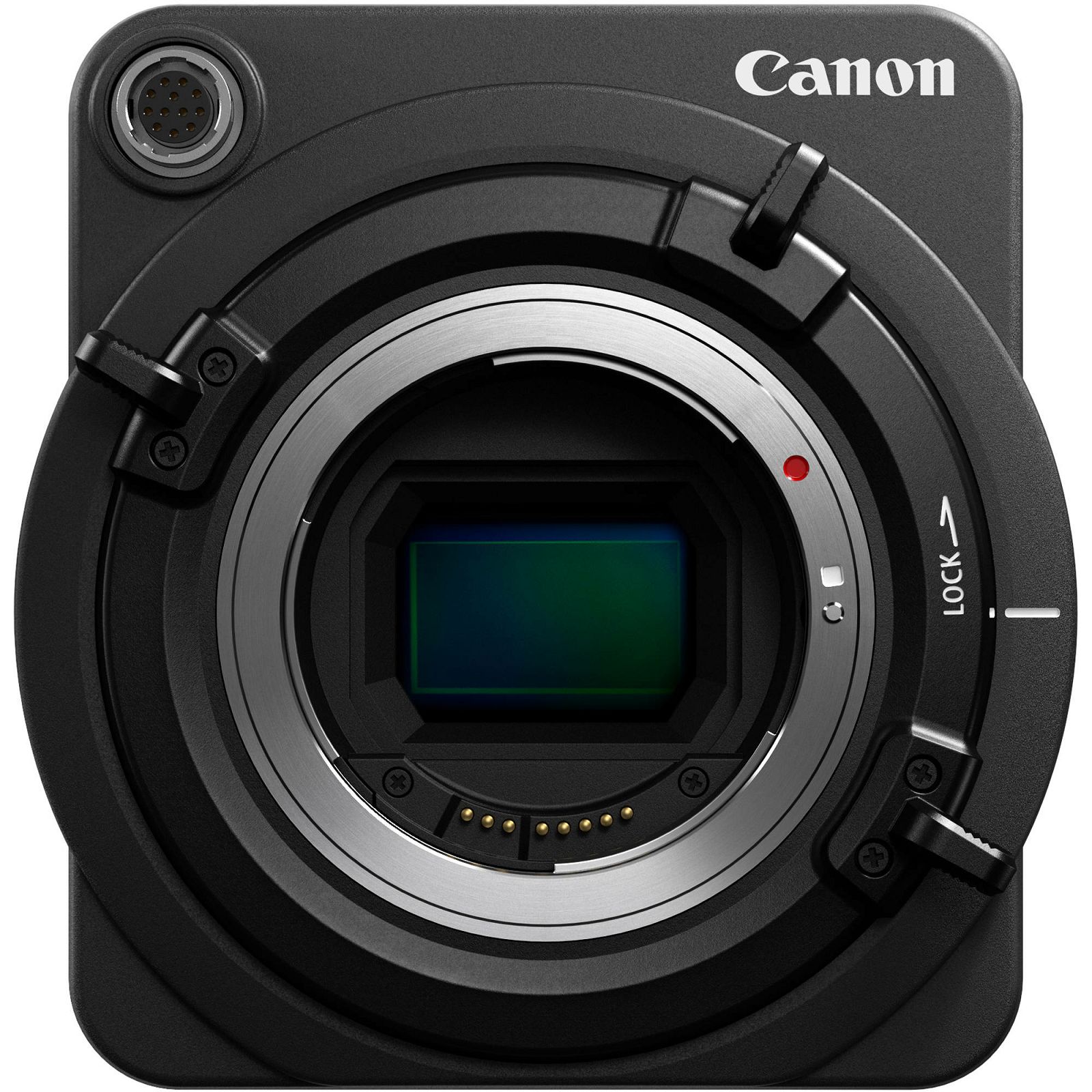

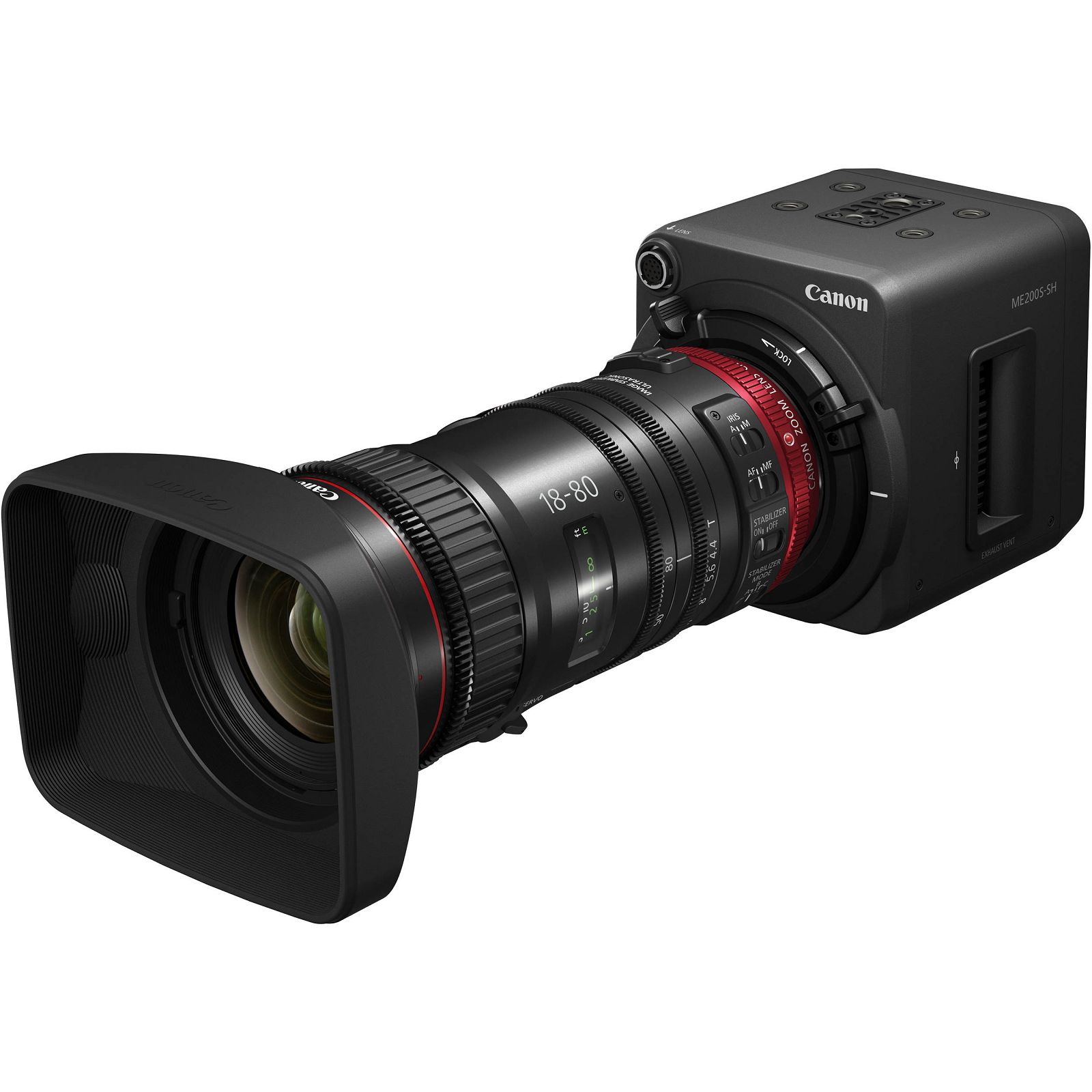

The locking cinema EF mount is compatible with EF mount lenses and provides a stronger attachment to the camera than a standard EF mount. The front of the camera features a 12-pin lens terminal enabling lens connectivity with EF mount CINE-SERVO lenses or 2/3" broadcast lenses with an optional third party adapter.
Other calibration functions include auto black balance, color bar, test tone, assign buttons, peripheral illumination correction, focus limit, crop for EF-S Lens, scan reverse, flicker reduction, noise reduction, time display, hour meter.
The camera supports custom picture settings for highlight and shadow detail protection. These settings include selections for EOS Standard, Wide DR, and Canon Log gamma. The camera also supports up to six custom scene settings.
Sensor Super 35mm
Pixels Total: 4206 x 2340 (approximately 9.84 MP)
Effective: 3840 x 2160 (approximately 8.29 MP)
Output Resolution 1920 x 1080
1280 x 720
Color Filter System RGB Bayer array
Lens Port Canon EF Cinema-Lock-type
Interface (Inputs/Outputs) Outputs
HD/3G-SDI: 2 (#1 with selectable OSD, #2 clean)
HDMI: 1 (selectable OSD)
Inputs
Genlock: Black burst or Tri-Level reference
Mic: 1 x 3.5 mm stereo mini jack (plug-in power mic supported)
Remote Control A: 1 x 2.5 mm stereo mini jack (Canon unique protocol)
Remote Control B: 1 x circular 8-pin connector (Canon unique protocol)
Format 3G-SDI
Bit Depth: YCbCr422 10bits (effective bits: 8)
1920 x 1080p: 59.94/50/29.97/25/23.98
1920 x 1080i: 59.94/50
1280 x 720p: 59.94/50/29.97/25/23.98
HDMI
Bit Depth: RGB444, YCbCr422, YCbCr444 (effective bits: 8 for each format)
1920 x 1080p: 59.94/50/29.97/25/23.98
1920 x 1080i: 59.94/50
1280 x 720p: 59.94/50/29.97/25/23.98
Please Note: You cannot set framerate and output size separately by SDI and HDMI. Also, when outputting via HDMI, 640 x 480: 59.94P & 768x576: 50P will be output when connected with a monitor that support 480P and 576P inputs. This cannot be set from the menu and the on-screen display will not show.
Exposure Auto: Iris, Gain, Shutter and ND operating together (cannot set auto / manual separately)
AE shift / AE response selectable
AGC limit can be set from 36dB to Off/75dB (3-dB intervals)
Min Illumination 0.015 lux or less (at 56dB, F1.2, 29.97P, 1/30 sec shutter)
Shutter Manual: 1/3 to 1/2000 (1/4 stops); 1/3 only at 23.98p
Auto: Iris, Gain, Shutter and ND operating together
Iris Manual: 1/2 stops (push auto iris can be set to an assign button)
Auto: Iris, Gain, Shutter and ND operating together
Gain Manual: 0dB to 56dB @ 3dB intervals (approx. ISO 204,800 equivalent at 56dB)
Auto: Iris, Gain, Shutter and ND operating together
Built-in Filters ND: 1/8 & 1/64 Built-in (auto or motorized manual)
IR Cut Filter: On/Off (motorized manual)
Focus Control Manual focus (when used with RC-V100)
One-Shot AF (used with assign button)
White Balance AWB (2,000K-15,000K), Daylight, Tungsten, Custom Set A, Custom Set B
Power Input: 11 to 17 VDC
Consumption: approximately 11 W (body only)
Input Connectors
1 x 4-pin XLR
1 x 2-pin Phoenix
Operating Temperature Approx. 32 to 104°F /0 to 40°F
Dimension 4.0 x 4.6 x 4.4" / 102 x 116 x 113 mm
Weight Approx. 2.2 lb / 1.0 kg
