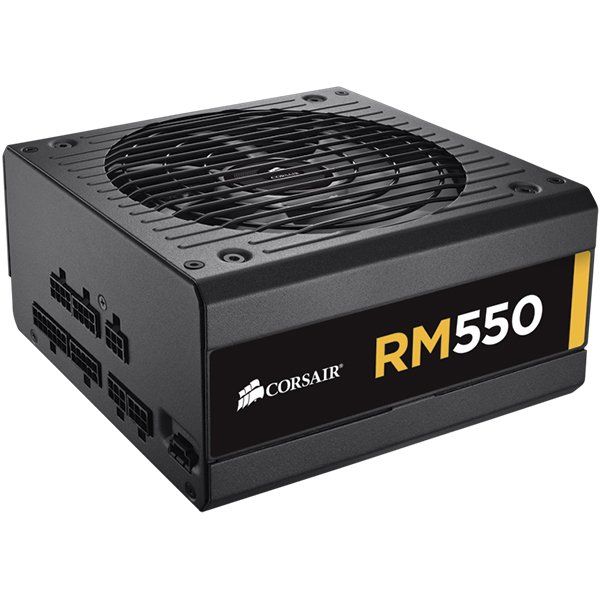

Power Device Type: Power Supply
Power Device Location: Internal
Input Voltage: AC 100-240 V
Input Frequency: 47/63 Hz
Rated Input Current: 10 A
Input Power Connectors Quantity: 1
Maximum Output Power: 550 W
Circuit Protection: Over Voltage Undervoltage Over Temperature Over Current Short Curcuit Protection Over Power
Power Adapter and Power Supply Features: Active PFCCable Management
Efficiency: 91.92%
Certifications: CE, CB, TÜV, FCC, cUL,
+12V: 45.8 A (550 W)
+3.3V / +5V: 25 A (130 W)
+5VSB: 3 A
-12V: 0.8 A
20+4-pin Main Connector: 1
4/8-pin +12V Power Connector: 1
4-pin Peripheral Power Connector: 7
4-pin Floppy Drive Connector: 1
5-pin S-ATA Connector: 8
6/8-pin PCI Express Connector: 4
Maximum Fans Supported Quantity: 1
Fans Installed Quantity: 1
Fan Diameter: 140 mm
Maximum Operating Ambient Temperature: 50 °C
Minimum Operating Ambient Temperature: 0 °C
Mean Time Between Failures: 100000 hr
External Color: Black
Package Type: Retail
Depth (mm): 86 mm
Height (mm): 160 mm
Width (mm): 150 mm
Warranty Products returnable: Yes
Warranty Term (month): 60 month(s)
Warranty validation Criteria: Serial Number
Box Weight Brutto (kg): 24 kg
Pack Weight Brutto (kg): 4 kg
Pack Weight Netto (kg): 4 kg
Packs in Box: 6
Pieces in pack: 1
EAN Code: 843591031141
