DJI Ace One Single Waypoint Ace J&K to C&G ( Function activation cost ) Industrial Helicopter Autopilot System

DESIGNED FOR ALL UAV HELICOPTER PLATFORM

ACE ONE works on all kinds of helicopters: Bi-blade, tri-blade aircraft, aircraft with or without flybar, all kinds of swash plates and rotor heads, electronic or gasoline or turbine helicopter engines. All types of helicopter can be installed with ACE ONE quickly and easily.

COMPACT SIZE & LIGHT WEIGHT

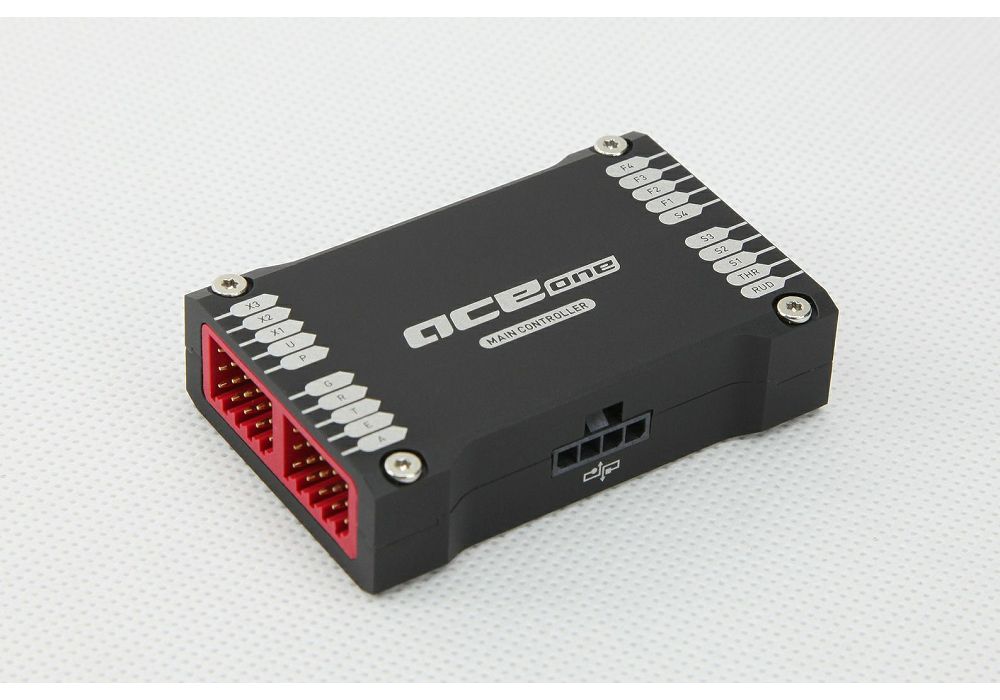

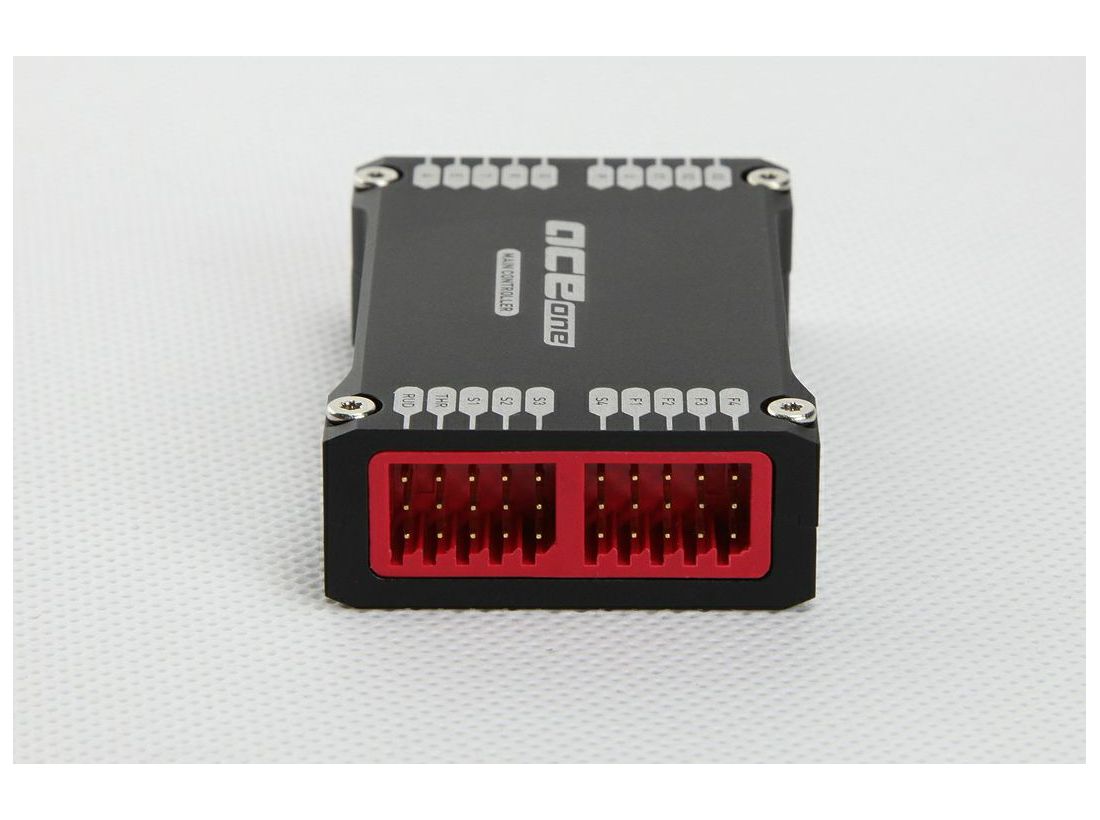

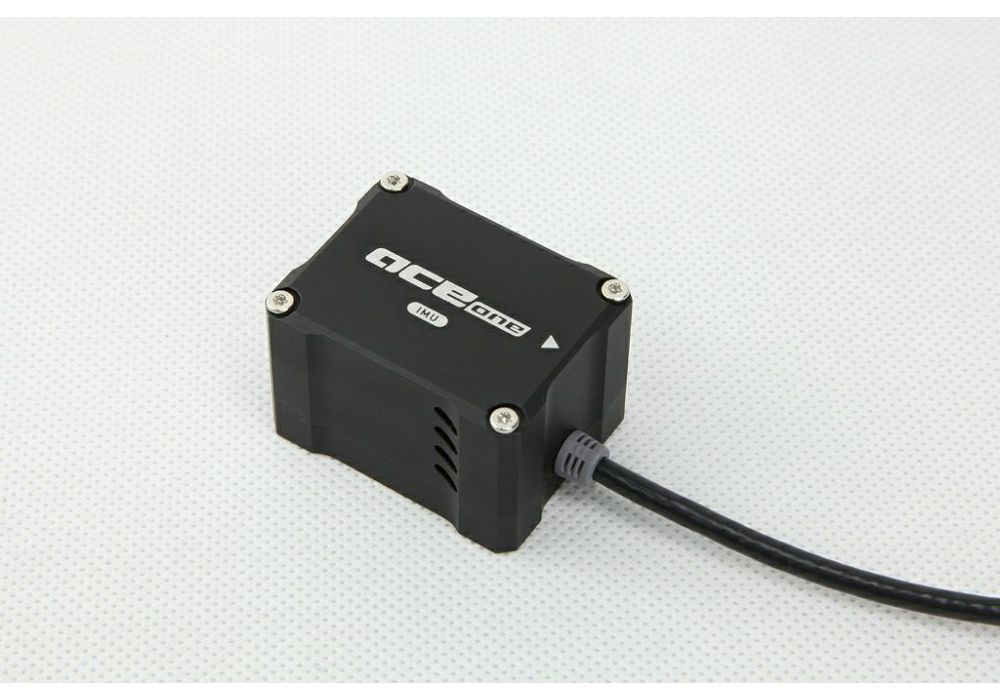

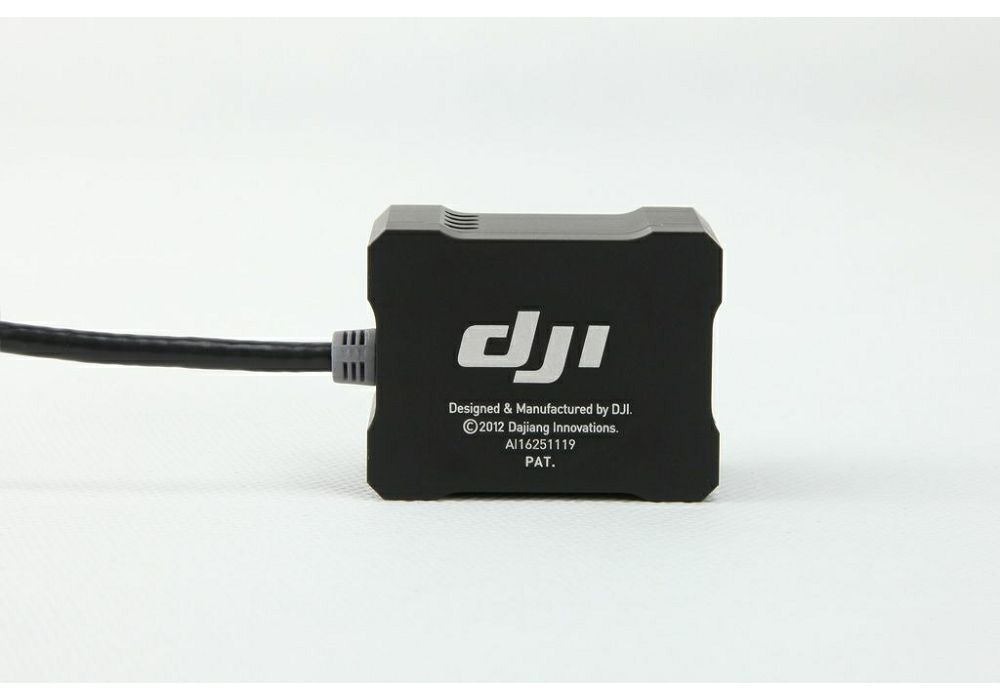

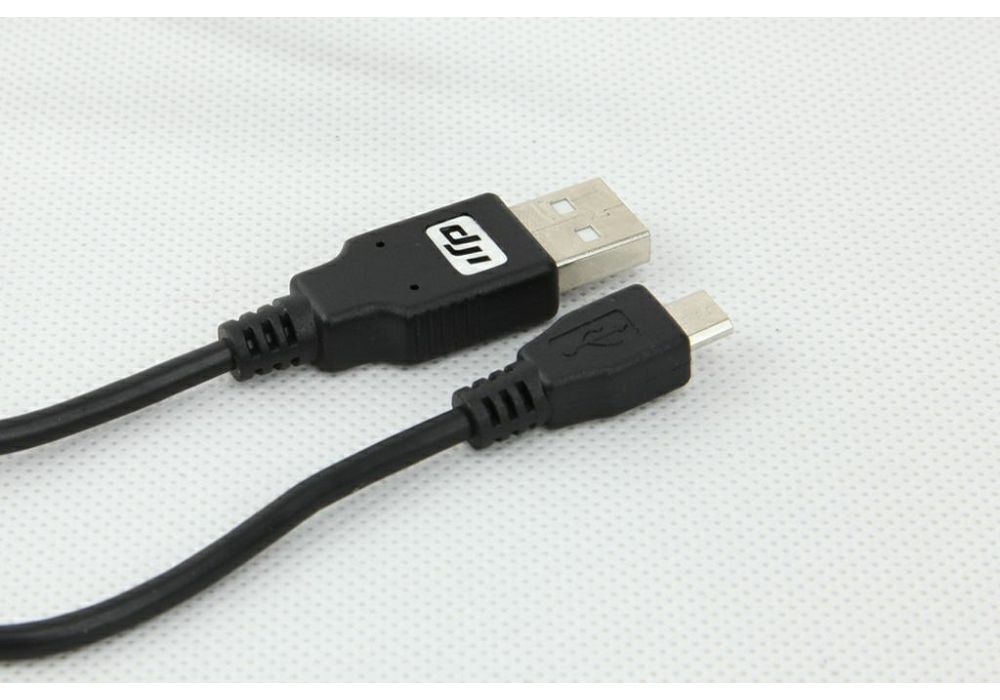

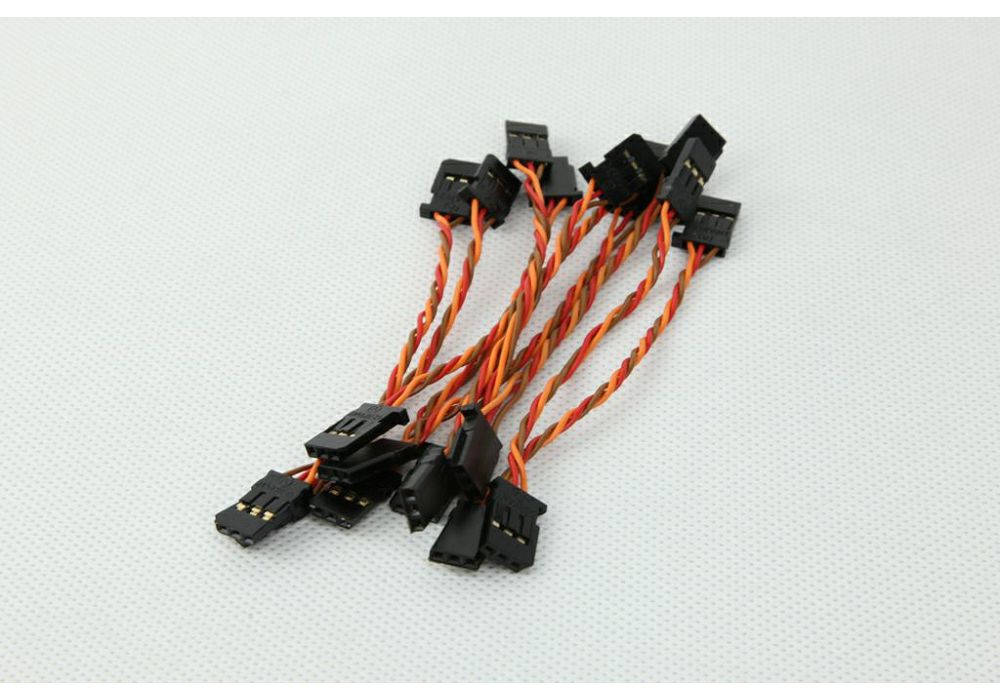

ACE ONE components weigh under 150g combined, which can be almost ignored from the payload. The size of the main controller is 61mm x 39.6mm x15.8mm, IMU module is 40mm x 31mm x 26mm, and the GPS module has a diameter of 50mm and a height of 9mm. The whole ACE ONE package is smaller than a standard package cigarette box. ACE ONE can even be installed on size 450 helicopter.

EASY INSTALLATION

The innovative built-in damping system allows the helicopter to be installed without additional frames and dampers. The system helps customers to minimize size, reduce weight and gives simplified installation that can be applied on different helicopter models. Customers also have more options for physical installation.

MULTIPLE FLIGHT CONTROL MODE/ INTELLIGENT SWITCHING

ACE ONE offers four types of control modes : GPS Cruise Mode, GPS Atti. Mode, Atti. Mode, Manual Mode. Customers can switch between the four modes to adjust different flight environments even in the specially weak GPS environment such as: Building clearance, valley clearance, bridge bottom or mountain cave. ACE ONE can also adjust automatically in the flight environment. For example when aircrafts come through the bridge bottom with GPS intermittence, ACE ONE system will switch between GPS mode and Atti. Mode automatically to ensure safety and security of flight.

GPS CRUISE MODE



In GPS cruise mode, it not only keeps aircraft attitude stable, it will also lock the aircraft position accurately. Flight speed control; Stick center position for 0m/s, its endpoint for maximum speed set by user. GPS cruise mode helps aircraft with accurate and smooth flight movement that is specifically required for aerial photography.

GPS ATTI. MODE



GPS Atti. mode has the same performance as GPS cruise mode. The only difference is the helicopter attitude control. Stick center position for 0° attitude, its endpoint for 45°which is a fixed limit. GPS Atti. mode can be used promptly and with a big flight movement. It will bring to you a new and excellent flight experience.

ATTITUDE MODE



Atti. Mode is suitable for when no GPS or weak GPS signal is achieved. ACE ONE can control attitude stabilization and lock flight altitude accurately; Stick center position for 0° attitude, its endpoint for 45°which is a fixed limit. Atti. mode also can be used promptly and with a big flight movement.

MANUAL MODE

Manual Mode is mechanical driving directly. With flybarless support, autopilot will not stabilise the aircraft. Manual Mode is suitable for the experienced pilot.

ACCURATE POSITION & ALTITUDE-LOCK HOVERING



Autopilot system offers longitude & latitude locking and high accuracy hovering. Even in a windy environment, aircraft can hover in a small scale area. Accuracy: horizontal?2 meters. Altitude?0.5 meters.

HIGH ACCURACY & DRIVING HANDFEEL

With the help of ACE ONE, controlling aircraft feels like driving a car, as simple and intuitive strong control of the flight itself has become an easy and precise operation; The pilot can focus more attention in other areas, such as controlling the camera angle, without tension in the driving.

SEMI-AUTO TAKE-OFF & LANDING


In ?GPS Cruise Mode?or?GPS Atti. Mode?or?Atti. Mode?, requiring only a push of the throttle (collective pitch) stick gently to take-off helicopter, the autopilot system will be in charge of the cyclic pitch/roll stabilization.

ENHANCED FAILSAFE



Enhanced failsafe is the feature to ensure that the helicopter will hover automatically if it loses the RC signal. After losing the signal in a certain time period, ACE ONE will calculate the safest way to return the helicopter to the home position. The helicopter will hover over your GPS start point and land automatically. This feature will protect your expensive payloads and equipments.

BUILT-IN GIMBAL STABILIZATION FUNCTION

The gimbal stabilization module is compatible with almost all 2-axis gimbal systems. The system will adjust the gimbal and camera according to the attitude of the helicopter after setting the parameters the first time.

BUILD-IN TAIL GYRO & FLYBARLESS SUPPORT

The tail gyro and FBL have become standard features of ACE ONE. No more extra work installing additional tail gyros and FBL electronic parts. The helicopter’s electronic system has been greatly simplified. Therefore different electrical parts can be connected much more easily. One central piece calculates all of the flying configurations.

BUILD-IN ENGINE GOVERNOR

The engine speed lock and governor are also standard features for ACE ONE. The built-in engine governor simplifies the parameter settings, and increases the compatibility of the system. All you need is to connect an extra standard sensor to use.

DATA IMPORT & EXPORT

All the setting data can be saved as files that export from ACE ONE system . Or importing the file to current main controller to avoid reboot calibration.

CORE FIRMWARE ONLINE UPGRADE

The professional DJI R&D team continuously provide the latest control algorithm and features/modules. You don’t have to mail the unit back or find service centres to upgrade anymore. All the upgrades can be done online. All you have to do is clicks!

GROUND STATION

Ace One can be upgraded to ground station. This is more powerful un-manned platform to satisfy the high requirements of our customers. Customer can activate the different function to meet their specific requirement.

Ground Station equipped with 3D map and virtual flight dashboard that offers the flight real time data of attitude, position, speed and angle. The radio signal, accelerator position and Servo voltage are also displayed on ground station.

Our autopilot systems and autonomous aerial platforms are used and applied in a wide range of commercial and industrial applications such as; aerial photography, surveillance, cartography, survey & rescue, power/ lines inspection, forest patrol, filming & advertising, police pursuit, military stealth, etc.

PROFESSIONAL UAV AUTO PILOT GROUND STATION

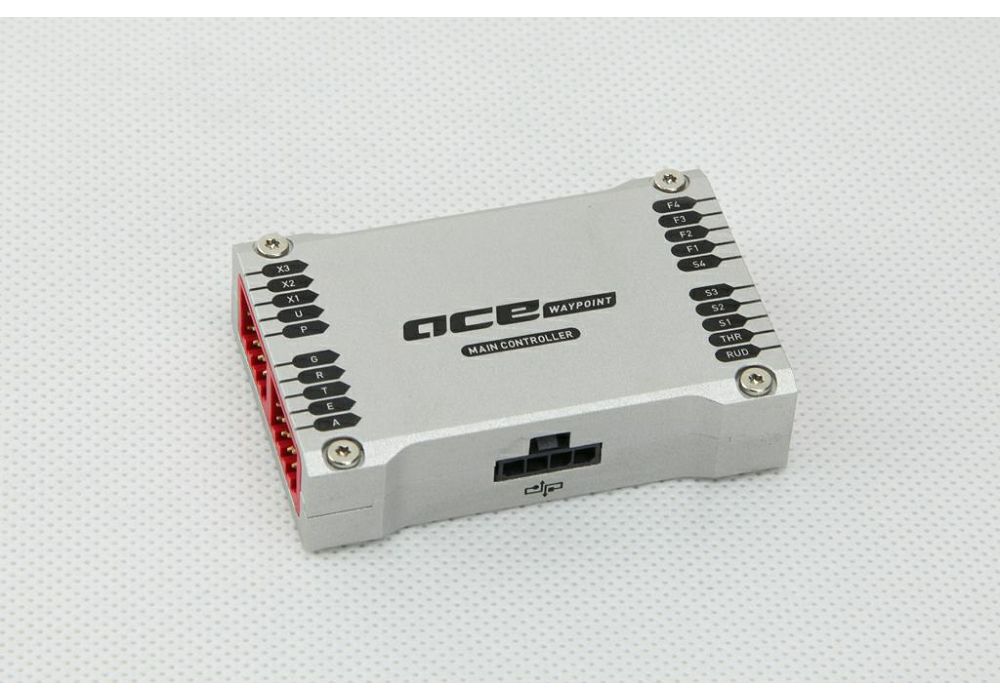

Ace Waypoint ground station system is built on an upgrade from Ace One’s DJI fourth generation helicopter autopilot products, and ground control software (GCS). It has all the features of Ace One, while providing the advanced reliability and flight stability core modules. Precise flight positioning, high mobility and ease of use, together with the aid of the advanced industry professional level ground station system, upgrades the unmanned helicopter system into a fully automated aerial work platform, with applications in specialized professions, including various industrial operations.

RELIABLE DATALINK

DJI offers 2.4Ghz and 900MHz datalink to achieve long-range two-way communication. The datalink maximum distance is up to 15km. The ground end also links with USB power supply that is convenient for outdoor use. The wireless module uses FHSS technology which is verified by FCC and CE certification, DJI datalink has many advantages such as: high data rate, stable performance, strong anti-interference capability, and long communication distance. The 2.4GHz datalink’s power consumption is 550mw and 900MHz datalink 1.5W, which is big advantage for long-distance flight missions.

INDUSTRIAL FLIGHT CONTROL ALGORITHM

The entire ground control system combines GPS 6DOF inertial measurement unit, magnetometer, and pressure altimeter sensors to optimize robustness of algorithms and robotic control logics. Ground control system utilizes advanced GPS/INS proprietary algorithm technology in the entire design. Even in adverse conditions, high vibration and high demand environments, the helicopter maintains flight stability accurately to ensure mission success rate.

QUICK GPS ACQUISITION / SIMPLE COMPASS CALIBRATION

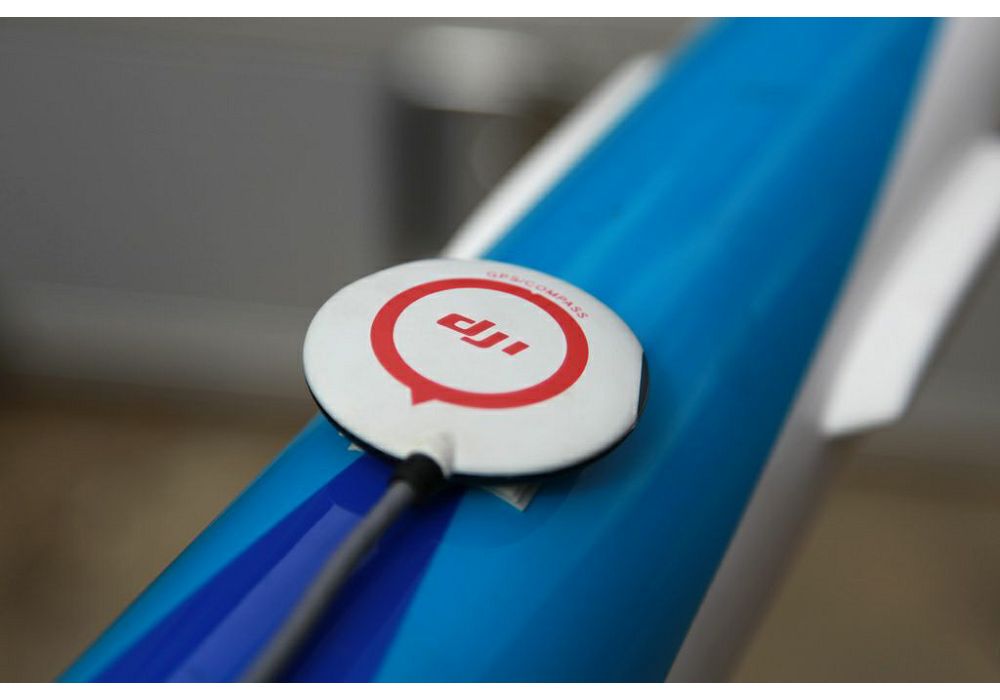

System design and use of high grade components enables fast GPS acquisition time. Compass calibration with 45° tolerance is easier and faster than previous models.

GOOGLE 3D MAP

DJI Ground Station designed around intuitive Google 3D map offering GIS data. Pilot can operate and plan flight routes anywhere, use PC mouse to zoom in/out of 3D Maps which can be downloaded to PC and used elsewhere in offline mode.

REAL-TIME FLIGHT MONITORING

In addition to the aircraft location, heading and altitude, our ground station also provides other flight data such as attitude, air speed, vertical speed, throttle and pitch percentage and servo voltage at all times.

FAILSAFE AUTO RETURNING/ ONE KEY GO HOME



Ground Station equipped with intelligent adaptive system. During abnormal signal loss , the system will adjust to environment to activate failsafe appropriately. The aircraft will implement and complete the default route mission automatically, even when datalink signal is lost.

When user is in manual mode, the aircraft will hover when RC signal lost. But after 10S, if the signal doesn’t come back, the aircraft will find the take-off point precisely and return using the safest route and height . Then the aircraft will hover over the take-off point automatically. This function offers the intelligent security protection for user’s expensive aerial equipment. In addition, the user can always click the return button, the system will interrupt the current mission immediately to order to return the aircraft to back the take off point .

KEYBOARD/ JOYSTICK MODE

Operator can either use keyboard or joystick with ground station system to control the helicopter movements and attitude via DJI data link. Manual mode can be applied when out of radio (transmitter) signal range by using either keyboard or joystick for control. This provision/feature allows control when the radio (transmitter) stops working after the mission has started.

USER-FRIENDLY INTERFACE

DJI emphasises the principle of user friendliness in all designs, the ground station offers 3D graphic interface, a breakthrough from traditional UAV system with ease of installation, less complexity and ease of operation in comparison to others in the market. DJI ground station control can save time, improve operation efficiency, ease mission planning supporting flexible and intelligent control for any mission.

CLICK&GO



Click on any point on a 3D map, the aircraft can achieve the coordinates point automatically, particularly useful when some routes cannot be set in advance. Flight altitude and flight speed can also be adjusted rapidly and accurately according to the change of data and waypoints when the user has to change the target and flight mission.

BVR AUTOMATIC FLIGHT

Beyond Visual Range (BVR) of Ground Stations System designed for high-end commercial and industrial automatic flight that requires a reliable long-range wireless communication device (Data Link) and ground station control system (GCS). The flight route, default action of photographs, and airdrop can be planned in advance on the ground station control software.

FLIGHT SPEED UP TO 25M/S

Attitude leveling stability optimization algorithm enhances control feel and flight path control in ATT Mode. Helicopter forward air speeds of up to 25 meters per second in GPS cruise mode ensure longest possible flight mission.

AUTO TAKEOFF/ LANDING



Waypoint controller advance development offers automatic take off and landing feature which can be applied using either by radio transmitter or ground station keyboard. Take off and landing (ascending and descending) speed is 0.2 to 0.5 meters per second.

200 CUSTOMIZE WAYPOINTS

Waypoints can be set to the number of destinations up to 200. They are the basic unit of composition routes tasked to meet the complex requirement of the routes operating. Users can carry out special settings, such as height, latitude and longitude, flight speed, the nose toward, the turning patterns and residence time etc. User can batch for all destinations, by setting once if required.

6 PRESET ROUTE TEMPLATES

Ground Station provides 6 types of pre-set route templates which are default settings that can assist in completing a mission quickly, in a designated area with set height. The size of coordinates for the mission area, the number of waypoints in the region, the waypoint properties, etc. can be customized. Those templates can be especially applied for vertical photography, precise mapping, spraying agriculture and other industries.

3 WAYPOINT TURNING MODE OPTIONS

There are 3 different fight routing planning modes: fixed-point turn mode, coordinated turn mode and adaptive coordinated turn mode.

Fixed-point Mode: Aircraft flies to the first fixed point accurately, stays at the fixed point and then flies to the next fixed point . The fixed points and the length of each stay also can be set in advance.

Coordinated turning mode: The route of aircraft is calculated with turning speed and turning angle. The helicopter would fly from one point to another point without stopping.

Adaptive coordinated turning mode: It is almost the same performance with Coordinated Turning mode. But the flight routine will be more accurately detailed with a planned flight routine in this mode.

2 WAYPOINTS ALTITUDE DISPLAY MODE

Real time flight altitude data is vital in real time flight data collection. Correct Ace Waypoint altitude setting determines the success of the flight mission. There are two displays for height; normal height and elevated mode. In normal height mode, the system records the helicopter at 0 height reference point- above (+) value means above ground and (-) value means below ground. In elevated mode, the helicopter altitude is the same as elevation according to Google Map. Due to altitude, the sensor can be affected by weather condition, and an offset of altitude may be necessary. Please refer to manual for detail setup.

CUSTOM SERVO CHANNEL CONTROL

DJI’s autopilot system provides two servo outputs to support custom servo feature. These two outputs can be used between the controller and or 3rd party devices. These outputs for example can be used for camera shutter operation, air-drop activation or other switching devices.

BATCH ROUTE TASK SETTING



During a flight mission, task start, delay and repetitive time can be set. By setting the time period, repeat time, start delay and repeat time parameters; operator can customize these functions to a specific application.

EDITING REAL-TIME FLIGHT ROUTE MOMENTARILY



During flight mission, operator can re-edit mission such as modifying flight routes, or waypoints to achieve a real-time adjustment to complete the objectives. Operator can also click “Pause” button to suspend the mission; aircraft will slow down and hover awaiting new assignment. When and if signal is lost, the system will intelligently pick the optimal route to return home automatically.

F CHANNEL CONTROLLER



User also can customise main controller’s F1 to F4 channel ‘ s output signal to achieve the extra device operation such as Servo, Gimbal and Camera controlling.

USING RELATIVE COORDINATES EDITOR



Relative coordinates Editor is an accurate drawing tool of regular geometric figures on a 3D Map. Operator can set an initial waypoint then next waypoint with angle and distance details. Ground control system will calculate the next waypoint coordinates accurately.

PHOTOGRAMMETRY TOOL

Photogrammetry tool can be used with DJI aerial photography waypoint system in producing professional and accurate mapping. Thus, simplifies flight mission; a "must have" package for the professional photographer.

SIMULATION

Ground control system can simulate real flight environment, operator does not have to perform actual flight to complete mission in simulated mode. The simulation mode is good for training and mission test.

UPLOAD/DOWNLOAD FLIGHT MISSION



All routes/waypoint settings can be exported and saved from the controller to any computer (PC). The saved files can be imported for future use.
