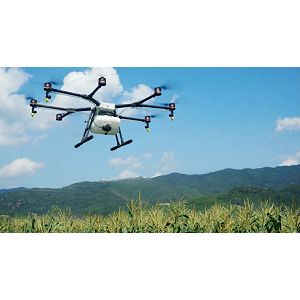

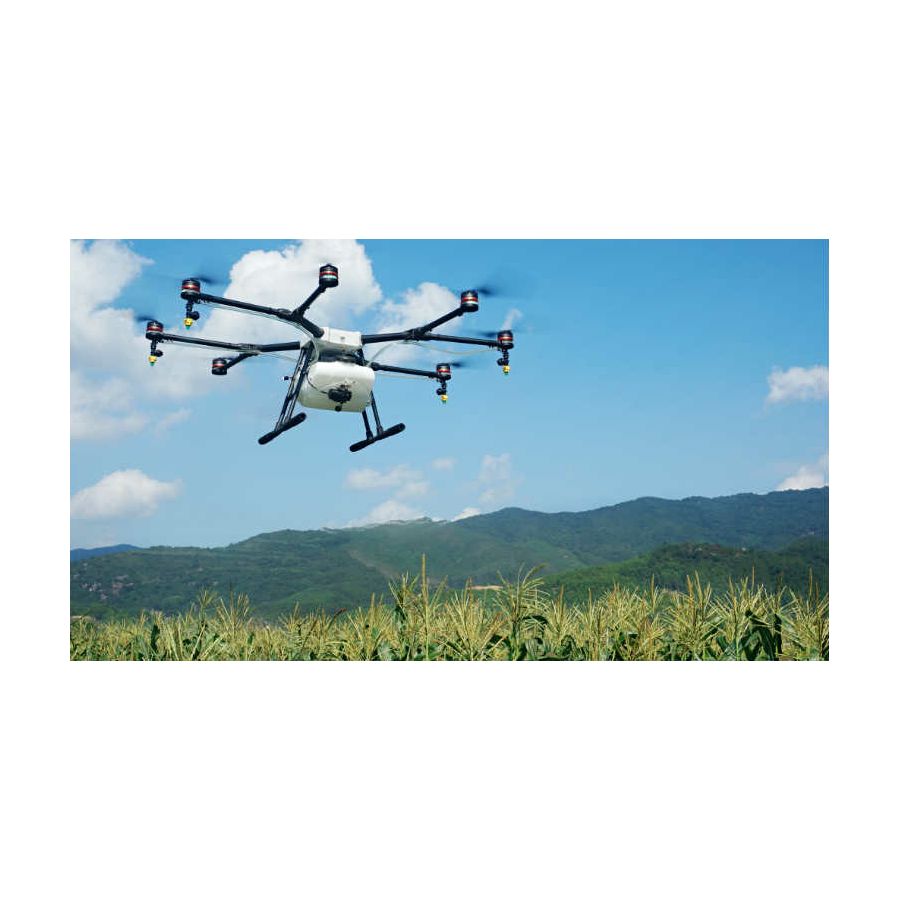

DJI Agras MG-1 Poljoprivredni octocopter dron za zaštitu bilja i posipanje usjeva Agriculture Drone
DJI Agras MG-1 je poljoprivredni octocopter dizajniran za posipanje usjeva i zaštitu bilja, te oplodnju uz vrlo visoku učinkovitost i jednostavno rukovanje. Napredni kontroler leta je integriran u letjelici, uz pouzdan sustav hlađenja, sklopivi dizajn okvira, veliki spremnik i snažan pogonski sustav, te dodjeljeni daljinski upravljač posebno dizajniran za potrebe korisnika u okviru poljoprivredne industrije
Snažan pogonski sustav omogućava nošenje do 10kg tekućeg tereta, uključujući pesticide i gnojiva. Kombinacija brzine i snage znači da područje od 4000 do 6000 četvornih metara može biti pokriveno u samo 10 minuta, od 7 do 10 jutara na sat, odnosno od 40 puta učinkovitije od ručnih načina prskanja usjeva
The DJI Agras MG-1, a smart, crop-dusting agricultural drone
The DJI Agras MG-1 is an agricultural octocopter designed to make plant protection and fertilization highly efficient and easily manageable. Integrated within the aircraft is an advanced flight controller, a reliable cooling system, a foldable frame-design, a large tank and a powerful propulsion system, and a dedicated remote controller specifically designed for the needs of users within the agricultural industry.
The powerful propulsion system enables the MG-1 to carry up to 10kg of liquid payloads, including pesticide and fertilizer. The combination of speed and power means that an area of 4,000-6,000 sq. meters can be covered in just 10 minutes, 7 to 10 acres per hour, or over 40 times more-efficient than manual spraying operations.
The DJI Agras MG-1 is an octocopter designed for precision variable rate application of liquid pesticides, fertilizers and herbicides, bringing new levels of efficiency and manageability to the agricultural sector.
MAXIMUM EFFICIENCY
The powerful propulsion system enables the MG-1 to carry up to 10kg of liquid payloads, including pesticide and fertilizer. The combination of speed and power means that an area of 4,000-6,000 m2 can be covered in just 10 minutes, or 40 to 60 times faster than manual spraying operations. The intelligent spraying system automatically adjusts its spray according to the flying speed so that an even spray is always applied. This way, the amount of pesticide or fertilizer is precisely regulated to avoid pollution and economize operations.
RELIABILITY AND LONGEVITY

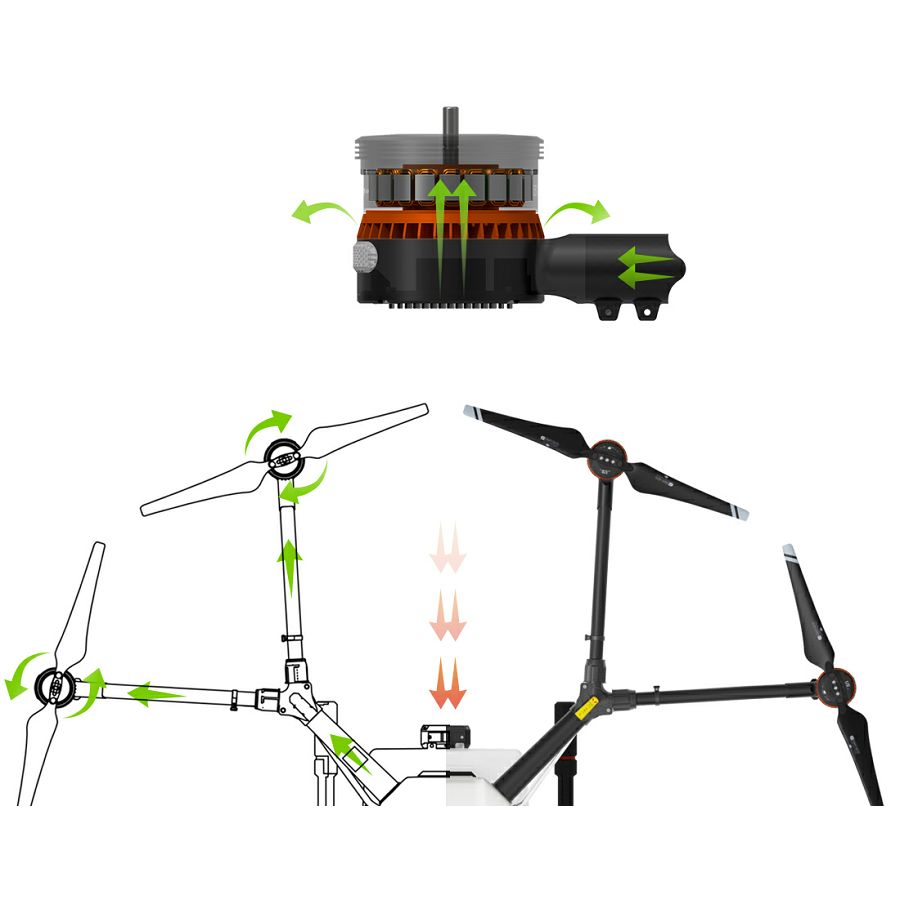

Equipment used in plant protection operations is susceptible to dust and corrosion, leading to high cost of maintenance and shortened lifespans. To counteract degradation, the MG-1 is designed with a sealed body and an efficient, integrated centrifugal cooling system. As it flies, the surrounding air enters the aircraft body via the front inlet, equipped with a triple filter system that keeps dust and particulate matter from entering. The air then passes through each of the aircraft’s arms to the motors, capturing heat from all components and the entire structure before exiting and dissipating the heat to the surrounding air. The combination of cooling and filtering increases the expected lifespan of each motor by up to three times.
ACCURATE SPRAYING

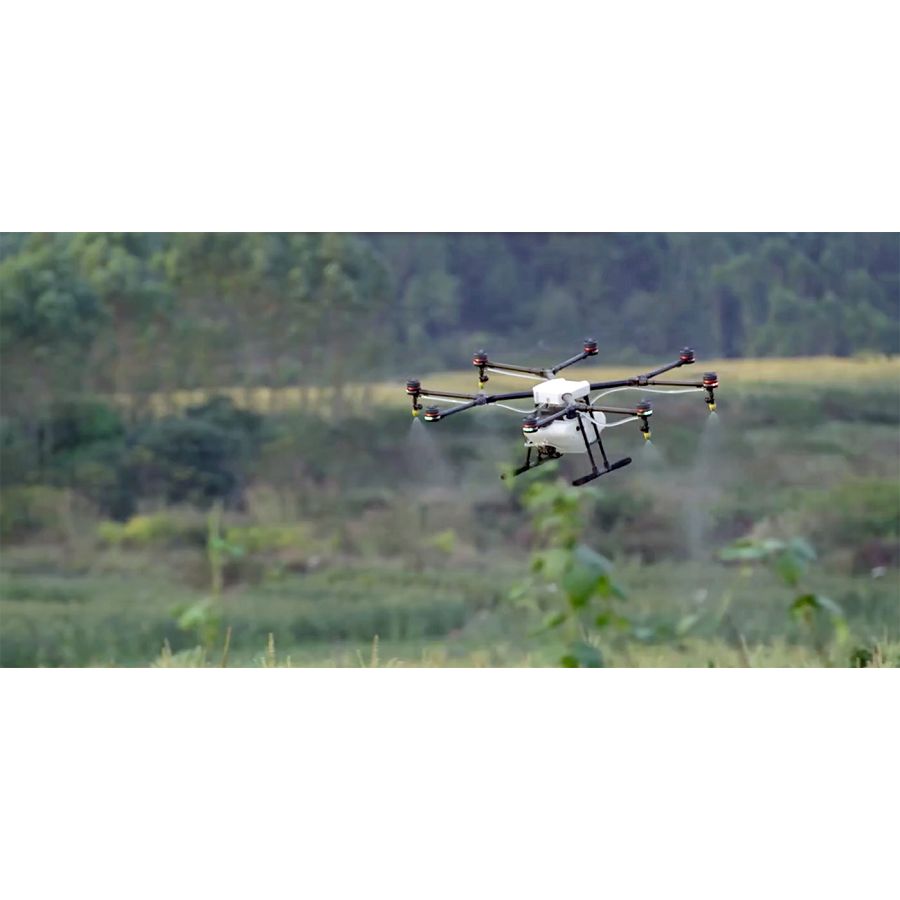

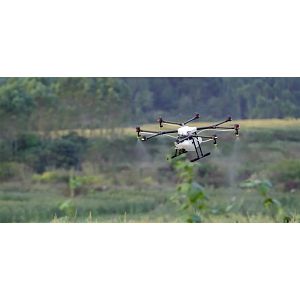

Spray nozzles can be chosen according to the properties of each liquid to optimize atomization, energy efficiency and the amount of liquid sprayed. The included ceramic nozzle is resistant to wear and can be used for thousands of hours of effective spraying without degradation. In total, the MG-1 has four nozzles, each placed directly below a motor. The downward airflow generated by the propellers accelerates the spray, increasing its reach.
EASE OF USE
The advanced flight controller integrated with the aircraft instantly and precisely responds to the pilot’s input. Choose between three flight modes: Smart mode, Manual Plus Mode and Manual mode, according to terrain and the specific needs of each mission.
Under Smart mode, the flight can be easily planned with the press of a few buttons, without the need for mapping knowledge or other software, making the MG-1 not only the most efficient but also the most easy to use spraying solution. In Manual Plus Mode, the aircraft performs the same turns at the press of a button as it does automatically under the Smart mode, allowing for planning to be done on the fly for fields of irregular shape. Under Manual mode, the pilot freely navigates the aircraft.
INTELLIGENT MEMORY
The MG-1 automatically records its current and remembers its past coordinates as it makes its way across the field. In case the operation is interrupted, for example due to depleted battery or spraying liquid, flight easily be resumed from the last point in its memory after changing the battery or refilling its tank.
FOLDABLE DESIGN

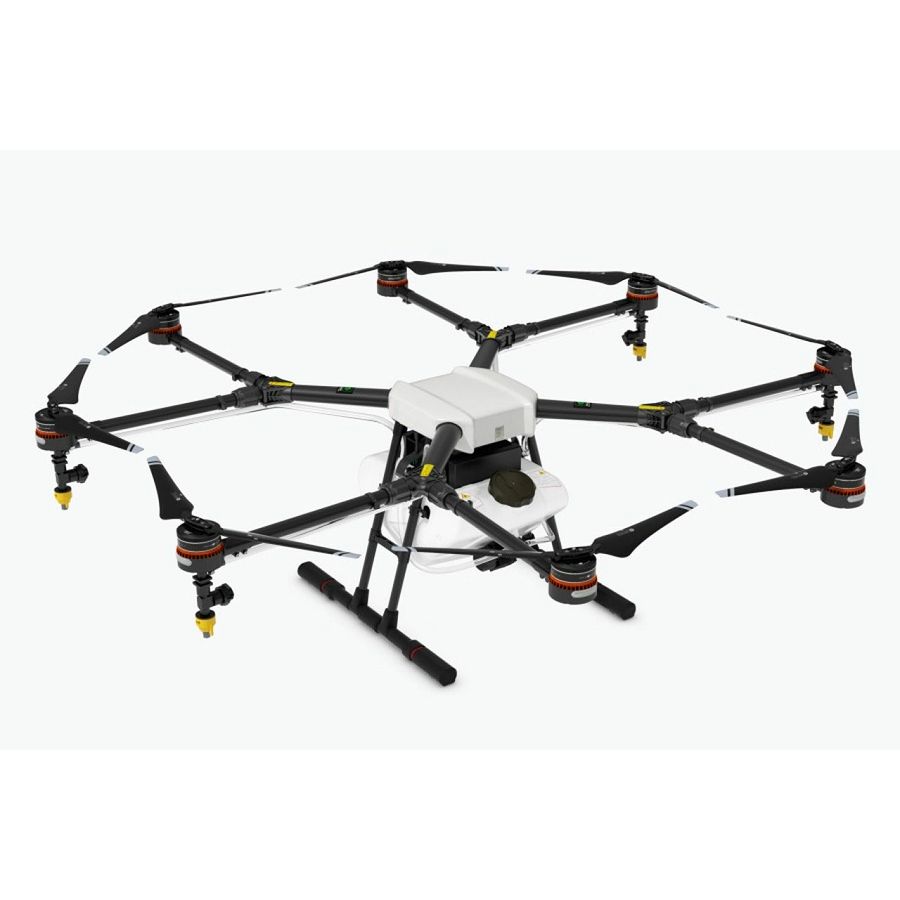

The MG-1 design is based on a Y-type folding structure that can be installed without the use of any additional tools. Motor arms fold inwards making the aircraft compact and easy to transport, for example in the trunk of a car. Made from high-strength carbon fiber materials, the body frame is light yet durable and able to withstand the harshest conditions.
TERRAIN FOLLOW
By integrating a microwave radar together with the MG-1's intelligent flight control system, the aircraft is able to scan the below terrain in real-time, and adjust to keep a constant, centimeter accurate, height above crops. Spray density is maintained even as the terrain rises and drops, so that the optimal amount of liquid is applied at all times.
DEDICATED REMOTE CONTROLLER
The dedicated remote controller is equipped with the latest Lightbridge 2 transmission system which enables ultra low-latency controls. Like the aircraft body, the remote is designed with water and dust protection. A special low-energy display panel gives real-time flight information and is able to last over extended periods of time on a single charge. Together with the highly responsive joysticks and convenient function keys, mastering the art of agricultural spraying is made easier than ever before.
SPECIFIKACIJE:
AIRCRAFT FRAME
Diagonal Wheelbase 1520 mm Frame Arm Length 625 mm Dimensions 1471mm x 1471mm x 482mm (arm unfolded, without propellers) 780mm x 780mm x 482mm (arm folded) PROPULSION SYSTEM
MOTOR
Stator Size 60mm x 10 mm KV 130 rpm/V Max Thrust 5.1 kg/rotor Max Power 770 W Weight (with cooling fan) 280 g FOLDABLE PROPELLER
Material High-performance engineered plastics Diameter / Pitch 21x7.0 inch (533x178 mm) Weight 58 g ESC
Max Allowable Current (Continuous) 25 A Operating Voltage 12S LiPo Signal Frequency 30 to 450 Hz Drive PWM Frequency 12 kHz SPRAY SYSTEM

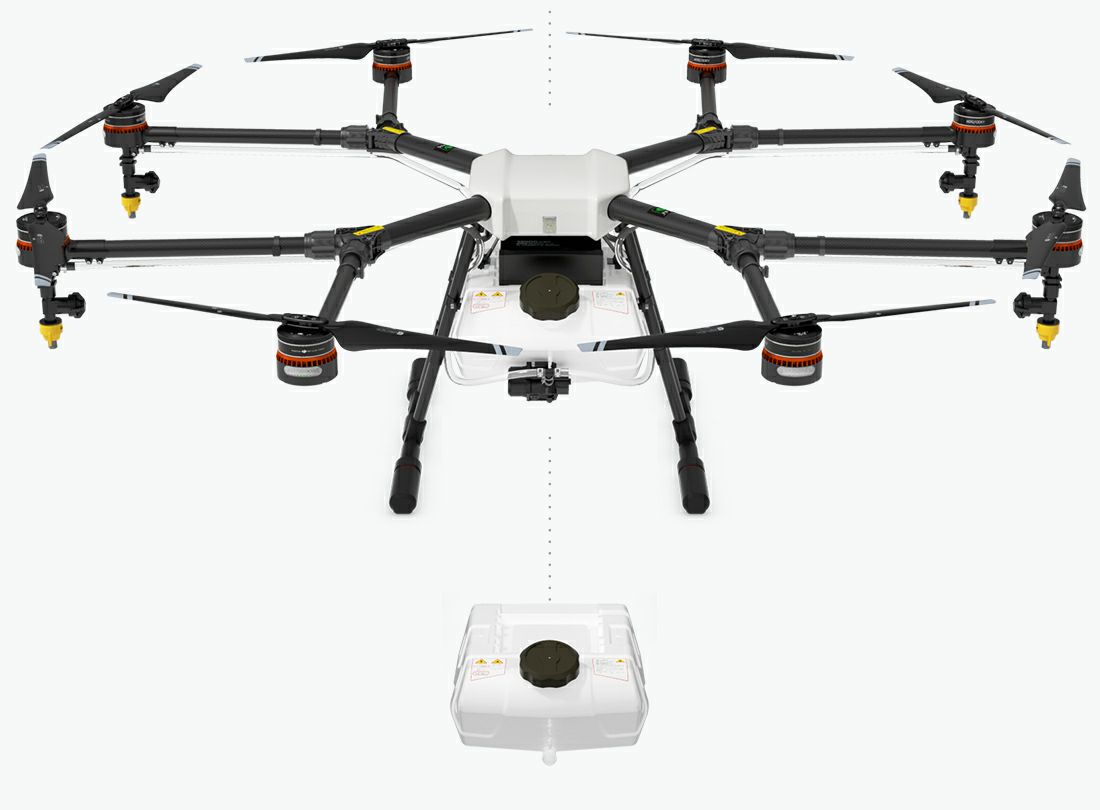

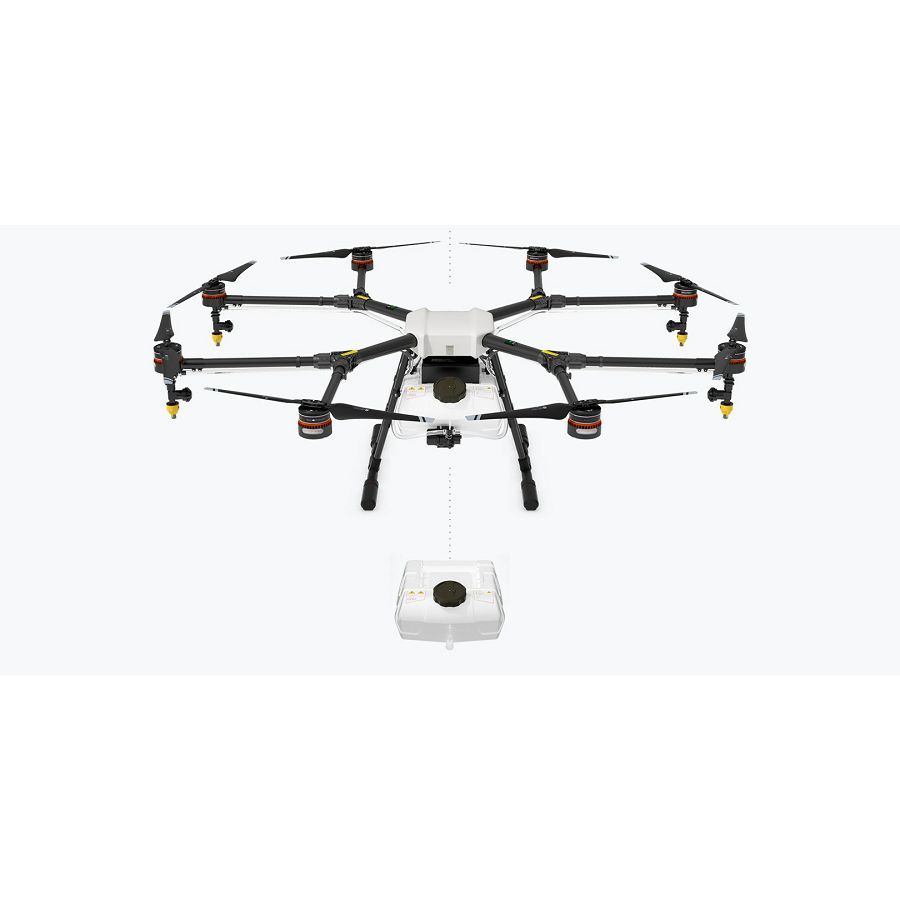

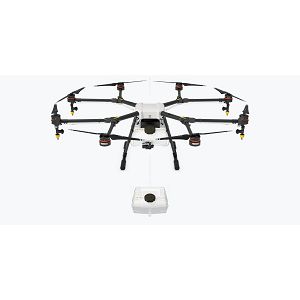

LIQUID TANK
Volume 10 L Standard Operating Payload 10 kg Max Battery Size 151mm x 195mm x 70mm NOZZLE
Model XR11001 Quantity 4 Max Spray Speed 0.43 L/min (per nozzle, for water) Spray Width 4 - 6 m (4 nozzles, 1.5 – 3 m above the crops) Droplet Size* XR11001: 130~250 µm *Droplet size may vary according to operation environment and spraying speed. FLIGHT PARAMETERS
FEATURES
Total Weight (without batteries) 8.8 kg Standard Takeoff Weight 22.5 kg Max Takeoff Weight 24.5 kg (@ sea level) Max Thrust-Weight Ratio 1.81 (with 22.5 kg takeoff weight) Power Battery DJI Designated Battery (MG-12000) Max Power Consumption 6400 W Hovering Power Consumption 3250 W (with 22.5 kg takeoff weight) Hovering Time 24 min (@ with 12.5 kg takeoff weight) 10 min (@ with 22.5 kg takeoff weight) Max Operating Speed 8 m/s Max Flying Speed 22 m/s Recommended Operating Temperature 0 to 40? REMOTE CONTROLLER
FEATURES
Model GL690B(Japan Only), GL658C Operating Frequency 2.400 - 2.483 GHz Max Transmission Range (unobstructed, free of interference) 1km EIRP 100 mW @ 2.4 GHz Built-in Battery 6000 mAh, 2S LiPo Charging DJI charger Output Power 9 W Operating Temperature Range -10 to 40? Storage Temperature Range Less than 3 months: -20 to 45? More than 3 months: 22 to 28? Charge Temperature Range 0 to 40? REMOTE CONTROLLER CHARGER
FEATURES
Model A14-057N1A Voltage 17.4 V Rated Power 57 W
