DJI FPV mega Set 400mW TX + big sunhood + charger + LCD 5.8GHz Almighty Diversity RX

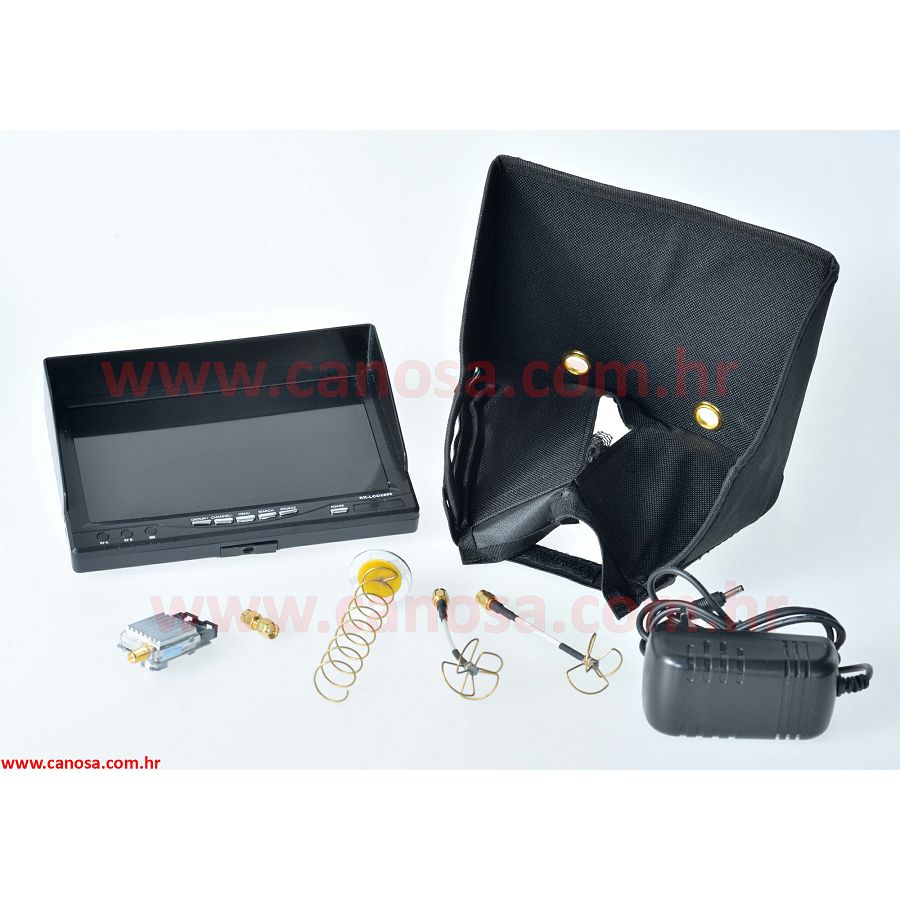

KOMPLET UKLJUČUJE:

1x LCD ekran s ugrađenim prijemnikom 5.8Ghz, s ugrađenom li-po baterijom 2450mAh (4 grupe, 8 kanala)

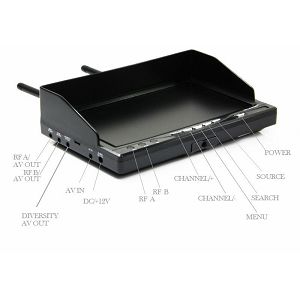

1x Sklopivo sjenilo (zaštita od sunca) za LCD
1x Spiralna 12dbi SMA light antena
1x Cloverleaf TX SMA 5.8Ghz antena za odašiljač (djetelina 3 lista)
1x Plannar RX SMA 5.8Ghz antena za prijemnik (djetelnina 4 lista)
1x 5.8G 400mW A/V bežični odašiljač
1x SMA-J konektor

INCLUDES:

1x Boscam 5.8GHz Almighty Diversity RX LCD Screen Receiver Monitor
1x Sunhood
1x Helical 12dbi SMA light antenna
1x Cloverleaf 5.8Ghz antenna
1x 5.8Ghz 400mW Wireless AV Graphics Transmitter
1x SMA-J connector

SPECIFIKACIJE:

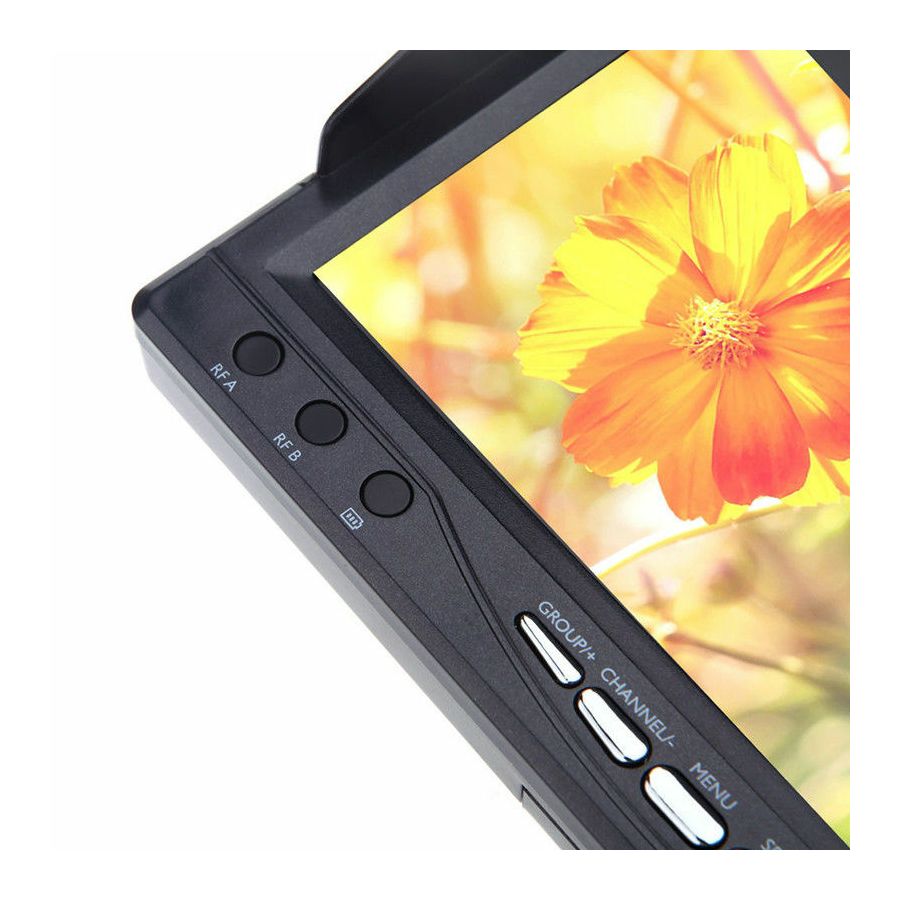

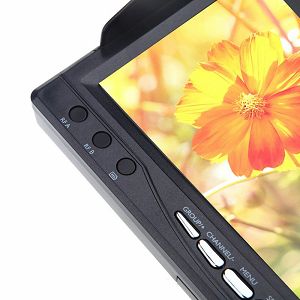

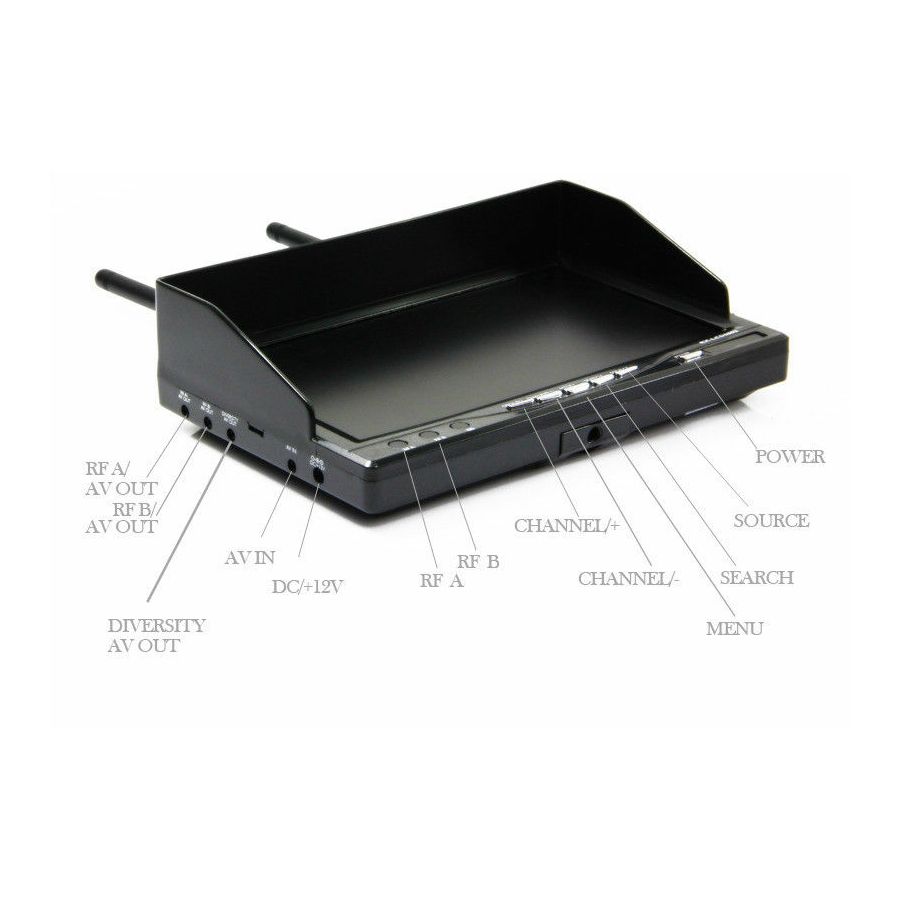

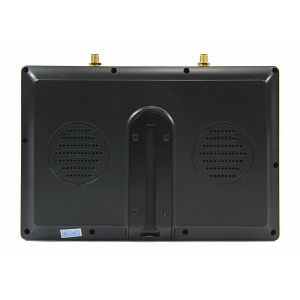

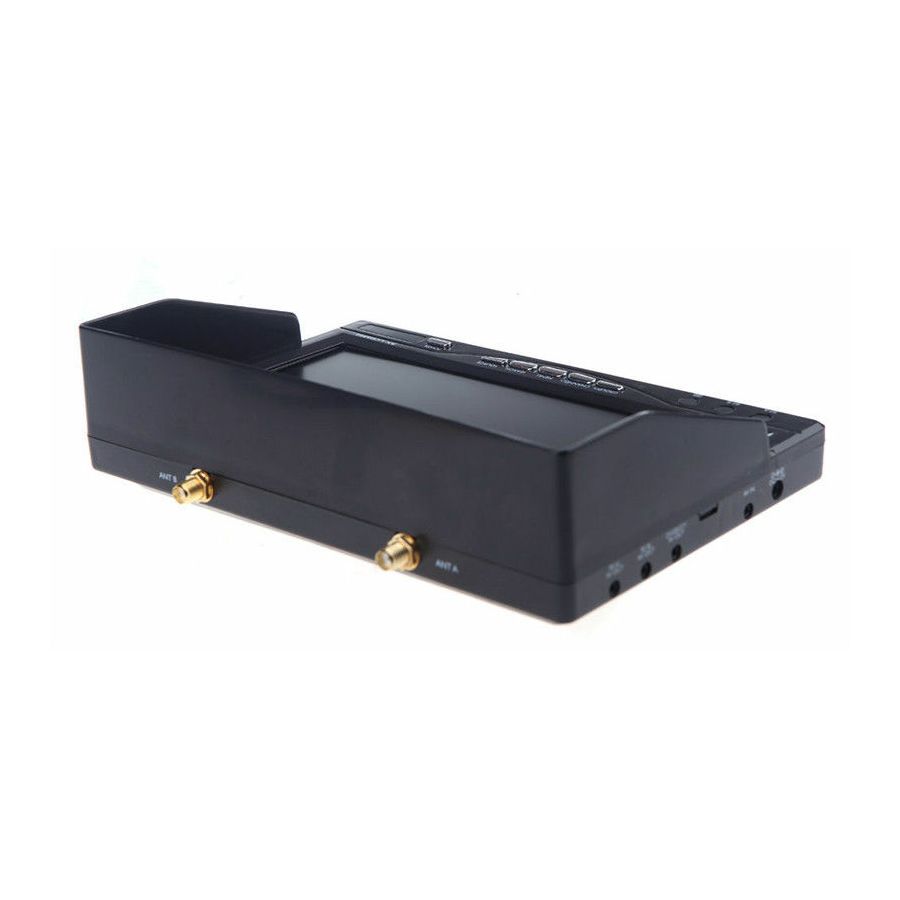

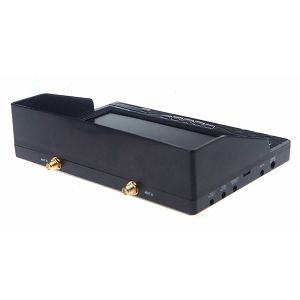

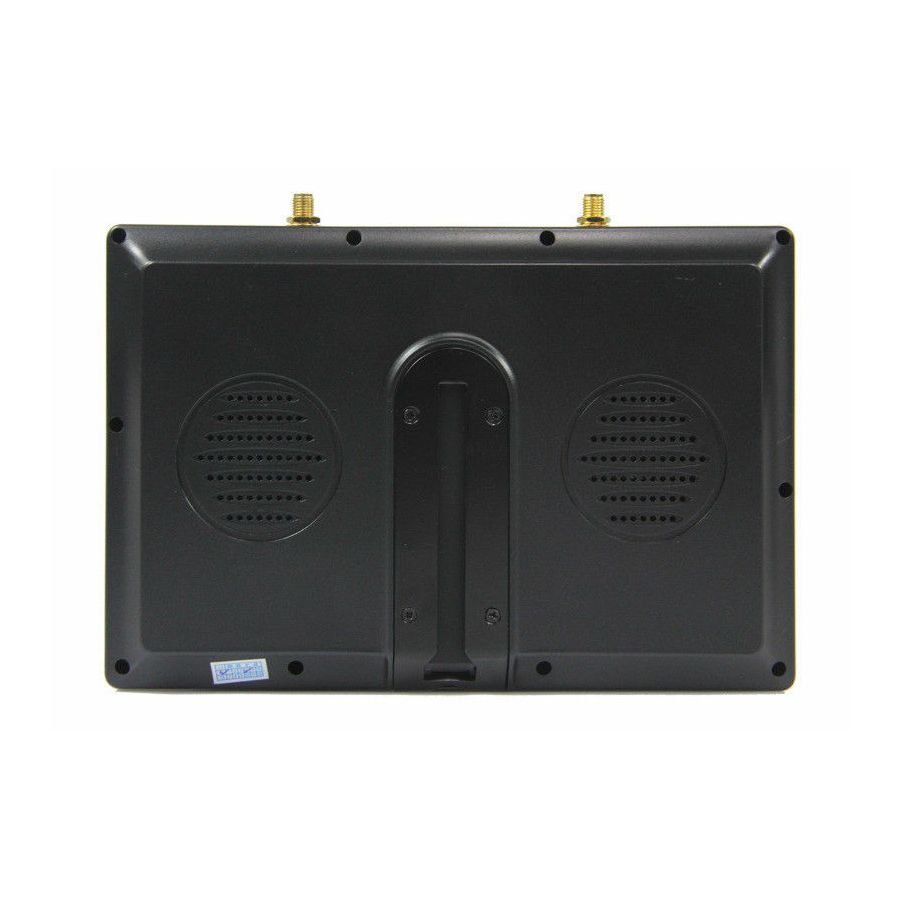

Ekran

Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in
Built-in high performance Li-POLYMER Battery:
Work status OSD display : RSSI indication ; Battery indicator;Channel indication
A key to automatic signal search
Support Chinese and English menu
Size: 180mm x 1
Working Voltage: DC 7~16V
Power Consumption: 650 mA @1
Battery charging current : 850mA @1
Working temperature: -10?~+ 65 ?

Features:
Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching

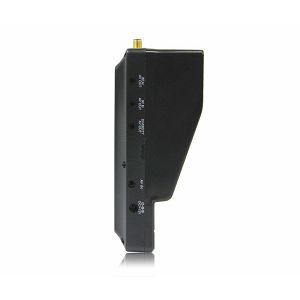

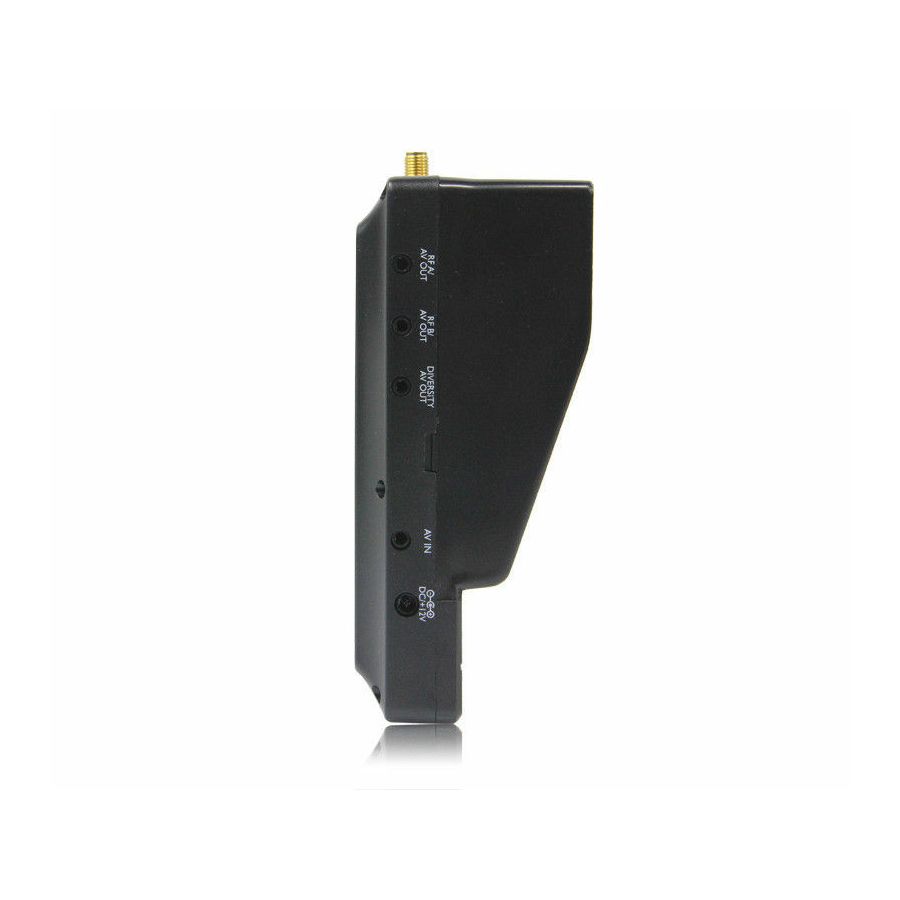

Dual buffered AV outputs
Can receive
Not affect by
AV Receiver with Diversity inputs
Small, light weight, durable
4 Bands and total 3
Built-in battery , easy to carry and outdoor use
A key to automatic signal search,Simple operation
Work status OSD display:Always be aware of the device working condition.

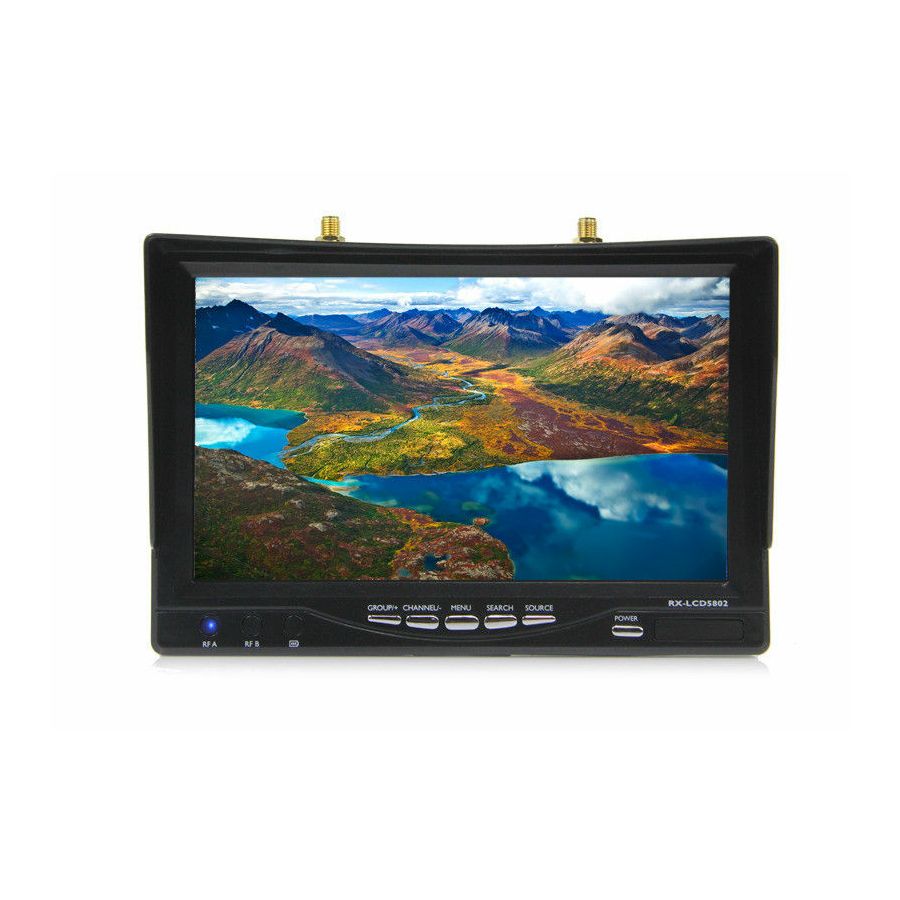

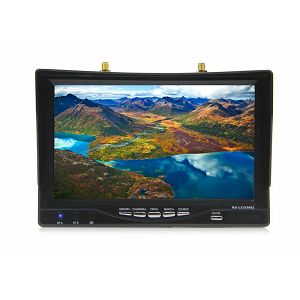

Display Parameters
Screen size:7”
Screen type:TFT LCD Screen/long life, LED backlight
Resolution: 800*480
Brightness: 450cd/m
View Angle:140/1

Helical 12dbi SMA light antena

1* 7 turns helical antenna with SMA connector, super robust Au-Ag wire made, no worry about the strength
This is a perfect antenna for long range 5.8G video flight, combined with the cloverleaf antenna.
Customized from biggest antenna factory in China, every antenna is carefully adjusted with professional instruments worth hundreds of thousands dollars, we bring in this awesome antenna with large quantity to make sure a reasonable price, at the meantime with excellent performance.

Cloverleaf & Plannar SMA 5.8Ghz antena

- Specialy balanced and calibrated, probably one of the best combo set in the world
- 4 lope antenna for receiver
- 3 lope antenna for transmitter
Frequency Range------------------------ 5725-5875 MHz
Impedance------------------------------- 50Ohm

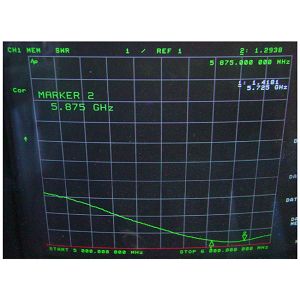

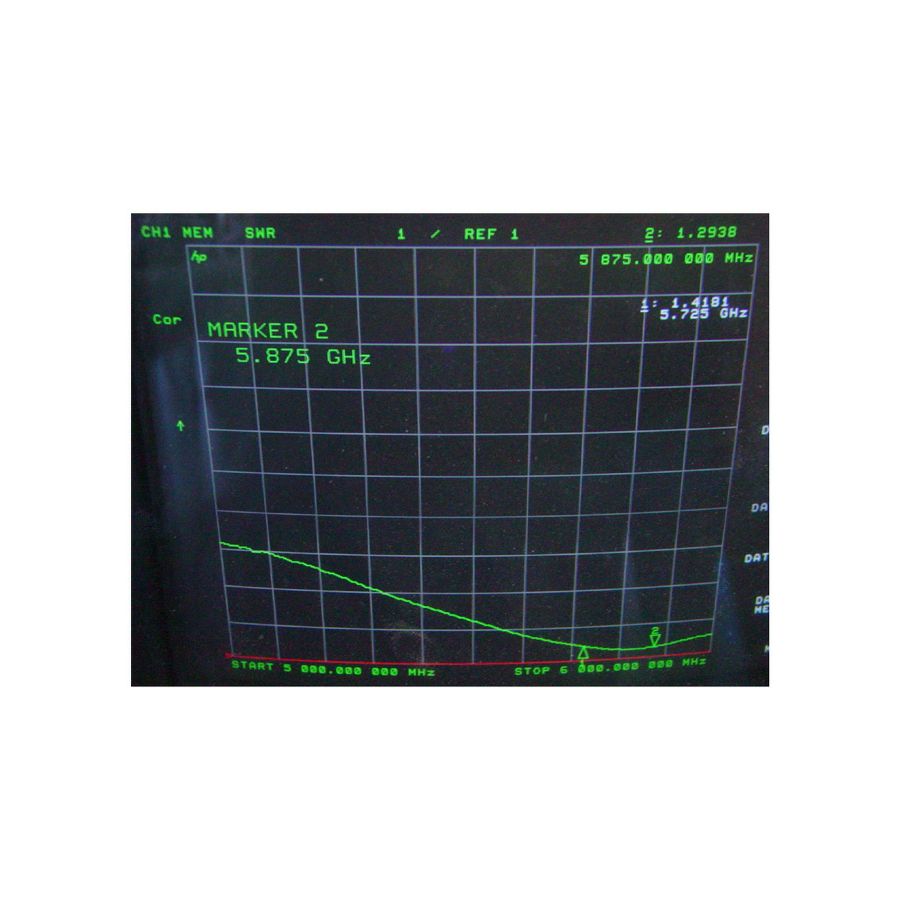

VSWR------------------------------------- less than 1.5
Gain--------------------------------------- 2.5 dBi
Polarization------------------------------- RHCP
Radiation--------------------------------- Omni
Maximum Power Input-watts----------- 20 W
Mechanical Specifictions
Connector-------------------------------- SMA-J
Coaxial Cable---------------------------- RG316
Soft Cable length------------------------ 65mm

5.8G 400mW Wireless AV Transmitter

Transmitter Frequency / Channel Amount:5705-5945MHz / 8CH
Output Power:400mW/25dBm
Transmission Distance: Min. 3KM line of sight
Frequency Control:Built-in frequency & phase lock loop
AV input:bAnalog AV signal input
ANT connector:SMA (needle inside)
Power Supply: DC 7-12 volts
Current Supply:300mA
Size: 55*26*17mm
Net weight:43g
Gross weight:52g
