DJI Inspire 1 RAW + 2 Extra SSDs (512G) dron Quadcopter with Zemuse X5R 4K Camera and 3-Axis Gimbal + 2 dodatna SSD diska od 512GB
PRODUCT HIGHLIGHTS
4K MFT Camera with 3-Axis Gimbal 15mm f/1.7 Lens Included Up to 1.2 Mile Radio Range GPS-Based Stabilization System Optical Flow Sensor for Indoor Flying DJI Lightbridge System Integrated Live 720p HD Monitoring with Lightbridge Retractable Carbon Fiber Arms Unobstructed 360° Shooting

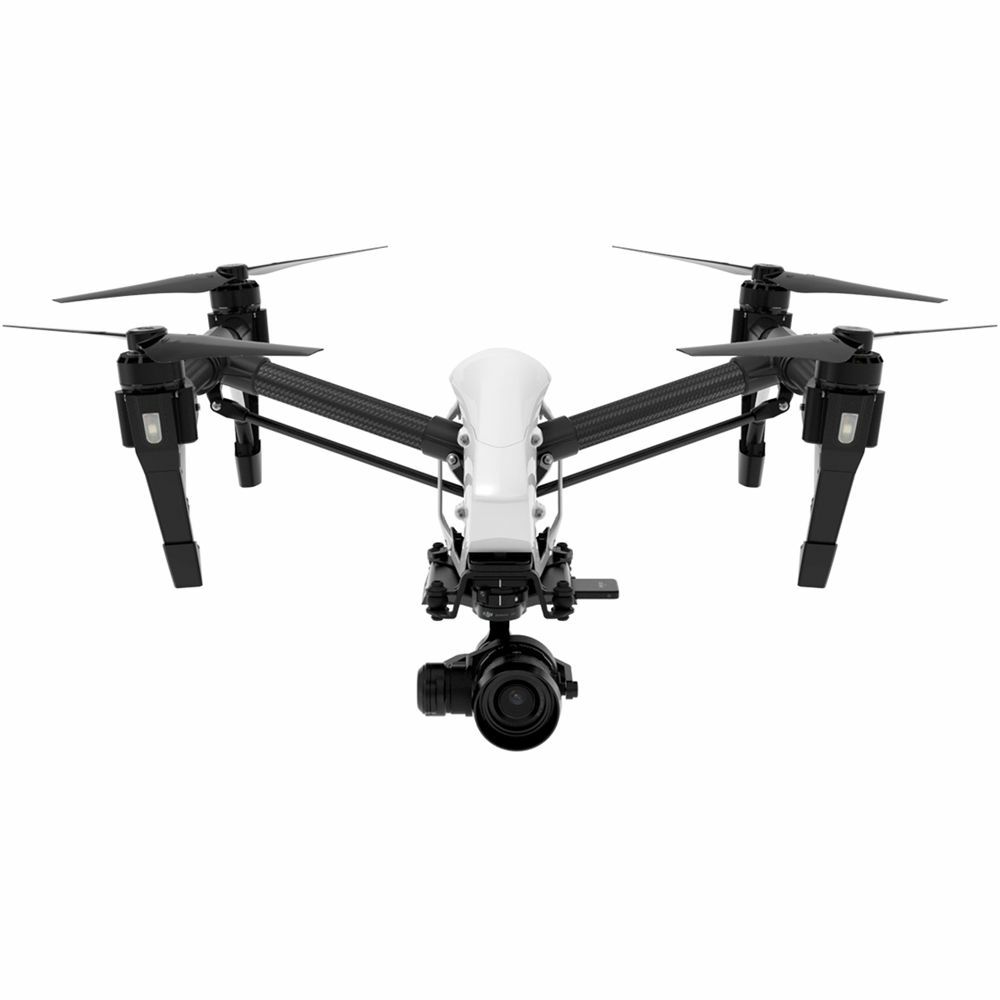

A Micro Four Thirds CMOS sensor with 4K image capture and RAW recording is introduced to DJI's quadcopter line with the Inspire 1 RAW featuring the Zenmuse X5R camera and gimbal system along with a 15mm f/1.7 lens. Forgoing the fixed landing gear design found on many earlier quadcopters, the Inspire 1 features a retractable arm system whereby the underside of each prop motor has a foot to act as a landing pod when the arms are lowered. In-flight, the arms lift up to provide the camera an unobstructed 360-degree view. A 3-axis gimbal keeps shots steady and the camera pointed the same direction as the quadcopter banks and turns. The camera records internally to microSDHC/SDXC memory cards or SSD drives and can also beam a live 720p feed to a mobile device running the DJI GO app or a monitor or FPV glasses with an HDMI input. Two transmitters (radio controllers) are included so that one operator can pilot and another can pan and tilt the camera. As with many other multi-rotor systems, the Inspire 1 relies on a GPS-based stabilization system that - thanks to spatial awareness - is able to hold a position even when experiencing wind interference, can compensate for overzealous pilot inputs to help avoid stalling, automatically brings the aircraft home in the event of signal loss or at the press of a button, and makes possible a number of semi-automated flight modes that can be enabled through the app. There is also an "indoor" mode which relies on Vision Position technology - combining optical flow with ultrasonics - to provide stability indoors or in other contexts where GPS is unavailable (Note: certain features will be unavailable in indoor mode). What Ready-to-Fly Means This Inspire 1 bundle comes ready-to-fly (RTF). This means a pre-bound transmitter (radio controller) is included and that no major assembly is required – in particular, no assembly that requires soldering. It is important – as with any multi-rotor – to follow the user guide to ensure proper calibration before embarking on your first flight Integrated 4K Camera with MFT Mount and 15mm Lens Micro Four Thirds Sensor with MFT Mount Sporting a Micro Four Thirds CMOS sensor, the Inspire 1 RAW introduces mirrorless camera performance to the Inspire series. The featuring a standard MFT mount, the Zenmuse X5R camera includes the Panasonic Lumix 15mm f/1.7 lens, and also works with the separately available Olympus M. ED 12mm f/2.0 lens 4K and HD Video Capture The Zenmuse X5R is able to capture video at up to DCI 4K 4096 x 2160 at 23.98p or UHD 4K at 29.97p RAW Video Recording In addition to H.264, the X5R features Cinema DNG RAW recording, which minimizes compression while maximizing latitude for image manipulation in post 16MP Stills Capability Not just for video, the Zenmuse X5R can snap still from the air at up to 16MP resolution. In addition to single-shot, the camera support busts of 3, 5, or 7 frames and can take time-lapse at stepped intervals of between three and 60 seconds. Photos are captured in either JPEG or DNG RAW. With the X5R, in addition to full-auto, Program, Shutter Priority, Aperture Priority, and Manual exposure modes are provided 3-Axis Gimbal The Zenmuse X5R camera is mounted via an integrated 3-axis gimbal which uses brushless servo motors to keep the shot stable and the horizon level. The camera pans a full 360-degrees so that no matter which way the quadcopter turns, the camera can remain locked on the subject. Manual panning and tilting can be affected using controls on the transmitter Live HD View A real-time feed from the Zenmuse X5R camera can be displayed in 720p HD on a mobile device or HDMI monitor, making this it a great choice for FPV (first-person view) flying as well as enabling videographers and photographers to monitor framing from the ground. This is made possible by the inclusion of the DJI Lightbridge system within the flight electronics, which features a range of up to 1.2 miles

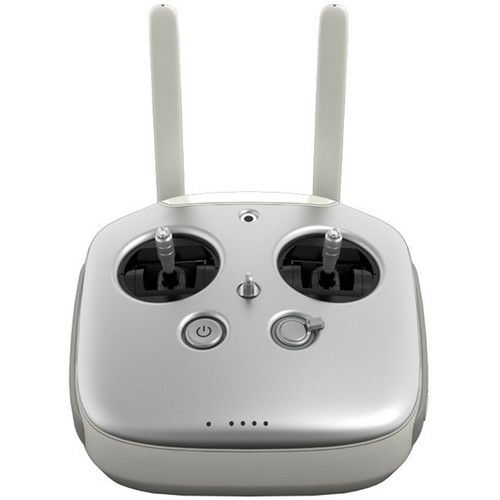

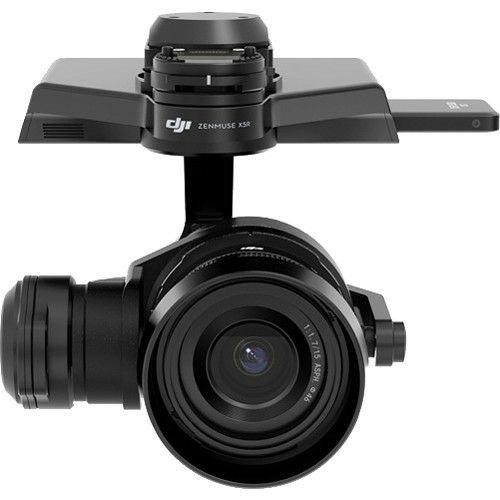

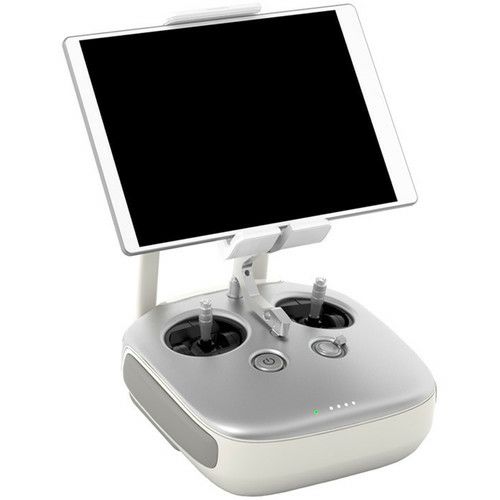

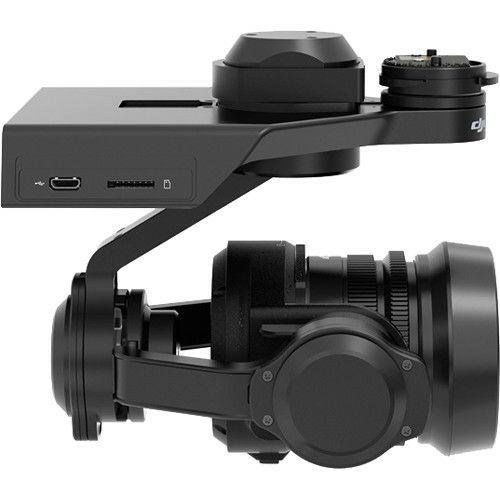

For connecting an FPV monitor or glasses there is an HDMI port on the transmitter. Plus there is a USB port to keep you mobile device's battery topped up. And included mount allows you to attach a smartphone or tablet directly to the transmitter Modular Gimbal and Camera The Zenmuse X5R gimbal and camera assembly can be removed from the Inspire 1 for safe transport and future upgrades Airframe Design Retractable Carbon Fiber Arms The prop arms rest in a lowered position when the Inspire is on the ground, acting as landing gear. Once in the air, they can be retracted to give the camera unobstructed views across 360-degrees. Carbon fiber is used in the construction because of its high strength to weight ratio Aerodynamic Design Not only does it give the Inspire 1 a sleek look, the aerodynamic airframe helps reduce resistance for better performance and increased battery life Flight Control System Fly Indoors and Without GPS DJI's Optical Flow technology uses a specially designed camera as well as sonic waves to provide the same stability function indoors as GPS does outdoors. This technology allows the Inspire to hold its location, stop when the controls are released, and quickly respond to pilot commands even when GPS is unavailable App-Based Control Software Everything from manual camera controls to flight telemetry – even auto takeoff and landing – can be accessed via the Inspire 1 Mobile app. It is also possible to create autopilot courses using waypoints, just as you would on the DJI iPad Ground Station System
Note: The tablet must be connected to the transmitter via USB, and to use the waypoint map an Internet connection is required Manual Mode Change all of your camera settings, including ISO, White Balance, Exposure, and more on the fly ensuring every shot looks exactly the way you want Live Map and Radar See precisely where your Inspire 1 is at all times on the live map. The map can be enlarged when needed, and shows your most recent flight path Dynamic Home Point When GPS signal is available on the transmitter (remote control), the Home Point automatically refreshes. This becomes useful while traveling in a car or on a boat allowing the return-to-home point to move where the operator goes. Multiple configurations are available via the Dynamic Home Point function Auto-Takeoff and Landing Takeoff and landing are available with just a tap. Tap once to takeoff and your Inspire 1 will hover and transform, ready to start filming. Then tap again to make it transform into landing mode and auto land Transmitter Customization Put yourself in charge by tailoring the Inspire 1's controls to your personal needs. This way, your Inspire 1 moves and responds in ways you're most comfortable with Transmitter (Radio Controller) Take control of your Inspire 1 in the air with a dedicated transmitter (radio controller) designed specifically for it. Operating on 2.4 GHz, it features dedicated buttons for photo and video capture, a gimbal control dial, and more. It includes an integrated 6000mAh rechargeable battery Smart Battery System Smart Power Management The flight battery constantly supplies the flight computer with remaining voltage. Using special algorithms the computer supplies the pilot with estimates of remaining flying distance and time to return home Automated Charging The battery tracks the voltage of each cell, the total number of charges and discharges, and the overall health and battery status
SPECIFIKACIJE:
Performance Hovering Accuracy (GPS Mode) Vertical: 1.6' / 0.5 m Horizontal: 8.2' / 2.5 m Maximum Angular Velocity Pitch: 300°/s Yaw: 150°/s Maximum Tilt Angle 35°/s Maximum Ascent/Descent Speed Ascent: 16.4 fps / 5 m/s Descent: 13.1 fps / 4 m/s Maximum Speed 72.2 fps / 22 m/s (Attitude mode; no wind) Maximum Flight Altitude 14,764' / 4,500 m Maximum Wind Speed Resistance 32.8 fps / 10 m/s Maximum Flight Time Up to 18 minutes Camera Model Name: Zenmuse X5R Lens Mount MFT (Micro Four Thirds) Photo Resolution 16 MP (4608 x 3456) Video Resolution DCI 4K (4096 x 2160): 24p, 25p UHD 4K (3840 x 2160): 25p, 30p FHD (1920 x 1080): 24p, 25p, 30p, 48p, 50p, 60p Field of view (FOV) 15 mm f1.7 :72° (included) 12 mm f2.0:84° (available separately) Photo Modes Single shot Burst: 3, 5, or 7 frames Auto Exposure (AE) Bracketing: 3/5 bracketed frames at 0.7 EV bias Time-Lapse: 3, 5, 7, 10, 20, 30, or 60 second intervals ISO Range 100 to 25600 Shutter Speed 8 to 1/8000 second Video Bitrate Up to 2.4 Gbps (1.7 Gbps average) Supported File Types Photo: JPEG, DNG RAW Video: MP4, MOV (MPEG-4/AVC/H.264F) RAW Video: CinemaDNG RAW File System: FAT32 / exFAT Recording Media Class 10 / UHS-1 or better microSD (up to 64 GB) 512 GB SSD (for RAW video recording) Power Consumption Static: 19.5 W Peak: 25 W Operating Temperature 32 to 104°F / 0 to 40°C Dimensions (H x W x D) 5.4 x 4.9 x 5.2" / 136 x 125 x 131 mm Weight With Standard Lens, Balancing Ring, Lens Hood, and microSD card: 1.3 lb / 583 g Lens Model DJI MFT 15 mm f/1.7 ASPH Mount MFT (Micro Four Thirds) Focal Length 15 mm 35 mm Equivalent: 30 mm Aperture Range f/1.7 to f/16 Focus Range 0.7' (0.2 m) to ? Field of View 72° Elements 9 elements in 7 groups (3 aspherical elements) Aperture 7 diaphragm blades / circular aperture diaphragm Dimensions Maximum Diameter: 2.3" / 57.5 mm Length: 1.4" / 36 mm Weight 4.1 oz / 115 g Gimbal Model Zenmuse X5R Mount Detachable Number of Axes 3-axis Control Angle Accuracy ±0.02° Control Range Pitch: -90° to +30° Pan: ±320° Manual Control Speed Pitch: Up to 120°/second Pan: Up to 180°/second Flight Controller Indoor Hovering Enabled by default Vision Positioning Frequency: 50 Hz Velocity Range: Below 26.2 fps / 8 m/s (6.6' / 2 m above the ground) Altitude Range: 2 to 196.8" / 5 to 500 cm Operating Environment: Rich pattern surface with adequate lighting (> 15 lux) Operating Range: 0 to 8.2' / 0 to 2.5 m Motor Model DJI 3510 Propeller Model DJI 1345 Transmitter Operating Frequency Transmitter to Transmitter: 5.728 to 5.850 GHz Transmitter to Aircraft: 2.400 to 2.483 GHz Range Line-of-Sight: Up to 6561.7' / 2000 m Receive Sensitivity 1% PER:-93 dBm EIRP 10 dBm at 900 MHz; 8 dBm at 5.8 GHz; 20 dBm at 2.4 GHz Connectivity 1 x USB type A female (for connecting mobile device) 1 x Micro-USB for firmware updates 1 x Mini-HDMI video output for FPV 1 x CAN-Bus port (for future accessory) Dual User Capability Host-and-slave connection Mobile Device Holder Tablet or smartphone Output Power 9 W Power Requirements 1.2 A at 7.4 VDC Battery 6S LiPo; 6000 mAh Charging Temperature Less than 3 Months: -4 to 113°F / -20 to 45°C More than Three Months: 72 to 82°F / 22 to 28°C Storage Temperature 72 to 82°F / 22 to 28°C -4°F / -20°C Mobile Device Holder Device Width: 2 to 6.7" / 5 to 17 cm Flight Battery Model TB47 Voltage 6S LiPo; 22.2 VDC Capacity 4500 mAh / 99.9 Wh Maximum Charging Power 180 W Operating Temperature -4 to 104°F / -20 to 40°C Storage Temperature -4 to 113°F / -20 to 45°C 72 to 82°F / 22 to 28°C Charging Temperature 32 to 104°F / 0 to 40°C Weight 1.3 lb / 570 g Charger Model A14-100P1A Voltage 26.3 VDC Output Power 100 W Mobile App System Requirements iOS: 7.1 or later Android: 4.1.2 or later Note: The device must be connected to a transmitter via USB (wireless linking is not supporting). Additionally, waypoint navigation requires an active Internet connection in order to load the maps General Model Aircraft: T600 Operating Temperature 14 to 104°F / -10 to 40°C Dimensions Diagonal Distance: Landing Gear Lowered: 22" / 559 mm Landing Gear Raised: 22.9" / 581 mm Overall Dimensions: 17.2 x 17.8 x 11.9" / 438 x 451 x 301 mm Weight Not specified by manufacturer Packaging Info Package Weight 24.2 lb Box Dimensions (LxWxH) 22.5 x 21.0 x 12.0"
UKLJUČUJE:

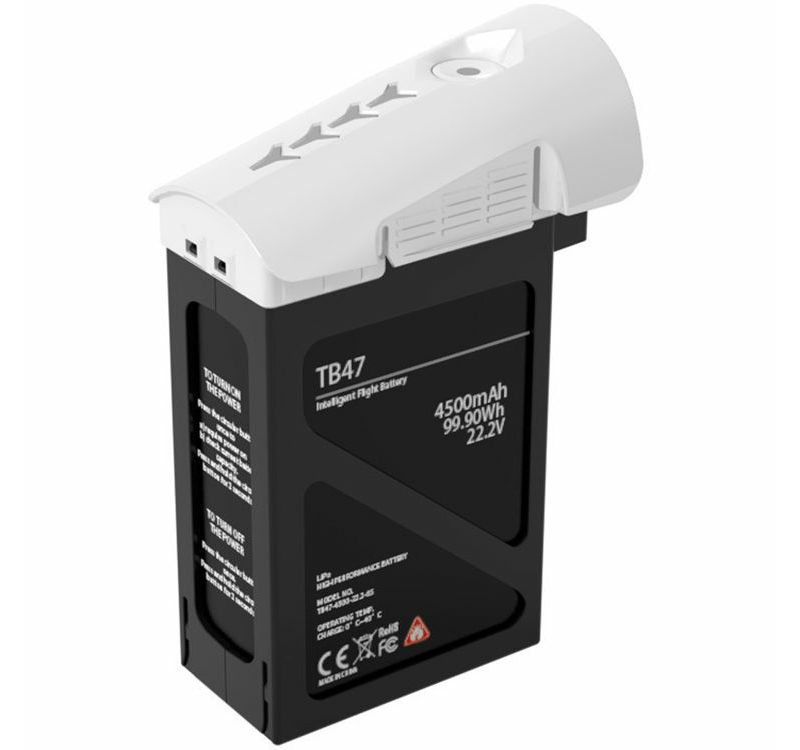

DJI Inspire 1 RAW Quadcopter with Zenmuse X5R 4K Camera and 3-Axis Gimbal 2 Extra SSDs (512G) Zenmuse X5R RAW Camera and 3-Axis Gimbal MFT 15mm f/1.7 ASPH Prime Lens TB47 Intelligent Flight Battery for Inspire 1 (99.9Wh, White) Flight Battery Charger Power Cord Controller Charging Cable 4 x Spare Prop CW/CCW Pairs Controller Harness Box for Camera with Gimbal 512GB SSD for Zenmuse X5R Camera SSD Reader for Zenmuse X5R Camera 2 x Micro-USB Cables Suitcase for Inspire 1 Quadcopter
