DJI Lightbridge Spare Part 14 5.8G Transmitter & Receiver Combo for Phantom 2 Quadcopter

Converts Phantom 2 to 5.8 GHz Radio
Enables use of 2.4 GHz Accessories
Required when Installing Lightbridge



The 5.8 GHz Transmitter and Receiver Combo for Phantom 2 Quadcopter from DJI is intended to replace the original transmitter and receiver pair included with the Phantom 2 so that the aircraft can use 2.4 GHz accessories such as Lightbridge without the risk of radio interference. It is the same system that comes with the Phantom 2 Vision and Phantom 2 Vision+ models.

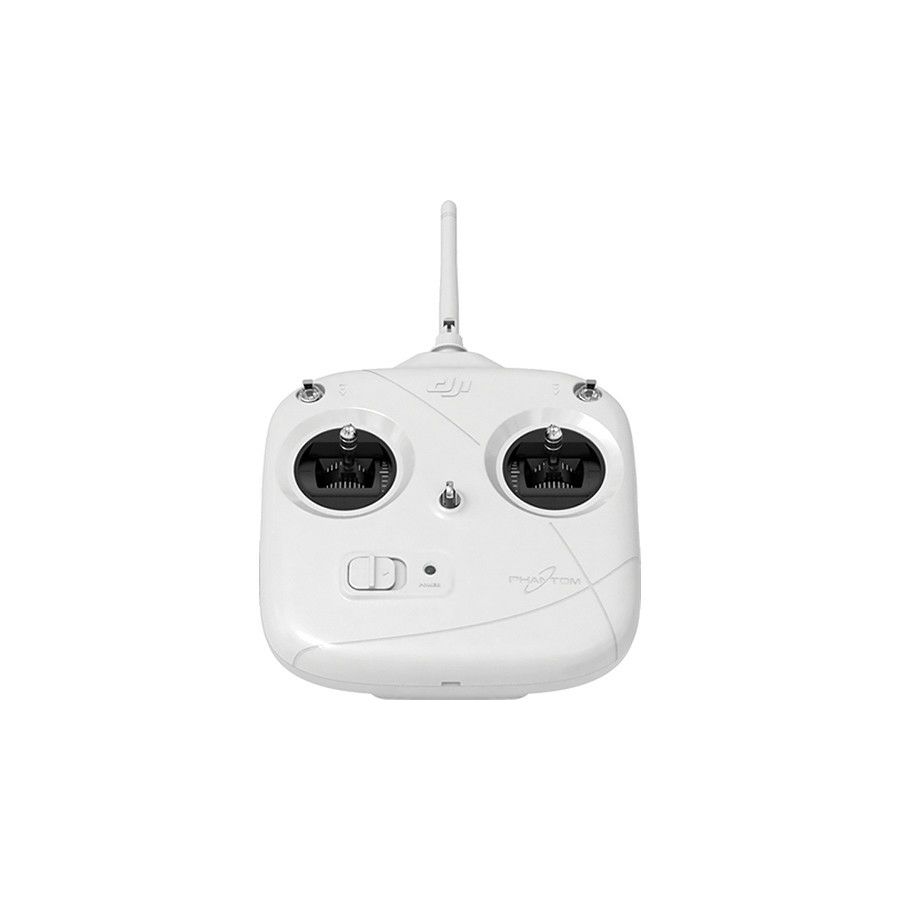

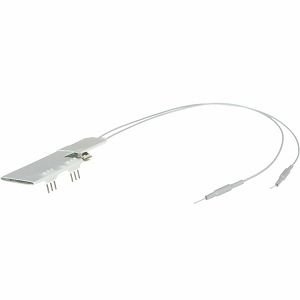

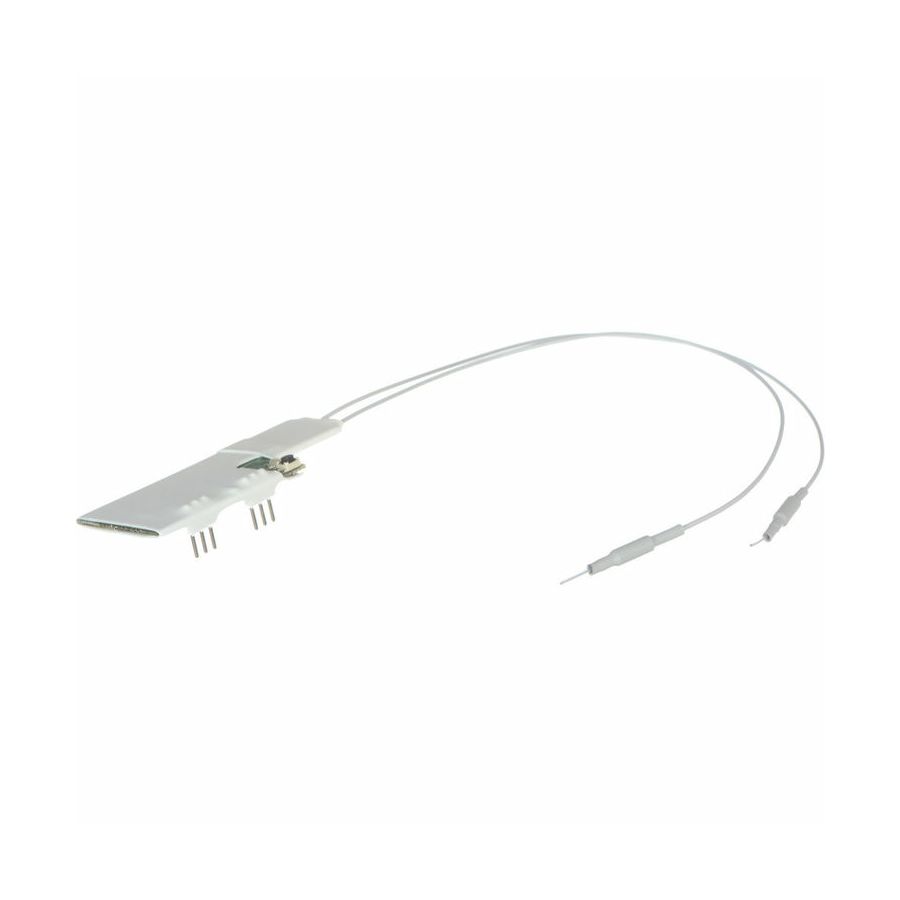

The transmitter is the hand-held radio controller while the receiver is the air-end component that installs inside the aircraft and interfaces with the flight control system. Installation of the receiver requires opening the Phantom 2's body shell, and will involve soldering.

Use 2.4 GHz accessories such as Lightbridge without interfering with the control signal



SPECIFIKACIJA:

Transmitter
Operating Frequency 5.728 to 5.8 GHz
Transmit Power 125 mW
Communication Distance Up to 2624.7 line-of-sight while meeting FCC requirements

Note: Operating at this power may not be approved in jurisdictions outside the U.S.
Working Voltage 80 mA at 6V

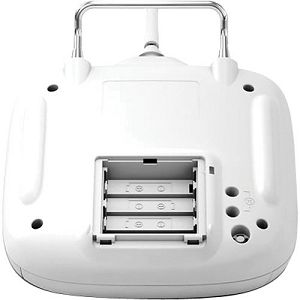

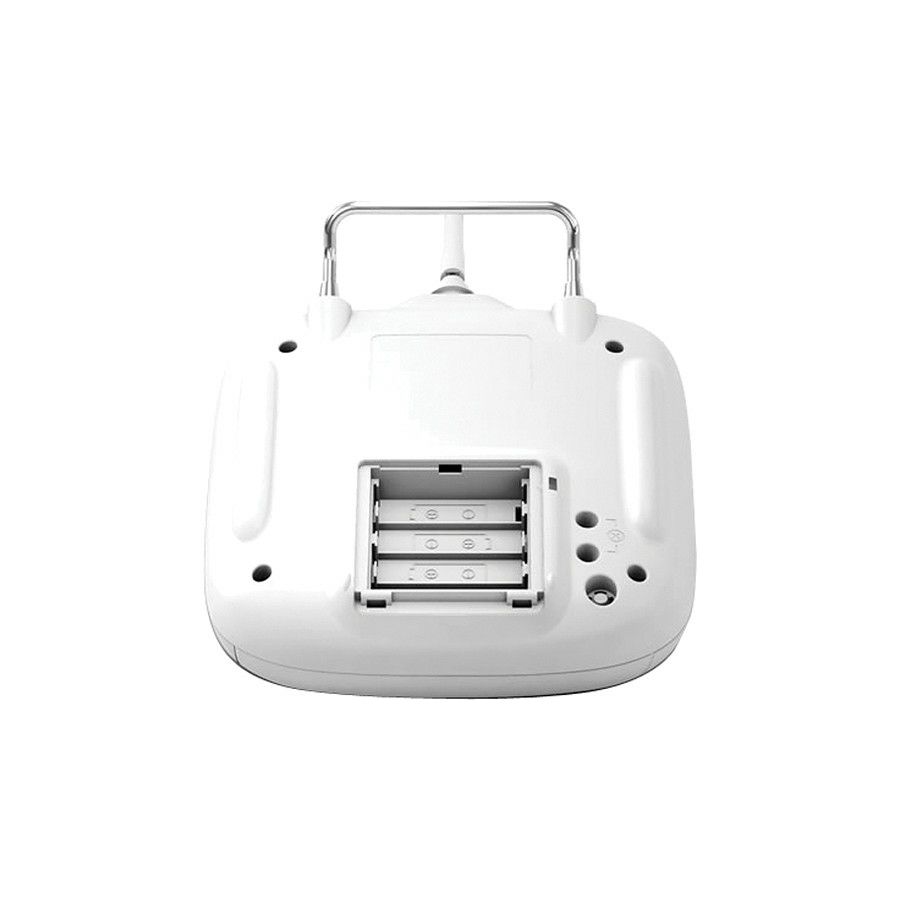

Power Source 8 x AA batteries
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer
Receiver
Sensitivity -93 dBm (1% PER)
Power Source Aircraft flight battery
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer
