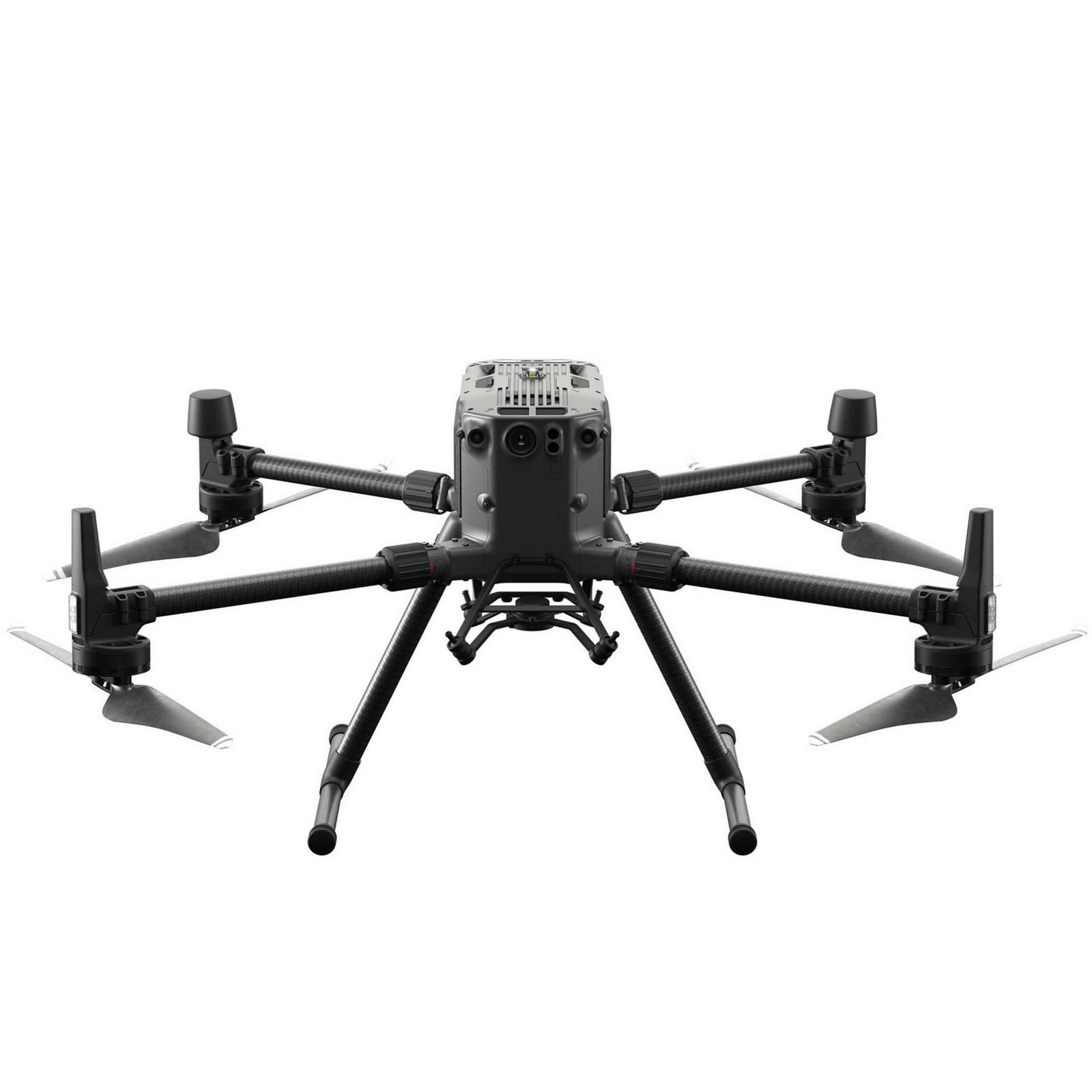

DJI Matrice 300 RTK
ZNAČAJKE:
15 km Max Transmission*
55-min Max Flight Time*
6 Directional Sensing & Positioning
Primary Flight Display
IP45 Rating
-20°C to 50°C Operating Temperature
Hot-swappable Battery
UAV Health Management System
Flight Battery Not Included & Required
Built-In RTK Module
Compatible with Zenmuse Cameras
Improved Transmission System
The all-new OcuSync Enterprise enables transmission up to 15 km away and supports triple-channel3 1080p video. Real-time auto-switching between 2.4 GHz and 5.8 GHz4 enables more reliable flight near high-interference environments, while AES-256 encryption offers secure data transmission.
15km Transmission Range
1080p Triple-channel Video
2.4 /5.8 GHz Real-time Auto-switching
Enhanced Flight Performance
The refined airframe and propulsion system design gives you a more efficient and stable flight, even in harsh conditions.
55min Max Flight Time
7m/s Max Descend Speed
7000m Service Ceiling
15m/s Wind Resistance
23m/s Max Speed
Multiple Payload Configurations
Configure your M300 RTK to fit your mission needs. Mount up to 3 payloads simultaneously, with a maximum payload capacity of 2.7 kg.
Live Mission Recording
Record mission actions such as aircraft movement, gimbal orientation, photo shooting, and zoom level to create sample mission files for future automated inspections.
AI Spot-Check7
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the subject of interest and identifies it in subsequent automated missions to ensure consistent framing.
Waypoints 2.0
Create up to 65,535 waypoints and set multiple actions for one or more payloads, including 3rd party ones, at each waypoint. Flightpath planning is also optimized to maximize flexibility and efficiency for your missions.
PinPoint
Mark an object in camera or map view with a quick tap, and advanced sensor fusion algorithms will immediately calculate its coordinates, which are projected to all camera views as an AR icon. The location of the subject is automatically shared with another remote controller, or to online platforms such as DJI FlightHub9.
Smart Pin & Track8
PinPoint
Mark an object in camera or map view with a quick tap, and advanced sensor fusion algorithms will immediately calculate its coordinates, which are projected to all camera views as an AR icon. The location of the subject is automatically shared with another remote controller, or to online platforms such as DJI FlightHub9.
Smart Track
Identify and follow moving subjects like people, vehicles, and boats with the Smart Track function, where auto-zoom is applied for steady tracking and viewing. The subject’s dynamic location is continuously acquired and shared to another remote controller or to DJI FlightHub9.
Aviation-Grade Situational Awareness
The M300 RTK adopts a new Primary Flight Display (PFD) that integrates flight, navigation, and obstacle information to empower the pilot with exceptional situational awareness.
Flight Information
Flight information such as aircraft attitude, altitude, and velocity, as well as wind speed and wind direction, are all intuitively presented.
Navigation Display
Pilots can also view the live status of the aircraft’s heading, trajectory, PinPoint information, and home point projection, in a more efficient way. Visualize all nearby obstacles at once with the new obstacle map, so you can be fully informed.
Advanced Dual Control
Either operator can now obtain control of the aircraft or payload with a single tap. This creates new possibilities for mission strategies as well as higher flexibility during operations.
A Powerful Vision System You Can Rely On
To enhance in-flight safety and aircraft stability, dual-vision and ToF sensors appear on all six sides of the aircraft, offering a maximum detection range of up to 40 m, with options to customize the aircraft’s sensing behavior via the DJI Pilot App. Even in complex operating environments, this 6 Directional Sensing and Positioning system helps keep the aircraft and the mission safe.
Professional Maintenance for Your Drone Fleet
The new integrated Health Management System displays the current status of all systems, notification logs, and a preliminary troubleshooting guide. Also in the system are the aircraft’s flight logs, duration, and mileage throughout its entire lifecycle, and tips on aircraft care and maintenance
Redundancy Systems for Safer Flights
The M300 RTK’s built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.
More Adaptable Than Ever Before
IP45
Self-Heating Battery
-20°C to 50°C
Anti-Collision Beacon
AirSense ADS-B Receiver
SPECIFIKACIJE:
Aircraft
Dimensions
Unfolded, propellers excluded, 810×670×430 mm (L×W×H)
Folded, propellers included, 430×420×430 mm (L×W×H)
Diagonal Wheelbase
895 mm
Weight (with single downward gimbal)
Approx. 3.6 kg (without batteries)
Approx. 6.3 kg (with two TB60 batteries)
Single Gimbal Damper’s Max Payload
930g
Max Takeoff Weight
9 kg
Operating Frequency
2.4000-2.4835 GHz
5.725-5.850 GHz
EIRP
2.4000-2.4835 GHz:
29.5 dBm (FCC); 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)
5.725-5.850 GHz:
28.5 dBm (FCC); 12.5dBm (CE)
28.5 dBm (SRRC)
Hovering Accuracy (P-mode with GPS)
Vertical:
±0.1 m (Vision System enabled)
±0.5 m (GPS enabled)
±0.1 m (RTK enabled)
Horizontal:
±0.3 m (Vision System enabled)
±1.5 m (GPS enabled)
±0.1 m (RTK enabled)
RTK Positioning Accuracy
When RTK enabled and fixed:
1 cm+1 ppm (Horizontal)
1.5 cm + 1 ppm (Vertical)
Max Angular Velocity
Pitch: 300°/s, Yaw: 100°/s
Max Pitch Angle
30° (P-mode, Forward Vision System enabled: 25°)
Max Ascent Speed
S mode: 6 m/s
P mode:5 m/s
Max Descent Speed (vertical)
S mode: 5 m/s
P mode:4 m/s
Max Descent Speed (tilt)
S Mode: 7 m/s
Max Speed
S mode: 23 m/s
P mode:17 m/s
Service Ceiling Above Sea Level
5000 m (with 2110 propellers, takeoff weight ? 7 kg) / 7000 m (with 2195 propellers, takeoff weight ? 7 kg)
Max Wind Resistance
15 m/s (12 m/s when taking off or landing)
Max Flight Time
55 min
Supported DJI Gimbals
Zenmuse XT2/XT S/Z30/H20/H20T/DJI P1/DJI L1
Supported Gimbal Configurations
Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals
Ingress Protection Rating
IP45
GNSS
GPS+GLONASS+BeiDou+Galileo
Operating Temperature
-20°C to 50°C (-4°F to 122° F)
Remote Controller
Operating Frequency
2.4000-2.4835 GHz
5.725-5.850 GHz
Max Transmitting Distance (unobstructed, free of interference)
NCC/FCC: 15 km
CE/MIC: 8 km
SRRC: 8 km
EIRP
2.4000-2.4835 GHz:
29.5 dBm (FCC) 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)
5.725-5.850 GHz:
28.5 dBm (FCC); 12.5dBm (CE)
20.5 dBm (SRRC)
External battery
Name: WB37 Intelligent Battery
Capacity: 4920 mAh
Voltage: 7.6V
Type: LiPo
Energy: 37.39Wh
Charging time (using BS60 Intelligent Battery Station): 70 minutes (15°C to 45°C); 130 minutes (0°C to 15°C)
Built-in battery
Type: 18650 lithium ion battery (5000 mAh @ 7.2 V)
Charging: Use a USB charger with specification of 12V / 2A
Rated power: 17 W
Charging time: 2 hours and 15 minutes (Using a USB charger with specification of 12V / 2A)
Battery Life
Built-in battery: Approx. 2.5h
Built-in battery+External battery: Approx. 4.5h
USB Power Supply
5 V / 1.5 A
Operating Temperature
-20°C to 40°C (-4 °F to 104 °F)
Vision System
Obstacle Sensing Range
Forward/Backward/Left/Right: 0.7-40m
Upward/Downward: 0.6-30m
FOV
Forward/Backward/Downward: 65° (H), 50° (V)
Left/Right/Upward: 75°(H), 60°(V)
Operating Environment
Surfaces with clear patterns and adequate lighting (> 15 lux)
Infrared ToF Sensing System
Obstacle Sensing Range
0.1-8m
FOV
30° (±15°)
Operating Environment
Large, diffuse and reflective obstacles (reflectivity >10%)
Top and bottom auxiliary light
Effective lighting distance
5 m
FPV Camera
Resolution
960p
FOV
145°
Frame rate
30 fps
Intelligent Flight Battery
Name
TB60
Capacity
5935 mAh
Voltage
52.8 V
Battery Type
LiPo 12S
Energy
274 Wh
Net Weight
Approx. 1.35 kg
Operating Temperature
-4°F to 122°F (-20°C to 50°C)
Ideal storage temperature
71.6°F to 86°F (22°C to 30°C)
Charging Temperature
-4°F to 104°F (-20°C to 40°C)
(When the temperature is lower than 5°C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Charging time
Using BS60 Intelligent Battery Station:
220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%)
110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%)
BS60 Intelligent Battery Station
Dimensions
501*403*252mm
Net Weight
8.37kg
Maximum Capacity
TB60 Intelligent Flight Battery × 8
WB37 Intelligent Battery × 4
Input
100-120 VAC, 50-60 Hz / 220-240 VAC, 50-60 Hz
Max. Input Power
1070W
Output Power
100-120 V: 750 W
220-240 V: 992 W
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
UKLJUČUJE:
DJI Matrice 300 Commercial Quadcopter with RTK (samo tijelo drona)
DJI Smart Controller Enterprise
USB Charger
USB Type-C Cable
DJI LiPo Battery Pack for DJI CrystalSky & Cendence (7.6V, 4920mAh)
2 x 2110 Propeller (CW)
2 x 2110 Propeller (CCW)
2 x Landing Gear
Pair of Spare Stick Covers
2 x Spare Propeller Holder
4 x Spare Gimbal Dampers
USB Type-A Cable
Vision System Calibration Plate
Carrying Case
Smart Controller Lanyard
Set of Rubber Port Cover
Installation Hardware
