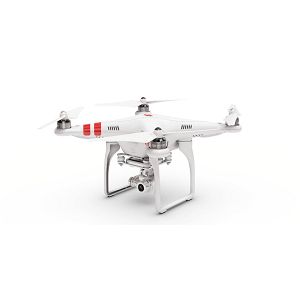

DJI Phantom 2 Vision+ Quadcopter RTF with Gimbal-Stabilized 14MP 1080p Camera
Ready to fly

Product Highlights

Camera with 3-Axis Gimbal Stabilizer
Takes 14MP Still and 1080p Video
Wi-Fi Downlink for Smartphones
iOS/Android App for Monitoring/Control
Up to 25 Minutes Flying Time

GPS-Based Autopilot with Return to Home
Intelligent Orientation Control (IOC)
Stationary Hover with GPS Attitude Mode
LED Indicators & Low Voltage Protection
Self-Tightening Prop Design

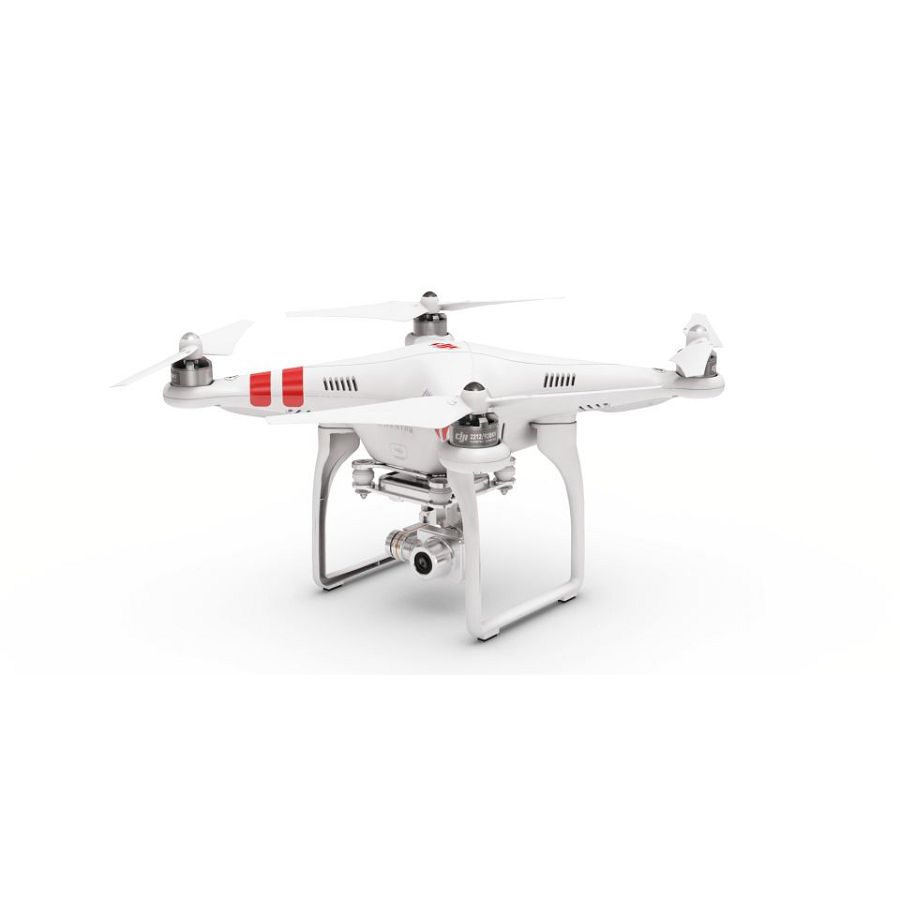

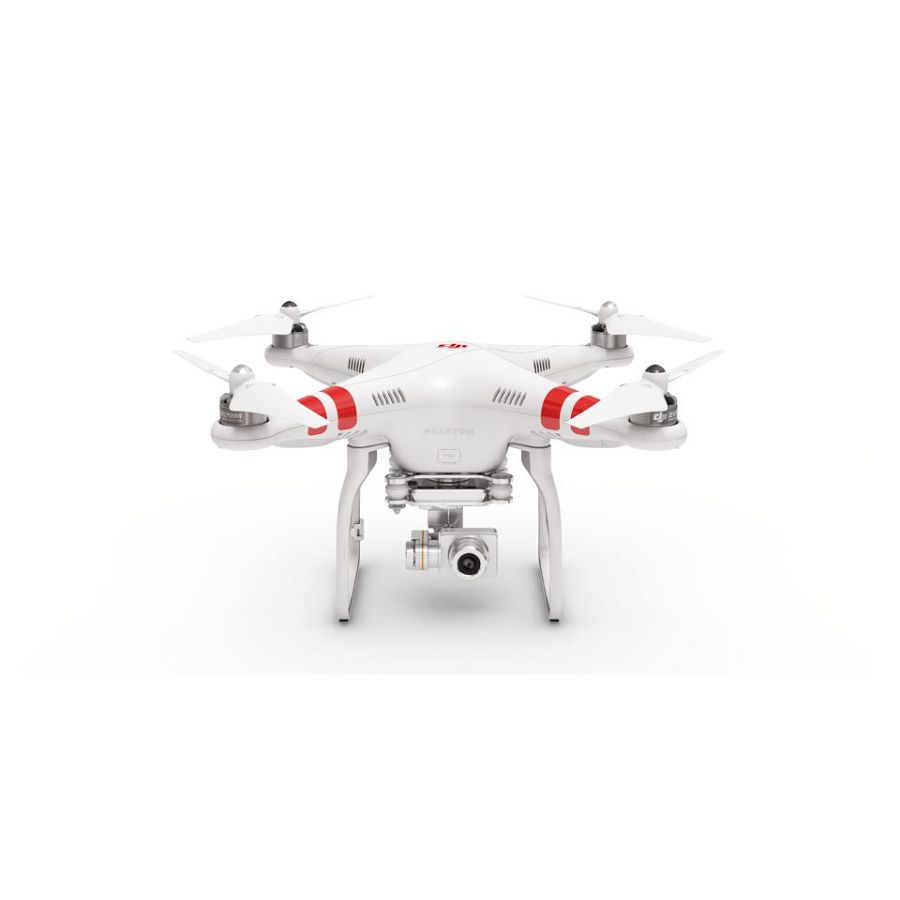

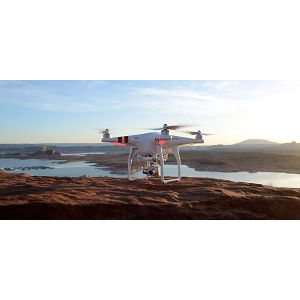

The Phantom 2 Vision+ Quadcopter with Gimbal-Stabilized 14MP, 1080p Camera from DJI is based on the same air frame as the Phantom 2 and Phantom 2 Vision. Unlike its siblings, however, it features a 14 MP camera that is stabilized and controlled with an integrated 3-axis gimbal. Gimbal stabilization makes the Phantom 2 Vision+ ideal for shooting aerial footage and photos. The camera can take 14 MP, Adobe DNG RAW photos, and can record video in 1080p Full HD at 30 fps or 720p at 60 fps for creating slow motion effects.

The Phantom 2 Vision+ ships ready-to-fly, meaning that a radio controller--often referred to as a transmitter is included with it and is pre-bound to the aircraft and that only minimal assembly using common household tools is required. It features a 5,200 mAh battery that can sustain the quadcopter in the air for up to 25 minutes. The transmitter features a line-of-sight range of up to 2625', depending on conditions.

The camera is controlled via 2.4 GHz Wi-Fi using an app available for iOS and Android devices. Using the supplied mount, you can attach your smartphone directly to the controller, giving you a "heads up" display directly from the camera's point-of-view. From the app you will also be able to start and stop video recording, take a snapshot and even tilt the camera up or down.

Because of the complexity associated with multi-rotor aircraft the Phantom 2 Vision+ relies on a GPS-based navigation system to maintain flight stability and provide other features. While fully manual operation is possible, most users, especially videographers hoping to get the smoothest possible shoots, will opt for GPS attitude mode. GPS attitude mode is an autopilot system that keeps the Quadcopter stable and right-side-up when moving, and holds it in a fixed horizontal and vertical position whenever you release the controls. This is ideal for shooting video because you can compensate for light or moderate wind that might otherwise cause the aircraft to drift.

As with the other Phantom 2 models, 5200 mAh battery system is simplified over the original version 1 Phantom. The battery now slots in, and provides LED indicators on outside, tail-end of the aircraft so they can be seen in flight. Charging is also simplified, with all of the charging circuitry built into the battery itself. You simply need to plug it into the wall with the supplied universal AC adapter. An DC car charger, available separable, can also be used.

The Phantom 2 Vision+ includes a Wi-Fi Range extender that will increase the wireless range of the smartphone used for FPV camera operation up to nearly 2300' line-of-sight. The range extender mounts on the transmitter (radio controller) along with the smartphone.

Finally, there is a 4GB MicroSD card included to help get you started filming and taking photos with the 14MP camera.

Gimbal Stabilized 14 MP HD Camera
The Phantom 2 Vision+ features a 14 MP camera specially with integrated 3-axis gimbal designed specifically for use with the Quadcopter. In addition to photos, the camera can record 1920 x 1080 resolution video at 30 fps and 720 video at 60 fps. The camera is controlled wirelessly via WiFi using an app available for smartphones with Android or iOS. Internal recording is to a MicroSD memory cards. Additionally, once captured footage can be uploaded from your smartphone to social media websites such as Facebook

Attitude and GPS Attitude Flight Modes
The Phantom 2 Vision+ flight control system has two computer-assisted flight modes for you to choose from. Of the two, GPS attitude mode is the most automatic. In GPS attitude mode the Quadcopter will stop as soon as you release the controls and stay hovering at a fixed horizontal and vertical position. This setting is the easiest to fly and is generally preferred for shooting video as the Quadcopter won't sway or drift because of light wind gusts

The second, attitude mode, is a more manual flying mode in which the Phantom Vision does not try and maintain a fixed spatial position. When you release the controls it will continue to drift unless friction slows it down or you stop it. And in this mode it will be more likely to be blown around if there is any wind. This not a true manual mode, however, in that the GPS navigation system is still used to maintain flight stability and by the "return to home" feature in the event of signal loss.

Return to Home Failsafe
If the Quadcopter loses the signal from the controller for any reason the "return to home" feature will initialize. The aircraft will ascend to 60 feet then make a straight-line course back to the "home position" you will have defined during the GPS calibration process. Once there, it will safely descend to the ground and power itself off

Intelligent Orientation Control (IOC)
IOC is designed to help make flying more intuitive. Nominally, the yaw control will allow the Quadcopter to rotate continuously, which can quickly become confusing if you lose track of which way is "front". Suddenly your controls can get mixed up, where pressing right causes the craft to move left and pressing forward causes it move backward. Intelligent Orientation Control prevents this from happening, keeping the "tail" of the Quadcopter pointed roughly toward the pilot at all times

DJI Vision iOS and Android App
The DJI Vision App for iOS and Android smartphones provides many functions apart from just FPV monitoring, such as telemetry of vital flight stats including remaining battery and number of GPS satellites and a radar scope to help avoid collisions. It also features full camera control, letting you set parameters such as camera tilt, ISO, Shutter Speed, White balance as well as set video start/stop and take photos. Once recorded, photos and video footage can be downloaded directly to the phone allowing them to be shared on Facebook, Instagram or other social media networks, even while the Quadcopter is still in the air

Assistant Software
Windows- and OSX-based software allows you to enable Intelligent Orientation Control (IOC), update firmware, and adjust other aircraft and transmitter parameters. In addition, the software allows you to unlock the manual flying mode. Manual Mode will override all autopilot redundancy and failsafes, therefore should only be engaged by experienced pilots

Slot-In Battery with LED Status Indicators
A 5200 mAh battery slots into the "tail" of the Phantom 2 and enables up to 25 minutes of flying time. It features and on/off switch and four LED charge indicators that are visible while flying so you can keep track of remaining flight time. For recharging, balance and power regulation is handled internally within the battery itself. You simply plug it into a wall outlet with the supplied power cord and you are good to go

Included 5.8 GHz Transmitter

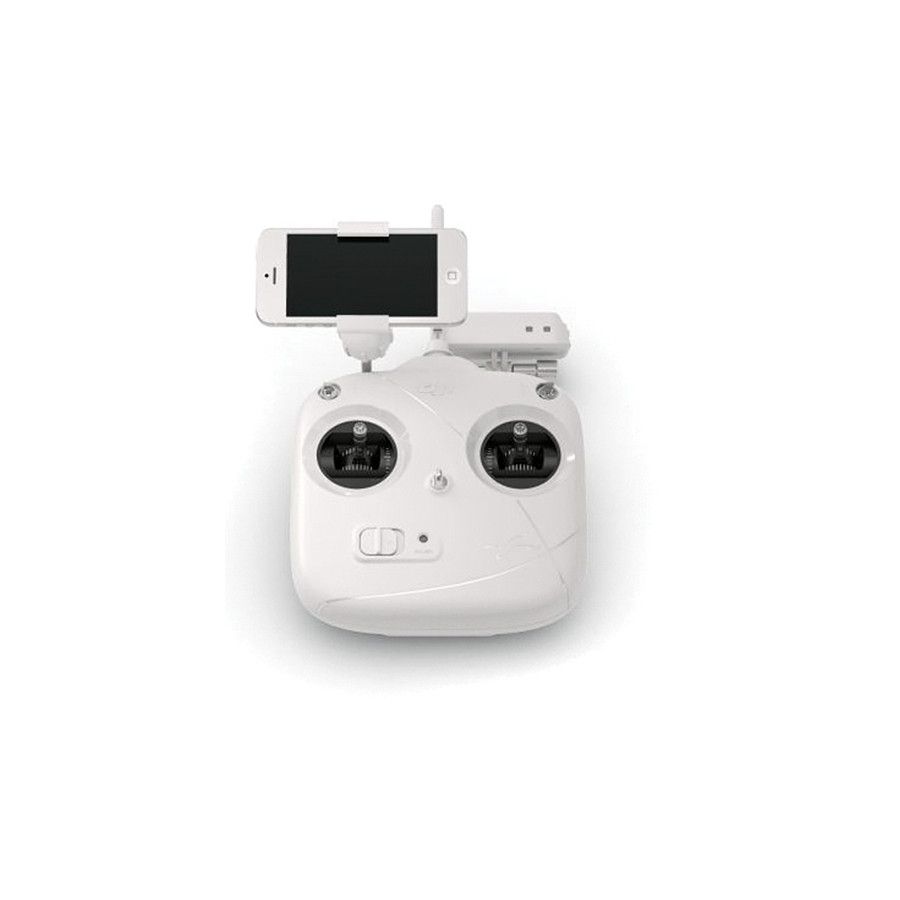

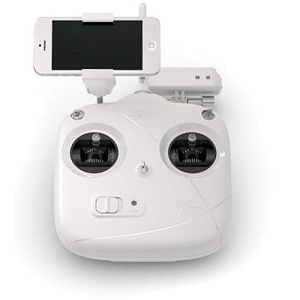

The Phantom 2 Vision+ features an included 5.8 GHz RF remote transmitter, with dual toggle joystick controls similar to the kind found on other multi-rotor RC aircraft. The left stick controls throttle (up/down) and yaw (essentially rotation). And the right stick controls roll (side-to-side tilt) and pitch (tilting the nose up or down). A switch on the top right lets you choose between Attitude and GPS flight modes and a similar switch on the left lets you select between IOC modes. The control unit also features a detachable mount for holding your smartphone

LED Status Indicator
LED status light on the rear struts of the Phantom 2 Vision provide you with various feedback as well as warnings. Colors alternate between green, amber and red and can either be flashing or solid. These messages give you valuable information such as whether the GPS system is properly calibrated, warning you the battery is getting low or telling you the remote's signal is out of range

Self-Tightening Rotor
The Phantom 2 features a rotor design that is new for this model. There is no longer a separate prop nut and the threading is designed to be self-tightening, so there is no danger of a loose prop coming off in flight

Charger & Battery Parameters
Battery Type Lithium-polymer (LiPo)
Battery Capacity 5200 mAh
LED Indicator Four LEDs indicate remaining capacity / charge status
Handheld Transmitter TX Parameters
Working Frequency 5.728 to 5.85 GHz
Communication Distance Up to 2,625' (800 m) line-of-sight
Receive Sensitivity -93 dBm
Transmitting Power 100 mW
Working Current/Voltage 80 mA at 6 V
Power Source 4 x AA Batteries
Camera
Sensor Size 1/2.3"
Sensor Resolution 14 MP (4384 x 3288)
Lens Recording FOV: 100 or 85° -- selectable
Photo Resolution 14 MP
Video Resolutions 1080p30
720p60
File Formats Still Images: JPEG, Adobe DNG
Video: H.264
Working Frequency 2.4 GHz -- Wi-Fi for mobile device link
Recording Media MicroSD Memory Card
Operating Temperature 32 to 104°F (0 to 40°C)
Gimbal
Control Accuracy ±0.03°
Range Pitch: -90 to 0°
Max Angular Speed Pitch: 90°/second
Power Requirements static: 750 mA
Dynamic: 900 mA
Range Extender
Operating Frequency 2412 to 2462 MHz
Communication Distance Up to 2,997' (700 m) line-of-sight
Transmitting Power <= 20 dBm
Power Consumption 2 W
General
Hover Accuracy Vertical: 2.6' (0.8 m)
Horizontal: 8.2' (2.5 m)
Take-Off Weight < 3.1 lb (< 1400 g)
Max Yaw Angular Velocity 200°/s
Max Tilt Angle 35°
Max Ascent/Descent Speed 20.7 ft/s (6 m/s)
Max Flight Velocity 49.2 ft/s (15 m/s) -- not recommended
Dimensions Propeller Length: 9" (22.86 cm)
Diagonal: 13.8" (35 cm)
Weight 2.7 lb (1242 g)

UKLJUČENO:

DJI Phantom 2 Vision+ Quadcopter with Gimbal-Stabilized 14MP, 1080p Camera
Phantom 2 Vision+ 14 MP HD FPV Camera with Gimbal
Transmitter
Wi-Fi Range Extender
Smartphone Mount for Controller
Landing Gear (Pair)
5200 mAh LiPo Battery
AC Transformer to Charge Battery
8 x Self-Tightening Props
4GB MicroSD Memory Card
Limited 1-Year Warranty on Transmitter, MC, ESC, and Camera Only
