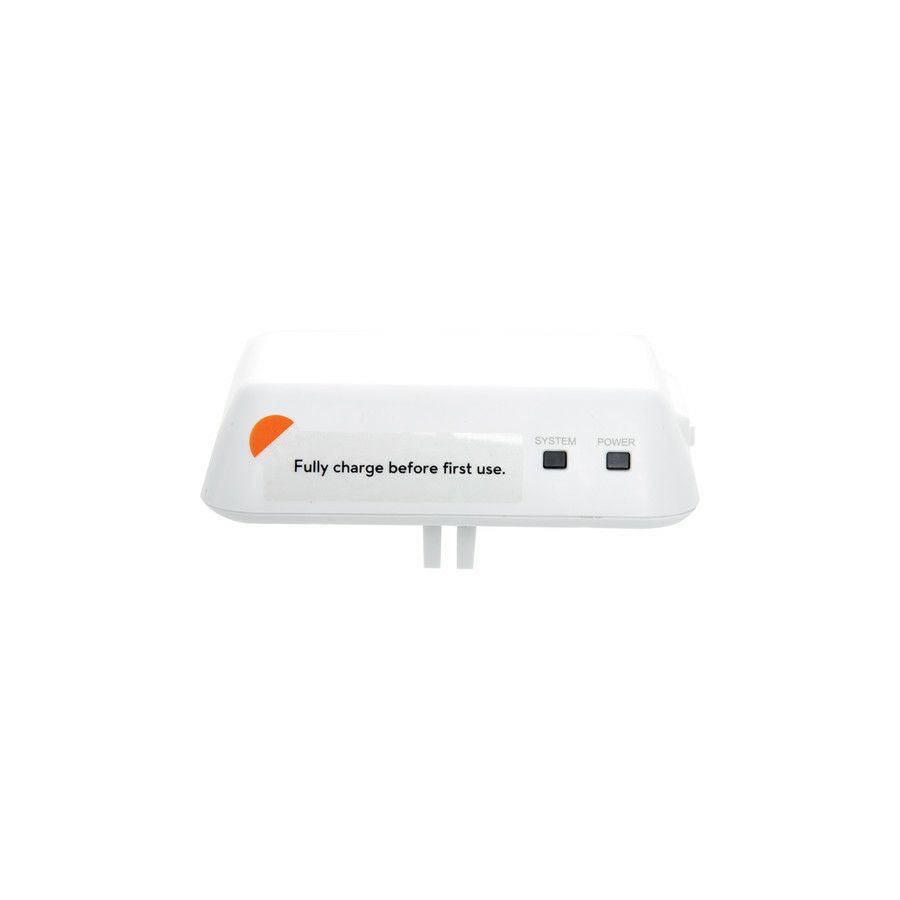

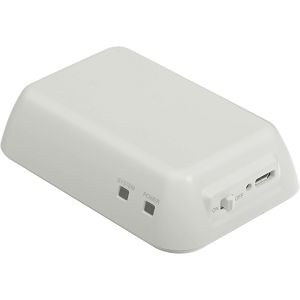

DJI Phantom 2 Vision Spare Part 17 Wi-Fi Range Extender

Up to 2296' Line-of-Sight Range
Mounts on Transmitter
Requires Mounting Bracket
For Phantom 2 Vision+ Only

The Wi-Fi Range Extender for Phantom 2 Vision+ Quadcopter from DJI extends your mobile device's Wi-Fi - normally around 164' average - up to 2296' line-of-sight. The Wi-Fi link provided allows you to monitor a live feed from the Vision Camera as well as operate record START/STOP, tilt, and other camera functions. The Range Extender mounts on the transmitter (hand-held radio controller) for the Phantom 2 Vision+, and is designed to work exclusively with this model - it will not work as a general purpose Wi-Fi extender.

Note: This product must be bound to your aircraft before use. You will need the QR code or serial number for your Phantom 2 during this process. Instructions for the binding process can be found in Phantom 2 Vision+ User Manual.

Internal battery with micro-USB port for charging

SPECIFIKACIJE:

Operating Frequency 2412 to 2462 MHz
Communication Distance Up to 1640.4 to 2296.6' (500 to 700 m) line-of-sight

Note: Obstructions or sources of interference may reduce this figure. Also, this range is not related to distance the radio controller (transmitter) will work at.
Transmitting Power 20 dBm

Power Consumption 2 W
Power Source Internal battery (micro-USB port for charging)
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer

Package Weight 0.35 lb
Box Dimensions (LxWxH) 4.5 x 3.5 x 2.5"
