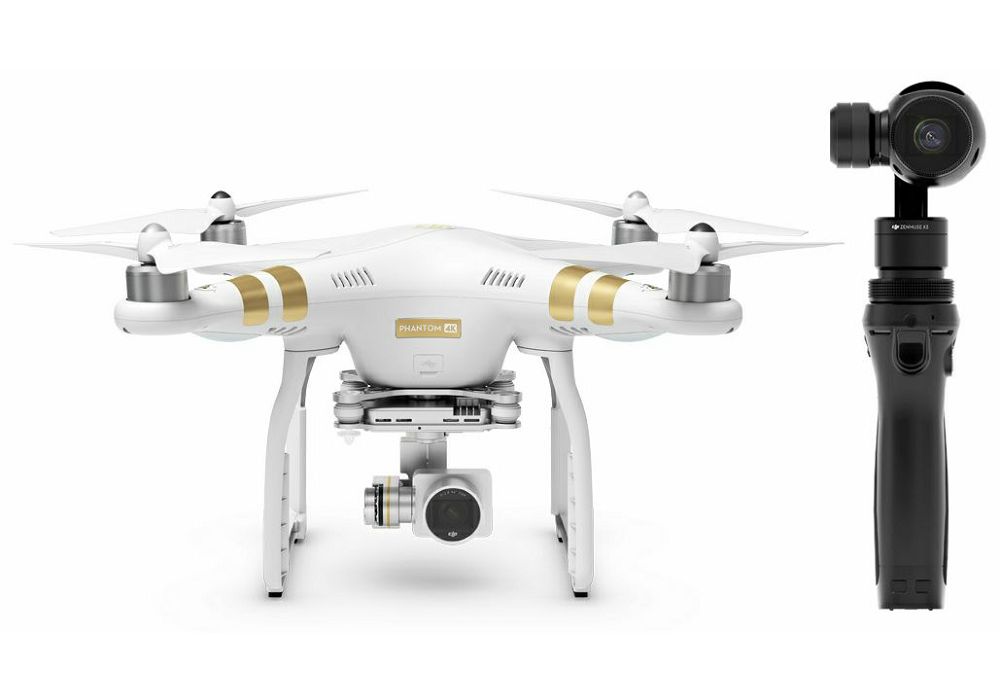

DJI Phantom 3 4K + Osmo Bundle dron s 4K kamerom u kompletu s 3D 3-Axis stabilizatorom i X3 4K kamerom
Komplet uključuje:

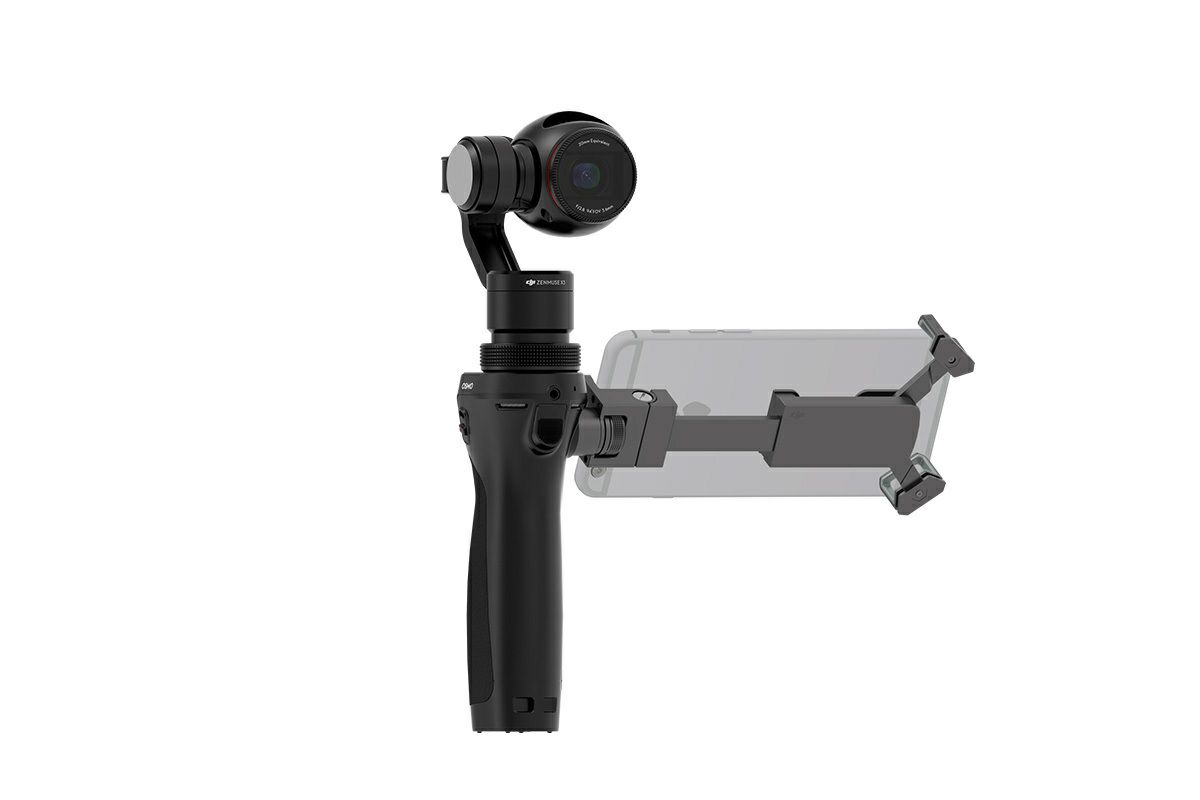

1x Phantom 3 4K dron s 4K kamerom 1x DJI Osmo 3D 3-Axis stabilziator s X3 4K kamerom 1x DJI FM-15 Flexi Microphone
PRODUCT HIGHLIGHTS
24 fps DCI 4K / 30 fps UHD 4K Camera Takes 12MP Still Photos Wi-Fi Extender with 3900' Range DJI Go App for iOS / Android Home and Course Lock Flight Modes Follow Me / Waypoint Navigation Point of Interest Orbit Mode Vision Sensor for Indoor Flight Up to 25 Minutes Flying Time Mobile Device Holder Included

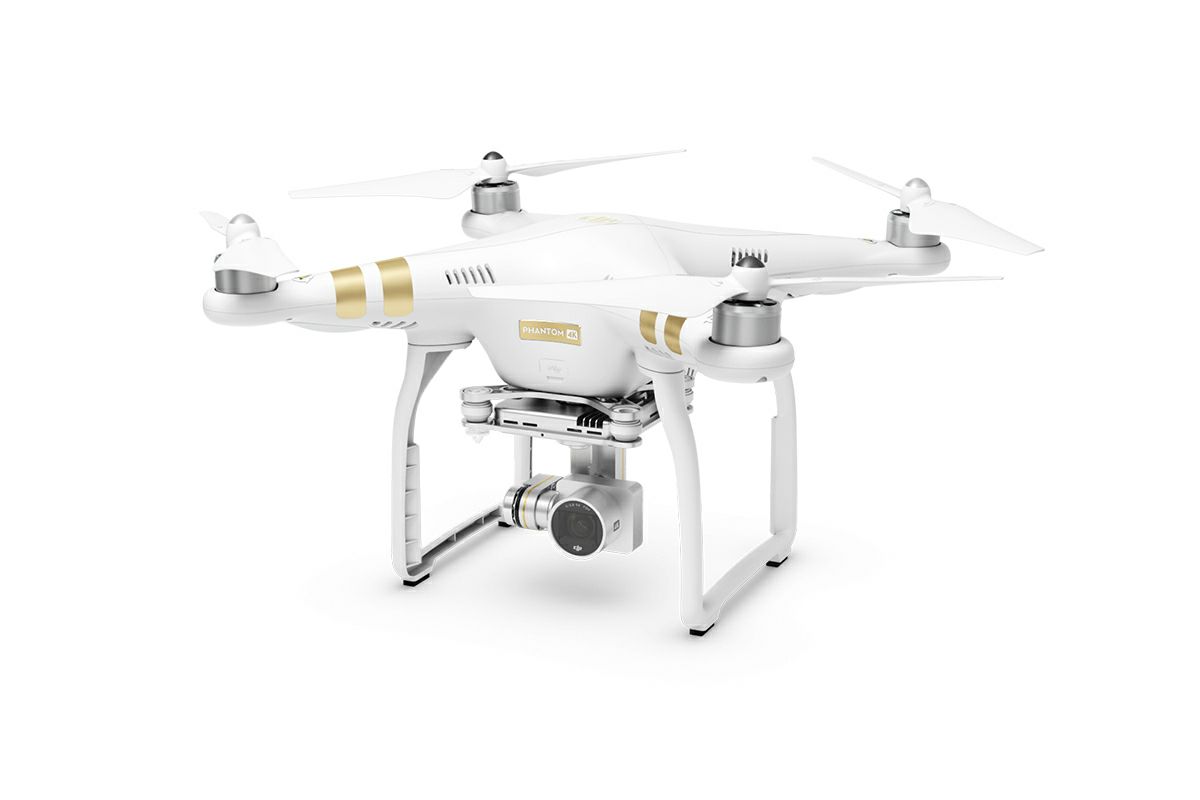

Built from the ground up for aerial filmmaking and photography, the Phantom 3 4K from DJI features an integrated 12MP camera attached to a 3-axis gimbal. Apart from 12MP JPEG or RAW photos, the camera can record cinema-spec DCI 4K (4096 x 2160) at 24 fps and UDH 4K (3840 x 2160) at 30 fps. With the included flight battery, the quadcopter can fly for up to 25 minutes, depending on conditions.
A 2.4 GHz Wi-Fi link with range extender allows you to use the venerable DJI Go app for live HD monitoring and camera control. Additionally, you can access intelligent flight control features tailored to needs of the filmmaker, including Follow Me, Course Lock, Home Lock, and waypoint navigation. The Wi-Fi extender as well as the included handheld controller (transmitter) feature a line-of-sight range of up to 3937'.
Integrated 4K Camera Up to 4K Video and 12MP Stills The included camera system features video recording at up to 4K30 (4096 x 2160) in H.264 and also takes JPEG and DNG RAW photos at 12MP. The camera mounts via a 3-axis gimbal that provides stabilization as well as a -90 to +30° controllable pitch (tilt) range. Media is recorded internally to a microSD card up to 64GB in size Video Resolutions and Frame Rates DCI 4K (4096 x 2160): 24, 25 fps UHD 4K (3840 x 2160):24, 25, 30 fps 1080p (1920 x 1080): 24, 25, 30, 48, 50, 60 fps 720p (1280 x 720): 24, 25, 30, 48, 50, 60 fps 94° Wide Angle Lens The camera features a 94° angle-of-view lens, which is a narrower angle than a fisheye for less distortion while still being wide enough to enable capturing establishing shots. The lens features an f/2.8 aperture and is comprised of 9 elements, including an aspherical element Wi-Fi Downlink App-Based Monitoring and Control A 2.4 GHz Wi-Fi extender built into the controller extends the Wi-Fi range up to 3900' line-of-sight. Via the link, you can use a mobile device to view a live, HD image from the camera, control video and photo recording, and access settings not available through the controller (transmitter). A mount is included to attach a smartphone or table to the controller DJI Go App Use the DJI Go app for iOS and Android to remotely operate the Phantom 3 4K camera and view a live, HD video feed Flight Control Modes Follow Me Program your Phantom 3 4K to act as your own personal, flying film crew Course Lock By activating Course Lock, the controls will be set to be relative to your aircraft's current path. This mode allows you to fly in a set direction while tracking alongside moving objects or across scenes Waypoints With this autopilot mode, apply pushpins to a map to create "waypoints" that define the Phantom 3 4K's course Altitude, speed, and heading can all change at each waypoint Home Lock With this orientation mode, fix your controls to be relative to the Home Point. Easily pull back on the control stick to bring the aircraft back home, or push forward to fly farther away, no matter which way the "noise" is pointing Point of Interest (POI) Select a location or object to focus on, and the Phantom 3 4K will continuously circle it, no matter how you fly. This is similar to "orbit mode" found in other flight control systems Additional Features Intelligent Flight Battery The flight battery slots into the "tail" of the Phantom 3 and features and on/off switch plus four LED charge indicators that are visible while flying – so you can keep track of remaining flight time without needing to consult the app. For recharging, balance and power regulation is handled internally within the battery itself. You simply plug it into a wall outlet with the supplied power cord and you are good to go
SPECIFIKACIJE:
Performance Maximum Speed Horizontal: 52.5' ft/second 16 m/second (Attitude Mode, no wind)
Ascent: 16.4 ft/second / 5 m/second Descent: 9.8 ft/second /3 m/second Hover Accuracy Horizontal:±4.9' / 1.5 m Flight Time Up to 25 minutes Flight Ceiling Above Sea Level: 19685' / 6000 m Above Ground Level (AGL): 524.9' / 160 m (software restricted) Flight Control System GPS Mode GPS Vision Positioning Vision Positioning < 26.2 ft/second / 8 m/second (6.6' / 2 m above ground level) Altitude Range 19.7 to 118.1" / 50 to 300 cm Operating Range 19.7 to 118.1" / 50 to 300 cm Operating Environment Brightly lit ( > 15 lux) patterned surfaces Transmitter Model GL358wB Frequency 5.725 to 5.825 GHz Range 3937' / 1200 m (line-of-sight: 400' / 120m AGL) Transmit Power 19 dBm Working Current 300 mA at 7.4 V Mobile Device Holder Device Compatibility: Tablets and smartphones Battery Chemistry: Lithium polymer (LiPo) Capacity: 2600 mAh Configuration: 2S Operating Temperature 32 to 104°F / 0 to 40°C Wi-Fi Frequency 2.402 to 2.472 GHz Range 3937' / 1200 m (line-of-sight; 400' / 120m AGL) Transmit Power 27 dBm Camera Sensor Make: Sony EXMOR Size: 1/2.3" Resolution: 12.76 MP (12.4 MP effective) Lens Aperture: f/2.8 FOV: 94° Focal Length: 20 mm (35 mm equivalent) Elements: 9 Focus: 0 to ? Photo Resolution Up to 12 MP (4000 x 3000) ISO Range Video: 100 to 3200
Photo: 100 to 1600 Video Resolutions DCI 4K (4096 x 2160): 24, 25 fps UHD 4K (3840 x 2160):24, 25, 30 fps 1080p (1920 x 1080): 24, 25, 30, 48, 50, 60 fps 720p (1280 x 720): 24, 25, 30, 48, 50, 60 fps Photo Modes Single Shot
Burst Shooting: 3/5/7 shots Auto Exposure Bracketing (AEB): 3/5 Bracketed Frames at 0.7 EV Bias Time-lapse Shutter Speed 8 to 1/8000 second File Formats Video: MPEG-4 AVC/H.264 in MOV wrapper (up to 60 Mbps) Photo: JPEG, DNG RAW Recording Media Type: microSD/SDXC card up to 64 GB
Note: Class 10 or UHS-1 rating or faster required Operating Temperature 32 to 90°F / 0 to 32°C Gimbal Number of Axes 3 (pitch, roll, yaw) Control Range Pitch: -90 to +30° Flight Battery Model PH3-4480 Chemistry Lithium polymer (LiPo) Capacity 4480 mAh 68 Wh Configuration 4S Voltage 15.2 V Weight 12.9 oz / 365 g Maximum Charging Power 100 W Operating Temperature 14 to 104°F / -10 to 40°C Weight 12.9 oz / 365 g Charger Voltage: 17.4 V Rated Power: 57 W Mobile App Name DJI Go System Requirements Android or iOS mobile device (see DJI website for latest device compatibility list) Recommended Devices iOS: iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Air, iPad Air Wi-Fi and Cellular, iPad mini 2, iPad mini 2 Wi-Fi and Cellular, iPad Air 2, iPad Air 2 Wi-Fi and Cellular, iPad mini 3, iPad mini 3 Wi-Fi and Cellular.
Note: This app is optimized for iPhone 5s, iPhone 6, and iPhone 6 Plus
Android: Samsung Galaxy Tab S T705C, Samsung S6, Samsung S5, Samsung Galaxy Note 4, Samsung Galaxy Note 3, Google Nexus 9, Google Nexus 7 II, Ascend Mate 7, Nubia Z7 mini, Sony Z3 Xperia, Mi Pad 3, Mi Pad General Operating Temperature 32 to 104°F / 0 to 40°C Dimensions Diagonal Size: 23.2" / 590 mm Weight With Battery and Propellers: 2.8 lb / 1280 g Packaging Info Package Weight 8.65 lb Box Dimensions (LxWxH) 15.3 x 14.4 x 8.3"
FAQ
What are the main differences between the Phantom 3 4K and the Phantom 3 models?
The Phantom 3 4K is the only one of the Phantom range to feature a powerful camera capable of 4K video and Wi-Fi connectivity for the live video feed.
How do I reset the Wi-Fi video downlink?
Option 1: Turn on the remote controller then, while holding down the C1 and C2 buttons on the back of the remote controller, press the camera settings dial to reset. Option 2: Flick the flight mode switch back and forth until the remote controller status indicator blinks red and green. This shows that the reset is in progress. Wi-Fi download reset is successful when the remote controller status indicator turns solid green.
How do I link the remote controller?
The Phantom 3 4K is linked to the remote controller by default. Re-linking is only necessary if the remote controller is replaced. To link a new remote controller: 1) Turn on the remote controller and connect to your mobile device. 2) Launch the DJI GO app. 3) Turn on the Intelligent Battery. 4) Enter “Camera” and tap on the remote controller icon and then tap the “Linking RC” button. The remote controller is now ready to link. The Remote Controller Status Indicator will blink blue and the controller will beep. 5) Locate the linking button on the side of the aircraft and press it to link. The Remote Controller Status Indicator LED will display a solid green once the remote controller has been successfully linked to the aircraft.
How is CE or FCC compliance configured?
The remote controller is CE compliant by default and switching between CE and FCC is automatic based on aircraft location as determined by the DJI GO app. The CE compliant remote controller has an effective signal range of 0.31 miles (500 m) in open spaces. The FCC compliant remote controller has an effective signal range of 0.74 miles (1200 m) in open spaces. Be aware of your flying distance as the aircraft will enter Failsafe Return to Home if it flies beyond transmission range.
How long does it take to charge the remote controller?
About 1.5 hours. It can be used for 6 hours per charge.
What charger comes with the Phantom 3 4K?
57 W.
What is the flight time?
Flight times will vary depending on environmental conditions and flying style. In ideal environments, flight times of up to 25 minutes are achievable with a full battery.
How heavy is the Phantom 3 4K?
It weighs 1280g including the propellers and battery.
Can I change the camera to any of those of the Phantom 3 series?
No.
Are the camera specifications of the Phantom 3 4K and the Phantom 3 Professional the same?
Yes.
Can I change the UV/ND filters of the Phantom 3 4K with those of the Phantom 3 Professional/Advanced?
Yes.
Are the remote controller of the Phantom 3 4K the same as that of the Phantom 3 Professional/Advanced?
The remote controller of the Phantom 3 4K has the same function as that of the Phantom 3 Professional/Advanced, yet features Wi-Fi video downlink. The FCC compliant remote controller of the Phantom 3 4K has an effective signal range of 0.74 miles (1200 m) in open spaces.
Can the Phantom 3 4K use the HDMI module?
No.
Is the Mobile Device Holder the same as that of the Phantom 3 Professional/Advanced?
Yes. For the best experience we recommend using a smartphone instead of a tablet.
How do I update the aircraft and remote controller?
Through the DJI GO app. A prompt will appear whenever an update is required.
What SD card is provided and what are the ideal SD card requirements?
The Phantom 3 4K comes with a 16 GB Micro SD card and supports Micro SD cards with a capacity of up to 64 GB. UHS-1 or Class 10 Micro SD cards are recommended to minimize delay when reading or writing high resolution image files. Do not insert or remove the Micro SD card when the Phantom 3 4K is turned on.
Is the Phantom 3 4K Wi-Fi downlink the same as the Phantom 3 Standard?
The Phantom 3 4K has 480p30 video downlink and other specs are the same.
Is the Vision Positioning System on the Phantom 3 4K the same as on the Phantom 3 Professional/Advanced?
Yes.
How do I connect to the Wi-Fi video downlink?
1) Switch on the remote controller. 2) Turn on the aircraft. 3) On your mobile device, select “PHANTOM3_XXXXXX”“from your Wi-Fi network list, and enter the default password “12341234”. 4) Launch the DJI GO app and enter Camera View. A video signal from the aircraft’s camera indicates that the aircraft has established a connection to the Wi-Fi video downlink successfully.
What should I know about the remote controller?
1) Make sure it is sufficiently charged before each flight. 2) Lock the mobile device holder firmly in place to avoid slipping. 3) Unfolded the antenna and keep them perpendicular to the Phantom for optimal transmission quality. Do not point the antenna at the Phantom. 4) Repair or replace the remote controller if damaged. A damaged remote controller antenna will greatly decrease performance. If a remote controller is replaced, please see Question 3 of this FAQ: How do I link the remote controller?
UKLJUČUJE:

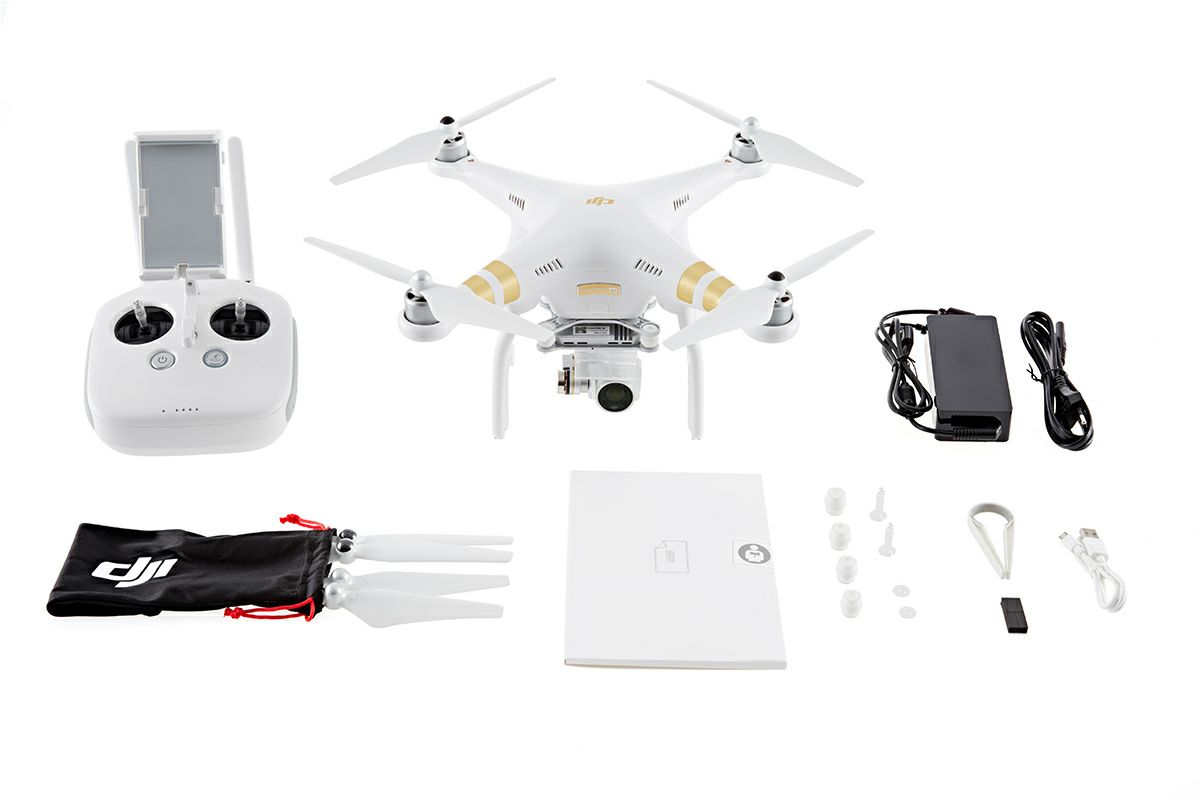

1x DJI Phantom 3 4K dron 1x 5.8 GHz Radio Controller (Transmitter) 1x Intelligent Flight Battery for Phantom 3 1x 57W Battery Charger for Phantom 3 1x Power cable 4x Propeller pair 1x Gimbal clamp 4x Viibration Absorber 1x MicroSD memorijska kartica 16GB 1x Micro USB kabel 2x Anti-drop kit 4x Landing pad 1x Propeller removal clamp 5x Naljepnice (zlatna, srebrena, crvena, plava, roza) 1x Upute na Hrvatskom jeziku (samo u Canosi!)

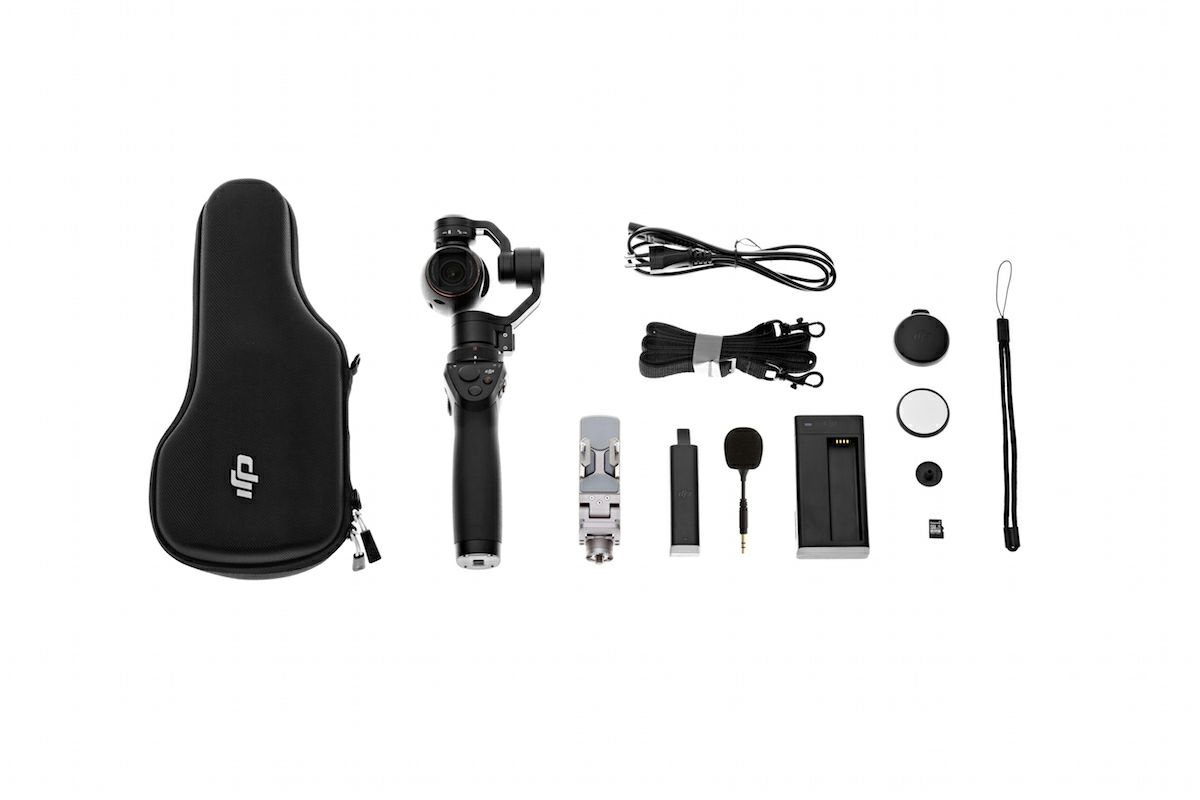

1x DJI Osmo 3D 3-Axis stabilziator s X3 4K kamerom 1x Mobile Device Holder 1x Intelligent Battery 1x Battery charger 1x Charger Power Cable 1x Storage Case 1x Wrist strap 1x Shoulder Strap 1x MicroSD memorijska kartica 16GB 1x UV Filter 1x Lens cap 1x Rosette Protection Cap 1x DJI FM-15 Flexi Microphone
