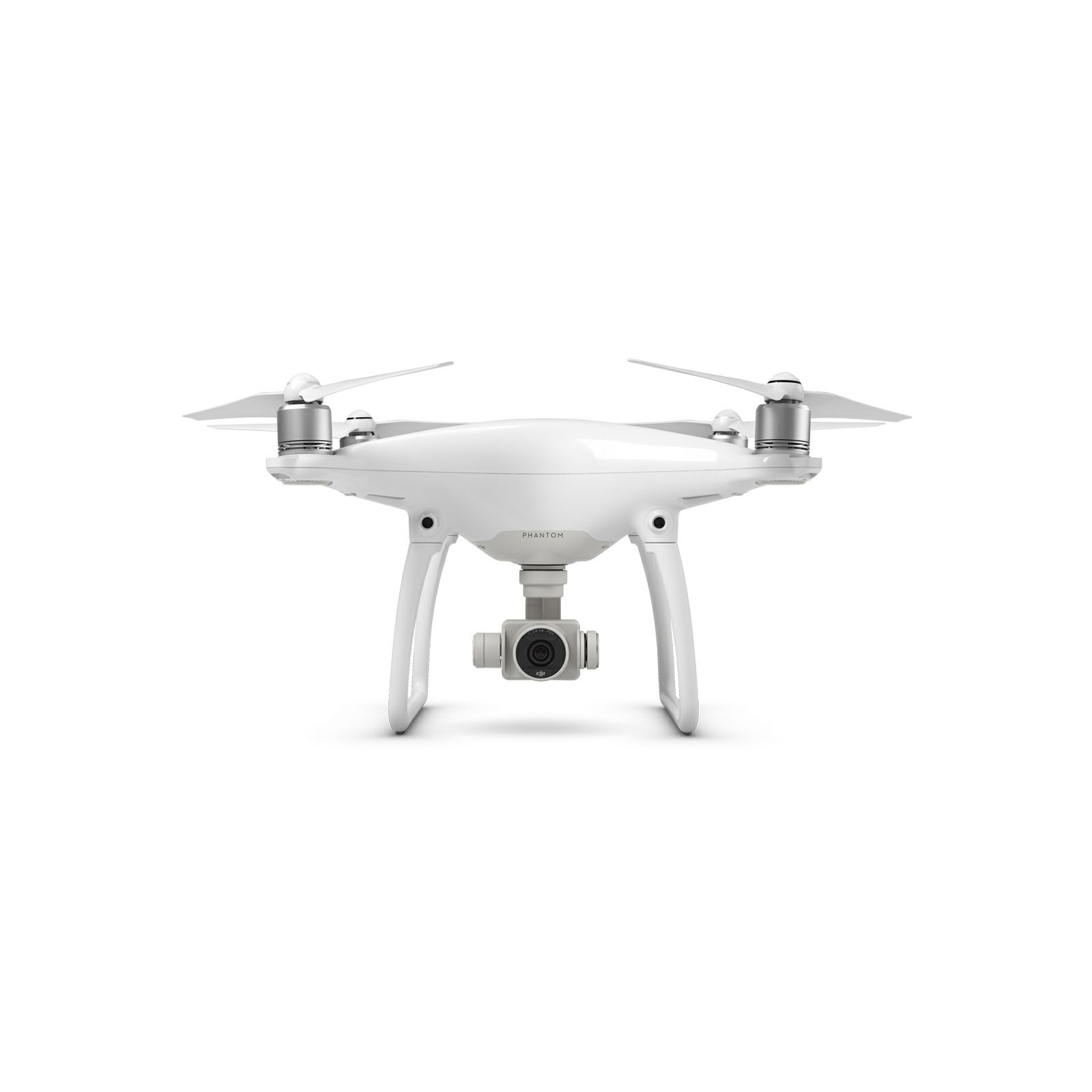

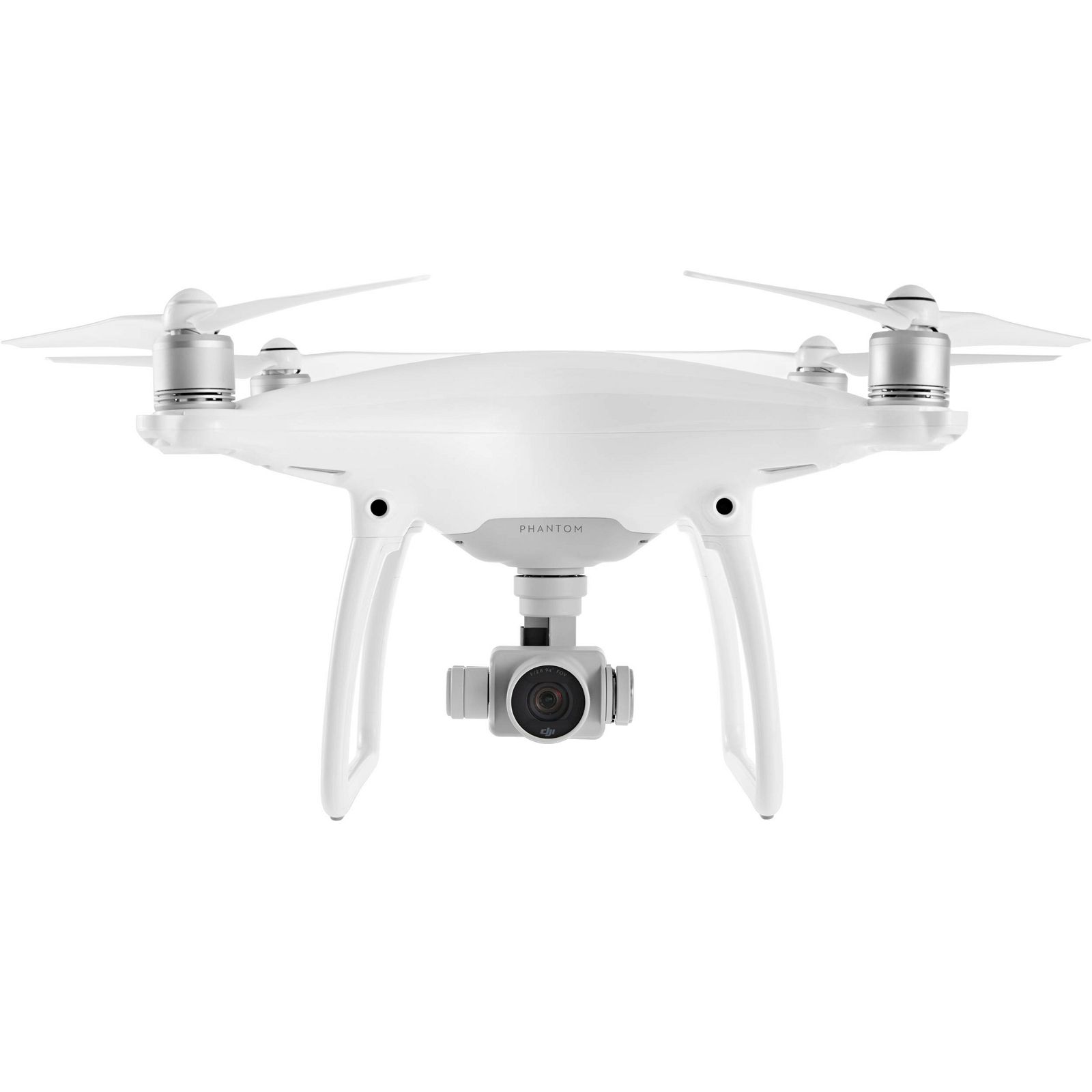

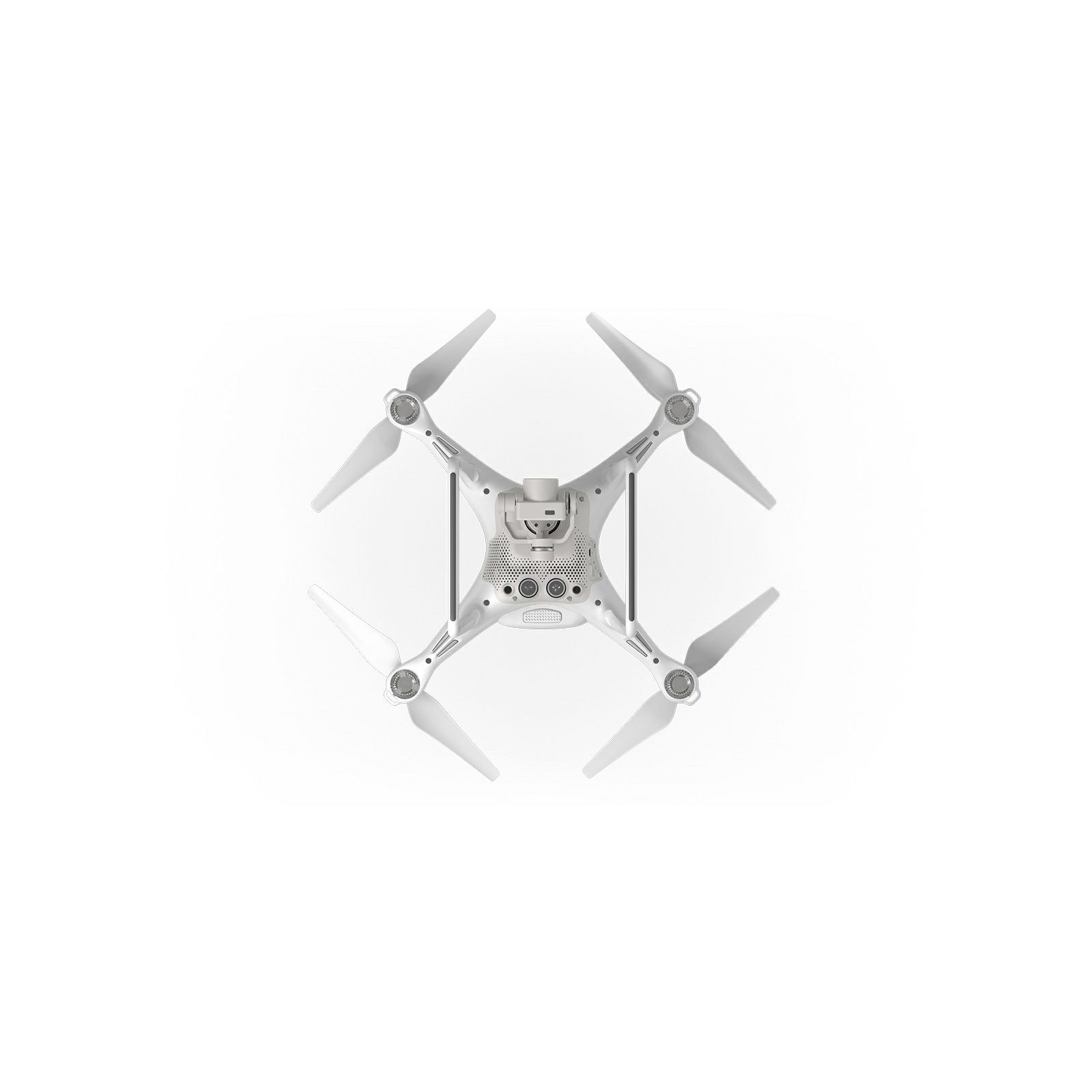

DJI Phantom 4 Quadcopter 4K kamera 3D gimbal dron za snimanje iz zraka (DEMO)
ZNAČAJKE:
Automatsko izbjegavanje prepreka ActiveTrack - automatsko praćenje objekta u pokretu TapFly pilotiranje putem zaslona na dodir Smart Return Home - automatsko izbjegavanje prepreka prilikom aktivacije povratka na odredišnu točku 28 minuta maksimalno vrijeme letenja 5km maksimalan doseg leta Maksimalna brzina 72km/h integrirani 3D gimbal sa stabilizacijom kamere 4K 60fps kamera visoke razlučivosti Optimizirani sistem za pozicioniranje Vision Positioning System
Gimbal-Stabilized 4K Camera 12MP RAW / JPEG Still Photos with HDR Visual Sensor for Obstacle Avoidance Streamlined Shell / Magnesium Unibody Top Speed of 44.7mph in Sport Mode DJI Go App for iOS and Android Visual Tracking of Moving Subject TapFly Touch-Based Flight Control Mode Cine-D / D-Log Professional Video Modes Avoid obstacles automatically. Track moving subjects automatically using ActiveTrack. TapFly lets you fly with a tap of the finger. Smart Return Home allows the Phantom to avoid obstacles as it returns home. 28 minute maximum fight time, maximum control range of 3.1mi (5km). Maximum speed of 44mph (72kmh). Integrated gimbal for greater camera stability and smoother footage. Optimized Vision Positioning System raises positioning altitude up to 10 meters. Up to 28 Minutes Flying Time
A sleek new design with magnesium unibody construction, obstacle avoidance sensor, dynamic range enhancing video modes, and a two-point-of-contact gimbal mount are just some the features DJI have introduced with the Phantom 4 Quadcopter. Thanks to improvements in efficiency as well as its intelligent power management system, the quadcopter boasts up to 28 minutes flying time. Its camera shoots DCI 4K (4096 x 2160) video at 24/25 fps and UHD 4K (3480 x 2160) at up to 30 fps. There is also a 120 fps mode in 1080p resolution for slow-motion effects. The camera will also take 12MP still photos in either DNG RAW or JPEG, with single shot, HDR, burst, and time-lapse modes to choose from.
Computerized flight control is nothing new, but the Phantom 4 is the first Phantom to be given a pair of eyes. Among other features, these front-facing visual sensors enable obstacle avoidance during automatic return home and allow it to track a subject. It also features Vision Position, a carryover from the Phantom 3 Professional and Advanced, which provides navigation for times when GPS is unavailable and the quadcopter is close to the ground.

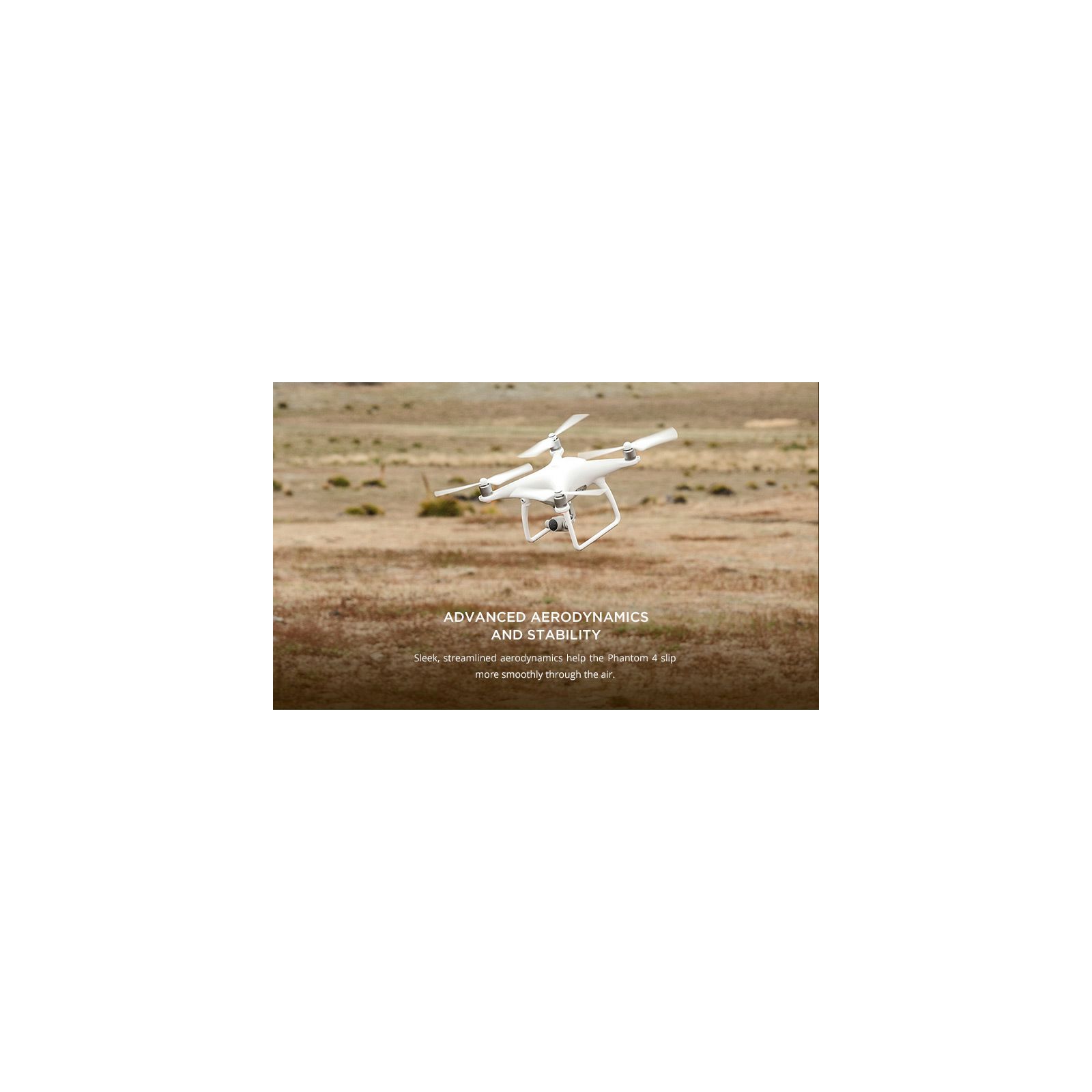

One area where fixed-wing planes have traditionally held an advantage over multi-rotors is performance. The Phantom 4 aims to shake off this stigma. With its Sport Mode, the quadcopter can achieve a top speed of 44.7mph. That's enough speed to take to the races or follow fast-moving subjects, such as a vehicle or skier hurling down the slopes. Since you may need to slow down in a hurry, Active Braking brings to the quadcopter to a halt much faster than drag alone otherwise would.
Flight Control System GPS Navigation Because of the complexity associated with multi-rotor aircraft, the Phantom 4 relies on a GPS-based navigation system, drawing upon up to 24 satellites to maintain flight stability and provide other features. While fully manual operation is possible, most users, especially videographers hoping to get the smoothest possible shoots, will opt for one of the GPS-assisted modes Vision Positioning System for Indoor Navigation Vision Positioning System uses dual downward-facing cameras and dual ultrasonic sensors to provide comparable stability function indoors or relatively close to the ground (up to 32.8') as GPS does outdoors. This technology allows the Phantom 4 to hold its location, stop when the controls are released, and quickly respond to pilot commands, even when GPS is unavailable Sense and Avoid A small camera above each leg allows the aircraft to detect an obstacle in the flight path, coming to a stop to try to avoid it. By turning on Active Obstacle Avoidance, the aircraft will attempt to fly around or over the obstacle, rather than braking. The pilot will also receive audible and visual warnings to alert you of when an obstacle is detected. This feature will also be active when you trigger Return to Home, providing for a safer flight back to the pilot Touch-Controlled Flying The TapFly mode lets you use the power of touch for easy flight control. With the mode activated, you simply need to tap on the screen of a connected smartphone or tablet, and the Phantom 4 will being to fly in that direction. If an obstacle appears in flight path, the quadcopter's auto sense-and-avoid feature will either bring the camera to a stop or avoid it completely ActiveTrack Visual Tracking The built-in camera, combined with object recognition technology, allows the Phantom 4 to lock onto and track a three-dimensional subject – be it a face, pet, or stationary object. Just tap the subject you want the camera to lock on to, and the Phantom 4 does the rest, with the camera following your subject as it (or the quadcopter) moves, keeping it centered within the frame Optimized Flight Modes Change the Phantom 4's flight modes to suit your mood or the task at hand.

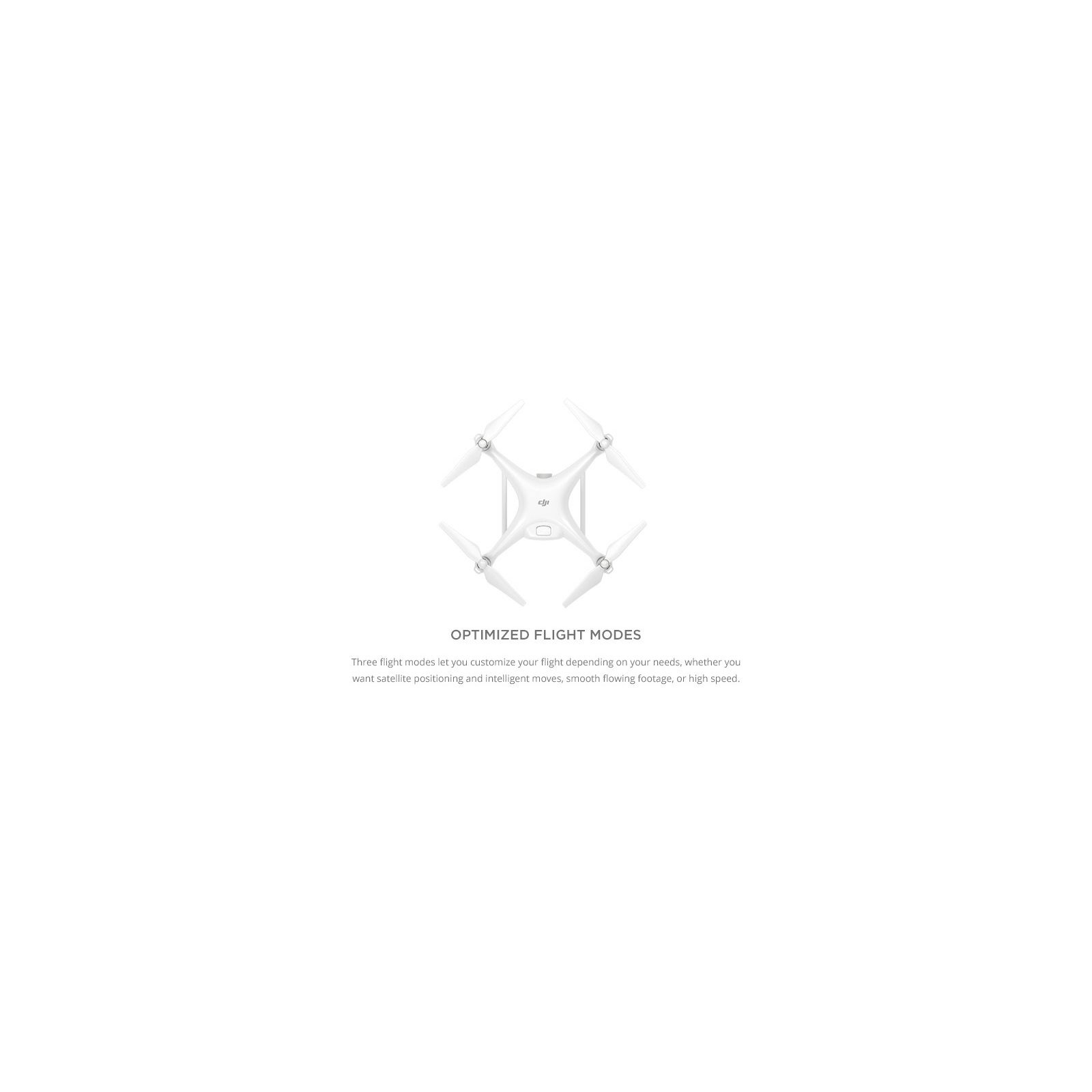

Normal: Standard flight mode with positioning support and both intelligent and visual tracking features Sport: Adds an extra burst of speed Atti: Holds the Phantom's altitude and level, but switches off satellite positioning to enabling smooth tracking shots for filmmakers Automatic Flight Logs The Phantom 4 automatically logs and remembers the details of every flight you take. Complete route, duration, distance, location, and speed tracking allow you to playback a previous flight path and even check your control stick movements. Cached versions of any photos and videos taken during your flights are kept at your fingertips for future reference. At the same time, an advanced flight recorder constantly records data from its internal mechanisms, which can be easily shared with the DJI support team if you ever have any questions or issues Aircraft Enhanced Aerodynamics and Stability The Phantom 4's lightweight magnesium unibody core and streamlined body combine to create a smooth, responsive flying experience with predictable and precise movements. The integrated gimbal has been moved closer to the body, shifting the center of gravity closer to the quadcopter's core and boosting stability even further. High-Speed Flight and Braking Switch the flight mode to Sport to enjoy a new level of thrill, enabling a top speed of around 40mph. This allows you to capture faster moving subjects than with previous generation Phantom models, such as motor vehicles or downhill skiers. To bring the camera a halt at these faster speeds, the Phantom 4 features active braking Flight Time High-efficiency motors and a larger capacity battery gives lets you enjoy up to 28 minutes of flying time with the Phantom 4 (without GPS active) Push-and-Release Propellers Each prop is fast and easy to install – no props nuts to tighten here – and can be locked securely in place. When you're done flying, pop them off so the Phantom can be packed away in a compact case such as a backpack Gimbal-Stabilized 4K Camera Up to 4K Video and 12MP Stills Whether for cinematography or just shooting for fun, the Phantom 4 gives you the ability to capture DCI-spec 4K (4096 x 2160) at 24 or 25 fps and UHD 4K (3840 x 2160) at up to 30 fps. In addition, the Full HD (1080 x 1920) mode enables recording at up to 120 fps, ideal for creating slow-motion effects in post. Video is recorded at full quality in-camera using a microSDHC/XC card in the H.264 codec 12MP RAW Photos The camera isn't just for video. It shoots 12MP still photos in widely-supported DNG RAW as well as JPEG. Time-lapse, burst shooting, and HDR modes are all available, in addition to single shot Video Resolutions and Frame Rates DCI 4K (4096 x 2160): 24p, 25p UHD 4K (3840 x 2160): 24p, 25p, 30p 2.7K (2704 x 1520): 24p, 25p, 30p 1080p (1920 x 1080): 24p, 25p, 30p, 48p, 50p, 60p, 120p 720p (1280 x 720): 24p, 25p, 30p, 48p, 50p, 60p
Professional Video Color Profiles Under high-contrast lighting, such as outdoors in direct sunlight, you will profit from high dynamic range with a flat response curve to give you maximum detail to work with in post-production. To this end, the Phantom 4 features both Cine-D and D-Log modes to help increase dynamic range and flatten the image 94° Wide-Angle Lens The camera features a 94° angle-of-view lens, which is a narrower angle than a fisheye for less distortion while still being wide enough to capture establishing shots. The lens features an f/2.8 aperture and is comprised of 9 elements, including an aspherical element Reinforced Gimbal Updated from previous designs, the gimbal supports both sides of the camera, secured by a U-shaped frame designed to keep footage stable and secure even in high winds and harsh flying environments. It is coupled with custom-designed dampers to ensure vibrations from the motors to not translate into camera shake. A magnesium construction gives it lightness and rigidity, boosting stabilization capabilities even further DJI GO App Live Monitoring and Control Watch a live HD video feed direct from the camera right on your screen. Adjust camera settings and use this real-time view to line up the perfect shot YouTube Live Streaming Stream your flight live to YouTube as you fly and share your excitement with family and friends around the world Instant Video Downloading The live video stream from your camera is automatically saved on your mobile device for preview and editing later. Use this video as a reference, and download the full-quality videos and photos with a few taps
In-App Editing Make basic tweaks and apply preset templates you get your videos prepped for sharing Common Media Library All of your photos and videos that were shot using a DJI product and the GO app are stored in one place, making it easy to browse, share, and send your footage anywhere you like Share on Social Media Share your best work on SkyPixel, a dedicated platform for aerial photographers and filmmakers from around the world. The GO app also connects to your Facebook, Twitter, and Tumblr accounts for quick posting Live Map and Radar See yourself or your flight platform on a live map, and log exactly where you are filming Detailed Records and Achievements DJI GO records telemetry data from each of your shoots and flights, ready for your review later Manage Your DJI Account Access all of your DJI information in one place. Participate in the DJI Forum, earn DJI Credit for future purchases, and review your preferences directly in the GO app Interactive Flight Simulator Practice flying and perfect your skills anywhere. The included flight simulator gives you the lifelike experience of flying your quadcopter in a safe, controlled virtual environment Other Features Built-In Redundancies Dual compass modules and dual Inertial Measurement Units (IMUs) allow the Phantom 4 to constantly check the data it is receiving. This means any incorrect data can be isolated and ignored without affecting your flight Beginner Mode Beginner flyers should build confidence by flying low and close. Beginner mode prevents new pilots from going beyond their skills. An adjustable maximum height and distance can also be set when flying skills improve Customizable Remote Controller All the controls on the Phantom 4 can be customized to match your flying style, from control stick sensitivity to the functionality of dedicated buttons DJI SDK The Phantom 4 is compatible with DJI's SDK, offering up access to additional sensors and even more control so that developers can create customized apps and exciting new features
SPECIFIKACIJE:
Performance Maximum Speed 65.6' per second / 20 m/s (Sport mode) Ascent: 19.7' per second / 6 m/s (Sport mode) Descent: 13.1' per second / 4 m/s (Sport mode) Maximum Altitude Above Sea Level: 19,685' / 6000 m Above Takeoff Point: 400' / 122 m (Software limit) Hovering Accuracy Vertical: ±0.3' / 0.1 m (when Vision Positioning is active) or ±1.6' / 0.5 m
Horizontal: ±1' / 0.3 m (when Vision Positioning is active) or ±4.9' / 1.5 m Flight Time 28 minutes (depending on conditions) Flight Control System GPS Mode GPS / GLONASS Vision Positioning Velocity Range: ? 32.8' per second / 10 m/s (6.6' / 2 m above the ground) Altitude Range: 0 to 32.8' / 0 to 10 m Operating Range: 0 to 32.8' / 0 to 10 m
Operating Environment: Surface with clear pattern and adequate lighting (> 15 lux) Obstacle Sensory Range 2 to 49' / 0.7 to 15 m
Operating Environment: Surface with clear pattern and adequate lighting (> 15 lux) Transmitter Frequency 2.400 to 2.483 GHz Communication Distance Up to 3.1 miles / 5 km (outdoors and unobstructed) Transmitter Power 23 dBm Operating Current 7.4 VDC at 1.2 A Battery 6000 mAh lithium-ion polymer (LiPo) 2S Operating Temperature 32 to 104°F / 0 to 40°C Camera Sensor 1/2.3" 12 MP CMOS Lens FOV: 94° Focal Length: 20 mm (35 mm equivalent) Aperture: f/2.8 Photo Resolution Up to 12 MP (4000 x 3000) ISO Range Video: 100 to 3200 Photo: 100 to 1600 Electronic Shutter Speed 8 to 1/8000 second Video Resolutions DCI 4K (4096 x 2160): 24p, 25p UHD 4K (3840 x 2160): 24p, 25p, 30p 2.7K (2704 x 1520): 24p, 25p, 30p 1080p (1920 x 1080): 24p, 25p, 30p, 48p, 50p, 60p, 120p 720p (1280 x 720): 24p, 25p, 30p, 48p, 50p, 60p Photo Modes Single Shot Burst Shooting: 3/5/7 shots Auto Exposure Bracketing (AEB): 3/5 Bracketed Frames at 0.7 EV Bias Time-lapse, HDR File Formats Video: MPEG-4 AVC/H.264 in MOV wrapper (up to 60 Mbps) Photo: JPEG, DNG RAW Recording Media Type: microSDHC/SDXC card up to 64 GB Format: FAT32 / exFAT
Note: Class 10, UHS-1 or faster card required (64 GB maximum size) Operating Temperature 32 to 104°F / 0 to 40°C Gimbal Control Range -90° to +30° Flight Battery Chemistry Lithium-ion polymer (LiPo) Capacity 5350 mAh, 81.3 Wh Configuration 4S Voltage 15.2 VDC Weight 16.3 oz / 462 g Maximum Charging Power 100 W Operating Temperature 14 to 104°F / -10 to 40°C Charger Voltage: 17.4 VDC 100 W General Operating Temperature 32 to 104° F / 0° to 40° C Dimensions Not specified by manufacturer Weight With battery: 3 lb / 1.4 kg
UČESTALA PITANJA (FAQ):
What is ActiveTrack?
ActiveTrack allows an aircraft to track a moving subject without a separate GPS tracker. Simply tap on the mobile device screen inside the DJI GO app to select the subject to be tracked. The aircraft will lock on the subject and start tracking it automatically from a safe distance.
What is TapFly?
TapFly means you can fly in any direction with a tap of the finger, without a remote controller. With Obstacle Avoidance turned on, the aircraft will automatically avoid obstacles, slow down or hover when required, provided that the scene is bright enough ( < 300 lux) or too bright ( > 10,000 lux).
What is the Phantom 4 Obstacle Sensing System?
The Phantom 4 is equipped with an Obstacle Sensing System that constantly scans for obstacles in front of it, allowing it to avoid collisions by going around, over or hovering.
Why does the Phantom 4 have a composite core?
The advanced composite core embedded into the aircraft greatly increases rigidity, minimizing unwanted vibrations. This ensures the precision and performance of the inertial measurement unit (IMU). The weight of the aircraft is also reduced through this composite.
What changes were made to the Phantom 4 remote?
The Phantom 4 introduces a Sport mode, accessible through a new trio of modes, P, S and A. P (Position) mode is the standard mode, giving access to normal flight as well as Intelligent Flight Modes, ActiveTrack and TapFly. S (Sport) Mode unlocks maximum flight speeds of up to 44mph (72kmh) A (Attitude) Mode remains the same and removes satellite stabilization in flight. It allows the Phantom to move more smoothly and naturally.
The ‘Playback’ button on the top right of the remote controller has been changed into a ‘Pause’ button that lets you put the Phantom into hover during any Intelligent Flight Mode, ActiveTrack or TapFly with a tap.
What improvements have been made to the Phantom 4 Vision Positioning Unit?
The Vision Positioning System now uses four sensors to increase hovering accuracy and reliability, creating a more controlled flying experience. Its sonar system has been improved and now functions from up to 10 meters off the ground. In ideal situations, these combine to give the Phantom 4 Vision Positioning System a vertical hover accuracy of +/- 0.1 m and a horizontal hover accuracy of +/- 0.3 m.
What is the effective range of the Obstacle Sensing System on Phantom 4?
The effective range of the Obstacle Sensing System is 0.7 to 15 meters. Although the DJI GO app will indicate when there are obstacles present, pilots should always be paying attention to the aircraft during flight.
Does Obstacle Sensing System work in all modes?
The Obstacle Sensing System can be enabled in ActiveTrack, TapFly, Normal mode and all Intelligent Navigation functions.
What are the major improvements in the Phantom 4 propulsion system?
The motor on the Phantom 4 is designed to work with the latest Push-and-Release Propellers. With this locking mechanism, propellers can withstand drastic changes of motor speed, allowing the aircraft to be more agile and more responsive to the pilot command.

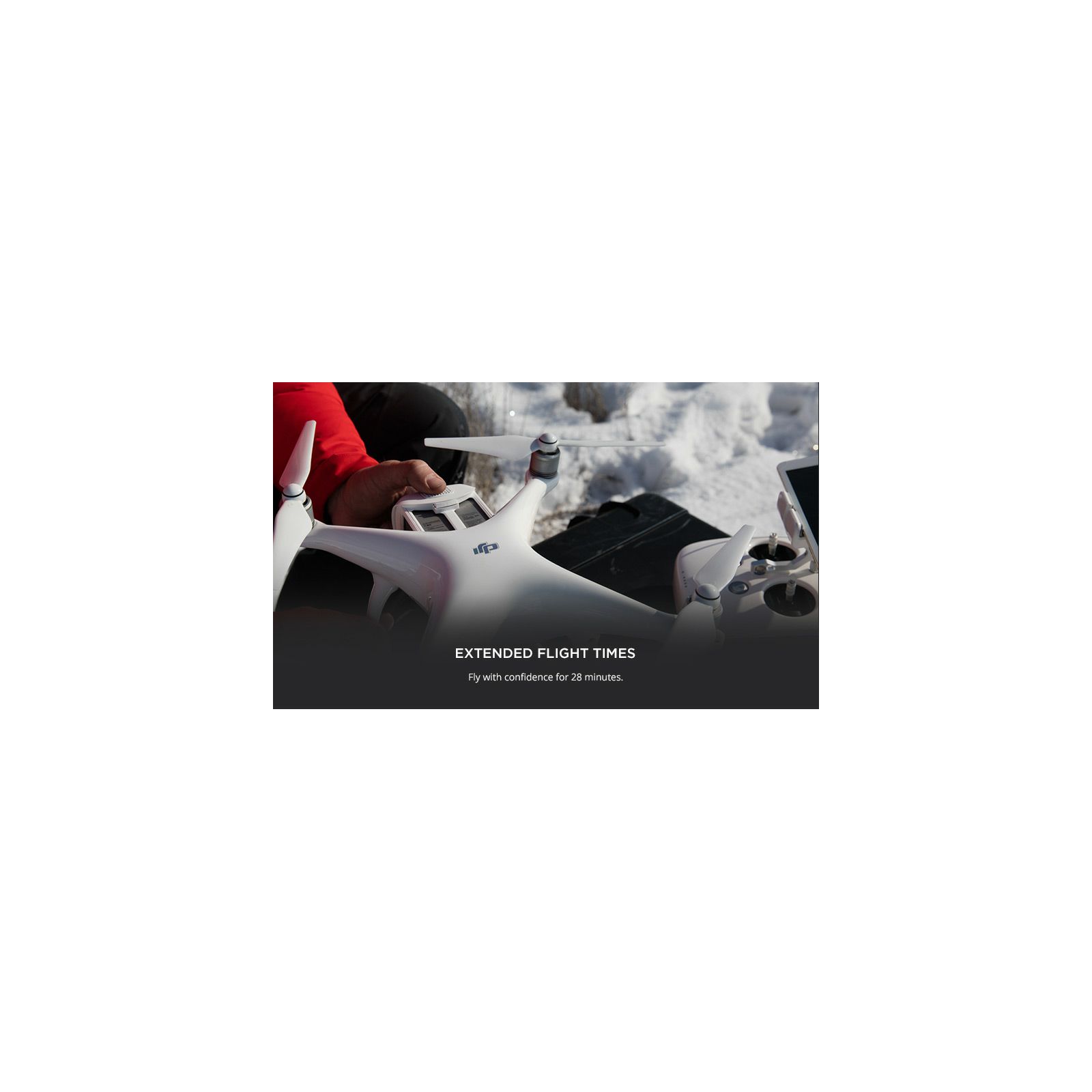

How long does the Phantom 4 using the new Intelligent Battery?
At sea level in calm environments when flying in Atti mode, the Phantom 4 can achieve 28 minute flight times. This will vary due to different flight patterns, weather conditions and altitudes.
What are the major differences between the Phantom 4 propellers and the Phantom 3 ones?
The new Push-and-Release propellers are faster to install and more secure than the Self Tightening propellers used previously. This security allows them to handle faster acceleration and harder braking.

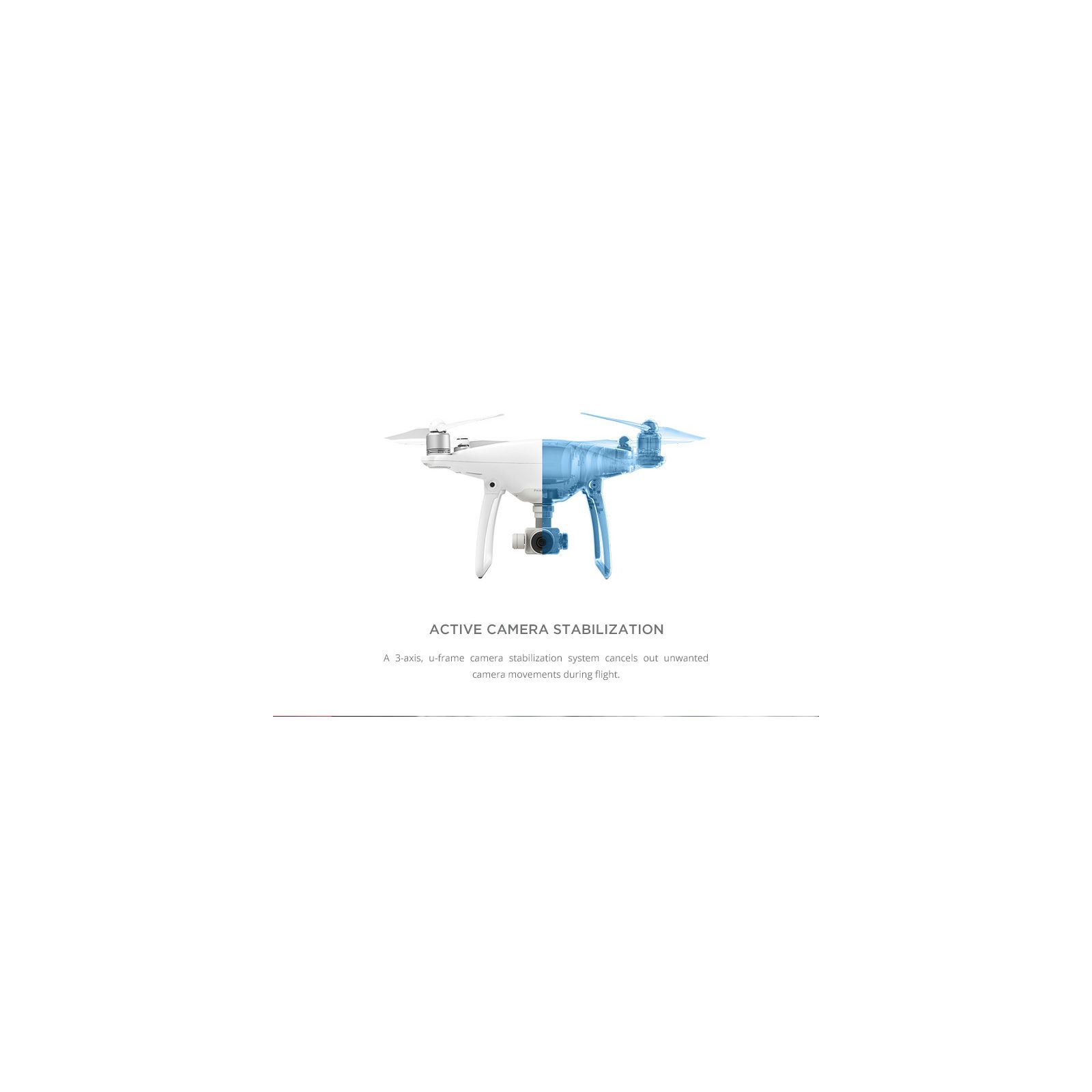

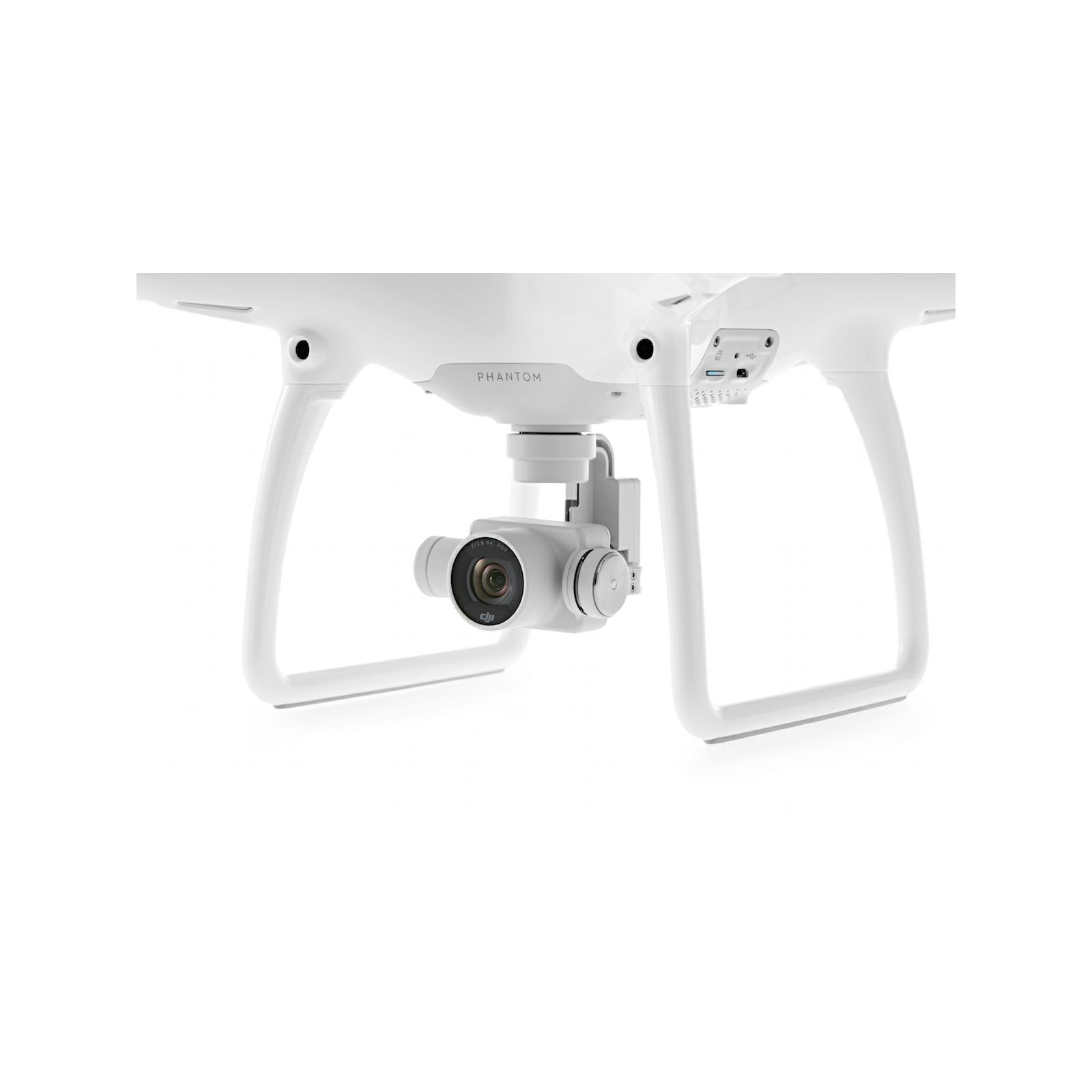

What makes the Phantom 4 gimbal better?
The gimbal and camera system is integrated into the body, bringing it closer to the aircraft’s center of gravity. It is also made of a rigid and strong composite material

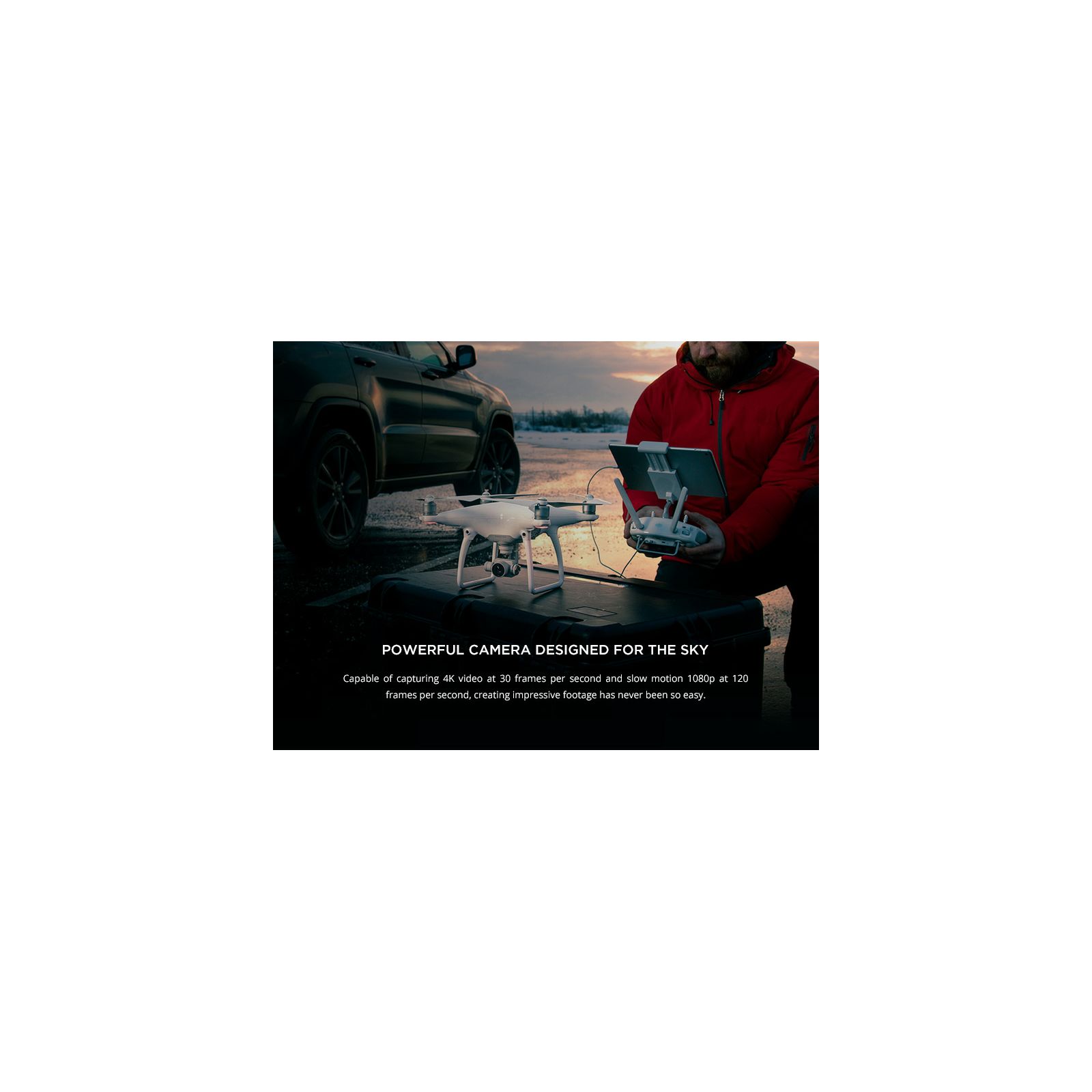

What makes the Phantom 4 camera better?
The Phantom 4 camera has been improved in terms of image quality. Chromatic aberration has been reduced by 56% and lens distortion had been reduced by 36% compared to Phantom 3 Professional. In addition to lens improvements, camera firmware has been tweaked to enable the camera to capture 120fps video in full 1080p FHD (the camera’s field of view will be reconfigured to 47° when recording in this mode) for smooth slow motion. The camera is also used for ActiveTrack and TapFly modes.
Why add a redundant IMU and compass to the Phantom 4?
A redundant IMU and compass enhances system reliability. The Phantom 4 can constantly compare data received from both IMUs and then navigate itself using the most accurate data. The same is true of the redundant compasses.
What are the highlights of the Phantom 4 remote control and live feed?
The Phantom 4’s remote control and live feed is based on DJI Lightbridge technology, providing effective control range of up to 3.1mi (5km) in unobstructed areas that are free from interference. Its HD live feed gives you an exact view of your flight, perfect for composing shots.
Does the Phantom 4 have Return-to-Home?
Yes. It also has Smart Return Home which engages the Obstacle Sensing System during return to home flight. If the aircraft sees an obstacle on its way back, it will intelligently avoid it as it comes home.
What’s the purpose of the Sport Mode?
Giving a top speed of 44.7mph (72Kph), Sport mode can be used for fun, letting you fly faster than ever, or to get to your shoot location while the light is perfect.
What’s the horizontal speed of Phantom 4 in Atti Mode?
The horizontal speed of the Phantom 4 in Atti mode is 44.7mph (72kph).
What is the difference between Sport Mode and Atti Mode?
Though Phantom 4 can fly up to 44.7mph in both Sport Mode and Atti Mode, Phantom 4 will use GPS/Glonass and its Vision Positioning System to achieve precision while hovering. In Atti Mode, GPS and Vision Positioning System will not function to aid the aircraft in terms of hovering or navigation.
In ActiveTrack, how do you untrack the subject? What happens to the aircraft after you stop tracking?
Tap the Stop button on the left of the screen or pull the pitch stick backward for 3 seconds to exit ActiveTrack. After exiting, the aircraft will hover in place. At this point you may choose to start a new mission or bring the aircraft back to the Home Point.
How small an object can the Obstacle Sensing System see?
The minimum pixel size that the Obstacle Sensing system can see is 500 pixels.
What is ActiveTrack’s minimum altitude?
ActiveTrack will work down to 9ft (3m) above the ground.
EAN: 6958265128103 (stari EAN: 6958265112560 i 6958265128097)

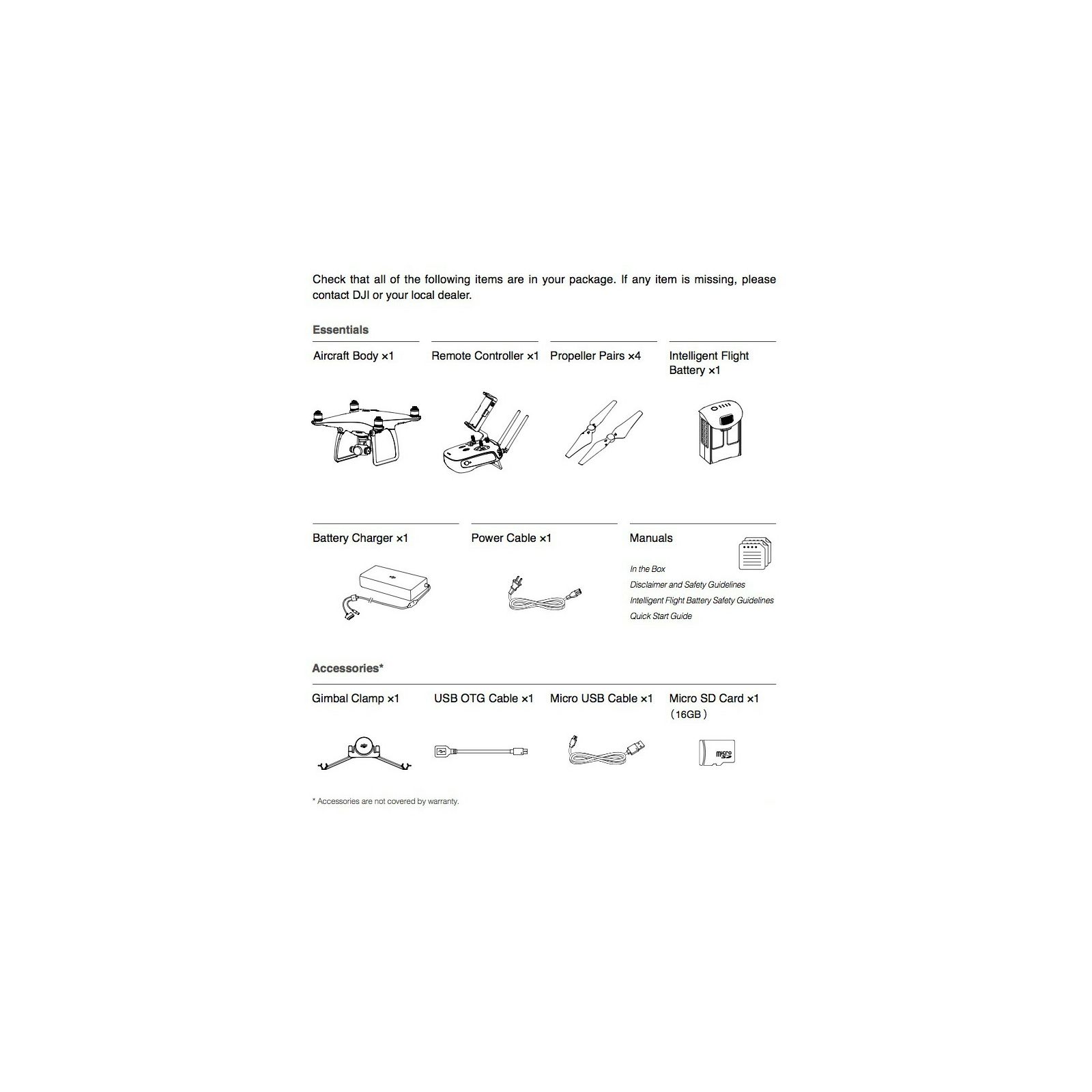

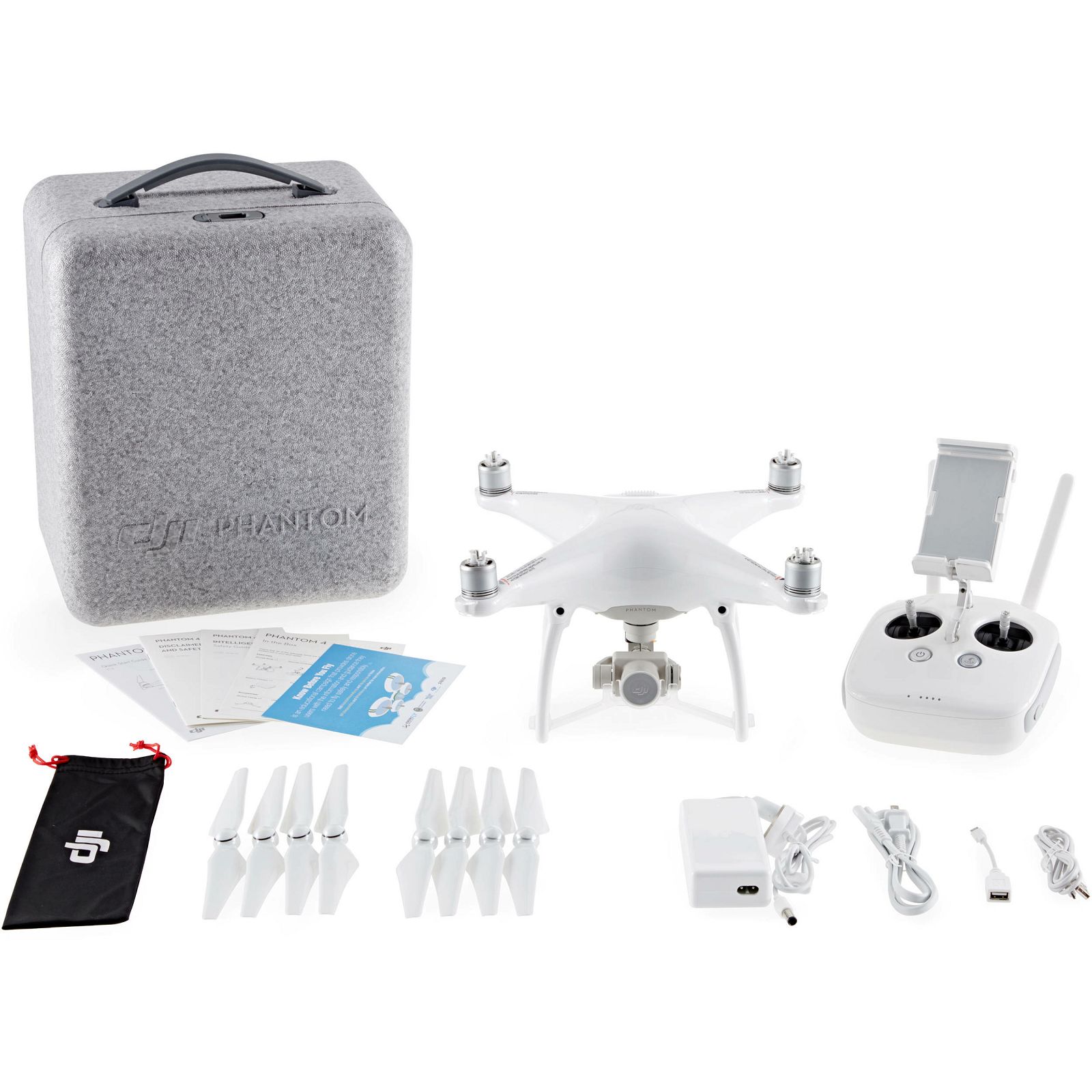

UKLJUČUJE:

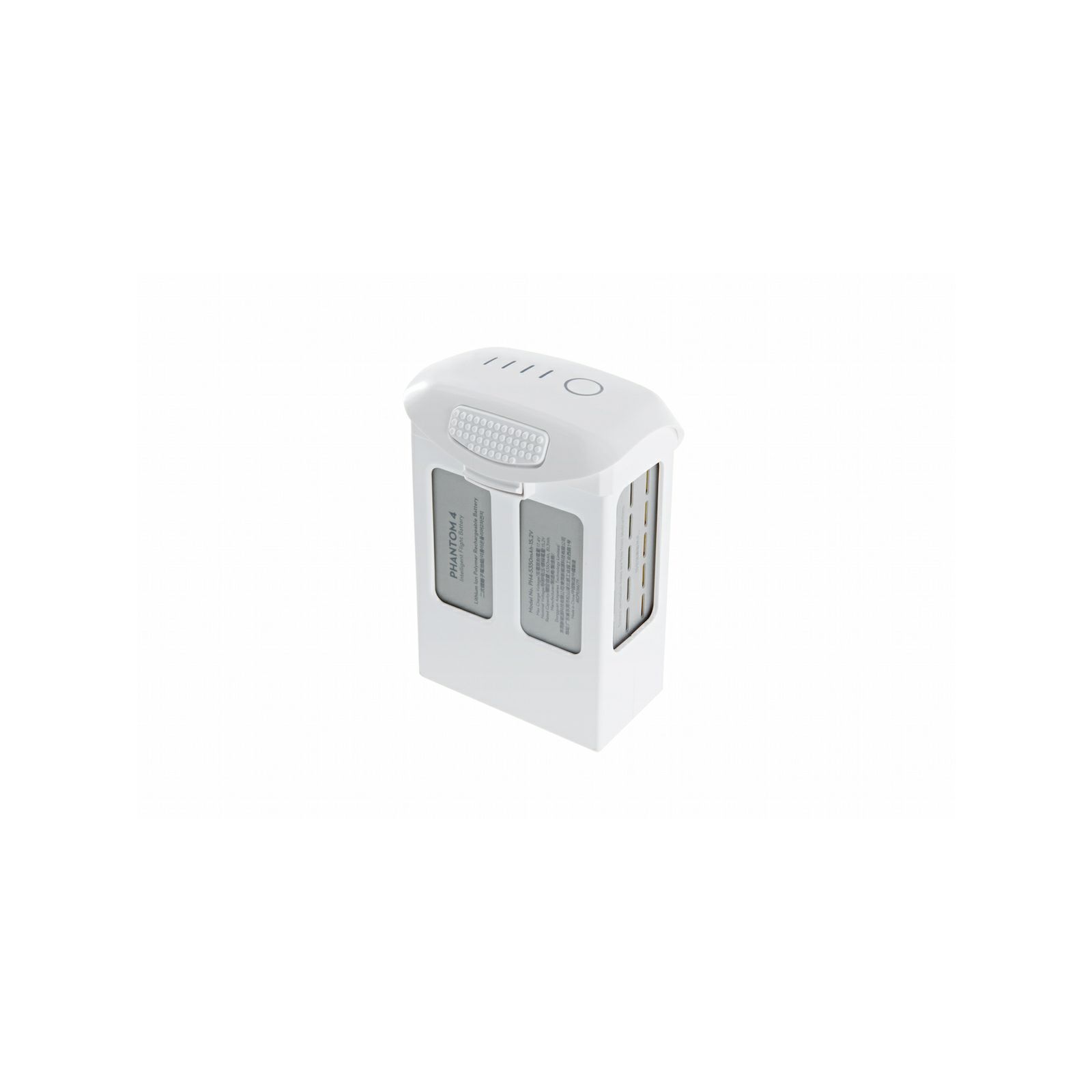

1x DJI Phantom 4 1x DJI Intelligent Flight Battery (baterija za Phantom 4) 4x Elise / propeleri (2x CW + 2x CCW) 1x Remote Controll (daljinski upravljač za dron) 1x Punjač baterije 100W AC EU 1x Kabel za napajanje 1x USB OTG kabel za spajanje mobitela/tableta s daljinskim upravljačem drona 1x Kufer za nošenje 1x Gimbal Clamp 1x Kompletne upute za korištenje na hrvatskom jeziku (samo u Canosi!)
Napomena: demo - uređaj korišten na prezentaciji
