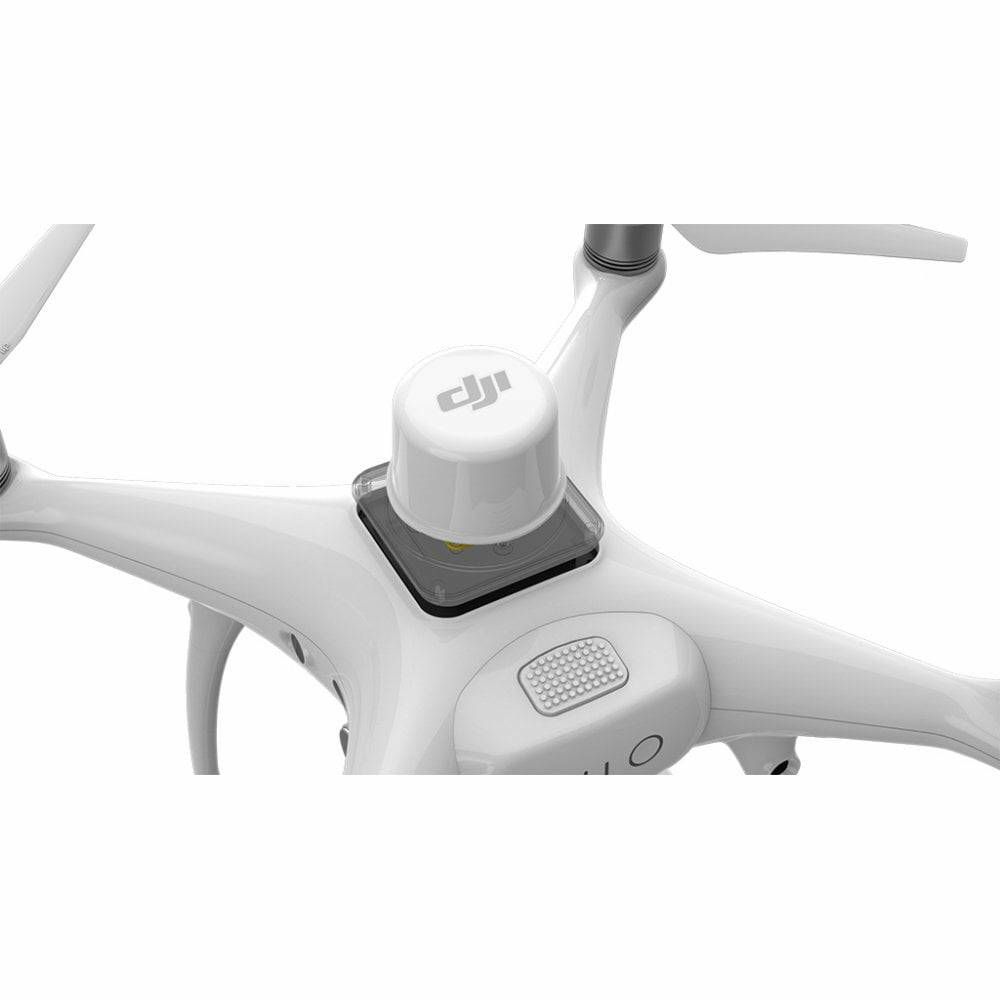

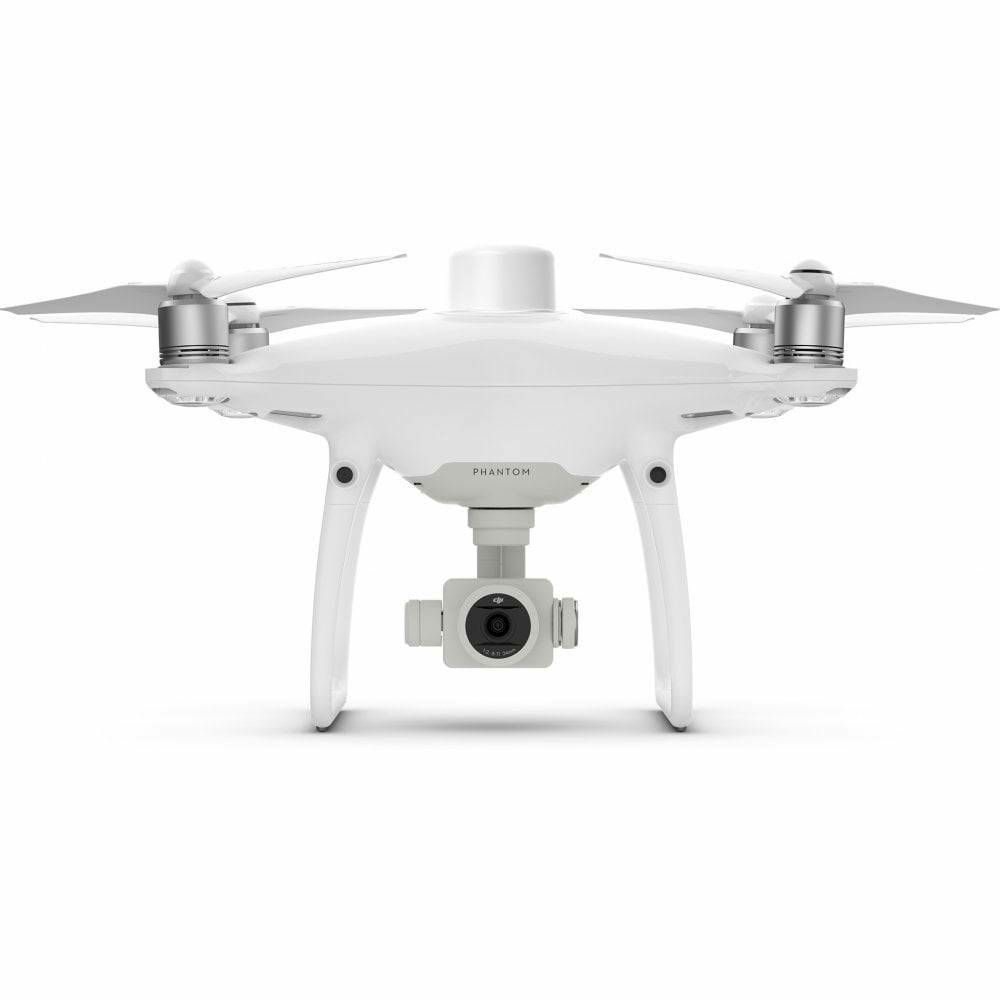

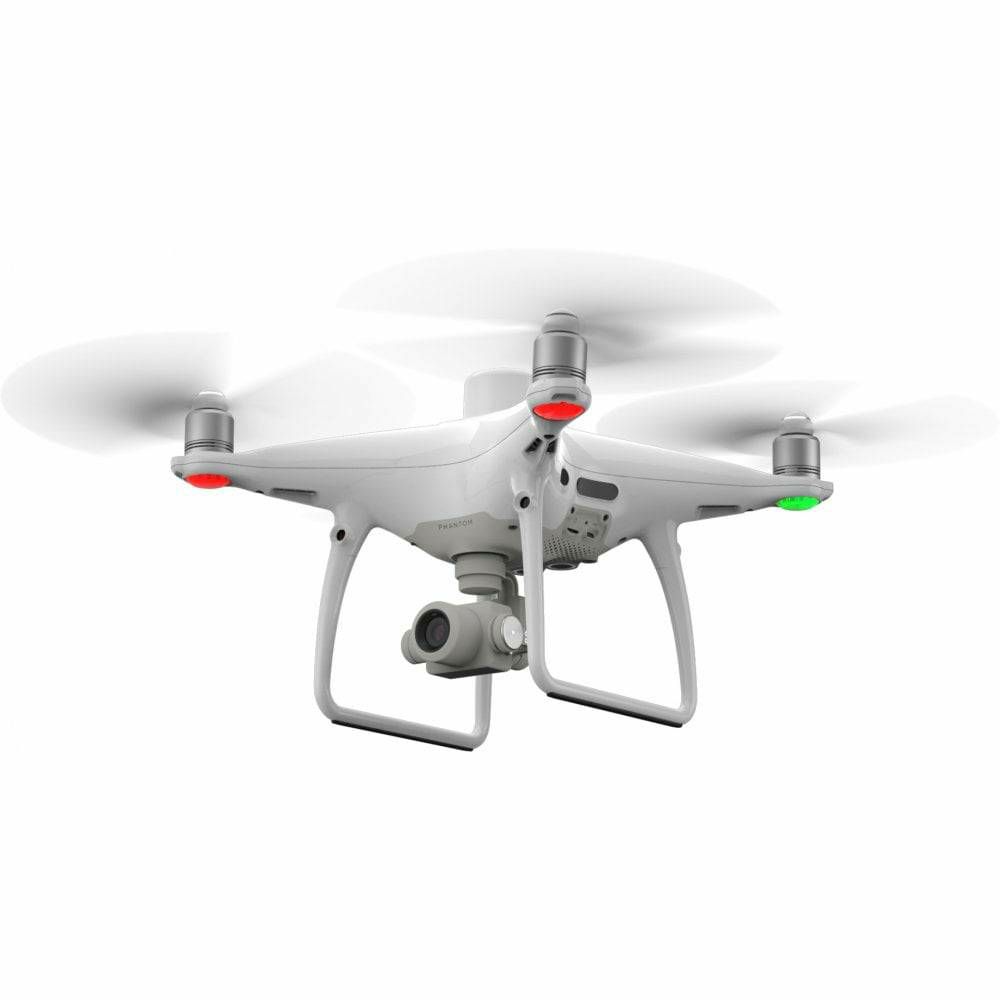

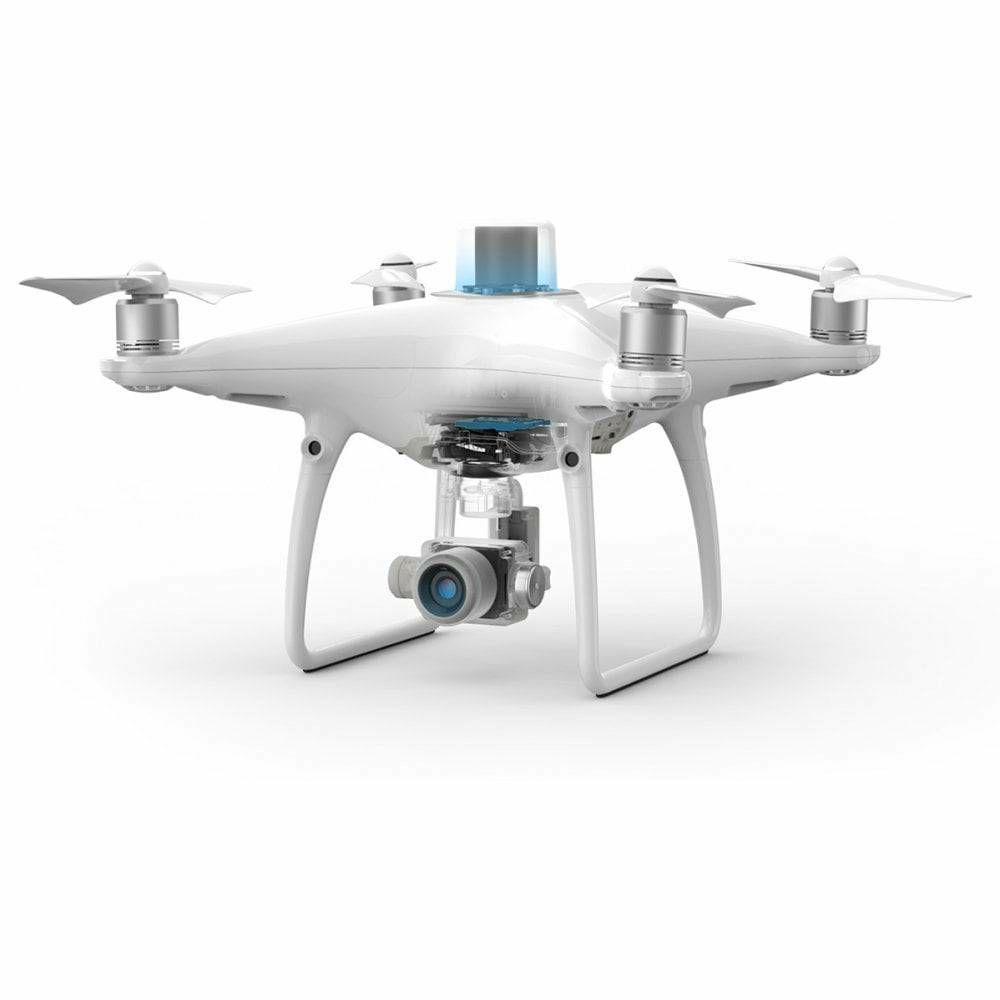

DJI Phantom 4 RTK dron Quadcopter (CP.TP.00000230.01)
ZNAČAJKE:
The ultimate mapping solution for enterprise.
The Phantom 4 RTK is a mapping drone capable of seriously accurate data collection.
It is compatible with DJI Terra - the new 3D mapping software from DJI.
Most people are already familiar with the Phantom range of drones. The low barrier to entry makes the Phantom 4 RTK version even more attractive than existing solutions.
There's also a lower price point, new dedicated app and existing ecosystem of accessories.
In addition - the Phantom 4 RTK supports DJI's Mobile SDK - meaning functions are open to further automation and customisation through a mobile device.
The DJI Phantom 4 RTK can produce extremely accurate data.
This custom built quadcopter is crafted from the ground up with accuracy in mind.
This results in:
1cm+1ppm RTK Horizontal Positioning Accuracy
1.5cm+1ppm RTK Vertical Positioning Accuracy
5cm Absolute Horizontal Accuracy of Photogrammetric Models
This is on par with some of the most advanced equipment available, but in a much easier to use, lower priced, compact and more reliable package.
The new technology in the Phantom 4 RTK means that fewer ground points are required to achieve the same high level of accuracy.
SPECIFIKACIJE:
Weight with Battery and Propellers Fitted
1391 g
Max Service Ceiling Above Sea Level
6000 m
(19685 ft)
Max Ascent Speed
6 m/s (automatic flight)
5 m/s (manual control)
Max Descent Speed
3 m/s
Max Speed
31 mph (50 kph) (P-mode)
36 mph (58 kph) (A-mode)
Max Flight Time
Approximately 30 minutes
Operating Temperature
0° to 40° C
(32° to 104° F)
Operating Frequency
2.400 GHz to 2.483 GHz (Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (United States, China)
EIRP
2.4 GHz
CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
5.8 GHz
FCC (United States) / SRRC (Mainland China) / NCC (Taiwan, China): < 26 dBm
Hover Accuracy Range
RTK enabled and functioning properly:
Vertical: ±0.1 m; Horizontal: ±0.1 m
RTK disabled:
Vertical: ±0.1 m (with vision positioning); ±0.5 m (with GNSS positioning)
Horizontal: ±0.3 m (with vision positioning); ±1.5 m (with GNSS positioning)
Image Position Offset
The position of the camera center is relative to the phase center of the onboard D-RTK antenna under the aircraft body’s axis: (36, 0, and 192 mm) already applied to the image coordinates in Exif data. The positive x, y, and z axes of the aircraft body point to the forward, rightward, and downward of the aircraft, respectively.
GNSS MODULE SPECS
Single-Frequency High-Sensitivity GNSS
GPS + BeiDou + Galileo* (Asia); GPS + GLONASS + Galileo* (other regions)
Multi-Frequency Multi-System High-Precision RTK GNSS
Frequency Used
GPS: L1/L2; GLONASS: L1/L2; BeiDou: B1/B2; Galileo*: E1/E5
First-Fixed Time: < 50 s
Positioning Accuracy: Vertical 1.5 cm + 1 ppm (RMS); Horizontal 1 cm + 1 ppm (RMS)
1 ppm indicates an error with a 1 mm increase over 1 km of movement
Velocity Accuracy: 0.03 m/s
MAPPING FUNCTIONS SPECIFICATIONS
Mapping Accuracy
Mapping accuracy meets the requirements of the ASPRS Accuracy Standards for Digital Orthophotos Class III.
The actual accuracy depends on surrounding lighting and patterns, aircraft altitude, mapping software used, and other factors when shooting.
Ground Sample Distance (GSD)
(H/36.5) cm/pixel, H indicates the aircraft altitude relative to the shooting scene (unit: m)
Acquisition Efficiency
Max operating area of approx. 1 km2 for a single flight (at an altitude of 182 m, i.e., GSD is approx. 5 cm/pixel, meeting the requirements of the ASPRS Accuracy Standards for Digital Orthophotos Class III).
PHANTOM 4 RTK GIMBAL SPECIFICATIONS
Stabilization
3-axis (pitch, roll, yaw)
Controllable Range
Pitch: -90° to +30°
Max Controllable Angular Speed
Pitch: 90°/s
Angular Vibration Range
±0.02°
VISION SYSTEM
Velocity Range
? 31 mph (50 kph) at 6.6 ft (2 m) above ground with adequate lighting
Altitude Range
0 - 10 m
(0 - 33 ft)
Operating Range
0 - 10 m
(0 - 33 ft)
Obstacle Sensory Range
0.7 - 30 m
(2 - 98 ft)
Field of View
Forward/Rear: 60° (horizontal), ±27° (vertical)
Downward: 70° (front and rear), 50° (left and right)
Measuring Frequency
Forward/Rear: 10 Hz
Downward: 20 Hz
Operating Environmental Conditions
Surfaces with clear patterns and adequate lighting (> 15 lux)
INFRARED SENSING SYSTEM
Obstacle Sensory Range
0.2 - 7 m
(0.6 - 23 ft )
Field of View
70°(Horizontal), ±10°(Vertical)
Measuring Frequency
10 Hz
Operating Environment
Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.)
PHANTOM 4 RTK CAMERA SPECS
Sensor
1’’ CMOS; Effective pixels: 20M
Lens Specs
FOV (Field of View) 84°, 8.8 mm (35 mm format equivalent: 24 mm), f/2.8 - f/11, auto focus at 1 m - ?
ISO Range
Video: 100 - 3200 (Auto), 100 - 6400 (Manual)
Photo: 100 - 3200 (Auto), 100 - 12800 (Manual)
Mechanical Shutter
8 - 1/2000 s
Electronic Shutter
8 - 1/8000 s
Max Image Size
4864×3648 (4:3)
5472×3648 (3:2)
Still Photography Modes
Single shot
Video Recording Modes
H.264, 4K: 3840×2160 30p
Photo Format
JPEG
Video Format
MOV
Supported File Systems
FAT32 (? 32 GB)
exFAT (> 32 GB)
Supported SD Cards
microSD
Max Capacity: 128 GB.
Write speed ?15MB/s.
Class 10 or UHS-1 rating required
Operating Temperature
0° to 40° C
(32° to 104° F)
PHANTOM 4 RTK REMOTE CONTROLLER SPECS
Operating Frequency
2.400 GHz to 2.483 GHz (Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (United States, China)
EIRP
2.4 GHz
CE / MIC / KCC: < 20 dBm
5.8 GHz
FCC / SRRC / NCC: < 26 dBm
Max Transmission Distance
FCC / NCC: 4.3 mi (7 km)
CE / MIC / KCC / SRRC: 3.1 mi (5 km)
(Unobstructed, free of interference)
Power Consumption
16 W (typical value)
Display Device
5.5 inch screen
1920×1080
1000 cd/m2
Android system
4G RAM + 16G ROM
Operating Temperature
0° to 40° C
(32° to 104° F)
PHANTOM 4 RTK BATTERY SPECIFICATIONS
Capacity
5870 mAh
Voltage
15.2 V
Battery Type
LiPo 4S
Energy
89.2 Wh
Net Weight
468 g
Operating Temperature
-10° to 40° C
(14° to 104° F)
Max Charging Power
160 W
CHARGING HUB SPECS
Voltage
17.5 V
Operating Temperature
5° to 40° C
(41° to 104° F)
REMOTE CONTROLLER INTELLIGENT BATTERY (WB37)
Capacity
4920 mAh
Voltage
7.6 V
Battery Type
LiPo 2S
Energy
37.39 Wh
Operating Temperature
-20° to 40° C
(-4° to 104° F)
INTELLIGENT BATTERY CHARGING HUB SPECIFICATION
Input Voltage
17.3 to 26.2 V
Output Voltage and Current
8.7 V, 6 A; 5 V, 2 A
Operating Temperature
5° to 40° C
(41° to 104° F)
AC POWER ADAPTER SPECS
Voltage
17.4 V
Rated Power
160 W
UKLJUČUJE:
Phantom 4 RTK Aircraft x 1
Remote Controller with Built-in Screen x 1
Propeller (Pairs) x 4
Intelligent Flight Battery x 2
Intelligent Flight Battery Charging Hub x 1
Power Adapter x 1
AC Power Cable x 1
Remote Controller Intelligent Battery x 1
Remote Controller Intelligent Battery Charging Hub x 1
Micro-USB Cable x 1
Male-to-Male USB Cable x 1
16 GB Micro-SD Card x 1
Carrying Case x 1
