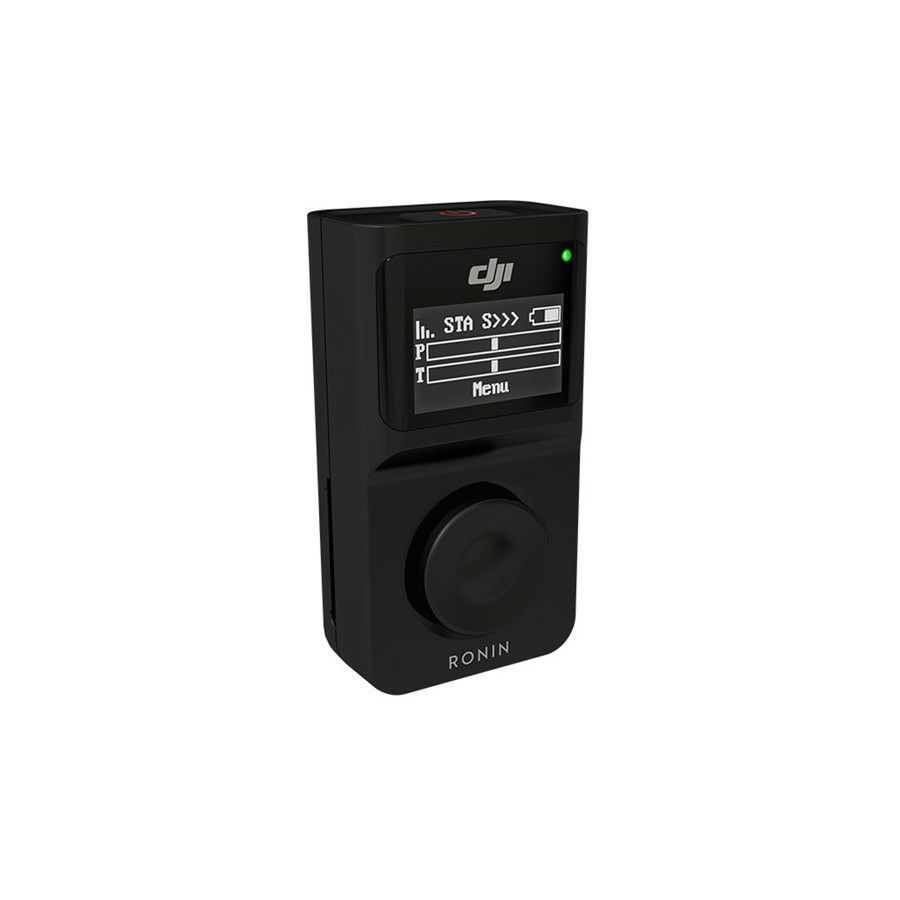

DJI Ronin-M Wireless Thumb Controller for Ronin-M

PRODUCT HIGHLIGHTS

Operate with Just Your Thumb
Manually Adjust Camera Angle
Clamps Onto Handle for Single-Operator
Works Wirelessly Up to 200'
OLED Display for Menu / Status
Save Preset Settings
Up to 18 Hours Battery Life
USB for Charging / Firmware Updates
Use Alongside Ronin-M Controller
For Ronin-M Only

Simple to setup and use, the DJI Ronin Wireless Thumb Controller makes controlling your Ronin-M easier and more intuitive, even with only a single operator. Capture shots that are difficult or impossible now, and start using your gimbal to its full potential.

Complete Control by Thumb
A custom-made pressure sensitive stick allows you to quickly change the settings, speed, and direction of your gimbal, all at the flick of your thumb. Control where your camera is facing and access advanced settings including calibration, channel settings, and preset profiles. Making changes is even faster than when using the Ronin remote controller or mobile app, and can be done during any of your shots.

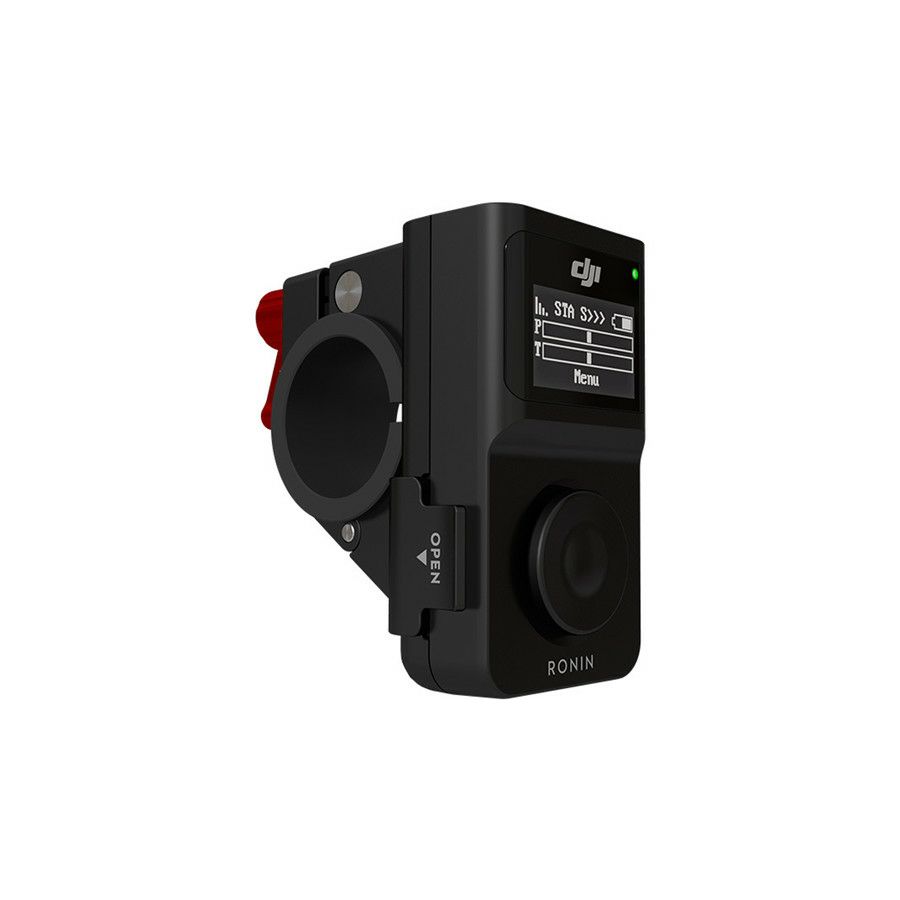

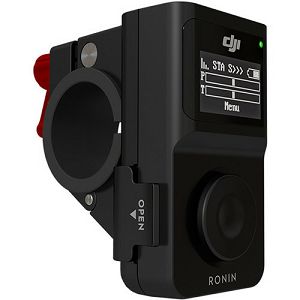

Fast Setup and Mounting
Simply link the Thumb Controller to your gimbal, and you are ready to go. The Thumb Controller clamps easily to the handle bars or can be placed anywhere you like, no tools required.

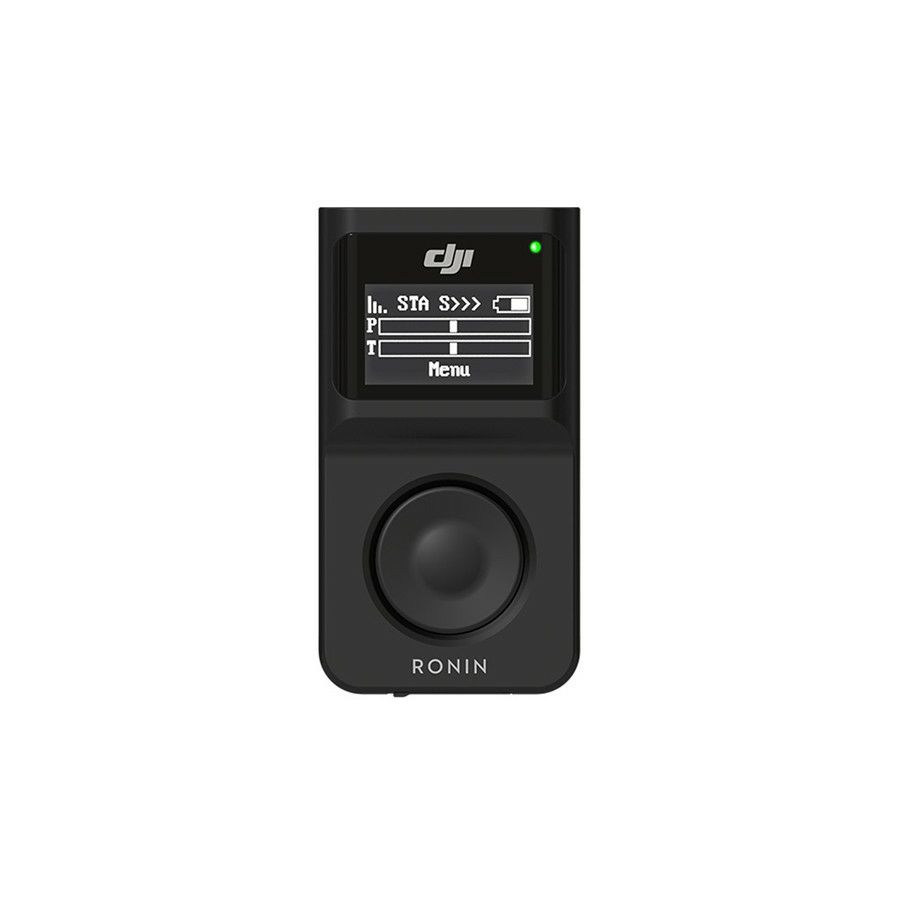

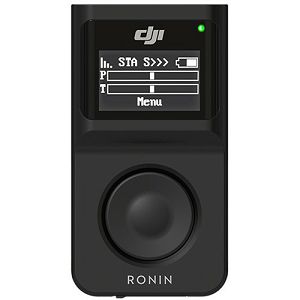

Clear OLED Screen
View your current status and click through menu options by using the bright, clear OLED screen. This compact yet powerful display makes accessing the basic functions of your Ronin-M easy.

Long Battery Life and Range
The Thumb Controller’s built-in rechargeable battery gives you up to 18 hours of power per charge, enabling you to use it all day without worry. If you prefer to control your Ronin-M from a distance, the nearly 200 foot (60 meter) transmission range makes capturing unique shots easy.

Dual Controller Compatibility
Use the Thumb Controller in tandem with the Ronin-M’s included remote controller. You can set the priority control source by easily designating the primary device.

Future Upgrades
A Micro-USB port on the Thumb Controller allows you to download and apply future software updates and recharge the integrated battery.

SPECIFIKACIJE:

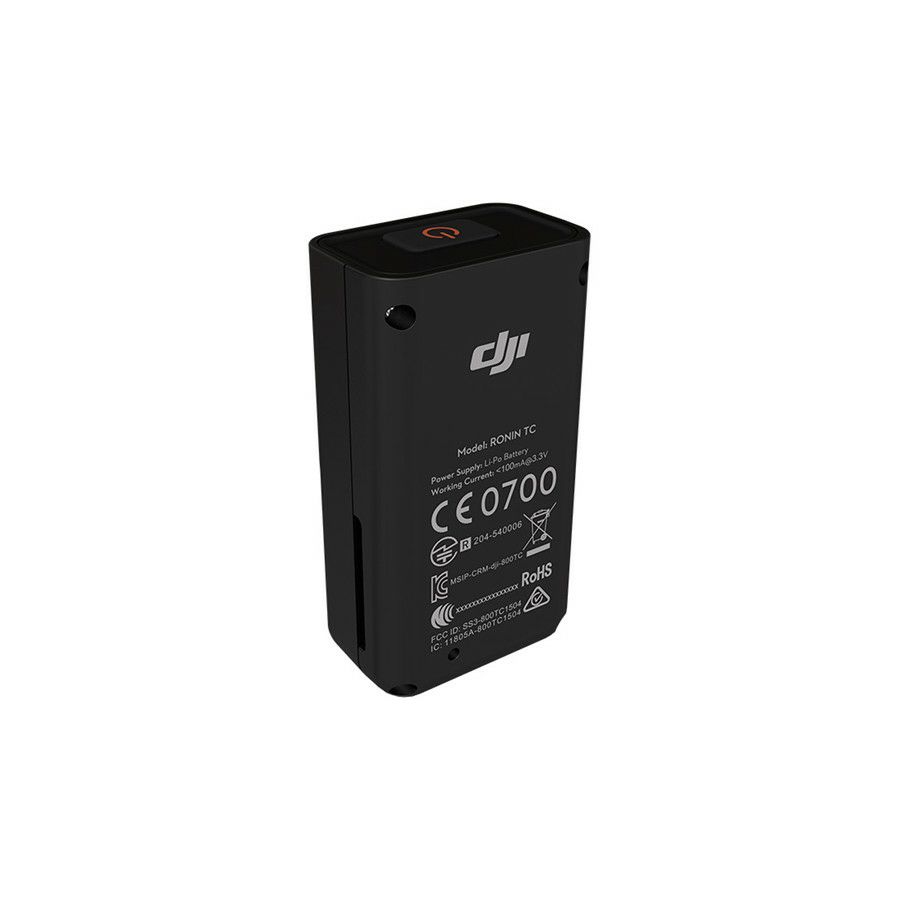

Type
RONIN TC
Supported Devices
Ronin, Ronin-M
Operating Frequency
2.415 GHz ~ 2.454 GHz
Working Current
<100 mA @ 3.3 V
Communication Distance
200 ft. (60 m)
Battery Life
18 h
Standby Life
20 h
Operating Temperature
-20 °C ~ 55 °C
Battery Type
LiPo
Battery Voltage
3.7 V
Battery Capacity
1150 mAh
Charge Time
2 h
Weight
50 g
Size
2.7×1.4×0.9 in. (68×36×23 mm)
Mounting Bracket Diameter
1.0 in. or 1.2 in. (25 mm or 30 mm)
Display
White OLED, 0.96 inch, Dots: 128×64
