DJI Ronin-S Spare Part 17 Focus Motor (CP.RN.00000022.01)

ZNAČAJKE:

Works with Optional Ronin-S Focus Wheel
Control Focus, Iris, or Zoom
Assignable Rotation Range
Gear Rings Included

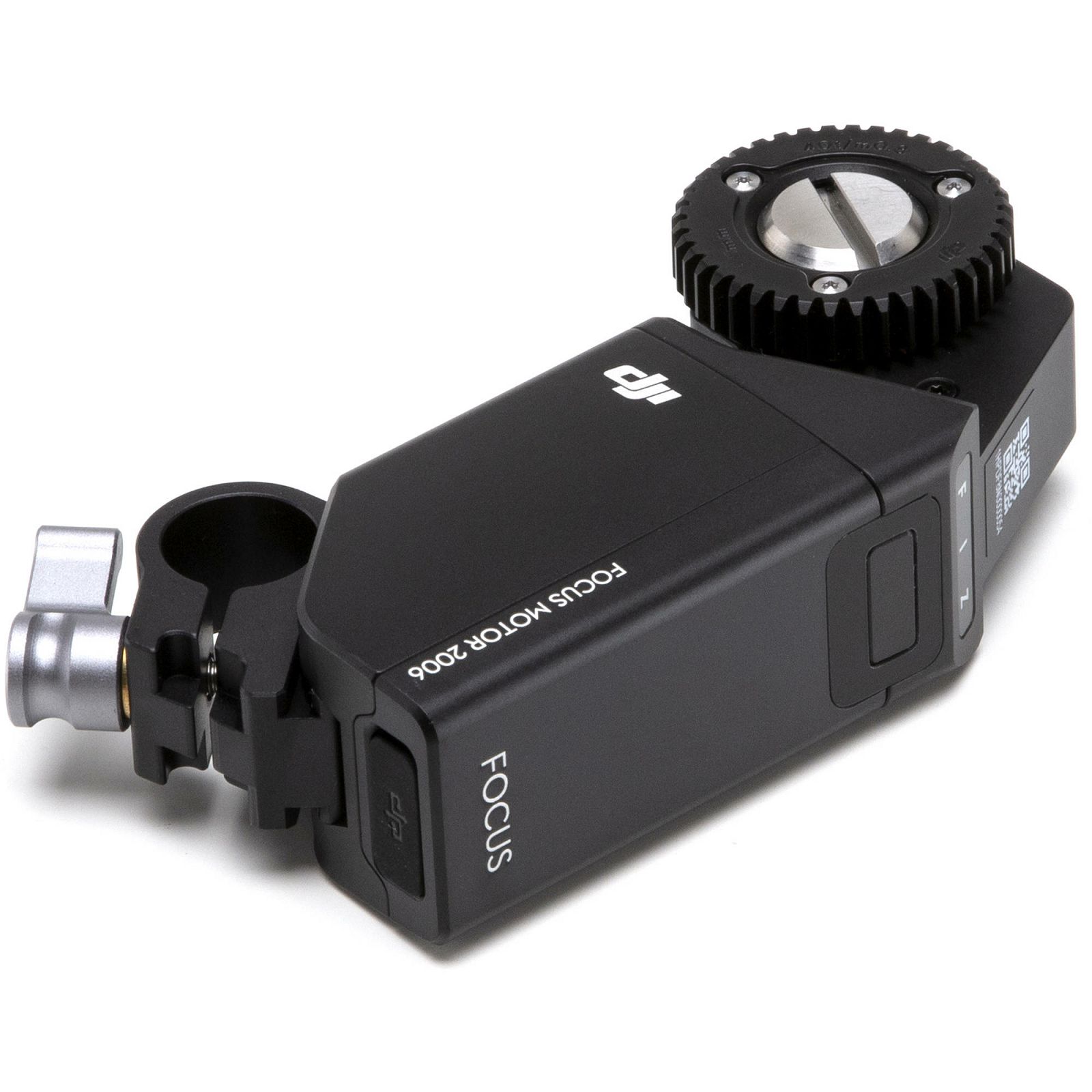

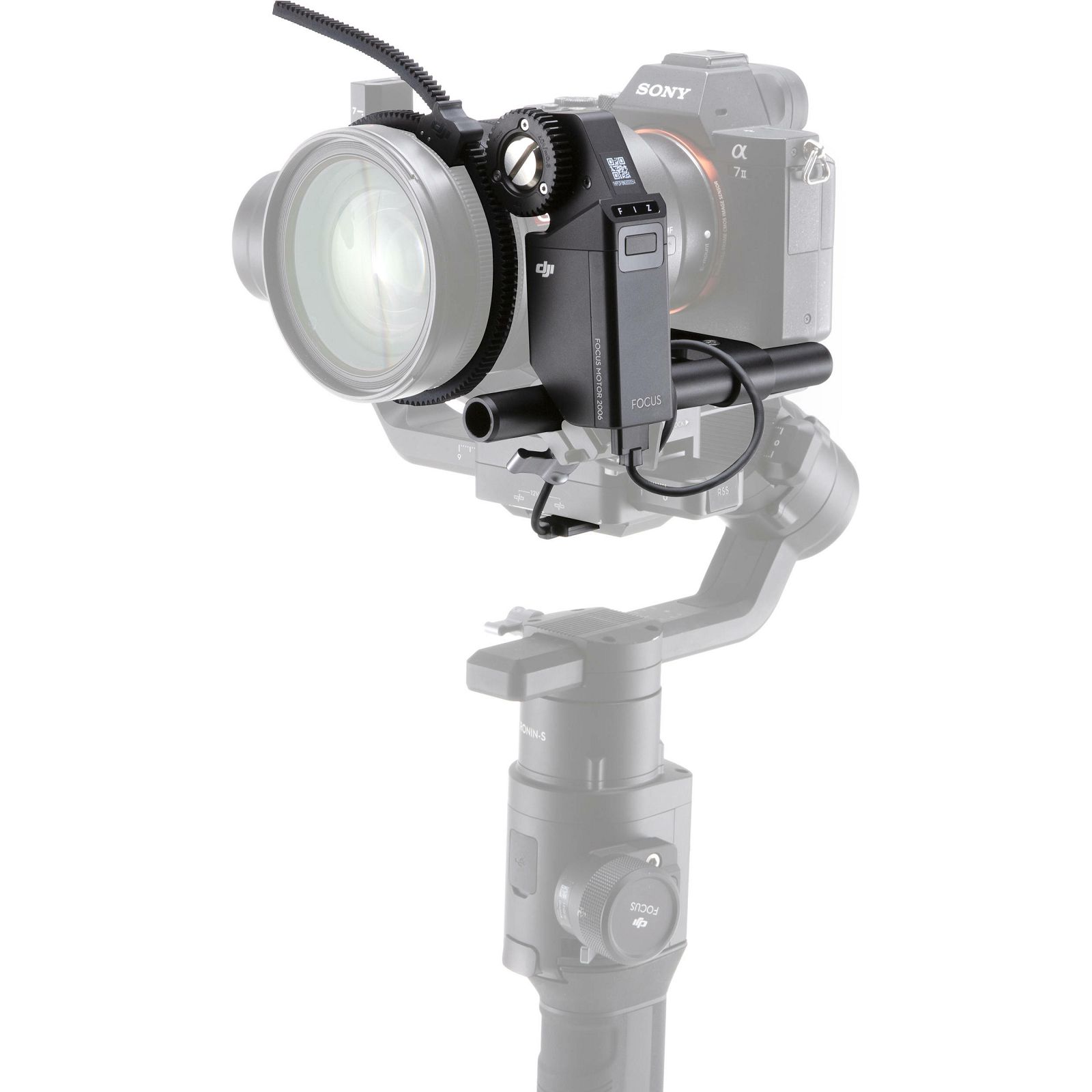

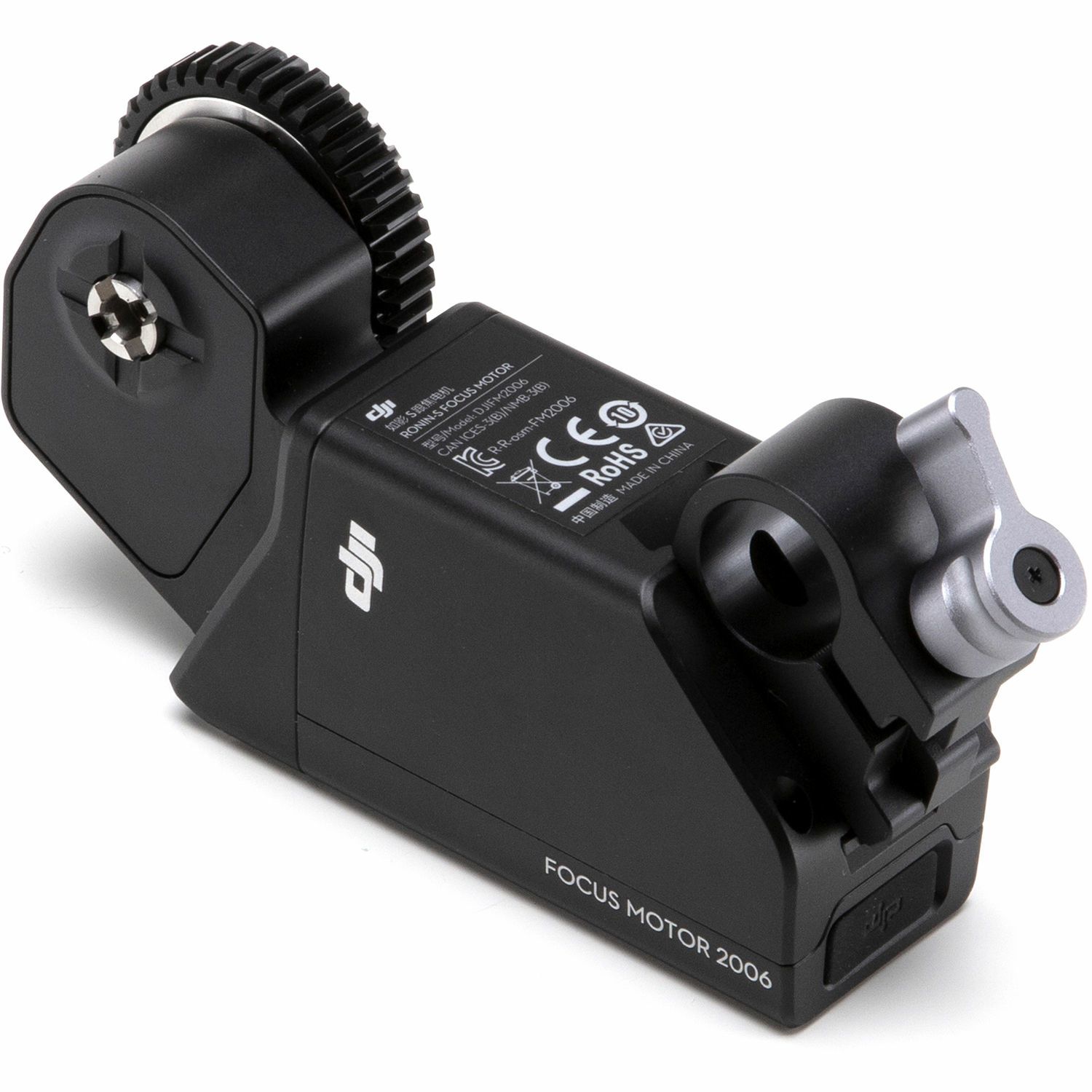

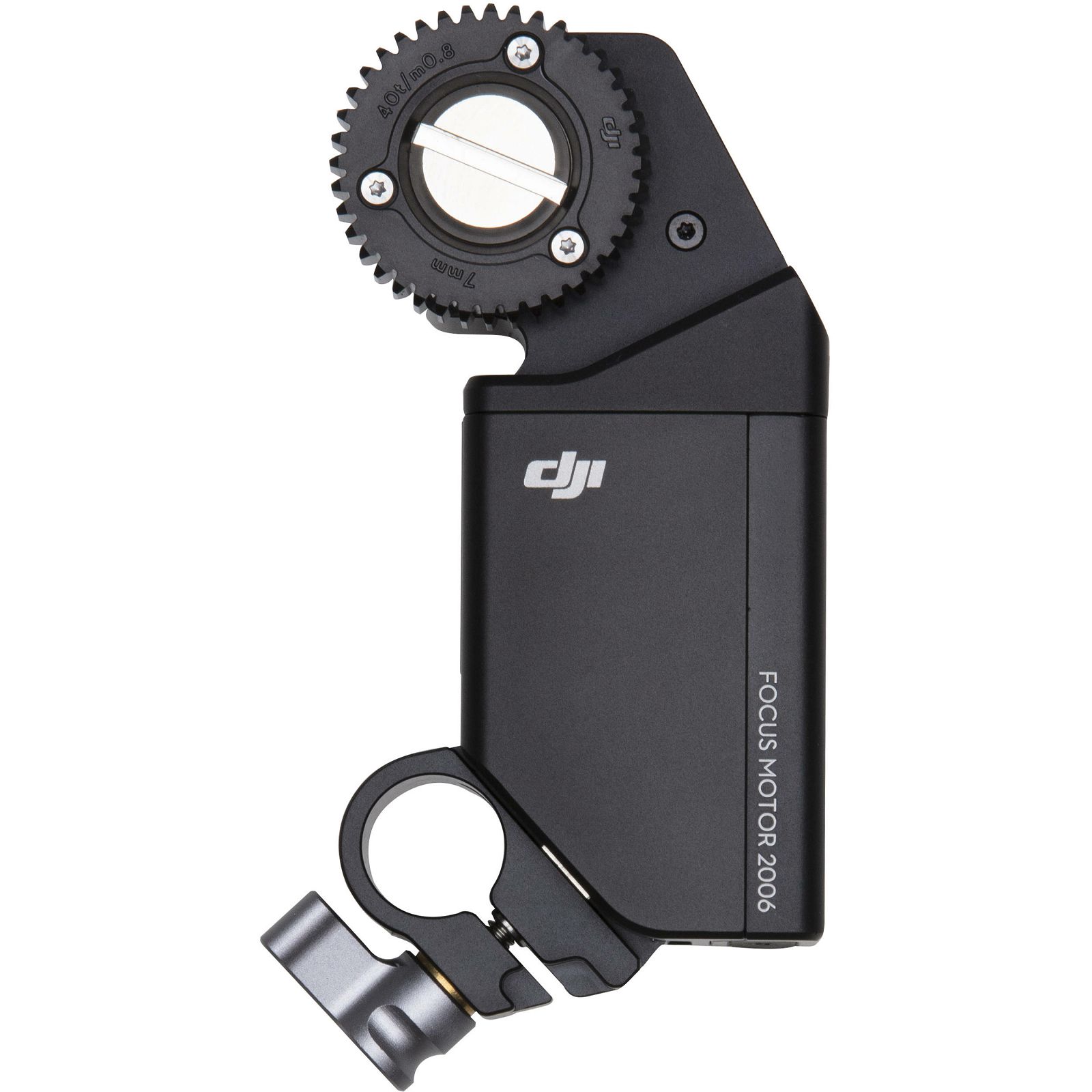

The DJI Ronin-S Focus Motor works in combination with the optional Ronin-S Focus Wheel to control focus, iris, or zoom. In conjunction with the Focus Wheel, the rotation range is assignable between points A and B, and a function button on the side of the motor lets you switch status between focus, iris, and zoom. Gear rings are included for lenses without 0.8 MOD gears.

SPECIFIKACIJE:

Maximum Torque 0.5 Nm
Maximum Speed 210 rpm
Number of Gear Teeth 40
MOD 0.8
Noise 25 dB
Operating Current Free Current: 25 mA (12 V)
Stall Current: 0.5 A (12 V)
Operating Voltage 6-17 V
Dimensions 4.3 x 3 x 1.2" / 11 x 5.3 x 3 cm
Weight 7 oz / 198 g (with Power Cable)
Gear Ring
Number of Teeth 151
MOD 0.8
Diameter 1.2 - 4.3" / 3 - 11 cm
Length 14.8" / 37.7 cm

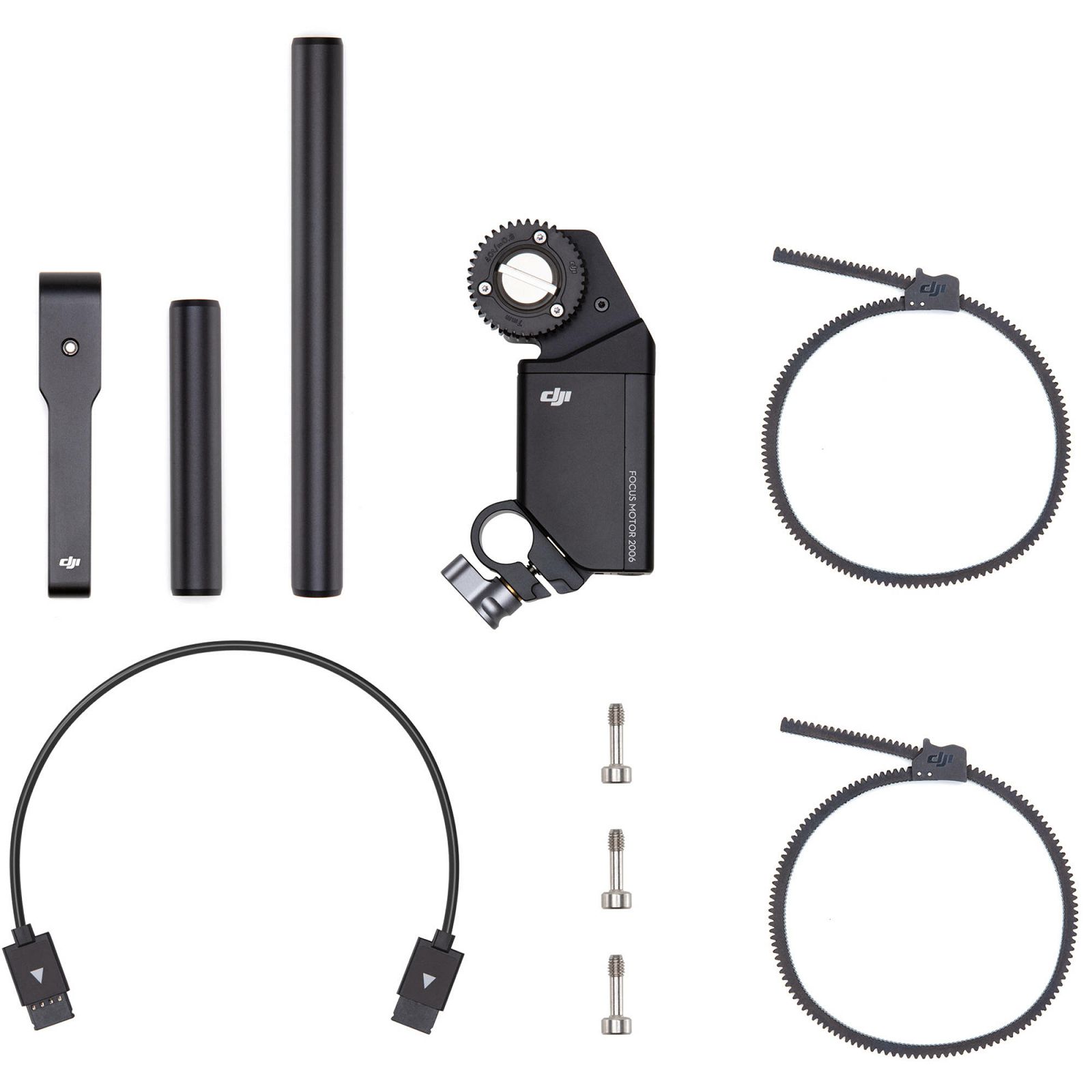

UKLJUČUJE:

DJI Ronin-S Focus Motor

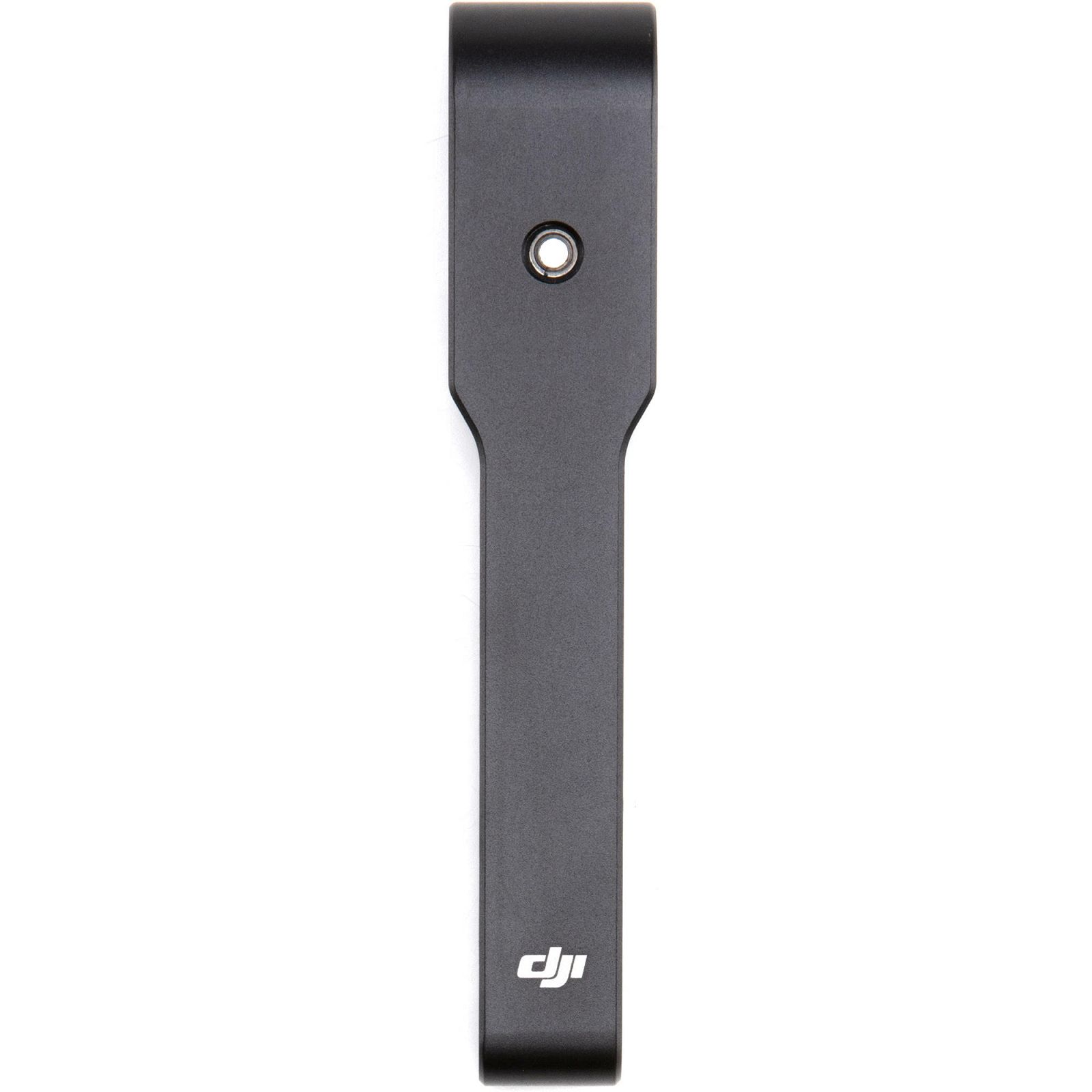

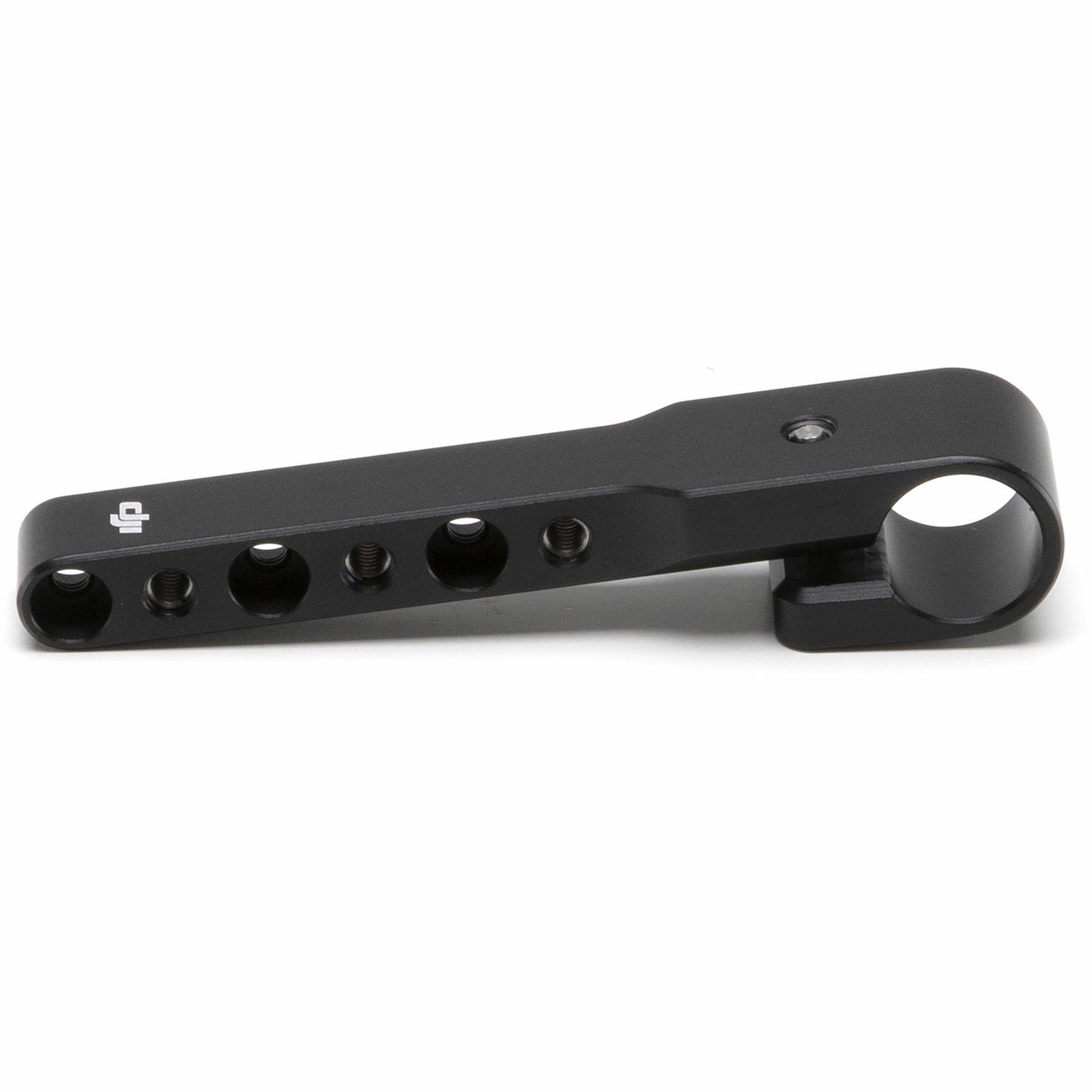

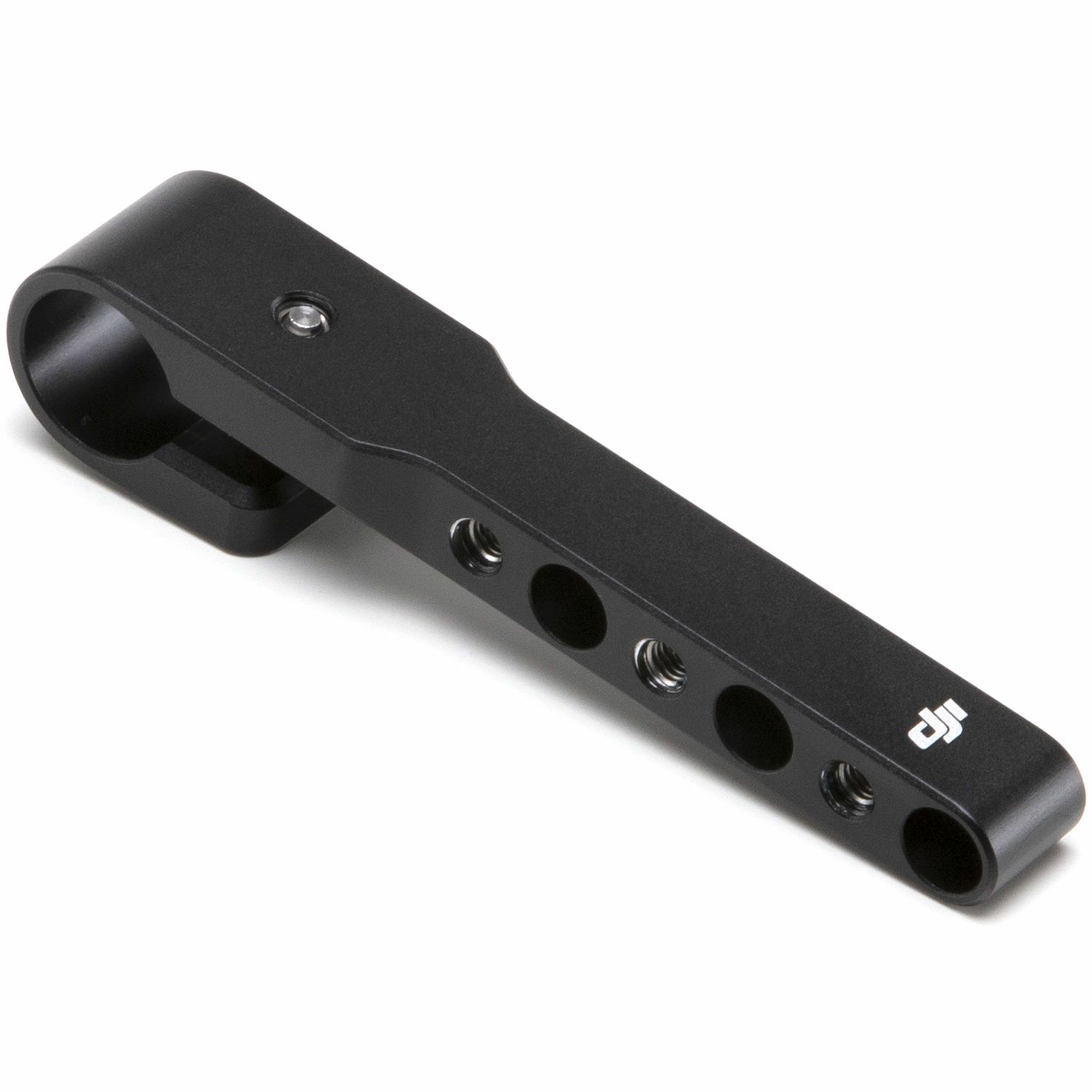

15mm Rod Mount
15mm Rod
Short 15mm Rod
Set of 4 Screws
2 x Gear Ring

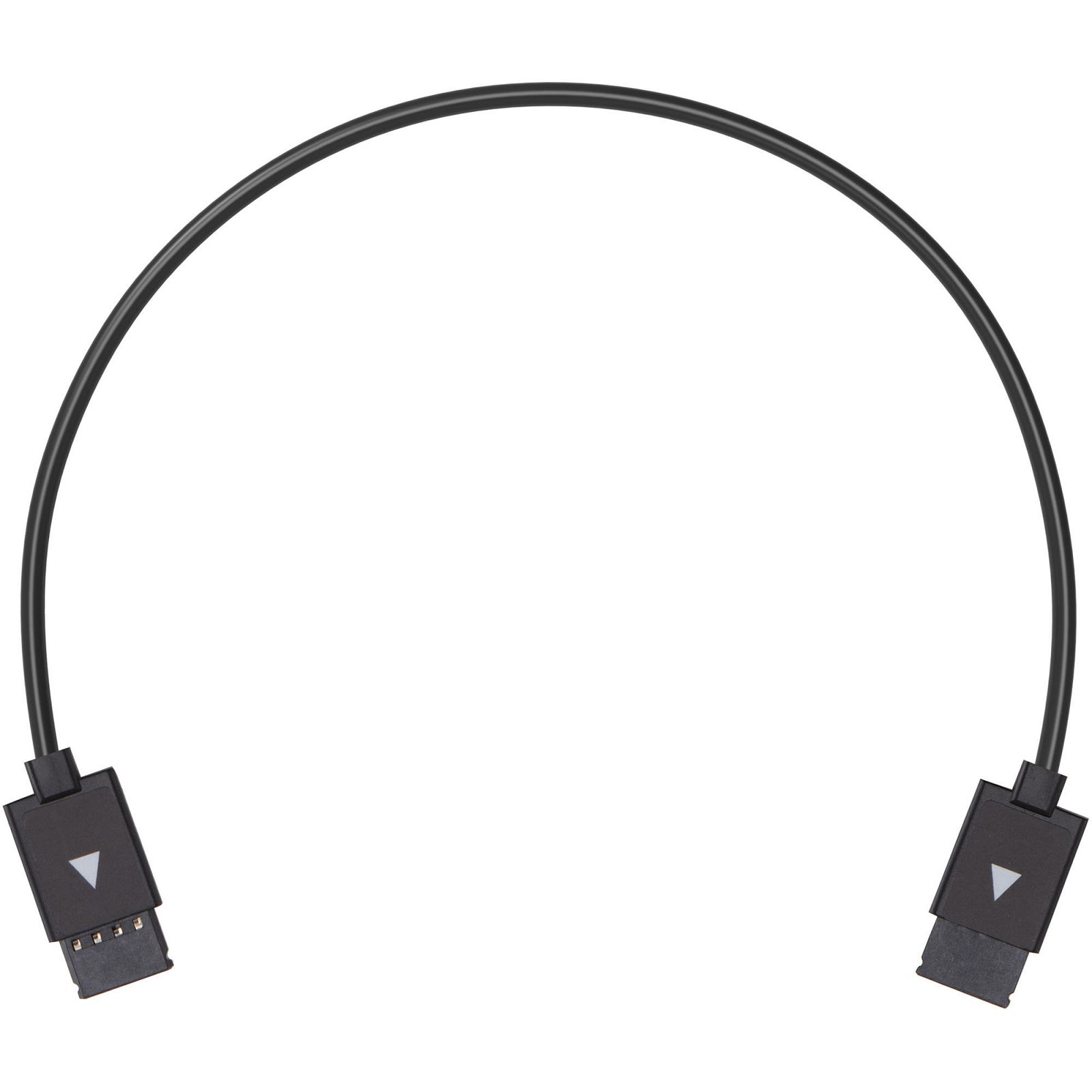

Power Cable
