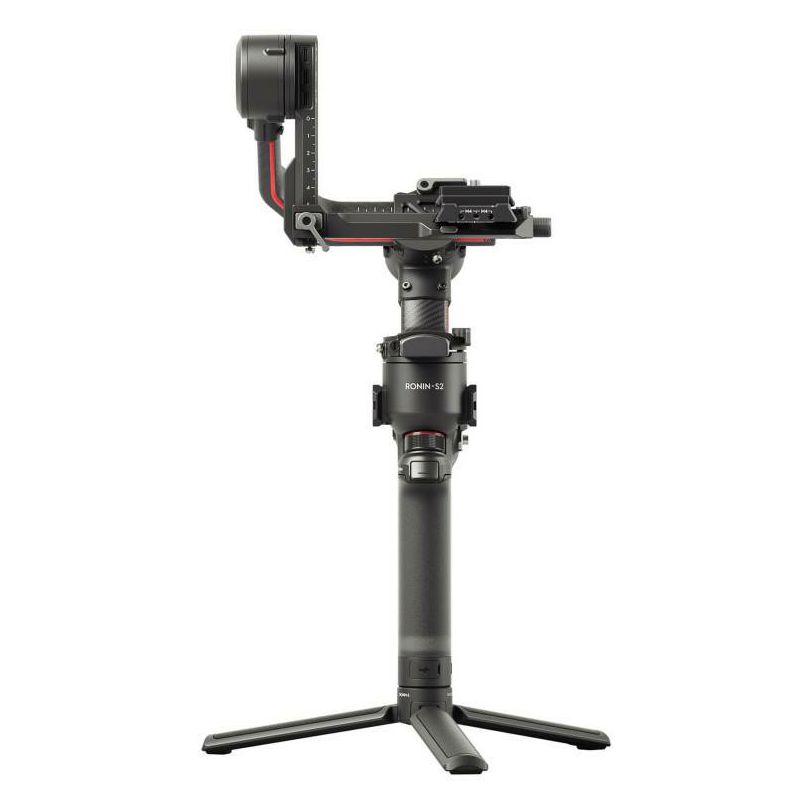

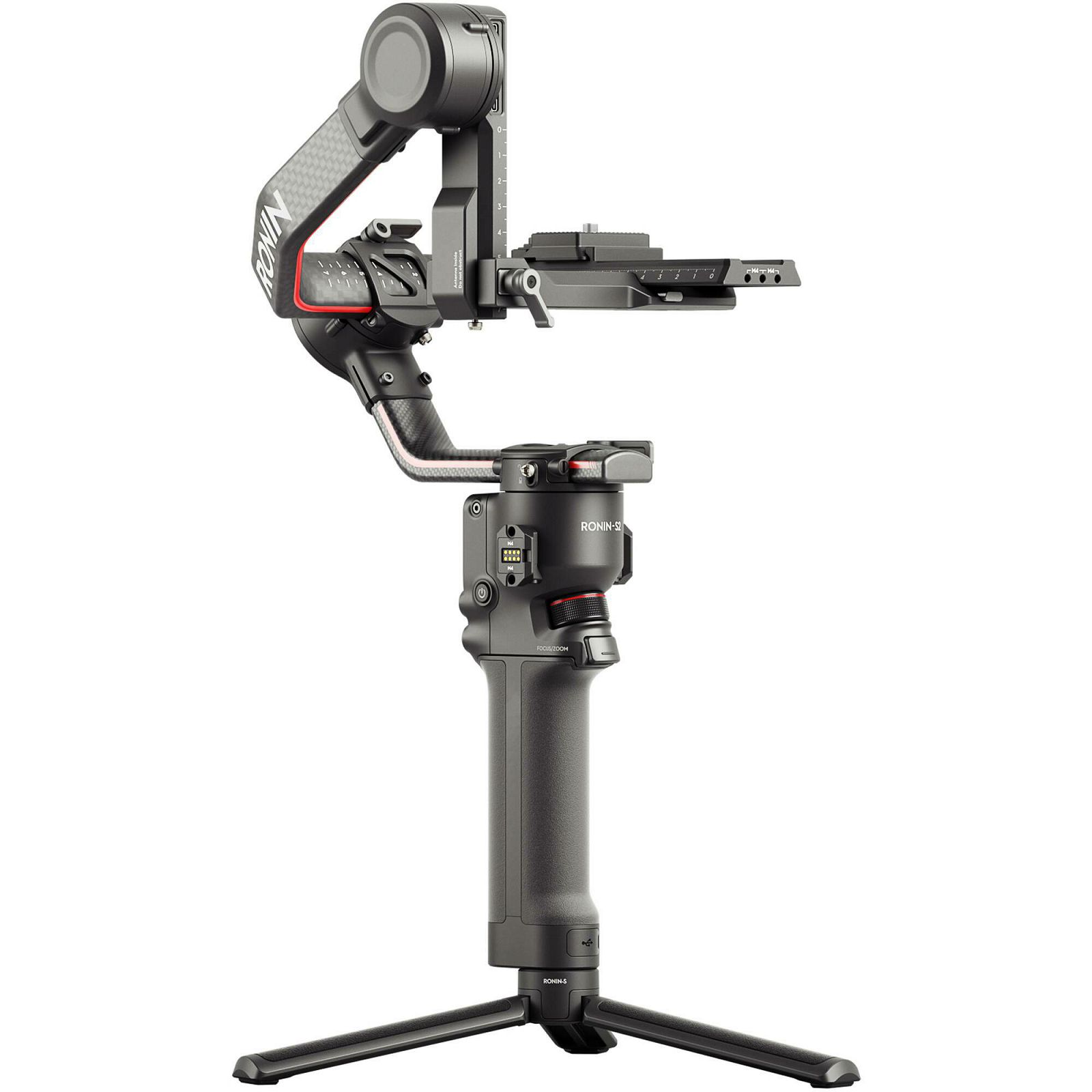

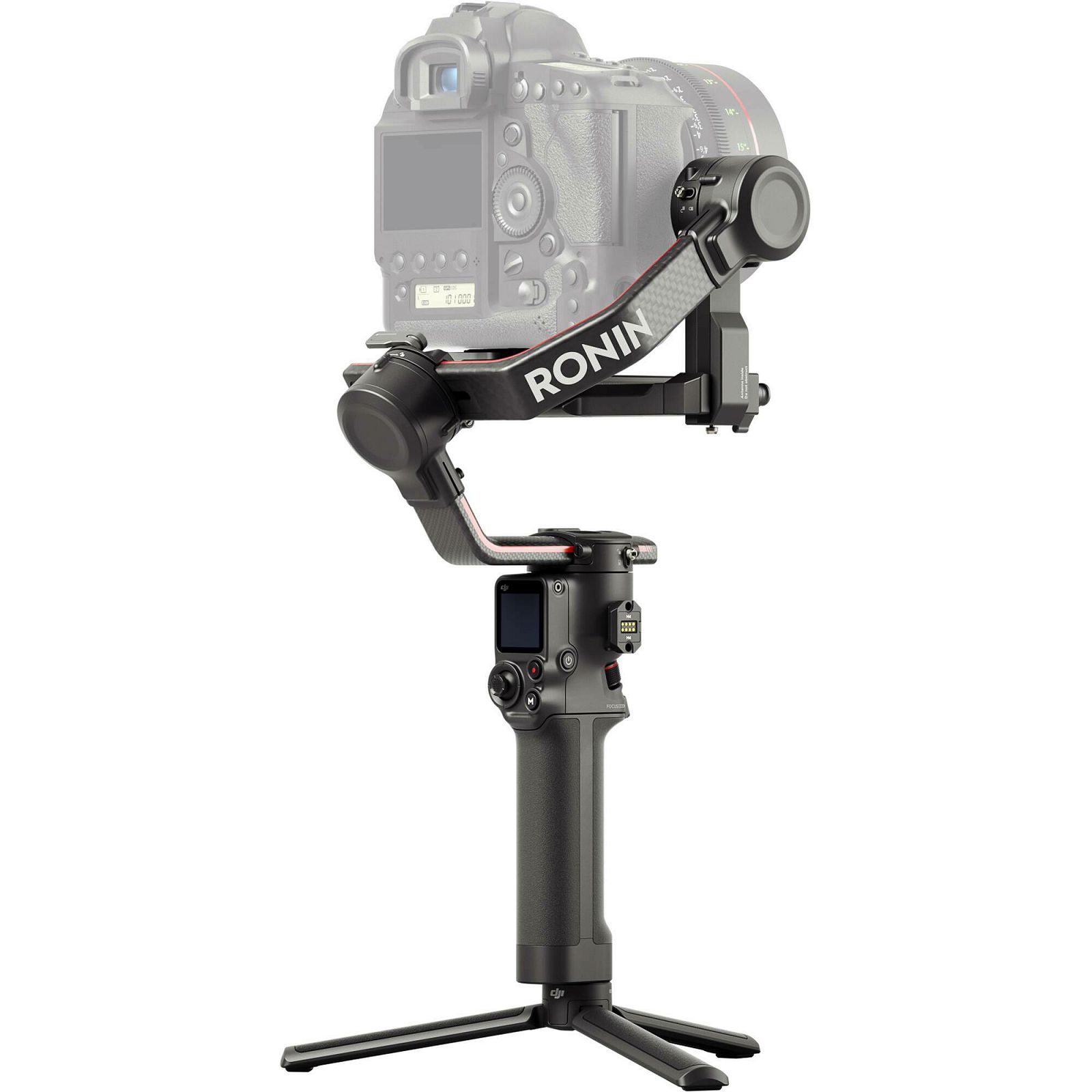

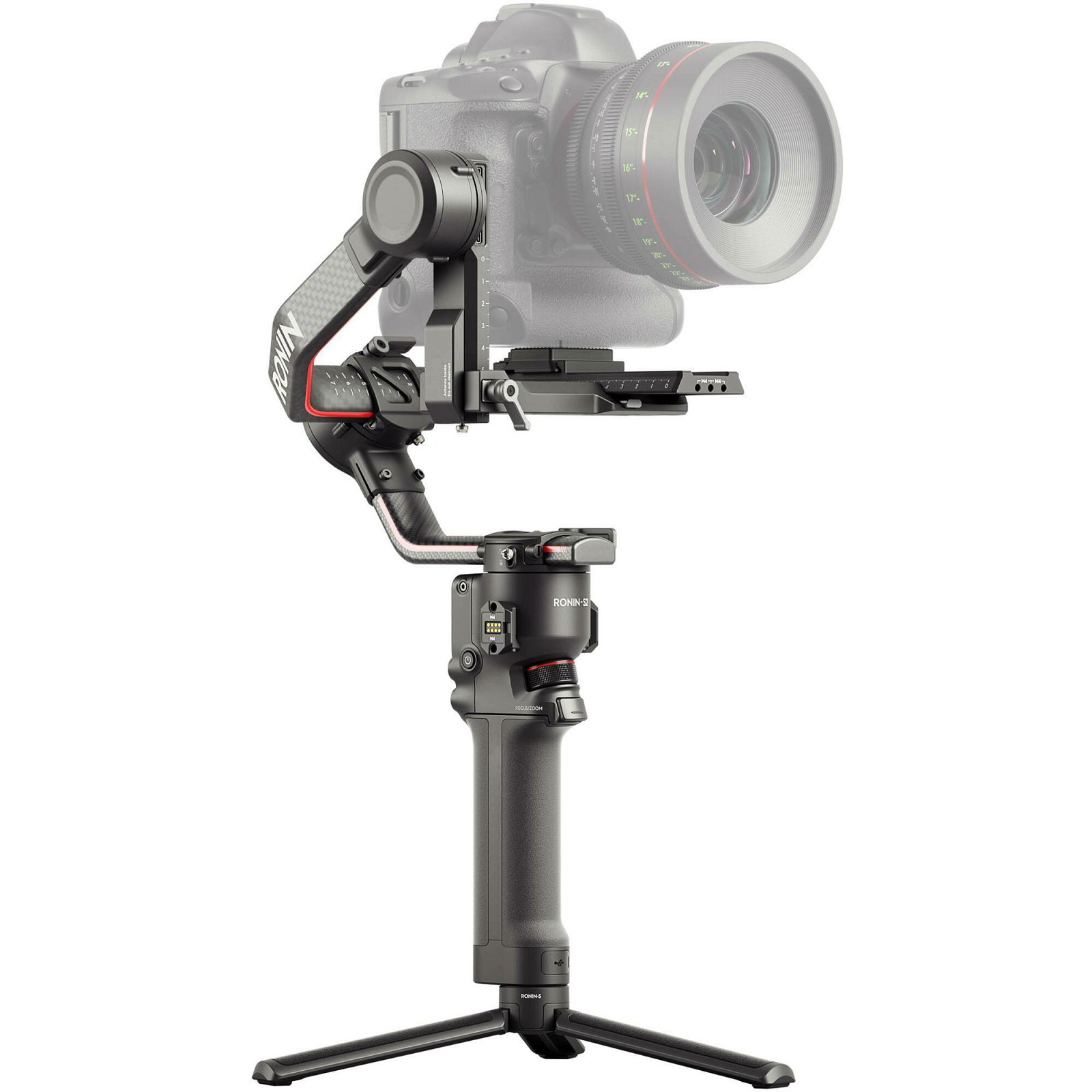

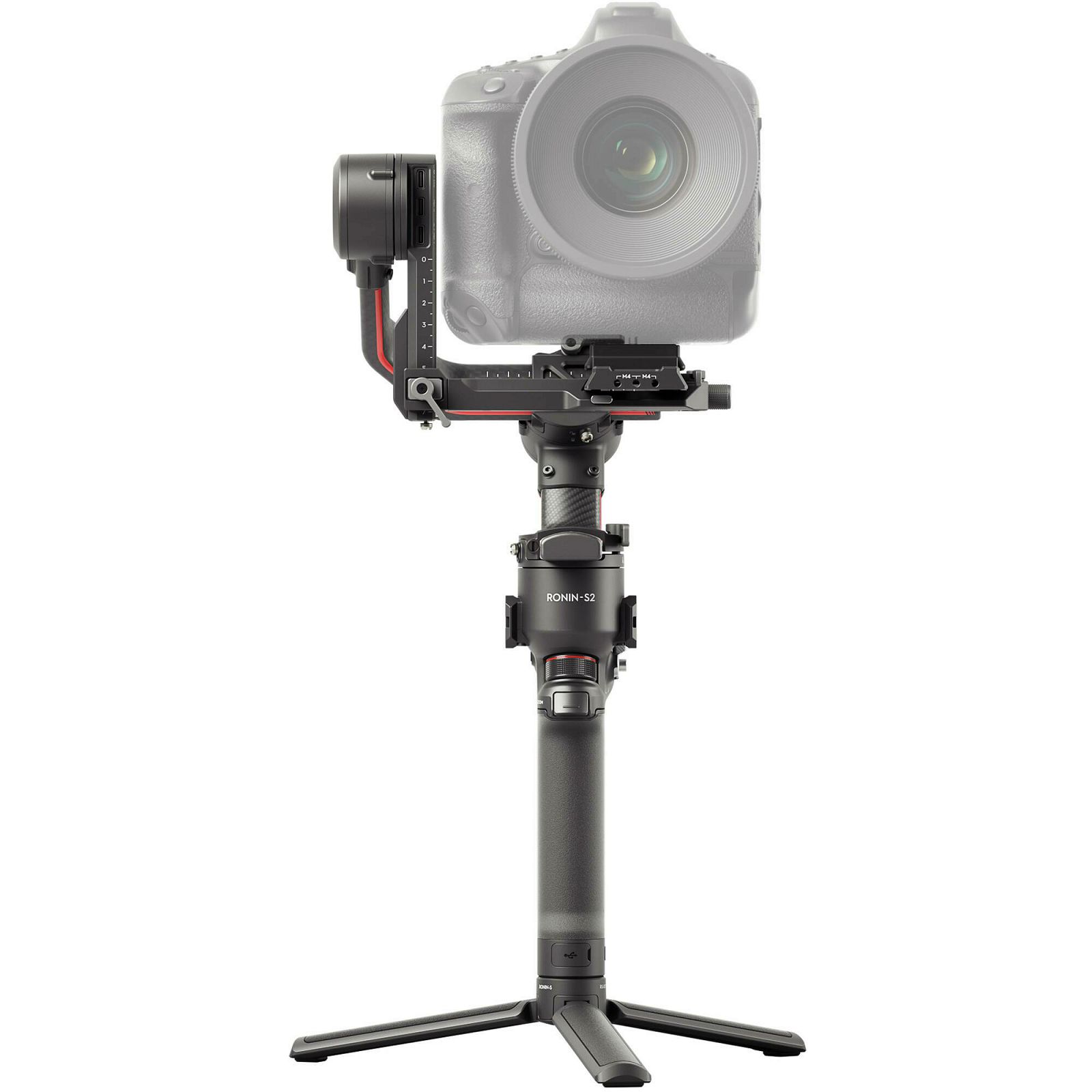

DJI RS 2 Gimbal Stabilizer

ZNAČAJKE:

The DJI RS 2 is a redesigned follow-up to the Ronin-S gimbal with a payload of up to 10 lb. It's about 25% lighter and more compact thanks to monocoque carbon fiber axis arms and a shorter grip handle with a smaller battery cartridge, although still with a 12-hour runtime. The motors are about 20% more powerful and support cameras such as the Blackmagic Pocket 6K, Canon 1D X Mark III, Sony a7S III, and ALEXA Mini LF.
The RS 2 also has a 1.4" full-color LCD touchscreen that allows you to access gimbal settings as well as features such as time-lapse and hyperlapse, which were previously accessible only via the companion mobile app.

The RS 2 uses the DJI Titan stabilization algorithm to provide improved stabilization with increased smoothness. In applications with up to 100mm zoom lenses, a built-in feature called SuperSmooth complements the algorithm by compensating for micromovements and increasing torque to achieve fluid motion (an optional lens support is required).

There are also two RSA ports with electrical contacts for dedicated accessories, and each port has a NATO mount for quick release attachment of these optional accessories. One RSA port is provided on the left and one on the right side of the gimbal. Supported accessories include a focus wheel, a twist-grip dual handle, and a universal mount for efficiently attaching the gimbal to a car, jib, or slider.

SPECIFIKACIJE:

Number of Axes: 3-Axis (Pitch, Roll, Yaw)
Rotation Range: Yaw (Pan): 360°
Pitch (Tilt): -112 to 214°
Roll: -95 to 240°
Follow Speed: Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Load Capacity: 10 lb / 4.5 kg
Compatibility
Camera Mounting Screw: 1 x 1/4"-20 Male
Connectivity
Ports:
2 x RSA
3 x USB Type-C
Wireless Frequency: 2.4 GHz (2.4 - 2.483)
Wireless Protocol: Bluetooth 5.0
Battery
Capacity (mAh): 1950 mAh
Capacity (Wh): 30.3 Wh
Battery Runtime: 12 Hours
Battery Chemistry: Lithium-Ion Polymer (LiPo)
Voltage: 15.4 VDC
Environmental
Operating Temperature: -4 to 113°F / -20 to 45°C
General
Materials: Aluminum, Carbon Fiber, Plastic
Mounting:
1 x 1/4"-20 Female
1 x Cold Shoe Mount
Dimensions: 16.1 x 10.2 x 7.7" / 410 x 260 x 195 mm
Weight: 2.36 lb / 1.07 kg
2.595 lb / 1.177 kg (with Camera Plate)
2.948 lb / 1.337 kg (with Handlebar)

UKLJUČUJE:

1 x DJI RS 2 Gimbal Stabilizer
1 x DJI Ronin-S Extended Grip/Tripod
1 x BG30 Grip
1 x DJI R Multi-Camera Control Cable (USB Type-C)
1 x DJI R Multi-Camera Control Cable (Sony Multi)
1 x DJI R Multi-Camera Control Cable (Micro-USB)
1 x DJI R Multi-Camera Control Cable (Mini-USB)
1 x DJI R Briefcase Handle
1 x DJI R Quick-Release Plate (Lower)
1 x DJI R Quick-Release Plate (Upper)
1 x DJI R Lens-Fastening Strap
1 x Carry Case
