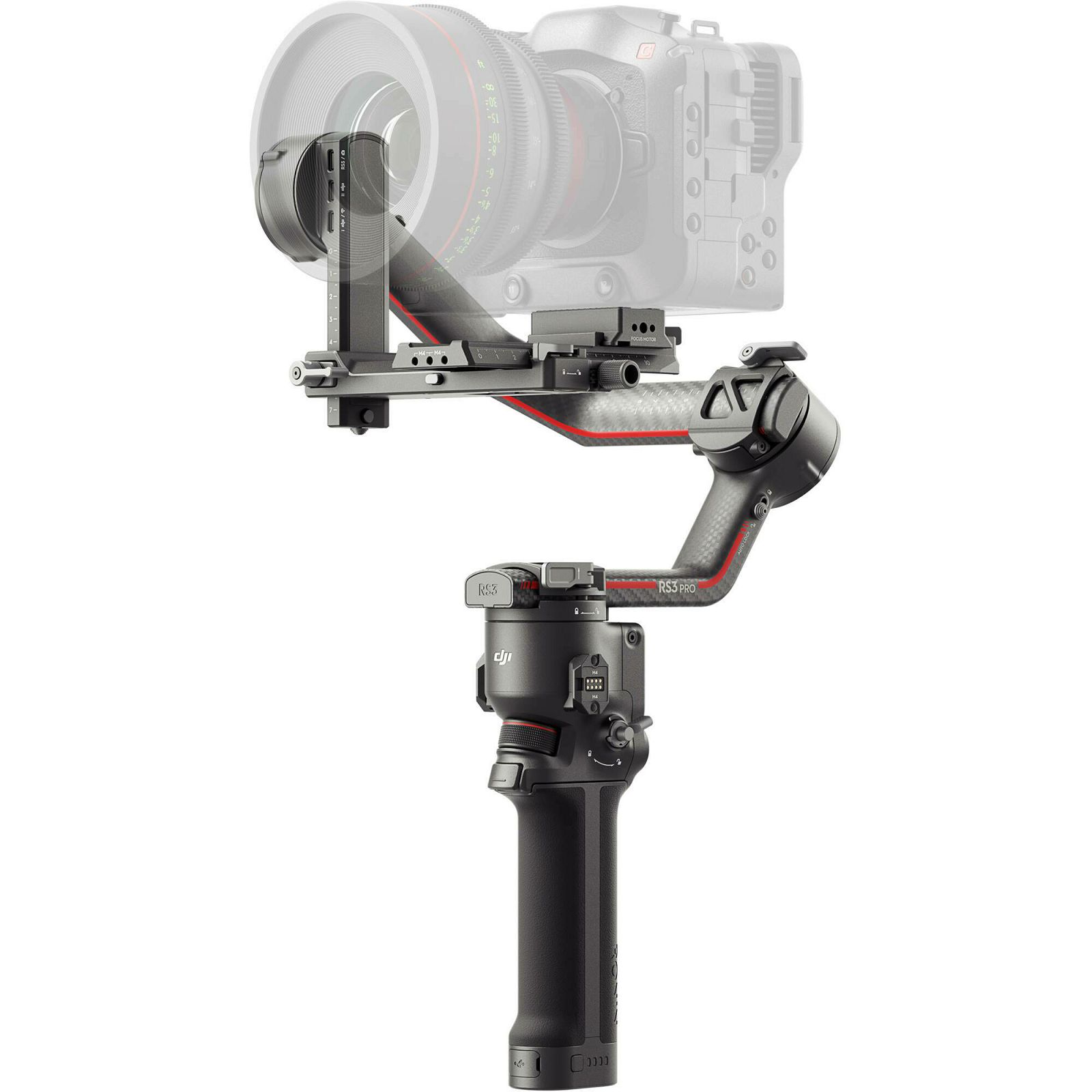

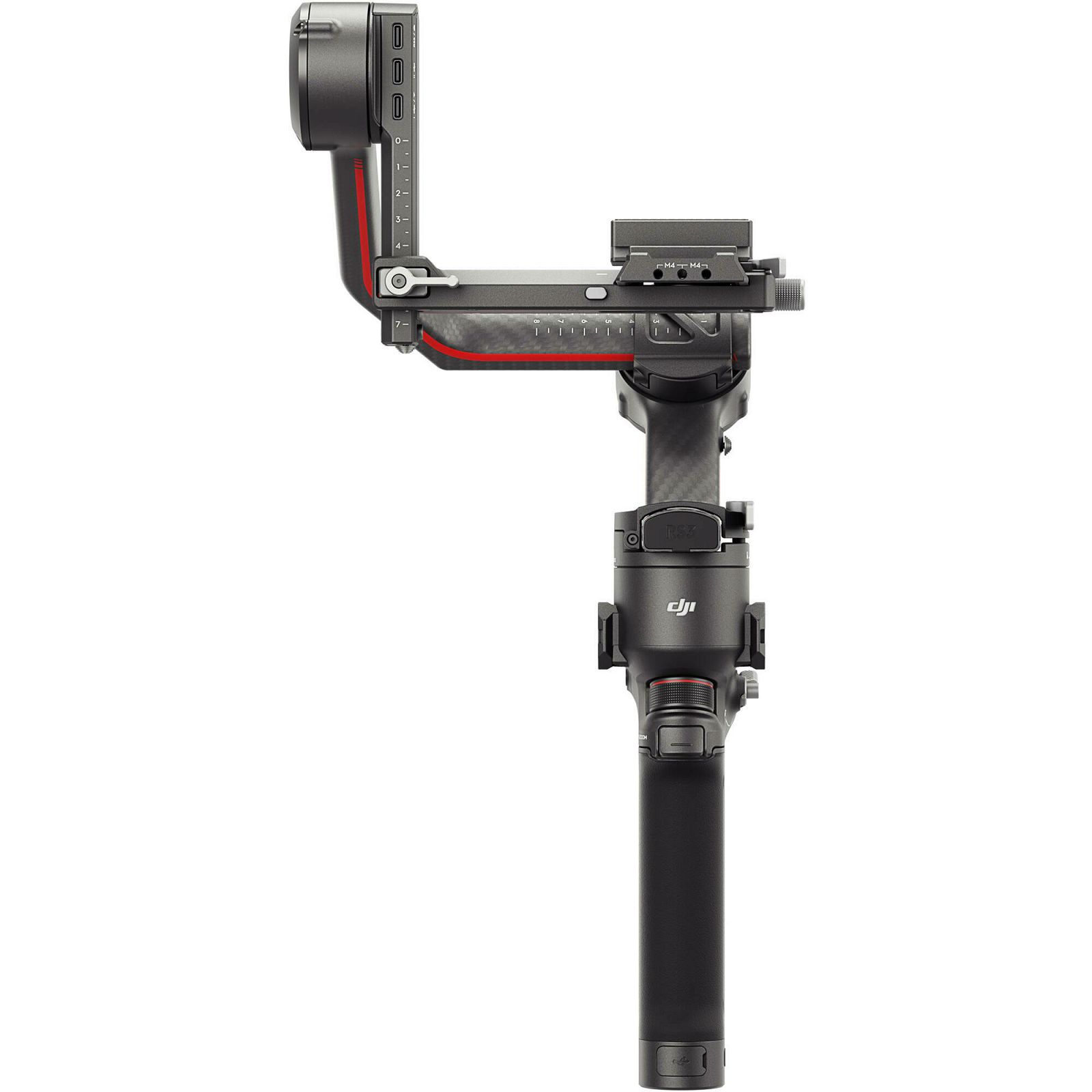

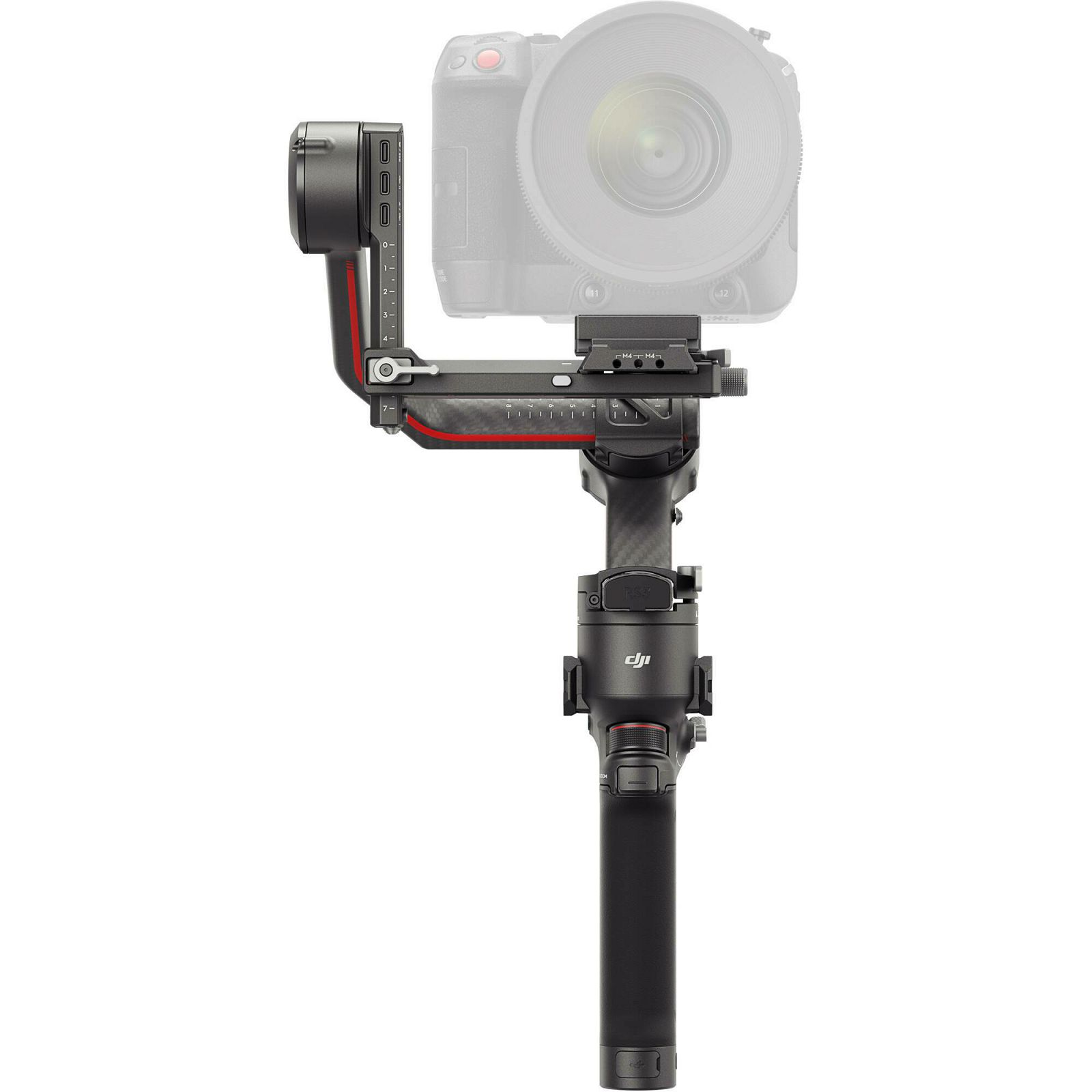

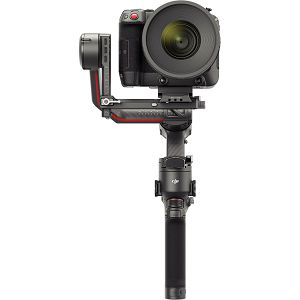

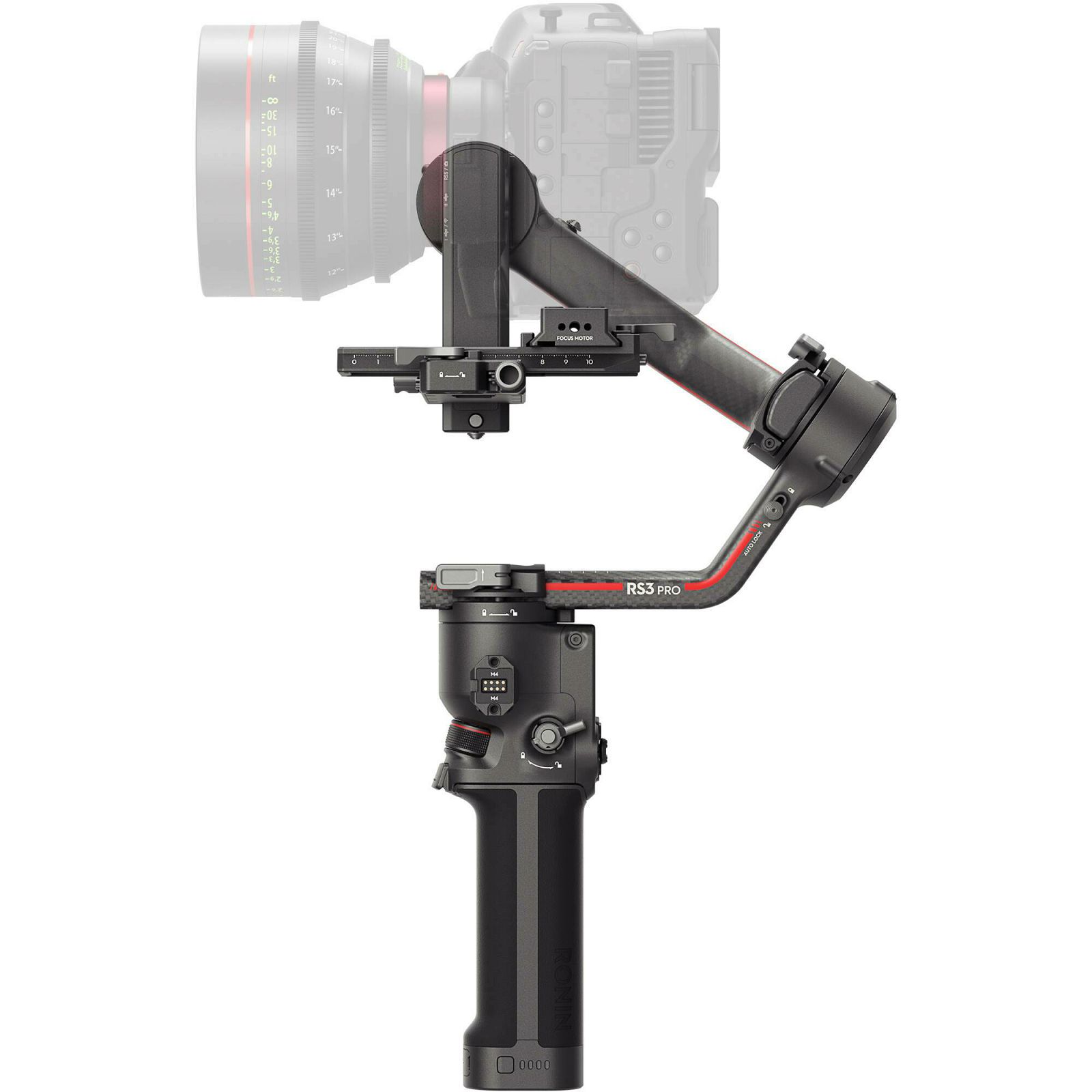

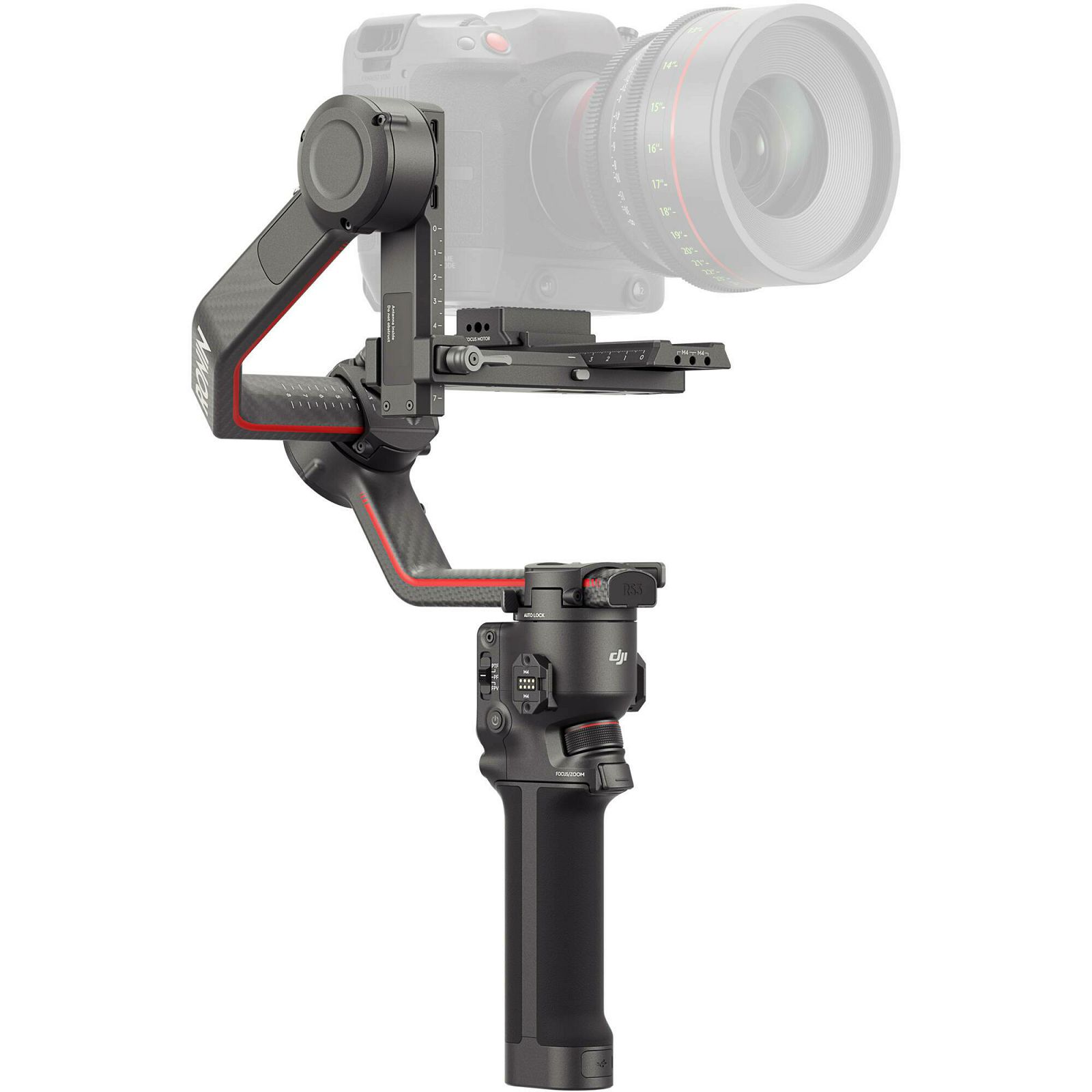

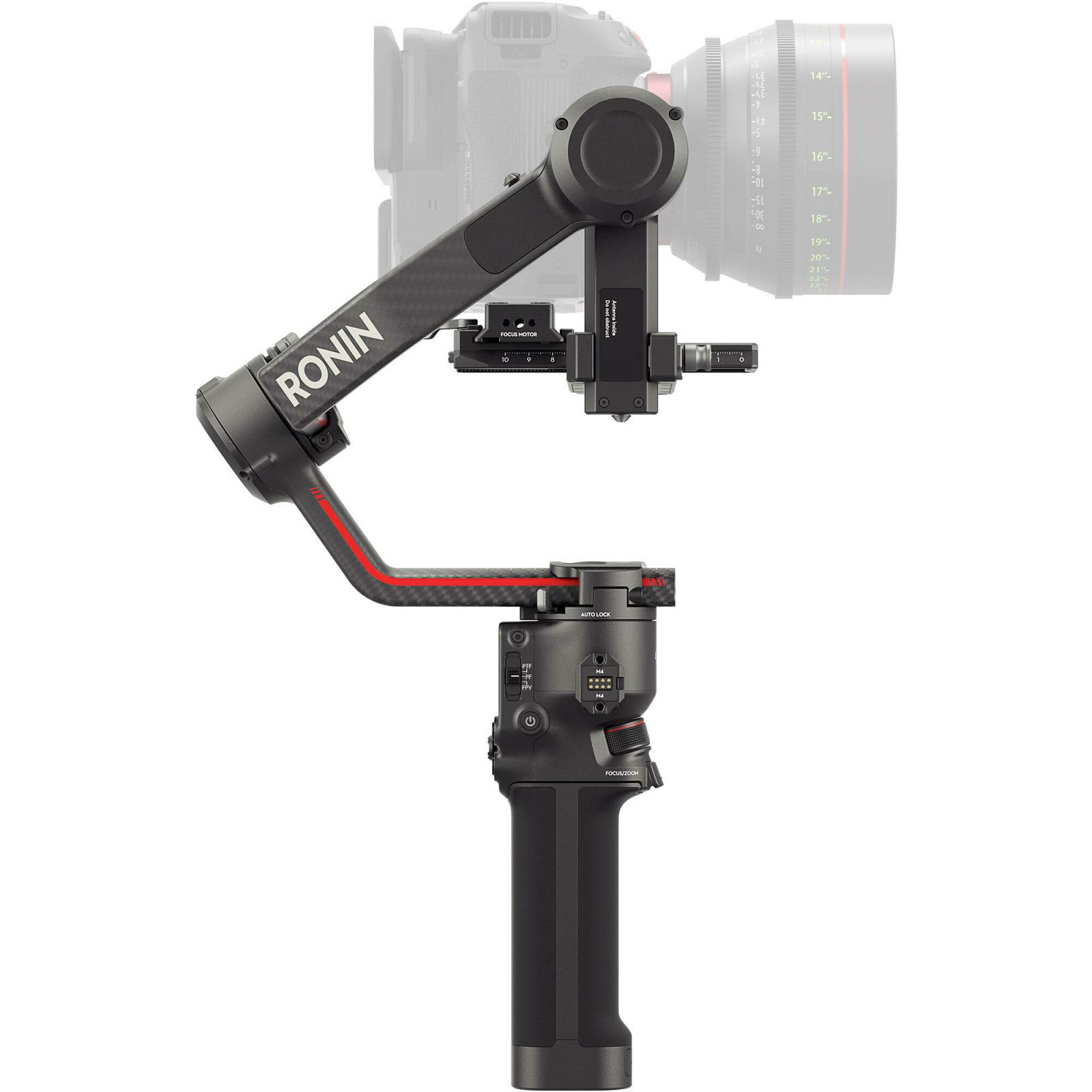

DJI RS 3 Pro Gimbal Stabilizer

ZNAČAJKE:

Lightweight Design with 10 lb Payload
Supports Sony FX6/Canon C70 Cameras
Advanced 1.8" OLED Touchscreen
Instant Mode Switching, Auto-Lock Axes
Supports Wireless Transmitter, LiDAR
Wireless Shutter Control, SuperSmooth
Fine-Tuning Knob on Tilt Axis
ActiveTrack Pro, DJI SDK Support
Carbon Fiber Body Weighs Only 3.3 lb

More Power, Smaller Gimbal
The DJI RS3 Pro Gimbal Stabilizer has been redesigned to be sleeker and more powerful than the Ronin RS 2 gimbal, with its carbon fiber body weighing only 3.3 lb and a payload of up to 10 lb. This tiny gimbal is tough enough to support and stabilize midsize cameras such as the Sony FX6 or Canon C70 with a 24-70mm zoom lens attached. With a larger full-color OLED display, a new fine-tuning knob, and greater stability, the RS 3 can become an essential part of your professional camera kit.
Quick Release Plates
The new Extended Lower Quick Release Plate ensures more stable camera mounting and is convenient for installing lens support for secure settings.
Compatibility
For a full list of compatible cameras, please see the most current compatibility information on the DJI website.
Automated Axis Locks
When the gimbal is powered off, you can press and hold the power button, and the three axes unlock while the gimbal expands automatically, allowing you to start working in just two seconds. Press the power button once, and the axes automatically lock and enter sleep mode, making a move or storage significantly more efficient.
Wireless Shutter Control
Equipped with Dual-Mode Bluetooth technology, the RS 3 Pro is able to achieve efficient and reliable wireless shutter control. Previously paired cameras can be automatically reconnected, saving you a ton of time with every use.
Integrated Controls

With a newly added fine-tuning knob on the tilt axis, the camera can slide forward or backward with millimeter-grade precision adjustments to achieve accurate balancing more easily when changing the lens.
With Teflon-coated components for lower friction resistance, RS 3 Pro can be balanced more smoothly, even when mounting heavy cameras.
By simply sliding the new gimbal mode switch, you can alternate between Pan follow, Pan and Tilt follow, and FPV modes. The FPV mode selection is also customizable to 3D Roll 360, Portrait, or Custom, allowing you to adjust your equipment and get started as fast as possible.
Rotating the front dial allows you to control zoom or focus. It can also be customized to control the camera's shutter, aperture, ISO, or gimbal movements, making it exceptionally convenient for single-handed operation.

Third-Gen RS Stabilization Algorithm
Empowered by a next-generation stabilization algorithm, the RS 3 Pro provides 20% enhanced stability over the RS 2, effortlessly managing low-angle shots, running scenarios, or switching between high and low positions.

Get SuperSmooth Results
When SuperSmooth mode is enabled, the RS 3 Pro increases motor torque to further enhance stabilization, delivering stable footage even in fast-moving scenarios or with 100mm-equivalent focal lenses.

ActiveTrack Pro
Tracking on the Ronin series has never been more accurate or responsive. The next-generation ActiveTrack Pro can directly read images from the camera built into the LiDAR Range Finder, with no need for the Ronin Image Transmitter. When using ActiveTrack Pro, you can directly monitor or frame the subject on the RS 3 Pro's OLED touchscreen.

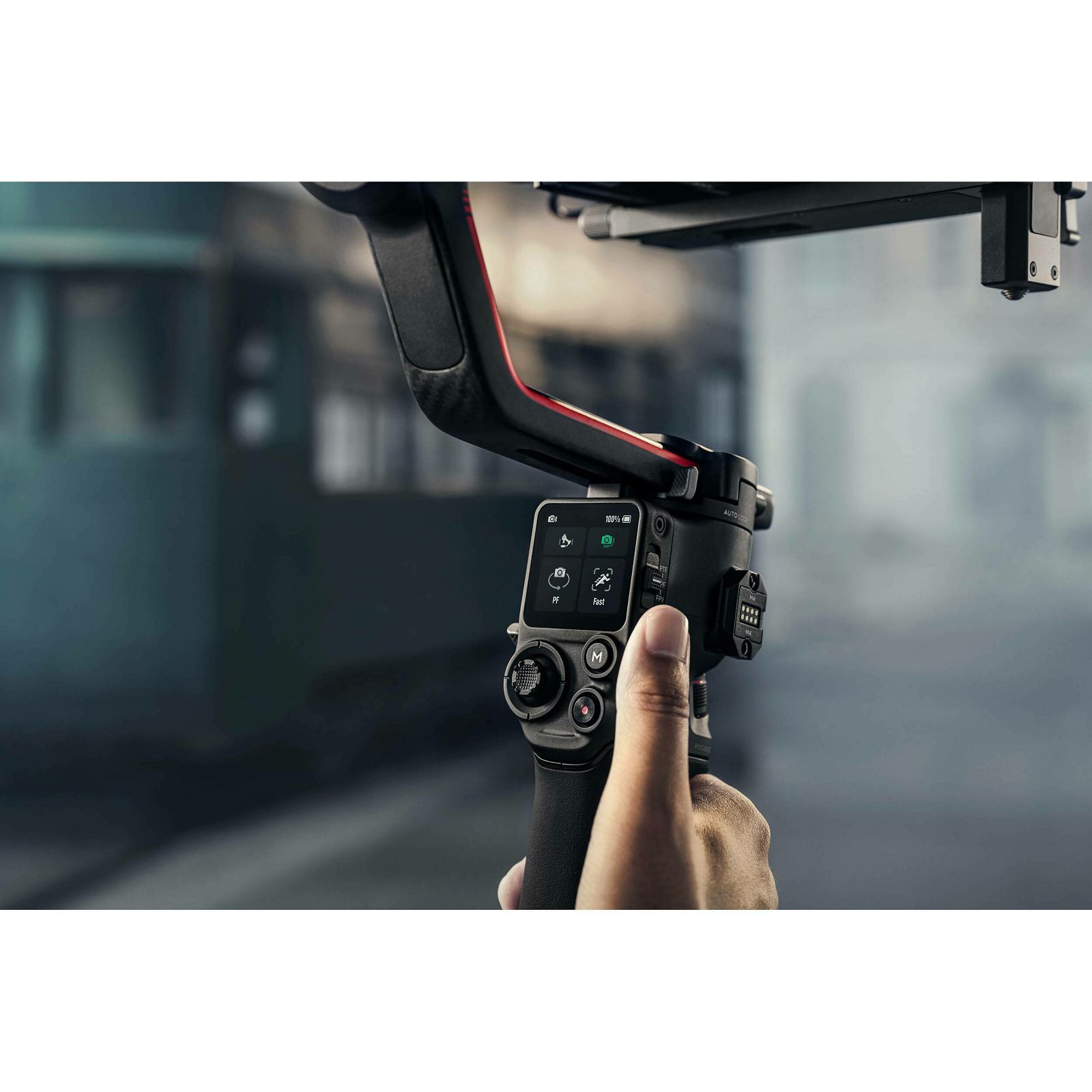

Large 1.8" OLED Touchscreen
The built-in 1.8" OLED full-color touchscreen provides a 28% larger display compared to RS 2, making it incredibly convenient for setting parameters, checking shooting status, and framing your tracked subjects. With the redesigned user interface, every setting is more intuitive and precise. The OLED screen also offers higher brightness than the LCD screen of RS 2 for better outdoor viewing with lower power consumption.

Carbon Fiber Construction
The RS 3 Pro arms are constructed from layered sheets of uncut carbon fiber, just like the Ronin 2. This makes it lighter and stronger than the jointed carbon fiber material used on RS 2, increasing stiffness and a lower weight to cope with even more demanding shooting environments.

LiDAR Compatibility
To make focusing easier for handheld shooting, Ronin 4D's LiDAR focusing technology is applied to RS 3 Pro. The new optional LiDAR Range Finder (RS) can project 43,200 ranging points within a 14-meter area.

Remote Control
The High-Bright Remote Monitor can be used with Ronin 4D Hand Grips, DJI Master Wheels, or DJI Force Pro to control the gimbal and focus precisely. It is also equipped with a built-in gyroscopic sensor that can turn the remote monitor into a standalone motion controller for RS 3 Pro without additional accessories to achieve more complex camera movements from a moving vehicle or with a jib.

Wireless Camera Control
When RS 3 Pro is mounted onto carriers like a jib, cable cam, or vehicle suction cup, Mirror Control mode unlocks seamless wireless control from anywhere on set. This mode allows direct control of the core menu operations for Sony mirrorless cameras via the remote monitor, all without having to detach your camera.

Enhanced Battery and Fast Charging
The new RS 3 Pro battery grip features a cartridge design, making it easier to swap batteries and smaller for storage compared with RSC 2. It can even be charged separately from the gimbal. The new battery grip provides an extended runtime of up to 12 hours, enough for continuous shooting all day. It supports 18W PD fast charging with a charge time of just 2.5 hours. It can even be used while charging to keep RS 3 powered almost indefinitely.

Extensive Ports and Accessories
With dual RSA/NATO ports and a battery port, RS 3 Pro can be connected to various accessories such as the Twist Grip Dual Handle, Tethered Control Handle, and the new DJI Briefcase Handle to flexibly meet a variety of shooting requirements.

DJI RS SDK
DJI RS SDK is a developer protocol provided by DJI for developers and third-party hardware manufacturers to equip DJI RS 3 Pro with more features for extensive scenarios.

SPECIFIKACIJE:

Grip Design Single Handgrip (Slanted)
Gimbal
Load Capacity 9.9 lb / 4.5 kg
Number of Axes 3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
Rotation Range Mechanical Range
Yaw (Pan): 360° Unlimited
Pitch (Tilt): 335° (-95 to 240°)
Roll: 326° (-112 to 214°)
Follow Speed Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Compatibility
Camera Control On Compatible Models (See Full Compatibility List)
Camera Mounting Screw 1 x 1/4"-20 Male
Connectivity
Inputs/Outputs 3 x USB-C (Control) Output
1 x USB-C (Power)
Wireless Frequency 2.4 GHz (2.4 - 2.484)
Wireless Protocol Bluetooth 5.0
App Compatible Yes, Required: Android & iOS
App Name: DJI Ronin
Functionality: Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed
Battery
Battery Type 1 x Built-In
Battery Capacity 1950 mAh / 30 Wh
Battery Runtime 12 Hours
Battery Charging Time 1.5 Hours
Battery Chemistry Lithium-Ion Polymer (LiPo)
Voltage 15.4 VDC
Environmental
Operating Temperature -4 to 113°F / -20 to 45°C
General
Display Type Fixed Touchscreen OLED
Materials Carbon Fiber
Mounting 1 x 1/4"-20 Female
1 x Cold Shoe Mount
Dimensions 16.3 x 8.6 x 7.7" / 415 x 218 x 195 mm
10.9 x 10.6 x 2.7" / 276 x 268 x 68 mm (Folded)
Weight 2.5 lb / 1143 g

UKLJUČUJE:

DJI RS 3 Pro Gimbal Stabilizer
BG30 Grip
USB Type-C Charging Cable (15.7")
Lens Support
Extended Grip/Tripod
Quick Release Plate (Arca-Type/Manfrotto)
DJI Briefcase Handle for RS Series
USB Type-C Multi-Control Cable (11.8")
Carry Case
Screw Kit
