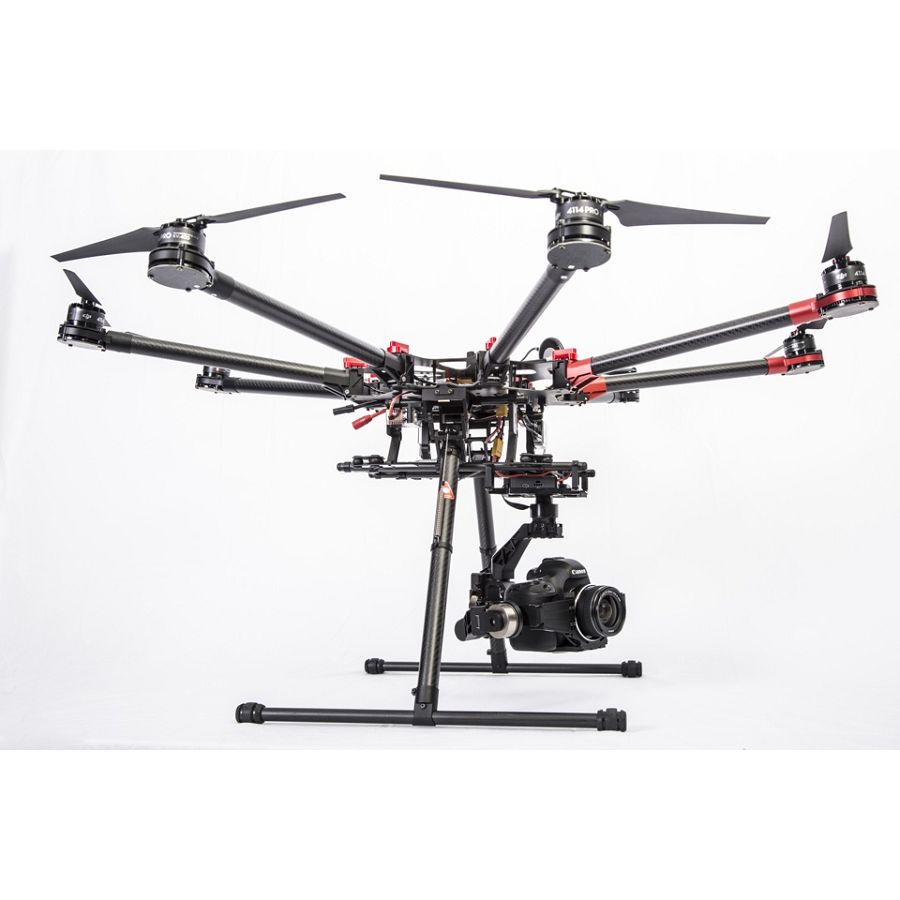

DJI S1000 RTF + gimball Zenmuse Z-15 Canon 5D Mark III
Specially designed for high level professional aerial photography and cinematography

Kit uključuje:

1x DJI S1000 RTF
1x gimball Zenmuse Z-15 Canon 5D Mark III (moguće je kupiti i s gimbalom za Sony NEX7, Blak Magic ili Panasonic GH3 )
1x NEW Mega Power 30V 50 Amps
1x iCharger 406 Duo 1400W 40A 6S

*moguća nadogradnja na BeSteady One Basic gimbal



DJI S1000 specifications:

Flight times with Gh3 are around 15 min
Foldable (all 8 booms together),
Anti vibration system that is implemented.
Multiple gimbal option with option to change on set
Camera gimbal is easy detachable from frame so the whole copter is easy to transport,
Space for 2 battery packs - easy installation
Retractable landing gear
FPV camera, OSD and separate telemetry, position and telemetry flight log


Scope of Delivery:

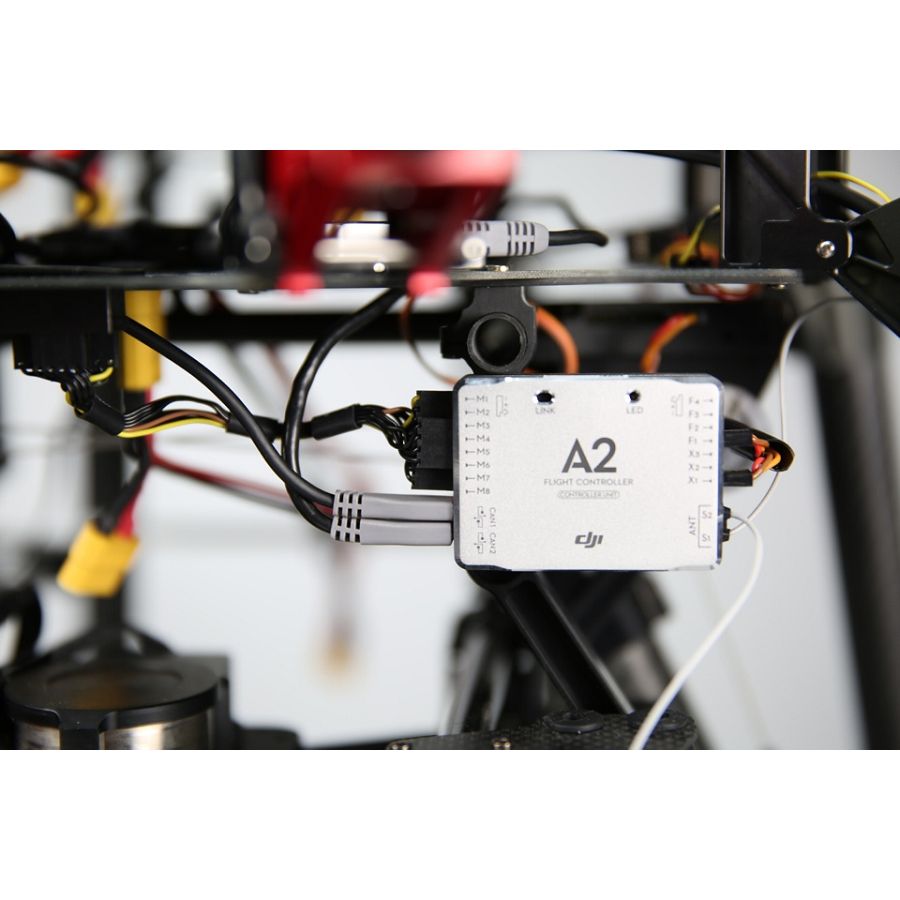

A2 controler
DJI motors and propelers
1 set of 16000mAh 6s Gensace Lipo Battery
Dual Operator System
Pilot
Graupner 12 channel tranmiter
5.8gHz Transmitter
5.8gHz Receiver
Cloverleaf and helical set off antenas
FPV camera for pilot with OSD
8 inch LCD with HDMI
Pult and strap
2200mAh Lipo Battery for transmitter

Camera operator

Futaba 10 channel transmiter
5.8gHz Transmitter
5.8gHz Receiver
Cloverleaf and helical set off antenas
8 inch LCD with HDMI
Pult and strap
2200mAh Lipo Battery for transmiter

Technical Properties:

Recommended Camera: GH3/4, Blackmagic pocket,Nex 5,7, 5D mark II/III
Weight Including Motors, battery : ~8000g (lbs)
Dimensions: 950 x 950 x 350mm
Recomended payload: ~3000g (6.41 lbs)
Propeler trust(max): ~24.000 g (48.67 lbs)
Construction: Carbon Fiber
Max Flight Time (GH3): ~15 min.

Spreading Wings S1000 Features

Safe And Stable
Portable Easy To Use
Sparkproof Plug

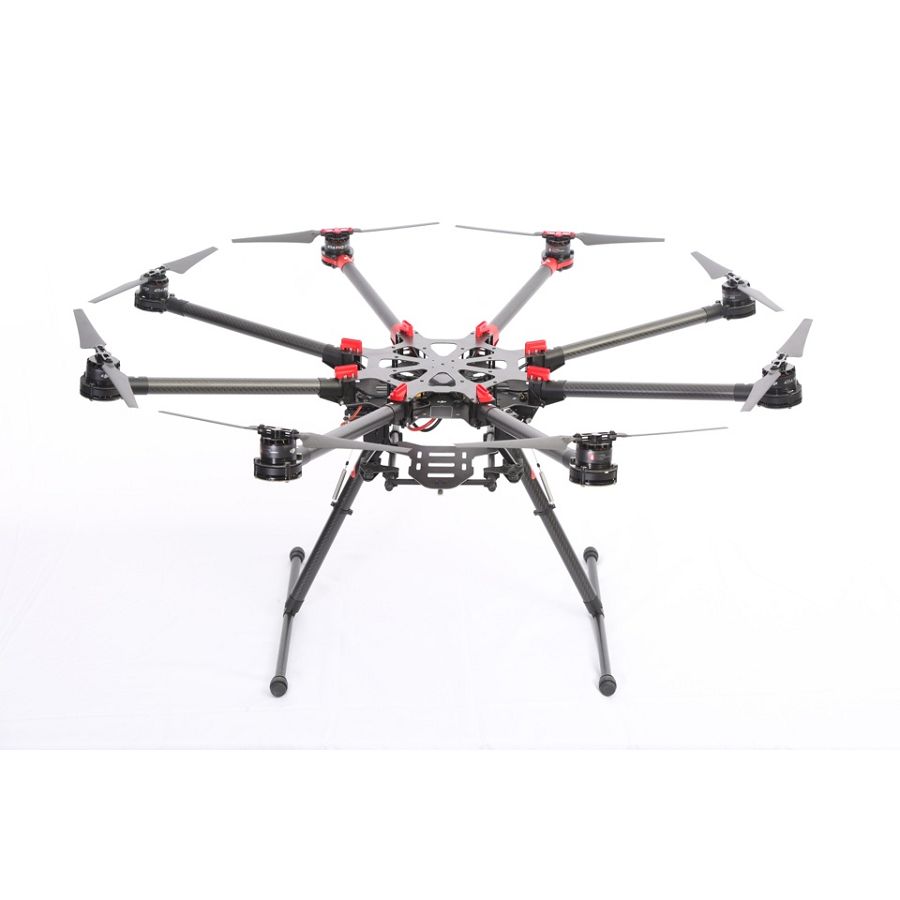

Professional Octocopter
Low Gimbal Mounting Position
Retractable Landing Gear
ZENMUSE Z15-5D Gimbal
New Damping Design
Innovative Frame Arm Design

Safe And Stable

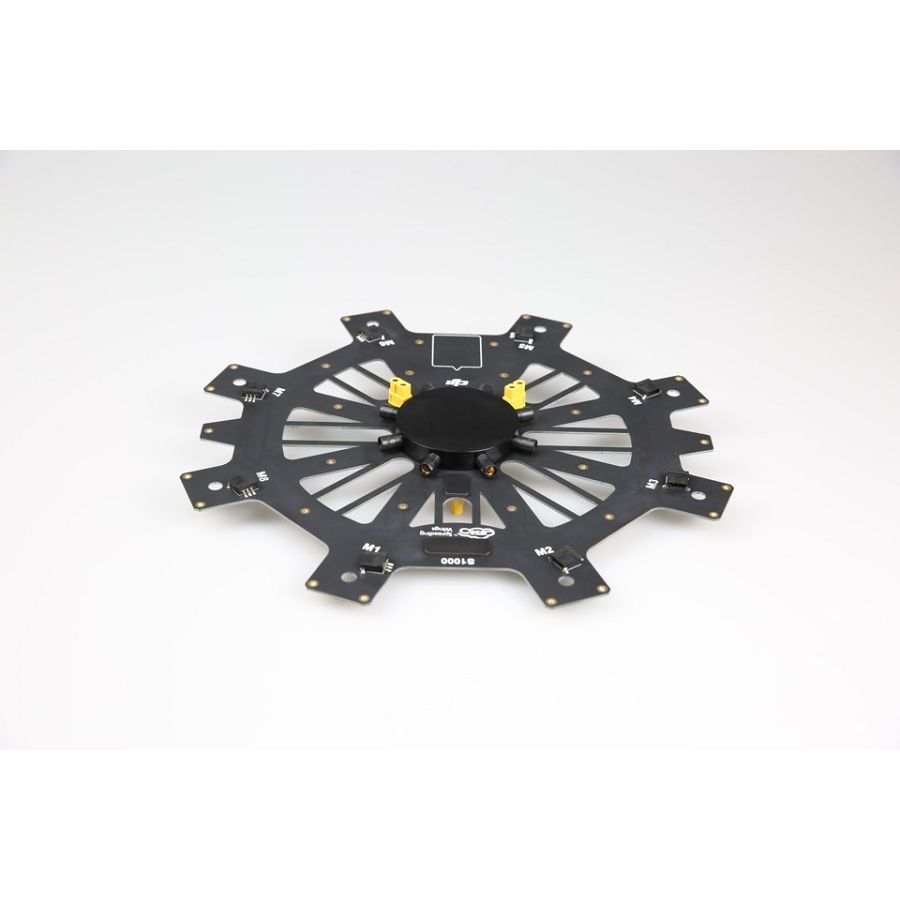

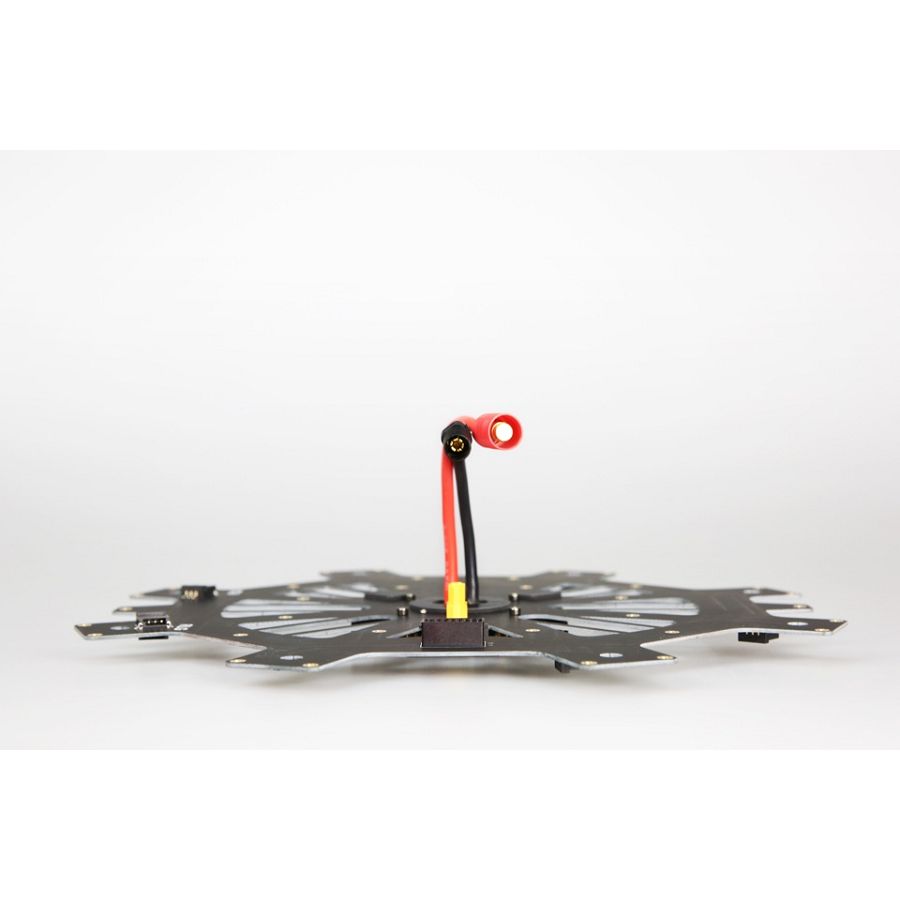

The S1000’s V type mixer design provides large amounts of propulsion while improving power efficiency. Combined with a DJI flight controllers like the A2, it is guaranteed to remain stable even with the loss of a rotor. Integrated into the center frame is a power distribution system using our patented coaxial cable connector.

It is more efficient, reliable and easy to install and eliminates the need for soldering. All frame arms as well as the retractable landing gear are made from carbon fiber, ensuring light weight and high structural stability.

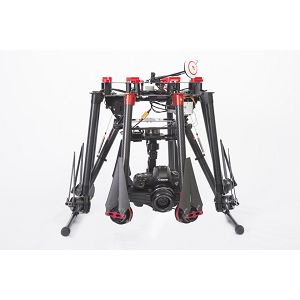

Portable - New folding design Convenient for transportation
Easy To Use

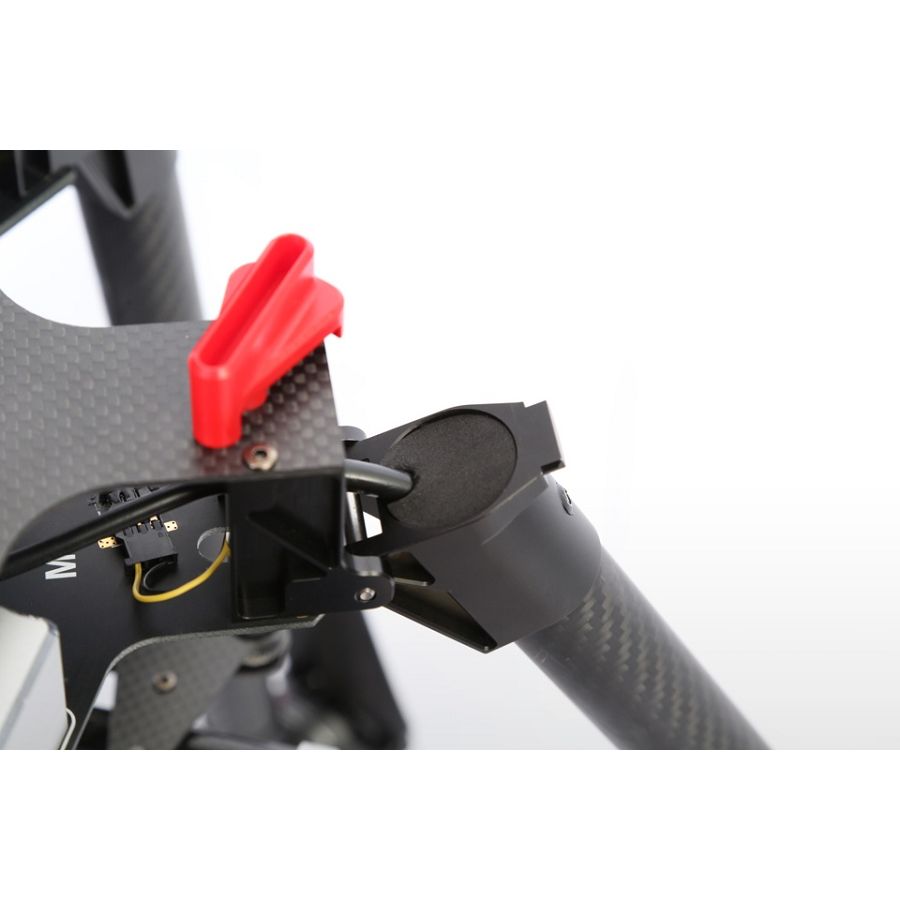

All eight arms can be completely folded down and the 1552 folding propeller can be tucked away, minimizing the S1000’s size for transportation. To fly, simply lift the frame arms up, lock them in place with the red clips and power up the system. This greatly saves on pre-flight prep time.
Pre-flight prep time 5 Mins

Sparkproof Plug

Its main power cord uses an AS150 sparkproof plug and an XT150 plug, preventing creators from mixing up polarity when plugging in the battery and preventing short circuits.

Professional Octocopter

Weighing approximately 4kg with a maximum takeoff weight of about 11kg, the S1000 can easily carry equipment as heavy as a 5D mark 3. Used with a 6S 15000mAh battery it can fly for up to 15 minutes.

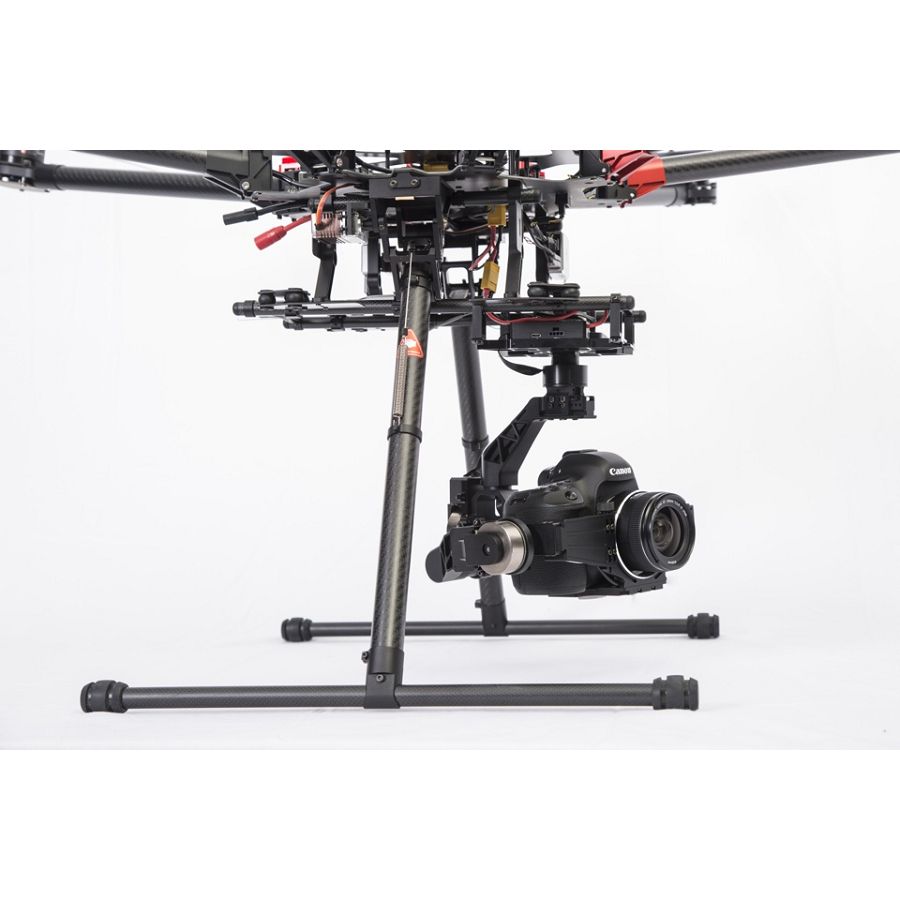

Low Gimbal Mounting Position

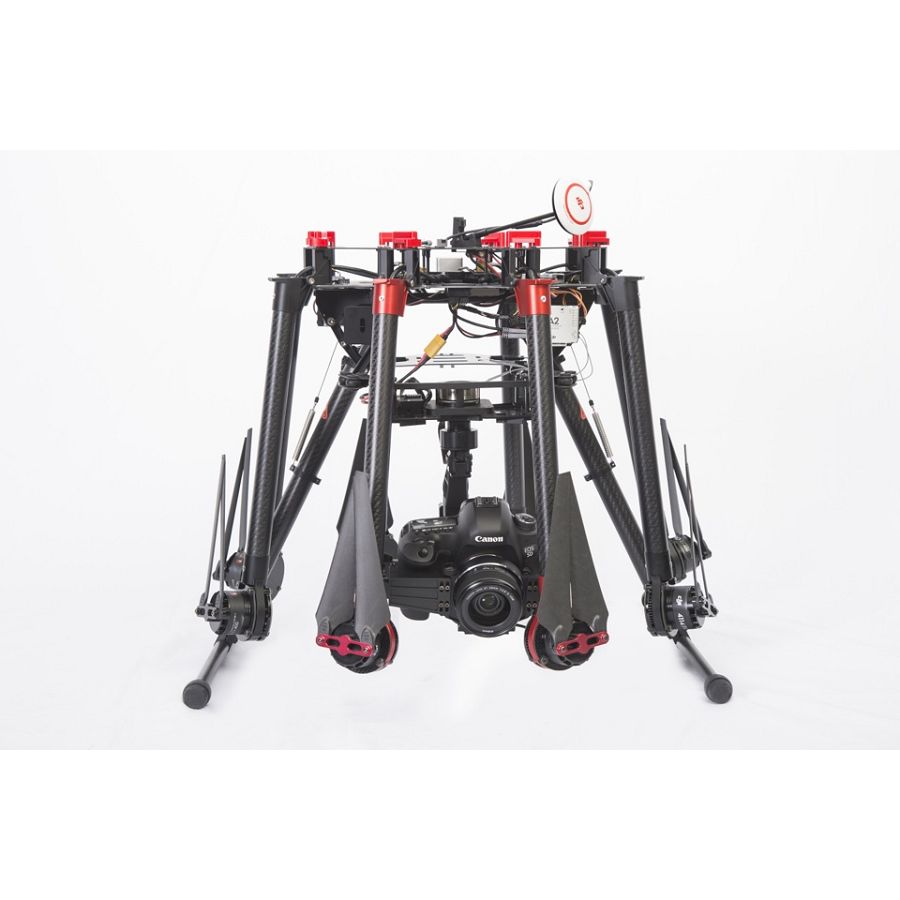

The gimbal is mounted low on the frame on a specially designed bracket. When combined with our retractable landing gear, it offers a clear and wide shooting angle.

ZENMUSE Z15-5D Gimbal For CANON 5D MKII and MKIII

Our Zenmuse gimbal range offers advanced camera stabilization for smooth footage, precision tilt and position control from the ground, and video downlink compatibility so that person on the ground can see what the camera sees.

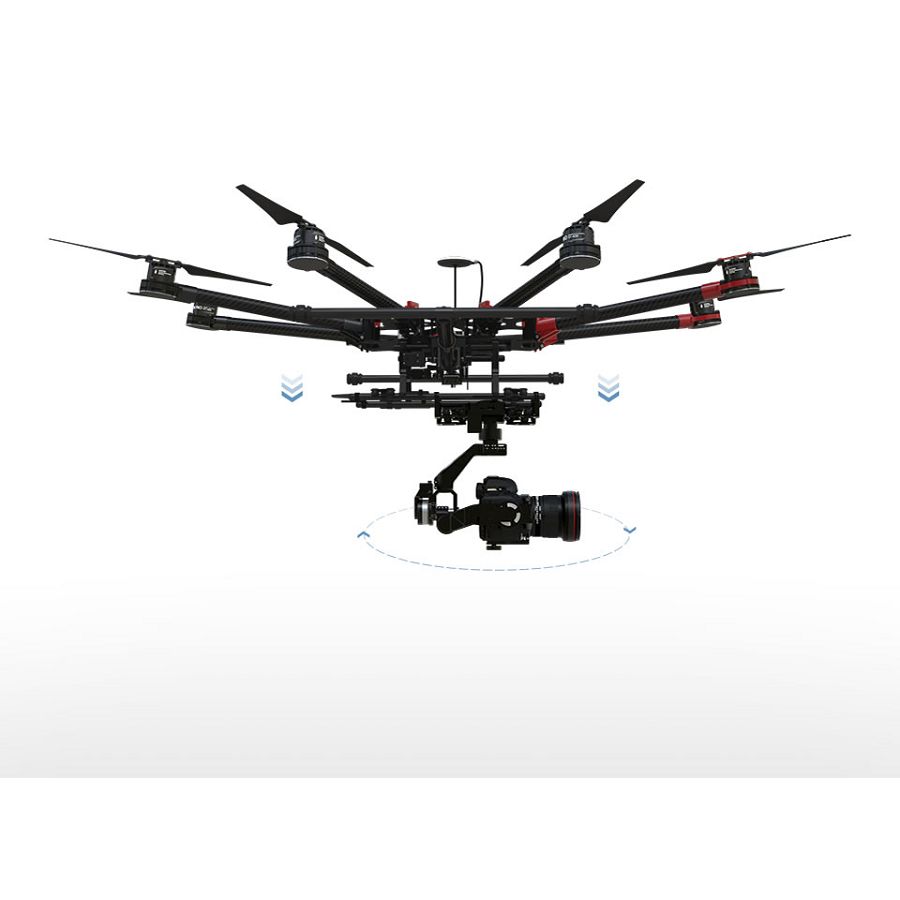

New Damping Design

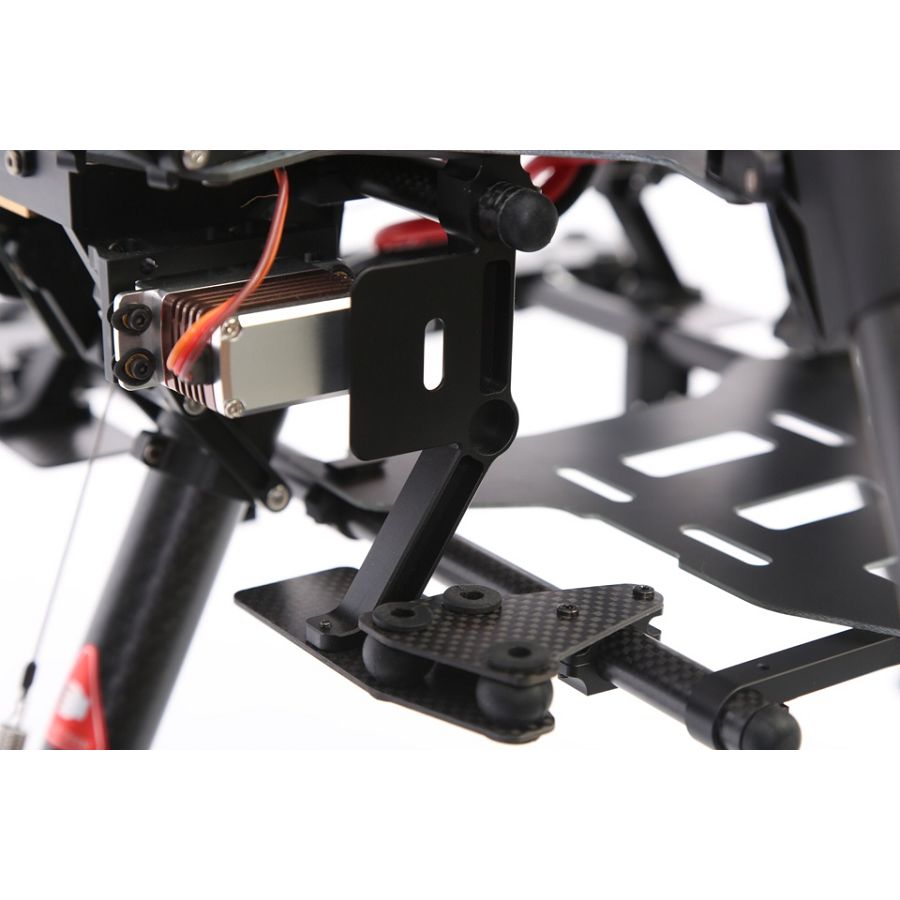

Gimbal and battery are mounted to the same bracket, with dampers placed between the bracket and the frame. This significantly reduces high-frequency vibrations and makes shots clearer and sharper. The battery tray's position also makes it more stable and convenient for mounting and dismounting.

Innovative Frame Arm Design

Each frame arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching yet more flexible when rotating.

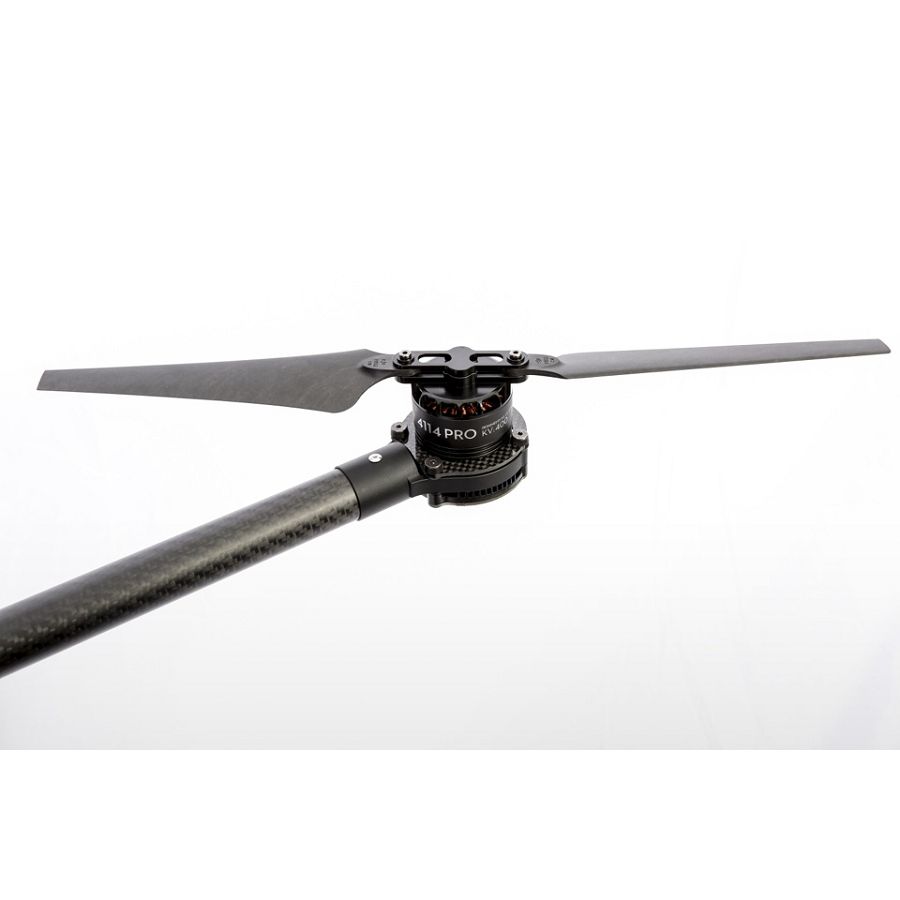

Propulsion System

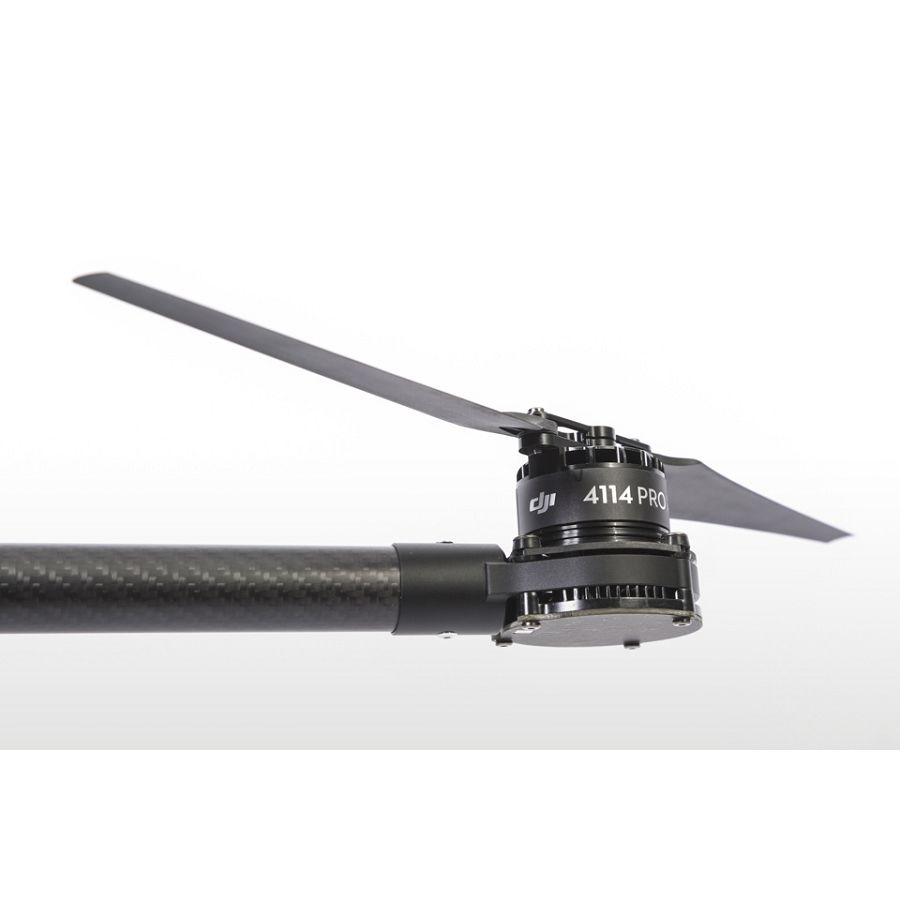

Each frame arm has a built-in 40A electronic speed controller (ESC). When combined with its 4114 pro motor and high performance 1552 folding propellers, it is capable of a maximum thrust of 2.5Kg.



SPECIFIKACIJE:

Frame

Diagonal Wheelbase
1045mm
Frame Arm Length
386mm
Frame Arm Weight
(Including Motor, ESC, Propeller )
325g
Center Frame Diameter
337.5mm
Center Frame Weight (with Landing Gear Mounting Base, Servos)
1330g
Landing Gear Size
460mm (Length) ×511mm (Width) ×305mm (Height), (Top width: 155 mm)
Motor

Stator Size
41×14mm
KV
400rpm/V
Max Power
500W
Weight(with Cooling Fan)
158g
ESC

Working Current
40A
Working Voltage
6S LiPo
Signal Frequency
30Hz ~ 450Hz
Drive PWM Frequency
8KHz
Weight(with Radiators)
35g
Foldable Propeller (1552/1552R)

Material
High strength performance engineered plastics
Size
15×5.2inch
Weight
13g
Flight Parameters

Takeoff Weight
6.0Kg ~ 11.0Kg
Total Weight
4.2Kg
Power Battery
LiPo (6S?10000mAh~20000mAh?15C(Min))
Max Power Consumption
4000W
Hover Power Consumption
1500W (@9.5Kg Takeoff Weight)
Hover Time
15min (@15000mAh & 9.5Kg Takeoff Weight)
Working Environment Temperature
-10 °C ~ +40 °C
Gain Value Settings

For A2 flight controller
Basic: Roll 120%, Pitch 120%, Yaw 120%
Attitude: Roll 170%, Pitch 170%, Vertical 120%
For WooKong-M flight controller
Basic: Roll 180%, Pitch 180%, Yaw 120%
Attitude: Roll 180%, Pitch 180%, Vertical 120%
