DJI S900 Spare Part 32 Complete Arm [CCW-Green] For DJI Spreading Wings S900 Hexacopter dron Professional Aircraft multi-rotor

Frame Arm, ESC, Motor, and Props
Green LED and CCW Prop Rotation

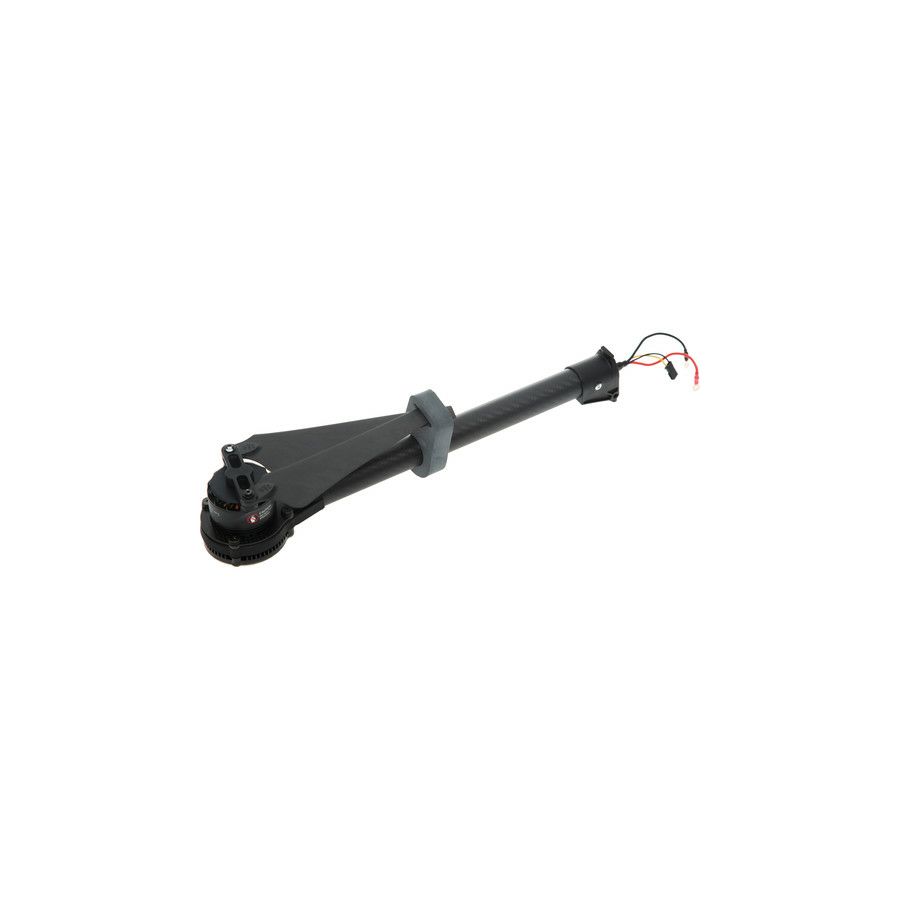

The DJI Complete Frame Arm for S900 includes the frame arm, ESC, motor, props, and intermediate assembly hardware. There are four versions of the prop arm - depending on the stripe color (red or black), prop rotation (CW/CCW), and the ESC LED color (red/green). When replacing, it is crucial to select the exact same version of the prop arm as the original. This version features the black stripped arm, has a green ESC LED, and features counterclockwise (CCW) prop rotation.

Specifikacija:


4114 Motor with Black Prop Cover for S900 (Part 21)
Stator Size 1.6 x 0.6" / 41 x 14 mm
Motor Velocity Constant KV: 400 rpm/V
Maximum Power 500 W
Weight 5.6 oz / 158 g

ESC with Green LED for S900 (Part 24)
Working Current 40 A
Working Voltage 6S LiPo
Signal Frequency 30 to 450 Hz
Drive PWM Frequency 8 kHz
Weight With Radiators: 1.2 oz / 35 g

Premium Propeller Pack for S1000 Octocopter (8-Pack, Part 25)
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer

Frame Arm for S900 (CCW, Black, Part 4)
Motor Damping Unit for S1000 (Part 8)
Motor Mount Carbon Board for S1000 (Part 10)
Frame Arm Mounting Steel Shaft for S1000 (Part 11)

Komplet sadrži:

Frame Arm for S900 (CCW, Black, Part 4)
Motor Damping Unit for S1000 (Part 8)
Motor Mount Carbon Board for S1000 (Part 10)
Frame Arm Mounting Steel Shaft for S1000 (Part 11)
4114 Motor with Black Prop Cover for S900 (Part 21)
ESC with Green LED for S900 (Part 24)
Premium Propeller Pack for S1000 Octocopter (8-Pack, Part 25)
4 x CW Props
4 x CCW Props
