DJI Spreading Wings Frame wheel F550 ARF kit ( with motors, ESC, props ); DJI Spreading Wings F550

Flame Wheel ARF KIT Features

Ultrastrength Material
Integrated PCB Wiring
Huge Assembly Space
Attractive Frame Arms
A Total Solution For Hobbyists

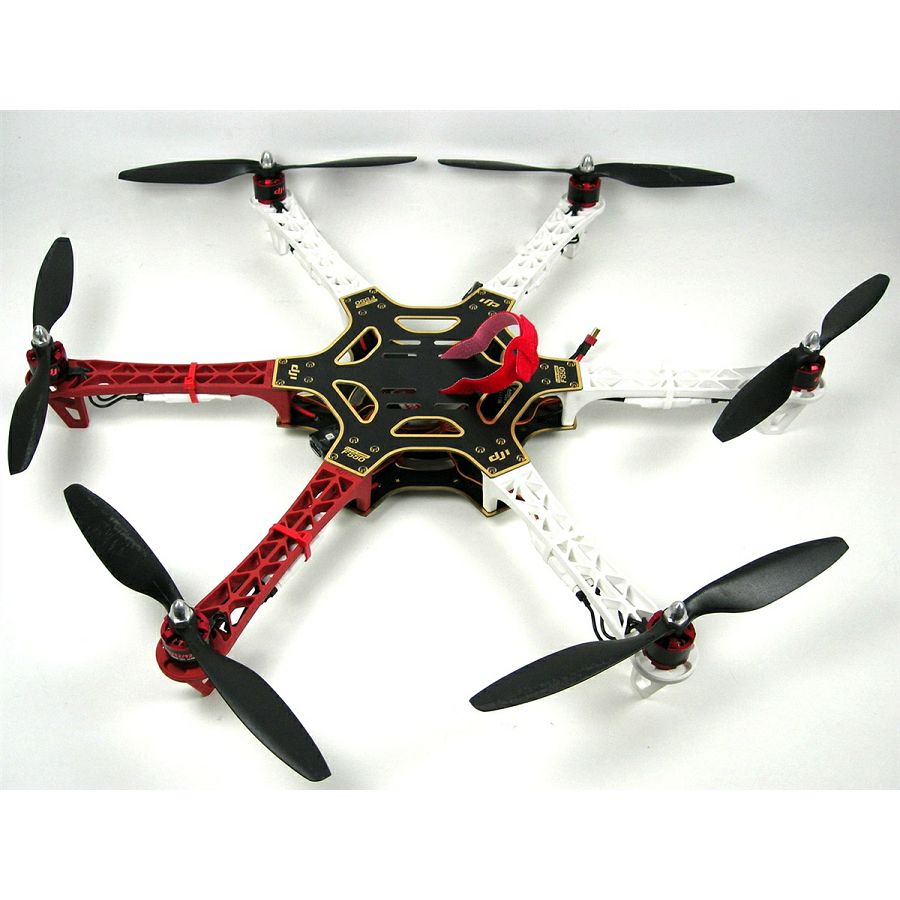

DJI's Flame Wheel 550 is a multi-rotor flying platform designed for all pilots for entertaining or amateur AP. With DJI WooKong-M or NAZA autopilot system, such actions as hovering, cruising, even rolling and other maneuvers can be achieved. It can be applied to entertainment, aerial photography, FPV, and other aero-modeling activities.

Features:
Frame Arms adopt PA66+30GF ultra strength material design, provide better crash worthiness.
Using high strength compound PCB frame board, which makes wiring of ESCs and battery more safe and easier.
Optimized frame design, which provides abundant assemble space for autopilot systems.
Provide different color frame arms: red, white, black, which makes your flight more colorful.

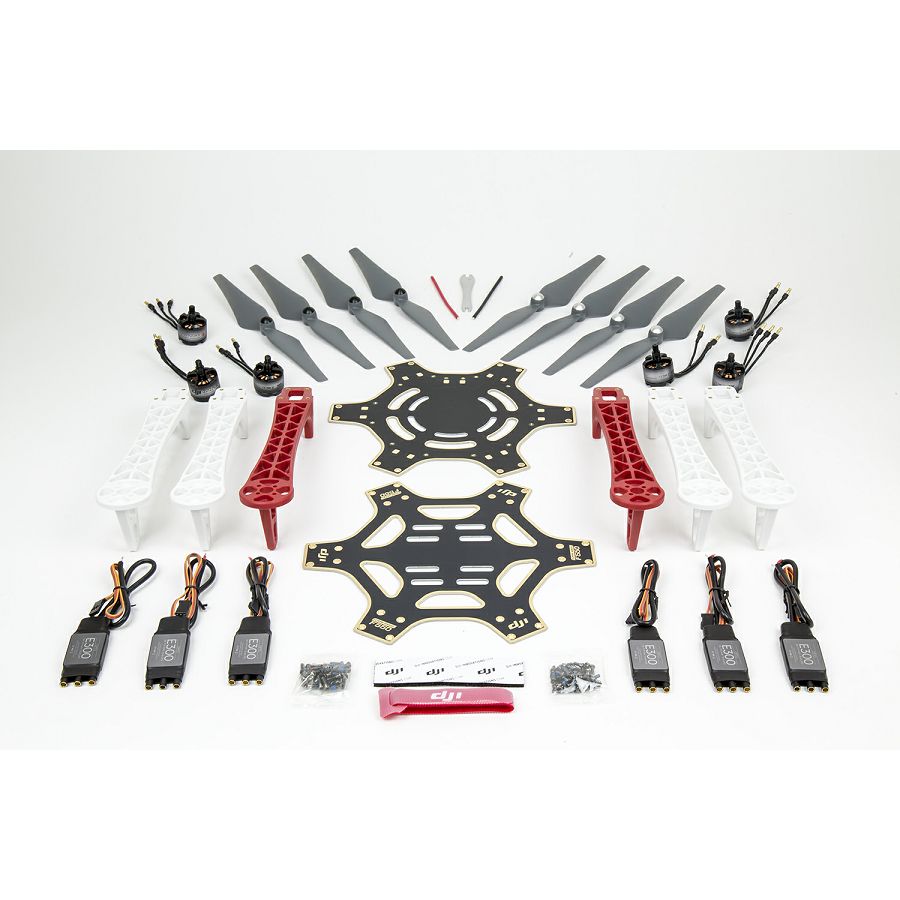

Scope of Delivery:
6x - ESC(15A)
6x - Motor(2212)
6x - blades(10inch)
1x - complete frame

F550 Specs:
Model: Flame Wheel 550 (F550)
Frame Weight: 478g
Diagonal Wheelbase: 550mm
Takeoff Weight: 1200g ~ 2400g
Recommended Propeller: 10 x 4.5in; 8 x 4.5in
Recommended Battery: 3S~4S LiPo
Recommended Motor: 22 x 12mm (stator size)
Recommended ESC: 18A OPTO

FAQ:

How high and how far could it go?
It depends on your payload and battery.
What’s the max current and power of DJI motors?
Max 12A, 144W.
I just bought your flame wheel. Is there any instruction manual?
Yes, it’s on our homepage.
Should I use threadlock when install the props?
No need.
Where can I get spare parts?
Please contact the local dealers for spare parts.
My quad twitches in the air. What’s the problem?
Please double check the motor and ESC connectors see if there’s any bad soldering.
What battery should I use? Can I use 6S?
30C lipo is suggested. DJI motors support 3-4S battery only.
What’s the payload of F550?
About 0.5-1kg.
Should I calibrate the ESC and how?
DJI ESC is optimised for DJI controller, calibration is not needed.
Does DJI ESC need to cut red wire as the manual mentioned?
DJI ESC has no BEC function, no need to cut the red wires.
Prop break in the air, what’s the problem?
Please check the propellers before taking off. Do not over tighten.
