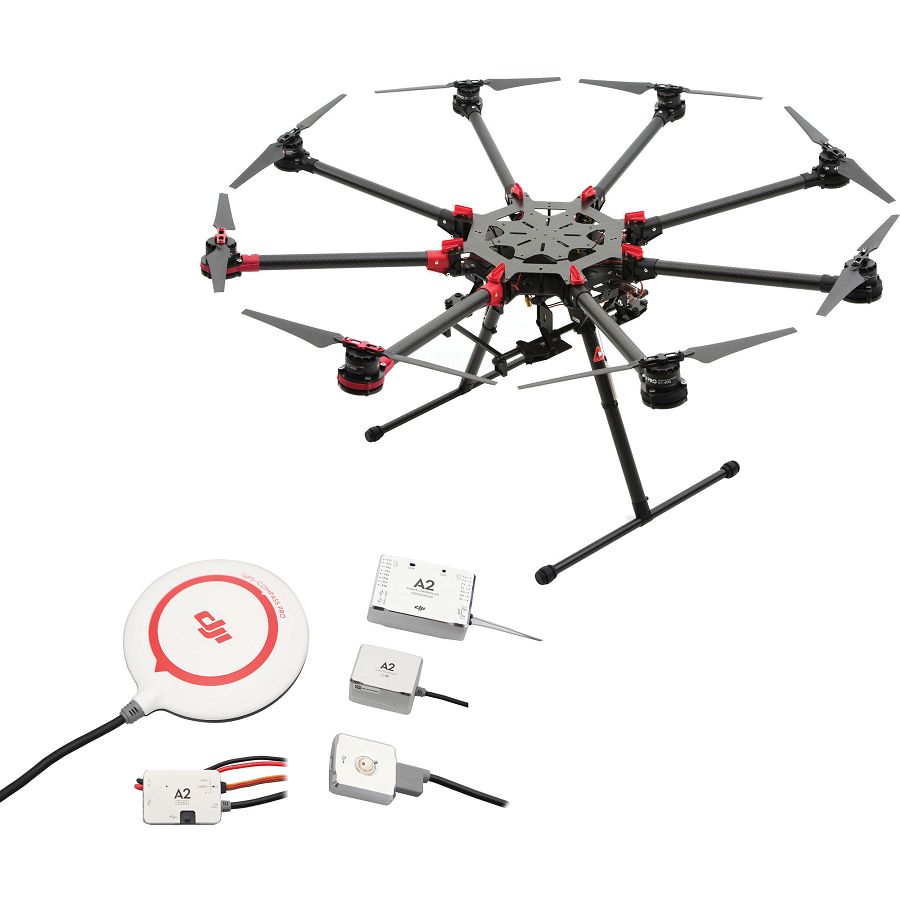

DJI Spreading Wings S1000+ & A2 Flight Controller Combo Octocopter dron Professional Aircraft multi-rotor

Designed to Carry DSLR-Sized Camera

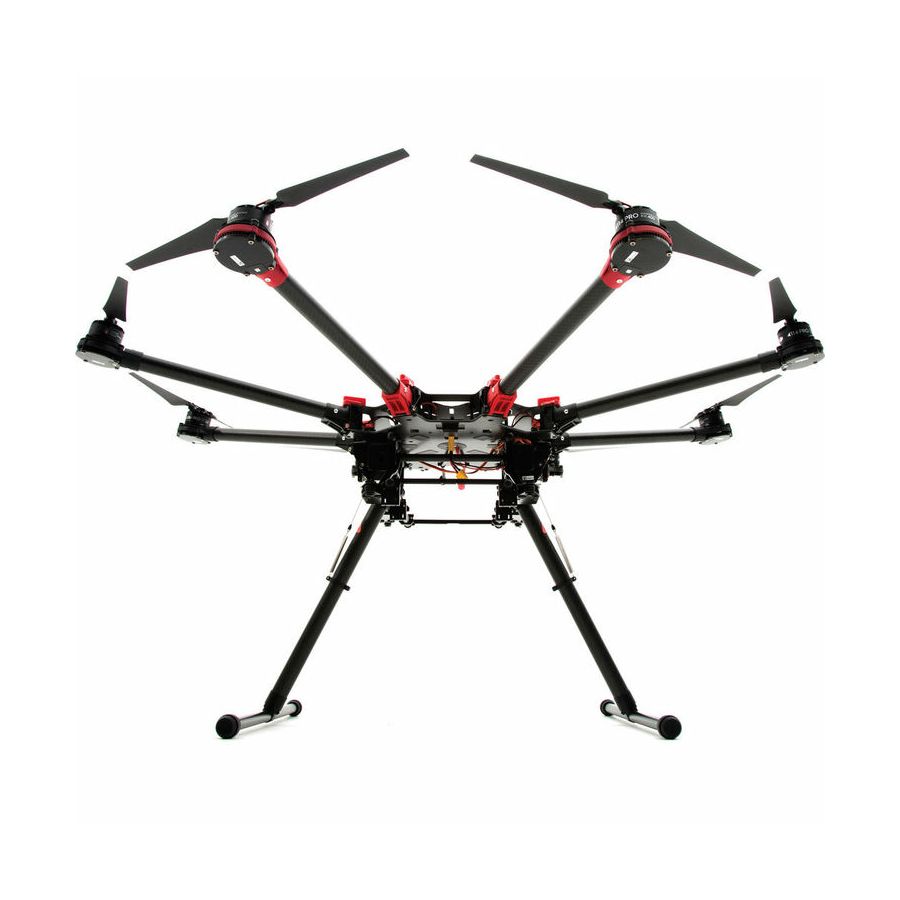

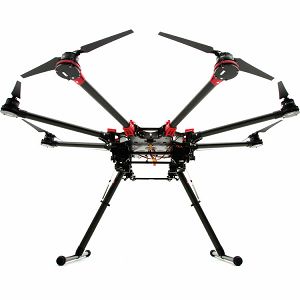

Collapsible Frame and Folding Props
DJI A2 Flight Control System
Up to 24 Pound Take-Off Weight
Up 15 Minutes Flying at 15,000mAh
Low Gimbal Mounting with Dampening

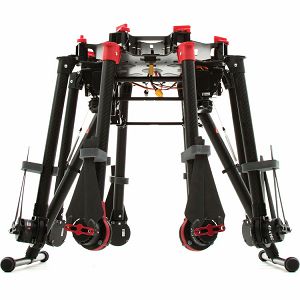

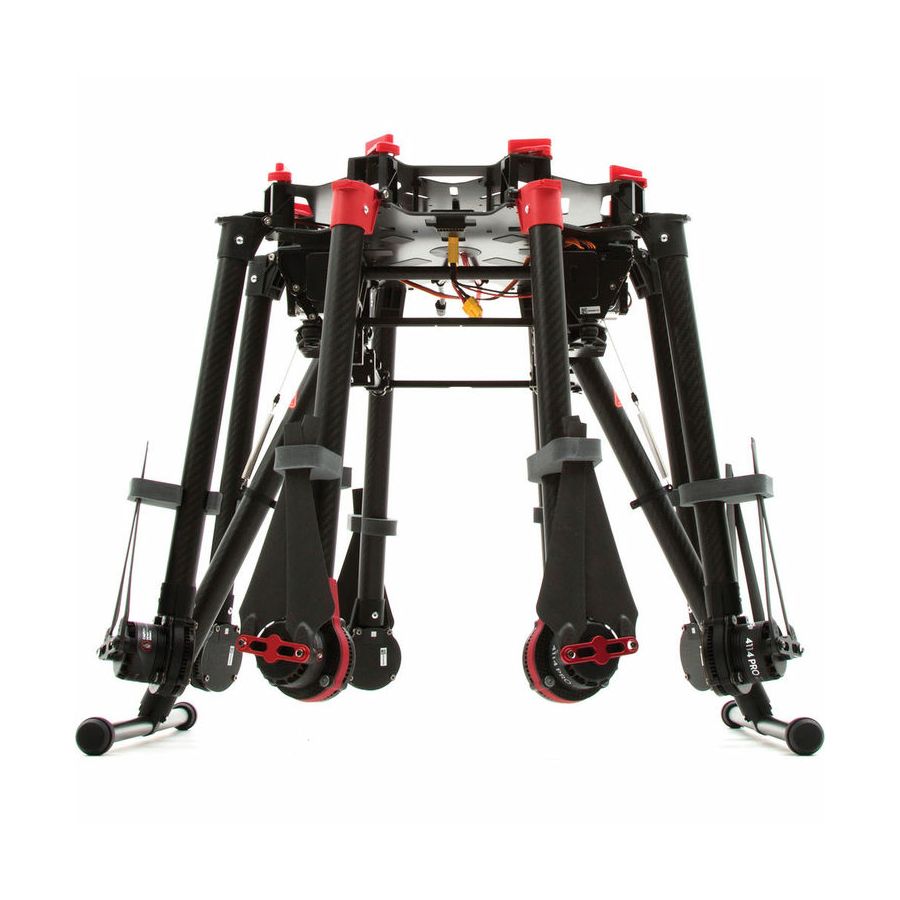

Retractable Landing Gear
Simpler Flight Controller Installation
2.4 GHz DR16 Radio Receiver
Redesigned Power Distribution

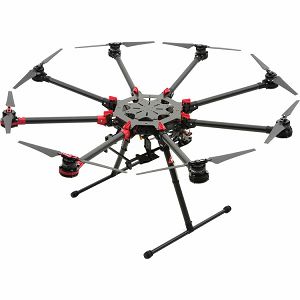

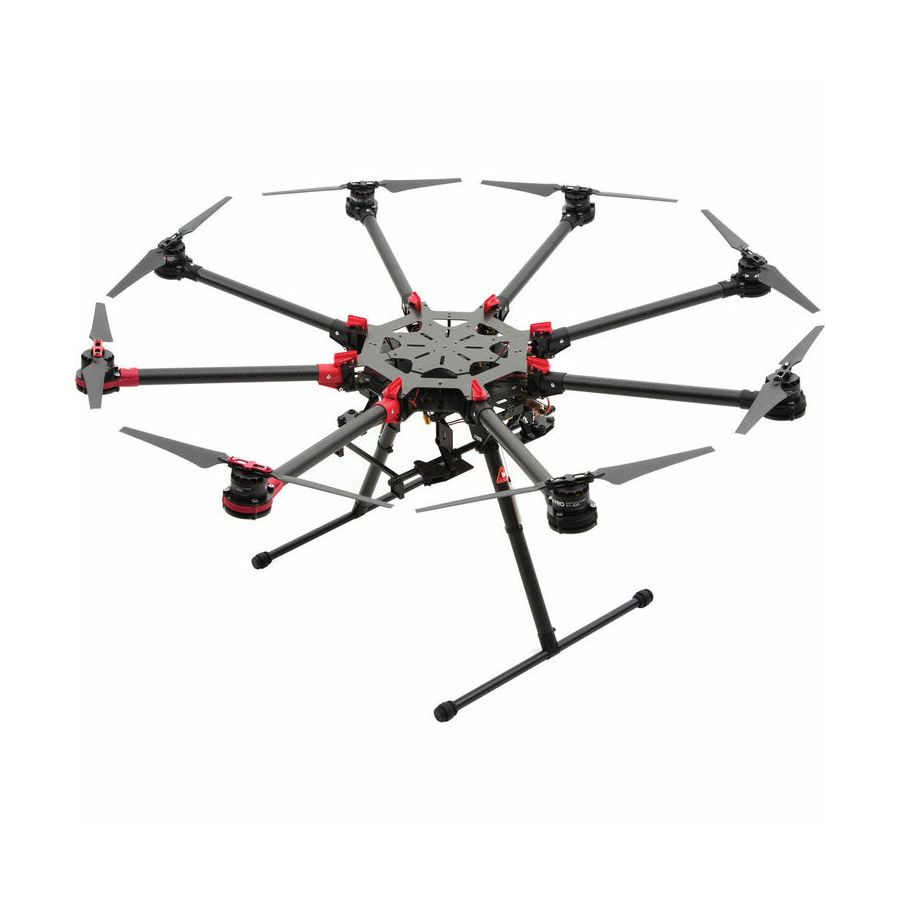

Featuring a removable upper center board for easier installation of flight electronics as well as a redesigned power distribution system, the Spreading Wings S1000+ Octocopter with A2 Flight Controller from DJI continues the legacy of the original S1000. The S1000+ is a collapsible, eight-propeller RC helicopter designed to carry a DSLR or similar-sized camera. With a 24-pound maximum takeoff weight, it is intended to serve as a camera platform, allowing professional videographers and photographers to add dynamic aerial shots to their productions.

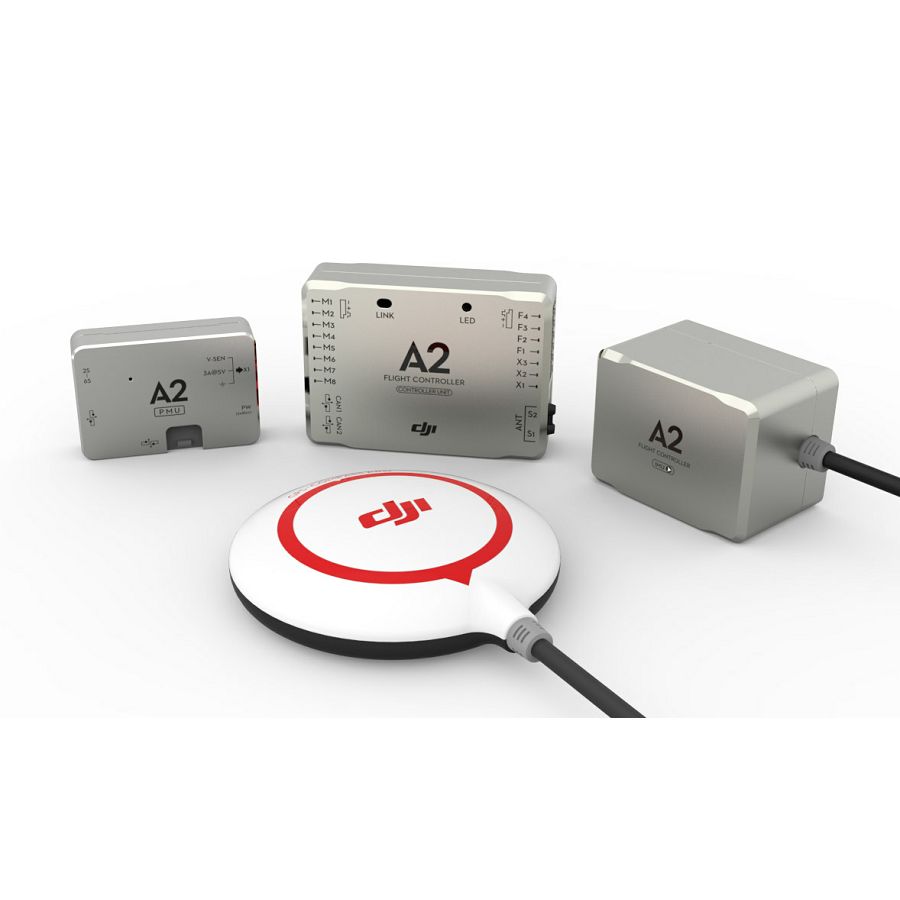

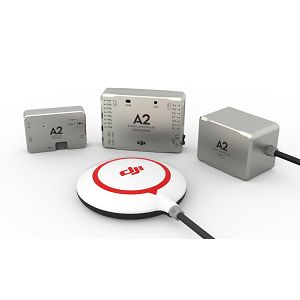

The bundle features the DJI A2 flight control system, a collection of hardware components that control mixing, regulate power, provide sensor data, and include a 2.4 GHz DR16 receiver. The flight control system features attitude and GPS attitude flight modes, offering the pilot varying degrees of autopilot intervention depending on skill level and preference. In GPS mode it is possible to hover in a fixed position, which is ideal for capturing static video shots. In attitude mode, the flight controller will use IMU data to keep the aircraft stable, but when hovering it may drift due to inertia or wind currents. The A2 also features return to home, Intelligent Orientation Control, and other features made possible thanks to computerized, GPU-based flight control. The built-in receiver is compatible with Futaba FASST series and DJI DESST series transmitters (radio controllers). Third-party receivers are also supported.

For stabilizing and moving a camera in flight, the S1000 is compatible with any of the Zenmuse Z15 series gimbals. The airframe features a dampened gimbal mounting bracket with a low mounting position. Additionally, the landing gear can be raised, allowing an unobstructed 360° of visibility.

The S1000 is designed to power 6S lithium-polymer batteries. It will support capacities between 10,000 and 20,000mAh, and requires a discharge rate of at least 15C. With a 15,000mAh battery and a take-off weight of 21 pounds, it is estimated to fly approximately 15 minutes.

Note: This aircraft not ready-to-fly (RTF): Assembly is required, and batteries and a transmitter are not included. Please refer to the S1000+ User Guide for details of required hardware and installation instructions.

For more information on the items in this bundle, please follow the links below.

Kit uključuje:

DJI Spreading Wings S1000+ Professional Octocopter
DJI A2 Flight Control System for Multi-Rotor Aircraft

Specifikacije:

Performance
Takeoff Weight 13.2 lb / 6 kg to 24.2 lb / 11 kg
Motor
Stator Size 1.6 x 0.6" / 41 x 14 mm
Motor Velocity Constant KV: 400 rpm/V
Maximum Power 500 W
Weight With Cooling Fan: 5.6 oz / 158 g
Electronic Speed Control (ESC)
Working Current 40 A
Working Voltage 6S LiPo
Signal Frequency 30 to 450 Hz
Drive PWM Frequency 8 kHz
Weight 1.2 oz / 35 g
Propellers
Size 15 x 5" / 38.1 x 12.7 cm
Weight 0.5 oz / 13 g
Frame
Diagonal Wheelbase 41.1" / 1045 mm
Frame Arm Length 15.2" / 386 mm
Center Frame Diameter 13.3" / 337 mm
Center Frame Weight With Landing Gear Mounting Base, Servos: 3.3 lb / 1.5 kg
Landing Gear Size 18.1 x 20.1 x 12" / 460 x 511 x 305 mm
Flight Control System
Compatibility A2 or WooKong-M
Gain Value Settings For A2 Flight Controller
Basic: Roll 120%, Pitch 120%, Yaw 120%
Attitude: Roll 170%, Pitch 170%, Vertical 120%

For WooKong-M Flight Controller
Basic: Roll 130%, Pitch 130%, Yaw 120%
Attitude: Roll 180%, Pitch 180%, Vertical 120%
General
Power Requirements Lithium-Polymer (LiPo):
Power Consumption Maximum: 4000 W
Hovering: 1500 W at 20.9 lb / 9.5 kg takeoff weight
Operating Temperature 14 to 104°F / -10 to 40°C
Weight 9.7 lb / 4.4 kg

Supported ESC Output 400 Hz refresh frequency
Supported Transmitters With Built-in Receiver: Futaba FASST series and DJI DESST series
Supported External Receivers Futaba S-Bus, S-Bus2, DSM2
Other DJI Products Supported Z15, H3-2D, iOSD, 2.4G Bluetooth Data Link, and S800 EVO
Hovering Accuracy (GPS Mode) Vertical: ±1.6' / 0.5 m
Horizontal: ±4.9' / 1.5 m
Maximum Wind Resistance < 26.2 fps (8 m/s) / 17.9 mph (28.8 km/h)
Maximum Yaw Angular Velocity 150 deg/s
Maximum Tilt Angle 35°
Ascent/Descent ±19.7 fps / 6 m/s
Power Requirements Maximum: 5 W
Typical: 0.3 A at 12.5 V
System Requirements Assistant Software: Windows 8, 7, or XP SP3 -- 32 or 64-bit
Operating Temperature 23 to 140°F / -5 to 60°C
Dimensions Flight Controller: 2.1 x 1.5 x 0.6" / 54 x 39 x 14.9 mm
IMU: 1.6 x 1.2 x 1" / 41.3 x 30.5 x 26.3 mm
GPS-Compass Pro: 2.4" (diameter) x 0.6" / 62 mm (diameter) x 14.3 mm
LED-BTU-I: 1.2 x 1.2 x 0.3" / 30 x 30 x 7.9 mm
PMU: 39.5mm x 27.6mm x 9.8mm
Weight Overall: 7.9 oz / 224 g







Kit Items

Spreading Wings S1000+ Professional Octocopter


A2 Flight Control System for Multi-Rotor Aircraft
LED-BTU-I LED Bluetooth Indicator for A2 Flight Control System
MC for A2 Flight Control System
PMU for A2 Flight Control System
GPS Bracket for A2 Flight Control System
IMU Module for A2 Flight Control System
GPS-PRO Module for A2 Flight Control System
