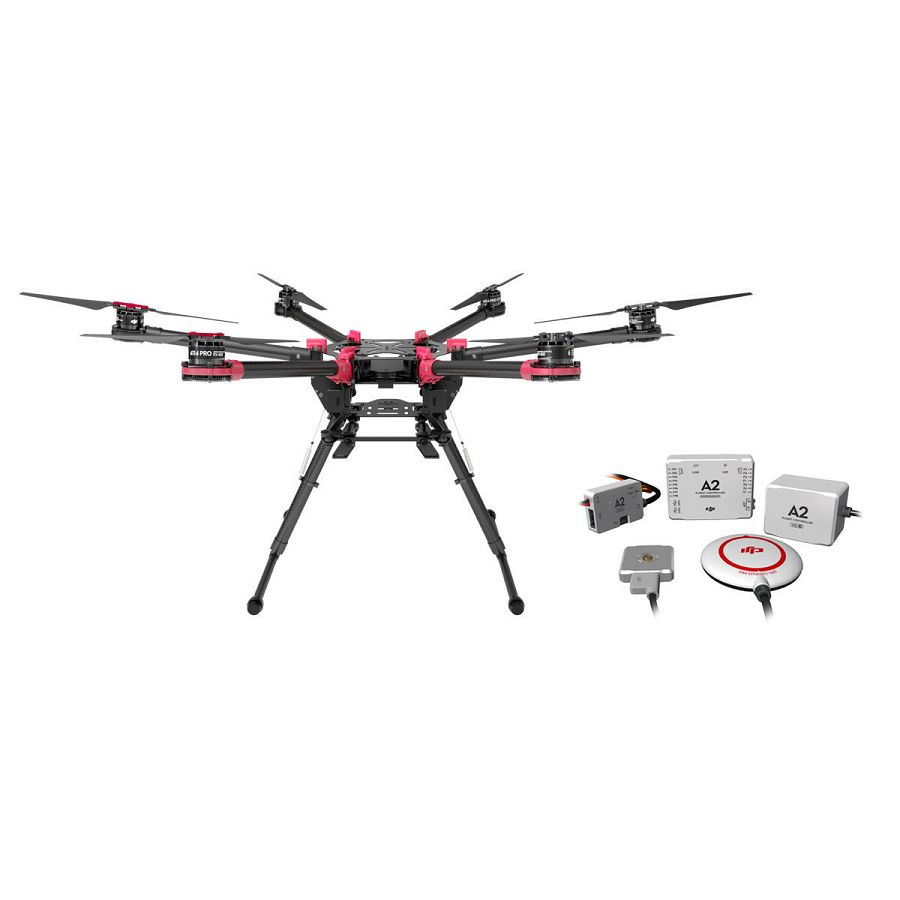

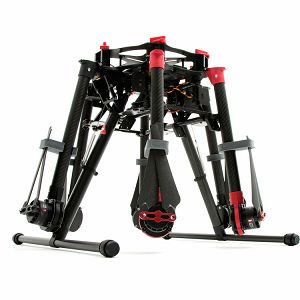

DJI Spreading Wings S900 + A2 Flight Controller Combo dron Professional Aircraft multi-rotor Hexacopter

Compatible with Zenmuse Z15 Gimbal

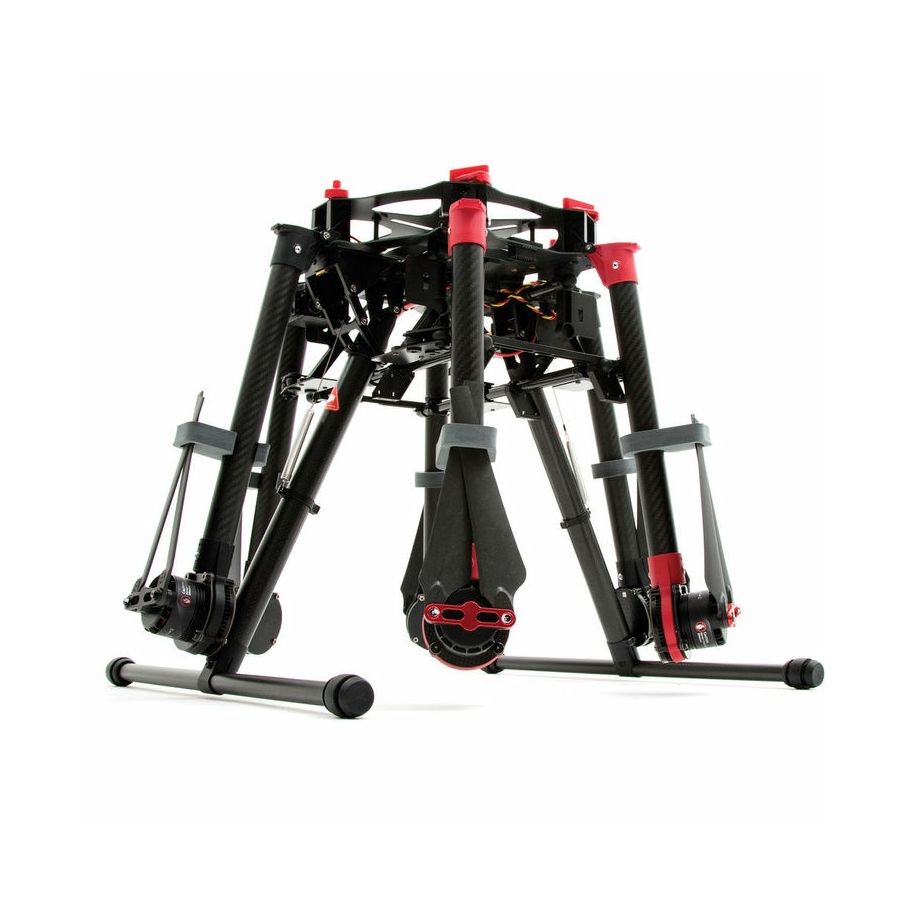

Collapsible Frame and Folding Props
Up to 18 Pound Total Take-Off Weight
Low Gimbal Mounting with Dampening
Retractable Landing Gear
DJI A2 Flight Control System
Supports Futaba FASST / DJI DESST Radios
Up 18 Minutes Flying at 12,000mAh

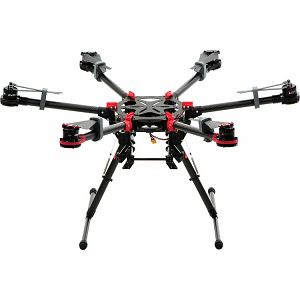

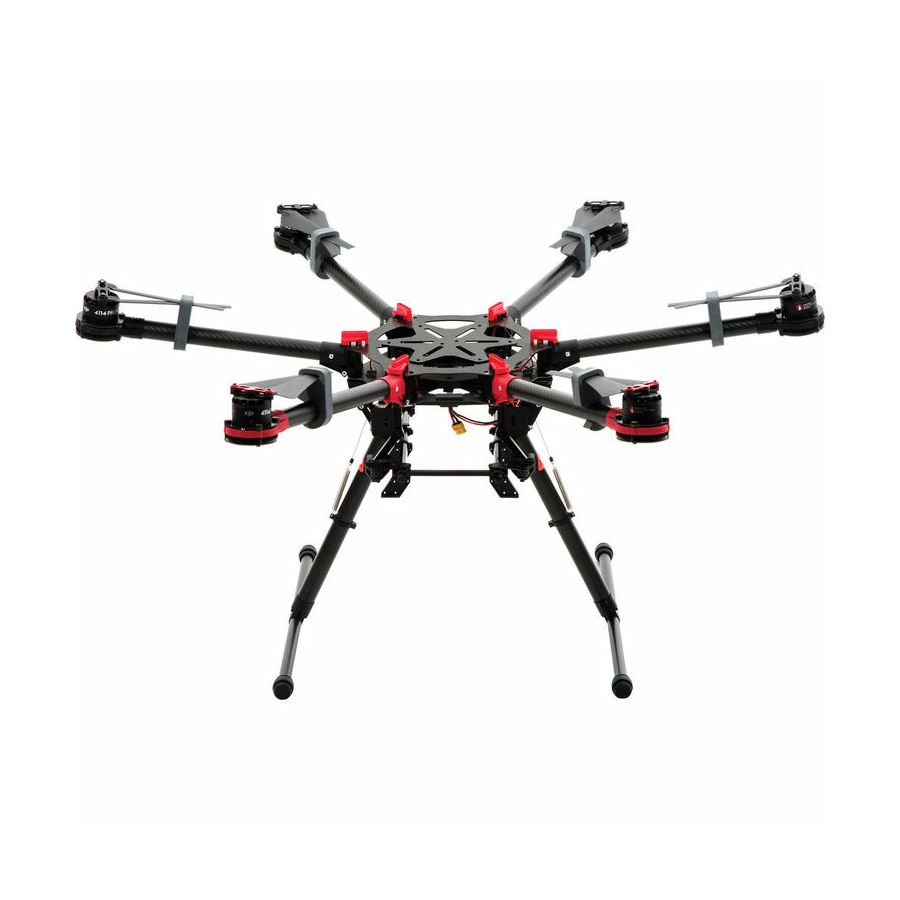

Supporting a total takeoff weight of 18 pounds, the Spreading Wings S900 Hexacopter from DJI is optimized for installing a gimbal such as the Zenmuse Z15 enabling capture of aerial videos and photos. It features carbon fiber frame arms to cut down on weight, which fold down for storage and transport. Used with a 6S 12,000mAh battery, available separately, the S900 can fly for up to 18 minutes fully laden.

This version of the S900 features the DJI A2 flight control system, a collection of hardware which acts as the hexacopter's brains. It takes data from the GPS, gyros, barometer, and other sensors while applying any pilot inputs to help ensure stable flying and smooth video. The A2 can be configured for different flying styles and pilot skill levels, with features like Intelligent Orientation Control (IOC), Point of Interest (POI), one motor fail protection, and a Return-to-Home fail safe in the event contact is lost with the transmitter. Thanks to CAN-bus peripheral ports, A2 can integrate other accessories, such as the Lightbridge unified video, data, and control system.

The S900 is not a ready-to-fly (RTF) aircraft. It does require some assembly, and a transmitter (hand-held radio controller) and batteries are also required. For power, it uses LiPo flight batteries in 6S configuration, a 10,000 to 15,000mAh capacity, and requires a discharge rate of at least 15C.



DJI Spreading Wings S900 Hexacopter
Frame
Diagonal Wheelbase 35.4" / 900 mm
Frame Arm Length 14.1 / 358 mm

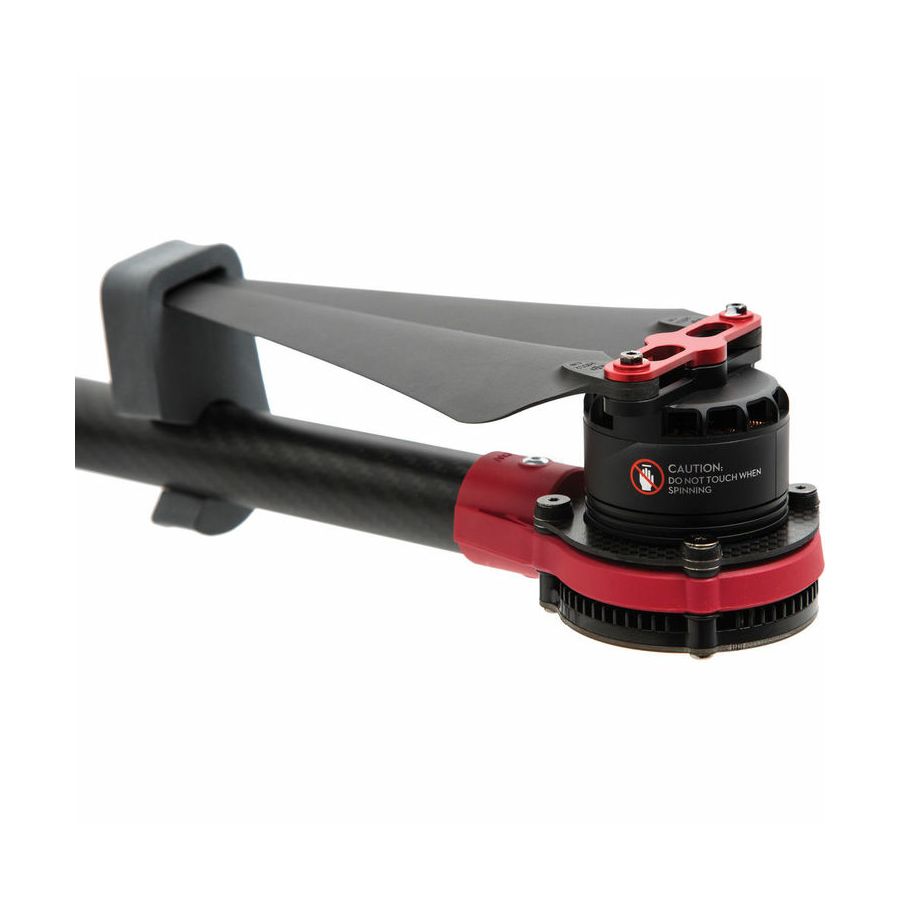

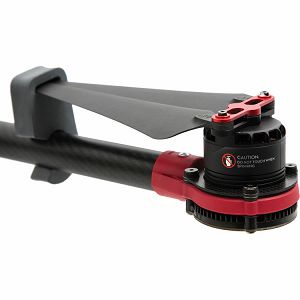

Frame Arm Weight Including Motor, ESC, and Propellers: 11.1 oz / 316 g
Center Frame Diameter 10.7" / 272 mm
Center Frame Weight With Landing Gear Mounting Base and Servos: 2.6 lb / 1.2 kg
Landing Gear Dimensions 18.1 x 17.7 x 14.2 / 460 x 450 x 360 mm
Motor
Stator Size 1.6 x 0.6" / 41 x 14 mm
Motor Velocity Constant KV: 400 rpm/V
Maximum Power Consumption 500 W
Weight With Cooling Fan: 5.6 oz / 158 g
Electronic Speed Control (ESC)
Working Current 40 A
Working Voltage 6S LiPo
Signal Frequency 30 to 450 Hz
Drive PWM Frequency 8 kHz
Weight With Cooling Fan: 1.2 oz / 35 g
Propeller
Type Folding
Material Plastic
Size 15 x 5.2" / 381 x 132 mm
Weight 0.5 oz / 13 g
Flight Parameters
Supported Flight Control Systems DJI A2 and WooKong-M
Take-Off Weight 10.4 to 18.1 lb / 4.7 to 8.2 Kg
Total Weight 7.3 lb / 3.3 Kg
Battery Requirements LiPo: 6S, 10000 to 15000 mAh, 15C (minimum)
Maximum Power Consumption 3000 W
Hover Power Consumption 1000 W at 15 lb / 6.8 Kg takeoff weight
Hover Time 18 minutes at 12000 mAh and 15 lb / 6.8 Kg takeoff weight
Operating Temperature 14 to 104°F/ -10 to 40°C

DJI A2 Flight Control System for Multi-Rotor Aircraft
Supported ESC Output 400 Hz refresh frequency
Supported Transmitters With Built-in Receiver: Futaba FASST series and DJI DESST series
Supported External Receivers Futaba S-Bus, S-Bus2, DSM2
Other DJI Products Supported Z15, H3-2D, iOSD, 2.4G Bluetooth Data Link, and S800 EVO
Hovering Accuracy (GPS Mode) Vertical: ±1.6' / 0.5 m
Horizontal: ±4.9' / 1.5 m
Maximum Wind Resistance < 26.2 fps (8 m/s) / 17.9 mph (28.8 km/h)
Maximum Yaw Angular Velocity 150 deg/s
Maximum Tilt Angle 35°
Ascent/Descent ±19.7 fps / 6 m/s
Power Requirements Maximum: 5 W
Typical: 0.3 A at 12.5 V
System Requirements Assistant Software: Windows 8, 7, or XP SP3 -- 32 or 64-bit
Operating Temperature 23 to 140°F / -5 to 60°C
Dimensions Flight Controller: 2.1 x 1.5 x 0.6" / 54 x 39 x 14.9 mm
IMU: 1.6 x 1.2 x 1" / 41.3 x 30.5 x 26.3 mm
GPS-Compass Pro: 2.4" (diameter) x 0.6" / 62 mm (diameter) x 14.3 mm
LED-BTU-I: 1.2 x 1.2 x 0.3" / 30 x 30 x 7.9 mm
PMU: 39.5mm x 27.6mm x 9.8mm
Weight Overall: 7.9 oz / 224 g











Kit Items

Spreading Wings S900 Hexacopter
Center Frame
6 x Frame Arms
2 x Landing Skid Tubes
2 x Landing Gear legs
GPS Collapsible Mount
2 x Springs
Connector Set
3-pin Servo Cable
Screw Package
2 x Spare CW Propellers
2 x Spare CCW Propellers
4 x Magic Tape
6 x Red Knobs
50 x Soft Vibration Absorbing Gaskets
Limited 1-Year Warranty on ESC and MC; Limited 6-Month Warranty on GPS, IMU, and Motors

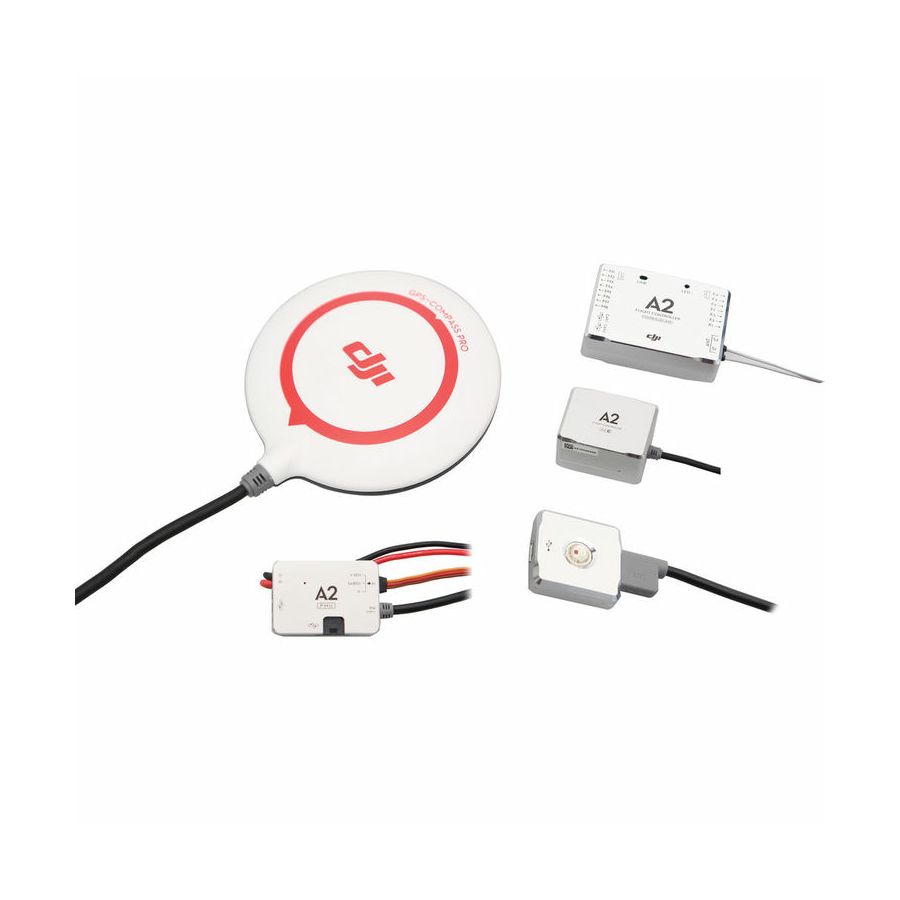

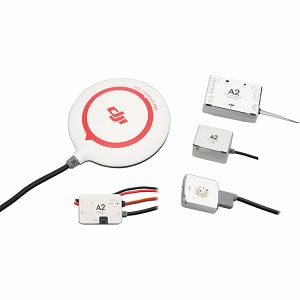

A2 Flight Control System for Multi-Rotor Aircraft
LED-BTU-I LED Bluetooth Indicator for A2 Flight Control System
MC for A2 Flight Control System
PMU for A2 Flight Control System
GPS Bracket for A2 Flight Control System
IMU Module for A2 Flight Control System
GPS-PRO Module for A2 Flight Control System
