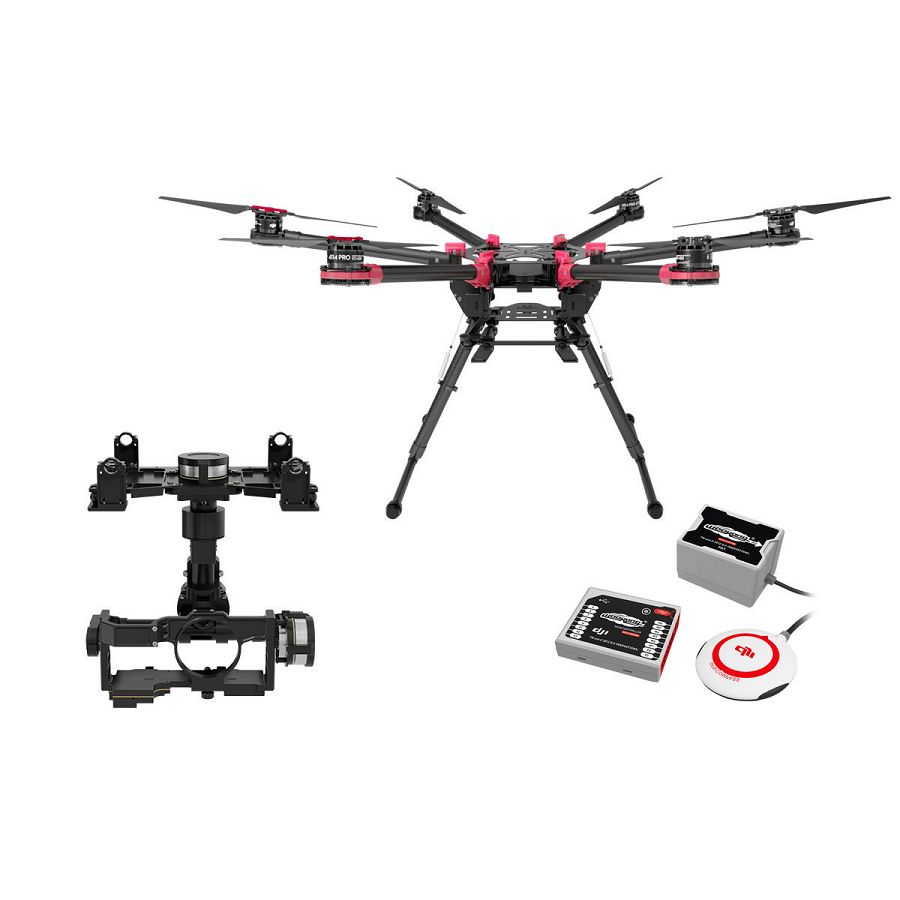

DJI Spreading Wings S900 + WKM + Z15 Zenmuse N7 Gimbal Combo dron Professional Aircraft multi-rotor Hexacopter WooKong-M Flight Control System Gyroscope

The S900 is designed for professional aerial photographers and cinematographers. Its lightweight, compact design makes it easy to take anywhere and create amazing aerials on the go.





DJI Spreading Wings S900 Features and Overview

Lightweight, Strong and Stable
Highly Portable, Easy to Carry
New Power Distribution System
Removable Upper Center Board
Sparkproof Plug
Professional Quality
Wide Range of Shooting Angles
Retractable Landing Gear
Compatible with Zenmuse Gimbals
Reduced Vibrations, Clearer Footage
Greater Power
Innovative Arm Design

LIGHTWEIGHT, STRONG AND STABLE
The S900’s arms and landing gear are made of sturdy carbon fiber, greatly reducing weight while increasing stability and strength. This enables a long flight time without sacrificing performance.

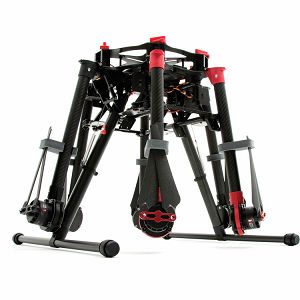

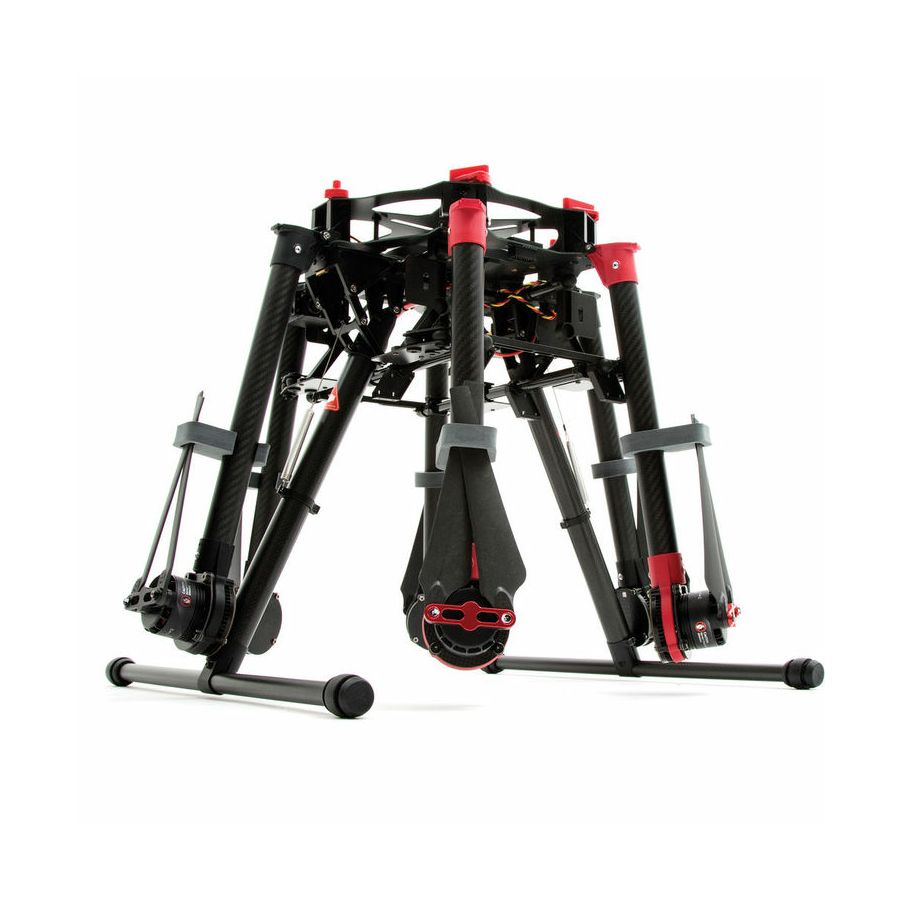

HIGHLY PORTABLE, EASY TO CARRY
With arms that fold in to save space, the S900 is built to be taken wherever you need to go. Then when you want to fly, it can be ready to go in just a few minutes. Never before has a professional hexacoptor been so portable and easy to transport.

Ready to Fly in 5 mins.

DJI S900 Folding Frame kit - quadcopters.co.uk

REMOVABLE UPPER CENTER BOARD
The upper center board on the DJI S900 can be removed, allowing easy access to install your flight controller and IMU, and giving you a convenient way to setup the power distribution system. Even installation of your main controller, iOSD, Lightbridge, or any other accessories is faster and easier than ever before.
This new centre board structure is perfectly compatible with the DJI WKM and A2 flight controllers.

NEW POWER DISTRIBUTION SYSTEM
A redesigned, rebuilt power distribution system improves safety and reliability.
Gold-plated metal bearings with a unique screw design secure the power cords,
ensuring cables will not come loose during flight and allowing easy setup.

DJI S900 Spreading Wings Power Distribution

SPARKPROOF PLUG
Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.

DJI S900 SPARKPROOF PLUG - Quadcopters.co.uk

PROFESSIONAL QUALITY
Weighing just 3.3kg, the S900 has a maximum takeoff weight of 8.2kg. This means you can easily carry most cameras and gimbals. Used with a 6S 12000mAh battery, it can fly for up to 18 minutes. *Maximum flight time is tested on a breezeless day with a payload of 6.8kg, hovering at a height of 2 meters.

WIDE RANGE OF SHOOTING ANGLES

Retractable landing gear and a special low gimbal mounting bracket gives you an extremely wide range of possible shooting angles and camera motions.

DJI S900 COMPATIBLE WITH ZENMUSE GIMBALS
DJI’s Zenmuse camera gimbals are known for their stability, providing smooth footage capture in
even the most difficult of conditions. The DJI S900 fully supports the Zenmuse Z15, GH3, GH4, and BMPCC gimbals.

REDUCED VIBRATIONS, CLEARER FOOTAGE
The DJI S900’s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.

GREATER POWER

A 40A electronic speed controller (ESC), our fastest available, is built in to each arm. Combined with its 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design, the S900 has a maximum thrust of 2.5Kg.
Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.

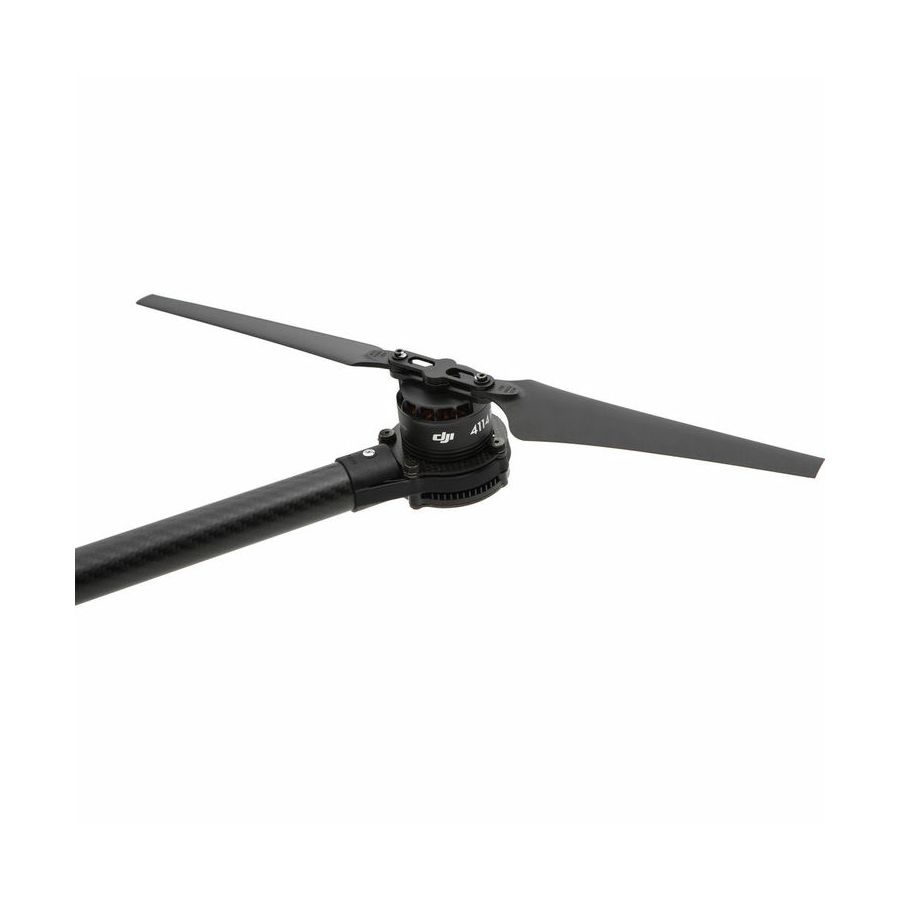

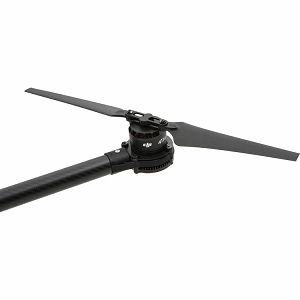

INNOVATIVE ARM DESIGN
Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.

Kit Uključuje:

Spreading Wings S900 Hexacopter
Center Frame
6 x Frame Arms
2 x Landing Skid Tubes
2 x Landing Gear legs
GPS Collapsible Mount
2 x Springs
Connector Set
3-pin Servo Cable
Screw Package
2 x Spare CW Propellers
2 x Spare CCW Propellers
4 x Magic Tape
6 x Red Knobs
50 x Soft Vibration Absorbing Gaskets

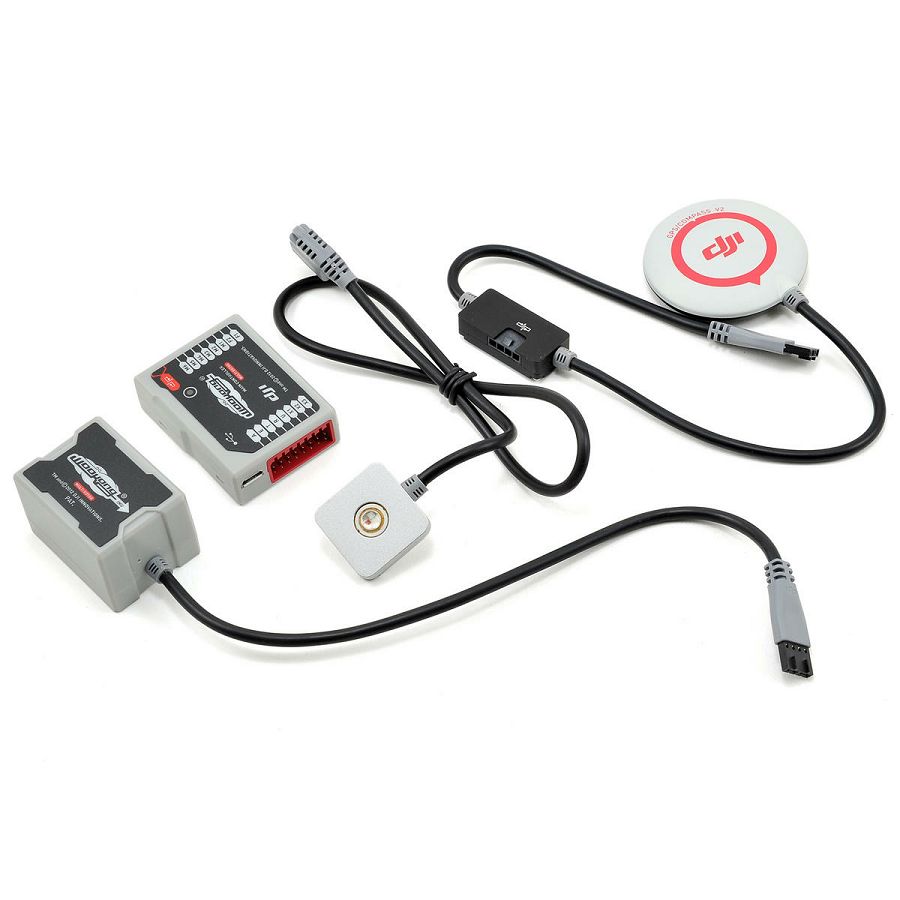

WooKong-M Flight Control System for Multi-Rotor UAVs
MC for WooKong-M Flight Control System
GPS/Compass Module for WooKong-M Flight Control System
PMU for WooKong-M Flight Control System
IMU for WooKong-M Flight Control System
LED Indicator for WooKong-M Flight Control System
GPS Bracket for WooKong-M Flight Control System

Zenmuse Z15-N7 3-Axis Gimbal for Sony NEX-7
Gimbal Control Unit (GCU)
Lens Retaining Ring
Lens Retaining Ring Shim
4 x Mounting Bracket
Camera Mount Screw
Lens Retaining Ring Screw
Gimbal Video Power Cable
Micro - USB Cable
CAN-Bus Cable
Spare Package
