DJI Zenmuse H3-3D gimbal 3-axis for Phantom 2 za GoPro HERO, hero3, hero3+ hero4

Zenmuse H3-3D Features

3-axis high performance gimbal
Effortless Setup
Compatible with DJI flight control systems
Part of the Zenmuse family
Independent IMU
Online Upgrade

KOMPLET UKLJUČUJE:

DJI Zenmuse H3-3D 3-Axis Gimbal for GoPro HERO3/3+/4 (Phantom 2)
Damping Unit Upper Bracket for Zenmuse H3-3D Gimbal (Part 48)
Damping Rubber for Zenmuse H3-3D Gimbal (Part 44, 4-Pack)
4 x Securing Kits
DJPZM000062
8-Pin Cable
DJCPZM000067

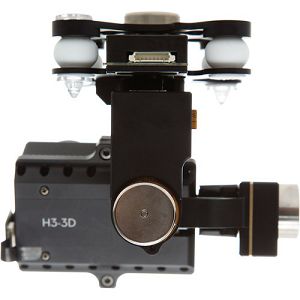

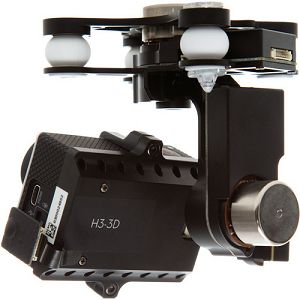

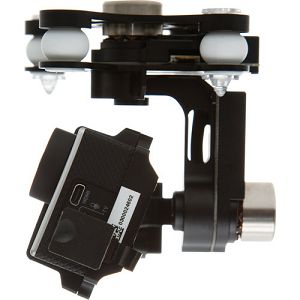

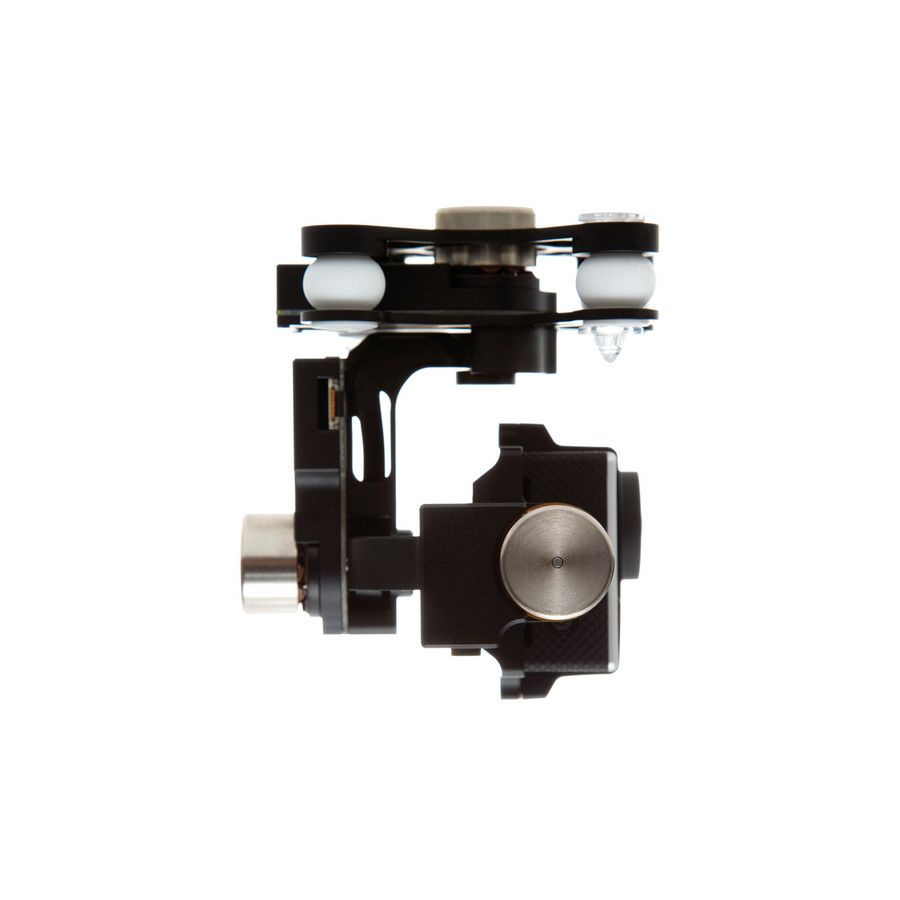

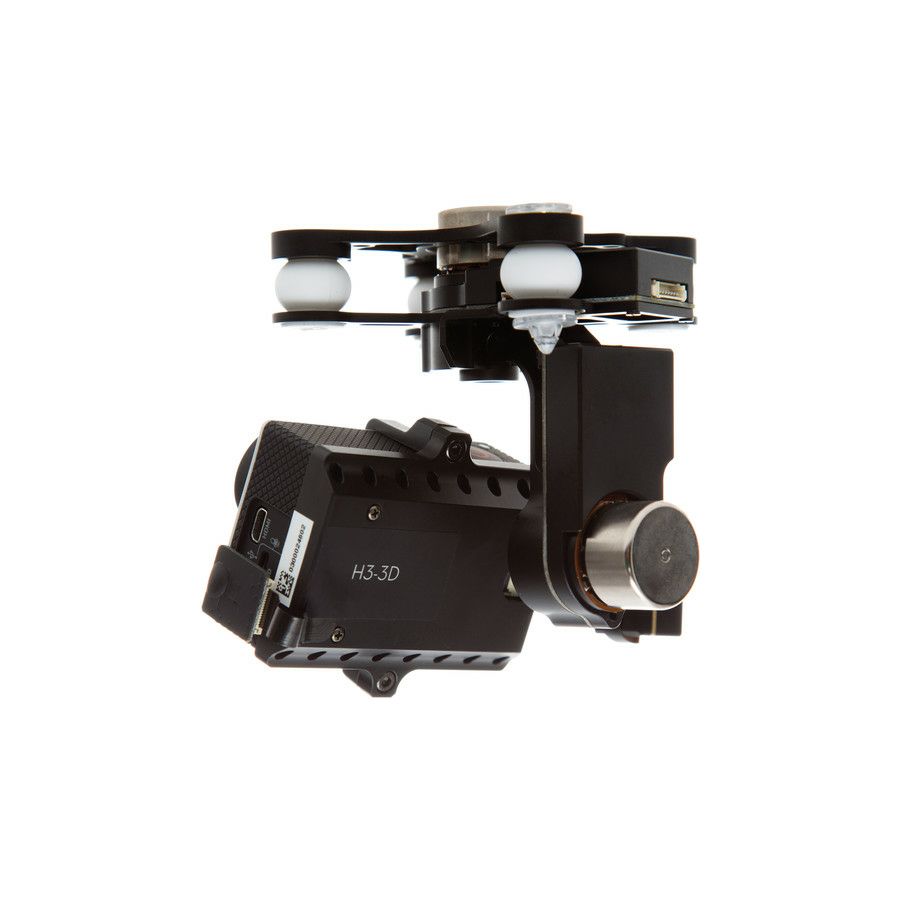

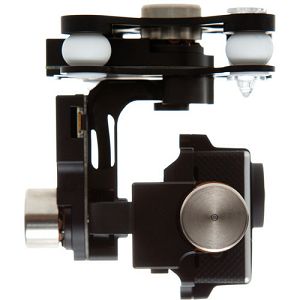

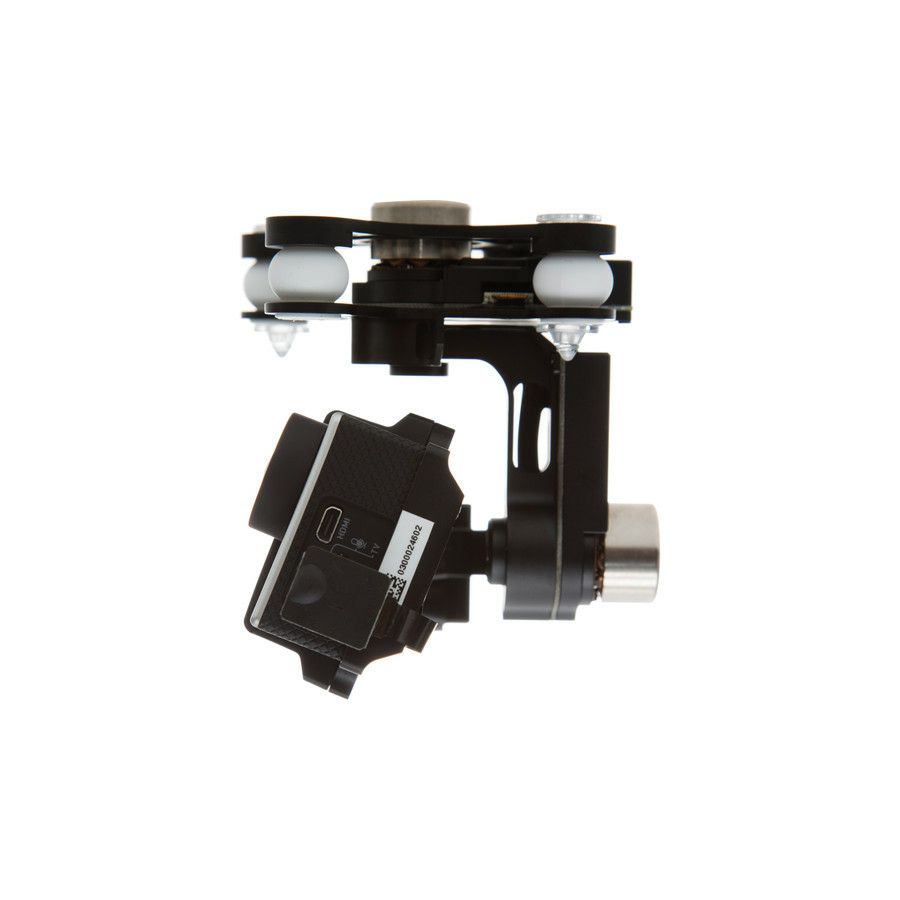

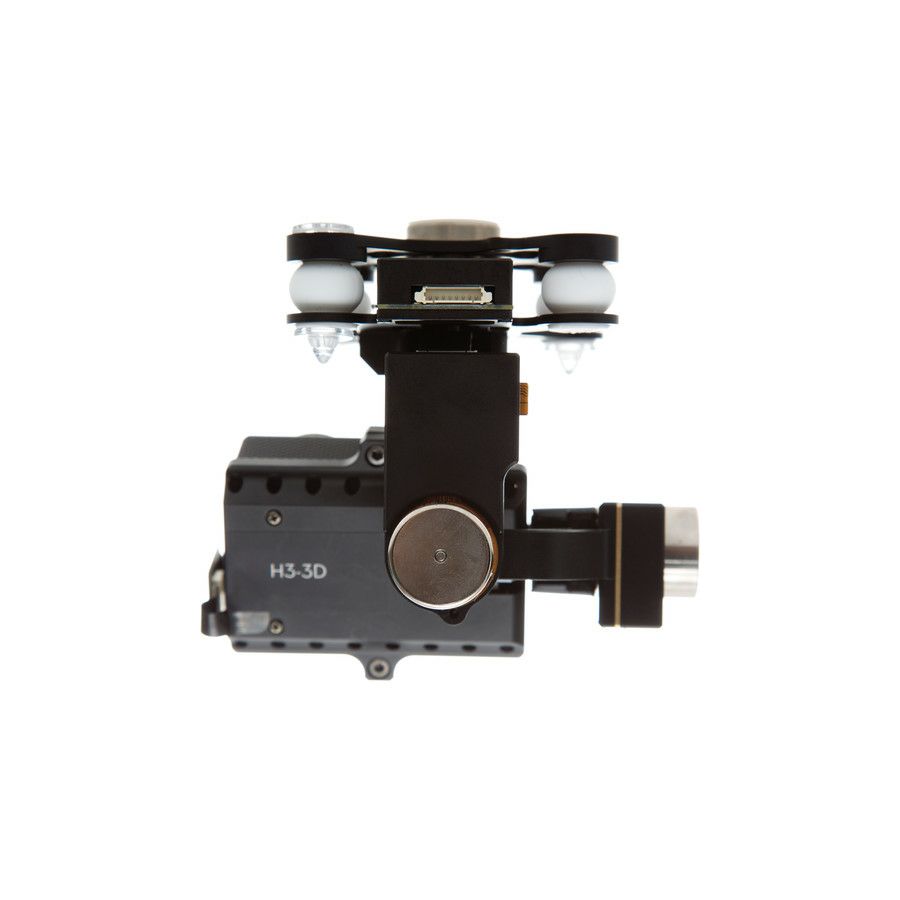

The Zenmuse H3-3D 3-Axis Gimbal for GoPro HERO3/3+/4 from DJI is a camera stabilization device that is exclusively for the DJI Phantom 2 Quadcopter. It is driven by a 3-axis brushless gimbal that not only supports tilting and canting, like the previous H3-2D model, but also panning as well. Not only will it keep your aerial video's horizon level and isolated from vibration, the gimbal can also be used to remotely operate there camera, allowing you to adjust the camera angle with ±0.08° accuracy in flight.

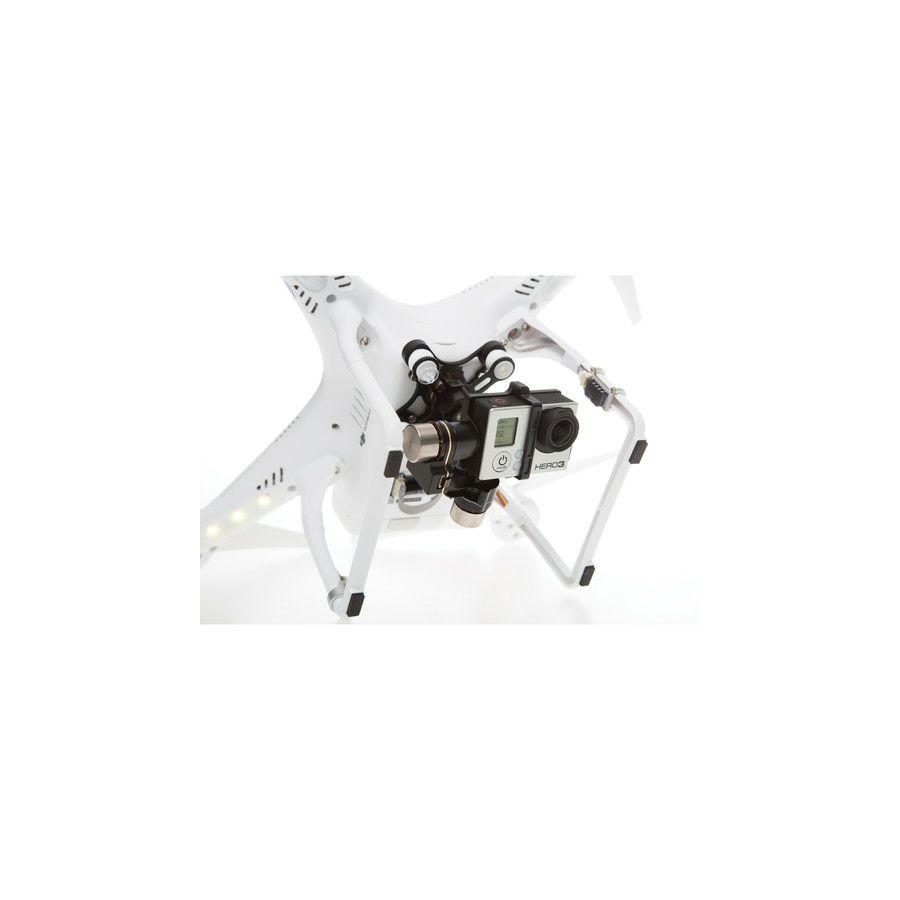

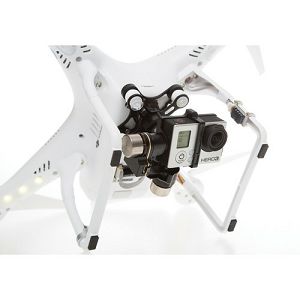

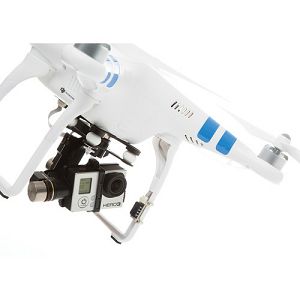

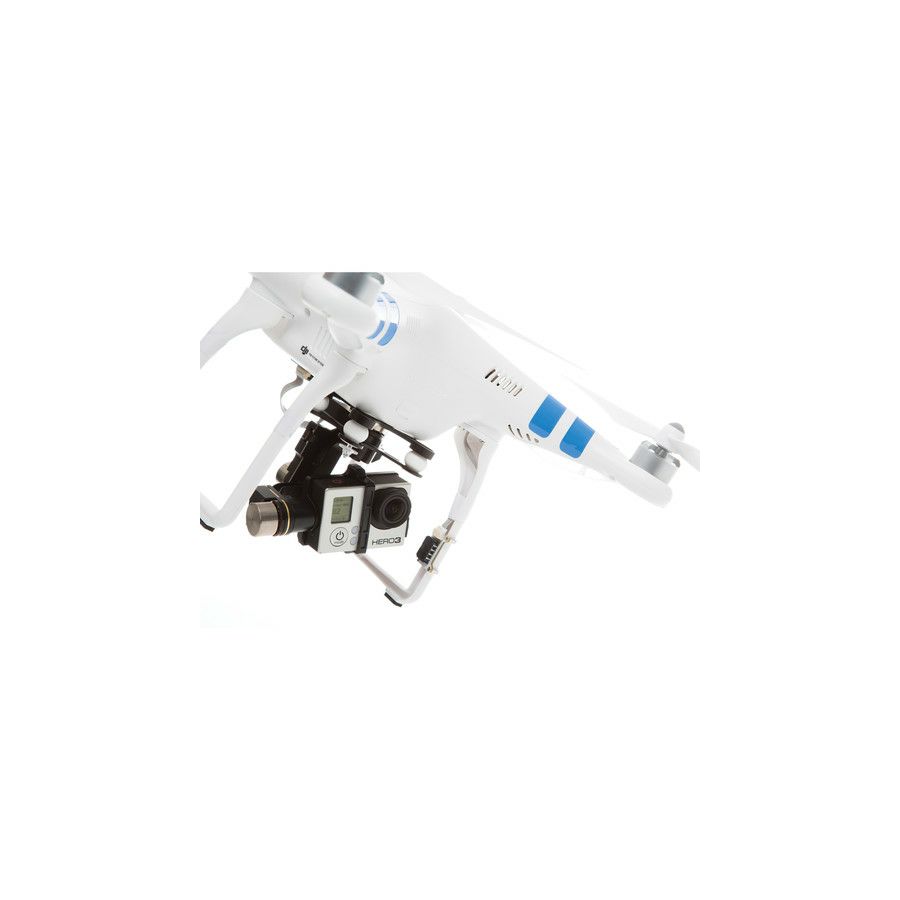

Electronically, the gimbal is designed to operate plug and play with the Phantom 2; however you may or may not require additional mounting hardware depending on which version of Phantom 2 you have. The first version of the Phantom 2 (V.1) has a small, rectangular opening on the bottom of the airframe that was optimized for the H3-2D gimbal, and is too small for the H3-3D. Conversely, the Phantom 2 V.2 has a larger round opening.

If your aircraft is identified at the V.1 you will need part CP.PT.000107, available separately, which includes the mounting adapter and extended landing gear required. If you are using the later Phantom 2 (V.2 or later), then no additional mounting hardware is required, and the original landing gear can still be used.

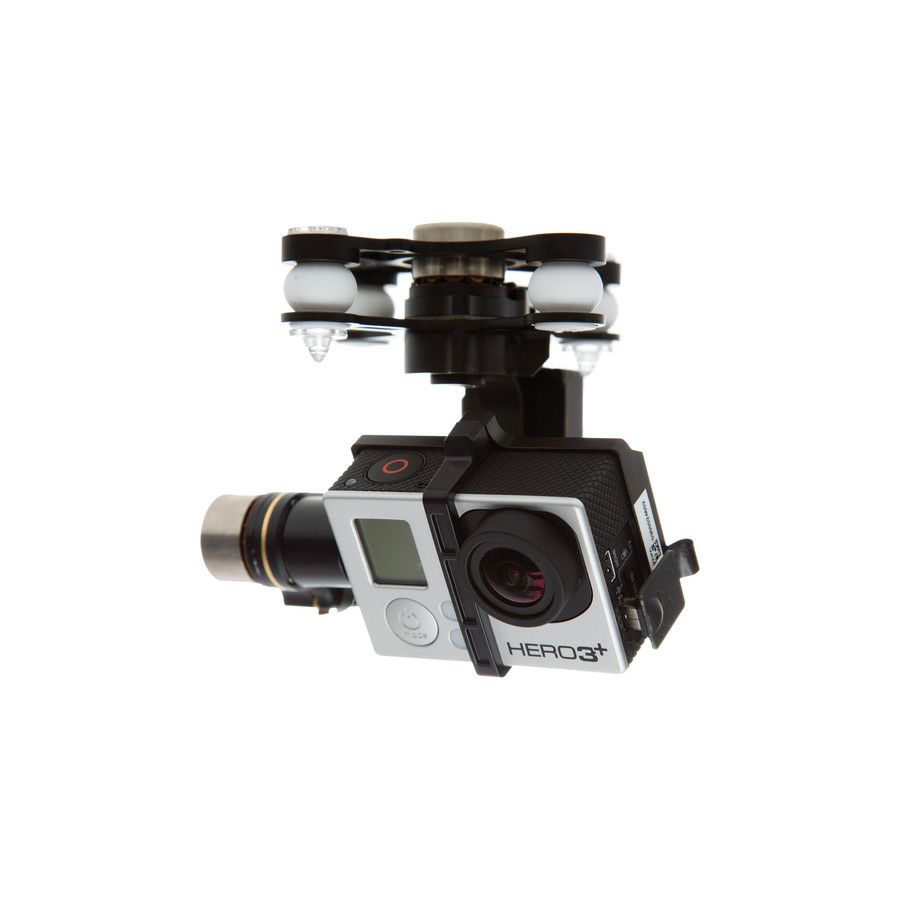

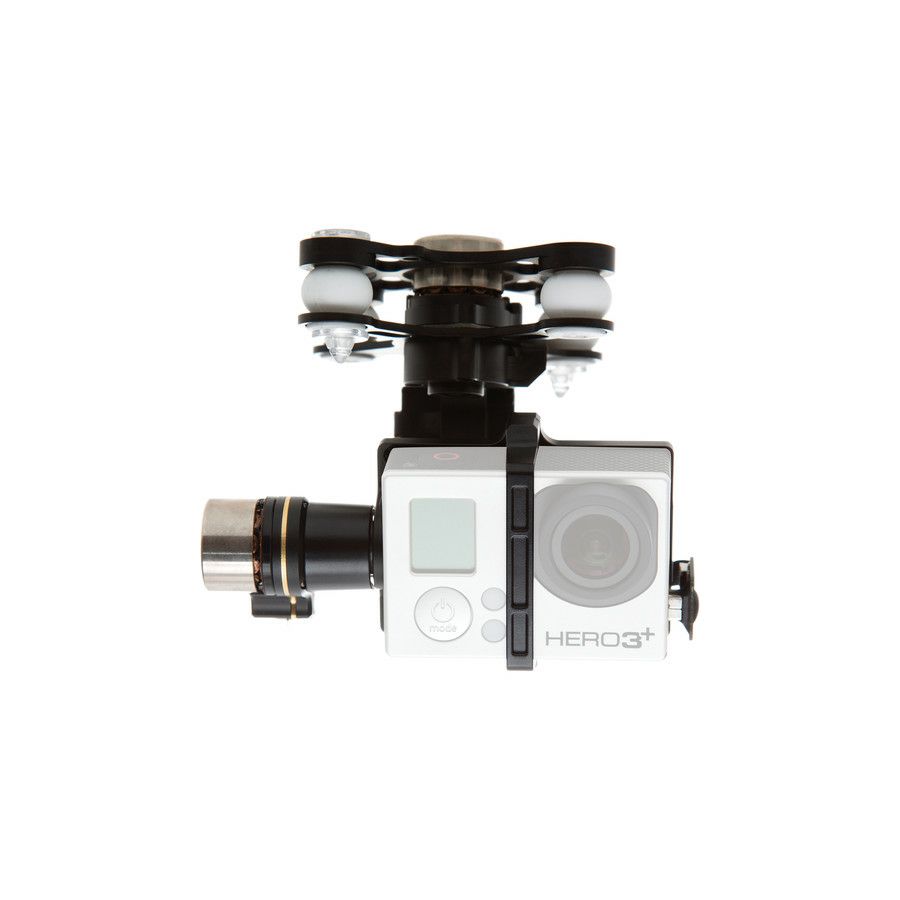

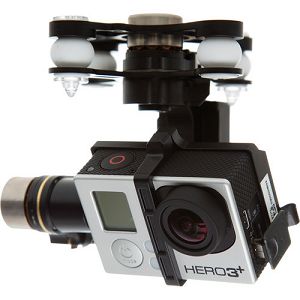

Note: This system is for the naked, unmodified GoPro HERO3, HERO3+, or HERO4 action cameras only. Camera add-ons such as filters or housings will throw off the balance and could damage the gimbal.
Brushless servo control
Aluminum allow body
Built-in IMU module
Based on Zenmuse technology

Performance
Controlled Angle Accuracy Tilt/Roll: ±0.02°
Yaw: ±0.03°
Maximum Controlled Rotation Speed Tilt Axis: ±130°/s
Controlled Rotation Range Tilt Axis Control: -130 to +45°
General
Supported Flight Control Systems PHANTOM 2
Operating Current Consumption Static Current: 400 mA at 12 V
Dynamic Current: 600 mA at 12 V
Power Requirements Uses Phantom 2 Flight Battery
System Requirements For Assistant Software: Windows 8, 7, Vista, or XP SP3
Operating Temperature 50 to 122°F / 10 to 50°C
Dimensions Gimbal 3.8 x 3.7 x 2.89" / 97 x 95 x 73 mm
Weight Gimbal: 5.9 oz / 168 g -- without camera
