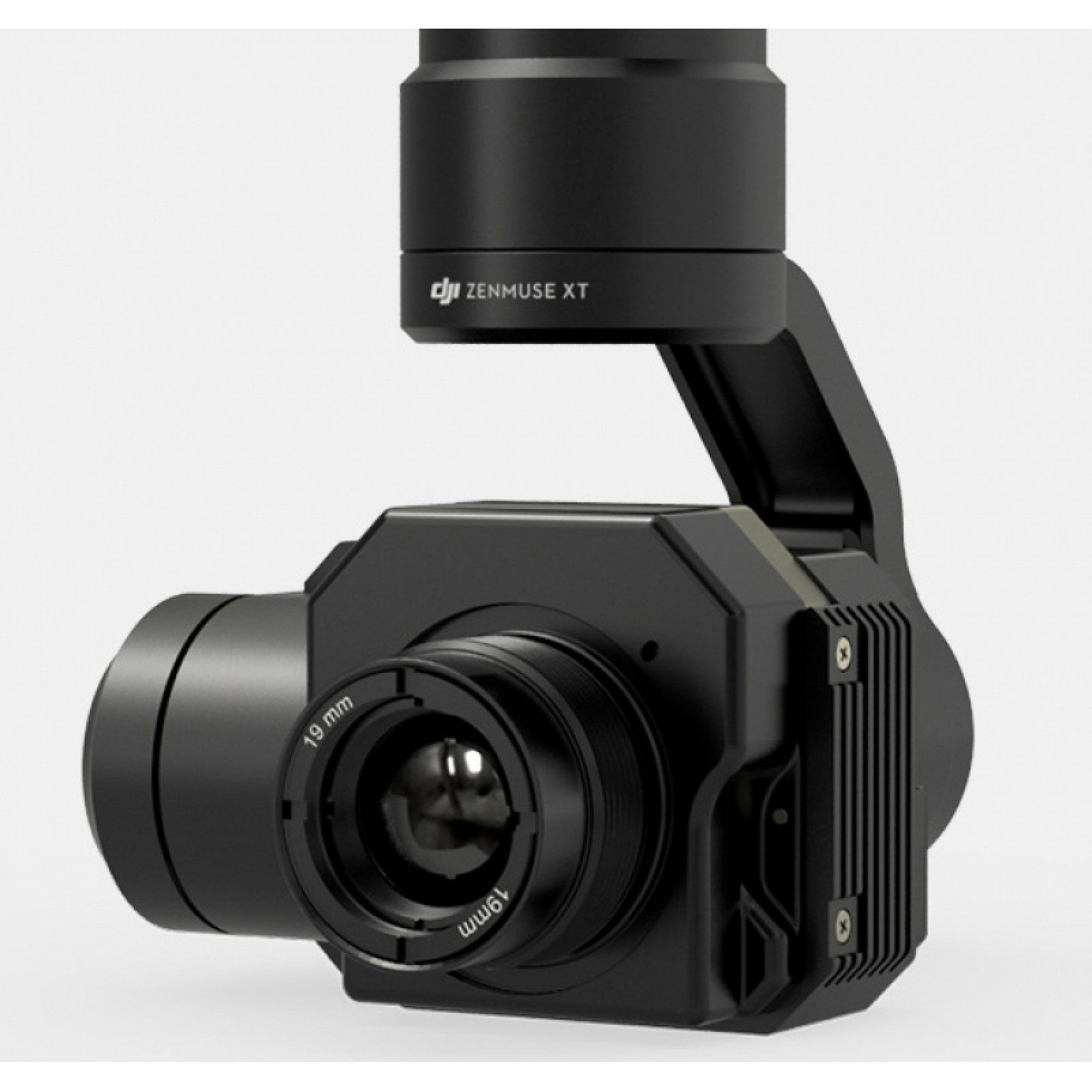

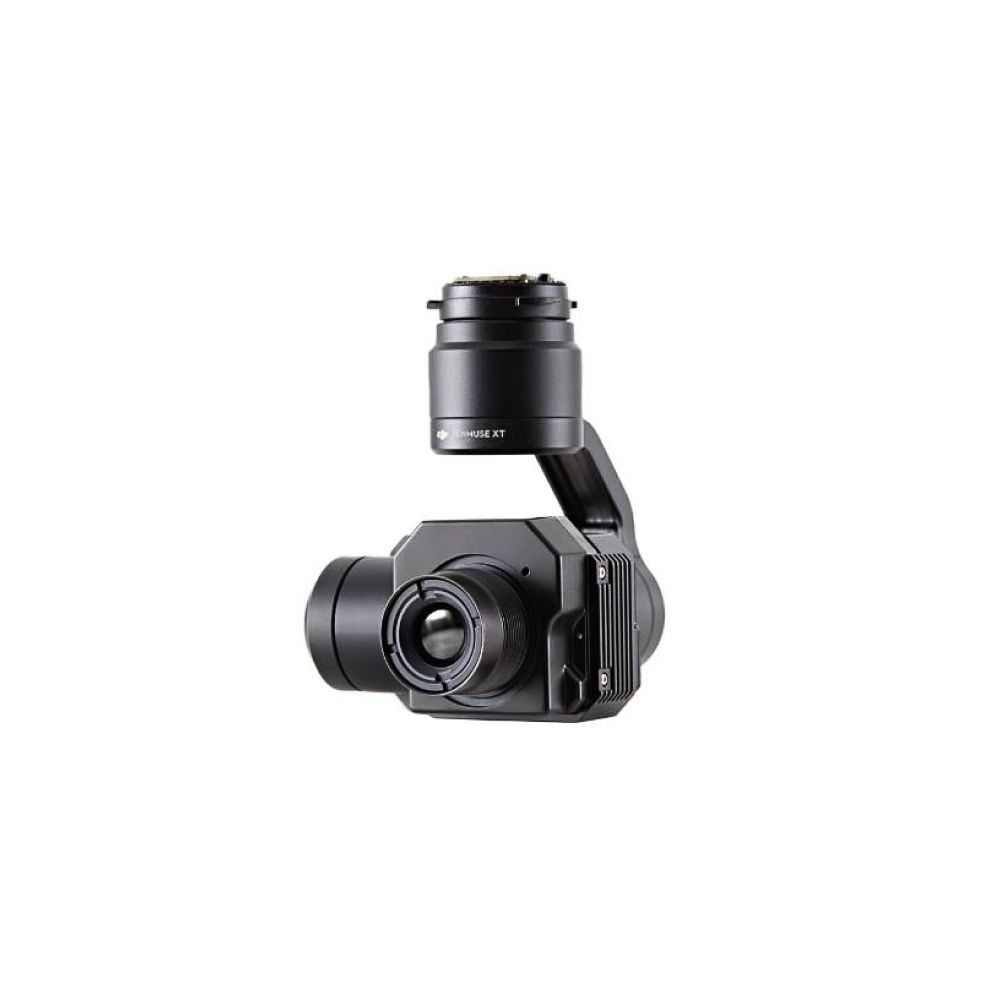

DJI Zenmuse XT Thermal Camera ZXTA09SR 640x512 9Hz (Slow frame) Lens 9mm objektiv termovizijska kamera (radiometry temperature measurement model)

ZNAČAJKE:

INTEGRATED THERMAL CAMERA
The camera on the DJI Zenmuse XT is developed by FLIR. It provides high-sensitivity (50mK) infrared scanning at 640/30 fps or 336/60 fps depending on the camera model. This sensitivity provides accurate temperature measurements ideal for analytics and telemetry. Both cameras are available with four lens options to meet different business needs. Stabilized and controlled by a custom DJI gimbal, it provides smooth, clear imagery and 360 degrees of seamless rotational movement.

IMAGE ENHANCEMENT SOFTWARE
Infra-red imagery requires optimization to ensure maximum definition for capturing information. The Zenmuse XT features a suite of image enhancements designed by FLIR including Digital Detail Enhancement™ (DDE); Smart Scene Optimization™ (SSO), which enhances extremes in bi-modal scenes; Active Contrast Enhancement™ (ACE) that adjusts scene contrast relative to its temperature difference; and Information Based HEQ™ (IBHEQ) which compresses complex image data to create the best quality image.

FINGERTIP CONTROL

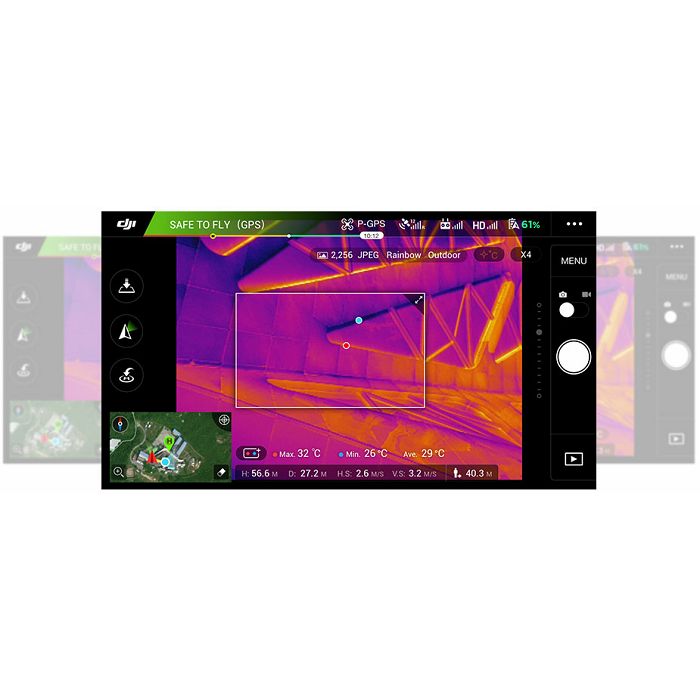

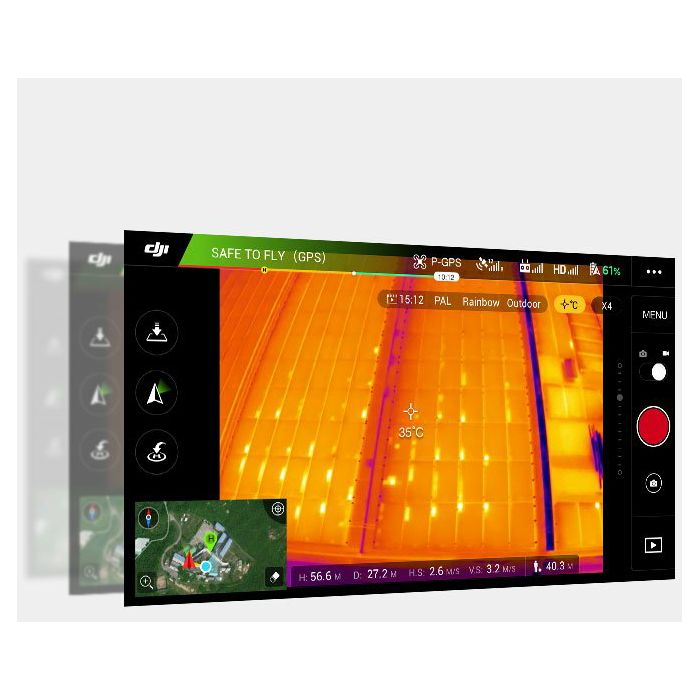

The Zenmuse XT can be controlled completely through the DJI GO app, providing a real-time, low latency view of what the camera sees, and instant access to core camera functions including:

Spot metering, temperature measurement at the mid-point
Digital zoom
Single or interval shooting modes
Photo, video preview and download
Take photos while recording video
Various camera settings and parameters including:
- Palette, also referred to as Look-up Table (LUT)
- Scene, also referred to as Automatic Gain Correction (AGC)
- Region of Interest (ROI)
- Isotherm mode

MISSION READY

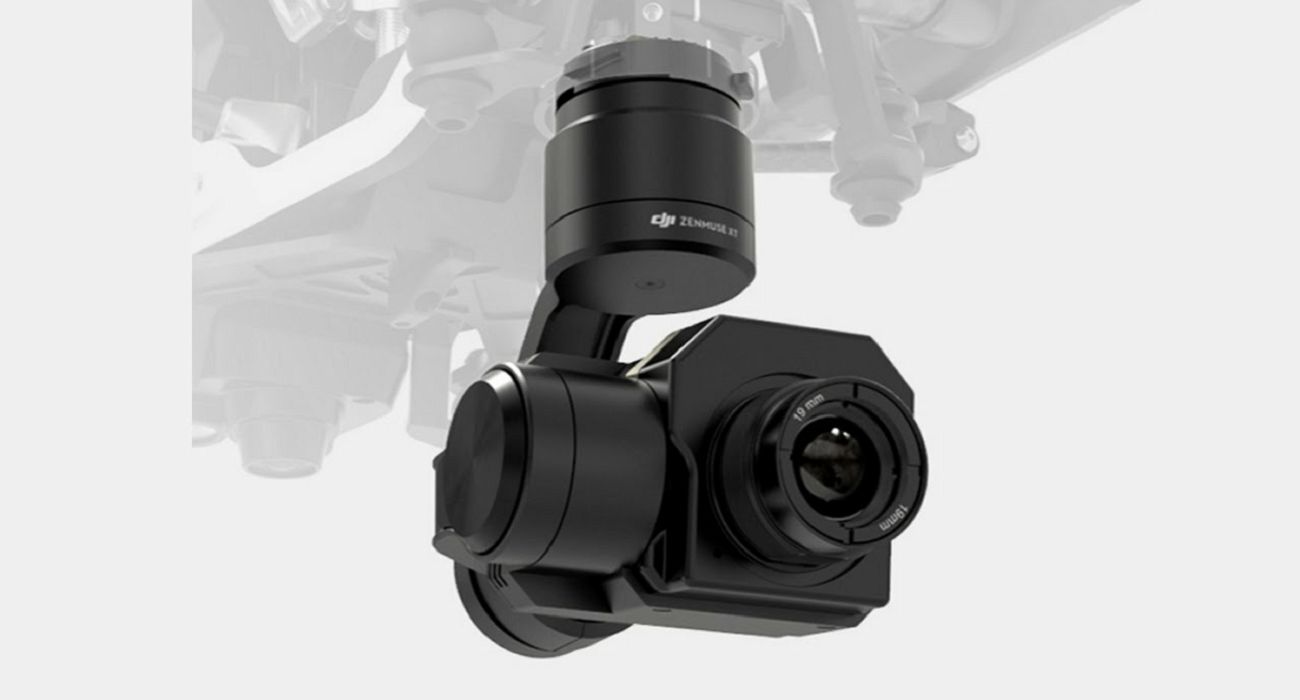

Mounted on either the Inspire 1 or the Matrice 100, the Zenmuse XT is ready to launch in seconds. Its seamless integration gives you access to important features like DJI’s powerful Lightbridge video transmission system, automated Point of Interest, Course and Home Lock, Follow Me, and the DJI SDK.
Fast, efficient, yet stable airframes, the Inspire 1 will keep the Zenmuse XT aloft for 22 minutes. If used with the Matrice 100, the Zenmuse XT can stay in flight for up to 35 minutes*, ideal for large scale inspections and especially useful in search and rescue scenarios.

SPECIFIKACIJE:

High-sensitivity (50mK) infrared thermal scanning
Single or interval shooting modes
Spot metering, temperature measurement at the mid-point
Take photos while recording video
103 mm x 74 mm x 102 mm, 270g
SKU FLIRXT640-9HZ
WEIGHT 3.0000
MANUFACTURER DJI
F.A.Q. No
IN THE BOX No
UPC No
VIDEO RESOLUTION N/A

General
Model Zenmuse XT
Dimensions 103 mm x 74 mm x 102 mm
Weight 270 g
Camera
Thermal Imager Uncooled VOx Microbolometer
FPA/Digital Video Display Formats

640 × 512
336 × 256

Analog Video Display Formats 720 × 480 (NTSC); 720 × 576 (PAL)
Pixel Pitch 17 µm
Spectral Band 7.5 - 13.5 µm
Full Frame Rates

640 × 512:30 Hz (NTSC) 25 Hz (PAL)

336 × 256:30 Hz (NTSC) 25 Hz (PAL)

Exportable Frame Rates 7.5 Hz NTSC; 8.3 Hz PAL
Sensitivity (NEdT) <50 mK at f/1.0
Scene Range (High Gain)

640 × 512:-13° to 275°F (-25° to 135°C)
336 × 256:-13° to 212°F (-25° to 100°C)

Scene Range (Low Gain) -40° to 1022°F (-40° to 550°C)
Spot Meter Temperatures measured in central 4×4
File Storage Micro SD Card
Photo Format JPEG, TIFF
Video Format MP4
Environmental
Operating Temperature Range 14° to 104°F (-10° to 40 ?)
Non-Operating Temperature Range -22° to 158°F (-30° to 70 ?)
Temperature Shock 5 ?/min
Humidity 5% to 95%
Gimbal
Angular Vibration Range ±0.03°
Mount Detachable
Controllable Range Tilt:+35° to -90°; Pan:±320°; Roll:±15°
Mechanical Range Tilt:+45° to -135° Pan:±320° Roll:±45°
Max Controllable Speed 120°/s
Image Processing & Display Controls
NTSC/PAL (field switchable) yes
Image Optimization yes
Digital Detail Enhancement yes
Polarity Control (black hot/white hot) yes
Color & Monochrome Palettes (LUTs) yes
Digital Zoom
640 × 512:

2x, 4x, 8x


336 × 256:

2x, 4x
Lens Models
Lens Models 6.8 mm 7.5 mm 9 mm 13 mm 19 mm
17µ 640×512 FoV
iFoV / f/1.4
90° x 69°
2.267 mr f/1.4
69° x 56°
1.889 mr f/1.25
45° x 37°
1.308 mr f/1.25
32° x 26°
0.895 mr
17µ 336×256 FoV
iFoV f/1.4
49.1° x 37.4°
2.519 mr / f/1.25
35° x 27°
1.889 mr f/1.25
25° x 19°
1.308 mr f/1.25
17° x 13°
0.895 mr
Min Focus Distance 2.3 cm 2.5 cm 3.2 cm 7.6 cm 15.3 cm
Hyperfocal Distance 1.2 m 1.2 m 2.1 m 4.4 m 9.5 m
Hyperfocal Depth of Field 0.6 m 0.6 m 1.1 m 2.2 m 4.8 m
