DJI Zenmuse XT Thermal Camera ZXTA19FP 640x512 30Hz (Fast frame) Lens 19mm objektiv termovizijska kamera (point temperature measurement model)
ZNAČAJKE:
DJI XT THERMAL CAMERA - UNLOCK THE POSSIBILITIES OF SIGHT
Thermal imaging from the air has never been as easy as it is with the DJI Zenmuse XT. By combining DJI’s unrivalled expertise in gimbal technology and image transmission with the industry leading thermal imaging technology of FLIR, the Zenmuse XT is the ultimate solution for rapid and reliable aerial thermal imaging. Capture faster, with pinpoint precision, over large areas, then save them for analysis and reporting.

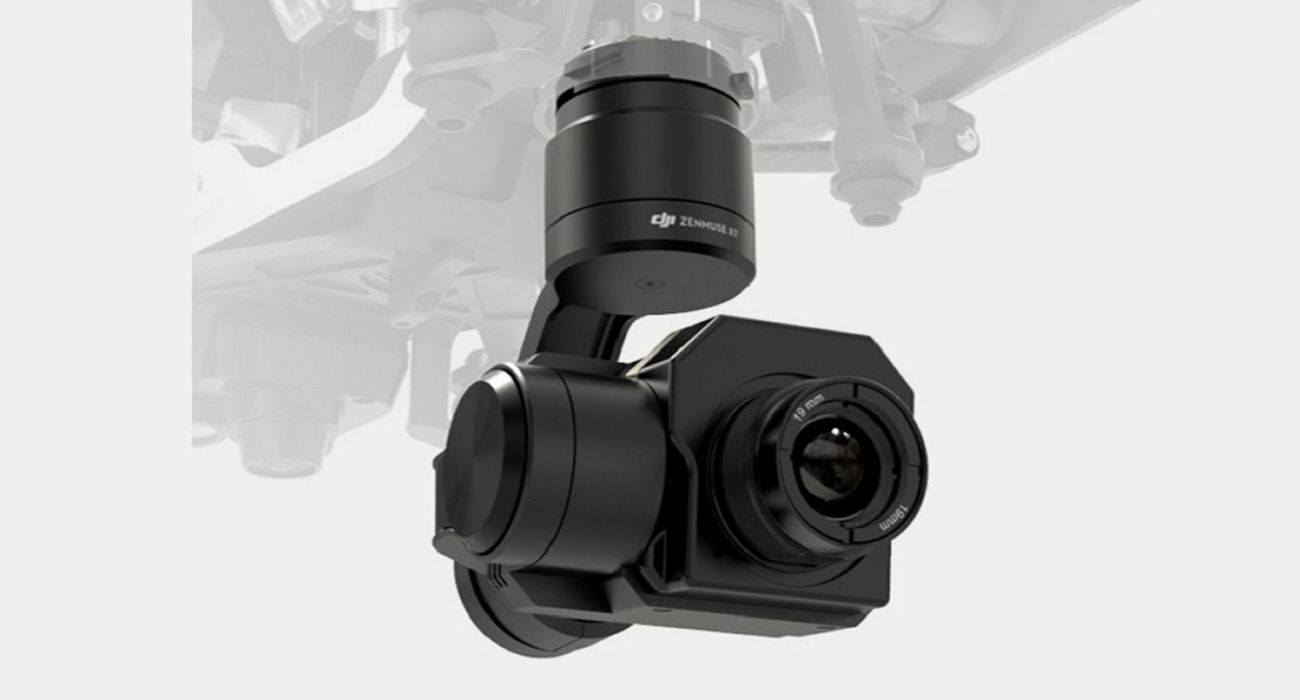

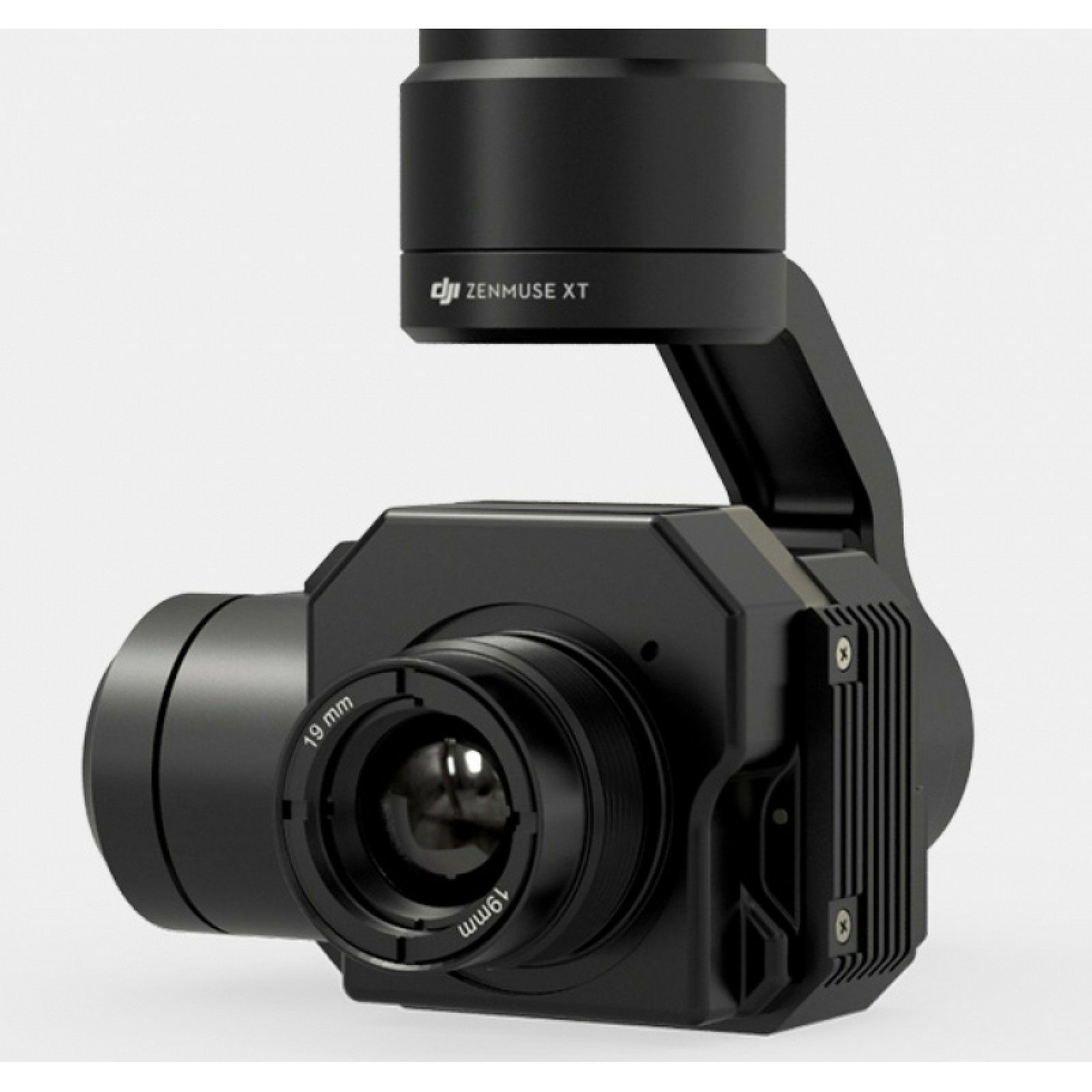

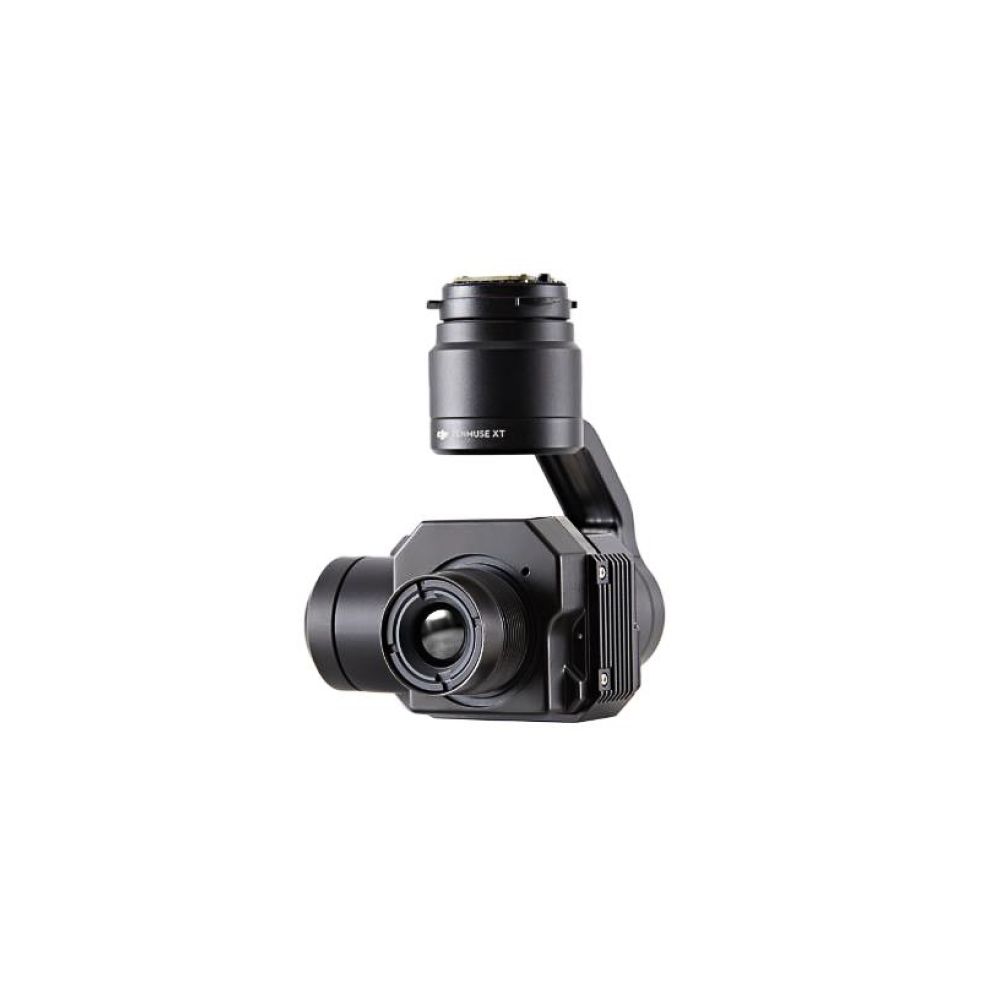

INTEGRATED THERMAL CAMERA
The camera on the DJI Zenmuse XT is developed by FLIR. It provides high-sensitivity (50mK) infrared scanning at 640/30 fps or 336/60 fps depending on the camera model. This sensitivity provides accurate temperature measurements ideal for analytics and telemetry. Both cameras are available with four lens options to meet different business needs. Stabilised and controlled by a custom DJI gimbal, it provides smooth, clear imagery and 360 degrees of seamless rotational movement.
APPLICATIONS
See the unseen. FLIR cameras reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.
IMAGE ENHANCEMENT SOFTWARE
Infra-red imagery requires optimisation to ensure maximum definition for capturing information. The Zenmuse XT features a suite of image enhancements designed by FLIR including Digital Detail Enhancement™ (DDE); Smart Scene Optimisation™ (SSO), which enhances extremes in bi-modal scenes; Active Contrast Enhancement™ (ACE) that adjusts scene contrast relative to its temperature difference; and Information Based HEQ™ (IBHEQ) which compresses complex image data to create the best quality image.

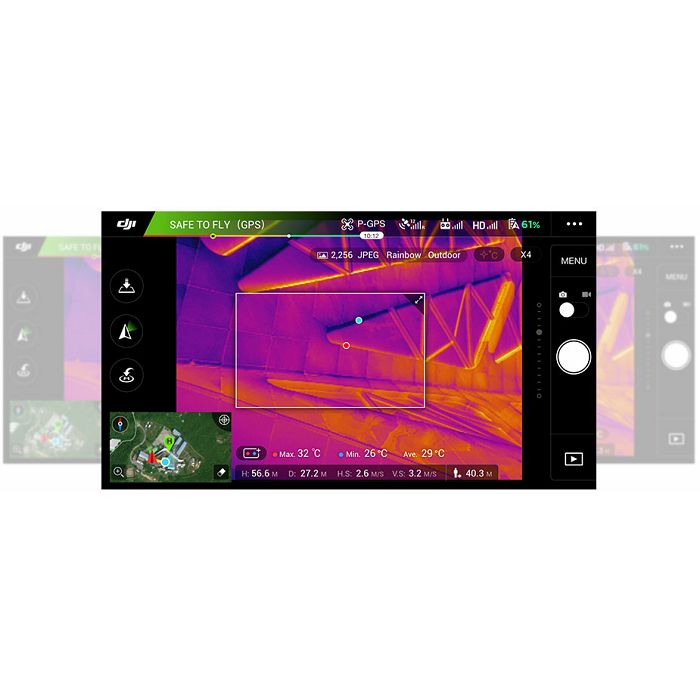

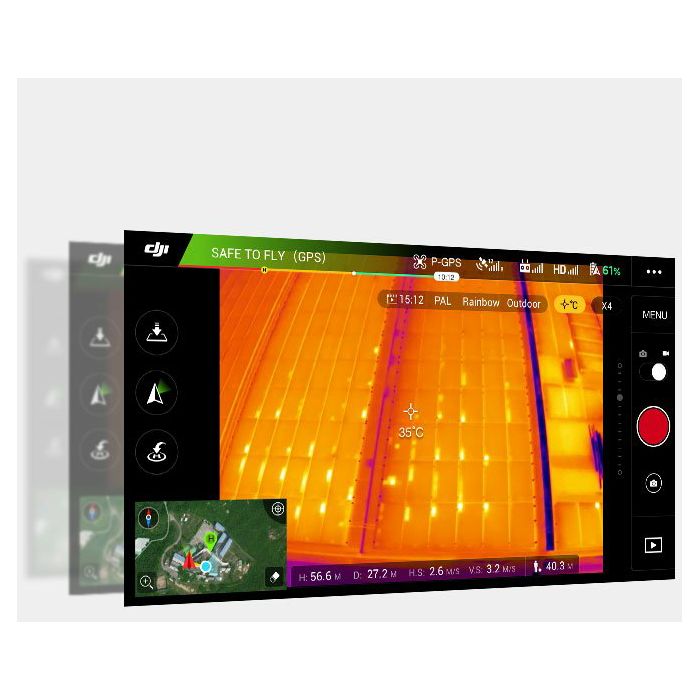

FINGERTIP CONTROL
The Zenmuse XT can be controlled completely through the DJI GO app, providing a real-time, low latency view of what the camera sees, and instant access to core camera functions including:
Spot metering, temperature measurement at the mid-point Digital zoom Single or interval shooting modes Photo, video preview and download Take photos while recording video Various camera settings and parameters including: Palette, also referred to as Look-up Table (LUT) Scene, also referred to as Automatic Gain Correction (AGC) Region of Interest (ROI) Isotherm mode
SEAMLESS EFFICIENCY
When used with either the Inspire 1 or the Matrice 100, the Zenmuse XT can be put into the air in seconds. It is seamlessly integrated, giving it complete access to key features including the powerful Lightbridge video transmission system (providing up to 3.1 miles (5KM*) of HD range), automated Point of Interest, Course and Home Lock, Follow Me, and the DJI SDK.
When combined with the Inspire 1, the Zenmuse XT works with incredible speed, efficiency and convenience. If used with the Matrice 100, the Zenmuse XT can stay in-flight for up to 35 minutes*, ideal for large scale inspections and especially useful in search and rescue scenarios.
SPECIFIKACIJE:
Model:ZXTA19FP Resolution: 640x512 Lens: 19mm Frame rate: 30Hz General Model Zenmuse XT Dimensions 103 mm x 74 mm x 102 mm Weight 270 g Camera Thermal Imager Uncooled VOx Microbolometer FPA/Digital Video Display Formats
640 × 512 336 × 256
Analog Video Display Formats 720 × 480 (NTSC); 720 × 576 (PAL) Pixel Pitch 17 µm Spectral Band 7.5 - 13.5 µm Full Frame Rates
640 × 512:30 Hz (NTSC) 25 Hz (PAL)
336 × 256:30 Hz (NTSC) 25 Hz (PAL)
Exportable Frame Rates 7.5 Hz NTSC; 8.3 Hz PAL Sensitivity (NEdT) <50 mK at f/1.0 Scene Range (High Gain)
640 × 512:-13° to 275°F (-25° to 135°C) 336 × 256:-13° to 212°F (-25° to 100°C)
Scene Range (Low Gain) -40° to 1022°F (-40° to 550°C) Spot Meter Temperatures measured in central 4×4 File Storage Micro SD Card Photo Format JPEG, TIFF Video Format MP4 Environmental Operating Temperature Range 14° to 104°F (-10° to 40 ?) Non-Operating Temperature Range -22° to 158°F (-30° to 70 ?) Temperature Shock 5 ?/min Humidity 5% to 95% Gimbal Angular Vibration Range ±0.03° Mount Detachable Controllable Range Tilt:+35° to -90°; Pan:±320°; Roll:±15° Mechanical Range Tilt:+45° to -135° Pan:±320° Roll:±45° Max Controllable Speed 120°/s Image Processing & Display Controls NTSC/PAL (field switchable) yes Image Optimization yes Digital Detail Enhancement yes Polarity Control (black hot/white hot) yes Color & Monochrome Palettes (LUTs) yes Digital Zoom 640 × 512:
2x, 4x, 8x
336 × 256:
2x, 4x Lens Models Lens Models 6.8 mm 7.5 mm 9 mm 13 mm 19 mm 17µ 640×512 FoV iFoV / f/1.4 90° x 69° 2.267 mr f/1.4 69° x 56° 1.889 mr f/1.25 45° x 37° 1.308 mr f/1.25 32° x 26° 0.895 mr 17µ 336×256 FoV iFoV f/1.4 49.1° x 37.4° 2.519 mr / f/1.25 35° x 27° 1.889 mr f/1.25 25° x 19° 1.308 mr f/1.25 17° x 13° 0.895 mr Min Focus Distance 2.3 cm 2.5 cm 3.2 cm 7.6 cm 15.3 cm Hyperfocal Distance 1.2 m 1.2 m 2.1 m 4.4 m 9.5 m Hyperfocal Depth of Field 0.6 m 0.6 m 1.1 m 2.2 m 4.8 m
