DJI Zenmuse XT Thermal Camera ZXTB13FR 336x256 30Hz (Fast frame) Lens 13mm objektiv termovizijska kamera (radiometry temperature measurement model)

ZNAČAJKE:

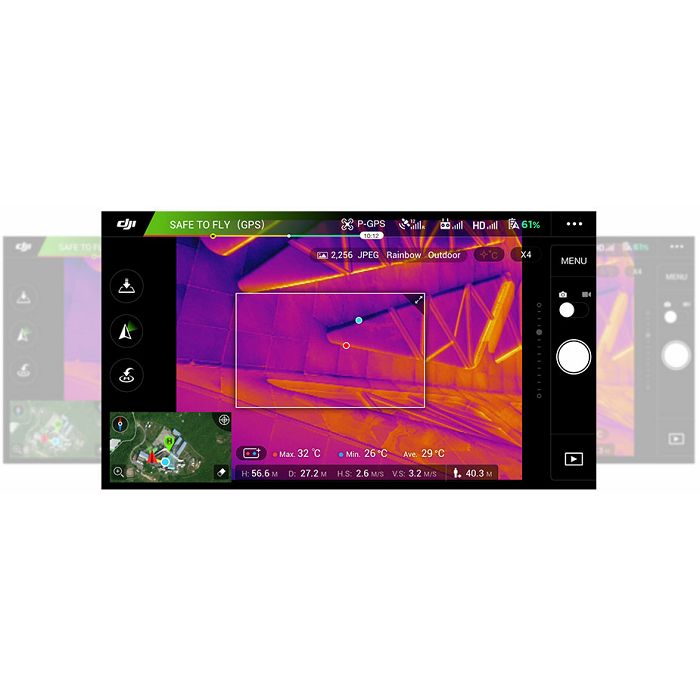

The Zenmuse XT Advanced Radiometry camera provides twice the temperature measurement accuracy of the standard Zenmuse XT along with new analysis and recording functions. Simply tap any point in an on-screen image to view the temperature of that point or select an area to measure the average, highest and lowest temperatures as well as their location. The camera can also be calibrated to further increase temperature measurement precision by setting external parameters including background temperature, scene emissivity and more. If photos are captured in the TIFF format, the temperature of each pixel can be recorded for further processing and analysis. A temperature alert threshold can be set, automatically activating when that temperature is detected. This capability could simplify and accelerate search and rescue and inspection activities.

DJI XT THERMAL CAMERA - UNLOCK THE POSSIBILITIES OF SIGHT

Thermal imaging from the air has never been as easy as it is with the DJI Zenmuse XT. By combining DJI’s unrivalled expertise in gimbal technology and image transmission with the industry leading thermal imaging technology of FLIR, the Zenmuse XT is the ultimate solution for rapid and reliable aerial thermal imaging. Capture faster, with pinpoint precision, over large areas, then save them for analysis and reporting.

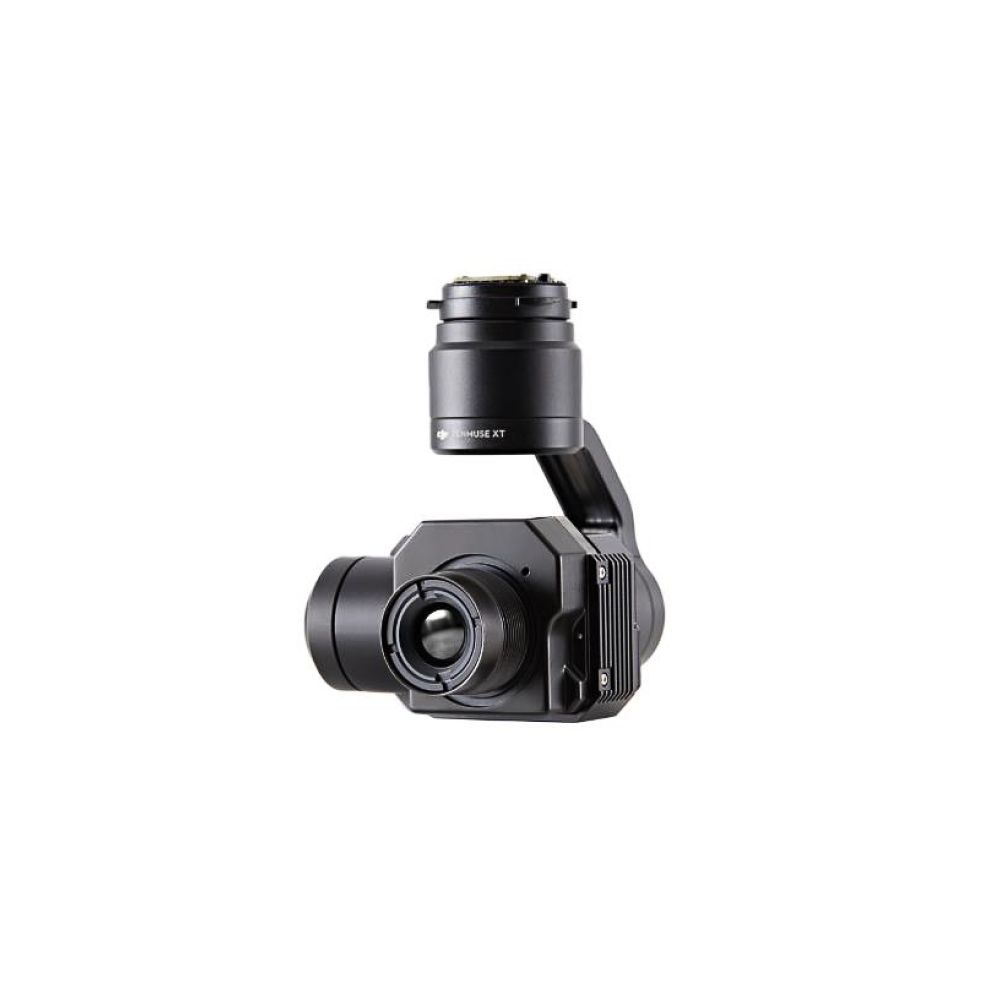

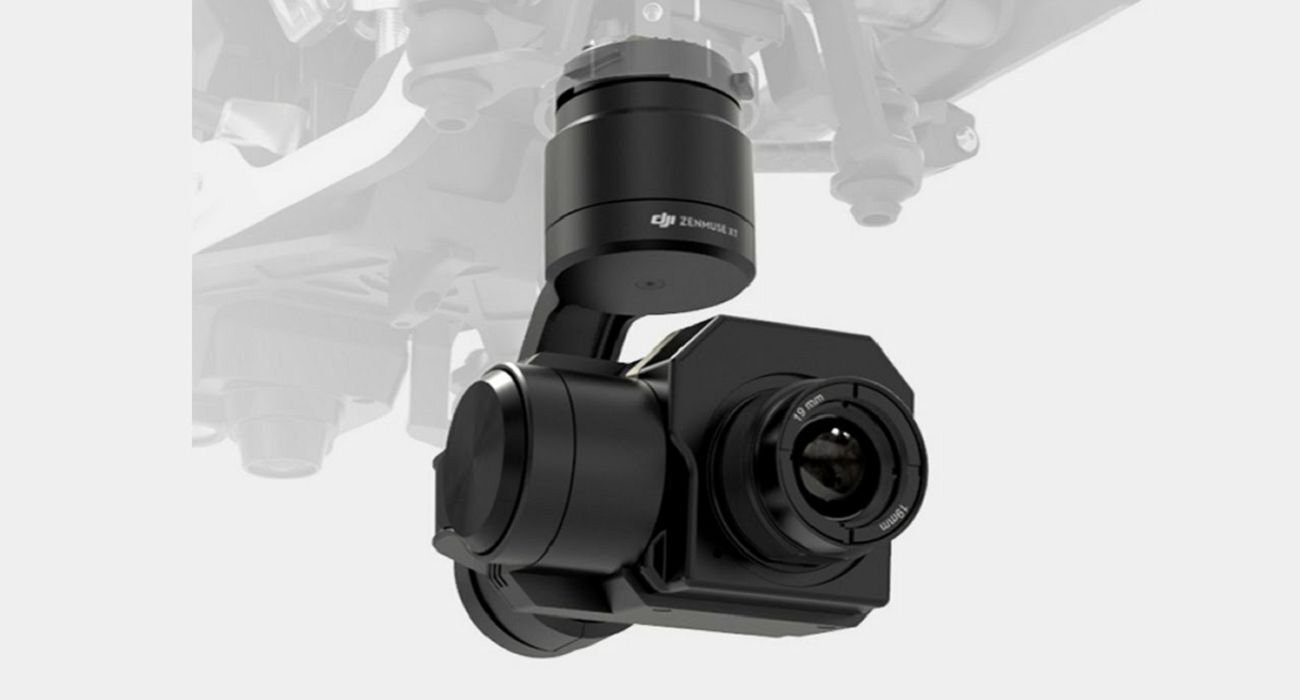

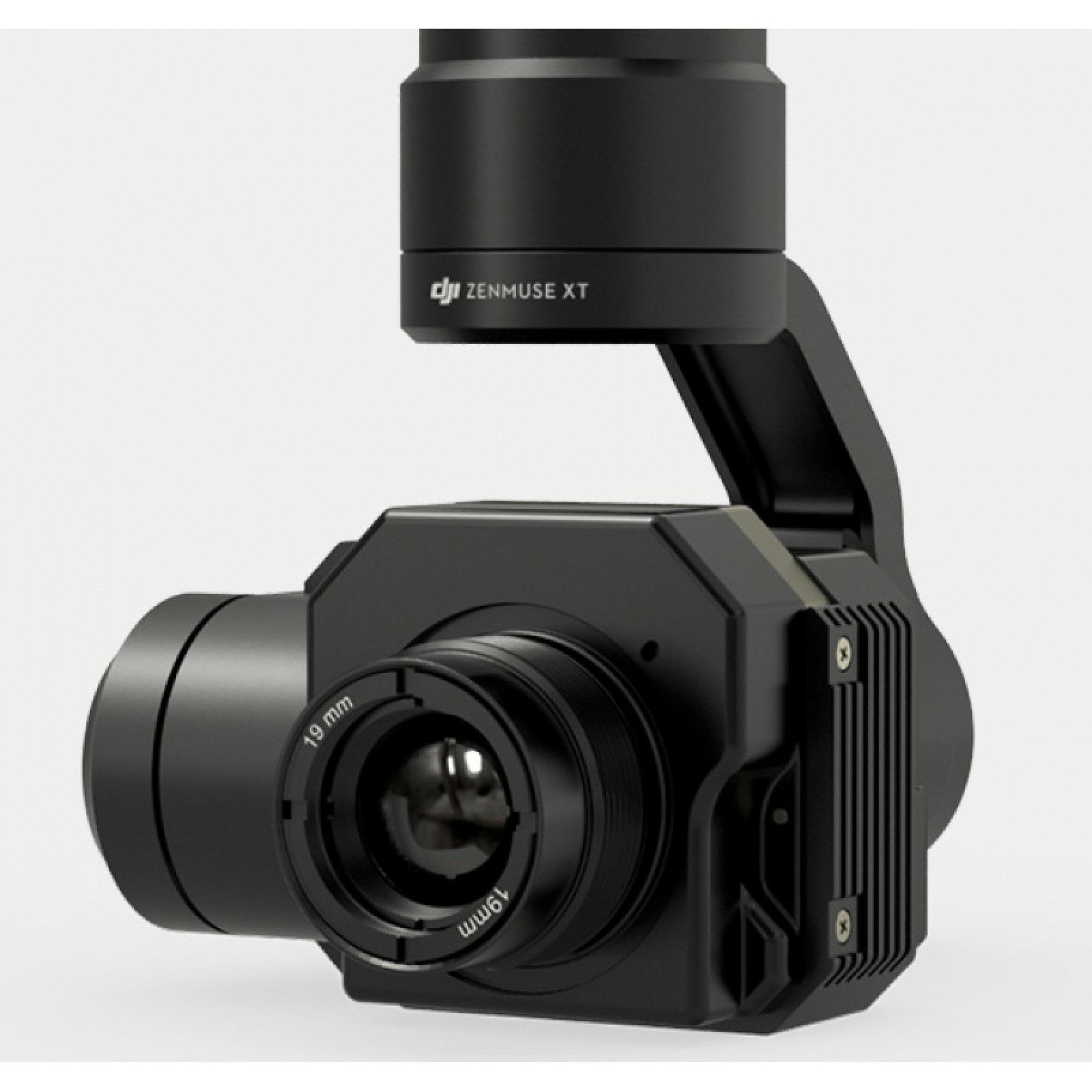

INTEGRATED THERMAL CAMERA

The camera on the DJI Zenmuse XT is developed by FLIR. It provides high-sensitivity (50mK) infrared scanning at 640/30 fps or 336/60 fps depending on the camera model. This sensitivity provides accurate temperature measurements ideal for analytics and telemetry. Both cameras are available with four lens options to meet different business needs. Stabilised and controlled by a custom DJI gimbal, it provides smooth, clear imagery and 360 degrees of seamless rotational movement.

APPLICATIONS

See the unseen. FLIR cameras reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.

IMAGE ENHANCEMENT SOFTWARE

Infra-red imagery requires optimisation to ensure maximum definition for capturing information. The Zenmuse XT features a suite of image enhancements designed by FLIR including Digital Detail Enhancement™ (DDE); Smart Scene Optimisation™ (SSO), which enhances extremes in bi-modal scenes; Active Contrast Enhancement™ (ACE) that adjusts scene contrast relative to its temperature difference; and Information Based HEQ™ (IBHEQ) which compresses complex image data to create the best quality image.

FINGERTIP CONTROL

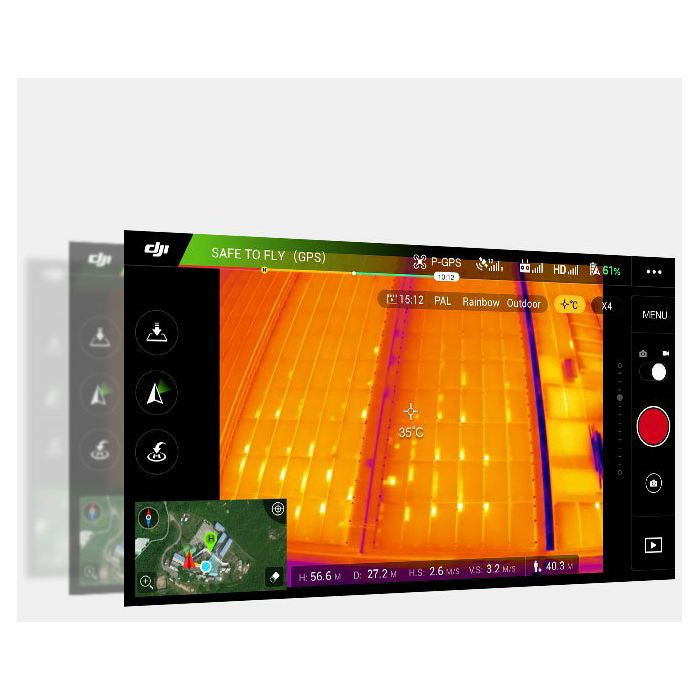

The Zenmuse XT can be controlled completely through the DJI GO app, providing a real-time, low latency view of what the camera sees, and instant access to core camera functions including:

Spot metering, temperature measurement at the mid-point
Digital zoom
Single or interval shooting modes
Photo, video preview and download
Take photos while recording video
Various camera settings and parameters including:
Palette, also referred to as Look-up Table (LUT)
Scene, also referred to as Automatic Gain Correction (AGC)
Region of Interest (ROI)
Isotherm mode

SEAMLESS EFFICIENCY

When used with either the Inspire 1 or the Matrice 100, the Zenmuse XT can be put into the air in seconds. It is seamlessly integrated, giving it complete access to key features including the powerful Lightbridge video transmission system (providing up to 3.1 miles (5KM*) of HD range), automated Point of Interest, Course and Home Lock, Follow Me, and the DJI SDK.

SPECIFIKACIJE:

model: ZXTB13FR
resolution: 336*256
lens: 13 mm
frame rate: 30Hz
temperature measurement type: Radiometry

General
Model Zenmuse XT
Dimensions 103 mm x 74 mm x 102 mm
Weight 270 g
Camera
Thermal Imager Uncooled VOx Microbolometer
FPA/Digital Video Display Formats

640 × 512
336 × 256

Analog Video Display Formats 720 × 480 (NTSC); 720 × 576 (PAL)
Pixel Pitch 17 µm
Spectral Band 7.5 - 13.5 µm
Full Frame Rates

640 × 512:30 Hz (NTSC) 25 Hz (PAL)

336 × 256:30 Hz (NTSC) 25 Hz (PAL)

Exportable Frame Rates 7.5 Hz NTSC; 8.3 Hz PAL
Sensitivity (NEdT) <50 mK at f/1.0
Scene Range (High Gain)

640 × 512:-13° to 275°F (-25° to 135°C)
336 × 256:-13° to 212°F (-25° to 100°C)

Scene Range (Low Gain) -40° to 1022°F (-40° to 550°C)
Spot Meter Temperatures measured in central 4×4
File Storage Micro SD Card
Photo Format JPEG, TIFF
Video Format MP4
Environmental
Operating Temperature Range 14° to 104°F (-10° to 40 ?)
Non-Operating Temperature Range -22° to 158°F (-30° to 70 ?)
Temperature Shock 5 ?/min
Humidity 5% to 95%
Gimbal
Angular Vibration Range ±0.03°
Mount Detachable
Controllable Range Tilt:+35° to -90°; Pan:±320°; Roll:±15°
Mechanical Range Tilt:+45° to -135° Pan:±320° Roll:±45°
Max Controllable Speed 120°/s
Image Processing & Display Controls
NTSC/PAL (field switchable) yes
Image Optimization yes
Digital Detail Enhancement yes
Polarity Control (black hot/white hot) yes
Color & Monochrome Palettes (LUTs) yes
Digital Zoom
640 × 512:

2x, 4x, 8x


336 × 256:

2x, 4x
Lens Models
Lens Models 6.8 mm 7.5 mm 9 mm 13 mm 19 mm
17µ 640×512 FoV
iFoV / f/1.4
90° x 69°
2.267 mr f/1.4
69° x 56°
1.889 mr f/1.25
45° x 37°
1.308 mr f/1.25
32° x 26°
0.895 mr
17µ 336×256 FoV
iFoV f/1.4
49.1° x 37.4°
2.519 mr / f/1.25
35° x 27°
1.889 mr f/1.25
25° x 19°
1.308 mr f/1.25
17° x 13°
0.895 mr
Min Focus Distance 2.3 cm 2.5 cm 3.2 cm 7.6 cm 15.3 cm
Hyperfocal Distance 1.2 m 1.2 m 2.1 m 4.4 m 9.5 m
Hyperfocal Depth of Field 0.6 m 0.6 m 1.1 m 2.2 m 4.8 m
